1995 OLDSMOBILE AURORA Owners Manual

Contact your retailer to learn how to prepare your
vehicle
for longer storage periods.
Halogen Bulbs

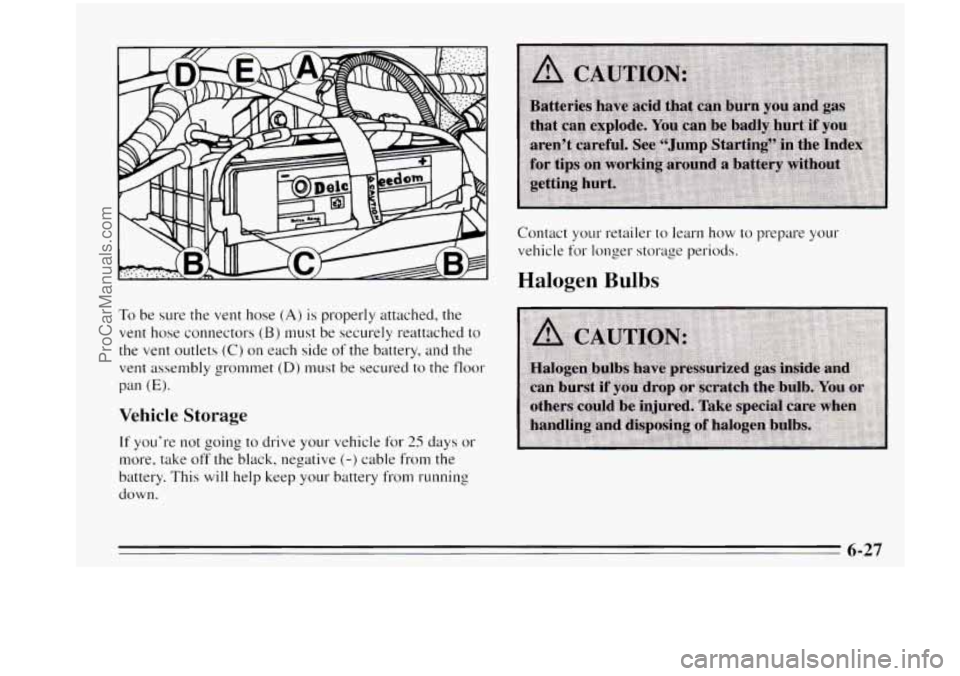

To be sure the vent hose (A) is properly attached, the
vent hose connectors (B) must be securely reattached to
the vent outlets (C) on each side of the battery, and the
vent assembly grommet
(D) must be secured to the floor
pan
(E).
Vehicle Storage
If you're not going to drive your vehicle for 25 days or
more, take off the black, negative (-) cable from the
battery. This will help keep your battery from running
down.
6-27
ProCarManuals.com

Headlamp Aiming
Your vehicle has the composite headlamp system. These
headlamps have horizontal and vertical aim indicators.
The
aim has been pre-set at the hctory and should need
no further adjustment.
If your vehicle is damaged in an accident and the
headlamp aim seems to be affected, see your Aurora
retailer. Headlamps
on damaged vehicles may require
recalibration
of the horizontal aim by your Aurora
retailer.
To check the aim, the vehicle should be properly
prepared as follows:
The vehicle must have all four tires on a perfectly
level surface.
The vehicle should not have any snow, ice, or mud
attached
to it.
0 There should not be any cargo or loading of vehicle,
except
it should have a full tank of gas and one
person or
160 Ibs. (75 kg) on the driver's seat.
Tires should be properly inflated.
I NOTICE:
To make sure your headlamps are aimed
properly, read all the instructions before
beginning. Failure to
follow these instructions
could cause damage to headlamp parts.
State inspection stations will allow a vertical reading of
plus
0.76 degrees or minus 0.76 degrees from the center
of the bubble.
It is recolnmended that the upper limit not exceed plus
0.4 degrees from the center of the bubble. Other drivers
may flash their bright lights at you
if your adjustment is
much above plus 0.4 degrees.
If you find that the headlamp aiming needs adjustment,
follow these steps:
Start with the vertical headlamp aim. Don't try to adjust
the horizontal aim first. Adjustment screws can be
turned
with an E8 Torx@socket or T1S TorxB
screwdriver.
6-28
ProCarManuals.com

1. Check the vertical aim for each headlamp and adjust
it as necessary. Turn the vertical aiming screw until
the bubble in the level is centered at 0 (zero).
2. Now acl-just the horizontal aim. Check the horizontal
aim for each headlamp and adjust
it as necessary.
TLII-11 the horizontal aiming screw
until the pointer is
lined
up with the 0 (zero).
3. Now, re-check the vertical aim, to make sure it is
still correct after the horizontal aim adjustment.
Read.just.
if necessary.
6-29
ProCarManuals.com

Headlamp Bulb Replacement
For the type of bulb, see "Replacement Bulbs'' in the
Index.
Low Beam Bulbs
1. Remove the air cleaner cover to get to the driver's
side headlamp bulb.
To do this:
a. Remove the radiator hose (A) from the resonator
channel.
b. Release tension of the wing screw clamp (B) on the
air intake duct where it attaches to the air cleaner
cover near the top
of the engine. Turn the wing
screw counterclockwise, then detach the hose
from
the air cleaner cover.
c. Push the duct and resonator assembly
(C) rearward
and up, and hold them out of the way.
2. Twist the bulb assembly 1/6 turn and pull out the
bulb assembly.
6-30
ProCarManuals.com

3. Unclip the bulb
assembly from the
wiring harness and
replace the bulb
assembly. High Beam Bulbs
1. Pull up on the wiring harness. This unlocks the bulb.
4. Reverse steps 1-3 to replace the bulb assembly,
headlamp housing and air cleaner cover and tube.
2. Now you can reach in behind the lamp housing and
pull out the bulb.
3. To replace the bulb, angle the new bulb into the
empty socket.
4.
Push the base of the bulb down to lock it into place.
6-3 1
ProCarManuals.com

Taillamp Bulb Replacement
For the type of bulb, see “Replacement Bulbs” in the
Index.
1. In the trunk, remove the convenience net from the
hooks. Next remove the plastic screws holding the
carpeting
in place and pull back the carpeting.
2. Unscrew the
convenience net
attachment nut. Open
the trim panel door.
3. Remove the two wing
nuts now exposed
6-32
ProCarManuals.com

4. Remove the taillamp filler screw located to the side
of the taillamp filler panel.
5. Pull out the lamp to reach the bulb. Pull out the bulb.
To replace, push the bulb back in.
6. Reverse steps 1-5 to replace the taillamp filler, wing
nuts and carpeting.
ProCarManuals.com

Windshield Wiper Blade Replacement
I
Replacement blades come in different types and are
removed
in different ways. Here’s how to remove the
type with
a release hole:
1. Pull the windshield wiper arm away from the
windshield.
2. Insert a small screwdriver into the hole (A) and pull
the blade assembly off the wiper arm (B).
3. Push the new wiper blade securely on the wiper arm.
Tires
We don’t make tires. Your new vehicle comes with high
quality tires made by
a leading tire manufacturer. These
tires are warranted by the tire manufacturers and their
warranties are delivered with every new Aurora.
If your
spare tire is a different brand than your road tires,
you
will have a tire warranty folder from each of these
manufacturers.
6-34
