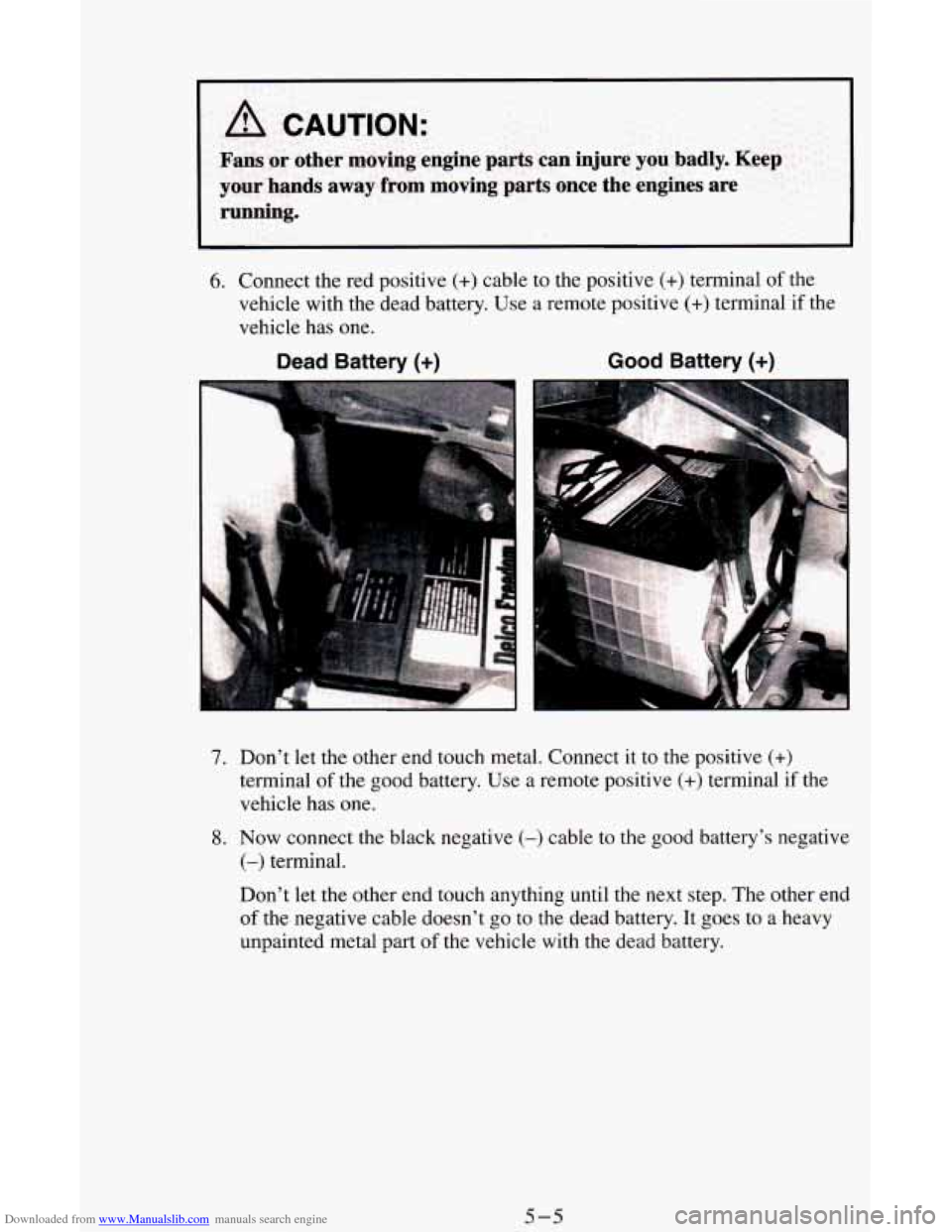

Page 177 of 342
Downloaded from www.Manualslib.com manuals search engine A CAUTION:
Fans or other moving engine parts can injure you badly. Keep
your hands away from moving parts once
the engines are
running.
6. Connect the red positive (+) cable to the positive (+) terminal of the
vehicle with the dead battery. Use a remote positive
(+) terminal if the
vehicle has one.
Dead Battery (+) Good Battery (+)
7. Don’t let the other end touch metal. Connect it to the positive (+)
terminal of the good battery. Use a remote positive (+) terminal if the
vehicle has one.
8. Now connect the black negative (-) cable to the good battery’s negative
(-) terminal.
Don’t let the other end touch anything until the next step. The other end
of the negative cable doesn’t go to the dead battery. It goes to a heavy
unpainted metal
part of the vehicle with the dead battery.
5-5
Page 178 of 342

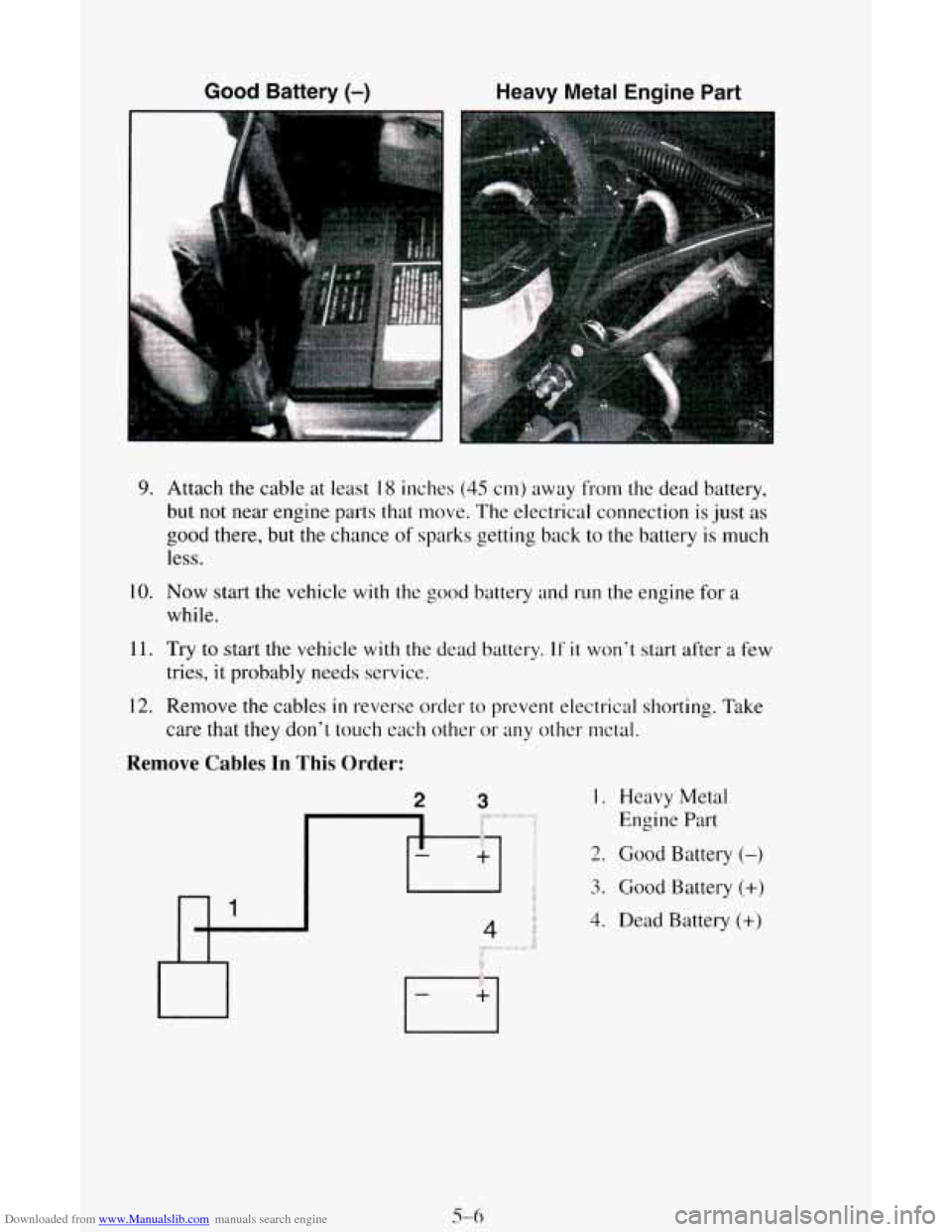

Downloaded from www.Manualslib.com manuals search engine Good Battery (-) Heavy Metal Engine Part
9. Attach the cable at least 18 inches (45 cm) away from the dead battery,
but not near engine parts that move. The electrical connection
is just as
good there, but the chance of sparks getting back to the battery is much
less.
10. Now start the vehicle with the good battery and r~~n the engine for a
while.
11. Try to start the vehicle with the dead battery. If it won’t start after a few
tries,
it probably needs service.
12. Remove the cables in reverse order to prevent electrical shorting. Take
care that they don’t touch each other
or any other mctal.
Remove Cables In This Order:
I. Heavy Metal
Engine Part
2. Good Battery (-)
3. Good Battery (+)
4. Dead Battery (+)
Page 179 of 342

Downloaded from www.Manualslib.com manuals search engine Towing Your Vehicle
Try to have a GM dealer or a professional towing service tow your vehicle.
They can provide the right equipment and know how to tow
it without
damage.
If your vehicle has been changed
or modified since it was factory-new by
adding aftermarket items like fog lamps, aero skirting, or special tires and
wheels, these things can be damaged during towing.
Before
you do anything, turn on the hazard warning flashers.
When
you call, tell the towing service:
0 Whether your vehicle has rear-wheel drive or the all-wheel-drive
option. If your vehicle has fog lamps, it cannot be towed from the front
with sling-type equipment.
The make, model, and year of your vehicle.
0 Whether you can still move the shift lever.
0 If there was an accident, what was damaged.
When your vehicle
is being towed, have the ignition key off. The steering
wheel should be clamped in a straight-ahead position, with
a clamping
device designed for towing service.
Do not use the vehicle’s steering
column lock for this.
The transmission should be in NEUTRAL (N) and the
parking brake released.
5-7
Page 180 of 342

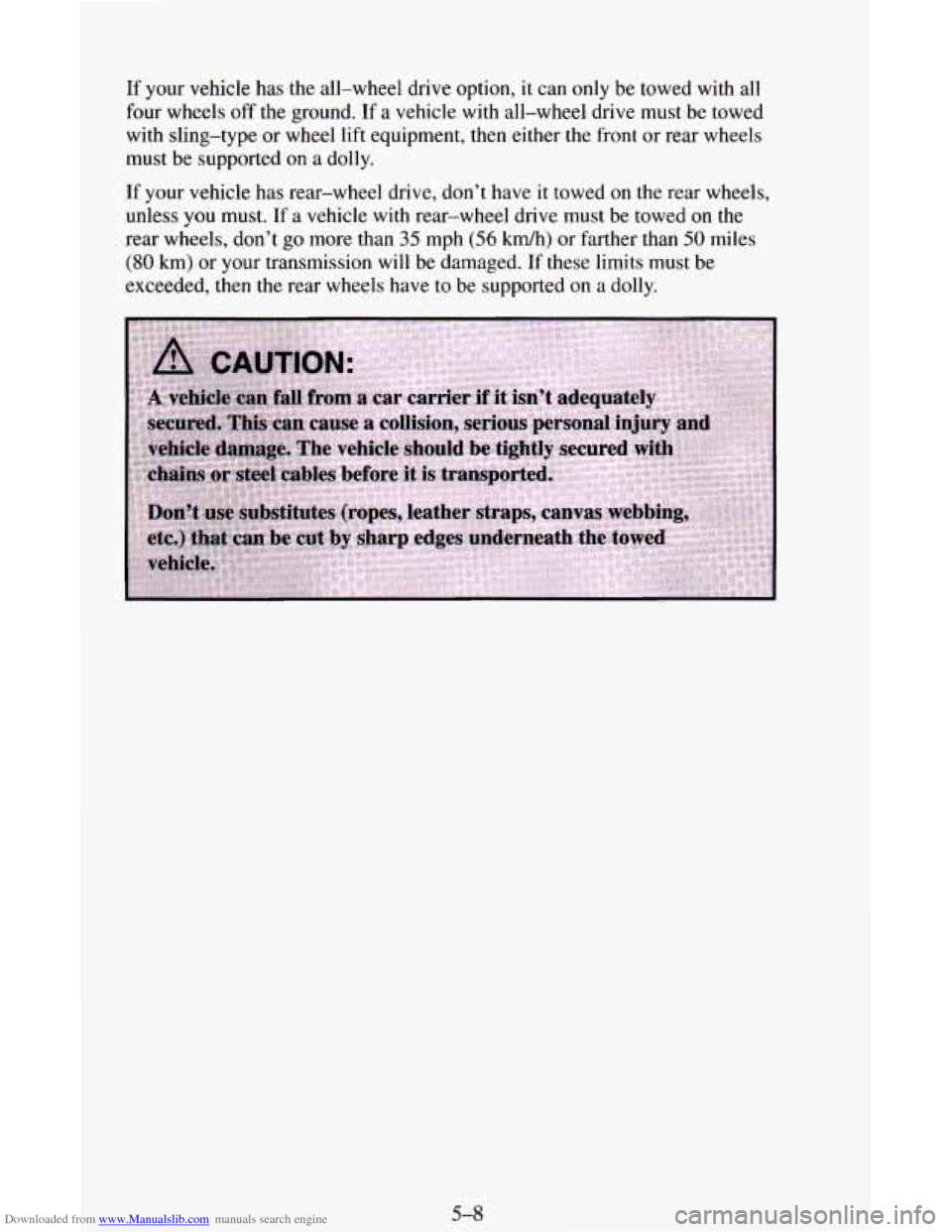

Downloaded from www.Manualslib.com manuals search engine If your vehicle has the all-wheel drive option, it can only be towed with all
four wheels off the ground. If a vehicle with all-wheel drive must be towed
with sling-type or wheel lift equipment, then either the front
or rear wheels
must be supported
on a dolly.
If your vehicle has rear-wheel drive, don’t have it towed on the rear wheels,
unless
you must. If a vehicle with rear-wheel drive must be towed on the
rear wheels, don’t go more than
35 mph (54 km/h) or farther than 50 miles
(80 km) or your transmission will be damaged. If these limits must be
exceeded, then the rear wheels have
to be supported on a dolly.
5-8
Page 181 of 342
Downloaded from www.Manualslib.com manuals search engine Towing From the Front (Except All-Wheel
Drive)
NOTICE:
Do not tow with sling-type equipment or the front bumper
system will be damaged.
Use wheel lift or car-carrier equipment.
Additional ramping may be required for car-carrier equipment.
Use safety chains and wheel straps.
If your vehicle has the all-wheel-drive option, a dolly MUST be
used under the rear wheels when towing from the front.
5-9
Page 182 of 342
Downloaded from www.Manualslib.com manuals search engine Towing From the Rear
(Except
All- Wheel Drive)
NOTICE:
Do not tow with sling-type equipment or the rear bumper
system will be damaged.
Use wheel lift
or car-carrier equipment.
Additional ramping may be required for car-carrier equipment. Use safety chains
and wheel straps.
If your vehicle has the all-wheel-drive option, a dolly MUST be
used under the front wheels when towing
from the rear.
5-10
Page 183 of 342
Downloaded from www.Manualslib.com manuals search engine Towing From the Front (All- Wheel-Drive)
NOTICE:
Do not tow with sling-type equipment or the front bumper
system will be damaged.
Use wheel lift or car-carrier equipment.
Additional ramping may be required for car-carrier equipment.
Use safety chains and wheel straps.
If your vehicle has the all-wheel-drive option, a dolly MUST be
used under the rear wheels when towing from the front.
5-11
Page 184 of 342
Downloaded from www.Manualslib.com manuals search engine To wing From the Rear (All- Wheel-Drive)
NOTICE:
Do not tow with sling-type equipment or the rear bumper
system will be damaged.
Use wheel lift or car-carrier equipment.
Additional ramping may be required for car-carrier equipment.
Use safety chains and wheel straps.
If your vehicle has the all-wheel-drive option, a dolly MUST be
used under the front wheels when towing from the rear.
5-12
