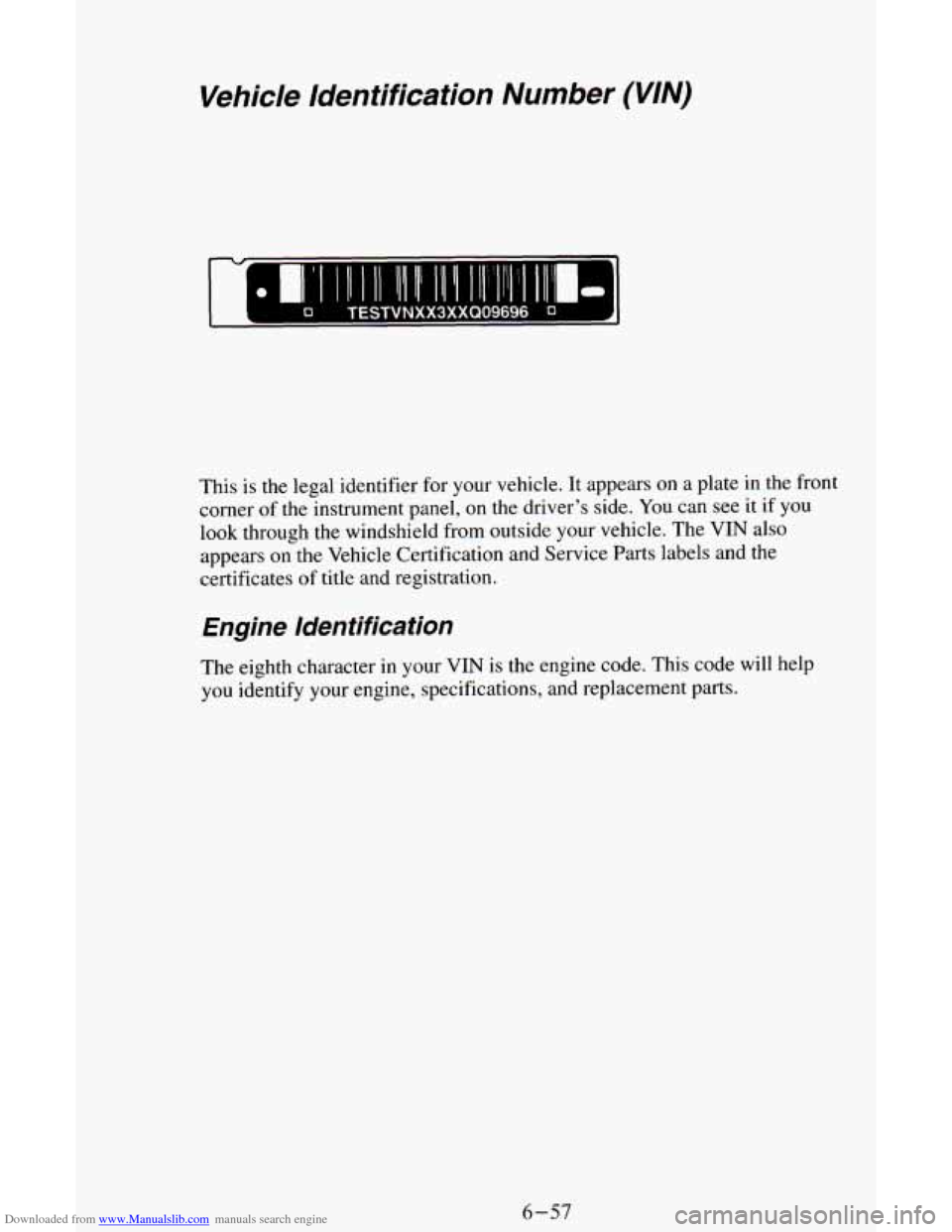

Downloaded from www.Manualslib.com manuals search engine Vehicle Identification Number (VIN)
Q TESTVNXX3XXQ09696 0
This is the legal identifier for your vehicle. It appears on a plate in the front
corner
of the instrument panel, on the driver’s side. You can see it if you
look through the windshield from outside your vehicle. The
VIN also
appears on the Vehicle Certification and Service Parts labels and the
certificates of title and registration.
Engine Identification
The eighth character in your VIN is the engine code. This code will help
you identify your engine, specifications, and replacement parts.
6-57
Page 266 of 342

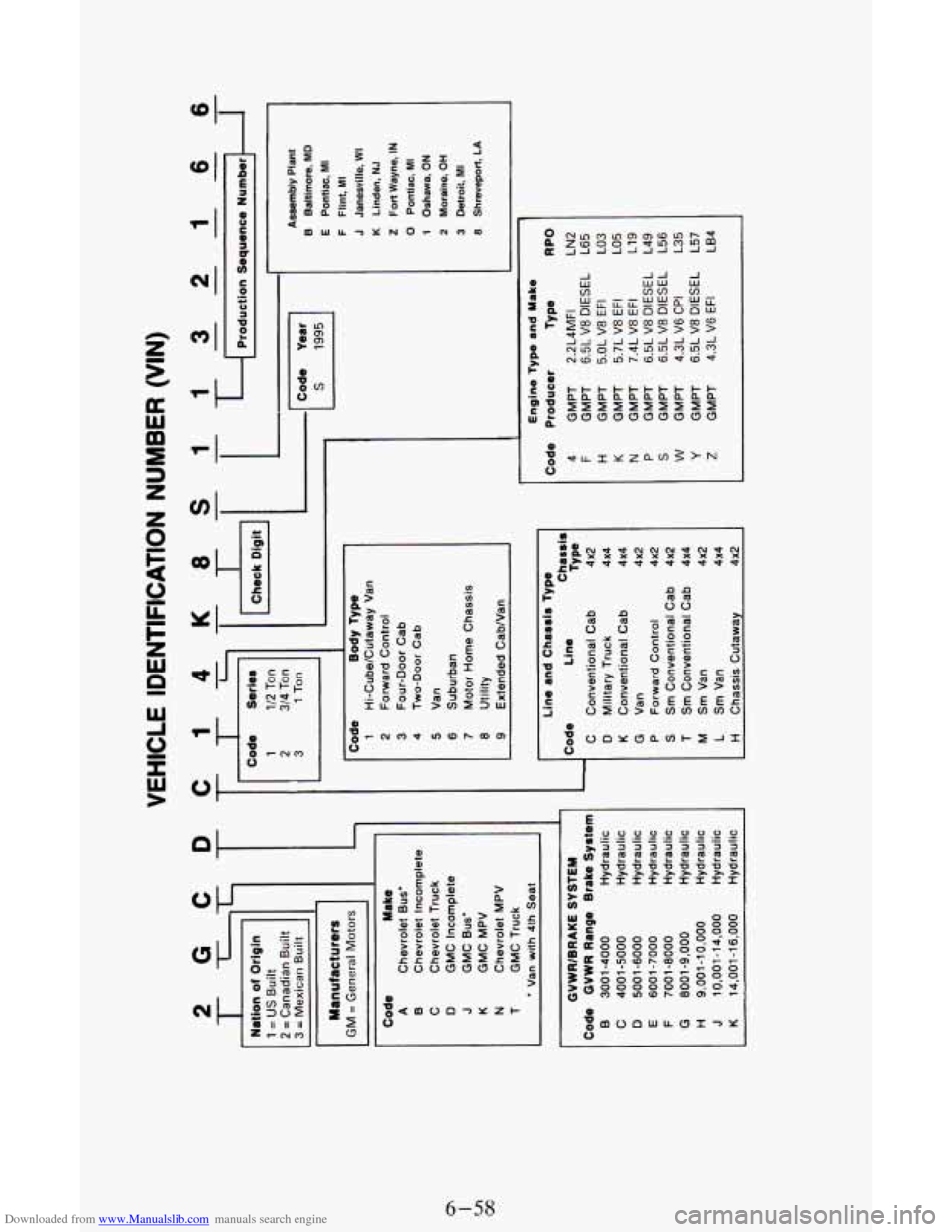

Downloaded from www.Manualslib.com manuals search engine I-
0
0
I7
I
6-58
Page 267 of 342

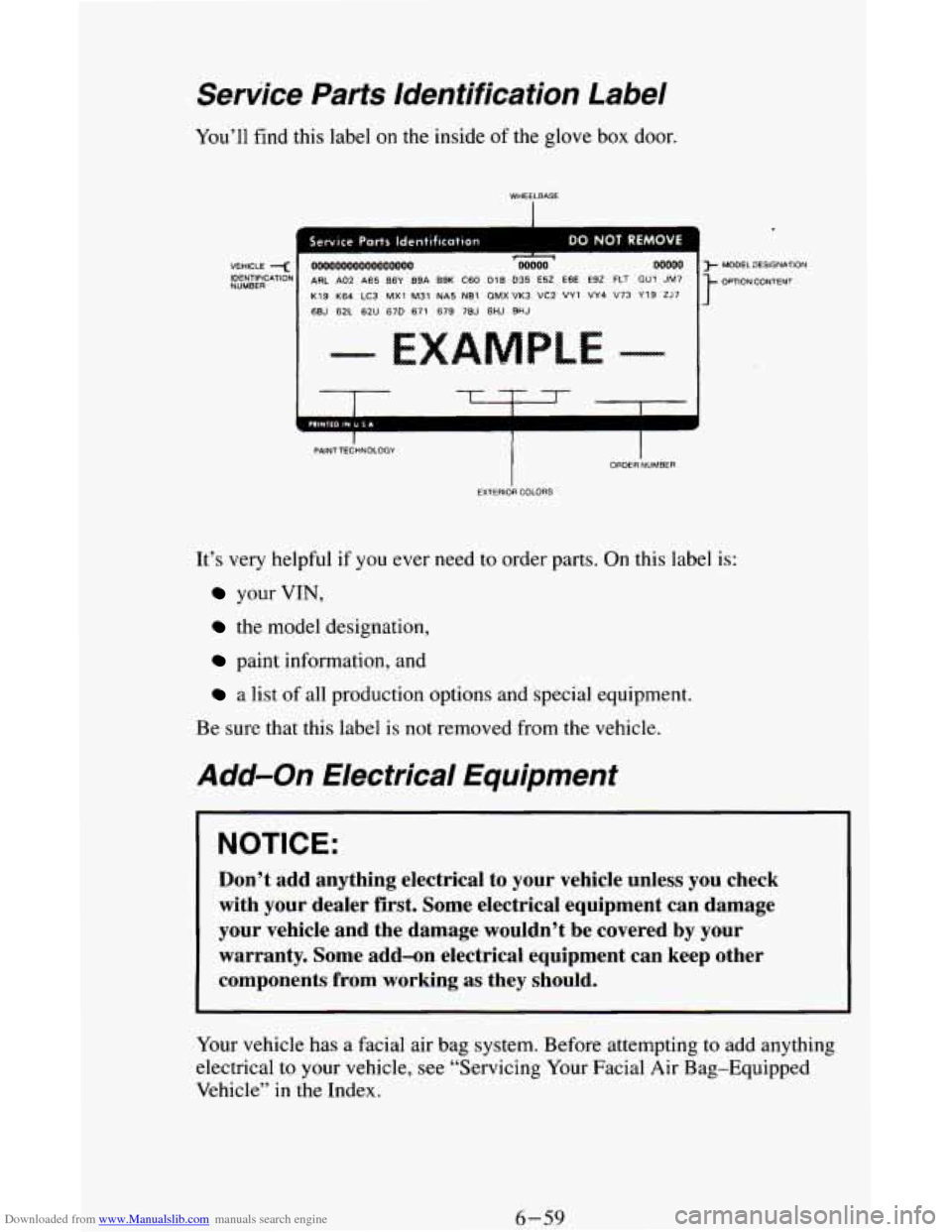

Downloaded from www.Manualslib.com manuals search engine Service Parts Identification Label
You’ll find this label on the inside of the glove box door.
WHEELBASE
Service Parts Identification DO NOT REMOVE 1 7 00000 OObbO MODELOESIGNATlON 89K C60 D1B D35 E52 E6E E92 FLT GU1 JM7 OPTIONCONTENT
K19 K64 LC3 MXl M31 NA5 NE1 QMXVK3 VC2 VY1 VY4 V73 Y19 ZJ7
6BJ 62L 62U 670 671 679 7BJ 8HJ 9HJ
1 I I
I PAINTTECHNOLOGY ORDER NUMBER
EXTERIOR
COLORS
It s very helpful if you ever need to order parts. On this label is:
your VIN,
the model designation,
paint information, and
a list of all production options and special equipment.
Be sure that this label
is not removed from the vehicle.
Add-on Electrical Equipment
NOTICE:
Don’t add anything electrical to your vehicle unless you che\
ck
with your dealer first. Some electrical equipment can damage
your vehicle and the damage wouldn’t
be covered by your
warranty. Some add-on electrical equipment can keep other
components
from working as they should.
Your vehicle has a facial air bag system. Before attempting to add anything
electrical to your vehicle, see “Servicing Your Facial Air Bag-Equipped
Vehicle” in the Index.
6-59
Page 268 of 342

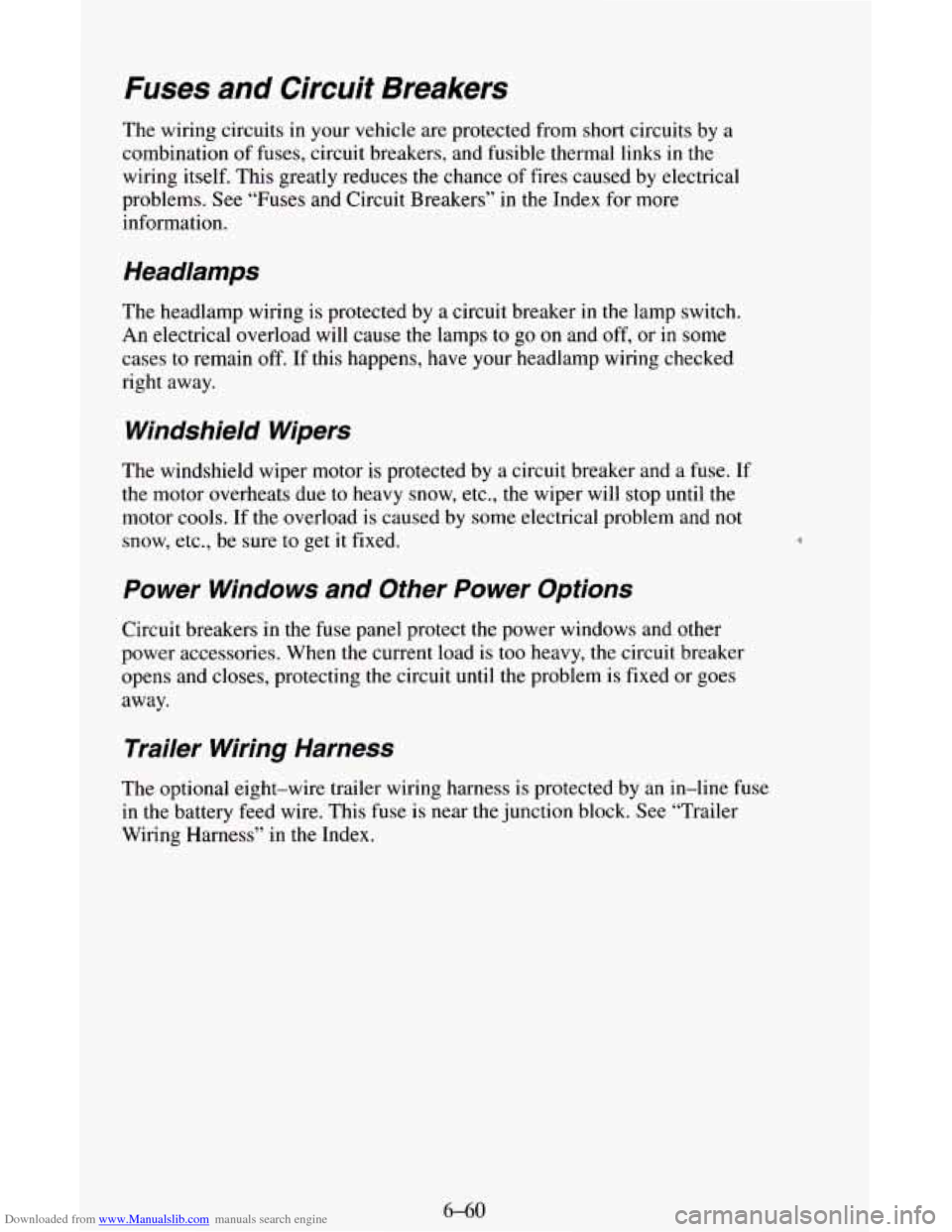

Downloaded from www.Manualslib.com manuals search engine Fuses and Circuit Breakers
The wiring circuits in your vehicle are protected from short circuits by a
combination of fuses, circuit breakers, and fusible thermal links in
the
wiring itself. This greatly reduces the chance of fires caused by electrical
problems.
See “Fuses and Circuit Breakers” in the Index for more
information.
Headlamps
The headlamp wiring is protected by a circuit breaker in the lamp switch.
An electrical overload will cause the lamps
to go on and off, or in some
cases to remain off. If this happens, have your headlamp wiring checked
right away.
Windshield Wipers
The windshield wiper motor is protected by a circuit breaker and a fuse. If
the motor overheats due
to heavy snow, etc., the wiper will stop until the
motor cools. If the overload is caused by some electrical problem and not
snow, etc., be sure to get it fixed.
Power Windows and Other Power Options
Circuit breakers in the fuse panel protect the power windows and other
power accessories. When the current load is too heavy, the circuit breaker
opens and closes, protecting the circuit until the problem is fixed or goes
away.
Trailer Wiring Harness
The optional eight-wire trailer wiring harness is protected by an in-line fuse
in the battery feed wire. This fuse is near the junction block, See “Trailer
Wiring Harness” in the Index.
6-60
Page 269 of 342

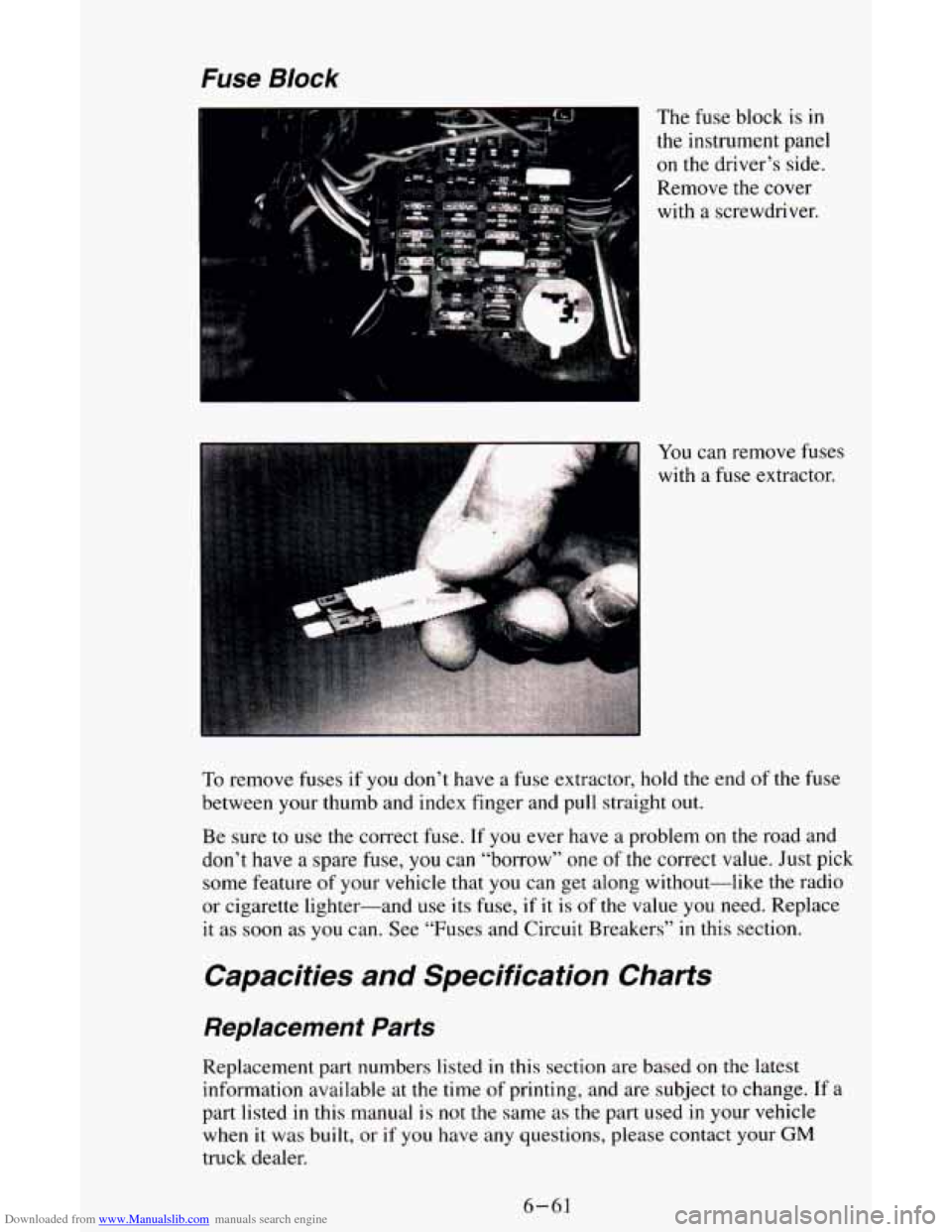

Downloaded from www.Manualslib.com manuals search engine Fuse Block
The fuse block is in
the instrument panel
on the driver’s side.
Remove
the cover
with a screwdriver.
You
can remove fuses
with a fuse extractor.
To remove fuses if you don’t have a fuse extractor, hold the end of the fuse
between your thumb and index finger and pull straight out.
Be sure
to use the correct fuse. If you ever have a problem on the road and
don’t have a spare fuse,
you can “borrow” one of the correct value. Just pick
some feature of your vehicle that
you can get along without-like the radio
or cigarette lighter-and use its fuse, if it is
of the value you need. Replace
it as soon as you can. See “Fuses and Circuit Breakers” in this section.
Capacities and Specification Charts
Replacement Parts
Replacement part numbers listed in this section are based on the latest
information available at the time
of printing, and are subject to change. If a
part listed
in this manual is not the same as the part used in your vehicle
when
it was built, or if you have any questions, please contact your GM
truck dealer.
6-61
Page 270 of 342
Downloaded from www.Manualslib.com manuals search engine Engine identification
Engine Description
Type
VIN Code
Fuel System
Produced By
Emissions
**Central
Port Fuel Injection
Wheel Nut Torque
DESCRIPTION
Base or Optional Wheel
4.3L
V6
W
CPI* *
us.
L.D.
Cooling System Capacity
ENGINE VIN CODE
4.3L W
TORQUE
100 ft. lbs. (140 Nom)
QUANTITY* Without Rear
Heater
13.5 Quarts
(12.8 Liters)
QUANTITY*
With Rear
Heater
16.5 Quarts
( 15.5 Liters)
*All quantities are approximate. After refill, the level MUST be checked.
Crankcase Capacity
ENGINE
4.3L
VIN CODE
w
QUANTITY*
With Filter
4.5 Quarts (4.3 Liters)
*All quantities are approximate. After refill, the level MUST be checked.
Do not overfill.
Fuel Tank Capacity
TYPE
Standard Tank
QUANTITY*
27 Gallons ( 102 Liters)
*All quantities are approximate.
6-62
Page 271 of 342

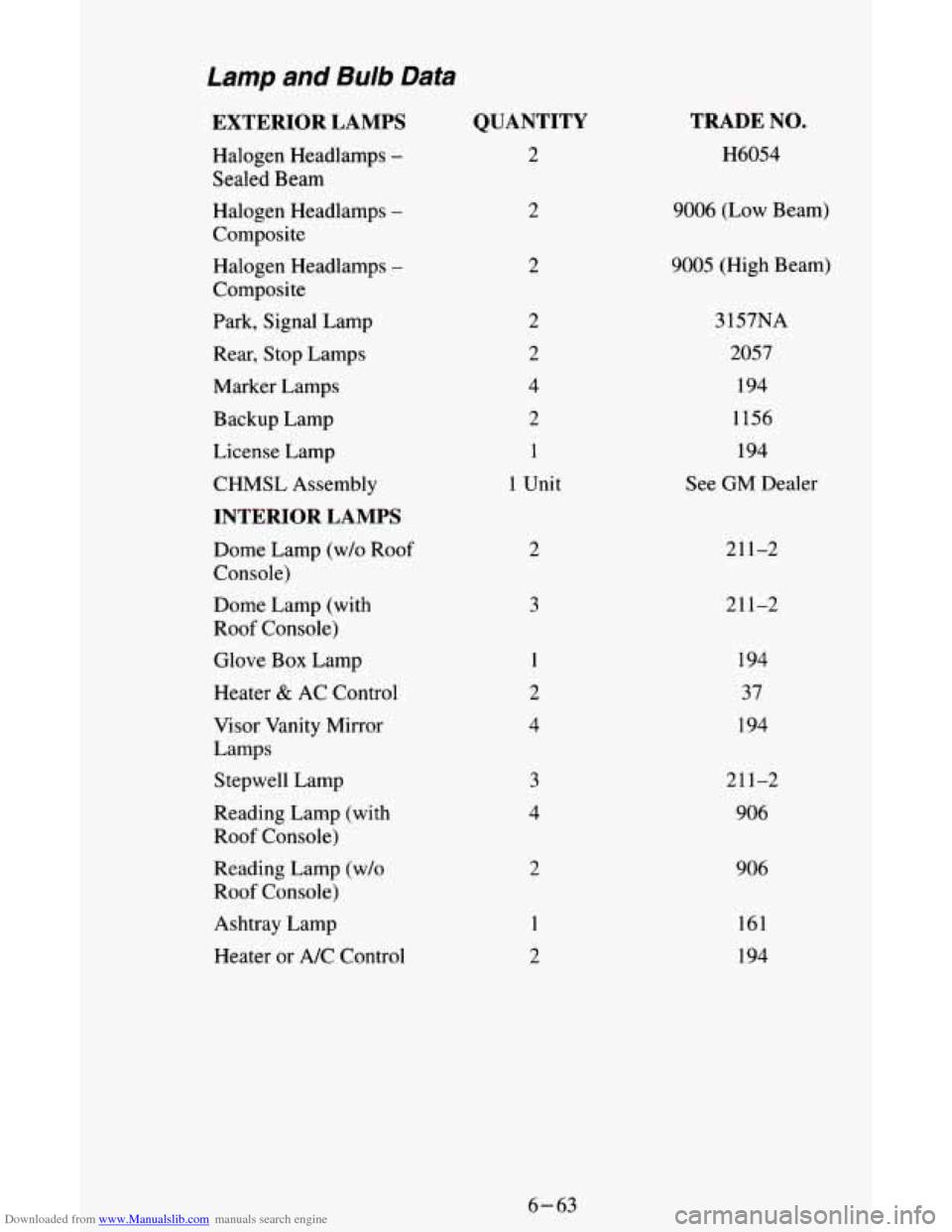

Downloaded from www.Manualslib.com manuals search engine Lamp and Bulb Data
EXTERIOR LAMPS
Halogen Headlamps -
Sealed Beam
Halogen Headlamps
-
Composite
Halogen Headlamps
-
Composite Park, Signal Lamp
Rear, Stop Lamps
Marker Lamps
Backup Lamp
License Lamp
CHMSL Assembly
INTERIOR LAMPS
Dome Lamp (w/o Roof
Console)
Dome Lamp (with
Roof Console)
Glove Box Lamp
Heater
& AC Control
Visor Vanity Mirror
Lamps
Stepwell Lamp
Reading Lamp (with
Roof Console)
Reading Lamp (w/o
Roof Console)
Ashtray Lamp
Heater or NC Control
QUANTITY
2
2
2
2
2
4
2
1
1
Unit
2
3
1
2
4
3
4
2 1
2
TRADE NO.
H6054
9006 (Low Beam)
9005 (High Beam)
3 157NA
2057
194
1156
194
See GM Dealer
211-2
211-2
194
37
194
211-2 906
906
161
194
6-63
Page 272 of 342

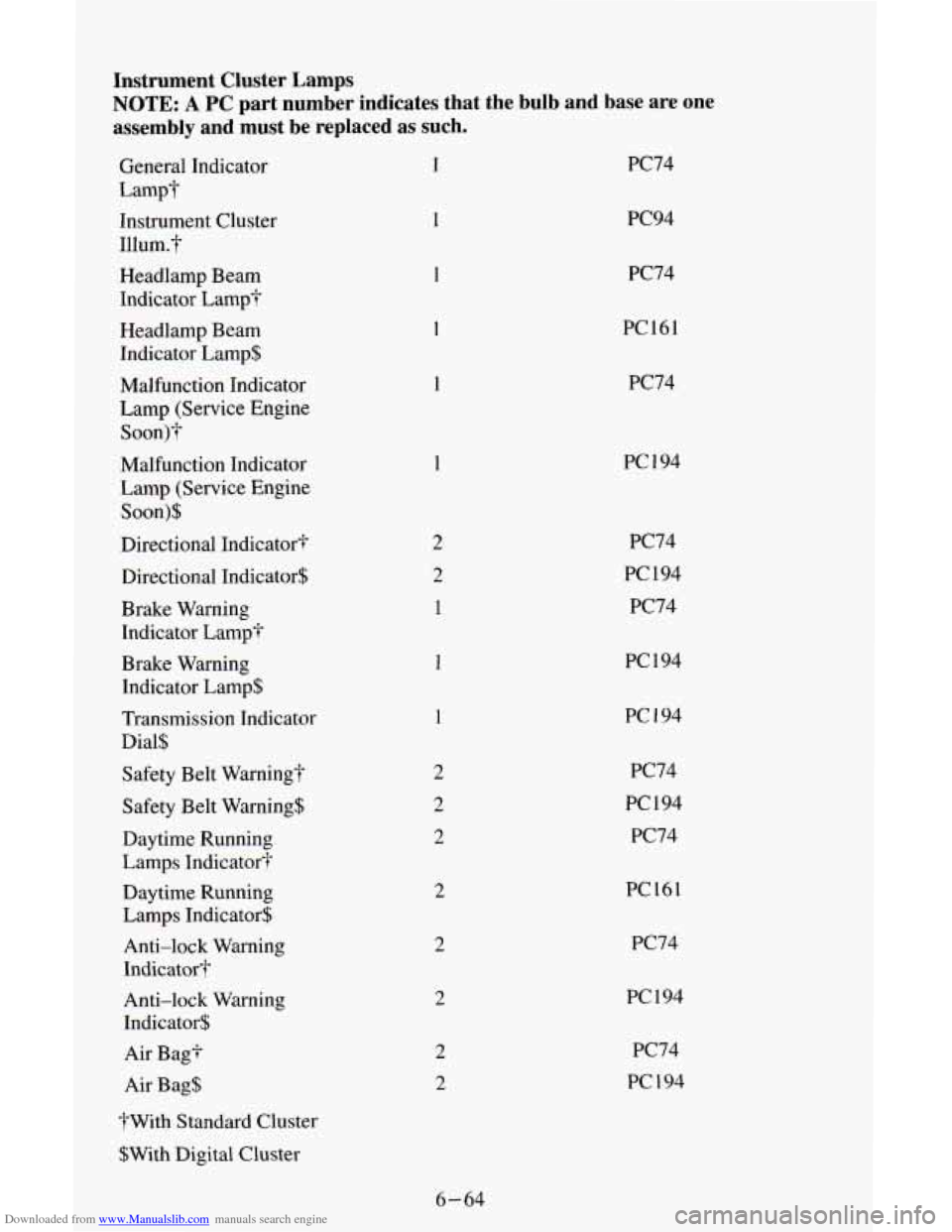

Downloaded from www.Manualslib.com manuals search engine Instrument Cluster Lamps
