Page 97 of 342
Downloaded from www.Manualslib.com manuals search engine If the switch is OFF, the interior lamps will not come on when any of the
vehicle doors are open. The switch is located on the instrument panel above
the radio.
If
you have the optional reading lamps, they will still operate if the switch is
in the OFF position.
If you have the optional Keyless Illumination feature, the interior lamps will
come on briefly when doors are locked and unlocked or the door handles are
lifted.
Mirrors
Inside Mirror
Your inside rearview
mirror has two pivots
so you can adjust it up
and down or side to
side.
2-43

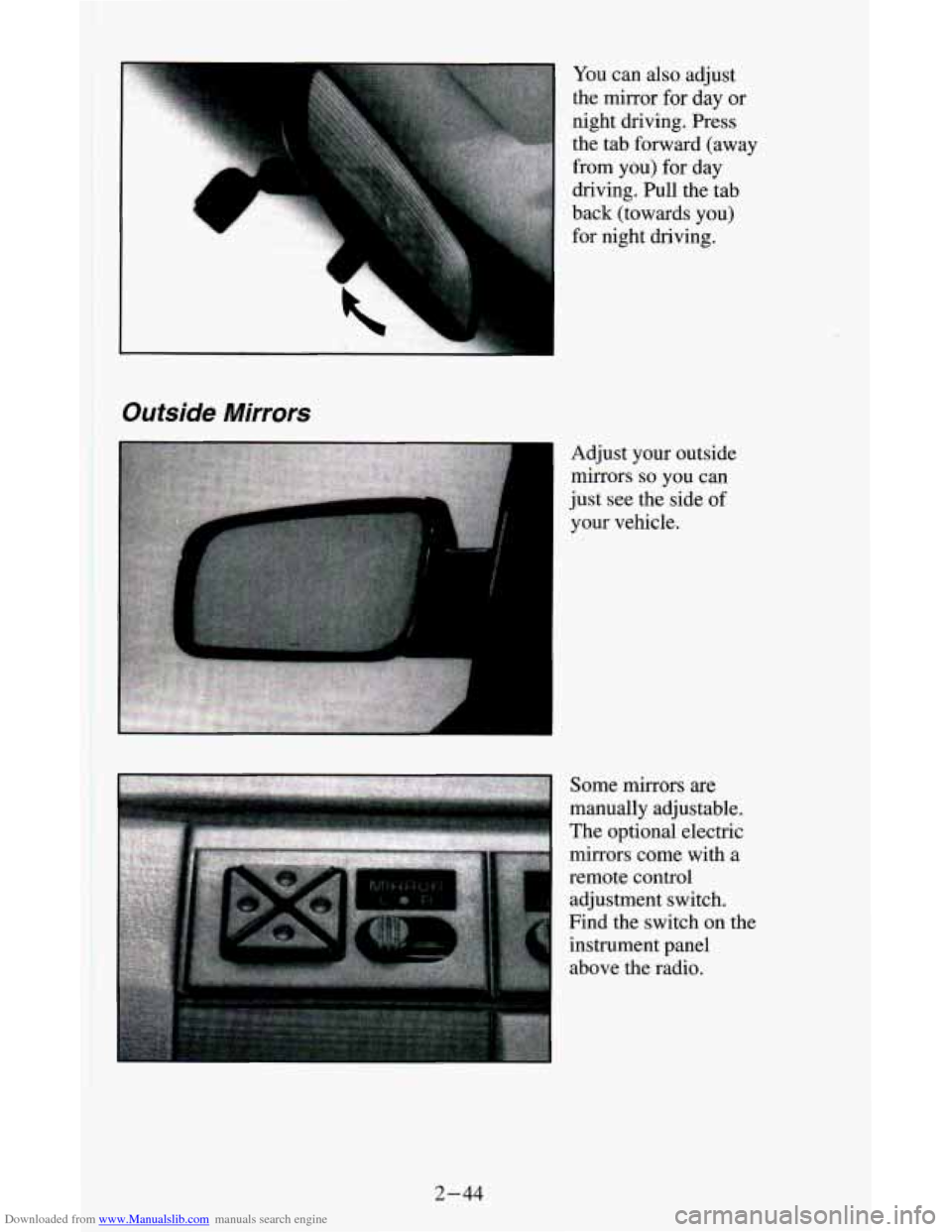

Page 98 of 342
Downloaded from www.Manualslib.com manuals search engine I
You can also adjust
the mirror for day or
night driving. Press
the tab forward (away
from you) for day
driving. Pull the tab
back (towards you)
for night driving.
Outside Mirrors
Adjust your outside
mirrors
so you can
just see the side of
your vehicle.
Some mirrors are
manually adjustable.
mirrors come with a
remote control
adjustment switch. Find the switch
on the
instrument panel
above the radio.
2-44

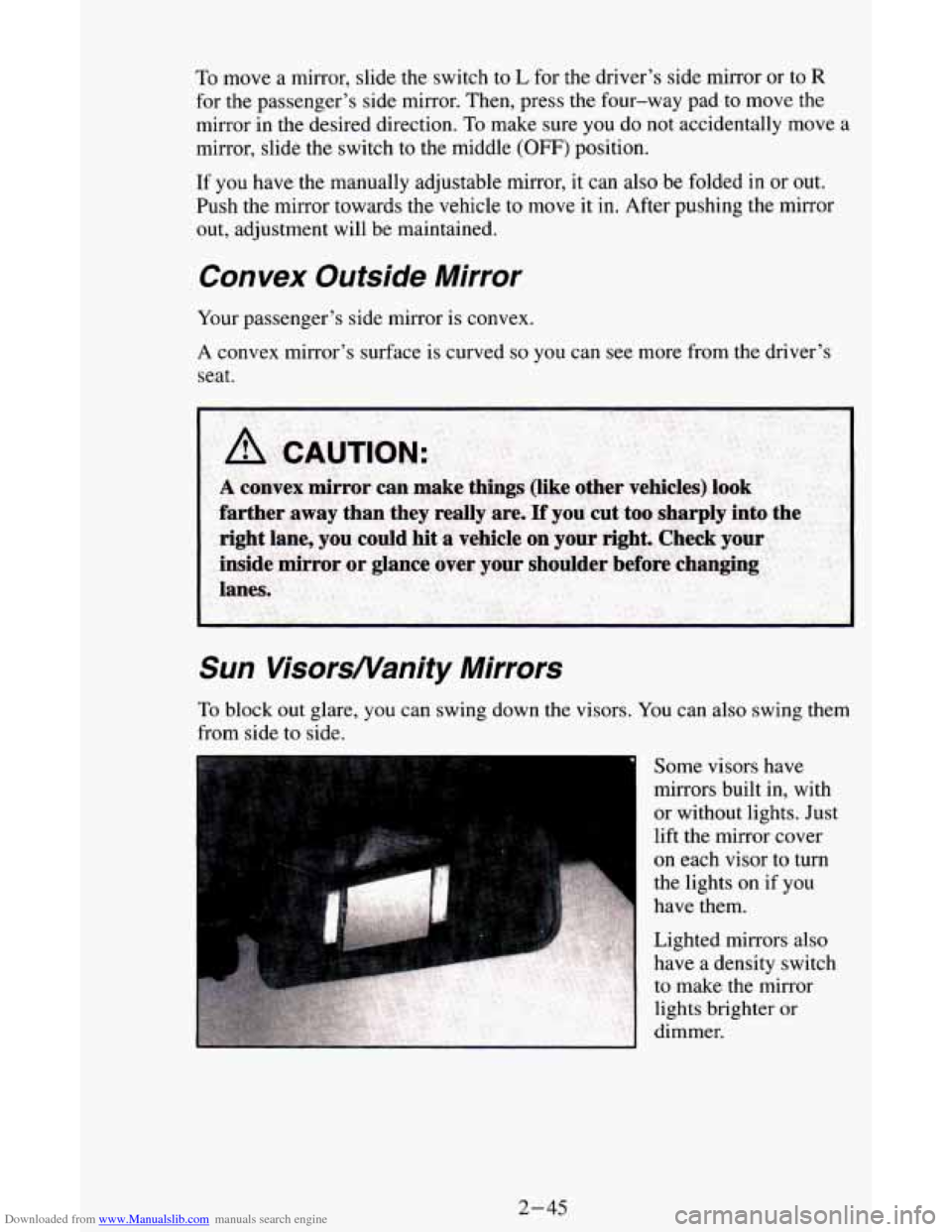

Page 99 of 342

Downloaded from www.Manualslib.com manuals search engine To move a mirror, slide the switch to L for the driver’s side mirror or to R
for the passenger’s side mirror. Then, press the four-way pad to move the
mirror in the desired direction. To make sure you do not accidentally move a
mirror, slide the switch to the middle
(OFF) position.
If you have the manually adjustable mirror, it can also be folded in or out.
Push the mirror towards the vehicle
to move it in. After pushing the mirror
out, adjustment will be maintained.
Convex Outside Mirror
Your passenger’s side mirror is convex.
A convex mirror’s surface is curved
so you can see more from the driver’s
seat.
Sun VisorsNanity Mirrors
To block out glare, you can swing down the visors. You can also swing them
from side to side.
Some visors have
mirrors built in, with
or without lights. Just
lift the mirror cover
on each visor to turn
the lights on if you
have them.
Lighted mirrors also
have a density switch
to make the mirror
lights brighter or
dimmer.
2-45

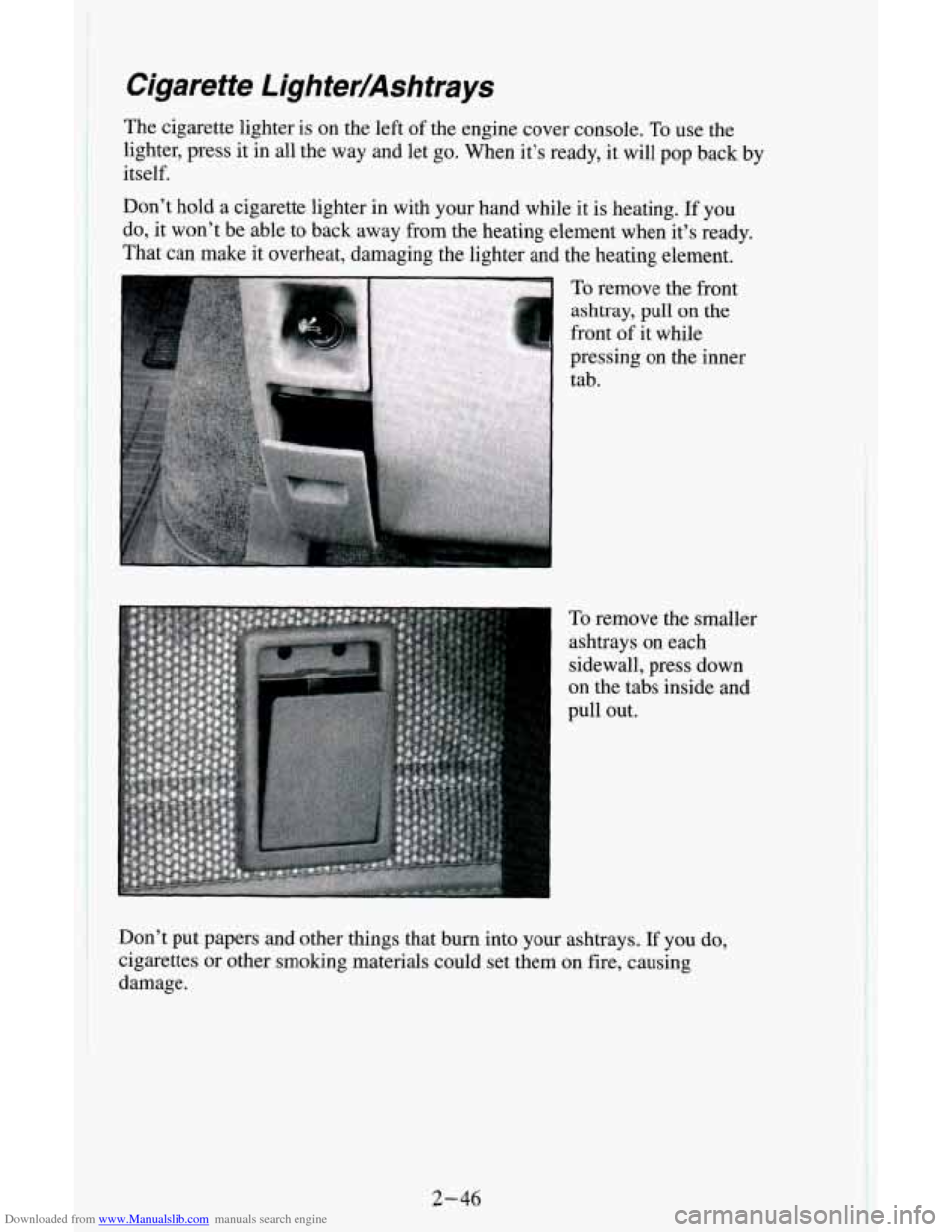

Page 100 of 342
Downloaded from www.Manualslib.com manuals search engine Cigarette LighterIAshtrays
The cigarette lighter is on the left of the engine cover console. To use the
lighter, press it in all the way and let go. When it’s ready, it will
pop back by
itself.
Don’t hold
a cigarette lighter in with your hand while it is heating. If you
do, it won’t be able to back away from the heating element when it’s ready.
That can make it overheat, damaging the lighter and the heating element.
To remove the smaller
ashtrays on each
sidewall, press down
on the tabs inside and
pull out.
Don’t put papers and other things that burn into your ashtrays.
If you do,
cigarettes or other smoking materials could set them on fire, causing
damage.
2-46

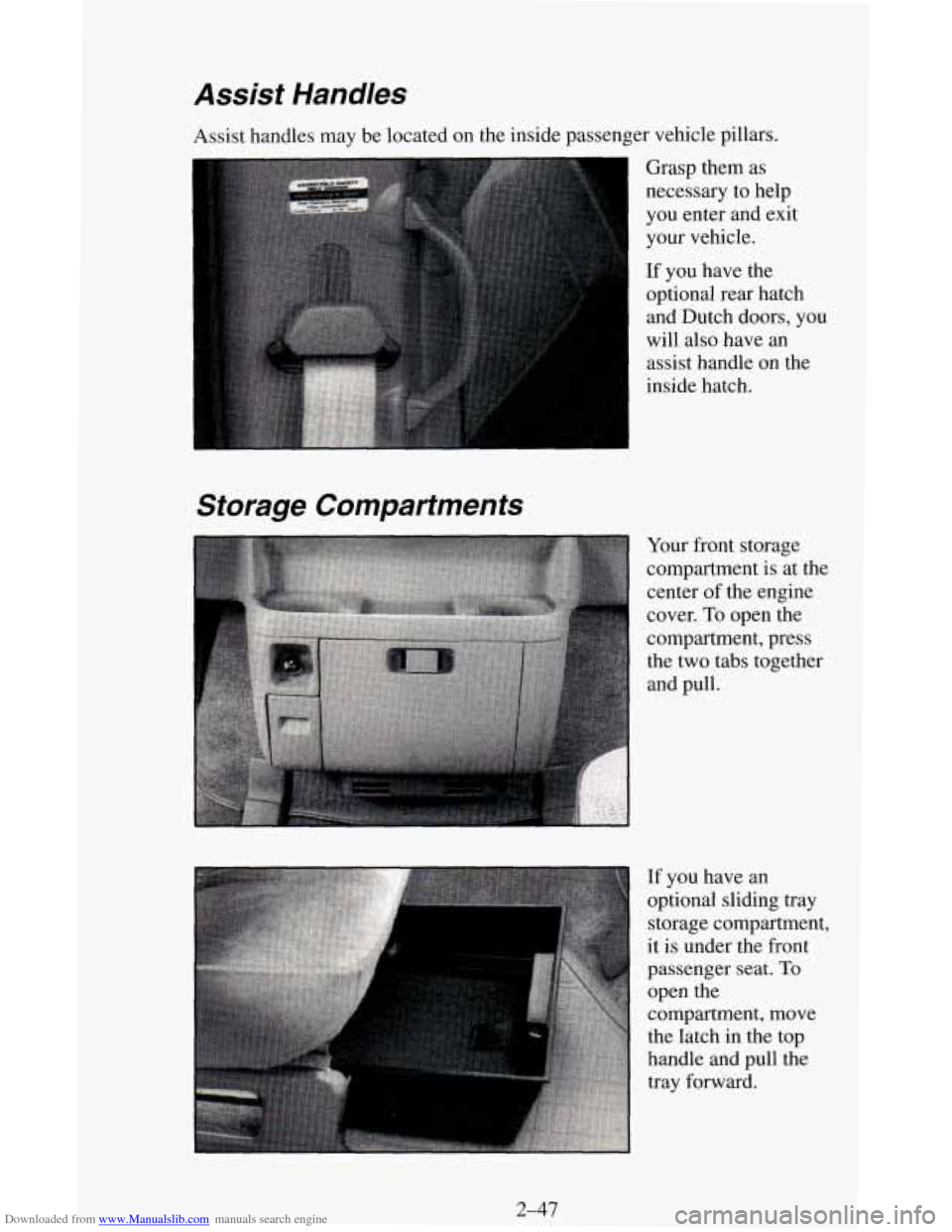

Page 101 of 342
Downloaded from www.Manualslib.com manuals search engine Assist Handles
Assist handles may be located on the inside passenger vehicle pillars.
Grasp them as
necessary to help
you enter and exit
your vehicle.
Storage Compartments
If you have the
optional rear hatch and Dutch doors, you
will also have an
assist handle on the
inside hatch.
Your front storage
compartment is at the
center
of the engine
cover.
To open the
compartment, press
the two tabs together
and pull.
If you have an
optional sliding tray
storage compartmen
it is under the front
passenger
seat. To
open the
compartment, move the latch in the top
handle and pull the
tray forward.
2-47

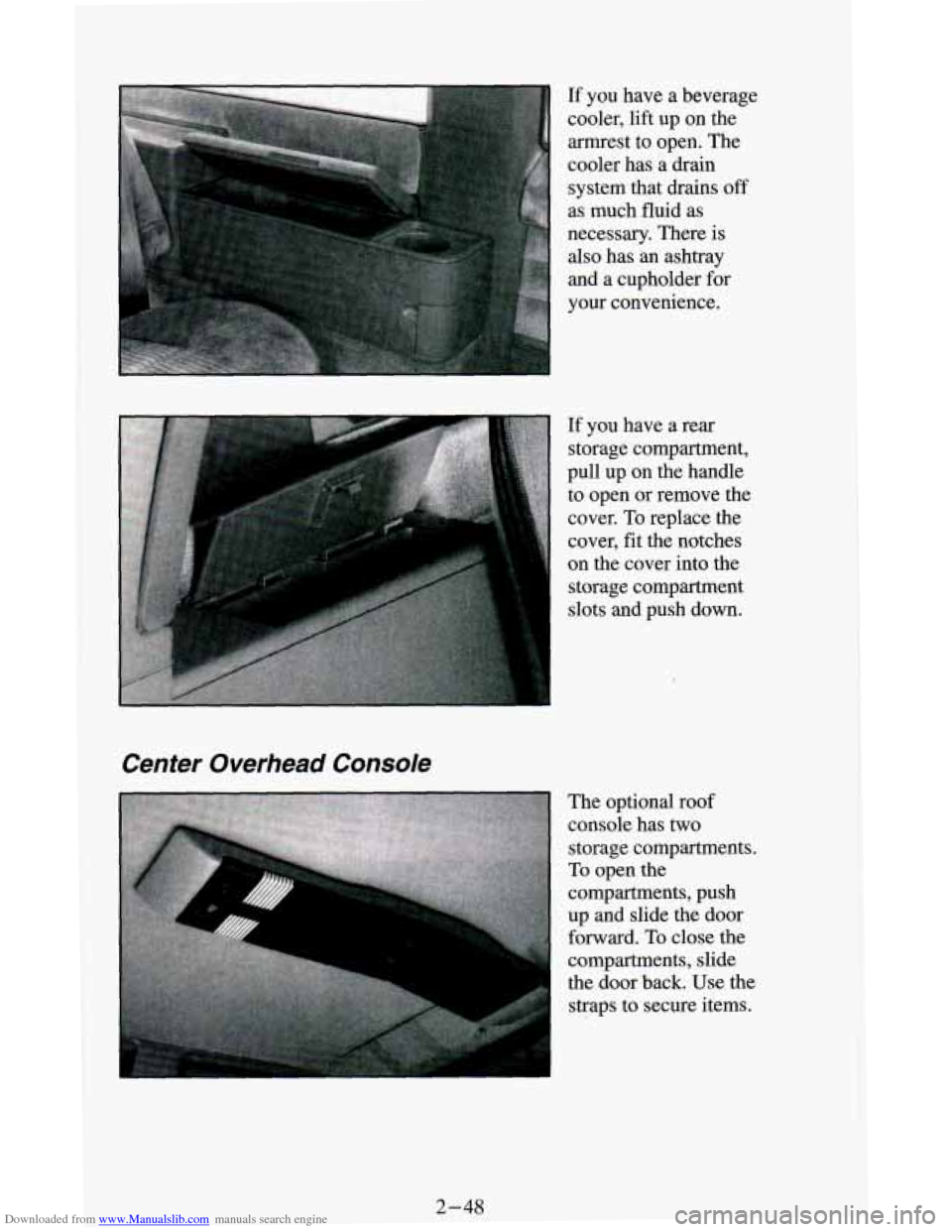

Page 102 of 342
Downloaded from www.Manualslib.com manuals search engine If you have a beverage
cooler, lift up on the
armrest to open. The
cooler has a drain
system that drains
off
as much fluid as
necessary. There is
also has an ashtray
and a cupholder for
your convenience.
Center Overhead Console
If you have a rear
storage compartment,
pull up on the handle
to open or remove the
cover.
To replace the
cover, fit the notches
on the cover into the
storage compartment
I slots and push down.
The optional roof
console has two
storage compartments.
To open the
compartments, push
up and slide the door
forward.
To close the
compartments, slide
the door back. Use the
straps to secure items.
2-48
Page 103 of 342

Downloaded from www.Manualslib.com manuals search engine Instrument Cluster
Your instrument cluster is designed to let you know at a glance how your
vehicle is running. You’ll know how fast you’re going, about
how much
fuel remains, and many other things you’ll need to know to drive safely and
economically.
The optional digital cluster on your vehicle’s instrument panel
is displayed
electronically and will tell you everything the standard cluster does.
The digital cluster will give readings in either English or Metric. To switch
from English to Metric, just press the
EM button.
Instrument Panel
AB C DE ZF G H If Z
A. Light Switches
B. Dimmer Switch
C. Instrument Cluster
D. Gearshift Lever
E. Air ConditionerEIeater
E Remote Outside Mirror Switch
G. Rear Heater Switch
H. Rear A/C Switch
I. Interior Lamp Override Switch
J. Audio System
K. Convenience Tray
L. Glove Box
M. Ashtray
M L
N. Cigarette Lighter
0. Hood Release Handle
P. Hazard Warning Flasher
Q. Ignition Switch
R. Horn
S. Brake Release Handle
T. Multifunction Lever
U. Cruise Control
V. Tilt Wheel Lever
W. Rear Wipermasher Switch
X. Hatch Release Switch
Y. Rear Window Defogger Switch
Z. Vent
2-49

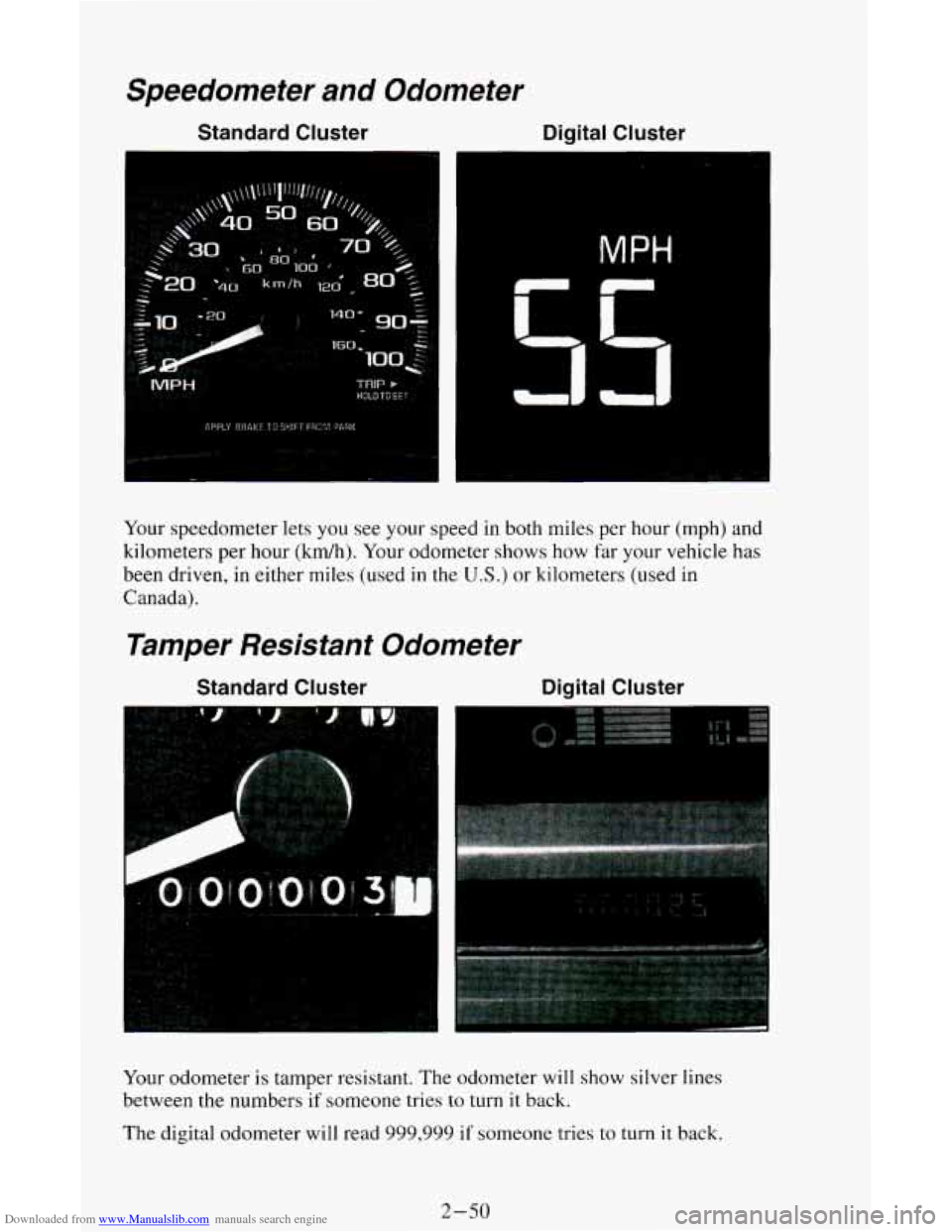

Page 104 of 342
Downloaded from www.Manualslib.com manuals search engine Speedometer and Odometer
Standard Cluster Digital Cluster
Your speedometer lets you see your speed in both miles per hour (mph) and
kilometers per hour
(kdh). Your odometer shows how far your vehicle has
been driven, in either
miles (used in the U.S.) or kilometers (used in
Canada).
Tamper Resistant Odometer
Standard Cluster Digital Cluster
I
I I
Your odometer is tamper resistant. The odometer will show silver lines
between the numbers if someone tries to turn
it back.
The digital odometer will read 999,999 if someone tries to turn it back.
2-50
