Downloaded from www.Manualslib.com manuals search engine FUSES AND CIRCUIT BREAKERS
The wiring circuits in your vehicle are protected from short circuits by a
combination of Mini Fuses, Circuit Breakers and
Maxi Fuses. This greatly
reduces the chance of fires caused by electrical problems.
If you have a problem on the road and don’t have a spare fuse, you can
“borrow” one of the same value. Select a feature that you can get along
without that is
the same value you need -- like the radio or cigarette
lighter
-- and use its fuse. Be sure to use a fuse with the same amperage
rating number on it (ie.
10A, 20A, etc.) Replace it as soon as you can.
.x
There is a fuse removal
tool and some spare
mini fuses in the glove
box
door, just lift the
cover
up.
6-63

Downloaded from www.Manualslib.com manuals search engine CNSL FAN
CIGAR
BODY 2
r
L PRK LP
I
R PRK LP
I RAD (BAT)
I ANT/TRK PLD
Rear Compartment Fuse Block (Continued) 1
FUSE c
m
I.
-.
-.
-.
-.
-.
-.
-3
-
Headlamps
USAGE
Rear Blower Motor; Rear Blower Relay
Front Cigarette Lighter; Chime Module
Power Mirror Switch;
RAP Relay; Lock-Out Inhibit Relay “B”
(Trunk Comp. 1 Micro Relay Center); Panel Lights Inhibit Relay
“F” (Trunk Comp. 3 Micro Relay Center)(Export); Courtesy Lamps
Relay
“C” (Trunk Comp. 2 Micro Relay Center); RAP Relay “E”
(Trunk Comp. 2 Micro Relay Center); Keyless Entry Module; Trunk
Lamp; Seat Belt Retractor Solenoids
Front Door Lock Switches; Glove
Box Lam ; Left and Right
Footwell Courtesy Lamps; Headlamp Switc
R
Left and Right Front Header Lamp; Left and Ri ht Vanity Mirror;
Garage Door Opener; Left and Right Rear Hea f er Lamps
Left Rear Tail/Stop/Turn Lamps; Left Front Park/Turn Lamps;
Front and Rear Left Side Marker Lamps; Radio Control Head;
Headlamp Switch; Instrument Panel Cluster
Right Tail/Stop/Tlurn Lamps; Right Front and Rear Side Marker
Lamps; Right Front Park and Turn Lamps; Engine Comp. Lamp;
License Plate Lamps
Radio
Trunk Lid
Pull Down Motor; Power Antenna
Electronic Level Control (ELC)
Passengers Heated Seat
Driver’s Heated Seat
The headlamp wiring has an individual fuse which is powered by a
MAXI” fuse. An electrical overload in the headlamp wiring may cause
your headlamps
to go off and remain off. You will need to have your
Cadillac serviced immediately.
Windshield Wipers
The windshield wiper motor is powered by a MAXI TM fuse. An electrical
overload in the motor wiring may cause your wipers
to stop working. If
this happens
you will need to have your Cadillac serviced.
Power Windows and Other Power Options
Circuit breakers in the fuse panel protect the power windows and other
power accessories. When the current load is too heavy (such
as a switch being
held on with the window completely up), the circuit breaker opens and
closes, protecting the circuit until the problem
is fixed or the load is removed.
6-69

Downloaded from www.Manualslib.com manuals search engine .
.
n
.
.

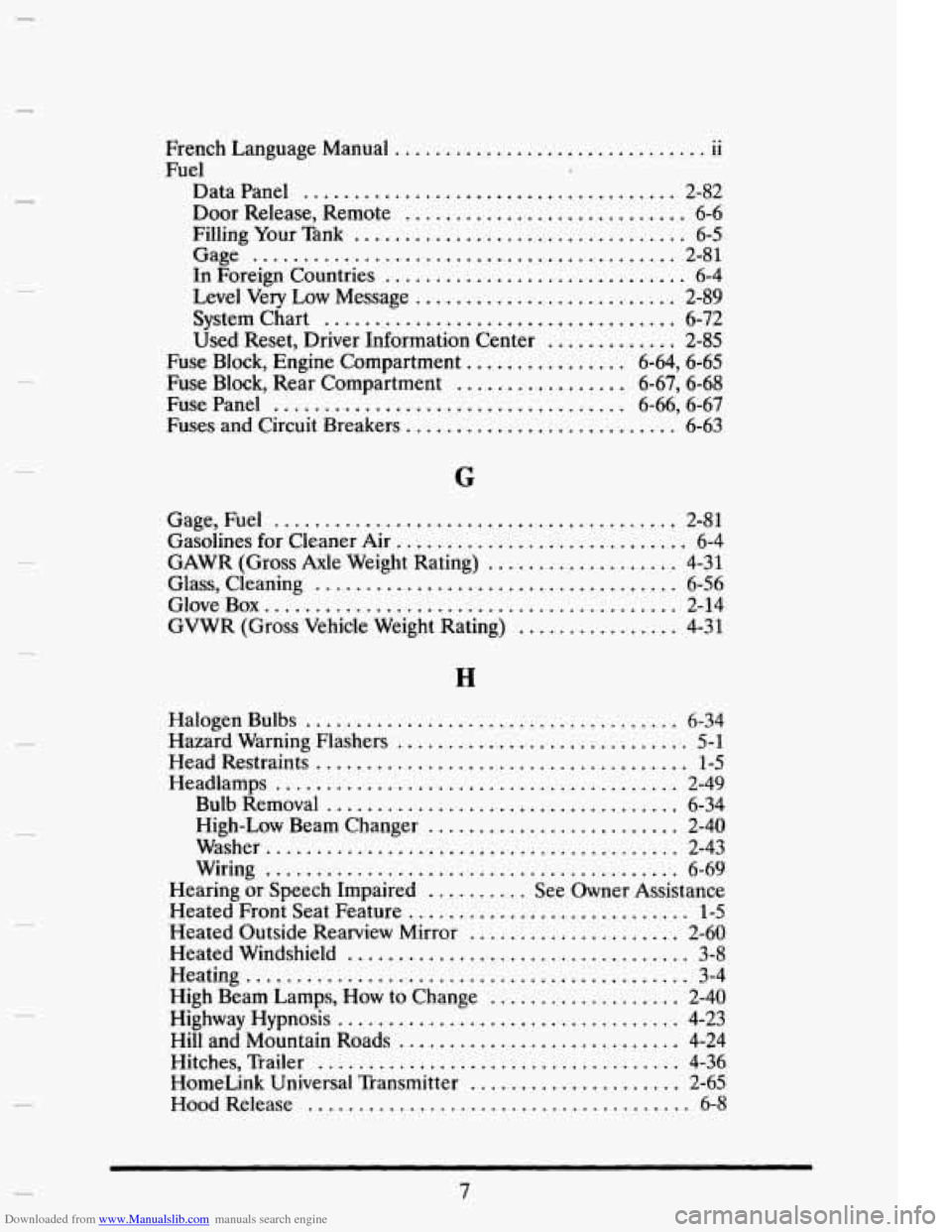

French Language Manual 11
Fuel
Data Panel ..................................... 2-82
Door Release. Remote ............................ 6-6
Filling Your Tank ................................. 6-5
Gage .......................................... 2-81
In Foreign Countries .............................. 6-4
Level Very Low Message .......................... 2-89
System Chart ................................... 6-72
Used Reset. Driver Information Center ............. 2-85
Fuse Block. Engine Compartment ................ 6.64. 6.65
Fuse Block. Rear Compartment ................. 6.67. 6.68
Fuse Panel ................................... 6.66. 6.67
Fuses and Circuit Breakers ........................... 6-63
.. ...............................
.
Gage. Fuel ........................................ 2-81
Gasolines for Cleaner Air ............................. 6-4
GAWR (Gross Axle Weight Rating) ................... 4-31
Glass. Cleaning .................................... 6-56
Glove Box ......................................... 2-14
GVWR (Gross Vehicle Weight Rating) ................ 4-31
.
H
.
.
.
.
.
Halogen Bulbs ..................................... 6-34
Hazard Warning Flashers ............................. 5-1
Head Restraints ..................................... 1-5
Headiamps ........................................ 2-49
Bulb Removal ................................... 6-34
High-Low Beam Changer ......................... 2-40
Washer ......................................... 2-43
Wiring ......................................... 6-69
Hearing or Speech Impaired .......... See Owner Assistance
Heated Front Seat Feature
............................ 1-5
Heated Outside Rearview Mirror ..................... 2-60
Heated Windshield .................................. 3-8
High Beam Lamps. How to Change ................... 2-40
Highway Hypnosis .................................. 4-23
Hill and Mountain Roads ............................ 4-24
Hitches. Trailer .................................... 4-36
HomeLink Universal Transmitter ..................... 2-65
Hood Release ....................................... 6-8
Heating ............................................ 3-4
.
.
