Page 89 of 340

Windshield Wipers
For steady wiping at low speed, turn the band to LO. For
high-speed wiping, turn the band further, to HI. To stop
the wipers, turn the band to
OFF.
You can set the wiper speed for a long or short delay
between wipes. This can
be very useful in light rain or
snow. Turn the band
to choose the delay time. The
closer to
LO, the shorter the delay.
Be sure
to clear ice and snow from the wiper blades
before using them.
If they're frozen to the windshield,
carefully loosen or thaw them.
If your blades do become
damaged, get new blades or blade inserts. Heavy snow
or ice can overload your wipers.
A circuit
breaker will stop them until the motor cools. Clear away
snow or ice to prevent an overload.
Windshield Washer
At the top of the
multifunction lever, there's a paddle with the word
PUSH
on it. To spray
washer fluid on the
windshield, push the paddle.
The wipers will run for
several sweeps and
then
either stop or return to your
preset speed.
2-27
ProCarManuals.com
Page 90 of 340
Cruise Control
NOTICE: 1
0
0
0
0
When using concentrated washer fluid,
follow the manufacturer’s instructions for
adding water.
Don’t mix water with ready-to-use washer
fluid. Water can cause the solution to freeze
and damage your washer fluid tank and
other parts of the washer system. Also,
water doesn’t clean
as well as washer fluid.
Fill your washer fluid tank only
3/4 full
when it’s
very cold. This allows for
expansion, which could damage the tank if
it is completely full.
Don’t use radiator antifreeze in your
windshield washer. It can damage your
paint. With
cruise control, you
can maintain a speed of about
25 mph (40 km/h) or more without keeping your foot on
the accelerator. This can really help on long trips. Cruise
control does not
work at speeds below about 25 mph
(40 km/h).
When you apply your brakes, the cruise control shuts
Off.
2-28
ProCarManuals.com
Page 91 of 340

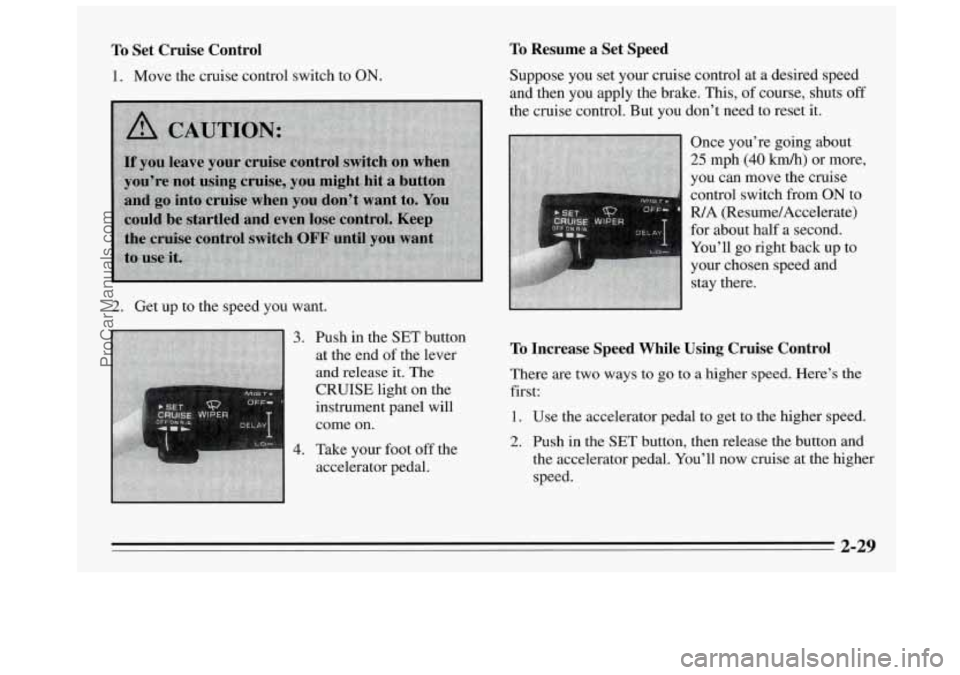

To Set Cruise Control
1. Move the cruise control switch to ON.
2. Get up to the speed you want.
3.
4.
Push
in the SET button
at the end of the lever
and release
it. The
CRUISE light on the
instrument panel will
come on.
Take your foot off the
accelerator pedal.
To Resume a Set Speed
Suppose you set your cruise control at a desired speed
and then you apply the brake. This, of course, shuts
off
the cruise control. But you don’t need to reset it.
Once you’re going about
25 mph (40 km/h) or more,
you can move the cruise
control switch from
ON to
WA (Resume/Accelerate)
for about half
a second.
You’ll go right back up to
your chosen speed and
stay there.
To Increase Speed While Using Cruise Control
There are two ways to go to a higher speed. Here’s the
first:
1.
2.
Use the accelerator pedal to get to the higher speed.
Push in the
SET button, then release the button and
the accelerator pedal. You’ll now cruise at the higher
speed.
2-29
ProCarManuals.com
Page 92 of 340

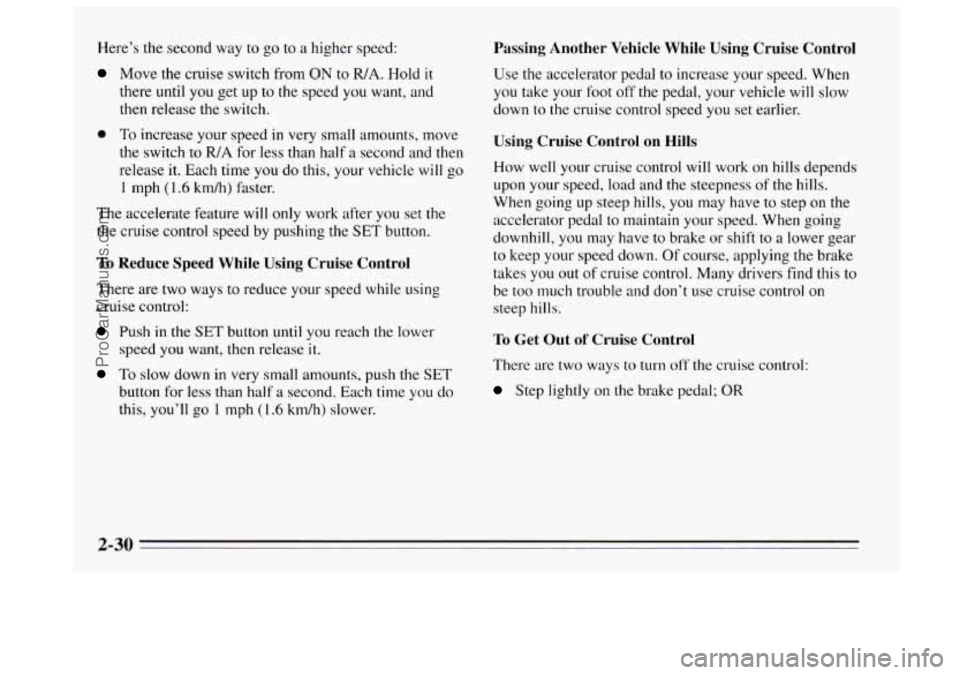

Here’s the second way to go to a higher speed:
Move the cruise switch from ON to FUA. Hold it
there until you get up to the speed you want, and
then release the switch.
0 To increase your speed in very small amounts, move
the switch to
R/A for less than half a second and then
release it. Each time
you do this, your vehicle will go
1 mph (1.6 km/h) faster.
The accelerate feature will
only work after you set the
the cruise control speed by pushing the
SET button.
To Reduce Speed While Using Cruise Control
There are two ways to reduce your speed while using
cruise control:
Push in the SET button until you reach the lower
speed you want, then rele~
~ : it.
To slow down in very small amounts, push the SET
button for less than half
a second. Each time you do
this, you’ll go 1 mph (1.6 km/h) slower.
Passing Another Vehicle While Using Cruise Control
Use the accelerator pedal to increase your speed. When
you take your foot
off the pedal, your vehicle will slow
down to
the cruise control speed you set earlier.
Using Cruise Control on Hills
How well your cruise control will work on hills depends
upon your speed, load and
the steepness of the hills.
When going
up steep hills, you may have to step on the
accelerator pedal to maintain your speed. When going
downhill, you may have to brake or shift to
a lower gear
to keep your speed down. Of course, applying the brake
takes you out of cruise control. Many drivers find this
to
be too much trouble and don’t use cruise control on
steep hills.
To Get Out of Cruise Control
There are two ways to turn off the cruise control:
Step lightly on the brake pedal; OR
2-30 ,. . .
ProCarManuals.com
Page 93 of 340
To Erase Cruise Speed Memory
When you turn off the cruise control or the ignition, or
shift into PARK (P) or NEUTRAL
(N), your cruise
control set speed memory is erased.
Lamps
The lamp controls are on the instrument panel. They
control these systems:
0 Headlamps
Taillamps
Parking Lamps
0 License Lamps
Sidemarker Lamps
0 Instrument Panel Lamps
0 Courtesy Lamps
Turn the knob to
ON to turn on the headlamps and other
operating lamps.
Turn the knob to PARK to
turn on the parking and other
operating lamps without the headlamps.
Turn the knob to
OFF to turn off the lamps.
A warning chime will sound when you turn the ignition
switch
to OFF', LOCK or ACC with the lamps on.
2-31
ProCarManuals.com
Page 94 of 340

Instrument Panel Lamps
You can brighten or dim the instrument panel lamps by
moving the PANEL
LAMPS dial. If you turn the dial
past
HI, your courtesy or interior lamps will conle on.
Daytime Running Lamps (Canada Only)
Daytime Running Lamps (DRL) can make it easier for
others to see the front of your vehicle during the day.
DRL can be helpful in many different driving
conditions, but they can be especially helpful
in the
short periods after dawn and before sunset.
A light sensor on top of the instrument panel makes the
DRL work,
so be sure it isn’t covered,
The
DRL system will make your low-beam headlamps
come on at a reduced brightness when: When the DRL
are
on, only your low-bearn headlamps
will be on. The taillamps, sidemarker and other lamps
won‘t be
on. Your instrument panel won’t be lit up either.
When it’s dark enough outside, your low-beam
headlamps will change to
full brightness. The other lamps
that come
on with your headlamps will also come on.
When it’s bright enough outside, the regular lamps
will
go off, and your low-beam headlamps change to the
reduced brightness of DRL.
To idle your vehicle with the DRL off, set the parking brake
while the ignition is
in OFF or LOCK. Then start your vehicle.
The
DIU will stay off until you release the parking brake.
As with any vehicle, you should turn on the regular
headlamp system any time you need it.
0 The ignition is on,
0 The headlamp switch is off, and
0 The parking brake is released.
2-32
ProCarManuals.com
Page 95 of 340

Interior Lamps
When any door is opened, several lamps come on. These
lamps
are courtesy lamps. They make it easy for you to enter
and leave your
vehcle. You can also turn these lamps on by
moving the PANEL LAMPS dial all the way up past
HI.
Some of the lamps have switches so you can turn them
on, even when the doors are closed. These lamps are
reading lamps.
To avoid draining your battery, be sure to
turn
off all reading lamps when leaving your vehicle.
Illuminated Entry
Battery Saver
Your vehicle has a feature to help prevent you from draining
the battery, in case you accidentally leave the courtesy lamps
on. If you leave the PANEL LAMPS dial turned all the
way up past
HI, or if you leave a door open, the lamps will
automatically
turn off after 10 minutes if the ignition is off.
This feature will not turn off the reading lamps, only the
lamps controlled by
the PANEL LAMPS dial. Be sure to
turn off any reading lamps using the switch before you
leave the vehicle. Your
courtesy lamps will come on and stay on for
a set
time whenever you:
Pull a front door handle.
0 Press UNLOCK on the Remote Lock Control
(if equipped).
0 Press DOOR on the Remote Lock Control
(if equipped).
If you open
a door, the lamps will stay on while it’s open
and then turn off automatically about 18 seconds after
you close it. If you don’t open a door,
the lamps will
turn off after about 18 seconds, unless you pressed
UNLOCK
on the Remote Lock Control. If you pressed
UNLOCK and don’t open
a door, the lamps will turn off
after about 55 seconds.
Illuminated entry includes a feature called theater
dimming. With theater dimming,
the lamps don’t just
turn off at the end of the delay time. Instead, they slowly
dim during the delay time
until they go out. The delay
time
is cancelled if you turn the ignition key to RUN or
START,
so the lamps will go out right away.
When the ignition is on, Illuminated Entry is inactive,
which means the courtesy lamps won’t come on.
ProCarManuals.com
Page 96 of 340
Rearview Mirror Reading Lamps Roof Console Reading Lamps (Option)
These lamps are part of the optional roof console. They
will
go on when you open the doors. When the doors are
closed, push the button
to turn the lamp 011 and off.
2-34
