1994 PONTIAC BONNEVILLE Owners Manual

Problems on the Road
I

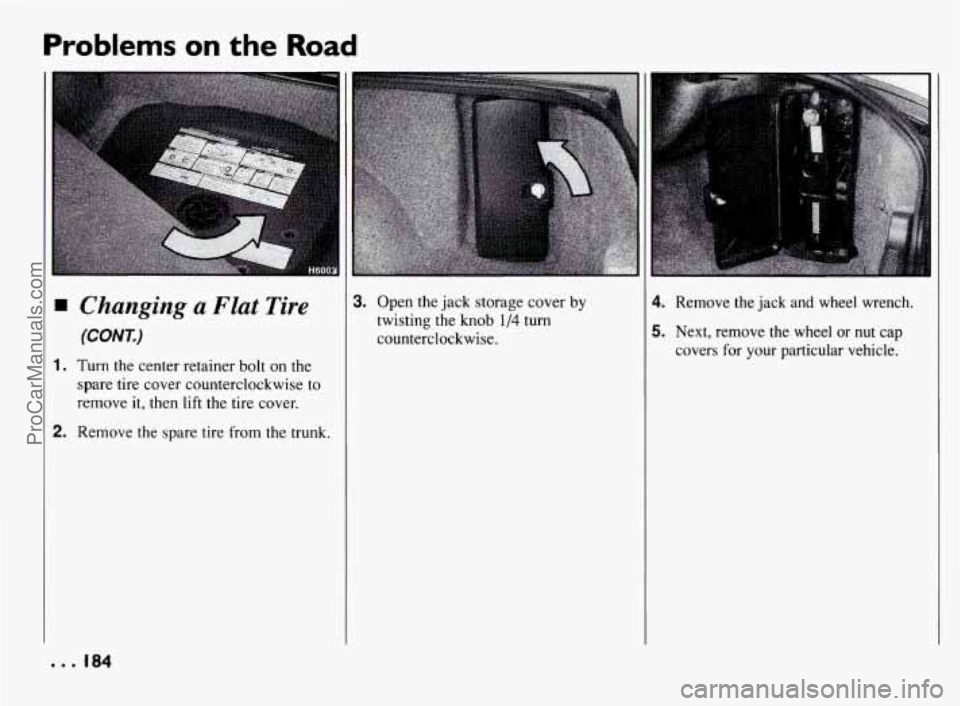

Changing a Flat Tire
(CONI)
1. Turn the center retainer bolt on the spare tire cover counterclockwise to
remove
it, then lift the tire cover.
2. Remove the spare tire from the trunk.
. . . 184
#. Open the jack storage cover by
twisting the
knob 1/4 turn
counterclockwise.
4. Remove the jack and wheel wrench.
5. Next, remove the wheel or nut cap
covers for your particular vehicle.
ProCarManuals.com

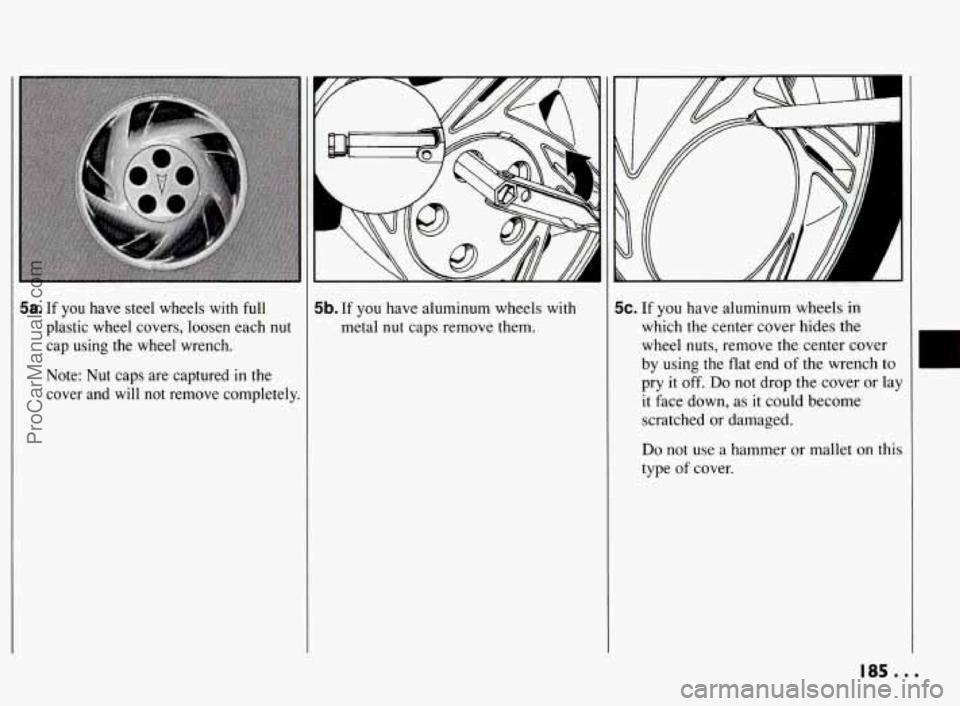

5a. If you have steel wheels with full
plastic wheel covers, loosen each nut
cap using the wheel wrench.
Note: Nut caps are captured
in the
cover and will not remove completely.
5b. If you have aluminum wheels with
metal nut caps remove them. 5c. If you have aluminum wheels in
which the center cover hides the
wheel nuts, remove the center cover
by using the flat end
of the wrench to
pry
it off. Do not drop the cover or lay
it face down, as it could become
scratched or damaged.
Do not use a hammer or mallet on this
type
of cover.
ProCarManuals.com

Problems on the Road
4
6.

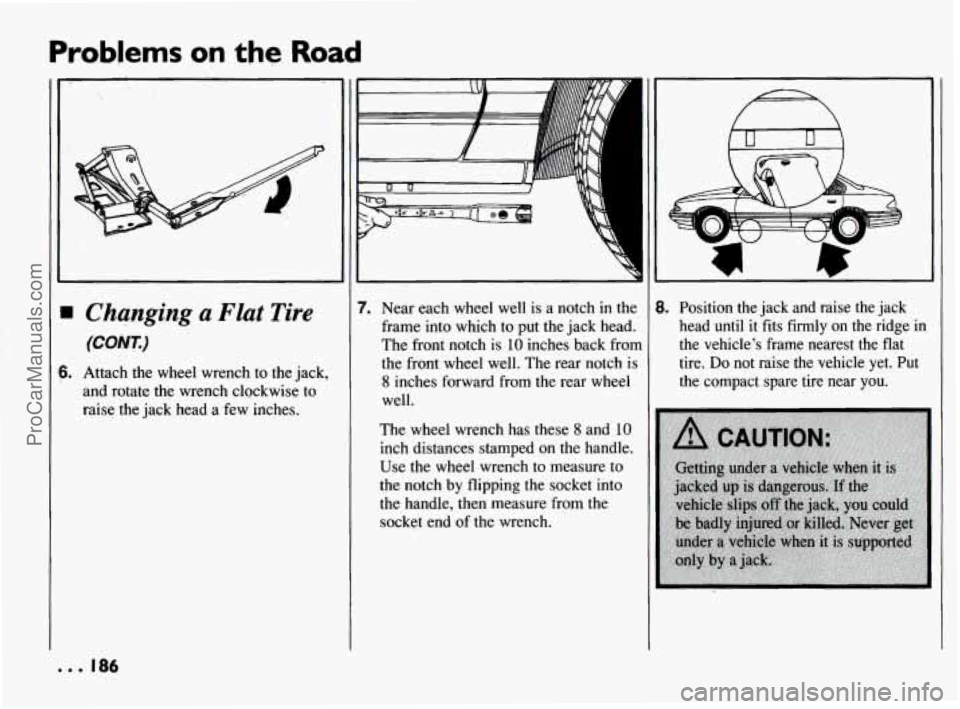

Changing a Flat Tire
(CONT.)
Attach the wheel wrench to the jack,
and rotate the wrench clockwise to
raise the jack head a few inches.
7. Near each wheel well is a notch in the
frame into which to put the jack head.
The front notch is
10 inches back fron
the front wheel well. The rear notch iy
8 inches forward from the rear wheel
well.
The wheel wrench has these
8 and 10
inch distances stamped on the handle.
Use the wheel wrench to measure to
the notch by flipping the socket into
the handle, then measure from the
socket end of
the wrench.
I. Position the jack and raise the jack
head
until it fits firmly on the ridge in
the vehicle’s frame nearest the flat
tire.
Do not raise the vehicle yet. Put
the compact spare tire near you.
ProCarManuals.com

9. If your wheel has the special locking
lug nut, use the special adapter
supplied with your vehicle to remove
the locking wheel nut
by turning
counterclockwise. 1O.Use
the wheel wrench to loosen the
wheel nuts, but don't remove them.
- .. .
11 .Raise the vehicle by rotating tbe
wheel wrench clockwise
on thejack
shaft. Raise the vehicle far enough off
the ground
so there is enough mom
for the spare tire to fit.
. .5 $I' .
8. ':C. -.% :i .
, .*.
187.
ProCarManuals.com

Problems on the Road
1
Changing a Flat Tire
(CONT.)

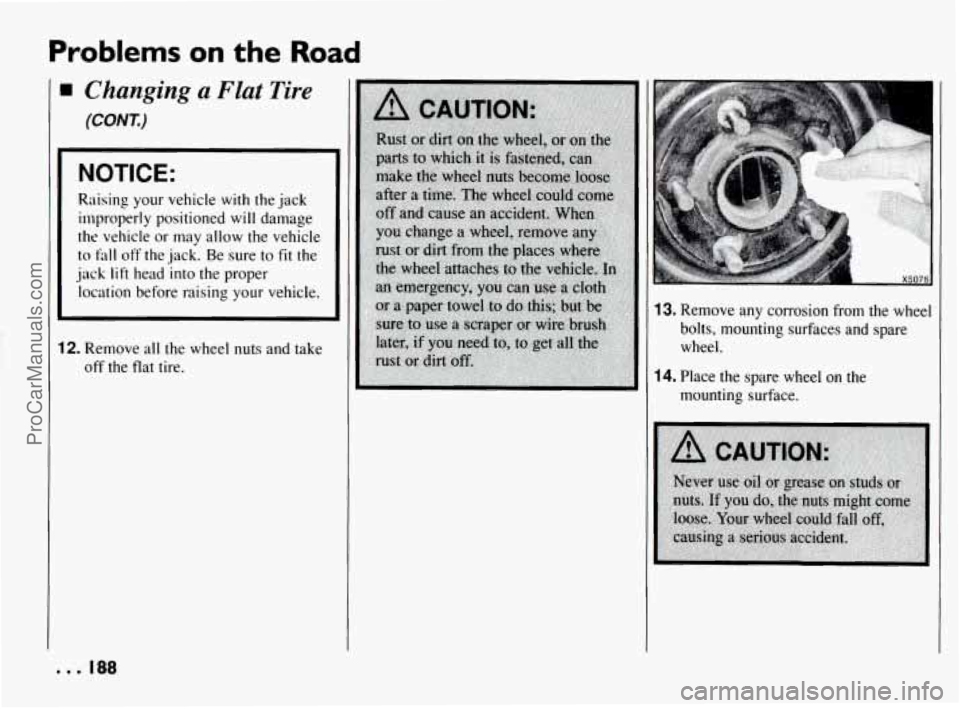

NOTICE:
Raising your vehicle with the jack
inlproperly positioned will damage
the vehicle or may allow the vehicle
to fdl off the jack. Be sure to fit the
jack lift head into the proper
location before raising your vehicle.
12. Remove all the wheel nuts and take
off the flat tire.
13. Remove any corrosion from the wheel
bolts, mounting surfaces and spare wheel.
14. Place the spare wheel on the
mounting surface.
I
ProCarManuals.com

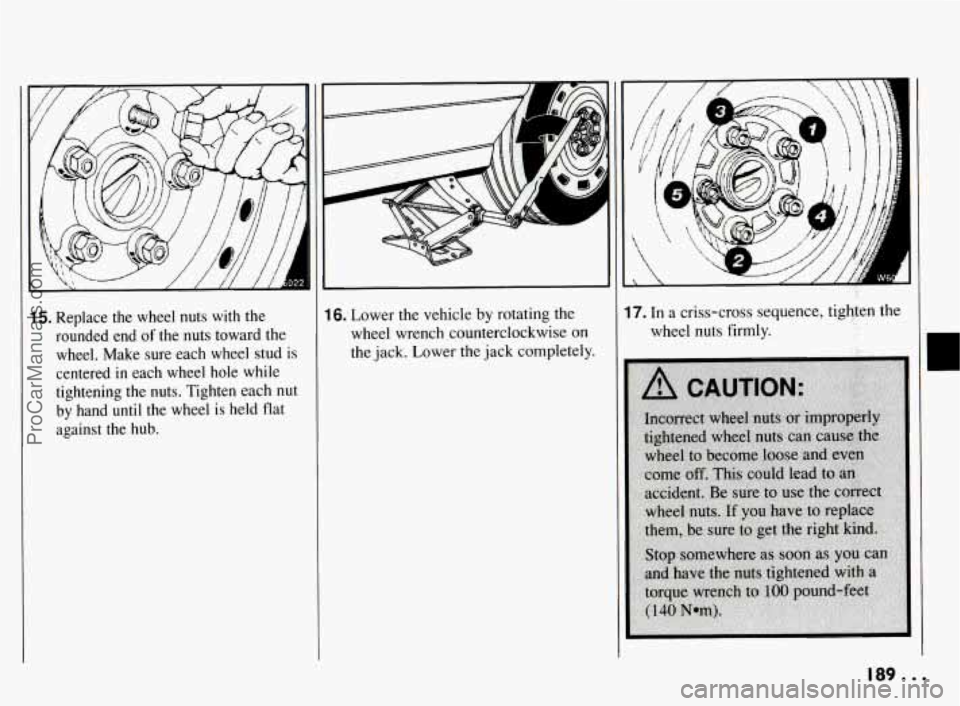

15. Replace the wheel nuts with the
rounded end of the nuts toward the
wheel. Make sure each wheel stud
is
centered in each wheel hole while
tightening the nuts. Tighten each nut
by hand until the wheel is held flat
against the hub.
16. Lower the vehicle by rotating the
wheel wrench counterclockwise on
the jack. Lower the jack completely. 17. In a criss-cross sequence, tighten the
wheel nuts firmly.
189 ...
ProCarManuals.com

Problems on the Road
I
Changing a Flat Tire
(CONT.)

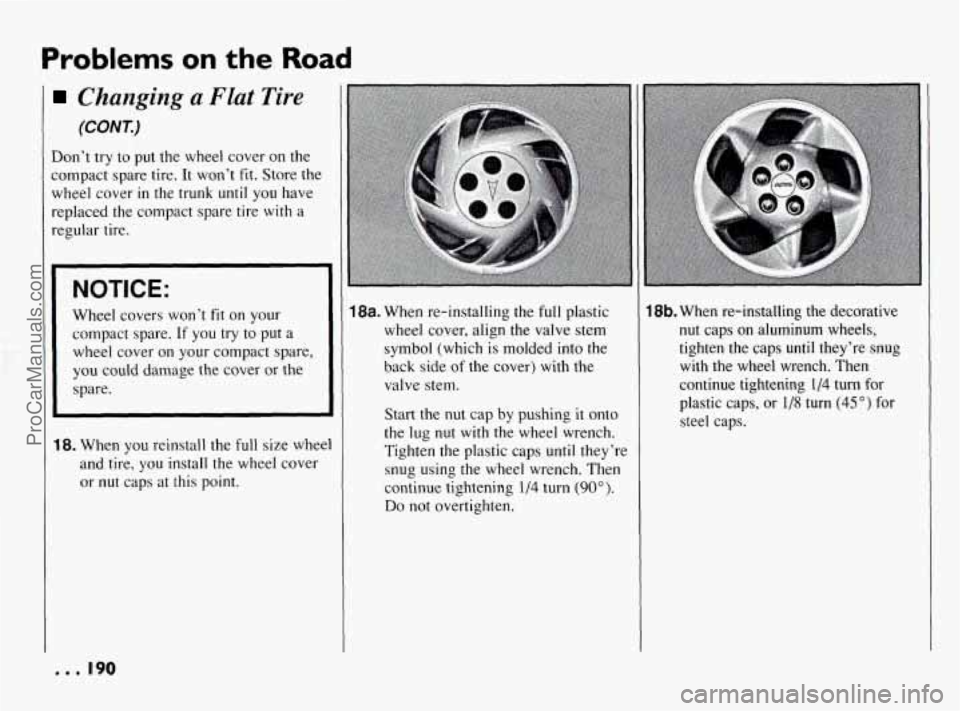

Don't try to put the wheel cover on the
compact spare tire. It won't fit. Store the
wheel cover
in the trunk until you have
replaced
the compact spare tire with a
regular tire.
NOTICE:
Wheel covers won't fit on your
compact spare.
If you try to put a
wheel cover
on your compact spare,
you could damage the cover or the
spare.
18. When you reinstall the full size whee
and tire, you install the wheel cover
or nut caps at this point. :1
18a. When re-installing the full plastic
wheel cover, align the valve stem
symbol (which is molded into the
back side of the cover) with the
valve stem.
Start the nut cap by pushing it onto
the lug nut with the wheel wrench.
Tighten the plastic caps until they're
snug using the wheel wrench. Then
continue tightening
1/4 turn (90").
Do not overtighten.
18b. When re-installing the decorative
nut caps on aluminum wheels,
tighten the caps
until they're snug
with the wheel wrench. Then
continue tightening
1/4 turn for
plastic caps, or
1/8 turn (45") for
steel caps.
. . . 190
ProCarManuals.com

!l

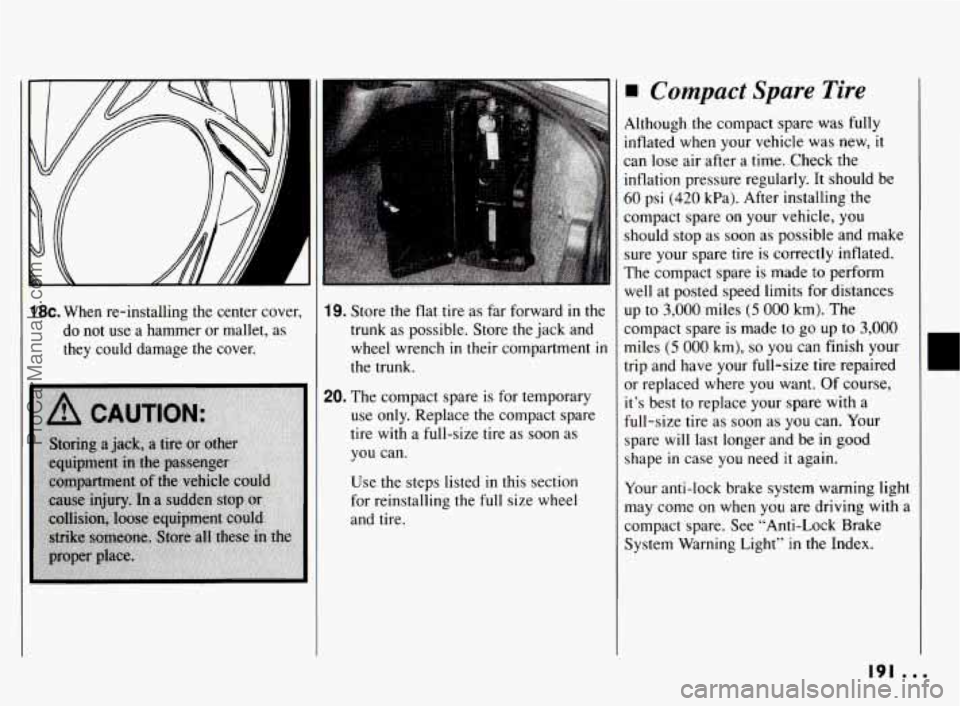

18~. When re-installing the center cover,
do not use a hammer or mallet, as
they could damage the cover. 19. Store the flat tire as far forward in the
trunk as possible. Store
the jack and
wheel wrench in their compartment
in
the trunk.
20. The compact spare is for temporary
use only. Replace the compact spare
tire with a full-size tire as
soon as
you can.
Use the steps listed in this section
for reinstalling the
full size wheel
and tire.
Compact Spare Tire
Although the compact spare was fully
inflated when your vehicle was new, it
can lose air after a time. Check the
inflation pressure regularly. It should be
60 psi (420 kPa). After installing the
compact spare on your vehicle, you
should stop as soon as possible and make
sure your spare tire is correctly inflated.
The compact spare is made to perform
well at posted speed limits for distances
up to
3,000 miles (5 000 km). The
compact spare is made
to go up to 3,000
miles (5 000 km), so you can finish your
trip and have your full-size tire repaired
or replaced where you want. Of course,
it’s best to replace your spare with a
full-size tire as soon as you can. Your
spare will last longer and be
in good
shape
in case you need it again.
Your anti-lock brake system warning light
may come on when
you are driving with a
compact spare. See “Anti-Lock Brake
System Warning Light”
in the Index.
191 ...
