1994 PONTIAC BONNEVILLE Owners Manual

Features 8t Controls
Instrument Panel Clusters

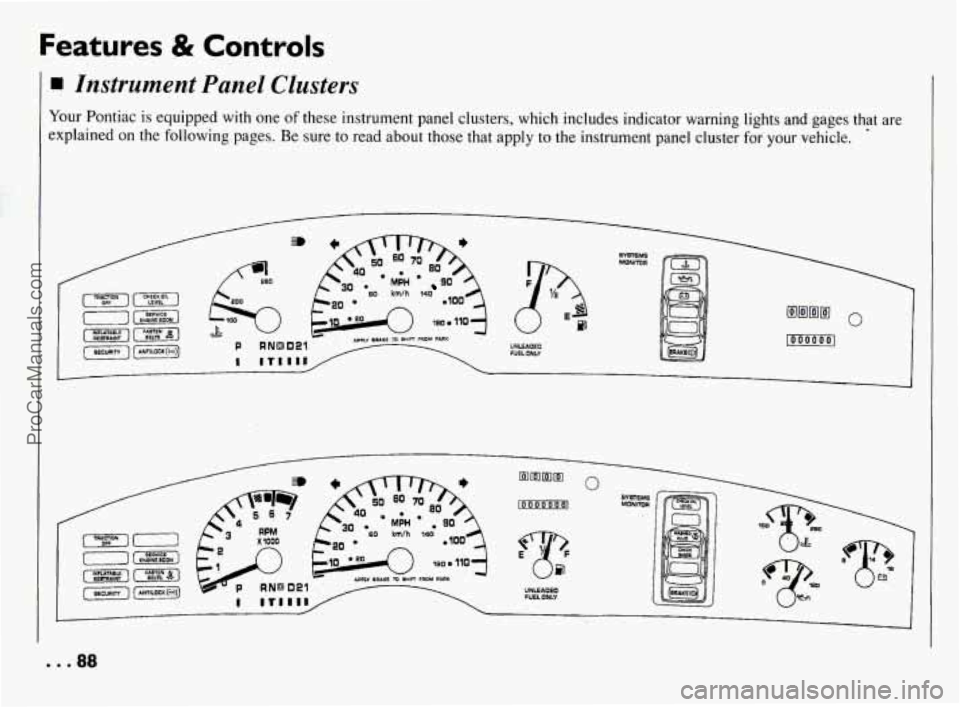

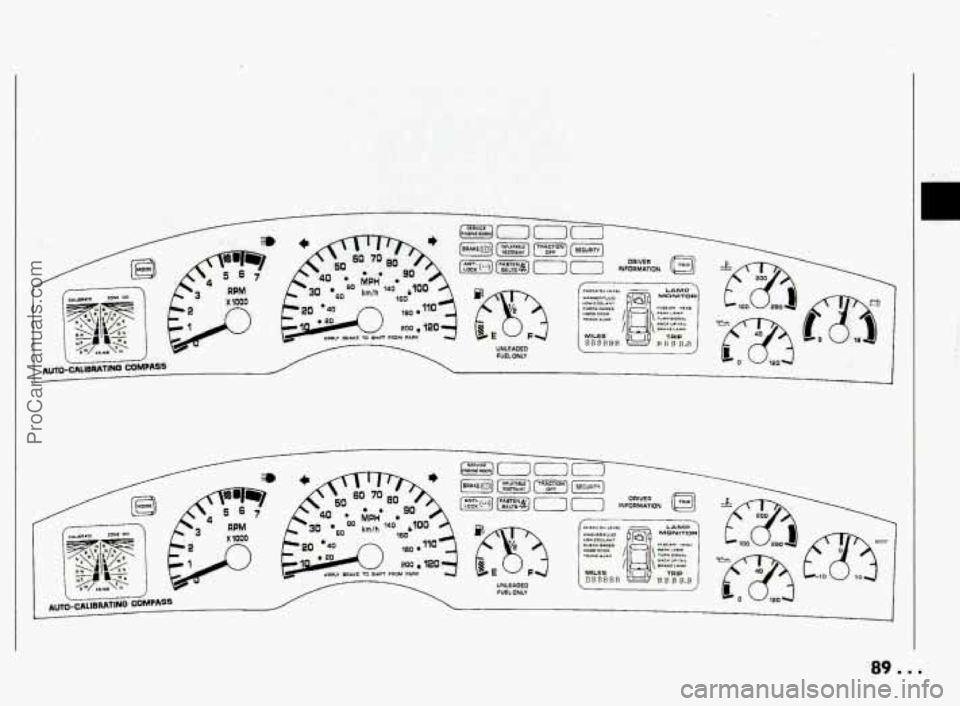

Your Pontiac is equipped with one of these instrument panel clusters, which \
includes indicator warning lights and gages that are
explained
on the following pages. Be sure to read about those that apply to the instrument panel cluster for your vehicle.
30 *60 kmlh (40 MPH 90
eo '
I
UNLEADED NELONLV
loooooool
UNLEAOEO
FUEL ONLY
ProCarManuals.com

89...
ProCarManuals.com

Features & Controls

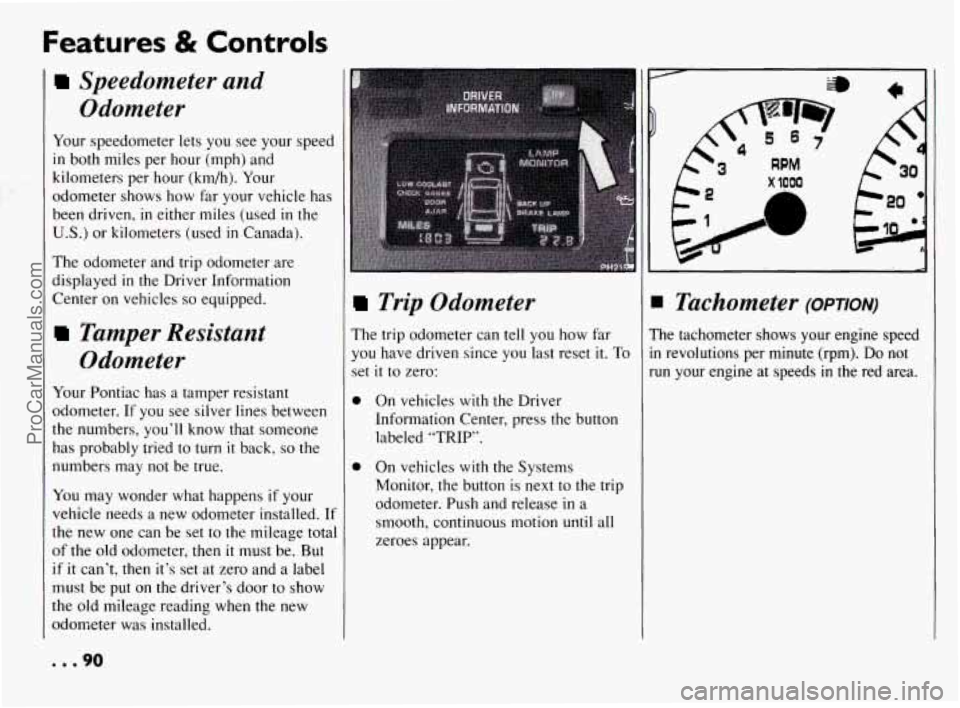

Speedometer and Odometer
Your speedometer lets you see your speed
in both miles per hour (mph) and
kilometers per hour (kmh). Your
odometer shows how far your vehicle has
been driven, in either miles (used in the
U.S.) or kilometers (used in Canada).
The odometer and trip odometer are
displayed
in the Driver Information
Center
on vehicles so equipped.
Tamper Resistant Odometer
Your Pontiac has a tamper resistant
odometer.
If you see silver lines between
the numbers,
you’ll know that someone
has probably tried to
turn it back, so the
numbers may
not be true.
You may wonder what happens if your
vehicle needs a new odometer installed.
If
the new one can be set to the mileage total
of the
old odometer, then it must be. But
if it can’t, then it’s set at zero and a label
must be put on the driver’s door to show
the old mileage reading when the new
odometer was installed.
Trip Odometer
The trip odometer can tell you how far
you have driven since
you last reset it. To
set it to zero:
0
0 On vehicles with the Driver
Information Center, press the button
labeled
“TRIP’.
On vehicles with the Systems
Monitor. the button is next to the trip
odometer. Push and release
in a
smooth, continuous motion unti
zeroes appear.
1 all
x 1000
A
IB
I Tachometer (OPTION)
’he tachometer shows your engine speed
I revolutions per minute (rpm). Do not
un your engine at speeds
in the red area.
... 90
ProCarManuals.com

Warning Lights, Gages
and Indicators

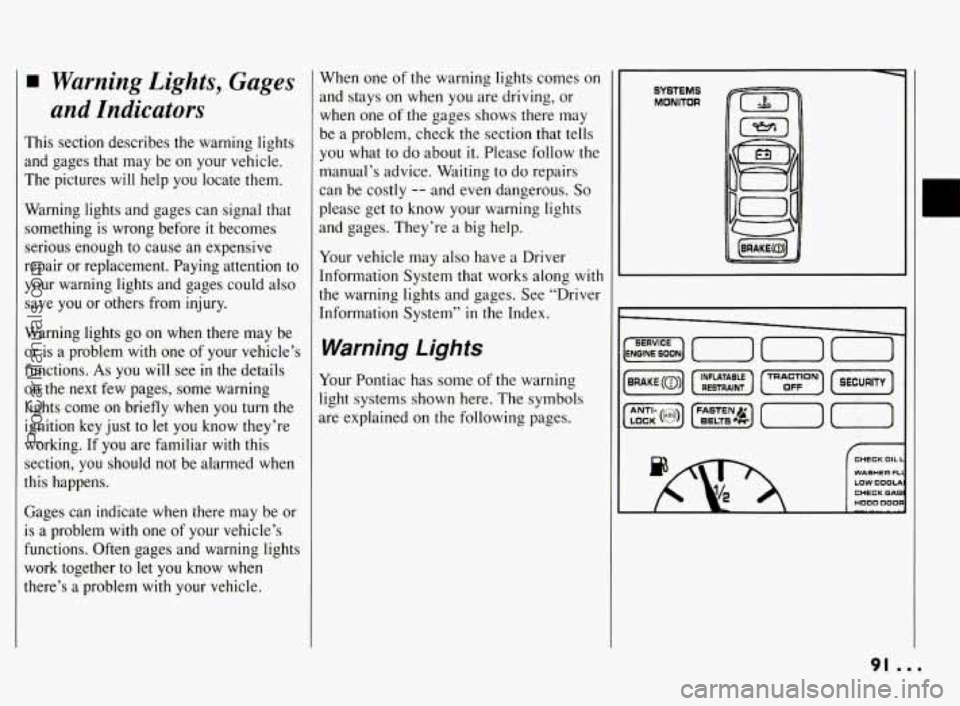

This section describes the warning lights
and gages that may be on your vehicle.
The pictures will help you locate them.
Warning lights and gages can signal that
something is wrong before it becomes
serious enough to cause an expensive
repair or replacement. Paying attention to
your warning lights and gages could also
save you or others from injury.
Warning lights go on when there may be
or is a problem with one of your vehicle’s
functions.
As you will see in the details
on the next few pages, some warning
lights come on briefly when you turn the
ignition key just to let you know they’re
working. If you are familiar with this
section, you should not be alarmed when
this happens.
Gages can indicate when there may be or
is a problem with one of your vehicle’s
functions. Often gages and warning lights work together to let you know when
there’s a problem with your vehicle. When one of the warning lights
comes on
and stays on when
you are driving, or
when one of the gages shows there may
be a problem, check the section that tells
you what to do about it. Please follow the
manual’s advice. Waiting to do repairs
can be costly
-- and even dangerous. So
please get to know your warning lights
and gages. They’re a big help.
Your vehicle may also have a Driver
Information System that works along with
the warning lights and gages. See “Driver
Information System”
in the Index.
Warning Lights
Your Pontiac has some of the warning
light systems shown here. The symbols
are explained on the following pages.
SYSTEMS MONITOR
[-I [T) (-1
-g r-1 [-I I-]
7 CHECK OIL
WASHER FL
CHECKOAC LOW coau
91 ...
ProCarManuals.com

Features & Controls
SYSTEMS MONITOR
0
(-J[=zFz]
[HeURlTY][-))
Warning Lights (CONT.)
I
I-] INFORMATION DRIVER
CHECK OIL LEVEL - LAMP
WASHER FLUID
CHECK QAQES LOW
COOLANT
moo DOOR TRUNK AJAR TURN SIONAL
BACK UP TAIL
BRAKE LAMP
MILES TRIP
(][TEiir] ENGINE SOON
[E][--

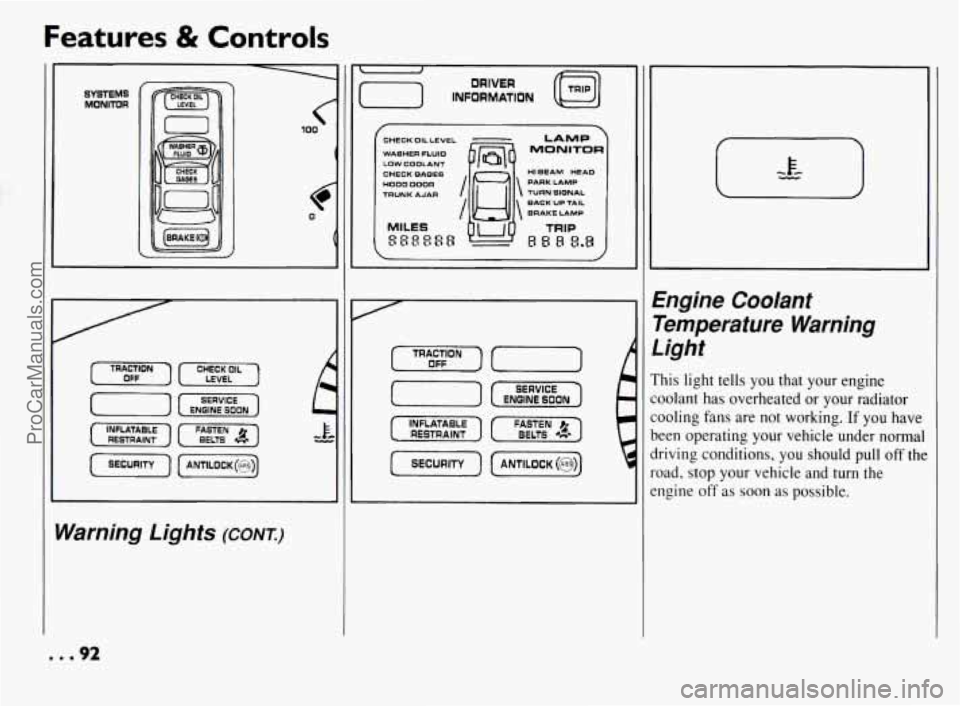

Engine Coolant Temperature Warning
Light
This light tells you that your engine
coolant has overheated or your radiator
cooling fans are not working.
If you have
been operating your vehicle under normal
driving conditions, you
should pull off the
road, stop your vehicle and
turn the
engine off as soon as possible.
I #..92
ProCarManuals.com

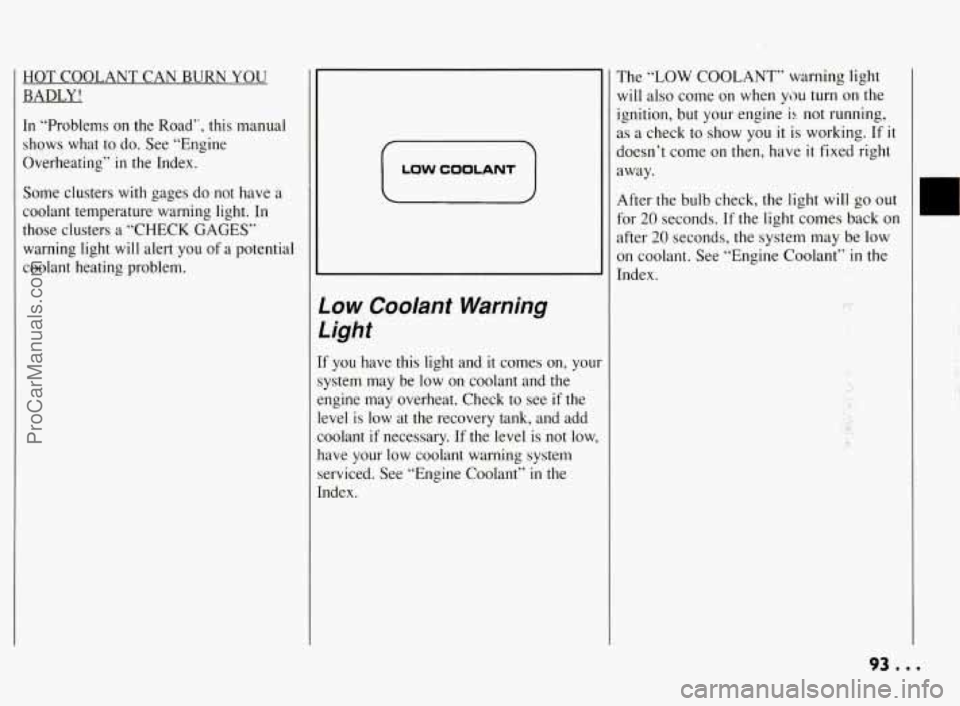

HOT COOLANT CAN BURN YOU
BADLY!
In “Problems on the Road”, this manual
shows
what to do. See “Engine
Overheating”
in the Index.
Some clusters
with gages do not have a
coolant temperature warning light. In
those clusters a “CHECK GAGES”
warning light
will alert you of a potential
coolant heating problem.
r LOW COOLANT
Low Coolant Warning
Light
If you have this light and it comes on, you
system may be low on coolant and the
engine may overheat. Check to see
if the
level is low
at the recovery tank, and add
coolant
if necessary. If the level is not low.
have your low coolant warning system serviced. See “Engine Coolant”
in the
Index. The
“LOW COOLANT” warning
light
will also come on when you
turn on the
ignition, but your engine
is not running,
as a check to show you
it is working. If it
doesn’t come on then, have it fixed right
away.
After the bulb check, the light will go out
for
20 seconds. If the light comes back on
after
20 seconds, the system may be low
on coolant. See “Engine Coolant” in the
Index.
93.0.
ProCarManuals.com

Features 8t Controls
i-)
(
I1
li
el
T
tl
kl
0
If
le
ir
Si
XI Warning Light

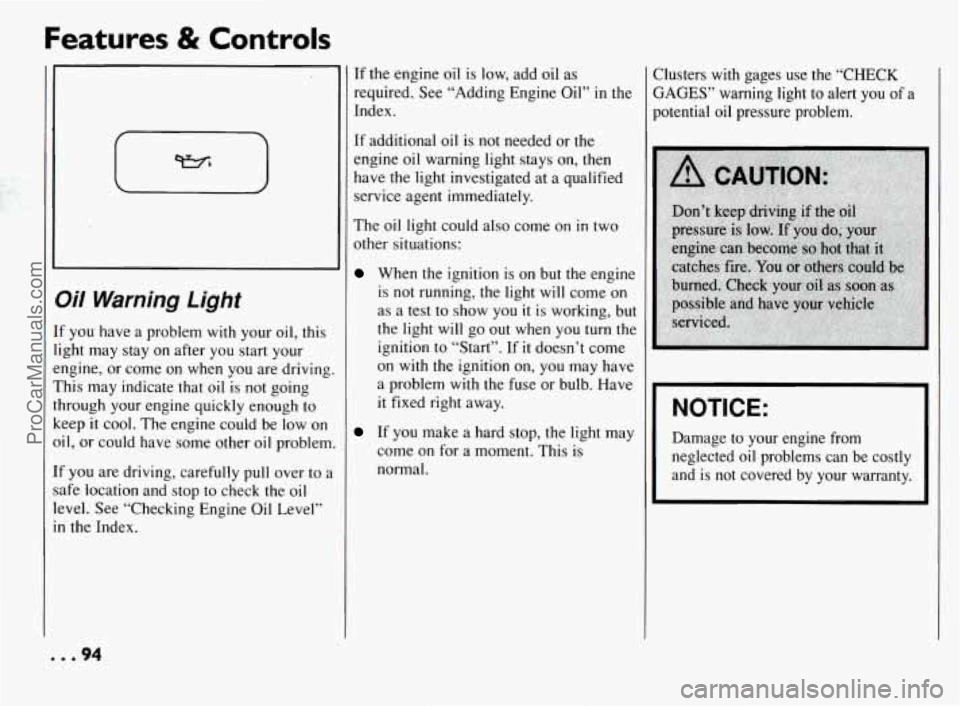

’ you have a problem with your oil, this
ght may stay on after you start your
ngine, or come on when you are driving.
‘his may indicate that oil is not going
lrough your engine quickly enough to
eep
it cool. The engine could be low on
il,
or could have some other oil problem,
’ you are driving, carefully pull over to a
ife location and stop to check the oil
:vel. See “Checking Engine Oil Level”
I the Index. If
the engine oil is low, add oil as
required. See “Adding Engine Oil” in the
Index.
If additional oil is not needed
or the
engine oil warning light stays on, then
have the light investigated at a qualified
service agent immediately.
The oil light could also come
on in two
other situations:
When the ignition is on but the engine
is not running, the light will come on
as a test to show you
it is working, but
the light will
go out when you turn the
ignition to “Start”. If
it doesn’t come
on with the ignition on, you may have
a problem with the fuse or bulb. Have
it fixed right away.
If you make a hard stop, the light may
come on
for a moment. This is
normal. :lusters with
gages
use the “CHECK
;AGES” warning light to alert you of a
hotential oil pressure problem.
NOTICE:
Damage to your engine from
neglected oil problems can be costly
and is not covered by your warranty.
00.94
ProCarManuals.com

CHECK OIL
I LEVEL I

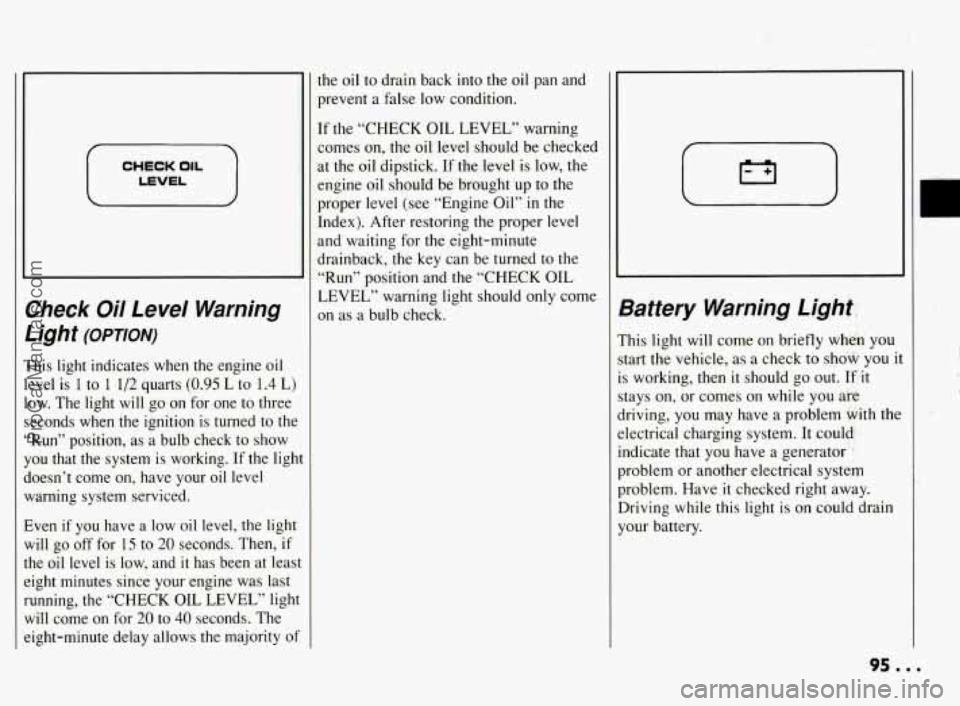

:heck Oil Level Warning
Light
(OPTION)
’his light indicates when the engine oil
:vel
is 1 to 1 1/2 quarts (0.95 L to 1.4 L)
3w. The light will go on for one to three
econds when the ignition is turned to the
Run” position, as a bulb check to show
ou that the system is working. If the light
oesn’t come on, have your oil level
vlarning system serviced.
:veri if you have a low oil level, the light
dl go off for 15 to 20 seconds. Then, if
le oil level is low, and it has been at least
ight minutes since your engine was last
unning, the “CHECK OIL LEVEL” light
dl come on for 20 to 40 seconds. The
ight-minute delay allows the majority of the oil
to drain back into the oil pan and
prevent a false
low condition.
If the “CHECK
OIL LEVEL” warning
comes
on, the oil level should be checked
at the oil dipstick. If the level is low, the
engine oil should be brought up to the
proper
level (see “Engine Oil” in the
Index). After restoring the proper level
and waiting for the eight-minute
drainback, the key can be turned to
the
“Run” position and the “CHECK OIL
LEVEL” warning light should only come
on as a bulb check.
3attery Warning Light..:
This light will come on briefly whm you
start the vehicle, as a check to show you
i
is working, then it should go out. IF it
stays on, or comes on while you ai-6,
driving,
you may have a problem Gith thc
electrical charging system. It could
indicate that you have a generator
”
problem or another electrical system
problem. Have
it checked right away.
Driving while this light
is on could drain
your battery.
c
95.0.
