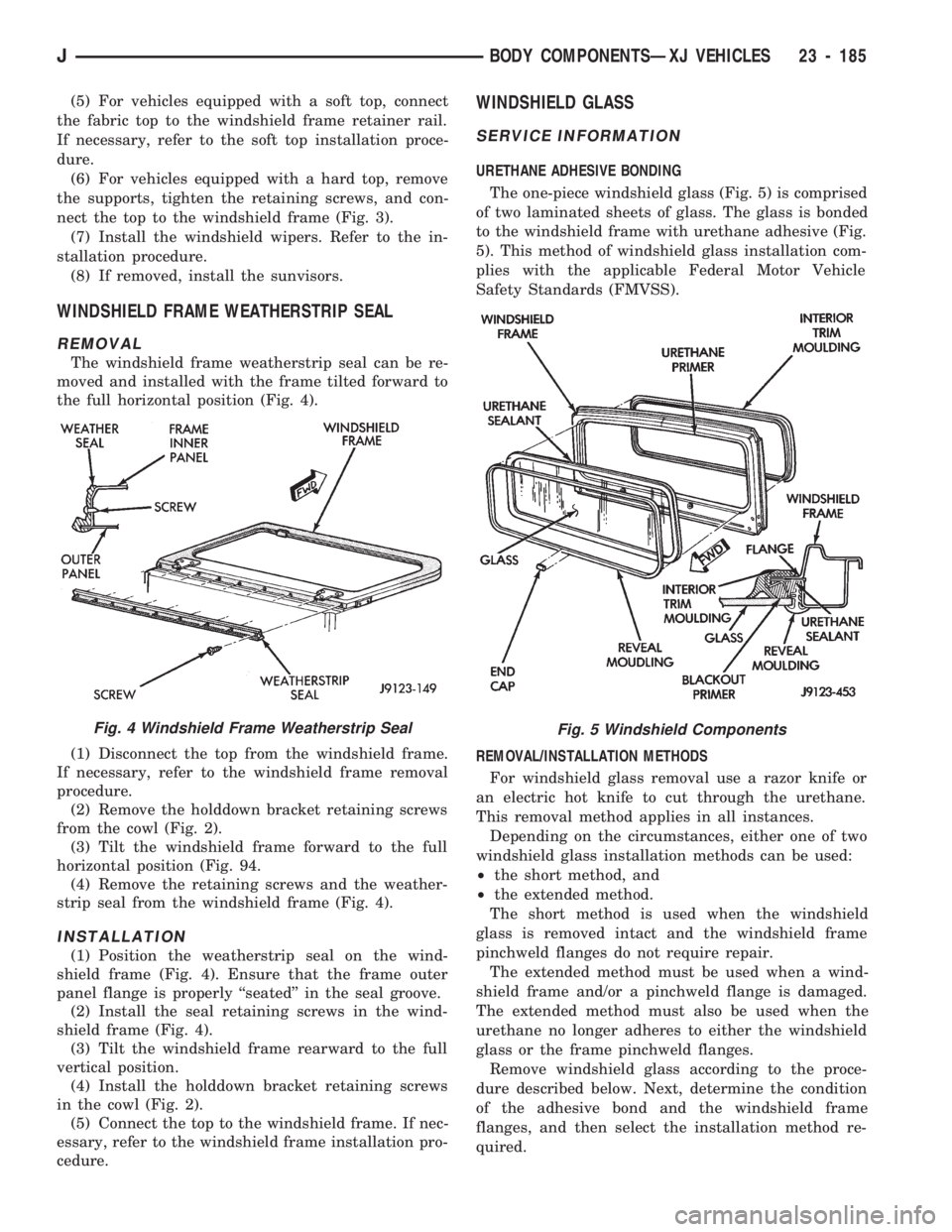

1994 JEEP CHEROKEE windshield wipers

(5) For vehicles equipped with a soft top, connect
the fabric top to the windshield frame retainer rail.
If necessary, refer to the soft top installation proce-
dure.
(6) For vehicles equipped with a hard top, remove
the supports, tighten the retaining screws, and con-
nect the top to the windshield frame (Fig. 3).
(7) Install the windshield wipers. Refer to the in-
stallation procedure.
(8) If removed, install the sunvisors.
WINDSHIELD FRAME WEATHERSTRIP SEAL
REMOVAL
The windshield frame weatherstrip seal can be re-
moved and installed with the frame tilted forward to
the full horizontal position (Fig. 4).
(1) Disconnect the top from the windshield frame.
If necessary, refer to the windshield frame removal
procedure.
(2) Remove the holddown bracket retaining screws
from the cowl (Fig. 2).
(3) Tilt the windshield frame forward to the full
horizontal position (Fig. 94.
(4) Remove the retaining screws and the weather-
strip seal from the windshield frame (Fig. 4).
INSTALLATION
(1) Position the weatherstrip seal on the wind-
shield frame (Fig. 4). Ensure that the frame outer
panel flange is properly ``seated'' in the seal groove.
(2) Install the seal retaining screws in the wind-
shield frame (Fig. 4).
(3) Tilt the windshield frame rearward to the full
vertical position.
(4) Install the holddown bracket retaining screws
in the cowl (Fig. 2).
(5) Connect the top to the windshield frame. If nec-
essary, refer to the windshield frame installation pro-
cedure.
WINDSHIELD GLASS
SERVICE INFORMATION
URETHANE ADHESIVE BONDING
The one-piece windshield glass (Fig. 5) is comprised
of two laminated sheets of glass. The glass is bonded
to the windshield frame with urethane adhesive (Fig.
5). This method of windshield glass installation com-
plies with the applicable Federal Motor Vehicle
Safety Standards (FMVSS).
REMOVAL/INSTALLATION METHODS
For windshield glass removal use a razor knife or
an electric hot knife to cut through the urethane.
This removal method applies in all instances.
Depending on the circumstances, either one of two
windshield glass installation methods can be used:
²the short method, and
²the extended method.
The short method is used when the windshield
glass is removed intact and the windshield frame
pinchweld flanges do not require repair.
The extended method must be used when a wind-
shield frame and/or a pinchweld flange is damaged.
The extended method must also be used when the
urethane no longer adheres to either the windshield
glass or the frame pinchweld flanges.
Remove windshield glass according to the proce-
dure described below. Next, determine the condition
of the adhesive bond and the windshield frame
flanges, and then select the installation method re-
quired.
Fig. 4 Windshield Frame Weatherstrip SealFig. 5 Windshield Components
