1994 JEEP CHEROKEE window

SWITCH TESTING
DRIVERS DOOR POWER WINDOW SWITCHÐ4-DOOR
JPOWER WINDOWS 8S - 5

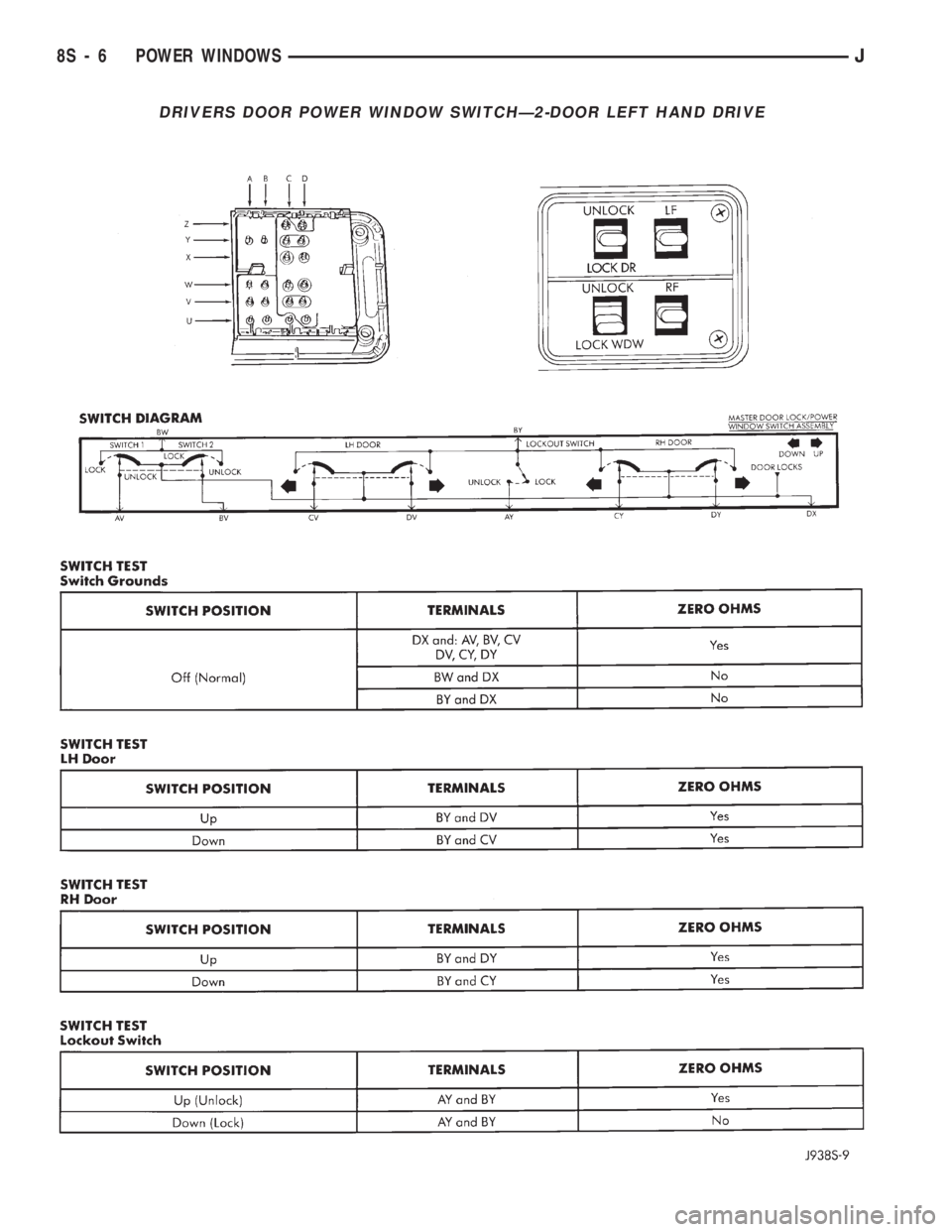

DRIVERS DOOR POWER WINDOW SWITCHÐ2-DOOR LEFT HAND DRIVE
8S - 6 POWER WINDOWSJ

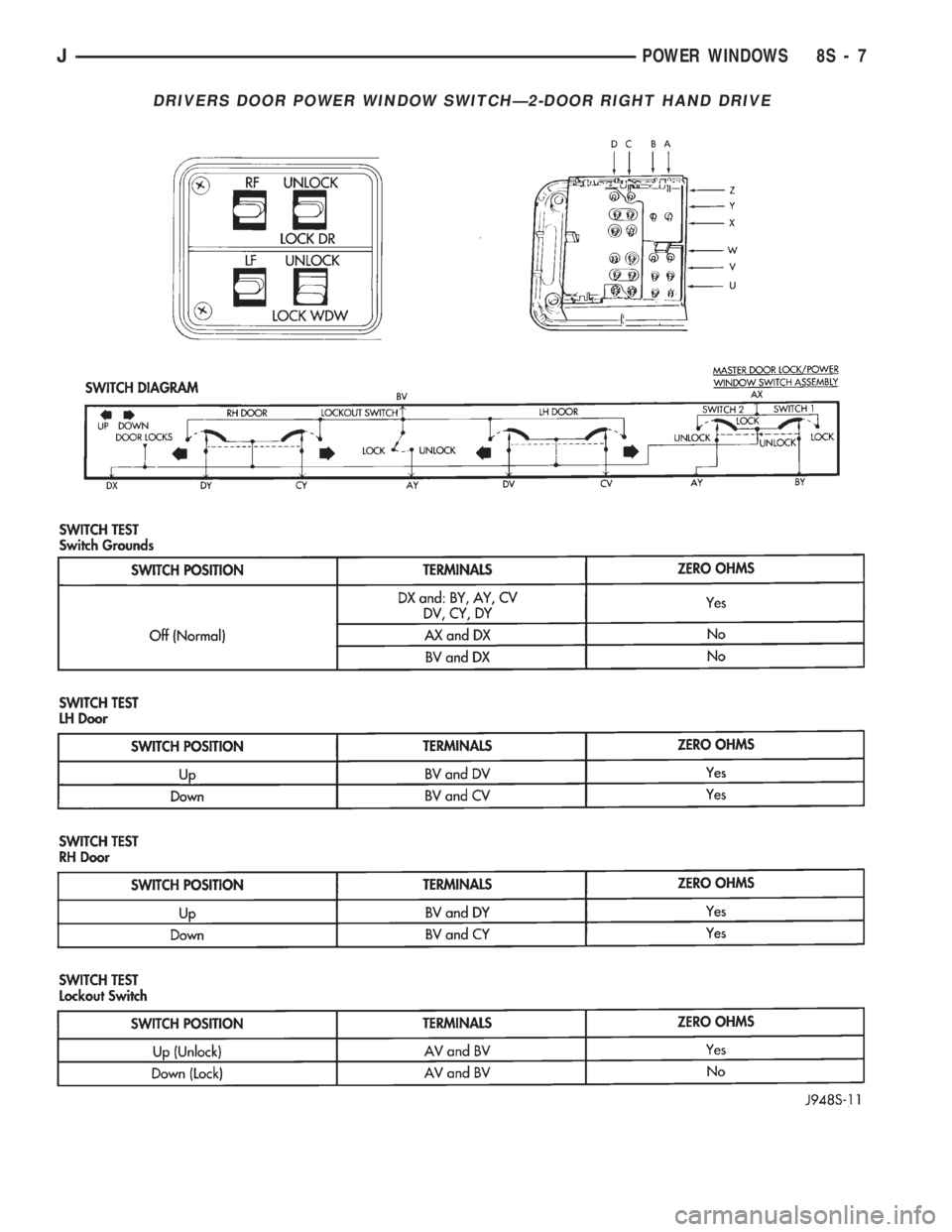

DRIVERS DOOR POWER WINDOW SWITCHÐ2-DOOR RIGHT HAND DRIVE
JPOWER WINDOWS 8S - 7

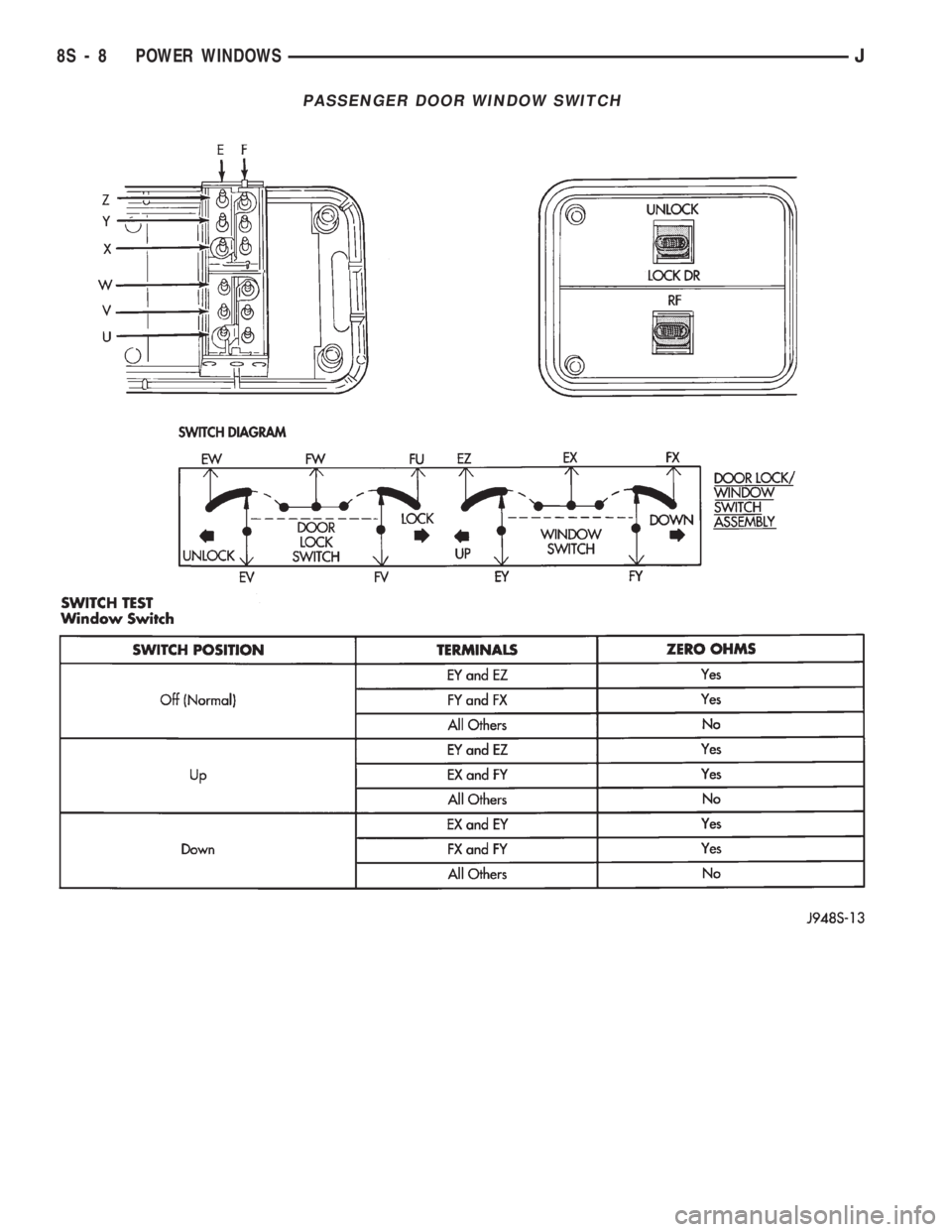

PASSENGER DOOR WINDOW SWITCH
8S - 8 POWER WINDOWSJ

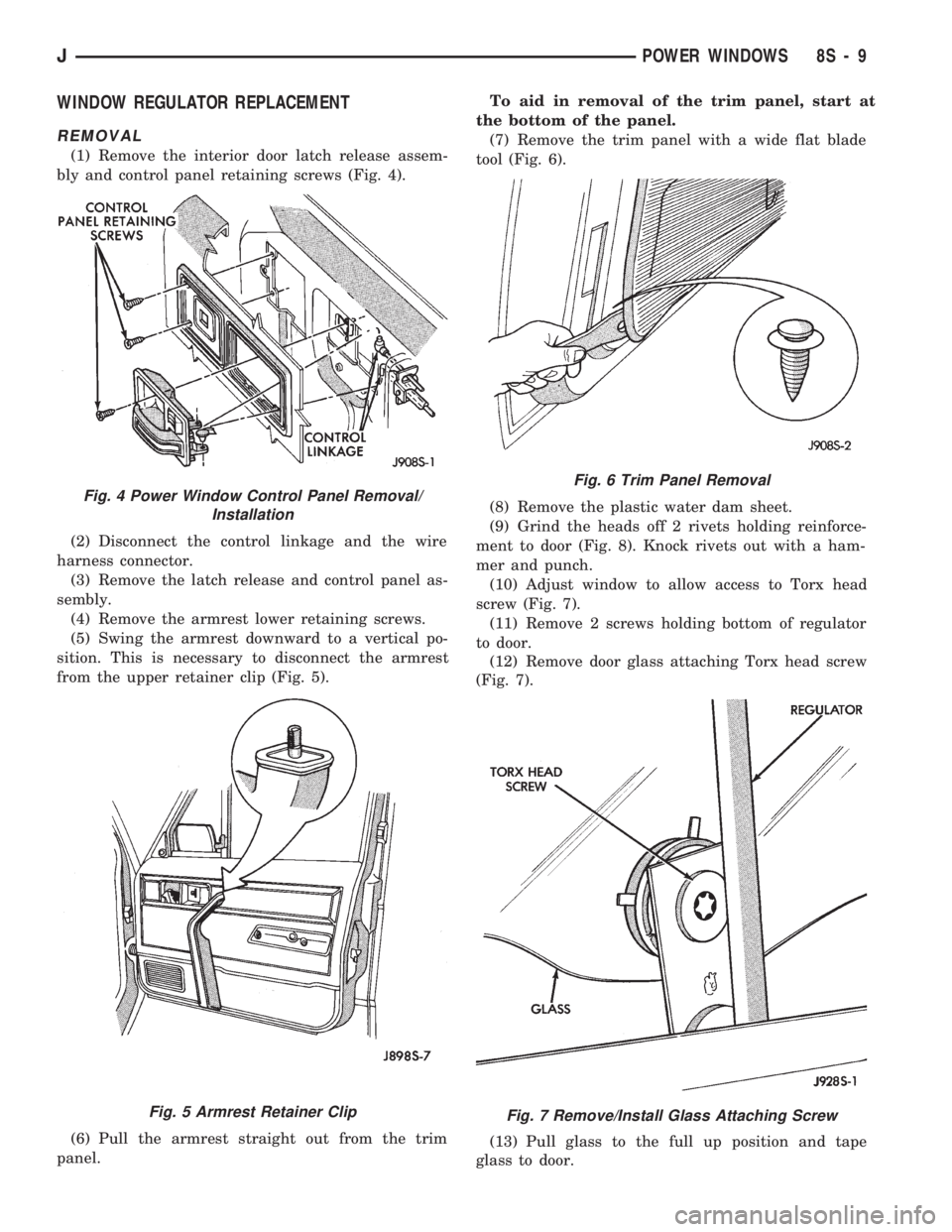

WINDOW REGULATOR REPLACEMENT
REMOVAL
(1) Remove the interior door latch release assem-
bly and control panel retaining screws (Fig. 4).
(2) Disconnect the control linkage and the wire
harness connector.
(3) Remove the latch release and control panel as-
sembly.
(4) Remove the armrest lower retaining screws.
(5) Swing the armrest downward to a vertical po-
sition. This is necessary to disconnect the armrest
from the upper retainer clip (Fig. 5).
(6) Pull the armrest straight out from the trim
panel.To aid in removal of the trim panel, start at
the bottom of the panel.
(7) Remove the trim panel with a wide flat blade
tool (Fig. 6).
(8) Remove the plastic water dam sheet.
(9) Grind the heads off 2 rivets holding reinforce-
ment to door (Fig. 8). Knock rivets out with a ham-
mer and punch.
(10) Adjust window to allow access to Torx head
screw (Fig. 7).
(11) Remove 2 screws holding bottom of regulator
to door.
(12) Remove door glass attaching Torx head screw
(Fig. 7).
(13) Pull glass to the full up position and tape
glass to door.
Fig. 4 Power Window Control Panel Removal/
Installation
Fig. 5 Armrest Retainer Clip
Fig. 6 Trim Panel Removal
Fig. 7 Remove/Install Glass Attaching Screw
JPOWER WINDOWS 8S - 9

(14) Disconnect wire harness connector from the
window regulator.
(15) Remove remaining window regulator attach-
ing screws (Fig. 8).
(16) Remove window regulator.
INSTALLATION
(1) Place regulator inside door.
(2) Attach regulator to door using screws or the
hardware kit supplied with a new regulator. DO
NOT install the 2 screws that hold the bottom of the
regulator.
(3) Connect wire harness connector to regulator.
(4) Attach door glass with Torx head screw (Fig.
7). Tighten door glass screw to 3.3 Nzm (30 in. lbs.)
torque.
(5) Install the last 2 screws.
(6) Using 3M 08044 or 3M 08041 adhesive/sealant,
install plastic water dam sheet.
(7) Place trim panel in the installation position
and press in nylon retainers.
(8) Install the armrest.
(9) Install latch release assembly and control
panel.
Fig. 8 Window Regulator Removal
8S - 10 POWER WINDOWSJ

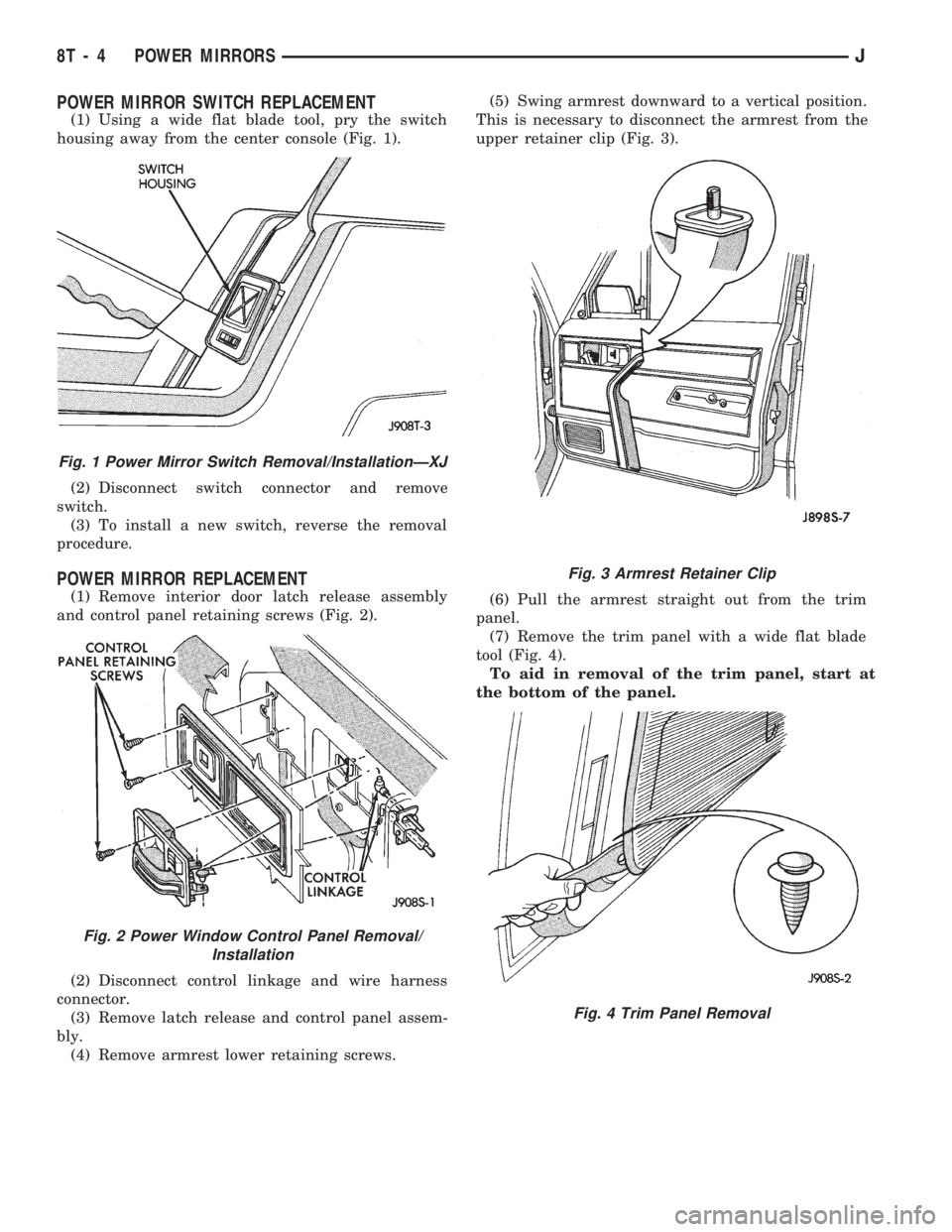

POWER MIRROR SWITCH REPLACEMENT
(1) Using a wide flat blade tool, pry the switch
housing away from the center console (Fig. 1).
(2) Disconnect switch connector and remove
switch.
(3) To install a new switch, reverse the removal
procedure.
POWER MIRROR REPLACEMENT
(1) Remove interior door latch release assembly
and control panel retaining screws (Fig. 2).
(2) Disconnect control linkage and wire harness
connector.
(3) Remove latch release and control panel assem-
bly.
(4) Remove armrest lower retaining screws.(5) Swing armrest downward to a vertical position.
This is necessary to disconnect the armrest from the
upper retainer clip (Fig. 3).
(6) Pull the armrest straight out from the trim
panel.
(7) Remove the trim panel with a wide flat blade
tool (Fig. 4).
To aid in removal of the trim panel, start at
the bottom of the panel.
Fig. 1 Power Mirror Switch Removal/InstallationÐXJ
Fig. 2 Power Window Control Panel Removal/
Installation
Fig. 3 Armrest Retainer Clip
Fig. 4 Trim Panel Removal
