1994 JEEP CHEROKEE engine

Fig. 22 Engine Wiring 4.0L XJ
8W - 42 WIRING AND COMPONENT IDENTIFICATIONJ

XJ RHD
Caption Fig.

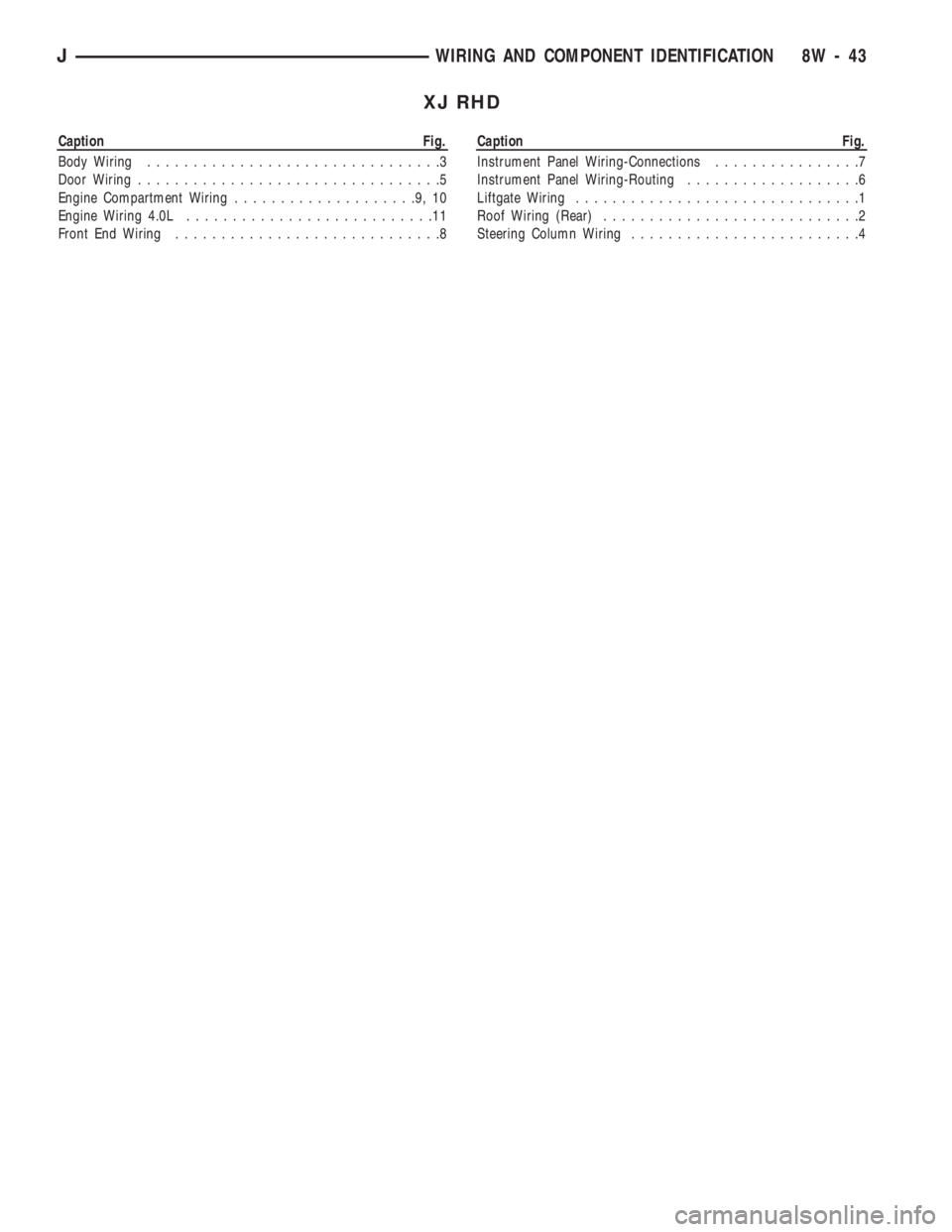

Body Wiring................................3
Door Wiring.................................5
Engine Compartment Wiring....................9,10
Engine Wiring 4.0L...........................11
Front End Wiring.............................8Caption Fig.
Instrument Panel Wiring-Connections................7
Instrument Panel Wiring-Routing...................6
Liftgate Wiring...............................1
Roof Wiring (Rear)............................2
Steering Column Wiring.........................4
JWIRING AND COMPONENT IDENTIFICATION 8W - 43

Fig. 9 Engine Compartment Wiring (RHD)
JWIRING AND COMPONENT IDENTIFICATION 8W - 49

Fig. 10 Engine Compartment Wiring (RHD)
8W - 50 WIRING AND COMPONENT IDENTIFICATIONJ

Fig. 11 Engine Wiring 4.0L (RHD)
JWIRING AND COMPONENT IDENTIFICATION 8W - 51

Fig. 3 Engine Wiring Splices YJ
JSPLICE LOCATIONS 8W - 55

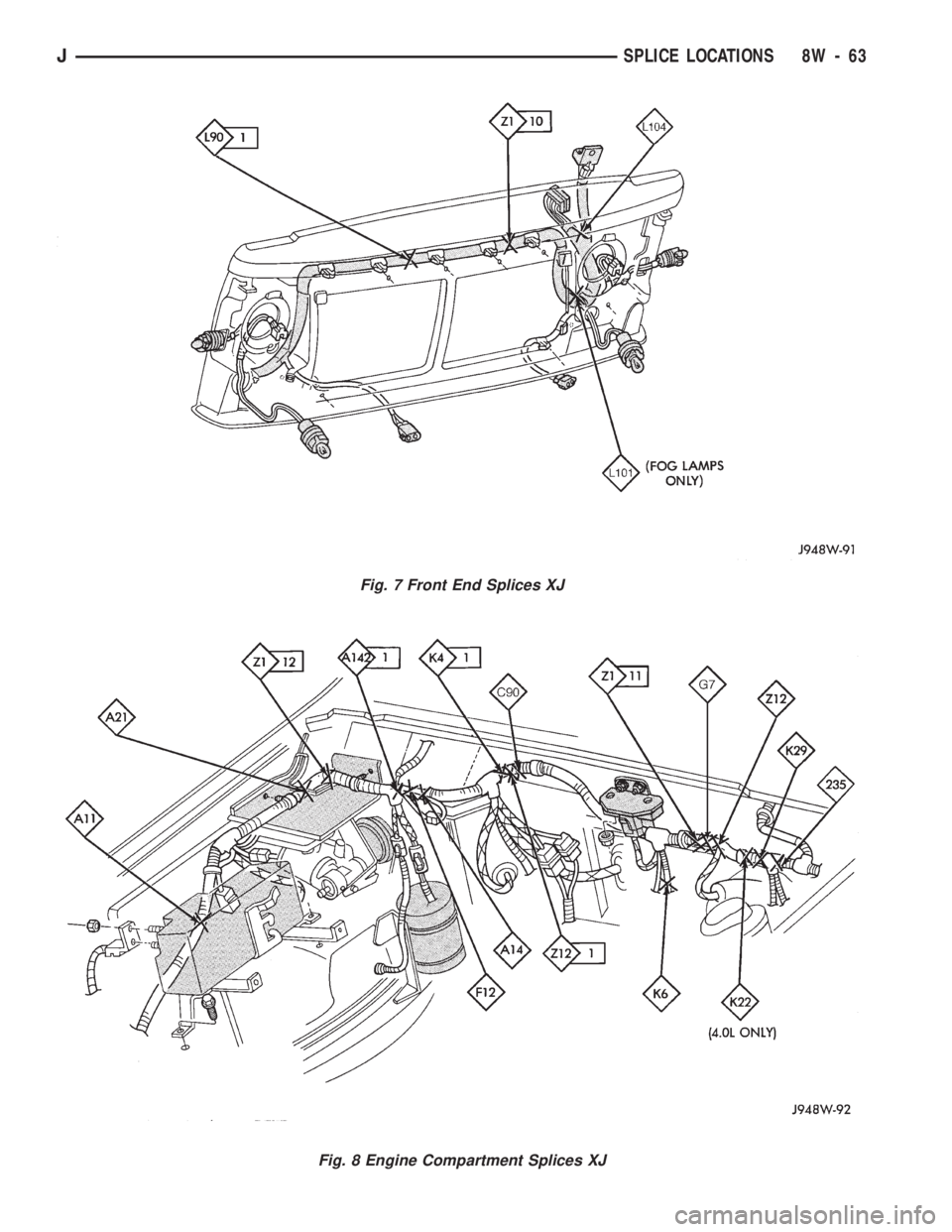

Fig. 7 Front End Splices XJ

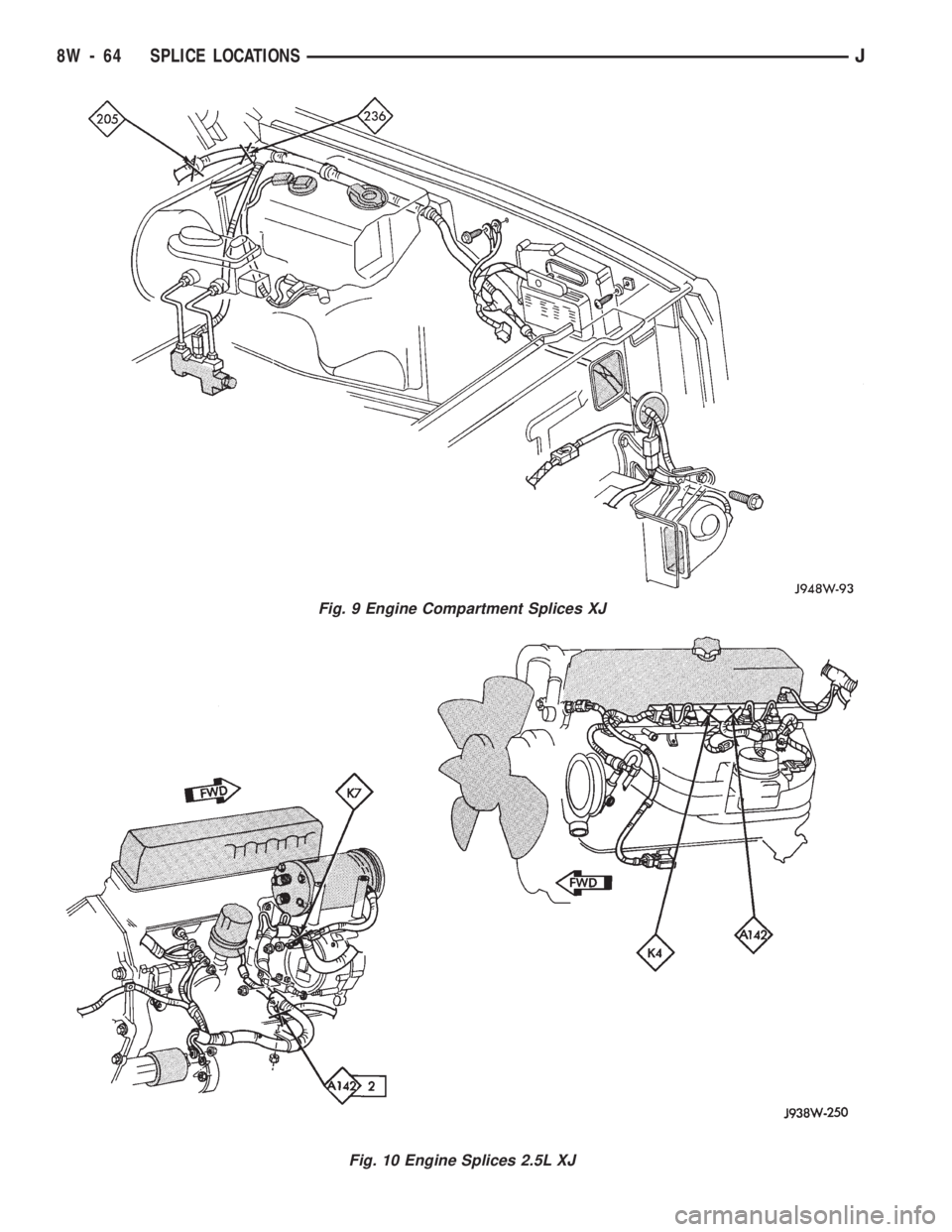

Fig. 8 Engine Compartment Splices XJ
JSPLICE LOCATIONS 8W - 63

Fig. 9 Engine Compartment Splices XJ
Fig. 10 Engine Splices 2.5L XJ
8W - 64 SPLICE LOCATIONSJ
