1994 CHEVROLET TRACKER Owners Manual

Features and Controls
16. Pull up and back on the rear top bow
struts and swing each strut forward.
17. Clamp the struts to the rear top bow.
~~ ~
18. Swing down the rear top bow and
secure
it with the strap at the inside
center
of your tailgate.
lock
it in place.
19. Pull the front top bow forward and
teverse the steps to install your canvas
op. Be sure:
b
b
b
The front top bow is securely latched.
The rear side window frames are
installed all the way into
the corners
of the canvas.
The rear side window frames are
clamped to the body.
The rear straps on the side window
frames are snapped.
The rear top bow struts are secure
in
their proper place.
I
'reparing Your Canvas Top for
;torage
. Lay the canvas top inside-up on a
clean, dry, flat surface.
... 80
ProCarManuals.com

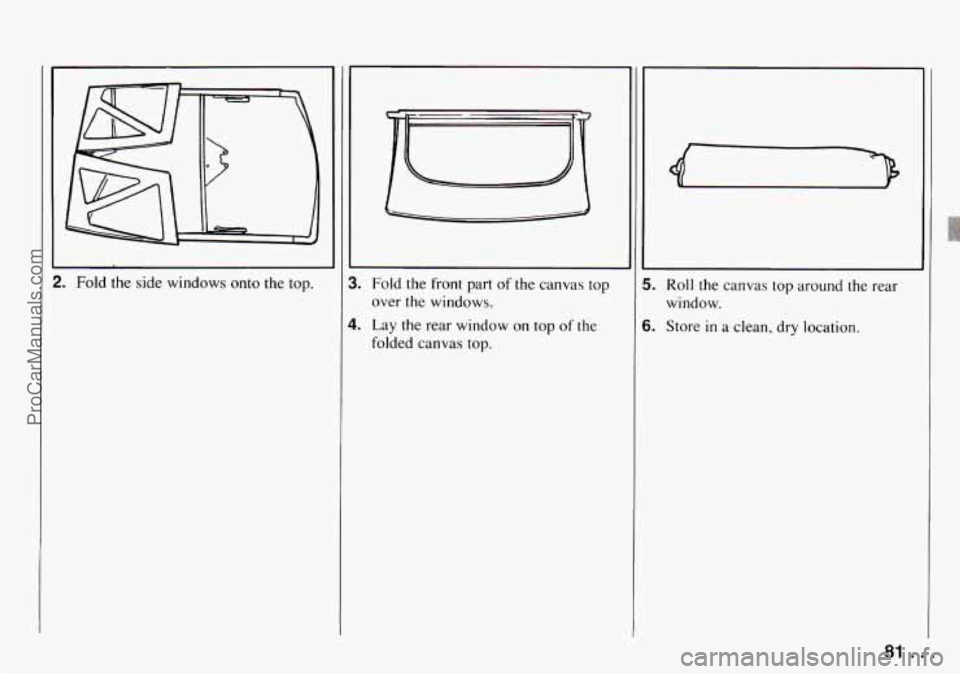

2. Fold the side windows onto the top.
Fold the front part of the canvas top
over the windows.
Lay
the rear window on top of the
folded canvas
top.
5.
6.
Roll the canvas top around the rear
window.
Store
in a clean, dry location.
81 .
ProCarManuals.com

... 82
ProCarManuals.com

.;
.
. . .
1
.
In this part you’ll find out how to
operate the comfort control
systems and audio systems
offered with your Geo
. Be sure
to read about the particular
system supplied with your
vehicle .
Part 3
Comfort Controls 8t Audio
Systems
Comfort Controls .................................................. 84
Heater Controls
................................................. 85
Air Conditioner Controls
.......................................... 85
Rear Window Defogger ........................................... 86
Flow-Through Ventilation System
................................... 86
Audiosystems
.................................................... 87
AM/FMStereo
.................................................. 88
AM/FM Stereo
with Cassette Tape Player ............................. 89
AM/FM Stereo with Cassette Tape and Compact
Disc Player ............. 93
Understanding Radio Reception .................................... 97
Care of Your Cassette Tape Player ................................... 97
Care of Your Compact Discs ....................................... 98
Antenna ....................................................... 98
Settingtheclock ................................................ 88
83 ...
ProCarManuals.com

Comfort Controls and Audio Systems
Comfort Controls
With this system, you can control the
heating and ventilation
in your Geo. If
you have the air conditioning option, you
can also control cooling.
Your vehicle also has the flow-through
ventilation system described later
in this
section.
Heater Controls
Airflow Lever
&J : This position directs the airflow
through
the instrument panel vents.
+ &* : This position directs air through the
mstrument panel vents and toward the
floor.
floor.
: This position directs air toward the
-9 : This position directs air toward the Q.
floor, the windshield and side windows.
9 : This position directs air to the
windshield.
Fan Control Lever
Slide the lever away from “OFF’ to turn
the heating system on. Move the lever
toward
3f to increase the fan’s speed.
Temperature Control Lever
Slide the lever to change the temperature
of the air flowing from the system. Move
it to the right for warmer air and to the
left for cooler air. The air temperature
can’t be less than the outside air
temperature.
Air Intake Lever
s: Choose this position to
recirculate the inside air through the
comfort control system.
B: Choose this position to circulate
outside air through the comfort control
system.
Heating
1. For the quickest results, move the
2. Move the airflow lever to wi .
3. Move the temperature lever toward
4. Move the fan lever toward .
5. You should switch tomonce in a
while to avoid stale
air and cloudy
windows.
air
intake lever to
a,.
the right for warmer air.
Bi-Level
You may want to use bi-level on cool,
but sunny days. This setting directs
outside air toward your body and
warmer air toward your feet.
1. Move the air intake lever to B.
2. Move the airflow lever to ,‘j .
3. Move the temperature lever to the
4. Move the fan lever toward .
center.
ProCarManuals.com

Ventilation
For mild outside temperatures, when little
heating or cooling is needed, you can still
direct outside air through your vehicle.
1. Move the air intake lever to .
2. Move the airflow lever to :$ .
3. Adjust the temperature lever to a
4. Move the fan control lever to # .
comfortable setting.
Defogging and Defrosting
Windows
1. Slide the air intake lever to -.
2. Slide the airflow lever to to
direct air to the windshield vents.
3. Slide the temperature lever toward the
4. Slide the fan lever to # .
When the windshield is clear, turn down
the fan speed.
To defog the side windows, slide the
airflow lever to
,?A . For increased
airflow to
the side vents, close the center
vents
.
right.
4ir Conditioner Controls
The air conditioning system uses the Sam
:ontrols as the heating system. The
unction of each lever is explained under
‘Heater Controls”
in this part. The
ncoming air is cooled and dehumidified
nstead of being heated.
UC: Push this button to change your
:omfort control system from heating to
lir conditioning. A light will come on
when the air conditioning is on. The
‘A/C” button can also control the
wmidity
in your vehicle.
Cooling
The air conditioner works best if you keep
your windows closed.
On very hot days,
open the windows just
long enough for
the hot air to escape.
1. Push the “A/,’, button.
2. Move the air intake lever to-for
normal cooling. For faster cooling
move the lever to&
.
3. Move the airflow lever to *> .
4. Move the temperature control lever
5. Move the fan control lever to # .
toward the left.
Dehumidifying
On days when it is raining or the humidity
is
high, follow these dehumidifying steps
instead of the cooling directions. It will
help clean windows that are cloudy with
moisture.
1. Push the “A/,” button.
2. Move the air intake lever tom.
3. Move the airflow lever to 9.
4. Move the fan control lever toward
3s.
5. Adjust the temperature control lever to
a comfortable setting.
85 ...
ProCarManuals.com

Comfort Controls and Audio Systems
?ear Window Defogger
’he rear window defogger uses a
varrning grid to remove fog from the rear
.vindow.
’ress the switch
to turn on the defogger.
9n indicator light n,ill come on below the
;witch
to remind you that the defogger is
m. Press the switch again
to turn the
jefogger off. The rear window defogger
vi11 also turn off if you turn the ignition
;witch
to ”ACC” or “LOCK.”
lo not attach anything like a temporary
xhicle license
or a decal across the
lefogger grid on the rear window.
NOTICE:
Don‘t use a razor blade or something
else sharp on the inside
of the rear
window.
If you do, you could cut or
damage the warming
grid. and the
repairs wouldn‘t
be covcrcd by your
warranty.
Vow- Through Ventilation
system
’our Geo‘s flow-through ventilation
,ystem supplies
outside air into the
whicle when
it is moving. Outside air
vill also enter the vehicle when the heater
)r the ilir conditioning flln is running.
. .86
ProCarManuals.com

Ventilation Tips
0
0
0
Keep the hood and front air inlet free
of ice, snow, or any other obstruction
(such as leaves). The heater and
defroster will work far better, reducing
the chance of fogging the inside of
your windows.
When you enter a vehicle in cold
weather, move the fan lever towards
for a few moments before driving off.
This helps clear the intake ducts of
snow and moisture, and reduces the
chance of fogging the inside of your
windows.
Keep the air path under the front seats
clear of objects. This helps air to
circulate throughout your vehicle.
Audio Systems
Your Delco@ audio system has been
designed to operate easily and give years
of listening pleasure. But you will get the
most enjoyment out of
it if you acquaint
yourself with it first. Find out what your
Delco@ system can do and how to operate
all its controls, to be sure you’re getting
the most out of the advanced engineering
that went into
it.
NOTICE:
Before you add any sound equipment
to your vehicle - like a tape player,
CB radio, mobile telephone or
two-way radio
- be sure you can
add what you want.
If you can, it’s
very important to do it properly.
Added sound equipment may inter-
fere
with the operation of your
vehicle’s engine, Delco8 radio or
other systems, and even damage
them. And, your vehicle’s systems
may interfere with the operation of
sound equipment that has been added
improperly.
So, before adding sound equipment,
check with your dealer and be sure
to
check Federal rules covering mobile
radio and telephone units.
87 ...
