1994 CHEVROLET CAVALIER Owners Manual

Downloaded from www.Manualslib.com manuals search engine Maintenance Schedule
Section C: Periodic Maintenance Inspections
Listed below are inspections and services which should be performed at least twice a year (for instance, each spring and fall). You should let
Jour
GM dealer’s service department or other qualified service center \
do these jobs. Make sure any necessary repairs are completed at once.
INSPECTION
OR SERVICE
Restraint Systems
Steering, Suspension
and Front-Wheel-
Drive Axle Boot and
Seal InsDection
Exhaust System Inspection
Throttle Linkage Inspection
Manual Transaxle
Brake System Inspection
216
WHAT SHOULD BE DONE
Now and then, make sure all your belts, bucltles, latch plates, retractors, anchorages and
reminder systems are worlting properly. Look for any loose parts or damage. If you see anything
that might keep a restraint system from doing its job, have it repaired.
Inspect the front and rear suspension and steering system for damaged, loose or \
missing parts,
signs of wear, or lack
of lubrication. Inspect the power steering lines and hoses for proper hook-
up, binding, leaks, cracks, chafing, etc. Clean and then inspect the drive axle boot seals for
damage, tears or leakage. Replace seals if necessary.
~ ~~~~~~
Inspect the complete exhaust system. Inspect the body near the exhaust system. Look for broken,
damaged, missing or out-of-position parts as well as open seams, holes, loose connections, or
other conditions which could cause a heat build-up in the floor pan or could let exhaust fumes
into the vehicle. See
Engine Exhaust in the Index.
Inspect the throttle linkage for interference or binding, and for damaged or missing parts.
Replace parts as needed.
.-
Check the transaxle fluid level; add if needed. See Manual Transaxle in the Index. A fluid loss
may indicate a problem. Check the system and repair if needed.
Inspect the complete system. Inspect brake lines and hoses for proper hook-\
up, binding, leaks,
cracks, chafing, etc. Inspect disc brake pads for wear and rot\
ors for surface condition. Also inspect
drum brake linings for wear and cracks. Inspect other brake parts, including drums, wheel
cylinders, calipers, parking brake, etc. Check parking brake adj\
ustment. You may need to have
your brakes inspected more often if your driving habits or conditions result in frequent braking.
NOTE: A low brake fluid level can indicate worn disc brake pads which \
may need to be serviced.
Also, if the brake system warning light stays on or comes
on, something may be wrong with the
brake system. See
Brake System Warning Light in the Index. If your anti-lock brake system
warning light stays on, comes on or flashes, something may be wrong with the anti-lock brake
system. See
Anti-Lock Brake System Warning Light in the Index.
11
.

Downloaded from www.Manualslib.com manuals search engine Maintenance Schedule
Section D: Recommended Fluids and Lubricants
VOTE: Fluids and lubricants identified below by name, part number or specification may be obtained from your GM dealer. ~~ ~
USAGE
Engine Oil
Engine Coolant Hydraulic Brake
System
~~~~ ~
Hydraulic Clutch
System
Power Steering
System
Manual Transaxle
Automatic Transaxle
Key Lock Cylinders
Manual Transaxle Shift Linkage
FLUID/LUBRICANT
API service SH or SG Energy Conserving I1 oils of the proper viscosity. The “SH” or “SG” designation
may be shown alone or in combination with others, such as “SH/CD,” “SH,SG,CD,” “SG/CD,” etc.
To determine the preferred viscosity for your vehicle’s engine, see Engine Oil in the Index.
50/50 mixture of water (preferably distilled) and good quality ethylene glycol base antifreeze
(GM Part
No. 1052753 or equivalent) conforming to GM Specification 1825M or approved
recycled coolant conforming to
GM Specification 1825M.
Delco Supreme
110 Brake Fluid (GM Part No. 1052535 or equivalent DOT-3 brake fluid).
Hydraulic Clutch Fluid (GM Part No. 12345347 or equivalent).
GM Hydraulic Power Steering Fluid (GM Part
No. 1052884 or equivalent).
~ ~~~
Synchromesh Transmission Fluid (GM Part No. 12345349 or equivalent).
DEXRONo-I11 or DEXRONs-IIE Automatic Transmission Fluid.
Lubricate with Multi-Purpose Lubricant (GM Part No. 12345120) or synthetic
SAE 5W-30 engine
oil.
Chassis lubricant (GM Part No, 1052497 or equivalent) or lubricant meeting requirements of
NLGI Grade 2, Category LB or GC-LB.

Downloaded from www.Manualslib.com manuals search engine Maintenance Schedule
USAGE
Automatic Transaxle Shift Linkage
Clutch Linkage Pivot
Points
Chassis Lubrication
Windshield Washer Solvent
Hood Latch Assembly
a. Pivots and Spring
b. Release Pawl
Hood
and Door Hinges,
Fuel Door Hinge, Rear
Compartment Lid
Hinges, Wagon Tailgate
Hinge, Rear Folding
seat
Weatherstrips Anchor
FLUlD/LUBRICANT
Engine oil.
Engine
oil.
Chassis lubricant (GM Part No. 1052497 or equivalent) or lubricant meeting requirements of
NLGI Grade 2, Category LB or GC-LB.
GM Optikleen@ Washer Solvent (GM Part No.
10515 15) or equivalent.
a. Engine oil.
b. Chassis lubricant (GM Part
No. 1052497 or equivalent) or lubricant meeting requirements of
NLGI Grade 2, Category LB or GC-LB.
Engine oil or Lubriplate Lubricant (GM Part
No. 1050109).
Dielectric Silicone Grease (GM Part No. 12345579 or equivalent).
jee
RepZacement Parts in the Index for recommended replacement filters, valves and spark plugs.

Downloaded from www.Manualslib.com manuals search engine Section E: Maintenance Record
After the scheduled services are performed, record the date, odometer reading and who performed the service in the columns
indicated. When completing the Maintenance Performed column, insert the numbers from the Schedule
I or Schedule I1
maintenance charts which correspond to the maintenance performed. Also, you should retain all maintenance receipts. Your
owner information portfolio
is a convenient place to store them.
DATE ODOMETER
READING SERVICED BY MAINTENANCE PERFORMED

Downloaded from www.Manualslib.com manuals search engine Maintenance Schedule
DATE ODOMETER READING SERVICED BY MA/WENA/UC€ PERFORMED
220

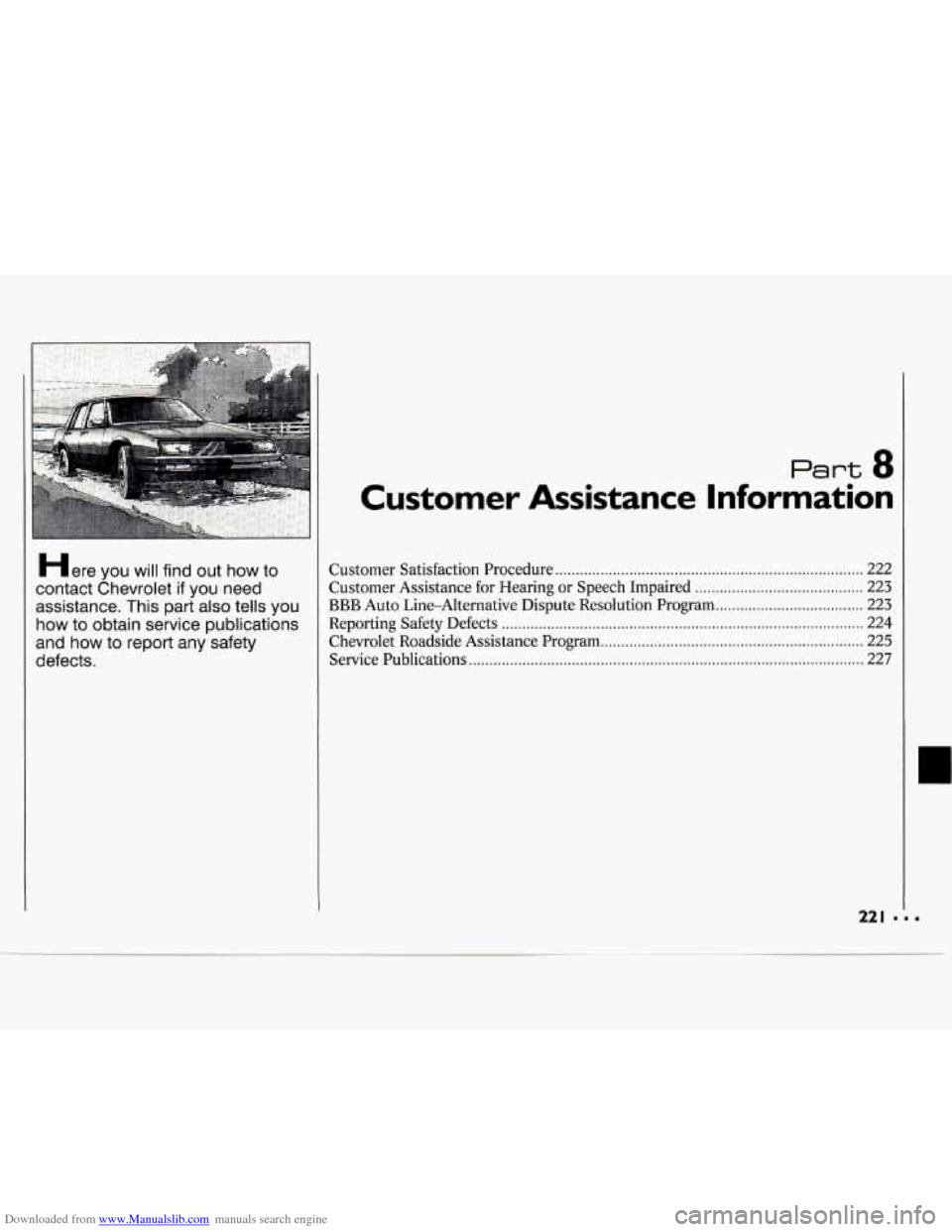

Downloaded from www.Manualslib.com manuals search engine Here you will find out how to
contact Chevrolet
if you need
assistance
. This part also tells you
how to obtain service publications
and how
to report any safety
Part 8
Customer Assistance Information
Customer Satisfaction Procedure ........................................................................\
... 222
Customer Assistance for Hearing or Speech Impaired
......................................... 223
BBB Auto Line-Alternative Dispute Resolution Program .................................... 223
Reporting Safety Defects
........................................................................\
................ 224
Chevrolet Roadside Assistance Program
................................................................ 225
Service Publications ........................................................................\
........................ 227

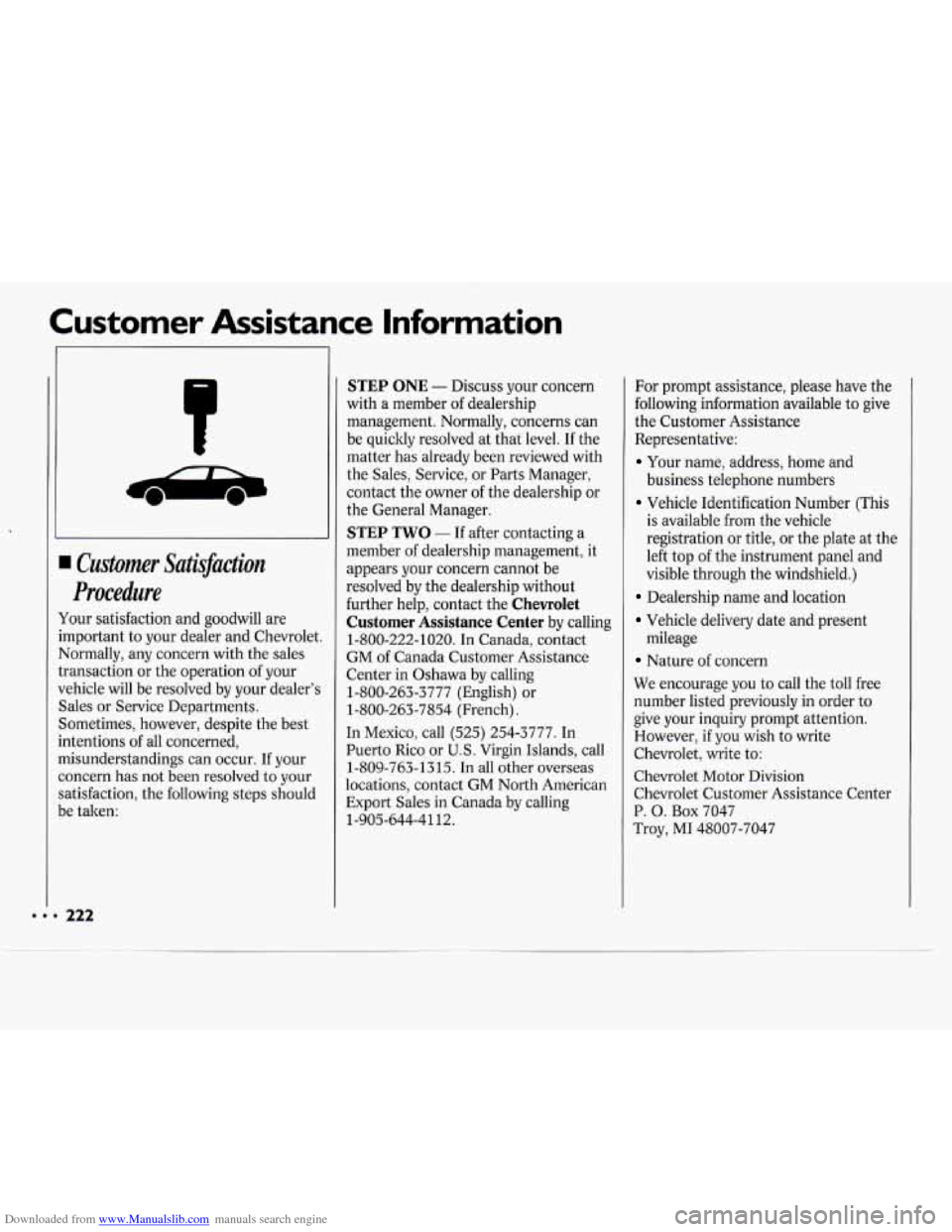

Downloaded from www.Manualslib.com manuals search engine Customer Assistance Information
Customer Sati#action
Procedure
Your satisfaction and goodwill are
important to your dealer and Chevrolet.
Normally, any concern with the sales
transaction or the operation of your
vehicle will be resolved by yo1
Sales or Service Departments
Sometimes, however, despite
intentions of all concerned,
misunderstandings can occur concern has not been resolve(
1:
t r-dealer’s
he best
If your
to your
satisfaction, the following steps should
be taken:
STEP ONE - Discuss your concern
with a member of dealership
management. Normally, concerns can
be quicltly resolved at that level.
If the
matter has already been reviewed with
the Sales, Service,
or Parts Manager,
contact the owner of the dealership or
the General Manager.
STEP TWO - If after contacting a
member
of dealership management, it
appears your concern cannot be
resolved by the dealership without
further help, contact the
Chevrolet
Customer Assistance Center
by calling
1-800-222-1020.
In Canada, contact
GM of Canada Customer Assistance
Center in Oshawa by calling
1-800-263-3777 (English) or
1-800-263-7854 (French).
In Mexico, call (525) 254-3777. In
Puerto Rico or
U.S. Virgin Islands, call
1-809-763-1315. In all other overseas
locations, contact
GM North American
Export Sales in Canada by calling
1-905-644-4112. For prompt assistance, please have
the
following information available to give
the Customer Assistance
Representative:
Your name, address, home and
business telephone numbers
Vehicle Identification Number (This
is available from the vehicle
registration or title, or the plate at the
left top of the instrument panel and
visible through the windshield.)
Dealership name and location
Vehicle delivery date and present
Nature of concern
We encourage you
to call the toll free
number listed previously in order to
give your inquiry prompt attention.
However,
if you wish to write
Chevrolet, write to:
Chevrolet Motor Division
Chevrolet Customer Assistance Center
P.
0. Box 7047
Troy,
MI 48007-7047
mileage

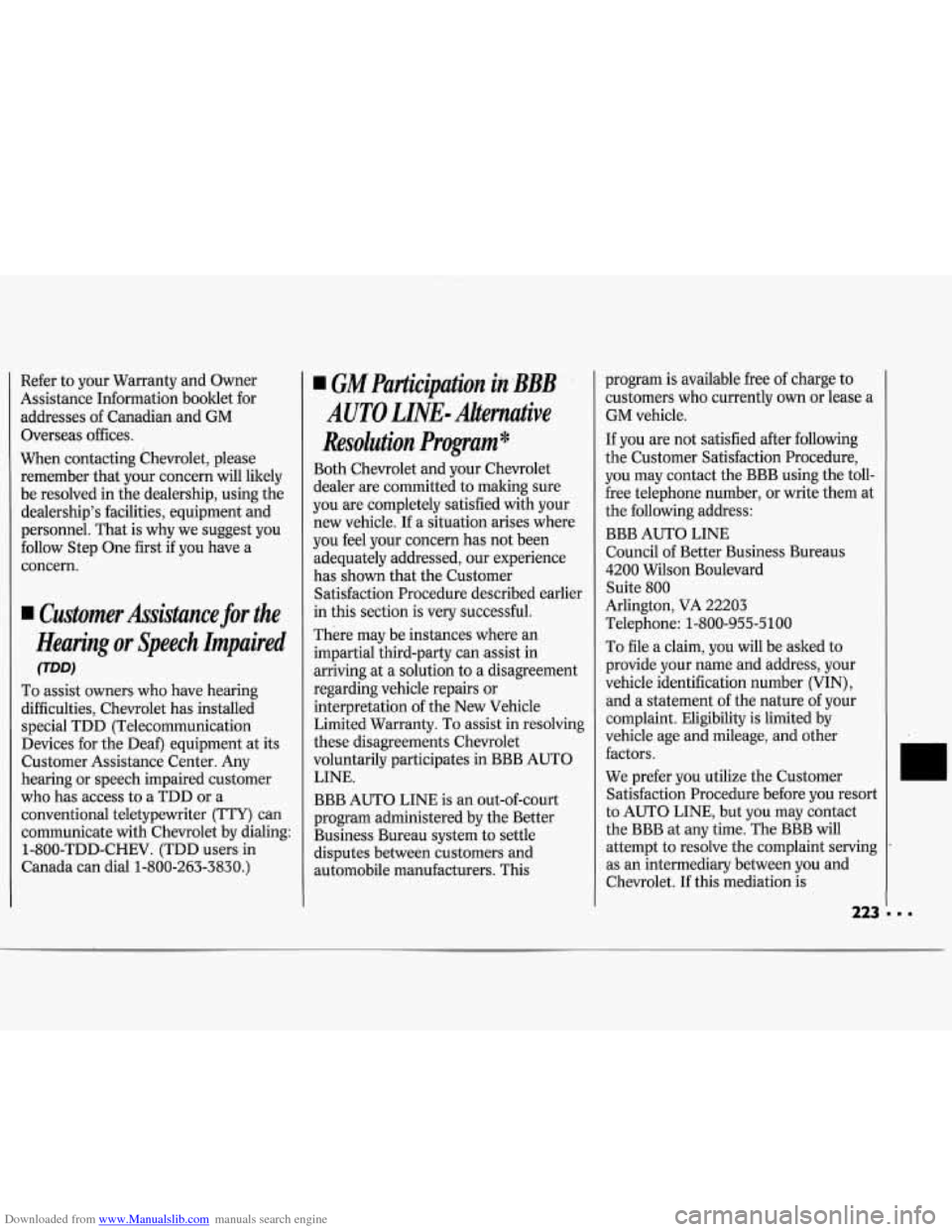

Downloaded from www.Manualslib.com manuals search engine Refer to your Warranty and Owner
Assistance Information booklet for
addresses of Canadian and
GM
Overseas offices.
When contacting Chevrolet, please
remember that your concern
will likely
be resolved in the dealership, using the
dealership's facilities, equipment and
personnel. That is why we suggest you
follow Step One first
if you have a
concern.
Customer Assistance for the
Hearing or Speech Impaired
(TW
To assist owners who have hearing
difficulties, Chevrolet has installed
special TDD (Telecommunication
Devices for the Deaf) equipment at its
Customer Assistance Center. Any
hearing or speech impaired customer
who has access to a TDD or a
conventional teletypewriter (TTY) can
communicate with Chevrolet by dialing:
1-800-TDD-CHEV. (TDD users in
Canada can dial 1-800-263-3830.)
GM Participation in'BZ9.B
AUTO LINE- Al'ternutive
Resolution Program
*
Both Chevrolet and your Chevrolet
dealer are committed to making sure
you are completely satisfied with your
new vehicle. If a situation arises where
you feel your concern has not been
adequately addressed, our experience
has shown that the Customer
Satisfaction Procedure described earlier
in this section is very successful.
There may be instances where an
impartial third-party can assist in
arriving at a solution to a disagreement
regarding vehicle repairs or
interpretation of the New Vehicle
Limited Warranty. To assist in resolving
these disagreements Chevrolet
voluntarily participates in BBB AUTO
LINE.
BBB AUTO LINE is an out-of-court
program administered by the Better
Business Bureau system to settle
disputes between customers and
automobile manufacturers. This program
is available free of charge to
customers who currently own or lease a
GM vehicle.
If you are not satisfied after following
the Customer Satisfaction Procedure,
you may contact the BBB using the toll-
free telephone number, or write them at
the following address:
BBB AUTO LINE
Council of Better Business Bureaus
4200 Wilson Boulevard
Suite
800
Arlington, VA 22203
Telephone: 1-800-955-5100
To file a claim, you will be asked to
provide your name and address, your
vehicle identification number (VIN)
,
and a statement of the nature of your
complaint. Eligibility is limited by
vehicle age and mileage, and other
factors.
We prefer you utilize the Customer
Satisfaction Procedure before you resort
to AUTO LINE, but
you may contact
the BBB at
any time. The BBB will
attempt to resolve the complaint serving
as an intermediary between you and
Chevrolet. If this mediation is
