1994 CHEVROLET CAVALIER Owners Manual

Downloaded from www.Manualslib.com manuals search engine .

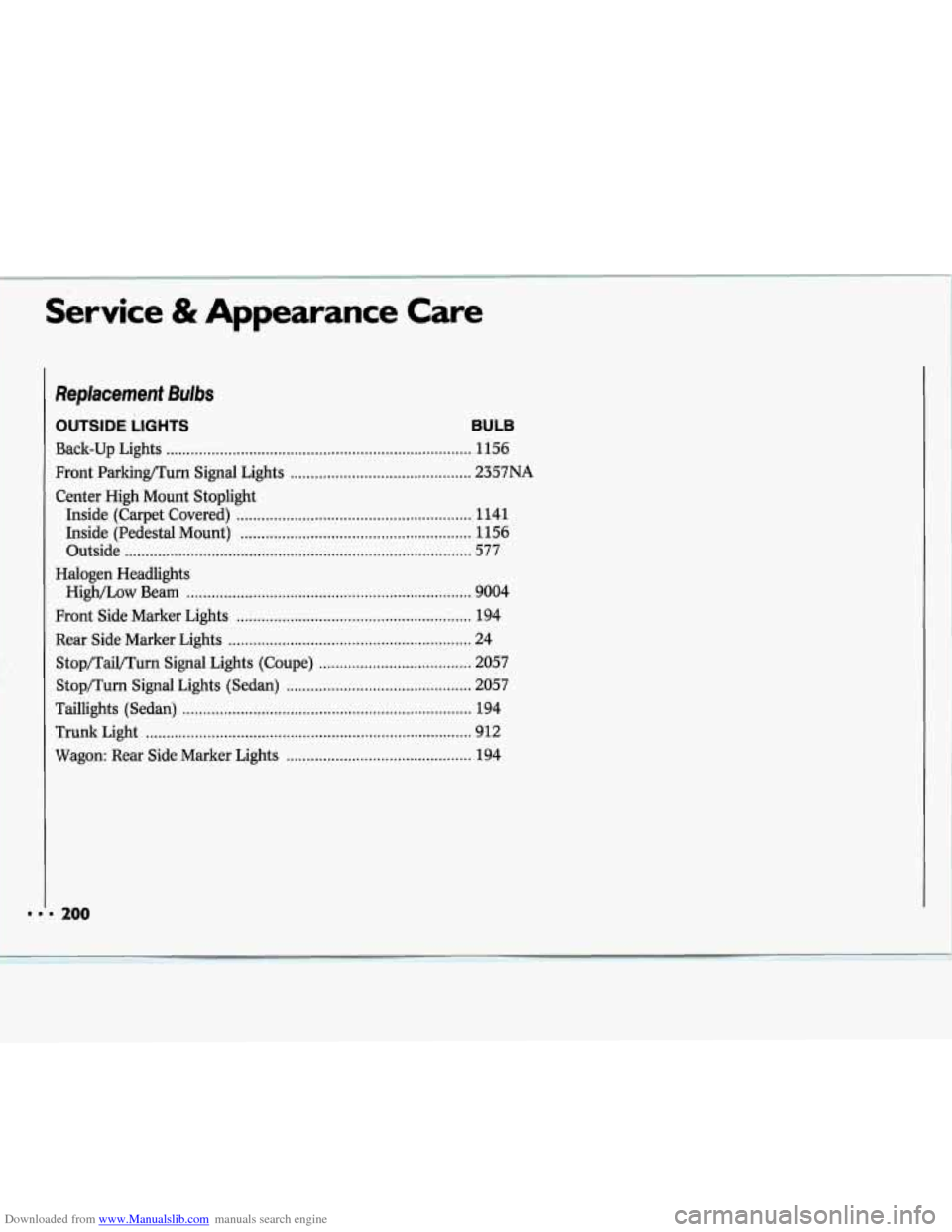

Replacement Bulbs
OUTSIDE LIGHTS BULB
Back-up Lights ........................................................................\
.. 1156
Front Parkinflurn Signal Lights
............................................ 2357NA
Inside (Carpet Covered)
......................................................... 1141
Center High Mount Stoplight
Inside (Pedestal Mount)
........................................................ 1156
Outside
........................................................................\
............ 577
Halogen Headlights HigWLow Beam
..................................................................... 9004
Front Side Marker Lights
......................................................... 194
Rear Side
Marker Lights ........................................................... 24
StopiTaiVTurn Signal Lights (Coupe)
..................................... 2057
Stopflurn Signal Lights (Sedan)
............................................. 2057
Taillights (Sedan)
...................................................................... 194
Trunk Light ........................................................................\
....... 912
Wagon: Rear Side Marker Lights
............................................. 194
200

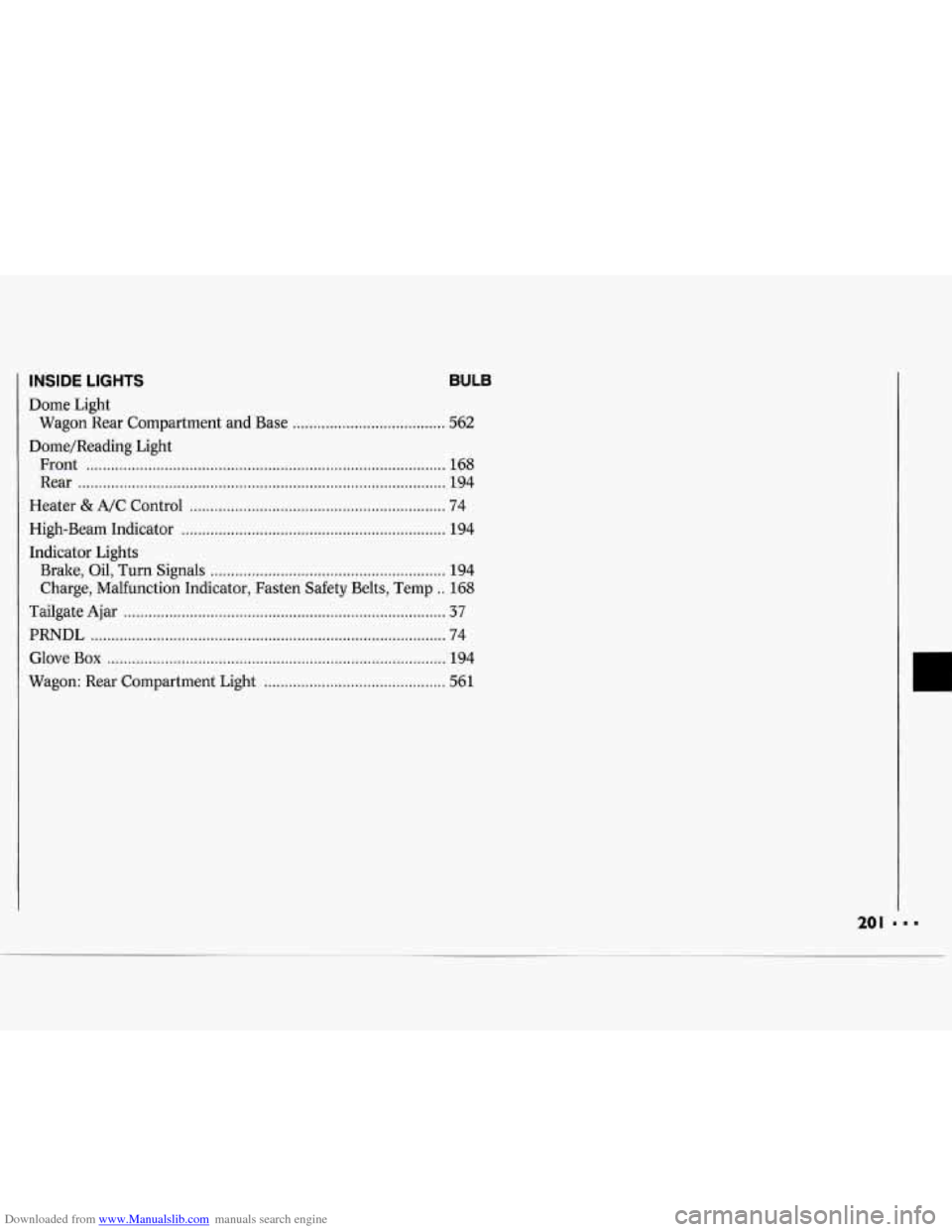

Downloaded from www.Manualslib.com manuals search engine BULB INSIDE LIGHTS
Dome Light
Dome/Reading Light Wagon Rear
Compartment and Base
..................................... 562
Front
........................................................................\
............... 168
Rear ........................................................................\
................. 194
Heater
& A/C Control .............................................................. 74
High-Beam Indicator
................................................................ 194
Indicator Lights
Brake.
Oil. Turn Signals ......................................................... 194
Charge. Malfunction Indicator. Fasten Safety Belts. Temp
.. 168
Tailgate Ajar ........................................................................\
...... 37
PRNDL ........................................................................\
.............. 74
Glove
Box ........................................................................\
.......... 194
Wagon: Rear Compartment Light
............................................ 561

Downloaded from www.Manualslib.com manuals search engine Service & Appearance Care
I..

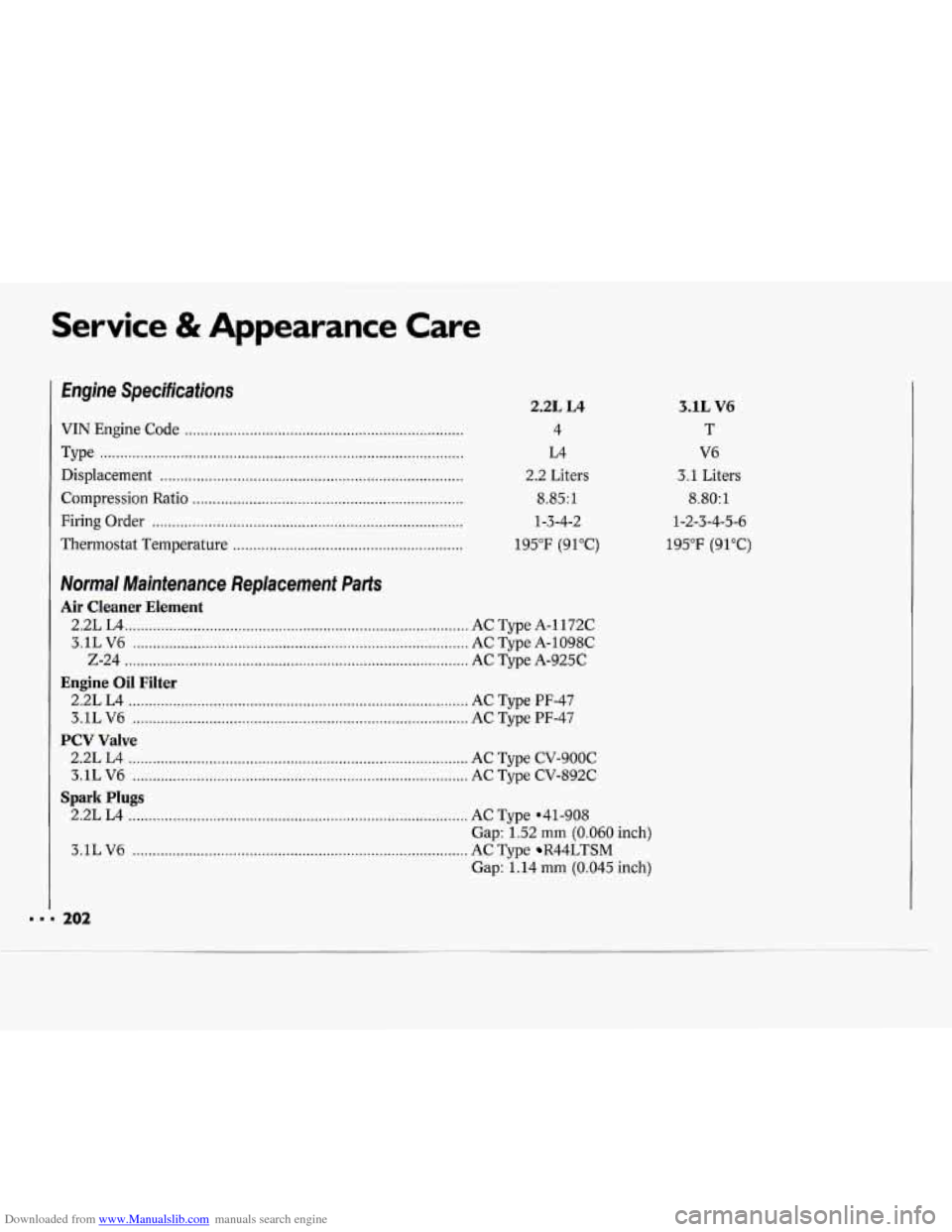

Engine Specifications
VIN Engine Code .....................................................................
Type ........................................................................\
..................
Displacement ........................................................................\
...
Compression Ratio ... .. ... , . ....... .. .. ........ ... . .. . ... .... ......... ........ . . . . .. .
Firing Order ........................................................................\
.....
Thermostat Temperature .........................................................
Normal Maintenance Replacement Parts
Air Cleaner Element
2.2L L4 ........................................................................\
............. AC Type A-1172C
3.1L V6
........................................................................\
........... AC Type A-1098C
2-24
........................................................................\
............. AC Type A-925C
Engine Oil Filter
2.2L L4 ........................................................................\
............ AC Type PF-47
3.1L V6
....................... , ..................... .... .... ......... .. ..... ... . .. .. .. .. . . AC Type PF-47
2.2L L4
........................................................................\
............ AC Type CV-9OOC
3.1L V6 ........................................................................\
........... AC Type CV-892C
2.2L L4
........................................................................\
............ AC Type 041-908
3.1L V6
........................................................................\
........... AC Type R44LTSM
PCV Valve
Spark Plugs
Gap: 1.52 mm (0.060 inch)
Gap: 1.14 mm
(0.045 inch)
2.2L L4
4
14
2.2 Liters
8.85: 1
1-3-4-2
195°F (91°C)
3.1L V6
T
V6
3.1 Liters
8.80: 1
1-2-3-4-5-6
195°F (91OC)
1 202

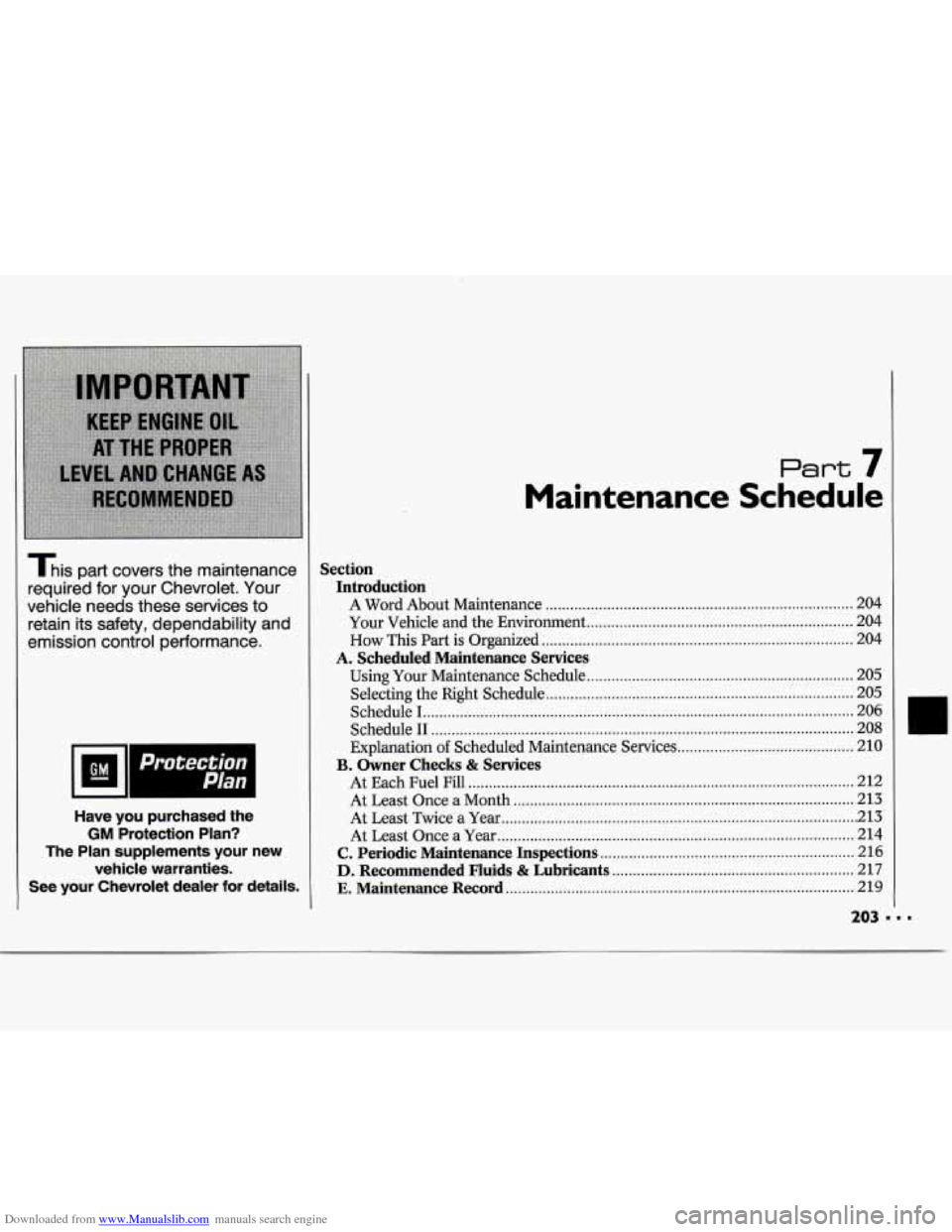

Downloaded from www.Manualslib.com manuals search engine This part covers the maintenance
required for your Chevrolet
. Your
vehicle needs these services to
retain its safety. dependability and
emission control performance
.
Have you purchased the
GM Protection Plan?
The Plan supplements your new vehicle warranties
.
See your Chevrolet dealer for details .
Part 7
Maintenance Schedule
Section Introduction
A Word About Maintenance ........................................................................\
... 204
Your Vehicle and the Environment
................................................................. 204
How This Part is Organized ........................................................................\
.... 204
Using Your Maintenance Schedule
................................................................. 205
A . Scheduled Maintenance Services
Selecting the Right Schedule ........................................................................\
... 205
Schedule
I ........................................................................\
................................. 206
Schedule
I1 ........................................................................\
............................... 208
Explanation of Scheduled Maintenance Services ........................................... 210
At Each Fuel Fill
........................................................................\
...................... 212
At Least Once a Month
........................................................................\
........... 213
At Least Twice a Year
........................................................................\
............... 213
At Least Once a Year
........................................................................\
............... 214
C . Periodic Maintenance Inspections .............................................................. 216
D . Recommended Fluids & Lubricants ........................................................... 217
E . Maintenance Record ........................................................................\
............. 219
B . Owner Checks & Services
203 1 I.

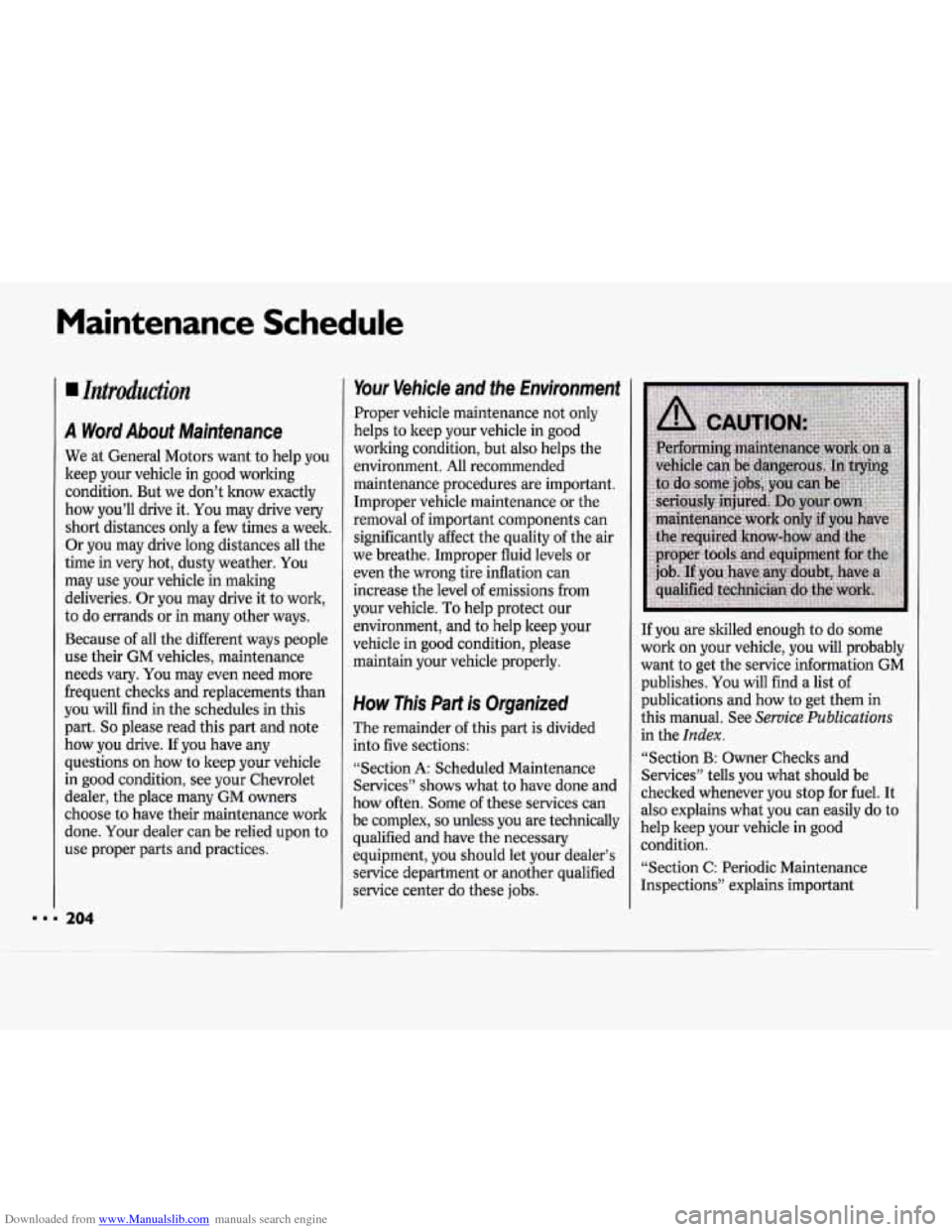

Downloaded from www.Manualslib.com manuals search engine Maintenance Schedule
BB
A Word About Maintenance
We at General Motors want to help you
keep your vehicle in good working
condition. But we don’t know exactly
how you’ll drive it. You may drive very
short distances only a few times a week.
Or you may drive long distances all the
time in very hot, dusty weather. You
may use your vehicle in malting
deliveries. Or you may drive it to work,
to do errands
or in many other ways.
Because of all the different ways people
use their GM vehicles, maintenance
needs vary. You may even need more
frequent checks and replacements than
you will find in the schedules in this
part.
So please read this part and note
how you drive. If you have any
questions on how to keep your vehicle
in good condition, see your Chevrolet
dealer, the place many
GM owners
choose to have their maintenance work
done. Your dealer can be relied upon to
use proper parts and practices.
204
Your Vehicle and the Environment
Proper vehicle maintenance not only
helps to keep your vehicle in good
working condition, but also helps the
environment. All recommended
maintenance procedures are important.
Improper vehicle maintenance or the
removal of important components can
significantly affect the quality of the air
we breathe. Improper fluid levels or
even the wrong tire inflation can
increase the level
of emissions from
your vehicle.
To help protect our
environment, and to help keep your
vehicle in good condition, please
maintain your vehicle properly.
How This Part is Organized
The remainder of this part is divided
into five sections:
“Section A: Scheduled Maintenance
Services” shows what to have done and
how often. Some
of these services can
be complex,
so unless you are technically
qualified and have the necessary
equipment, you should let your dealer’s
service department or another qualified
service center do these jobs. If
you are skilled enough to do some
work on your vehicle, you will probably
want to get the service information GM
publishes. You will find a list of
publications and how
to get them in
this manual. See
Service Publications
in the Index.
“Section B: Owner Checks and
Services” tells you what should be
checked whenever you stop for fuel. It
also explains what you can easily do to
help keep your vehicle in good
condition.
“Section
C: Periodic Maintenance
Inspections” explains important

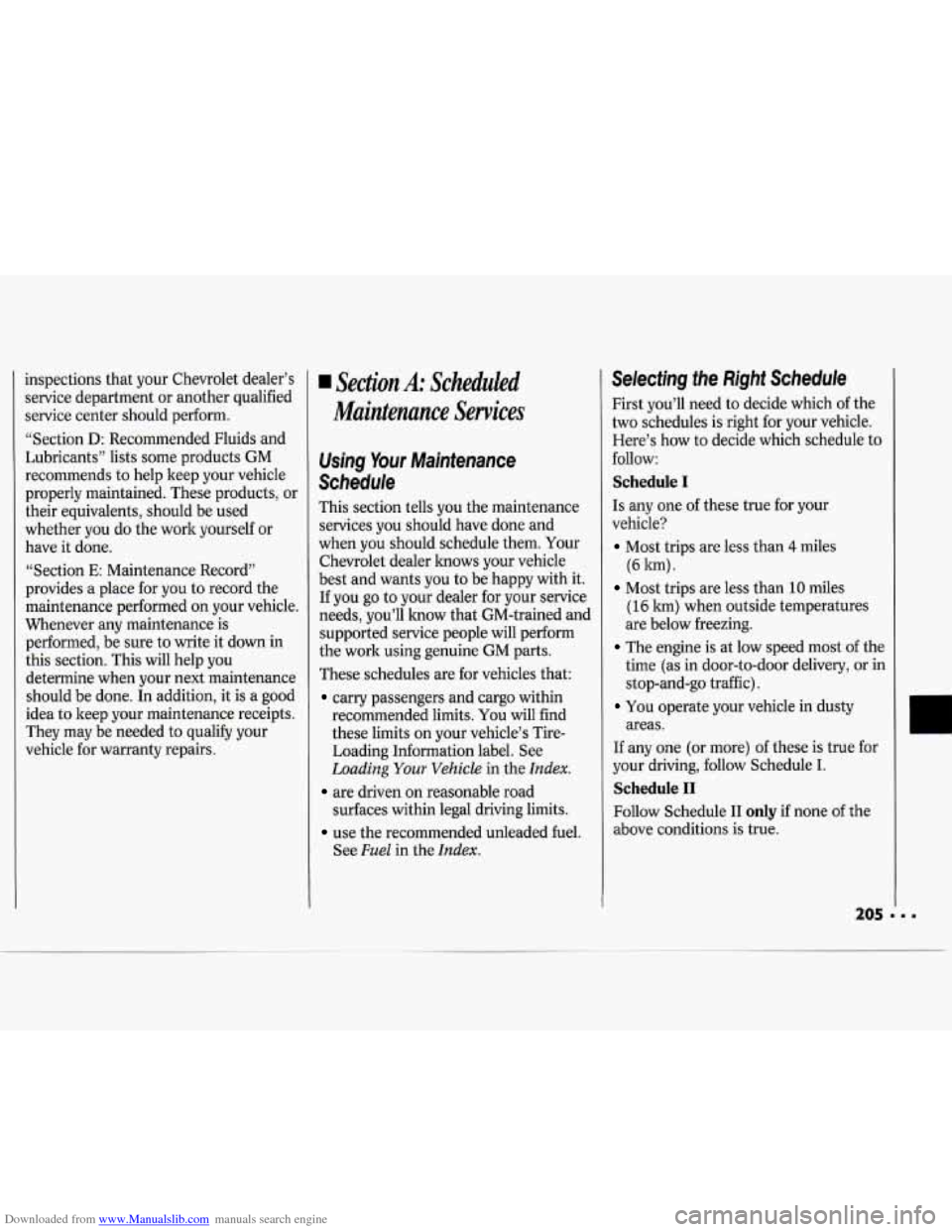

Downloaded from www.Manualslib.com manuals search engine inspections that your Chevrolet dealer’s
service department or another qualified
service center should perform.
“Section
D: Recommended Fluids and
Lubricants” lists some products
GM
recommends to help keep your vehicle
properly maintained. These products, or
their equivalents, should be used
whether you do the work yourself or
have it done.
“Section
E: Maintenance Record”
provides a place for you to record the
maintenance performed
on your vehicle.
Whenever any maintenance
is
performed, be sure to write it down in
this section. This will help you
determine when your next maintenance should be done. In addition, it is a good
idea to keep your maintenance receipts.
They may be needed to qualify your
vehicle for warranty repairs.
Section A: Scheduled
Maintenance Services
Using Your Maintenance
Schedule
This section tells you the maintenance
services you should have done and
when you should schedule them. Your
Chevrolet dealer knows your vehicle
best and wants you to be happy with
it.
If you go to your dealer for your service
needs, you’ll lmow that GM-trained and
supported service people will perform
the work using genuine GM parts.
These schedules are for vehicles that:
carry passengers and cargo within
recommended limits. You will find
these limits on your vehicle’s Tire-
Loading Information label. See
Loading Your Vehicle in the Index.
are driven on reasonable road
surfaces within legal driving limits.
use the recommended unleaded fuel.
See
Fuel in the Index.
Selecting the Right Schedule
First you’ll need to decide which of the
two schedules is right for your vehicle.
Here’s how to decide which schedule to
follow:
Schedule I
Is any one of these true for your
vehicle?
Most trips are less than 4 miles
Most trips are less than 10 miles
(6 la).
(16 km) when outside temperatures
are below freezing.
The engine is at low speed most of the
time (as in door-to-door delivery, or in
stop-and-go traffic).
areas.
You operate your vehicle in dusty
If any one (or more) of these is true for
your driving, follow Schedule
I.
Schedule I1
Follow Schedule I1 only if none of the
above conditions is true.

Downloaded from www.Manualslib.com manuals search engine Maintenance Schedule

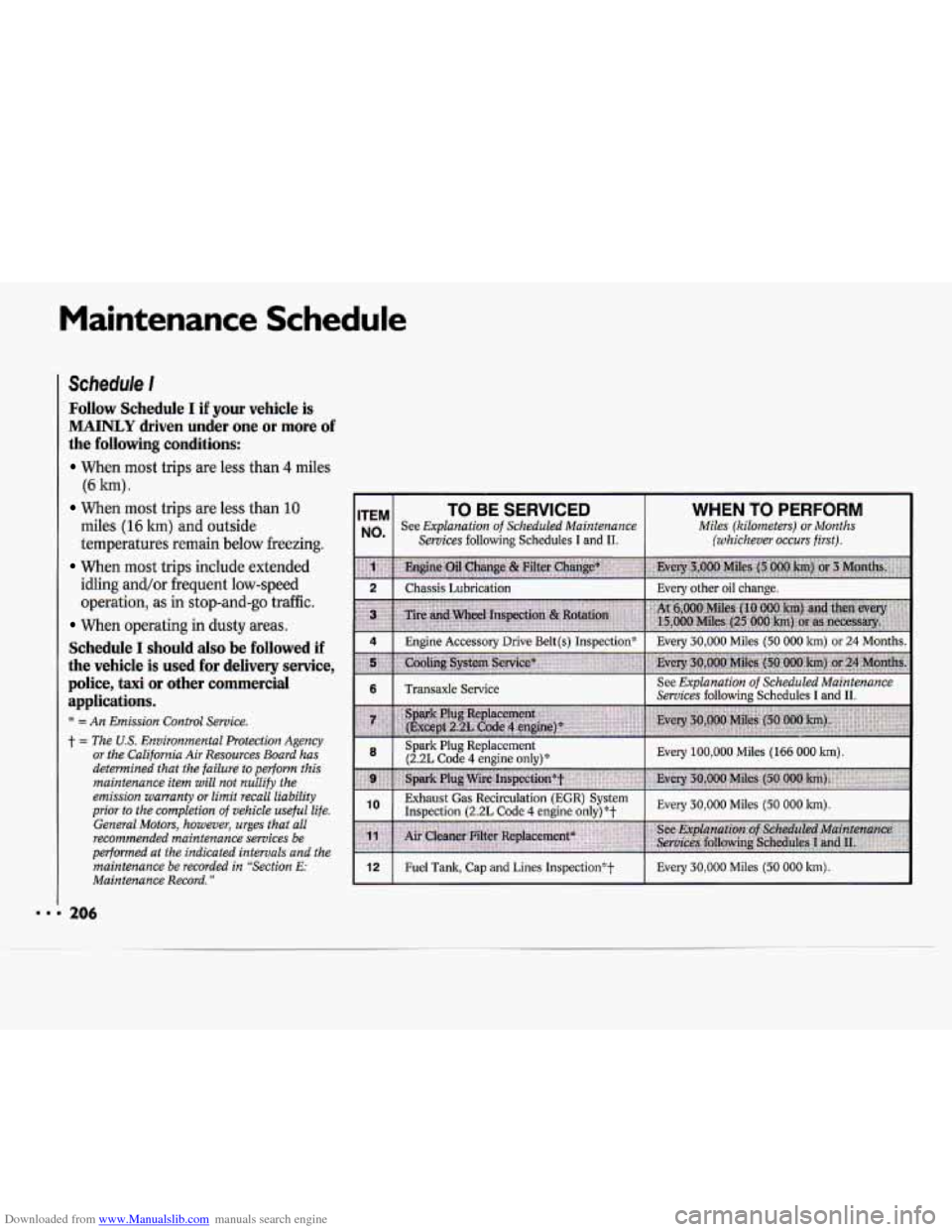

Schedule I
Follow Schedule I if your vehicle is
MAINLY driven under one or more of
the following conditions:
When most trips are less than 4 miles
When most trips are less than 10
(6
km).
miles
(16 ltm) and outside
temperatures remain below freezing.
When most trips include extended
idling and/or frequent low-speed
operation, as in stop-and-go traffic.
When operating in dusty areas.
Schedule I should also be followed if
the vehicle is used for delivery service,
police, taxi
or other commercial
applications.
* = An Emission Control Service.
t = The US. Environmental Protection Agency
or the California Air Resources Board has
determined that the failure to perform this
maintenance item
will not nullify the
emission warranty
or limit recall liability
prior to the completion
of vehicle useful life.
General Motors, however, urges that all
recommended maintenance services be
performed at the indicated intervals and the maintenance be recorded in “Section
E:
Maintenance Record. ”
ITEM
Services following Schedules I and 11. Nom
TO BE SERVICED
See Explanation of Scheduled Maintenance
WHEN TO PERFORM
Miles (kilometers) or Months
(whichever occurs first).
I 2 I Chassis Lubrication I Every other oil change. I
I 4 I Engine Accessory Drive Belt(s) Inspection* I Every 30,000 Miles (50 000 km) or 24 Months. I

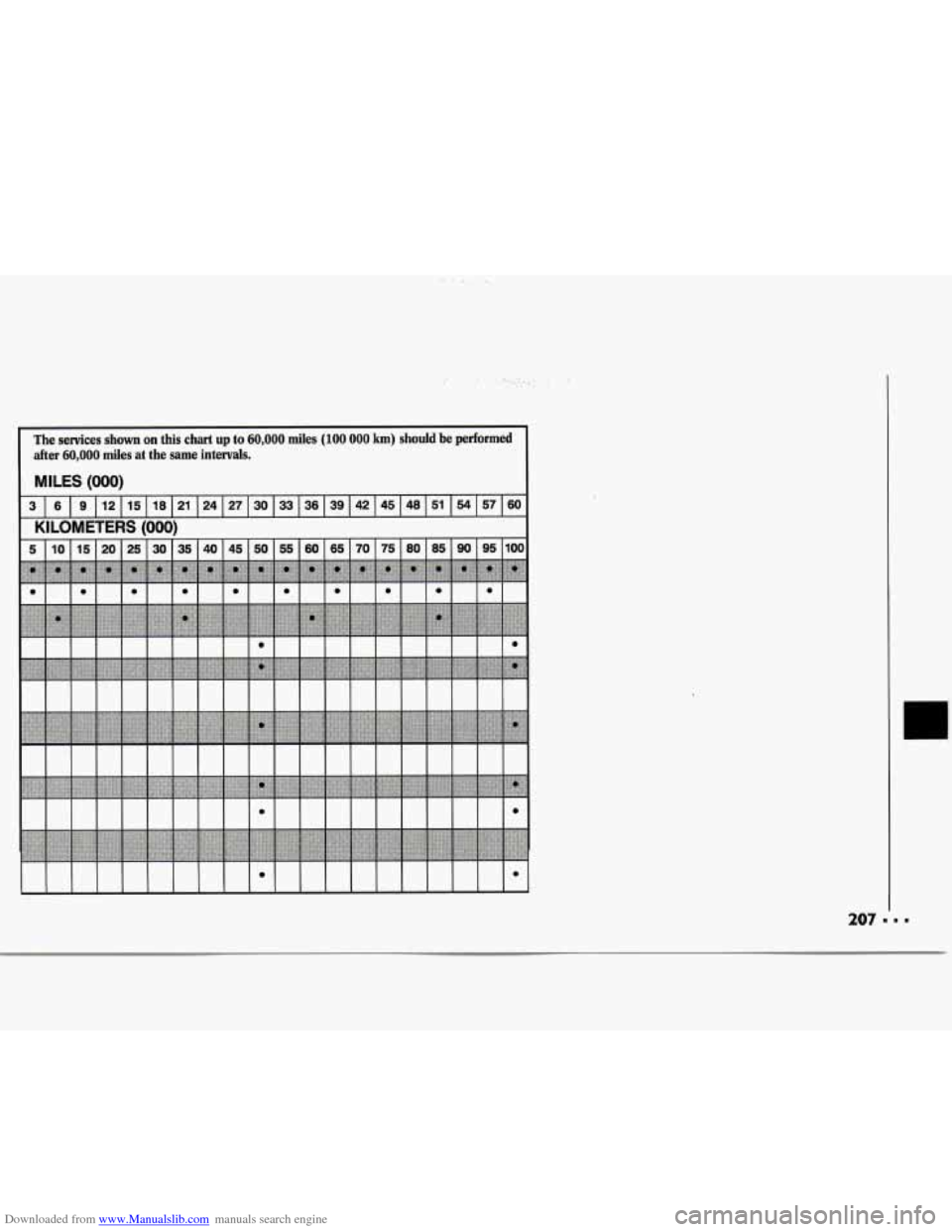

Downloaded from www.Manualslib.com manuals search engine The services shown on this chart up to 60,000 miles (100 000 km) should be performed
after
60,000 miles at the same intervals.
MILES (000)
KILOMETERS (000)
3 16 19 112115118121 124127130133136139142145148151 154157160
.I 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1
IIIIIIIII.IIIIII'IIII.
IIIIIIIIIIIIIIIIIII
207
C
