HOW TO USE SYSTEM WIRING DIAGRAMS
Article Text (p. 6)
1993 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, March 22, 2000 09:11PM
Power Windows
Remote Keyless Entry
Evaporative (EVAP) Emissions Canister ........... Engine Performance
EVAP Canister Purge Solenoid .................... Engine Performance
EVAP Canister Vent Solenoid ..................... Engine Performance
Exhaust Gas Recirculation (EGR) Valve ........... Engine Performance
Fuel Tank Vacuum Sensor ......................... Engine Performance
Fog Lights ....................................... Headlight Systems
Daytime Running Lights
Fog Light Relay .................................. Headlight Systems
Daytime Running Lights
Fuel Door Release Solenoid ................. Power Fuel Door Release
Fuel Gauge Sending Unit ................... Analog Instrument Panels
Fuel Injectors .................................. Engine Performance
Fuel Pump ....................................... Engine Performance
Fuel Pump Relay ................................. Engine Performance
Power Distribution
Fuse/Relay Block ................................ Power Distribution
Fusible Links ................................... Power Distribution
Generators & Regulators
Starters
Generator .................................. Generators & Regulators
Engine Performance
Power Distribution
Generic Electronic Module (GEM) ............... Body Control Modules
Electronic Suspension
Glow Plug Relay ................................. Engine Performance
Glow Plugs ...................................... Engine Performance
Grounds ........................................ Ground Distribution
Headlight Door Module .............................. Headlight Doors
Headlight Relay .................................. Headlight Systems
Daytime Running Lights
Headlights ....................................... Headlight Systems
Daytime Running Lights
Heated Oxygen Sensor(s) (HO2S) .................. Engine Performance
Heated Windshield Control Module ................ Heated Windshields
Height Sensor ................................ Electronic Suspension
Horns ..................................... Steering Column Switches
Horn Relay ................................ Steering Column Switches
Idle Air Control (IAC) Motor/Valve .............. Engine Performance
Ignition Coil(s) ................................ Engine Performance
Ignition Key Lock Cylinder ....................... Anti-Theft System
Ignition Module ................................. Engine Performance
Ignition Switch ................................. Power Distribution
Engine Performance
Generators & Regulators
Starters
Illuminated Entry Module .............. Illumination/Interior Lights
Illumination Lights ................... Illumination/Interior Lights
Impact Sensor ............................. Air Bag Restraint System
Inertia Fuel Shutoff Switch ..................... Engine Performance
Inhibit Relay ............................................. Starters
HOW TO USE SYSTEM WIRING DIAGRAMS
Article Text (p. 7)
1993 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, March 22, 2000 09:11PM
Instrument Cluster ........................ Analog Instrument Panels
Intake Air Temperature (IAT) Sensor ............. Engine Performance
Interior Lights ....................... Illumination/Interior Lights
Interlock Switch .......................................... Starters
Junction Block .................................. Power Distribution
Keyless Entry Receiver ........................ Remote Keyless Entry
Key Reminder Switch ....................................... Starters
Knock Sensor .................................... Engine Performance
Lamp Control Module ................................ Exterior Lights
License Plate Lamp ................................. Exterior Lights
Lighting Control Module ................... Lighting Control Modules
Anti-Theft System
Daytime Running Lights
Headlight Systems
Lower Relay .................................. Power Convertible Top
Malfunction Indicator Light (MIL) ............... Engine Performance
Instrument Panels
Manifold Absolute Pressure (MAP) Sensor ......... Engine Performance
Mass Airflow (MAF) Sensor ....................... Engine Performance
Mega Fuse .................................. Generators & Regulators
Memory Seat/Mirror Module ........................... Memory Systems
Mirror Defogger ............................... Rear Window Defogger
Moon Roof Motor .................................... Power Moon Roof
Moon Roof Relay .................................... Power Moon Roof
Multi-Function Control Module ...................... Warning Systems
Neutral Safety Switch ..................................... Starters
Oil Level Switch ................................ Engine Performance
Oil Pressure Switch/Sending Unit .......... Analog Instrument Panels
Engine Performance
Overhead Console .................................. Overhead Console
Oxygen Sensor(s) (O2S) .......................... Engine Performance
Parking Brake Switch ...................... Analog Instrument Panels
Park Lights ........................................ Exterior Lights
Park/Neutral Position Switch .............................. Starters
Engine Performance
Anti-Theft System
Body Control Module
Perimeter Lighting Control Relay ................... Exterior Lights
Power Amplifier ..................................... Power Antennas
Power Antenna Module ................................ Power Antennas
Power Antenna Motor ................................. Power Antennas
Power Distribution Center ....................... Power Distribution
Generators & Regulators
Starters
Power Door Lock Motors ............................ Power Door Locks
Power Mirror Motors .................................. Power Mirrors
Memory Systems
Power Sliding Door Controller .............. Power Sliding Side Door
Power Seat Motors ...................................... Power Seats
Memory Systems
Power Steering Pressure Switch .................. Engine Performance
Power Top Motor .............................. Power Convertible Top
HOW TO USE SYSTEM WIRING DIAGRAMS
Article Text (p. 8)
1993 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, March 22, 2000 09:11PM
Power Top Relay(s) ........................... Power Convertible Top
Powertrain Control Module ....................... Engine Performance
Analog Instrument Panels
Cruise Control Systems
Data Link Connectors
Generators & Regulators
Starters
Power Window Motors .................................. Power Windows
Power Window Relay(s) ................................ Power Windows
Radiator Fan Motor(s) ........................ Electric Cooling Fans
Radiator Fan Relay(s) ........................... Engine Performance
Electric Cooling Fans
Rainsense Module .............................. Wiper/Washer Systems
Raise Relay .................................. Power Convertible Top
Remote Anti-Theft Personality (RAP) Module ....... Anti-Theft System
Starters
Warning Systems
Seat Belt Pretensioners ................... Air Bag Restraint System
Seat Belt Retractor Solenoid .................... Passive Restraints
Seat Belt Switch .......................... Air Bag Restraint System
Passive Restraints
Shift Interlock Solenoid ................... Shift Interlock Systems
Shift Lock Actuator ........................ Shift Interlock Systems
Side Marker Lights ................................. Exterior Lights
SIR Coil Assembly (Clockspring) ........... Air Bag Restraint System
Slip Ring (Clockspring) ................... Air Bag Restraint System
Steering Column Switches
SRS Control Module ........................ Air Bag Restraint System
Starter Motor ............................................. Starters
Starter Interrupt Relay ................................... Starters
Starter Solenoid .......................................... Starters
Starter Relay ............................................. Starters
Steering Wheel Position Sensor .................... Anti-Lock Brakes
Stoplights ......................................... Exterior Lights
Stoplight Switch ................................ Engine Performance
Cruise Control Systems
Anti-Lock Brakes
Sun Roof ECU ........................................ Power Sun Roof
Sun Roof Motor ...................................... Power Sun Roof
Sun Roof Position Sensor ............................ Power Sun Roof
Taillights ......................................... Exterior Lights
Throttle Position (TP) Sensor ................... Engine Performance
Torque Converter Clutch Solenoid/Switch ......... Engine Performance
Traction Control Switch ........................... Anti-Lock Brakes
Trailer Tow Connector .............................. Exterior Lights
Trailer Tow Relay .................................. Exterior Lights
Transmission/Transaxle .......................... Engine Performance
Transmission Control Module (TCM) ............... Engine Performance
Starters
Transmission Range Sensor ................................. Starters
Back-Up Lights
Engine Performance
HOW TO USE SYSTEM WIRING DIAGRAMS
Article Text (p. 9)
1993 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, March 22, 2000 09:11PM
Transmission Range Switch ........................... Back-Up Lights
Engine Performance
Anti-Theft System
Turn Signal Flasher ................................ Exterior Lights
Turn Signal Lights ................................. Exterior Lights
Twilight Sentinel Switch ......................... Headlight Systems
Daytime Running Lights
Vapor Canister Leak Detection Pump .............. Engine Performance
Vehicle Control Module (VCM) .................... Engine Performance
Vehicle Dynamic Module ....................... Electronic Suspension
Vehicle Speed Control Servo ................. Cruise Control Systems
Vehicle Speed Sensor .......................... Data Link Connectors
Analog Instrument Panels
Cruise Control Systems
Electronic Suspension
Voltage Regulator .......................... Generators & Regulators
Water-In-Fuel Sensor ............................ Engine Performance
Analog Instrument Panels
Wheel Speed Sensors ............................... Anti-Lock Brakes
Window Timer Module .......................... Power Convertible Top
Windshield Intermittent Wiper Relay ........... Wiper/Washer Systems
Windshield Washer Motor ....................... Wiper/Washer Systems
Wiper Motor ................................... Wiper/Washer SystemsÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄEND OF ARTICLE
INSTRUMENT PANEL
Article Text
1993 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, March 22, 2000 09:12PM
ARTICLE BEGINNING
1993 ACCESSORIES & EQUIPMENT
Volkswagen Instrument Panel
Corrado SLC
DESCRIPTION & OPERATION

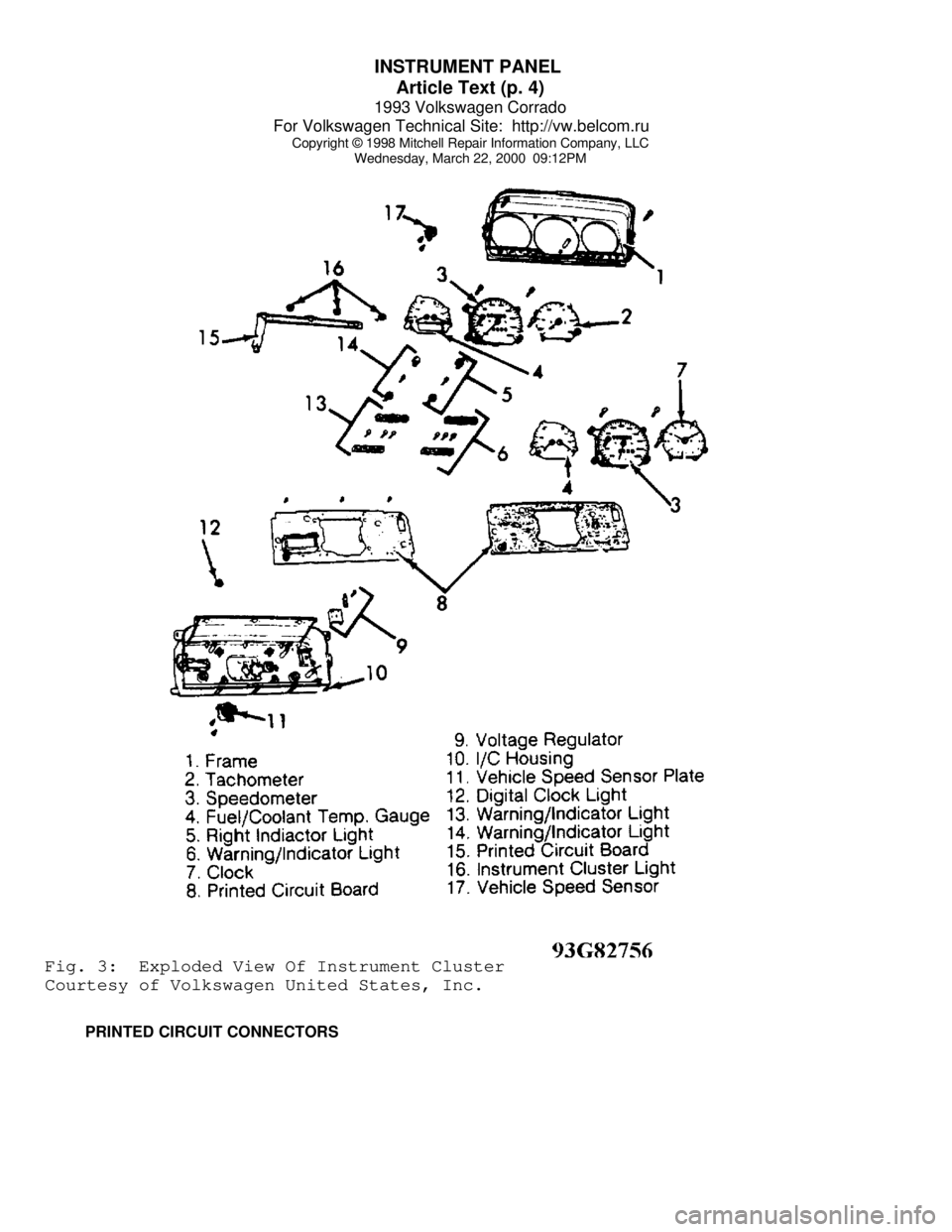

Instrument cluster for most models includes speedometer, fuel
gauge and temperature gauge. Optional instruments include clock,
tachometer, voltmeter and oil temperature gauge. See Figs. 3.
Printed circuit provides voltage to gauges. A voltage
regulator attached to printed circuit controls voltage to fuel and
temperature gauges. Most warning lights are a Light Emitting Diode
(LED). To replace diode, pull from printed circuit socket.
TESTING
VOLTAGE REGULATOR TEST
1) If only one gauge is inoperative, regulator is not
defective. Remove instrument cluster trim. Remove combination gauge.
Connect positive (+) lead of voltmeter between combination gauge
terminals No. 1 and 2. See Fig. 1. Turn ignition on. If battery
voltage is present, go to next step. If battery voltage is not
present, repair wiring harness or replace voltage regulator as
necessary.
2) Turn ignition off. Install combination gauge. Remove
speedometer. Connect positive (+) lead of voltmeter to terminal No 1
of voltage regulator. See Fig. 2. Connect voltmeter negative (-) lead
to terminal No. 2. Turn ignition on. Meter reading should be 9.5-10.5
volts. If voltage is incorrect, replace printed circuit or voltage
regulator.Fig. 1: Testing Combination Gauge (Corrado SLC)
Courtesy of Volkswagen United States, Inc.
INSTRUMENT PANEL
Article Text (p. 2)
1993 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, March 22, 2000 09:12PMFig. 2: Testing Voltage Regulator (Corrado SLC)
Courtesy of Volkswagen United States, Inc.
FUEL & TEMPERATURE GAUGE TEST
NOTE: Volkswagen Tester (VW 1301) is required for resistance
tests. Tester settings are numerical. Settings do not
indicate resistance in ohms. Manufacturer does not supply
resistance values in ohms.
1) Disconnect wire from fuel tank or temperature sending
unit. Connect VW Tester (VW 1301) between wire and ground. Turn
ignition on and allow 2 minutes for gauge reading to stabilize. Use
FUEL GAUGE TESTING or TEMPERATURE GAUGE TESTING table to compare gauge
reading. Gauge should be within one pointer width of specification.
2) If gauge needle does not move, check continuity between
sender wire and gauge. If needle moves but does not match
specifications, replace gauge. If gauge works correctly with tester
but not sending unit, replace sending unit.
FUEL GAUGE TESTING (1) TABLEÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄApplication Dial Setting Indicator
Corrado SLC ................... 50 .......................... Full
160 ......................... Half
350 ........................ Empty
(1) - Information for EuroVan not available from manufacturer.
ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄTEMPERATURE GAUGE TESTING (1) TABLE
ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄApplication Dial Setting Indicator
INSTRUMENT PANEL
Article Text (p. 3)
1993 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, March 22, 2000 09:12PM
Corrado SLC ................... 80 ........................ Normal
50 ....................... (2) Hot
(1) - Information for EuroVan not available from manufacturer.
(2) - With Red LED flashing.ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ REMOVAL & INSTALLATION
CAUTION: DO NOT damage printed circuit when installing instruments.
INSTRUMENT CLUSTER
Removal & Installation
1) Obtain radio code. Disconnect negative battery cable.
Remove steering wheel only when removing complete instrument cluster
housing. Remove trim screw caps and screws located on lower part of
instrument cluster trim. Remove instrument cluster trim.
2) Remove trip odometer reset button. Remove trim cover
retaining screws. Remove trim cover from instrument cluster. Remove
instrument cluster housing retaining screws. Pull instrument cluster
from dash panel. Disconnect multi-point connector, MFI vacuum hose (if
equipped) and speedometer drive cable. Remove instrument cluster
housing.
NOTE: All components in instrument cluster, except for printed
circuit, can be removed from front, without removing
complete instrument cluster housing.
3) Disconnect speedometer cable, remove mounting screws and
pull speedometer from housing. Squeeze locating pins on other
instruments and pull from housing. To install, reverse removal
procedure.
INSTRUMENT PANEL
Article Text (p. 4)
1993 Volkswagen Corrado
For Volkswagen Technical Site: http://vw.belcom.ru
Copyright © 1998 Mitchell Repair Information Company, LLC
Wednesday, March 22, 2000 09:12PMFig. 3: Exploded View Of Instrument Cluster
Courtesy of Volkswagen United States, Inc.
PRINTED CIRCUIT CONNECTORS
