1993 GMC SIERRA Owners Manual

Transfer Case
PO276
The transfer case shift lever is on the floor to the right of the driver. Use this
lever to shift into and
out of four-wheel drive. An indicator near the lever
shows
you the transfer case settings:
4L
2H
4H
K2224
2-37
ProCarManuals.com

Featwes & Contmk
The front axle portion of the indicator diagram will light up when you shift into
four-wheel drive.
A slight delay between shifting and the indicator’s lighting is
normal.
If the indicator does not light up, or if the front axle light does not go
out after you shift out of four-wheel drive, have your dealer check your
system.
When your headlights or parking lights are on, rotate the dial\

to the right of
your headlight switch up
to brighten, or down to dim, your transfer case
indicator light.
Transfer Case Shift Positions
2H (High): This setting is for driving in most street and highway situations.
Your front axle is not engaged in two-wheel drive.
4H (High): This setting engages your front axle to help drive your vehicle.
Use
4H when you need extra traction, such as on wet or icy roads, or in
most
off -road situations.
N (Neutral): Shift to this setting only when your vehicle needs to be towed or
when using a power take
off.
4L (Low): This setting also engages your front axle to give you extra traction,
but should be used only for off-road or on extremely slippery surfaces.
You can shift from
2H to 4H or from 4H to 2H while the vehicle is moving.
Your front axle will engage faster
if you take your foot off of the accelerator
for a few seconds after you shift. In extremely cold weather it may be
necessary to stop or slow the vehicle to shift out of
2H.
To shift into or out of 4L or N (Neutral):
1. Slow the vehicle to a roll, about 3 mph (5 kmlh) and shift your
2. Shift the transfer case shift lever in one continuous motion.
transmission into neutral.
Don’t pause in
N (Neutral) as you shift the transfer case into 4L, or your
aears could clash.
Kernember that driving
in 4H or 4L may reduce fuel economy. Also, driving in
four-wheel drive on dry pavement could cause your tires to wea\
r faster and
make your transfer case harder
to shift.
Front Axle Locking Feature
The front axle locks and unlocks automatically when you shift the transfer
case.
A slight delay for the axle to lock or unlock is normal. If the outside
temperature is very hot, or the vehicle has been used under hard driving
conditions, there may be a slight delay for the axle to unlock.
2-38
ProCarManuals.com

Whenever you are in four wheel-drive, the rear wheel anti-lock brake system
does not operate. The regular brake system operates normally. W\
hen you shift back into two-wheel drive, the anti-lock brake system will operate.
Windows
To open your manual windows, turn the hand crank on each door to raise or
lower your side door windows.
If you have the optional power windows, the controls are on each
of the side
doors.
The driver's door has a switch for the passenger windows as well. Your
power windows will work when the ignition has been turned to
ACC or Run.
Push the switch with the down pointing arrow to lower the window.
Push the switch with the up pointing arrow to raise the window.
2-39
ProCarManuals.com

Features & ContmIs
Sliding Rear Window
r
I
I
K2230
Your vehicle may have a sliding rear window. To open the window, pull the
driver’s side
of the latch forward and move it toward the passenger side.
Slide the window open. When you close the windows, hook the latch on the
passenger side window and press the driver’s side rearward f\
irmly. Be sure
the latch catches.
Swing-Out Windows (Extended Cab)
K2231
If your vehicle has rear swing-out windows, just unlatch them at \
their clasps
and push out on the glass to open them.
2-40
ProCarManuals.com

Horn
I'
c
E,
I
K2319
To sound the horn, press the pad with the horn symbol on it. Th\
e pad is
located in the center
of the steering wheel.
Tilt Wheel (Option)
K2185
A tilt steering wheel allows you to adjust the steering wheel be\
fore you drive.
You can also raise it to the highest level to give your legs more room when
you exit and enter the vehicle.
2-41
ProCarManuals.com

Features & ContrOrs
To tilt the wheel, hold the steering wheel and pull the lever. Move the
steering wheel to a comfortable level, then release the lever to
lock the wheel
in place.
Mu/tifunction Lever
The lever on the left side of the steering column includes your:
Turn Signal and Lane Change Indicator
Headlight High-Low Beam & Passing Signal
Windshield Wipers
Windshield Washer
Cruise Control (Option)
2-42
ProCarManuals.com

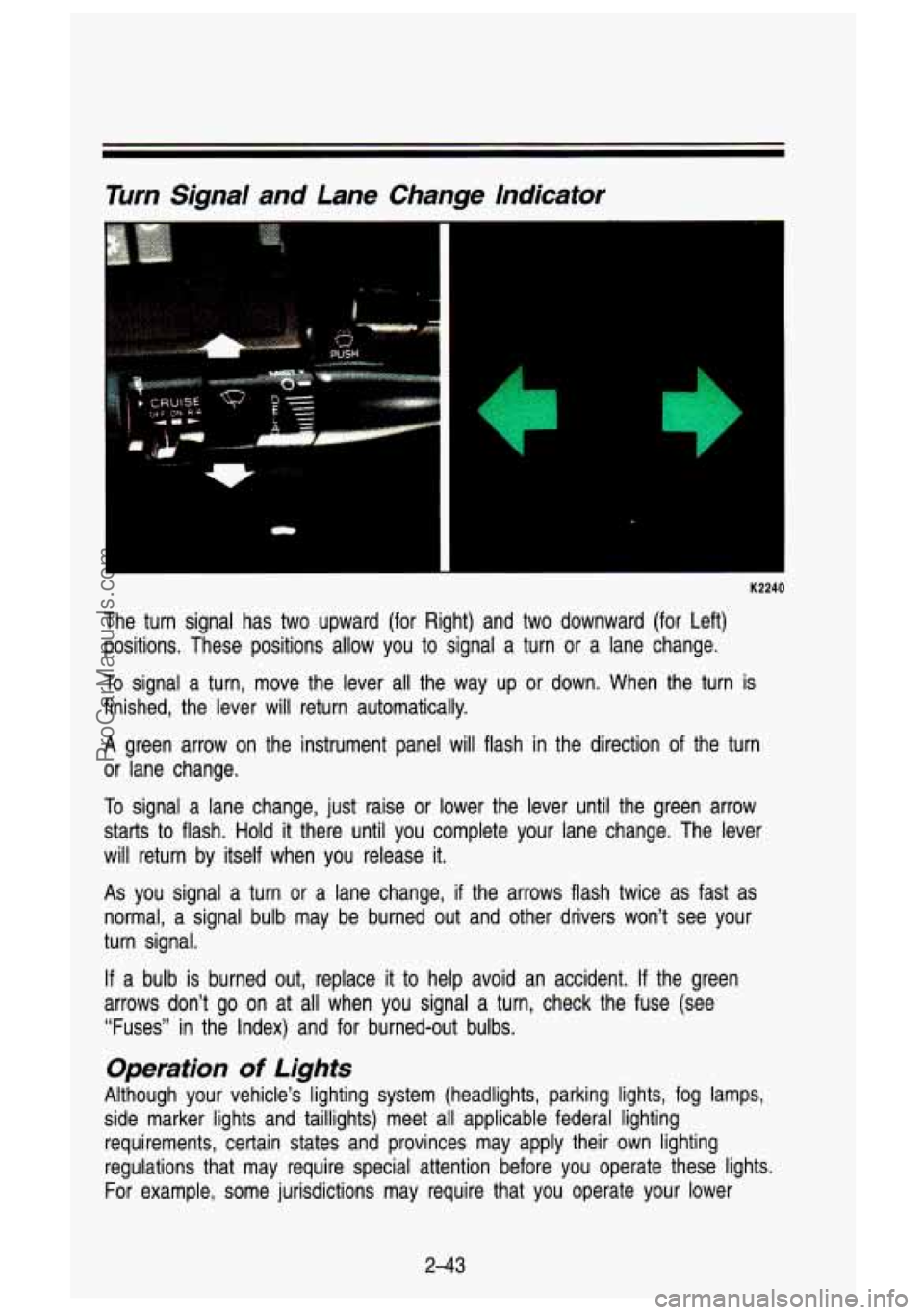

Turn Signa/ and Lane Change Indicator
(I
The turn signal has two upward (for Right) and two downward \
(for Left)
positions. These positions allow you to signal a turn
or a lane change.
To signal a turn, move the lever all the way up or down. When the turn is
finished, the lever will return automatically.
A green arrow on the instrument panel will flash in the direction of the turn
or lane change.
To signal a lane change, just raise
or lower the lever until the green arrow
starts
to flash. Hold it there until you complete your lane change. The lever
will return by itself when you release it.
As you signal a turn or a lane change, if the arrows flash twice as fast as
normal, a signal bulb may be burned out and other drivers won't see your
turn signal.
If a bulb is burned out, replace
it to help avoid an accident. If the green
arrows don't go on at all when you signal a turn, check the \
fuse (see "Fuses" in the Index) and for burned-out bulbs.
Operation of Lighfs
Although your vehicle's lighting system (headlights, parking lig\
hts, fog lamps,
side marker lights and taillights) meet all applicable federal \
lighting
requirements, certain states and provinces may apply their own lighting
regulations that may require special attention before you operat\
e these lights.
For example, some jurisdictions may require that you operate your l\
ower
243
ProCarManuals.com

Features & Controls
beam lights with fog lamps at all times, or that headlights b\
e turned on
whenever you must use your windshield wipers.
In addition, most jurisdictions
prohibit driving solely with parking lights, especially at dawn \
or dusk. It is
recommended that you check with your own state or provincial h\
ighway
authority for applicable lighting regulations.
Headight High-Low Beam
- K2242
To change the headlights from low beam to high or high to low, \
pull the turn
signal lever all the way toward you. Then release
it. When the high beams
are on, this blue light
on the instrument panel also will be on.
