Page 97 of 436
Parking Brake
K2221
To set the parking brake:
Hold the regular brake pedal down with your right foot. Push down the
parking brake pedal with your left
foot. If the ignition is on, the brake system
warning light will come
on.
To release the parking brake:
Hold the regular brake pedal down. Pull the lever marked RELEASE.
Driving with the parking brake on can cause your rear brakes to overheat.
You may have to replace them, and you also da other p;
of I
your vehicle.
’ ‘
If you are on a hill:
See “Parking on Hills” in the Index. That part shows how to turn your front
wheels.
If you are towing a trailer and are parking on any hill:
See “Towing a Trailer” in the Index. That part shows what to do first to keep
the trailer from moving.
2-29
ProCarManuals.com
Page 98 of 436

Features & Controls
Propshaft Brake Burnish Procedure
If you have a 3500 HD Model, it is recommended that the propshaft mounted
parking brake be burnished as part of the new vehicle break in. The parking
brake
will work best after it has been burnished following these instructions.
Make
10 stops, using the parking brake foot pedal, from 20 mph (32 k\
m/h)
about 2
112 miles (4 km) apart. In between stops, drive the vehicle at 20
mph (32 kmlh).
Torque Lock
The parking brake should be set first whenever leaving the dri\
ver’s seat. If
you are parked on a hill and the transmission is placed in P (Park) before
the parking brake is set, the weight of the vehicle may put too much force
on the parking pawl in the transmission.
It may be difficult to pull the selector
lever out of
P (Park). This is called “torque lock.” To prevent this, the parking
brake should be set
BEFORE moving the selector lever to P (Park).
When preparing
to move the vehicle, the selector lever should be moved out
of
P (Park) BEFORE releasing the parking brake. Set the parking brake first,
then release the transmission from
P (Park), even on level surfaces.
If “torque lock” does occur, you may have to have another vehicle nudge
your vehicle uphill a little
to take some of the pressure off the transmission
while you pull the selector lever out of
P (Park).
Shifting Into P (Park) (Automatic Transmission Models Only)
1 CAUTION
It can be dangerous to get out of your vehicle if the shift lever is not
fully in
P (Park) with the parking brake firmly set. Your vehicle can
roll.
If you have left the engine running, the vehicle can move suddenly.
You
or others could be injured. TO be sure your vehicle won’t move,
when you’re
on fairly level ground, use the steps that follow.
If you have four-wheel drive and your transfer case is in N (Neutral),
your vehicle will be free to roll-even if your shift lever is in P
{Park). So, be sure the transfer case is in a drive gear-not N
(Neutral).
If you are parking on a hill, or if you’re pulling a trailer, also see
“Parking on Hills9’ or “Towing a Trailer” in the Index. I
2-30
ProCarManuals.com
Page 99 of 436

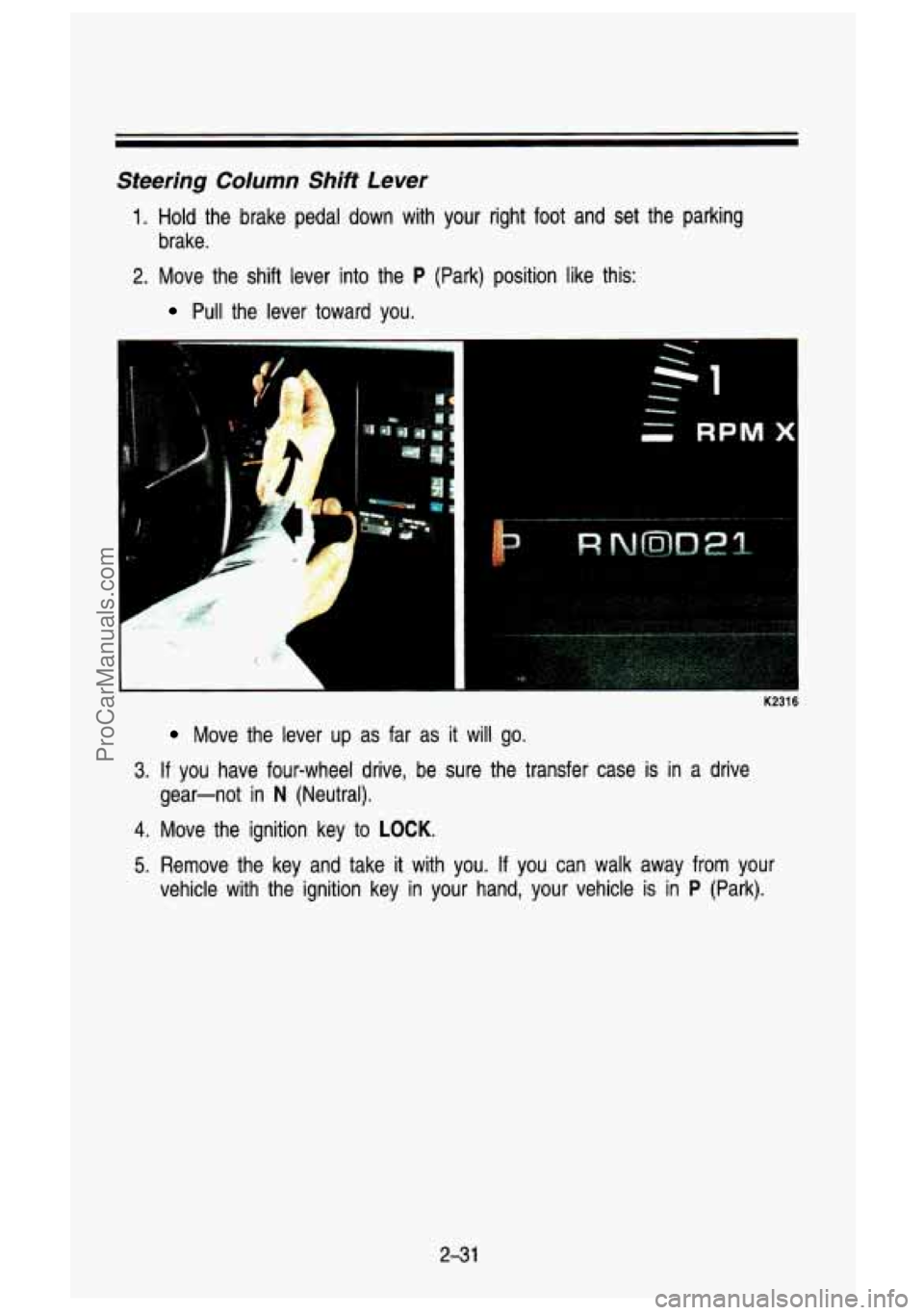

Steering Column Shift Lever
1. Hold the brake pedal down with your right foot and set the parking
brake.
2. Move the shift lever into the P (Park) position like this:
Pull the lever toward you.
~- - --
w KL" I"
Move the lever up as far as it will go.
3. If you have four-wheel drive, be sure the transfer case is in a drive
4. Move the ignition key to LOCK.
5. Remove the key and take it with you. If you can walk away from your
vehicle with the ignition key
in your hand, your vehicle is in P (Park).
gear-not
in N (Neutral).
2-31
ProCarManuals.com
Page 100 of 436

Leaving Your Vehicle With the Engine Running (Automatic
Transmission Models Only)
I CAUTION
A It can be dangerous to leave your vehicle with the engine running. 1
1 Your vehicle could move suddenly if the shift lever is not fully in P
(Park) with the parking brake firmly set.
If you have a four-wheel drive with a manual transfer case sh\
ift lever
and your transfer case
is in N (Neutral), your vehicle will be free to
roll, even
if your shift lever is in P (Park). So be sure the transfer
case is in a drive gear-not in
N (Neutral).
And,
if you leave the vehicle with the engine running, it could
overheat and even catch fire. You or others could be injured. Don’t
leave your vehicle with the engine running unless you have to.\
If you have to leave your vehicle with the engine running, be su\
re your
vehicle
is in P (Park) and your parking brake is firmly set, before you leav\
e
it. If you have a four-wheel drive, be sure that the transfer case i\
s in a drive
gear-not in
N (Neutral).
After you’ve moved the shift lever into the
P (Park) position, hold the regular
brake pedal down. Then, see
if you can move the shift lever away from P
(Park) without first pulling it toward you.
If you can, it means that the shift lever wasn’t fully locked into
P (Park).
Parking Your Vehicle (Manual Transmission Models Only)
Before you get out of your vehicle, put your manual transmission in R
(Reverse) and firmly apply the parking brake.
If you have four-wheel drive, be sure your transfer case is in a\
drive gear.
Your vehicle could roll
if it isn’t.
If you are parking on a hill, or if your vehicle is equipped to tow a trailer,
see “Parking on Hills” or “Towing a Trailer” in the\
Index.
2-32
ProCarManuals.com
Page 101 of 436
Parking Over Things That Burn
I&
'
A
-*! -- -
8
I AM220008
CAUTION
A Things that can burn could touch hot exhaust parts under your
vehicle
and ignite. Don't park over papers, leaves, dry grass or ol - r
things that can burn.
2-33
ProCarManuals.com
Page 102 of 436
Featums & Contds

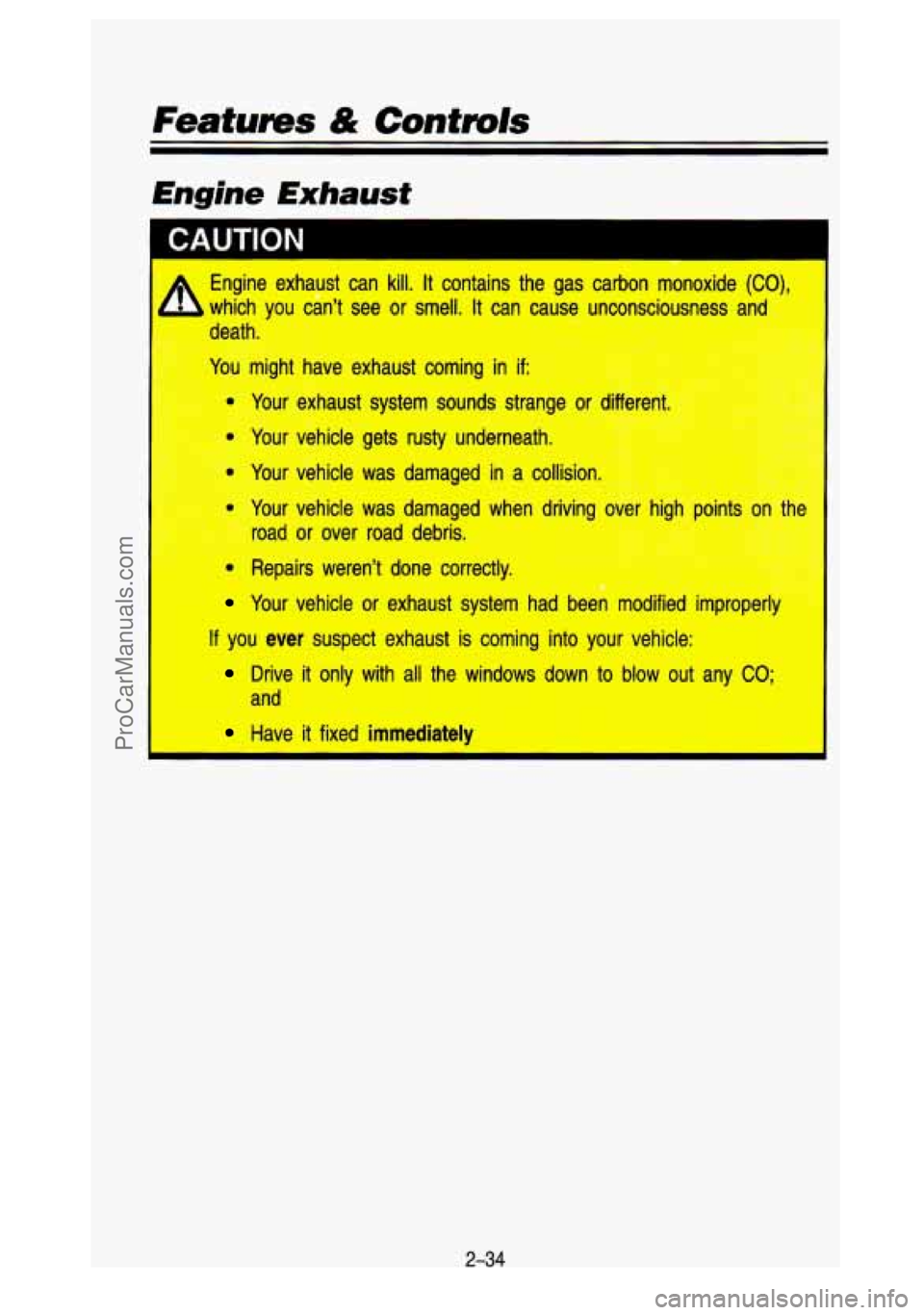

Engine Exhaust
d th. .-
Y t hr--- 'xhaust coming in if:
-
- Your vehicle sets rusty underneath.
* Your vehicle was damaged in a collision.
- Your vehicle was damaged when driving over high points on .Ik
Your exhaust system sounds strange or
road or over road debris. iii$!,
Repairs weren't done correctly. - ' : -.- n, .'. .! .*: 3.:*-;
Your vehicle or exhaust system had bee; modified improp&,
Drive it only with all the windows down to blow out any CO; l
Have it fixed immediately I
.. .lI : .. : --.,
If you ever suspect exhaust is coming into your vehicle:
and
I
2-34
ProCarManuals.com
Page 103 of 436

Running Your Engine While You%
Parked [Automatic mansmission)
It’s better not to park with the engine running. But if you ever have to, here
are some things
to know.
1 CAUTION I
* Idling the engine with the air system control off could allow
‘ jangerous exhaust into your vehicle. (See the earlier Caution under
**A :E ..:i *; !.< .. 5;:. ::.; ,$+ : ‘Engine Exhaust”.) ~~-?~c-~~~~~=~~:-
Also, Idling in a closed-in place can let deadly oxide (CO)
nto your vehicle, even if the fan switch is at the highest setting. One
place this can happen
is a garage. Exhaust-with co--( -% -c ?& 2asily. NEVER park in a garage with the engine runni
?-! 4nother ,I: -‘i closed-in place can be a blizzard. (See “Blizzard“ in th
Index.)
CAUTION
It can be dangerous to get out of your vehicle if the shift lever is not
L fully in P (Park) with the parking brake firmly set. Your vehicle can
roll. Don’t leave your vehicle when the engine is running unless
you
have to. If you’ve left the engine running, the vehicle can move
suddenly. You
or others could be injured. To be sure your vehicle
won’t move, even when you’re on fairly level ground,, alw\
ays
set your
parking brake and move the shift lever to
P (Park).
I
If you have four-wheel drive and your transfer case is in N (Neutral},
your vehicle
will be free to roll, even if your shift lever is in P (Park),
So, be sure the transfer case is in a drive gear-not in N (Neutral).
Foliow the proper -steps to be sure your vehicle won’t move. -See
“Shifting Into P (Park)” in the Index.
If you are parking on a hill, or if you’re pulling- -a- trailer, also see
“Parking on Hilis”-.or “Towing -a Trailer”‘ in the Index.
235
ProCarManuals.com
Page 104 of 436

Features & Contmls
Four- Wheel Drive
CAUTION I
It can be dangerous to get out of your vehicle if the shift lever -is not
fully in
P (Park) with the parking brake firmly set. Your vehicle can
roll. Don’t leave your vehicle when the engine is running unless you
have
to. If you’ve left the engine running, the vehicle can ‘move
suddenly. You or -others could be injured.
To be sure your vehicle
won’t move, even when you’re on fairly level ground, always
set your
parking brake and move the shift lever
to P (Park).
If you have four-wheel drive and your transfer case is in N (Neutral),
your vehicle
will be free to roll, even if your shift lever is in P’(Park).
So, be sure the transfer case is in a drive gear-not in N (Neutral).
Follow the proper steps
to be suce your vehicle won’t move. See
“Shifting Into
P (Park)” in the Index.
If you are parking on a hill, or if you’re pulling a trailer, also see
“Parking ‘on Hills’’ or “Towing a Trailer” in this section.
I
If your vehicle has four-wheel drive, you can send your engine’\
s driving power
to all four wheels for extra traction. To get the most satisfaction out of
four-wheel drive, you must be familiar with it’s operation. \
Read the part that
follows before using four-wheel drive. You should use
2H for most normal
driving conditions.
Rear-wheel antilock brakes
do not work when you shift into four-wheel drive.
Your regular brakes will still work. When you shift back into two-w\
heel drive,
your rear-wheel antilock brakes will take over again.
I NOTICE
Driving in the 4H or 4L positions for a long time on dry or wet pavement
could shorten the life
of your vehicle’s drivetrain.
2-36
