1993 CHEVROLET CORVETTE Owners Manual

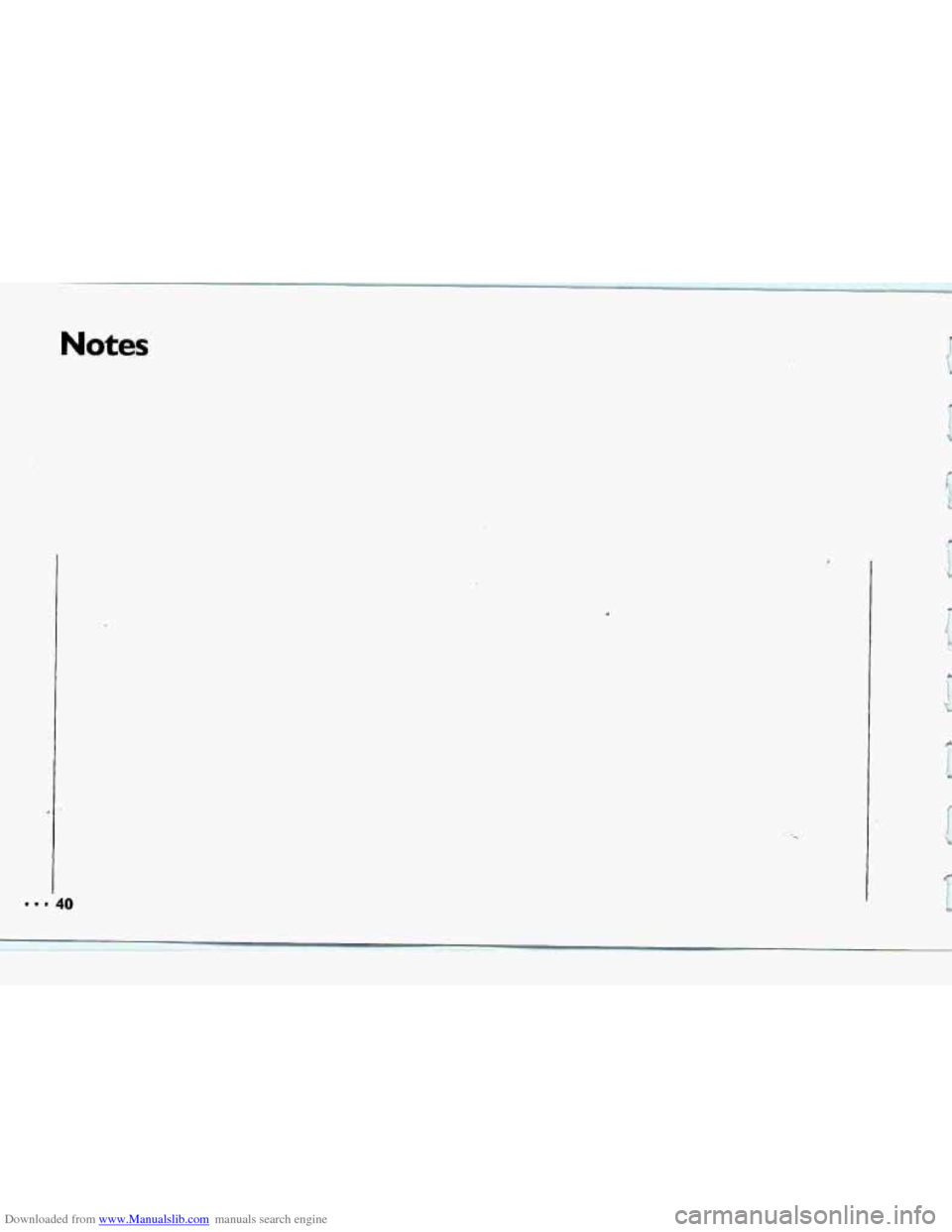

Downloaded from www.Manualslib.com manuals search engine Notes

Downloaded from www.Manualslib.com manuals search engine !
....
+-
Here you can learn about the
many standard and optional features
on your Corvette. and information on
starting. shifting and braking . Also
explained are the instrument panel
and the warning systems that tell you
if everything is working properly-
and what to do if you have a
problem .
Part 2
Features & Controls
Keys ........................................................................\
........................................... 42
Locks ........................................................................\
......................................... 43
Passive Keyless Entry System ........................................................................\
... 44
Glove Box ........................................................................\
.................................. 59
Starting Your Engine ........................................................................\
.................. 61
Engine Block Heater ........................................................................\
................. 66
Shifting the Transmission ........................................................................\
......... 67
Parlring Brake ............................................... .................................................... 77
Turn SignaVHeadlight Beam Lever .................................................................. 82
Windshield Wipers~asher ........................................................................\
....... 83
Cruise Control ........................................................................\
............................ 84
PASS-Key'" ........................................................................\
....................................... 55
Ignition ........................................................................\
...................................... 60
Windows ........................................................................\
..................................... 81.
Headlights ........................................................................\
.................................. 89
Interior Lights ........................................................................\
........................... 91
Storage Compartments ........................................................................\
............. 95
Mirrors 92
Sun Visors ........................................................................\
................................. 93
Ashtray and Lighter ........................................................................\
................... 96
Instrument Panel ........................................................................\
...................... 98
Warning Lights, Gages and Indicators ........................................................... 1 02
........................................................................\
.......................................
Trip Monitor ........................................................................\
............................. 1 IO
Driver Information Center ........................................................................\
. .:. .... 112
Convertible Hardtop ........................................................................\
................ 128
Removable Roof Panel ........................................................................\
............ 120
Convertible Top ........................................................................\
...................... 124
41

Downloaded from www.Manualslib.com manuals search engine Features & Controls
Keys The ignition keys are for the ignition
Ody.
The door keys are for the doors anddl
other locks, except the. engine power
switch (if you have a ZR-1) which uses
a third key.
When a new Corvette'is delivered, the.
dealer removes the plugs
from the keys,
and gives them to the-first owner.
However, the ignition key may not have
a plug.
Each
plug has a code on it that tells
your dealer or a qualified locksmith
how to make extra keys. Keep the plugs
' in a safe piace. If you lose your-.keys,
you'll be able to have new ones made
easily using these.plugs. If your ignition
keys dodt have plugs, go to your
Chevrolet dealer for the correct key
code if you need a new.ignition key.
I NOTICE
P
c

Downloaded from www.Manualslib.com manuals search engine ,F
i
l Door Locks b
1"
I
rhere are several ways to locls: and
unlock your vehicle.
From the Outside:
Use your door key or the Passive
Keyless
Entry transmitter.
If your theft deterrent system is armed,
unlock the doors only with the key or
Passive Keyless Entry system. This wizl
avoid setting off the alarm.
To lock the doors with the Passive
Keyless Entry system, take the
transmitter .out of range-after five
seconds, the doors will lock and the
horn will sound once. To unlock the
doors, move the transmitter back into
vehicle range. See the Index under
Passive Keyless Entry System.
I
. . ._ -. -
From the Inside:
Tollock the door, slide the lock control
on the door rearward.
To unlock the door, slide the lock
control on the door forward.

Downloaded from www.Manualslib.com manuals search engine Features & Controls
4
Power Door Locks
With power door locks, ,you can lock or
unlock both doors-.of your vehicle from
the driver or-passenger door lock switch.
Slide the power door
lock switch
reaward to lock the doors. Slide the
switch €ornard to unlock the doors.
Leaving Your Vehicle
If you are leaving,the vehicle, open your
door and set the lucks from inside. Then
get out and close the door.
Your vehicle has a thee detefrent
system. See- the
index uader Unzversal
Theft Deterrent.
I4
Passive KeyEess Entry System
Your Passive Keyless Entry system
operates on a radio frequency subject to
Federal Communications Commission (FCC)
Rules.
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This
device may not cause- harmful
interfejrence,
and (2) This device must
accept any interference received,
including interference that
may cause
undesired operation. Should interference
to
this system
occur, try
this:
Check to:see if the passive feature is
enabled.
Check the distance. You may be too
far lrom your vehicle. This product
has a maximum range.
Check the location. Other vehicles or
objects-may be blocking the signal.
Check to determine if battery
replacement is. necessary.
See the
instructioas .on battery replacement
later in this section.
See your Chevrolet dealer 6r.a
qualified technician
for service.
Changes or modifications td this system
by other than an authorized service
facility could void authorization to use
this .equipment.

Downloaded from www.Manualslib.com manuals search engine .F
i
i+ i,
.e
i 1
r I .,
Passive Keyless .Entry Description
The Passive Keyless-Entry system, or
PKE, on your Corvette is a new
approach2o remote keyless entry.
Unlike other systems, PKE requires no
specific .action from the operator ,to
unlock
or lock the dams. When the
passive kature
is er;abled, simply
approach the vehide with
the .PKE
trinsmitter-the system automatically
disarms
your vehicle's theft deterrent
system and unlocks either the driver's
door or both doors (depending on
which unlock mode it is in). Move back
aut
-of range, and P-KE locks all the
doas and arms the theft deterrent
system. The Passive Keyless
Entry system also
has other useful features. The passenger
- door can be unlocked by pressing. the
DOOR button
on the transmitter. On
the. coupe, the hatch can be openqd ley
pressing the HATCH button on the
transmitter.
In addition to these
features, there
is a special function that
prevents
thekeys from being locked in
the vehicle while they are in the
ignition.
Your Corvette comes equipped from the
facbry with one transmitter. Additional
transmitters,
if desired, .may be
purchased though your dealer. Each
transmitter is co-ded for. secu-rity, and
must be ,programmed to yow vehicle
before
it is used. See Programming
Transmitters laterin this section,

Downloaded from www.Manualslib.com manuals search engine Transmitter Range
The Passive Keyless Entry system
sen-ses the transmitter when it is within
a certain-range of the vehicle. When the
transmitter
is' within this range, the
doar(s) will unIock auto-matieally (if the
passive feature
is enabled), the theft
deterrent system will
be disarmed, -and
the courtesy lights wilI be turned on (if
it is dark enough outside).
Transmitter
ranges., as shorn in the
coupe and convertibie illustrations, are
as follows:
Range
A: .5-7 feet (.11h-2 m)
Range B: 3-5 feet. (1-1% rn)
Features & Controls
.. . .. .. _I . . .- . ..
. ..
The signal of the transmitter is picked
up by two antennas. On the coupe, one
antenna is located in the driver's door
and one is
located in the rear of the
luggage-area. These antennas do not
require any routine maintenance I
Transmitter Range (Convertible)
Qn the convertible, one antenna is
located in the driver's
door and one- is
located
in the passenger's -door. These
antennas do not require any routine
maintenance.
F

Downloaded from www.Manualslib.com manuals search engine i"" V'
r"
Transmitter Range Suggestions:
The range of the Passive Keyless
EMry system is very dependent on
bow
the transmitter is held. For
opthum range hd performance,
hold the transmitter
vertically when
approaching the vehicle.
If the range gradually decreases over
time even though the transiitter is
held
vertically, change the battery in
the transmitter.
The range will decrease if mure than
one3ransmitter is in range at the same
time.
Avoid taking more than one-
transmitter into vehicle range at the
same time.
Do not put the transmitter into a
metal container, which
will prevent
the
.signal from getting- to the vehicle.
hen you move the transmitter into
vehicle range, the
theft deterrent system
automatically disengages and the
driver's door automatically unlocks.
When you move the transmitter out of
vehide range with the' do.ors closed and
the
key out af the ignition, the system
will automatically:
Lock both .dooxs after -a five-second
Immediately arm the theft deterrent
Sound the horn once to signal that
Turn-off the interior lights.
delay.
system.
the doors are locked.
The theft deterrent system will still
operate using the .pma d0.w lock. See
the Index under .Universal The#?
DeZerrenzt.
You mEQT also Llnbclr the passenger
door by pressing the-DOOR-buttoil Qn
the transmitter, and the hatch by
pressing the HATCH button, but only
when the ignition is off.
