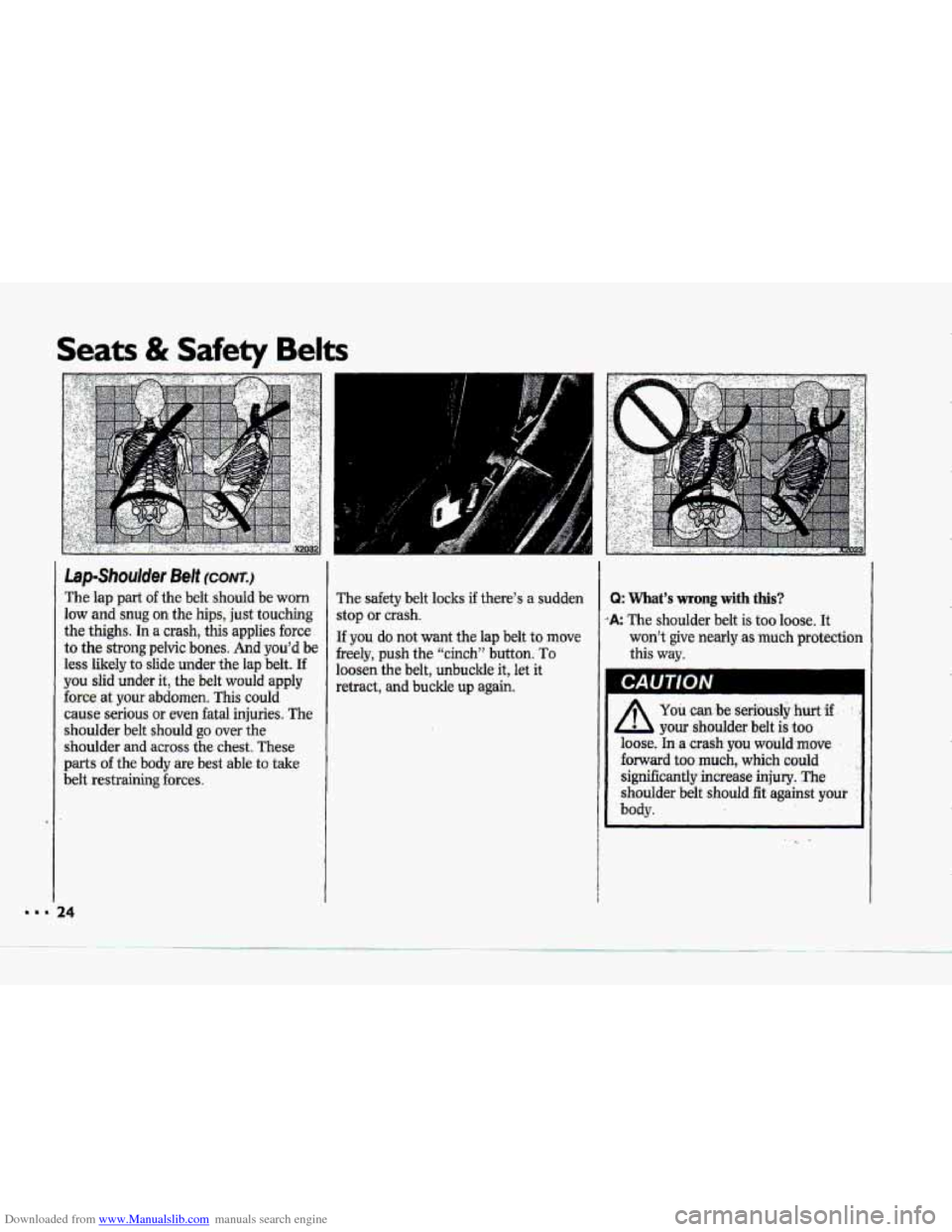

Lap-Shoulder Belt (conrr.)
The lap part of the belt should be worn
low and snug on the hips, just touching
the thighs.
In a crash, this applies force
to
the strong pelvic bones. And you’d be
less likely to slide under the lap belt. If
you sfid under it, the belt would apply
force at
your abdomen. This could
cause serious
or even fatal injuries. The
shoulder belt should go over the
shoulder and across the chest. These
parts of the body are best able to take
belt restraining.forces.
The safety belt locks if there’s a sudden
stop or crash.
If-you do not want the lap belt to move
freely, push the “cinch” button. To
loosen the belt, unbuckle it, let it
retract,
and buckle up again.
Q: What’s wrong with this?
.A: The shoulder belt is too loose. It
won’t
give nearly as much protection
this way.
..
You can be seriously. hurt -if. :
your shoulder belt is ,tao
loose. In, a crash you would move
forward too much, which could
significantly increase injury.
‘Thg
shoulder belt should fit against your
body.

Downloaded from www.Manualslib.com manuals search engine -I-
:-: -*
T-
.~ I --
l-
Q: What's wrong with this?
A The belt is buckled in the wrong
place.
A .if. your.belt 'is buckldhthe
wrong place like this. .In a..crish,
the belt would go up over your
abdomen.
The belt forces would be
there, not
at the ,pelvic bones. This
could cause-. serious internal
. injuries. Always buckle your belt
into the buckle nearest you.
you be s&&ly.injured . .
Q: What's wrong with this?
A: The shoulder belt is worn under the
arm. It should be worn over the
shoulder at
all times. .-
- . _. . . . . ., .
You can he seriously injured.
if you wearthe shoulder belt
under
your 'am. In a crash, your.
body would move too far forward,
which would increase the chance of
head. and neck ,injury. Also, the belt
would apply too much force to the
ribs, which aren't as strong as
shoulder bones. You could also
severely
injure internal organs like
your
liver or spleen.
Q: What's wrong with this?
A3The belt is twisted across the body.

Downloaded from www.Manualslib.com manuals search engine Seats & Safety Belts
Lap-Shuuider Belt (CONT.)

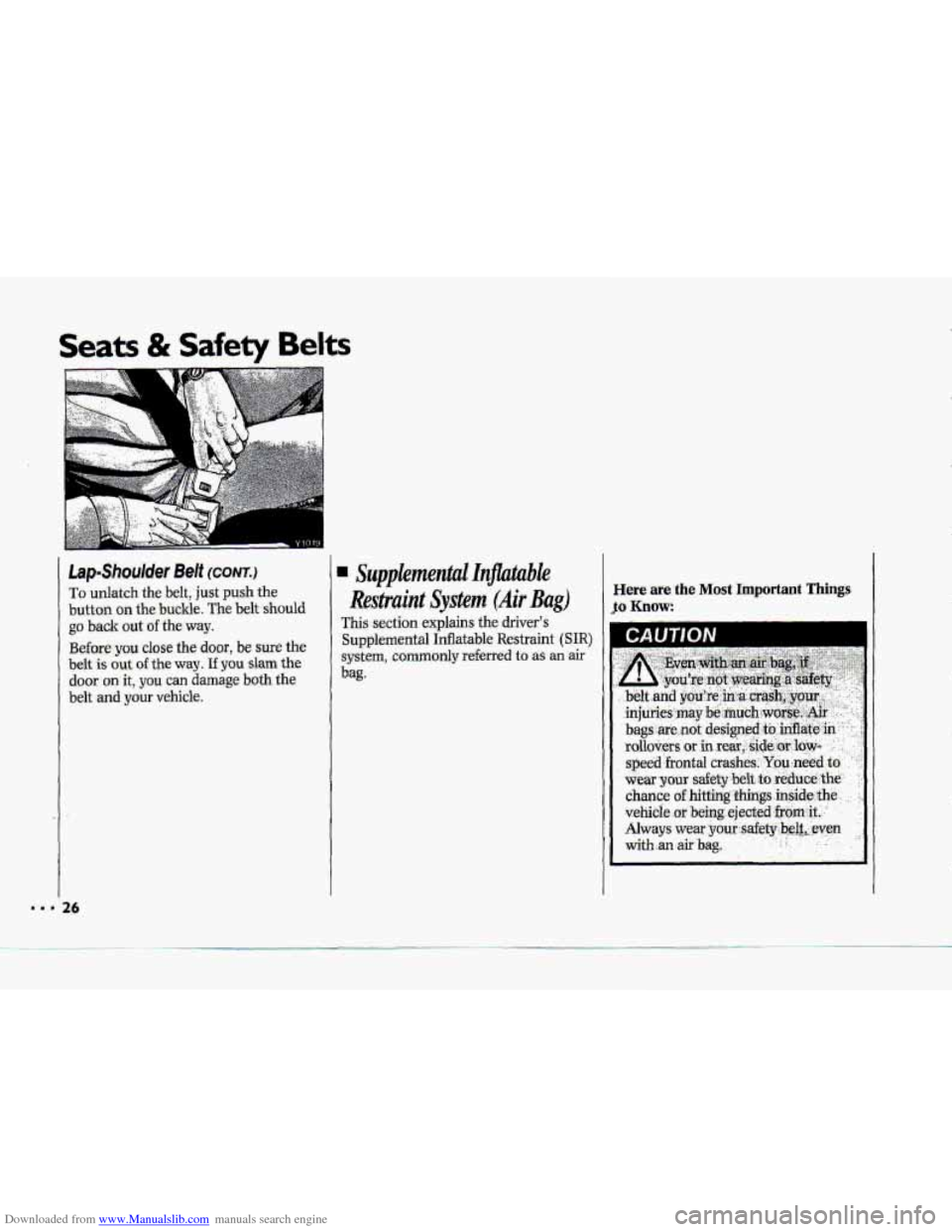

To unlatch the belt; just push the
