1993 CHEVROLET CAVALIER check engine

Downloaded from www.Manualslib.com manuals search engine Section B: Owner Checks & Services
Listed below are owner checks and services which should
be performed at the intervals specified to help
ensure the
safety, dependability and emission control performance of
your vehicle. Be
sure any necessary repairs are completed at once.
Whenever any fluids or lubricants are added to your
vehicle, make sure they are the proper ones, as shown in
Section D.
At Each Fuel Fill (It is important for you or a service station attendant to perform these underhood checks at \
each fuel fill.)
CHECK
OR SERVICE I WHAT TO DO
Engine Oil Level
1
Check the engine oil level and add the proper oil if necessary. See the Index under Engine Oil for
further details.
Engine Coolant Level Check the engine coolant level
in the coolant recovery tank or surge tank and add the proper
coolant
mix if necessary. See the Index under Coolant for further details.
Windshield Washer Check the windshield washer fluid level
in the windshield washer tank and add the proper fluid
Fluid Level if necessary. See the
Index under Windshield Washer Fluid for further details. I
At Least Once a Month
CHECK
I OR SERVICE I WHAT TO DO
Tire Inflation
Check tire inflation. Make sure they are inflated to the pressures specified on the Tire-Loading
Information label located on the rear edge of
the driver’s door. See the Index under fires for
further details.
27 I I..

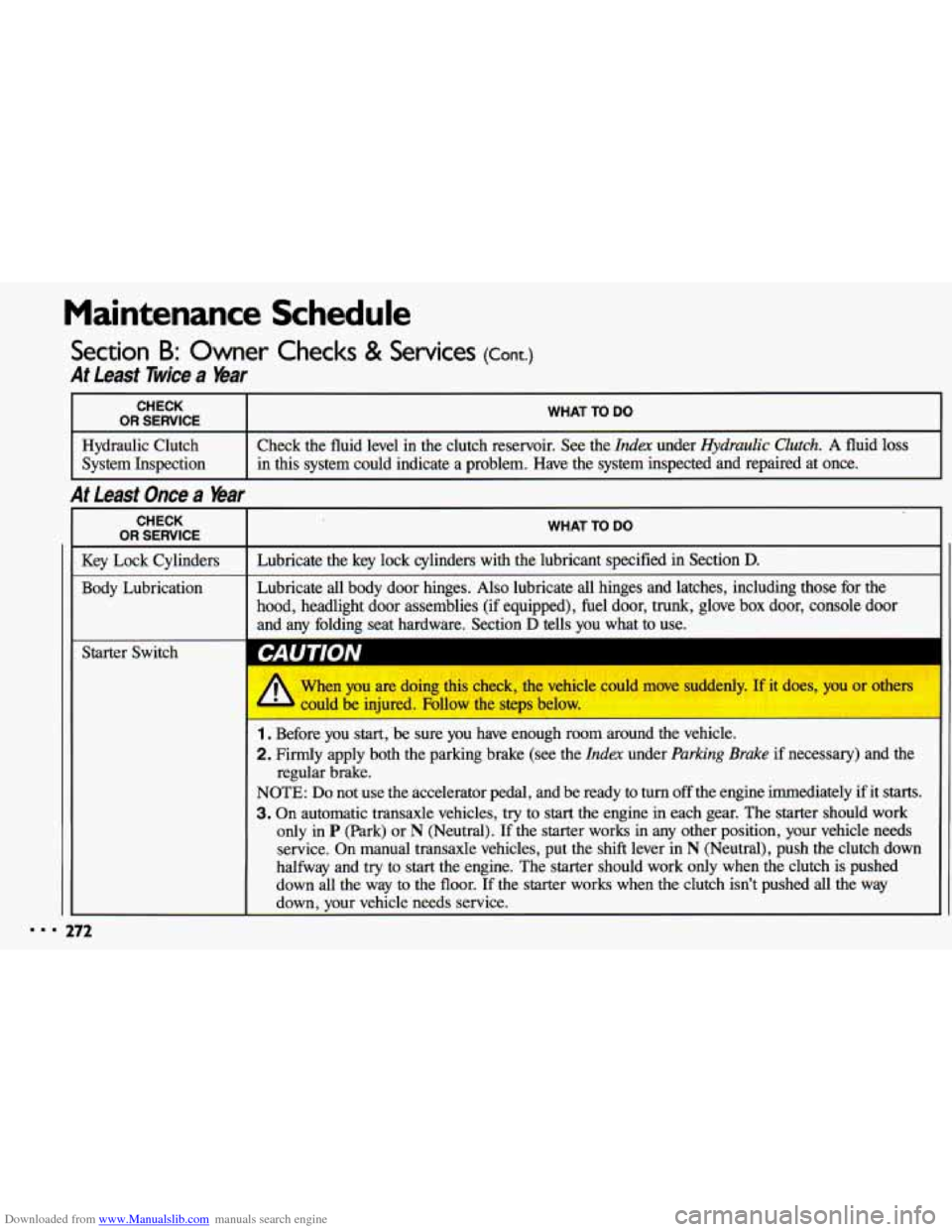

Downloaded from www.Manualslib.com manuals search engine Maintenance Schedule
Section B: Owner Checks & Services (Cont.)
At Least Twice a Year
... L
CHECK
I OR SERVICE I WHAT TO DO
Hydraulic Clutch
in this system could indicate a problem. Have the system inspected and repaired at once. System Inspection
Check
the fluid level in the clutch reservoir. See the Index under Hydraulic Clutch. A fluid loss
At Least Once a Year
CHECK
I OR SERVICE I WHAT TO DO
I
Key Lock Cylinders I Lubricate the key lock cylinders with the lubricant specified in Section D.
Body Lubrication Lubricate all body
door hinges. Also lubricate all hinges and latches, including those \
for the
hood, headlight door assemblies (if equipped), fuel door, trunk, glove box door, console door
and any folding seat hardware. Section
D tells you what to use.
L
272
I CAUTION
1. Before you start, be sure you have enough room around the vehicle.
2. Firmly apply both the parking brake (see the Index under Parking Brake if necessary) and the
NOTE:
Do not use the accelerator pedal, and be ready to turn off the engine immediately if it starts.
3. On automatic transaxle vehicles, try to start the engine in each gear. The starter should work
only in P (Park) or N (Neutral). If the starter works in any other position, your vehicle needs
service. On manual transaxle vehicles, put the shift lever in
N (Neutral), push the clutch down
halfway and
try to start the engine. The starter should work only when the clutch is pushed
down all the way to the floor. If the starter works when the clutch isn’t pushed all the way
down, your vehicle needs service.
regular brake.
I

Downloaded from www.Manualslib.com manuals search engine CHECK
OR SERVICE WHAT TO DO
Interlock-BTSI (Automatic Transaxle
Steering Column Lock When
you are doing this check, the vehicle could move suddenly. If
it does, you or others
could be injured. Follow the steps below.
I
1. Before you start, be sure you have enough room around the vehicle. It should be parked on h
2. Firmly apply the parking brake (see the Ida under Parking Brake if necessary).
NOTE: Be ready to apply the regular brake immediately if the vehicle begins to move.
level surface.
3. With
the engine off, turn the key to the RUN position, but don’t start the engine. Without
applying the regular brake, try to move the shift lever
out of P (Park) with normal effort. If
the shift lever moves
out of P (Park), your vehicle’s BTSI needs service.
While parked, and with the parking brake set, try to turn the key
to Luck in each shift lever
position.
With an automatic transaxle, the key should turn to Lock only when the shift lever is in
P (Park).
With a manual transaxle, the key should turn to Lock only when the shift lever is in
R (Reverse).
On vehicles with a key release lever, try to turn the key to Lock without pressing the lever. The
key should
turn to Lock only with the key lever depressed. On all vehicles, the key should come
out only in
Lock.
273

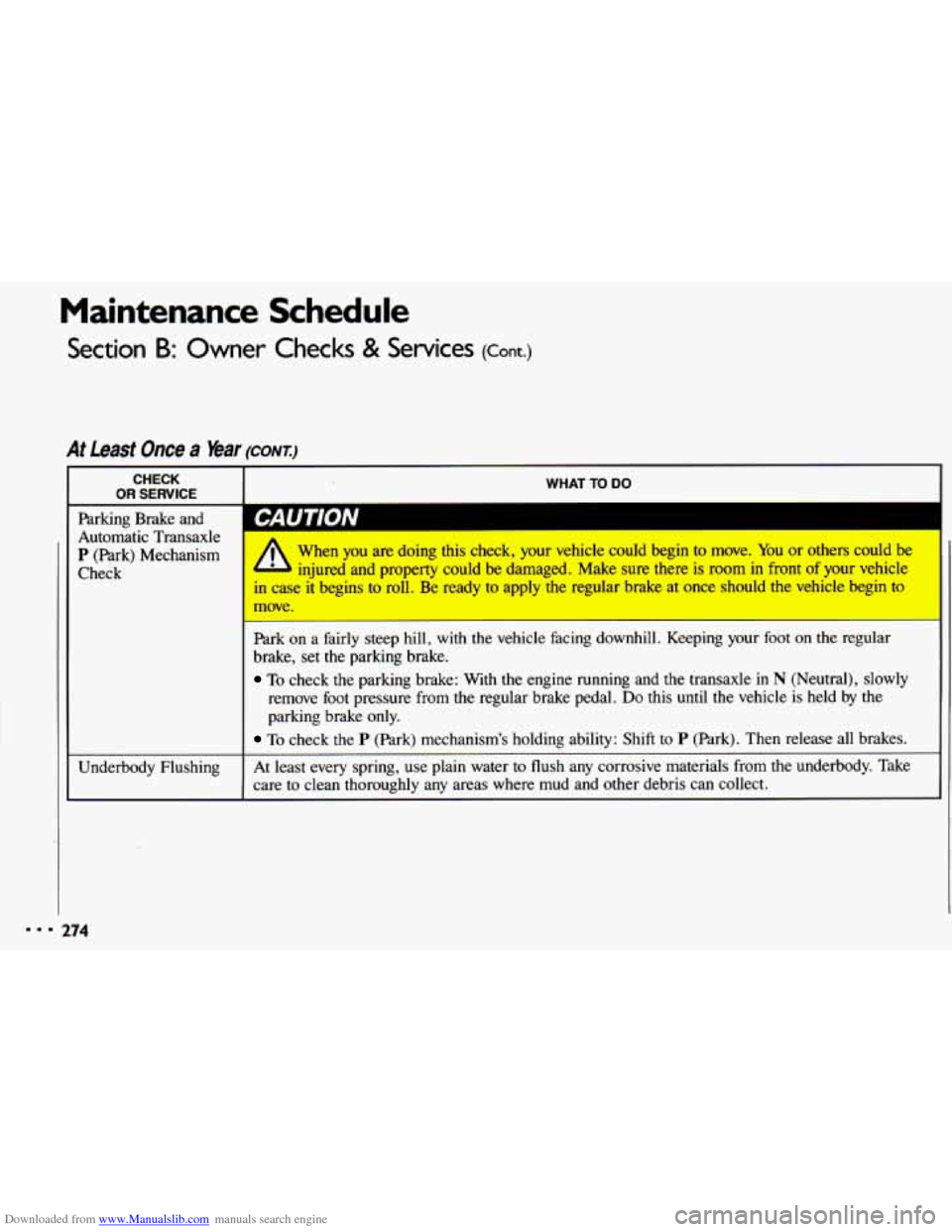

Downloaded from www.Manualslib.com manuals search engine Maintenance Schedule
Section B: Owner Checks & Services (Cont.)
At Least Once a Year (CONT:)
CHECK
OR SERVICE WHAT TO DO ~~
Parking Brake and
Automatic
Transaxle
P (Park) Mechanism When you are doing this check, your vehicle could begin to move. You or others could be I
Check A injured and property could be damaged. Make sure there is room in front of your vehicle
in case it begins to roll. Be ready to ~ ~ )ly the -gular brake at onc - Thould the vehicle begin to
Park on a fairly steep
hill, with the vehicle facing downhill. Keeping your foot on the regular
brake, set the parking brake.
To check the parking brake: With the engine running and the transaxle in N (Neutral), slowly
remove
foot pressure from the regular brake pedal. Do this until the vehicle is held by the
parking brake only.
To check the P (Park) mechanism’s holding ability: Shift to P (Park). Then release all brakes.
Underbody Flushing At least every spring, use plain water to flush any corrosive materials from the unde\
rbody. Take
I care to clean thoroughly any areas where mud and other debris can collect.
274

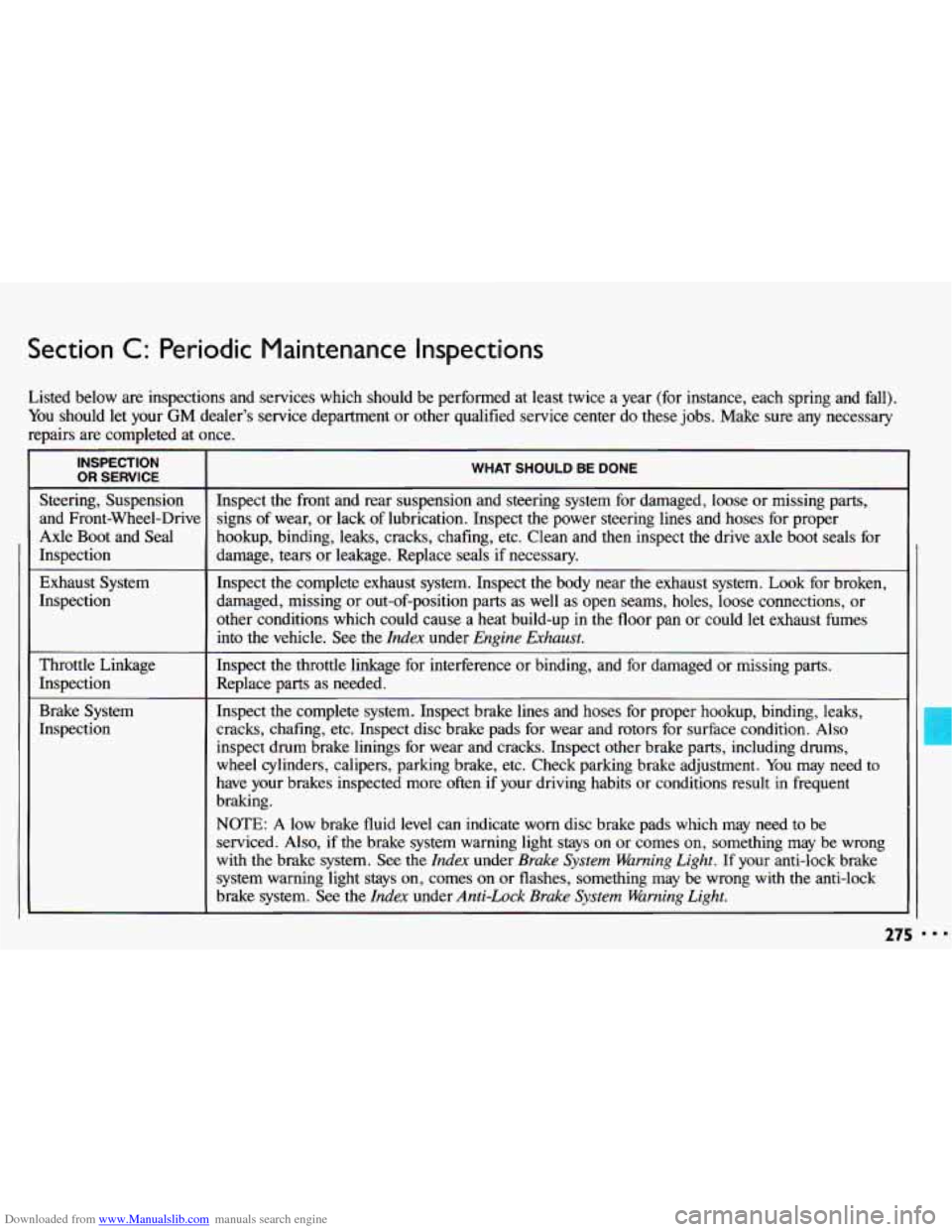

Downloaded from www.Manualslib.com manuals search engine Section C: Periodic Maintenance Inspections
Listed below are inspections and services which should be performed at least twice a year (for instance, each spring and fall).
You should let your GM dealer’s service department or other qualified service center do these jobs. Make sure any necessary
repairs are completed at once.
INSPECTION
I OR SERVICE
Steering, Suspension
and Front-Wheel-Drive
Axle Boot and Seal
1 Inspection
Exhaust System
Inspection
Throttle Linkage
Inspection
WHAT SHOULD BE DONE
Inspect the front and rear suspension and steering system for \
damaged, loose or missing parts,
signs of wear, or lack of lubrication. Inspect the power steering lines and hoses for proper
hookup, binding, leaks, cracks, chafing, etc. Clean and then in\
spect the drive axle boot seals for
damage, tears or leakage. Replace seals
if necessary.
Inspect the complete exhaust system. Inspect the body near
the exhaust system. Look for broken,
damaged, missing or out-of-position parts as well as open seams, holes, loose connections, or
other conditions which could cause a heat build-up in the floor pan or could let exhaust fumes
into the vehicle. See the
Index under Engine Exhaust.
Inspect the throttle linkage for interference or binding, and for damaged or missing parts.
Replace parts
as needed.
Inspect the complete system. Inspect brake lines and hoses for \
proper hookup, binding, leaks,
cracks, chafing, etc. Inspect disc brake pads for wear and rotors for \
surface condition. Also
inspect drum brake linings for wear and cracks. Inspect other brake parts, including drums,
wheel cylinders, calipers, parking brake, etc. Check parking brake adjustment. You may need to
have your brakes inspected more often
if your driving habits or conditions result in frequent
braking.
NOTE: A low brake fluid level can indicate worn disc brake pads which \
may need to be
serviced. Also,
if the brake system warning light stays on or comes on, something may be wrong
with the brake system. See the
Index under Brake System Warning Light. If your anti-lock brake
system warning light stays on, comes on or flashes, something may be wrong with the anti-lock
brake system. See the
Index under Anti-Lock Brake System Warning Light.
275 . .

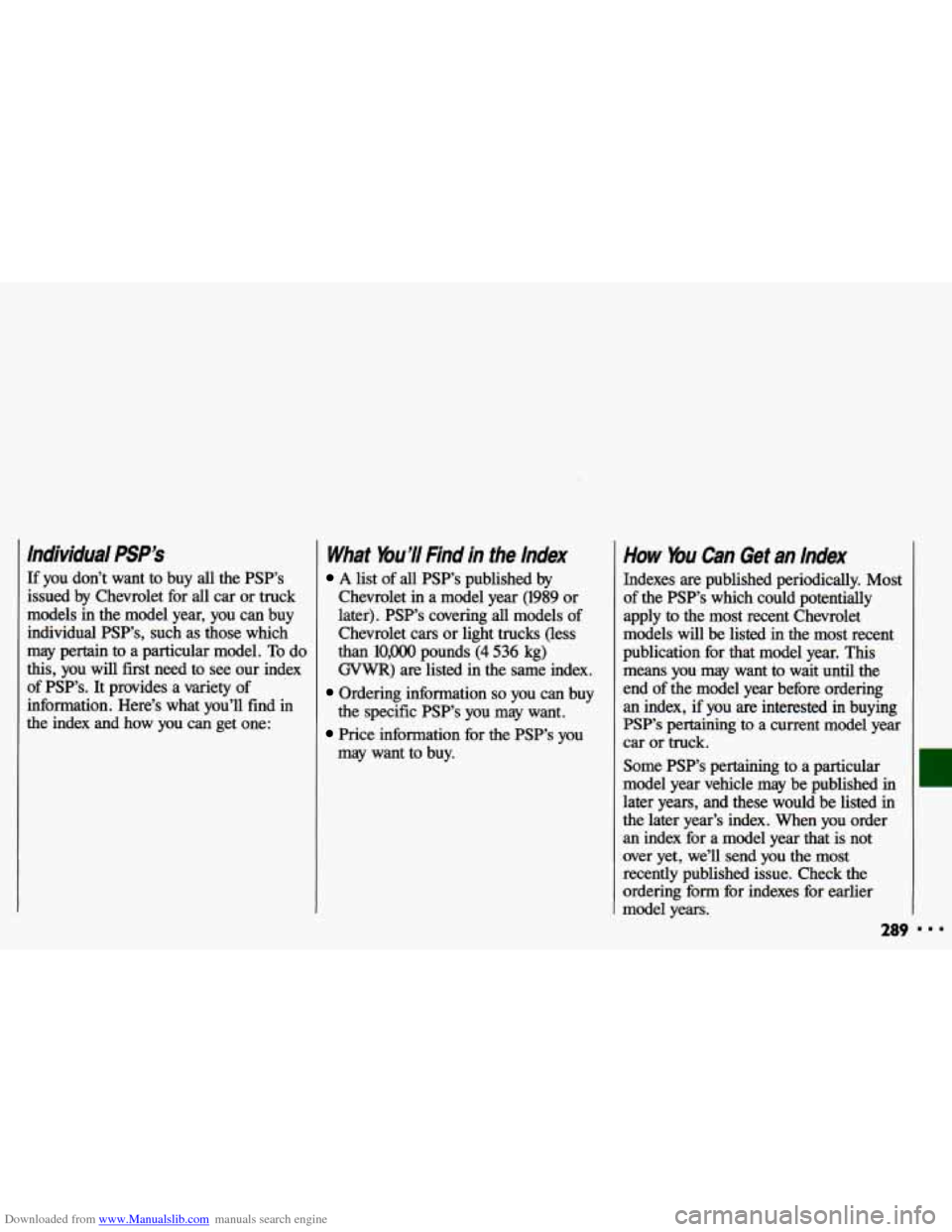

Downloaded from www.Manualslib.com manuals search engine Individual PSP’S
If you don’t want to buy all the PSP’s
issued
by Chevrolet for all car or truck
models in the model year, you can buy individual PSP’s, such as those which
may pertain to a particular model. To do
this, you will first need to see our index
of PSP’s. It provides a variety of
information. Here’s what you’ll find in
the index and how
you can get one:
What bu’ll Find in the Index
A list of all PSPs published by
Chevrolet in a model year (1989 or
later). PSP’s covering
all models of
Chevrolet cars or light trucks (less
than
l0,OOO pounds (4 536 kg)
GVWR) are listed in the same index.
Ordering information so you can buy
the specific PSP’s you may want.
Price information for the PSP’s you
may want to buy.
How bu Can Get an Index
Indexes are published periodically. Most
of the PSPs which could potentially
apply to the most recent Chevrolet
models will be listed in the most recent
publication for that model year. This
means you may want to wait until the
end of the model year before ordering
an index, if you are interested
in buying
PSP’s pertaining to a current model year
car or truck.
Some PSP’s pertaining to a particular
model year vehicle may be published in
later years, and these would be listed in
the later year’s index. When you order
an index for a model year that is not
over yet, we’ll send you the most
recently published issue. Check the
ordering form for indexes for earlier
model years.
289 I..

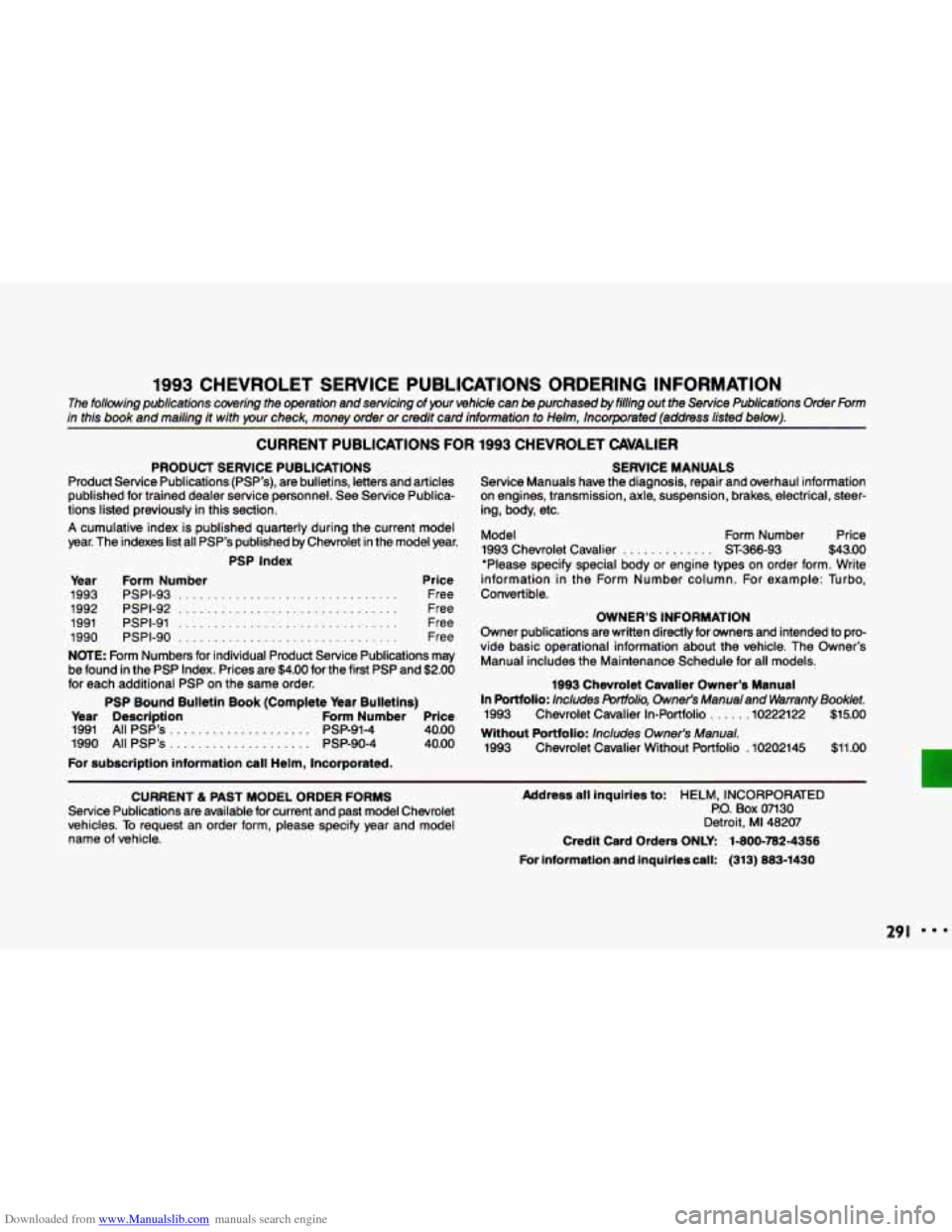

Downloaded from www.Manualslib.com manuals search engine 1993 CHEVROLET SERVICE PUBLICATIONS ORDERING INFORMATION
The following publications covering the operation and servicing of pur vehicle can be purchased by filling out the Service Publications Order Form
in this book and mailino it with wur check, money order or credit card information to Helm, Incorporated (address listed below).
CURRENT PUBLICATIONS FOR 1993 CHEVROLET CAVALIER
PRODUCT SERVICE PUBLICATIONS
Product Service Publications (PSP’s), are bulletins, letters \
and articles
published for trained dealer service personnel. See Service Publ\
ica-
tions listed previously in this section.
A cumulative index is published quarterly during the current model
year. The indexes list all PSP’s published by Chevrolet in the model year.
PSP Index
Year Form Number Price
1993 PSPI-93 ............................... Free
1992 PSPI-92
............................... Free
1991 PSPI-91
............................... Free
1990 PSPI-90
............................... Free
NOfE: Form Numbers for individual Product Service Publications may
be found
in the PSP Index. Prices are $4.00 for the first PSP and $2.00
for each additional PSP on the same order.
PSP Bound Bulletin Book (Complete Year Bulletins)
Year Description Form Number Price
1991 All PSP’S .................... PSP-91-4 40.00
1990 All PSP’S
.................... PSP-90-4 40.00
For subscription information call Helm, Incorporated. SERVICE MANUALS
Service Manuals
have the diagnosis, repair and overhaul information
on engines, transmission, axle, suspension, brakes, electrical, s\
teer-
ing, body, etc.
Model Form Number Price
1993 Chevrolet Cavalier
............. ST-366-93 $43.00
*Please specify special body or engine types on order form. Wr\
ite
information in the Form Number column.
For example: Turbo,
Convertible.
OWNER’S INFORMATION
Owner publications are written directly for Owners and intended to pro-
vide basic operational information about the vehicle. The Owner’s
Manual includes the Maintenance Schedule for all models.
1993 Chevrolet Cavalier Owner’s Manual
In Portfollo:
Includes h~olio, Owner‘s Manualand Warranty Booklet.
1993 Chevrolet Cavalier In-Portfolio
..... ,10222122 $15.00
Without Portfolio: Includes Owner‘s Manual.
1993 Chevrolet Cavalier Without Portfolio .lo202145 $11.00
CURRENT & PAST MODEL ORDER FORMS
Service Publications are available for current and
past model Chevrolet
vehicles.
To request an order form, please specify year and model
name
of vehicle.
Address all inquiries to: HELM, INCORPORATED
PO. Box 07130
Detroit,
MI 48207
Credit Card Orders ONLY: 1-800-782-4356
For information and inquiries call: (313) 883-1430
291 ...

Downloaded from www.Manualslib.com manuals search engine I TOTAL MATERIAL NOTE: Dealers and Companies please provide dealer or company name, an\
d

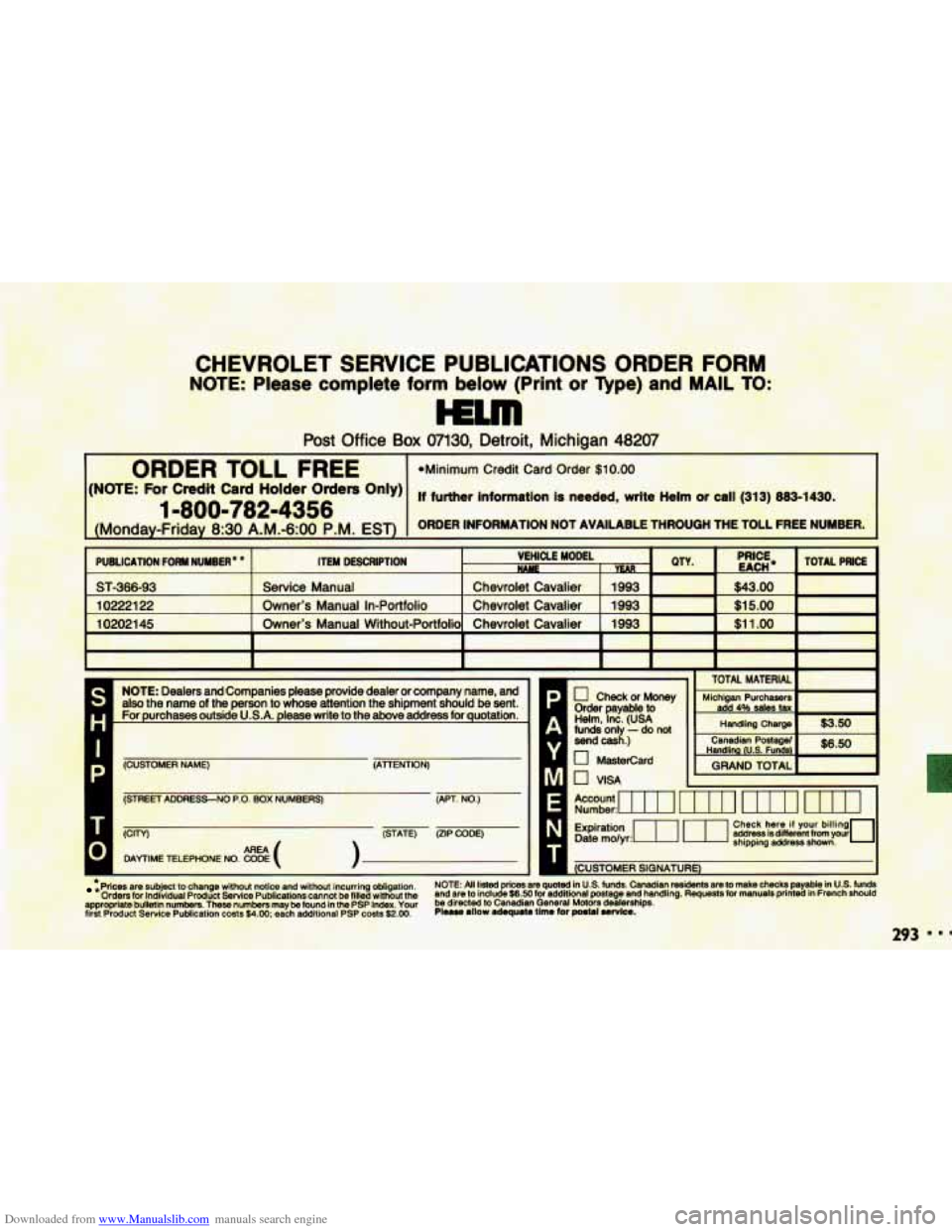

also the name of the person to whose attention the shipment should be sent. Order payable to For purchases outside U.S.A. please write to the above address for quotation. add 4% sales tax Helm, Inc. (USA funds only - do not Handling Charge $3.50
send cash.) $6.50
0 Check or Money ~i~hi~~ purchasers ,. I.
,.
Handlina US. Funds)
Canadian Postage/
(ATTENTION) 0 Mastercard GRAND TOTAL
0 VISA
Account
Number: ml
~xpiration m m address is different from your Date molyr: shipping address shown.
(CUSTOMER SIGNATURE)
Check here if your billing
DAYTIME TELEPHONE
NO. CODE
:Prices are subject to change without notice and without incurring Obligation. NOTE: All listed prices are quoted in U.S. funds. Canadian residentsare to make checks payable in U.S. funds
Orders for Individual product service Pubfications cannot be filled without the and are to indude $6.50 for additional postage and handling. Requests for InanUalS print\
ed in French should
L.! ' may be found in the psp Index, Your be directed 10 Canadian General Motors dealerships.
ch additionat psp costs $2.00, PkaS8 allow adOqUat0 time for pOSml SOlVlCe. ., ,. . rl I.
,. .,
