1991 MITSUBISHI MONTERO relay

Fig. 6: Blower Motor Switch Connector Terminal ID (Montero)
Courtesy of Mitsubishi Motor Sales of America.
BLOWER MOTOR TEST
1) Turn ignition on. Check fuses. If fuses are bad, check
wiring harness for short circuits. If fuses are okay, check voltage
between heater relay and ground circuit. If voltage does not exist at
heater relay, check for broken wire between fuse block and heater
relay.
2) If voltage exists at heater relay, check relay, and
replace if necessary. See BLOWER MOTOR RELAY TEST under TESTING. If
relay is okay, disconnect blower motor connector. Set heater switch to
either LO, MED or HI setting.
3) Check voltage between harness side of connector and
vehicle ground. Battery voltage should be present. If battery voltage
is present, go to next step. If battery voltage is not present, check
continuity between resistor terminals. See BLOWER MOTOR RESISTOR TEST
under TESTING. If continuity is not present, replace resistor.

4) If continuity is present between motor terminals at blower
connector, check ground circuit. If ground circuit is okay, check for
blower motor malfunction. Disconnect blower motor terminals. Connect
blower motor terminals directly to battery. Blower motor should
operate smoothly.
5) Reverse blower motor terminal polarity to battery. Blower
motor should operate smoothly in reverse direction. If blower motor
does not operate as specified, replace blower motor.
BLOWER MOTOR RELAY TEST
NOTE: Pickup and Ram-50 blower motors do not have blower motor
relays.
1) Remove blower motor relay from fuse/relay block. Connect
an ohmmeter between terminals No. 1 and 3. See Fig. 7. Continuity
should not be present.
2) Connect an ohmmeter between terminals No. 2 and 4.
Continuity should be present. Connect 12-volt battery positive lead to
terminal No. 2 and negative lead to terminal No. 4. See Fig. 7.
3) Connect an ohmmeter between terminals No. 1 and 3.
Continuity should be present. If continuity is not as specified in any
step, replace relay.
Fig. 7: Identifying Blower Relay Terminals
Courtesy of Mitsubishi Motor Sales of America.
BLOWER MOTOR RESISTOR TEST

article in GENERAL INFORMATION.

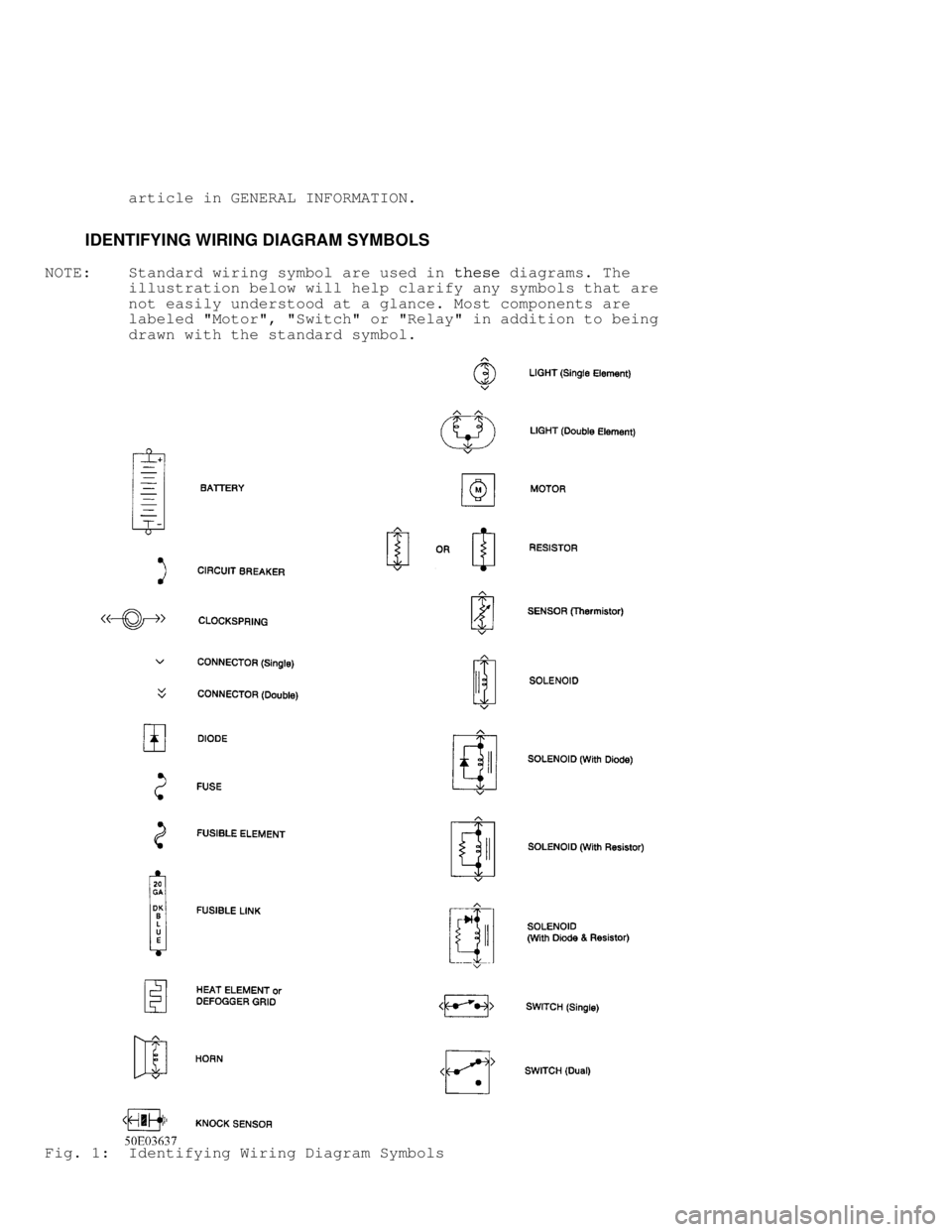

IDENTIFYING WIRING DIAGRAM SYMBOLS
NOTE: Standard wiring symbol are used in these diagrams. The
illustration below will help clarify any symbols that are
not easily understood at a glance. Most components are
labeled "Motor", "Switch" or "Relay" in addition to being
drawn with the standard symbol.
Fig. 1: Identifying Wiring Diagram Symbols

WIRING DIAGRAM COMPONENT LOCATIONS
When trying to locate a component in a wiring diagram and you
don't know the specific system where it is located, use this handy
component locator to find the system wiring diagram in which the
component is located. Then, go to that system and locate the component
within the wiring diagram.
For example, if you don't know the specific system in which
the ignition switch is located, look up ignition switch in the wiring
diagram component location tables and go to the appropriate wiring
diagram(s) which contain either full or partial views of the ignition
switch. The full view of the ignition switch is located in Power
Distribution.
The first listing for the component will be the full or most
complete view of the component. Additional listings will be partial
views of the component. Not all components are used on all models.
All components will have a partial view in Ground
Distribution and Power Distribution. Data Link Connectors show
connecting circuits between modules. Alternate names for components
may be listed in wiring diagram component locations tables.
WIRING DIAGRAM COMPONENT LOCATIONS TABLE









\









\









\









\









\









\









\







Component Wiring Diagram
ABS Electronic Control Unit ....................... Anti-Lock Brakes
Data Link Connectors
ABS Hydraulic Unit ................................ Anti-Lock Brakes
Acceleration Sensor ............................... Anti-Lock Brakes
Accessory Delay Relay ................................ Power Windows
A/C Compressor Clutch Relay ..................... Engine Performance
A/C Sensor ...................................... Engine Performance
A/C Pressure Switch ............................. Engine Performance
Adaptive Lamp Control Module ....................... Exterior Lights
Air Bag(s) ................................ Air Bag Restraint System\
Air Bag Module ............................ Air Bag Restraint System
Air Bag Sensor(s) ......................... Air Bag Restraint System\
Air Injection Pump Relay ........................ Engine Performance
Air Temperature Sensor ............................ Overhead Console
Alternator (Generator) ..................... Generators & Regulators\
Anti-Theft Control Module ........................ Anti-Theft System
Starters
Autolamp Control Relay ........................... Headlight Systems
Daytime Running Lights
Automatic Shutdown (ASD) Relay .................. Engine Performance\
Generators & Regulators
Autostick Switch ................................ Engine Performance
Auxiliary Battery Relay .................... Generators & Regulators
Back-Up Lights ...................................... Back-Up Lights
Exterior Lights
Barometric (BARO) Pressure Sensor ............... Engine Performance\
Battery ......................................... Power Distribution
Battery Temperature Sensor ...................... Engine Performance
Body Control Module .......................... Body Control Computer
Anti-Theft System
Daytime Running Lights
Engine Performance
Headlight Systems
Warning Systems
Boost Control Solenoid .......................... Engine Performance
Boost Sensor .................................... Engine Performance
Brake Fluid Level Switch .................. Analog Instrument Panels

Brake On/Off (BOO) Switch ................... Cruise Control Systems\
Engine Performance
Shift Interlock Systems
Buzzer Module ...................................... Warning Systems
Camshaft Position (CMP) Sensor .................. Engine Performance\
Central Control Module ........................... Anti-Theft System
Clockspring ............................... Air Bag Restraint System
Cruise Control Systems
Steering Column Switches
Clutch Pedal Position Switch .............................. Starters
Clutch Start Switch ....................................... Starters
Combination Meter ......................... Analog Instrument Panels
Constant Control Relay Module (CCRM) ............ Engine Performance\
Electric Cooling Fans
Convenience Center .............................. Power Distribution
Illumination/Interior Lights
Convertible Top Motor ........................ Power Convertible Top
Convertible Top Switch ....................... Power Convertible Top
Crankshaft Position (CKP) Sensor ................ Engine Performance\
Cruise Control Module ....................... Cruise Control Systems
Cruise Control Switch ....................... Cruise Control Systems
Condenser Fan Relay(s) ....................... Electric Cooling Fans\
Data Link Connector (DLC) ....................... Engine Performance\
Daytime Running Lights Module ............... Daytime Running Lights
Exterior Lights
Defogger Relay ................................ Rear Window Defogger
Diagnostic Energy Reserve Module (DERM) ... Air Bag Restraint System\
Discriminating Sensor (Air Bag) ........... Air Bag Restraint System\
Distributor ..................................... Engine Performance
Door Lock Actuators ............................... Power Door Locks
Remote Keyless Entry
Door Lock Relay(s) ................................ Power Door Locks\
Electrochromic Mirror ................................ Power Mirrors
Electronic Level Control (ELC)
Height Sensor .............................. Electronic Suspension
Electronic Level Control (ELC) Module ........ Electronic Suspension\
Engine Coolant Temperature (ECT)
Sending Unit ............................ Analog Instrument Panels
Engine Coolant Temperature (ECT) Sensor ......... Engine Performance\
Engine Control Module ........................... Engine Performance
Generators & Regulators
Starters
ETACS ECU .......................................... Warning Systems
Power Windows
Remote Keyless Entry
Evaporative (EVAP) Emissions Canister ........... Engine Performance\
EVAP Canister Purge Solenoid .................... Engine Performance
EVAP Canister Vent Solenoid ..................... Engine Performance
Exhaust Gas Recirculation (EGR) Valve ........... Engine Performance\
Fuel Tank Vacuum Sensor ......................... Engine Performance
Fog Lights ....................................... Headlight Systems
Daytime Running Lights
Fog Light Relay .................................. Headlight Systems
Daytime Running Lights
Fuel Door Release Solenoid ................. Power Fuel Door Release
Fuel Gauge Sending Unit ................... Analog Instrument Panels
Fuel Injectors .................................. Engine Performance
Fuel Pump ....................................... Engine Performance
Fuel Pump Relay ................................. Engine Performance
Power Distribution
Fuse/Relay Block ................................ Power Distribution
Fusible Links ................................... Power Distribution
Generators & Regulators

Starters
Generator .................................. Generators & Regulators
Engine Performance
Power Distribution
Generic Electronic Module (GEM) ............... Body Control Modules\
Electronic Suspension
Glow Plug Relay ................................. Engine Performance
Glow Plugs ...................................... Engine Performance
Grounds ........................................ Ground Distribution
Headlight Door Module .............................. Headlight Doors
Headlight Relay .................................. Headlight Systems
Daytime Running Lights
Headlights ....................................... Headlight Systems
Daytime Running Lights
Heated Oxygen Sensor(s) (HO2S) .................. Engine Performan\
ce
Heated Windshield Control Module ................ Heated Windshields
Height Sensor ................................ Electronic Suspension
Horns ..................................... Steering Column Switches
Horn Relay ................................ Steering Column Switches
Idle Air Control (IAC) Motor/Valve .............. Engine Performance\
Ignition Coil(s) ................................ Engine Performance\
Ignition Key Lock Cylinder ....................... Anti-Theft System
Ignition Module ................................. Engine Performance
Ignition Switch ................................. Power Distribution
Engine Performance
Generators & Regulators
Starters
Illuminated Entry Module .............. Illumination/Interior Lights
Illumination Lights ................... Illumination/Interior Lights
Impact Sensor ............................. Air Bag Restraint System
Inertia Fuel Shutoff Switch ..................... Engine Performance
Inhibit Relay ............................................. Starters
Instrument Cluster ........................ Analog Instrument Panels
Intake Air Temperature (IAT) Sensor ............. Engine Performance\
Interior Lights ....................... Illumination/Interior Lights
Interlock Switch .......................................... Starters
Junction Block .................................. Power Distribution
Keyless Entry Receiver ........................ Remote Keyless Entry
Key Reminder Switch ....................................... Starters
Knock Sensor .................................... Engine Performance
Lamp Control Module ................................ Exterior Lights
License Plate Lamp ................................. Exterior Lights
Lighting Control Module ................... Lighting Control Modules
Anti-Theft System
Daytime Running Lights
Headlight Systems
Lower Relay .................................. Power Convertible Top
Malfunction Indicator Light (MIL) ............... Engine Performance\
Instrument Panels
Manifold Absolute Pressure (MAP) Sensor ......... Engine Performance\
Mass Airflow (MAF) Sensor ....................... Engine Performance\
Mega Fuse .................................. Generators & Regulators
Memory Seat/Mirror Module ........................... Memory Systems
Mirror Defogger ............................... Rear Window Defogger
Moon Roof Motor .................................... Power Moon Roof
Moon Roof Relay .................................... Power Moon Roof
Multi-Function Control Module ...................... Warning Systems
Neutral Safety Switch ..................................... Starters
Oil Level Switch ................................ Engine Performance
Oil Pressure Switch/Sending Unit .......... Analog Instrument Panels
Engine Performance
Overhead Console .................................. Overhead Console
Oxygen Sensor(s) (O2S) .......................... Engine Performan\
ce

Parking Brake Switch ...................... Analog Instrument Panels
Park Lights ........................................ Exterior Lights
Park/Neutral Position Switch .............................. Starters
Engine Performance
Anti-Theft System
Body Control Module
Perimeter Lighting Control Relay ................... Exterior Lights
Power Amplifier ..................................... Power Antennas
Power Antenna Module ................................ Power Antennas
Power Antenna Motor ................................. Power Antennas
Power Distribution Center ....................... Power Distribution
Generators & Regulators
Starters
Power Door Lock Motors ............................ Power Door Locks
Power Mirror Motors .................................. Power Mirrors
Memory Systems
Power Sliding Door Controller .............. Power Sliding Side Door
Power Seat Motors ...................................... Power Seats
Memory Systems
Power Steering Pressure Switch .................. Engine Performance
Power Top Motor .............................. Power Convertible Top
Power Top Relay(s) ........................... Power Convertible Top\
Powertrain Control Module ....................... Engine Performance
Analog Instrument Panels
Cruise Control Systems
Data Link Connectors
Generators & Regulators
Starters
Power Window Motors .................................. Power Windows
Power Window Relay(s) ................................ Power Windows\
Radiator Fan Motor(s) ........................ Electric Cooling Fans\
Radiator Fan Relay(s) ........................... Engine Performance\
Electric Cooling Fans
Rainsense Module .............................. Wiper/Washer Systems
Raise Relay .................................. Power Convertible Top
Remote Anti-Theft Personality (RAP) Module ....... Anti-Theft System\
Starters
Warning Systems
Seat Belt Pretensioners ................... Air Bag Restraint System
Seat Belt Retractor Solenoid .................... Passive Restraints
Seat Belt Switch .......................... Air Bag Restraint System
Passive Restraints
Shift Interlock Solenoid ................... Shift Interlock Systems
Shift Lock Actuator ........................ Shift Interlock Systems
Side Marker Lights ................................. Exterior Lights
SIR Coil Assembly (Clockspring) ........... Air Bag Restraint System\
Slip Ring (Clockspring) ................... Air Bag Restraint System\
Steering Column Switches
SRS Control Module ........................ Air Bag Restraint System
Starter Motor ............................................. Starters
Starter Interrupt Relay ................................... Starters
Starter Solenoid .......................................... Starters
Starter Relay ............................................. Starters
Steering Wheel Position Sensor .................... Anti-Lock Brakes
Stoplights ......................................... Exterior Lights
Stoplight Switch ................................ Engine Performance
Cruise Control Systems
Anti-Lock Brakes
Sun Roof ECU ........................................ Power Sun Roof
Sun Roof Motor ...................................... Power Sun Roof
Sun Roof Position Sensor ............................ Power Sun Roof
Taillights ......................................... Exterior Lights
Throttle Position (TP) Sensor ................... Engine Performance\

Torque Converter Clutch Solenoid/Switch ......... Engine Performance
Traction Control Switch ........................... Anti-Lock Brakes
Trailer Tow Connector .............................. Exterior Lights
Trailer Tow Relay .................................. Exterior Lights
Transmission/Transaxle .......................... Engine Performance
Transmission Control Module (TCM) ............... Engine Performance\
Starters
Transmission Range Sensor ................................. Starters
Back-Up Lights
Engine Performance
Transmission Range Switch ........................... Back-Up Lights
Engine Performance
Anti-Theft System
Turn Signal Flasher ................................ Exterior Lights
Turn Signal Lights ................................. Exterior Lights
Twilight Sentinel Switch ......................... Headlight Systems
Daytime Running Lights
Vapor Canister Leak Detection Pump .............. Engine Performance
Vehicle Control Module (VCM) .................... Engine Performance\
Vehicle Dynamic Module ....................... Electronic Suspension
Vehicle Speed Control Servo ................. Cruise Control Systems
Vehicle Speed Sensor .......................... Data Link Connectors
Analog Instrument Panels
Cruise Control Systems
Electronic Suspension
Voltage Regulator .......................... Generators & Regulators
Water-In-Fuel Sensor ............................ Engine Performance
Analog Instrument Panels
Wheel Speed Sensors ............................... Anti-Lock Brakes
Window Timer Module .......................... Power Convertible Top
Windshield Intermittent Wiper Relay ........... Wiper/Washer Systems
Windshield Washer Motor ....................... Wiper/Washer Systems
Wiper Motor ................................... Wiper/Washer Systems









\









\









\









\









\









\









\
