Page 333 of 1333
Alternator Relay On left front of engine
compartment, behind headlight.
Condenser Fan Motor Relay On left inner fender panel.
Control Relay Behind right kick panel.
Page 334 of 1333
Defogger Timer Behind right side of dash.
Door Lock Control Relay On right side kick panel.
Page 335 of 1333
Hazard Flasher Relay Behind left side of dash,
above kick panel.
Headlight Control Relay On left front side of engine
compartment, behind headlight.
Page 336 of 1333
Headlight Washer Relay Behind left side of dash.
Heater Relay Behind center of dash, left of
heater box.
Intermittent Wiper Relay:
Page 337 of 1333
Front Behind left side of dash.
Rear Behind right side of dash,
left of blower unit.
MPI Control Relay Under right of dash, below
glove box.
Page 338 of 1333

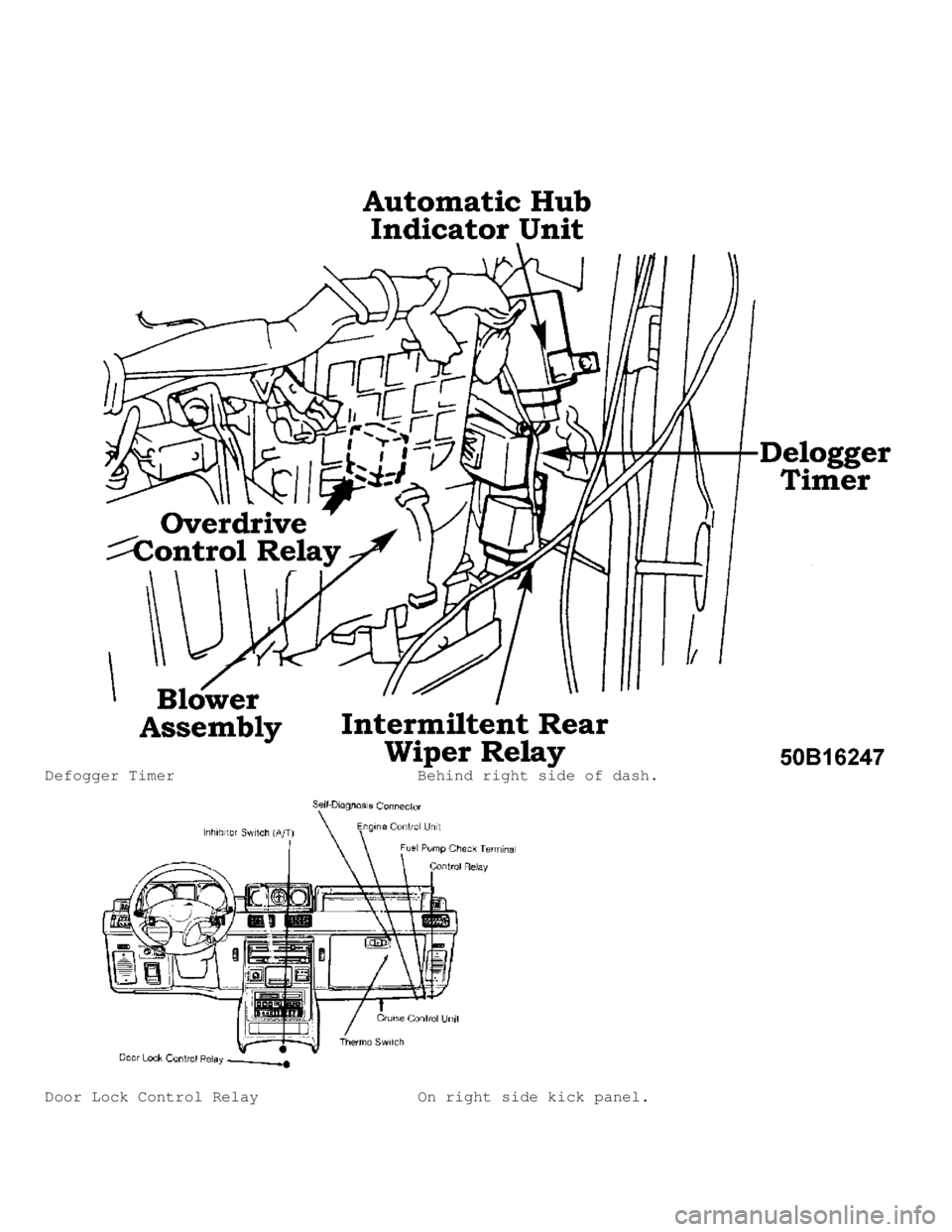

Overdrive Control Relay Behind right side of dash, on
blower case.
Power Window Relay Behind left side of dash.
Power Window Control Relay In left front door, behind
trim panel.
Page 339 of 1333
Seat Belt Warning Timer Behind left side of dash.
Sun Roof Control Relay In headliner, near dome light
bracket.
Turn Signal Flasher Relay Behind left side of dash. \
\
\
\
\
\
\
CIRCUIT PROTECTION DEVICES
Page 354 of 1333
IGNITION SWITCHES
INDICATOR LIGHTS
KEYLESS ENTRY KEYPADS AND TRANSMITTERS
KEYLESS ENTRY TRANSMITTERS
LEDS
LENSES
MICROPHONES
MIRRORS (ELECTROCHROMATIC AND HEATED)
MOTORS
NEUTRAL SAFETY SWITCHES
ODOMETERS
ODOMETERS, SPEEDOMETERS AND TACHOMETERS (CABLE-DRIVEN)
PULLEYS
RECEIVERS, AMPLIFIERS, EQUALIZERS AND SUB-WOOFER VOLUME CONTROLS
RELAY BOXES
RELAYS
SEALED BEAMS
SEAT HEATERS
SECURITY ALARM SENSORS
SIRENS
SOLENOIDS
SPEAKERS AND MICROPHONES
SPEEDOMETER AND TACHOMETER LINKAGES AND CABLES
SPEEDOMETER CABLES
SPEEDOMETERS
STARTERS
SUB-WOOFER VOLUME CONTROLS
SWITCHES
TACHOMETER CABLES
TACHOMETERS
TAPE PLAYERS AND CD PLAYERS
TENSIONERS
TIMERS
TIRE PRESSURE SENSORS
TRANSCEIVERS
TRANSDUCERS
VACUUM ACCUMULATORS (RESERVOIRS)
VACUUM RESERVOIRS
VOLTAGE REGULATORS
WASHER FLUID LEVEL SENDERS
WASHER PUMPS
WIPER ARMS AND BLADES
WIPER BLADES
WIPER HOSES AND NOZZLES
WIPER LINKAGES
WIPER NOZZLES
WIPER PUMP RESERVOIRS
WIRING HARNESSES AND CONNECTORS
INTRODUCTION TO MOTORIST ASSURANCE PROGRAM (MAP)
OVERVIEW OF MOTORIST ASSURANCE PROGRAM
The Motorist Assurance Program is the consumer outreach
effort of the Automotive Maintenance and Repair Association, Inc.
(AMRA). Participation in the Motorist Assurance Program is drawn from
retailers, suppliers, independent repair facilities, vehicle
manufacturers and industry associations.
Our organization's mission is to strengthen the relationship
between the consumer and the auto repair industry. We produce
materials that give motorists the information and encouragement to
take greater responsibility for their vehicles-through proper,
