INSPECTION PROCEDURE
1Check voltage between terminal IG of ECU connector and body ground.
C
OK
PRemove ECU with connectors still connected.
Measure voltage between terminal EG of ECU connec-
tor and body ground when ignition switch is on and off.
Proceed to next circuit inspection shown on matrix chart
(See page SR±52.)
2Check ECU±IG fuse.
C
OK
PRemove ECU±IG fuse from J/B No. 1.
Check continuity of ECU±IG fuse.
Continuity
Check for short in all the harness and components con-
nected to ECU±IG fuse.
Check and repair harness or connector between
ECU and battery.
±
STEERING STEERING COLUMNSR±93
WhereEverybodyKnowsYourName

DIAGNOSTIC CHART
DIAGNOSTIC
CHART
Check for short in all the harness and
components connected to IGN fuse.
Check voltage of terminal M±REL.
Check for open in harness and connector
between battery and ECU.
Check and replace ECU.
Replace ignition switch.
Repair or replace harness or
connector.
Repair or replace harness or
connector.
Check for open and short in harness and
connector between terminal M REL and body
ground.
Replace EFT main relay.
Check voltage of terminal IGSW.
Check IGN fuse.
Check continuity between terminals E1 and
body ground.
Check voltage of ECU power source.
Proceed to next circuit inspection
shown on matrix chart (See page
TR±35
).
Check ignition switch.
Check EFT fuse.
Check EFT main relay.
Check and repair or harness or connector
between EFI fuse and battery.
Check for short in all the harness and
components connected to EFI fuse.
±
ENGINE TROUBLESHOOTING Circuit InspectionTR±125
WhereEverybodyKnowsYourName

Check EFI fuse.
Check voltage of terminal BATT.
Check operation for the back±up.
Proceed to next circuit inspection
shown on matrix chart (See page TR±39).
Check for short in all the harness and
components connected to EFI fuse.
Check and repair harness or connector
between battery, EFI fuse and ECU.
Check and replace fuse.
WIRING DIAGRAM
Back Up Power Source Circuit
CIRCUIT DESCRIPTION
Battery voltage is supplied to terminal BATT of the ECU even when the ignition switch is off for use
by the diagnostic code memory and air±fuel ratio adaptive control val\
ue memory, etc.
DIAGNOSTIC CHART
TR±126±
ENGINE TROUBLESHOOTING Circuit Inspection
WhereEverybodyKnowsYourName

OKNG
OKNG
YESNO
INSPECTION PROCEDURE
1Check EFI fuse.
C
OK
PRemove EFI fuse from R/B No. 2
Check continuity of EFI fuse.
Continuity
Check for short in all the harness and components
connected to EFI fuse (See attached wiring diagram).
2Check voltage between terminal BATT of engine (& ECT) ECU connector and body ground.
C
OK
PConnect the Check Harness A. (See page TR±34)
Measure voltage between terminal BATT of engine
(& ECT) ECU connector and body ground.
Voltage: 10 ± 14 V
Check and repair harness or connector between engine
(& ECT) ECU and EFI fuse, EFI fuse and battery.
3Are the diagnostic trouble codes still in the memory when the ignition s\
witch is turned OFF?
Check and replace engine (& ECT) ECU.
Proceed to next circuit inspection shown on
matrix chart (See page TR±39).
±
ENGINE TROUBLESHOOTING Circuit InspectionTR±127
WhereEverybodyKnowsYourName

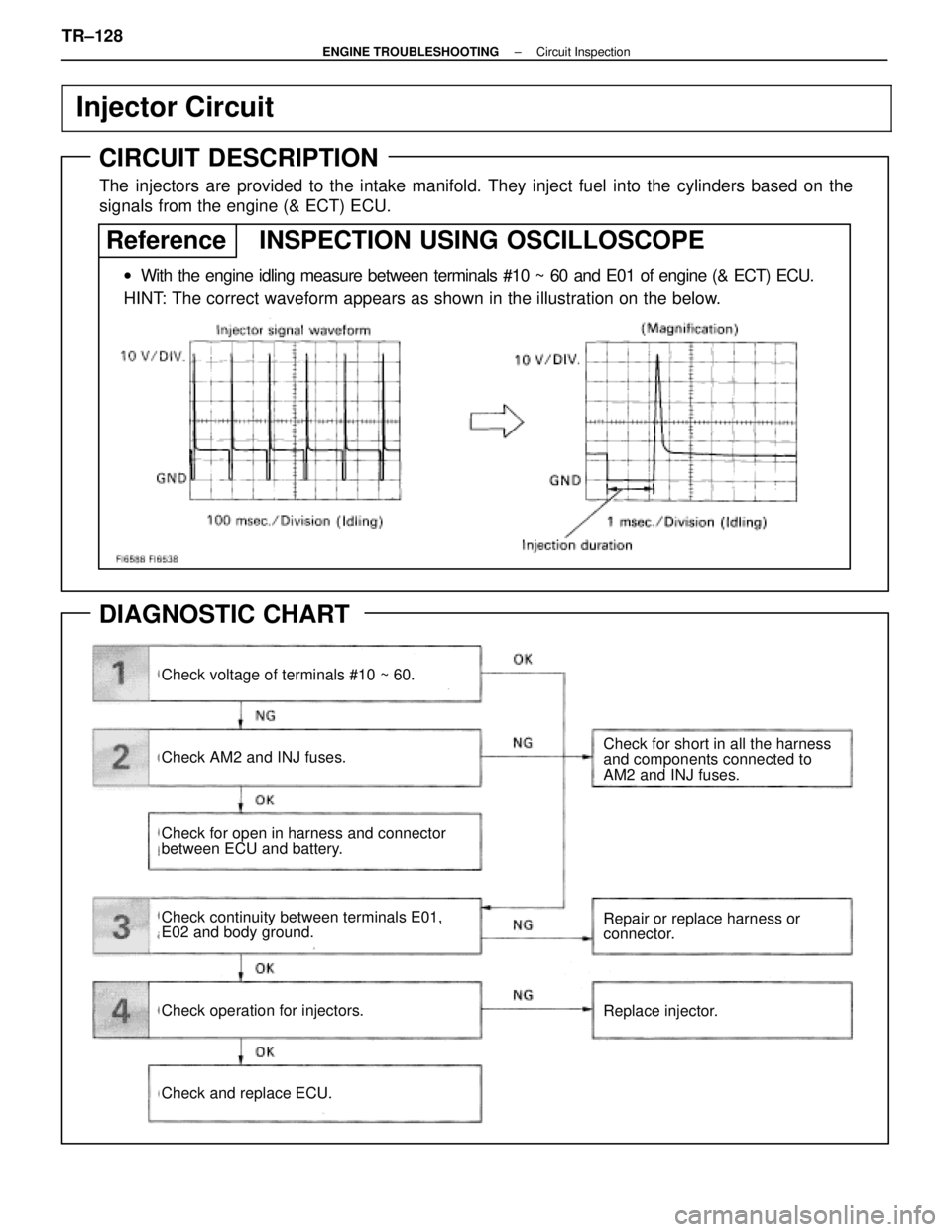

Injector Circuit
CIRCUIT DESCRIPTION
The injectors are provided to the intake manifold. They inject fuel into th\
e cylinders based on the
signals from the engine (& ECT) ECU.
Reference INSPECTION USING OSCILLOSCOPE
w With the engine idling measure between terminals #10 ~ 60 and E01 of engine (& ECT) ECU.
HINT: The correct waveform appears as shown in the illustration on the below\
.
DIAGNOSTIC CHART
Check voltage of terminals #10 ~ 60.
Check AM2 and INJ fuses.
Check for open in harness and connector
between ECU and battery.
Check continuity between terminals E01,
E02 and body ground.
Check operation for injectors.
Check and replace ECU. Check for short in all the harness
and components connected to
AM2 and INJ fuses.
Repair or replace harness or
connector.
Replace injector.
TR±128±
ENGINE TROUBLESHOOTING Circuit Inspection
WhereEverybodyKnowsYourName

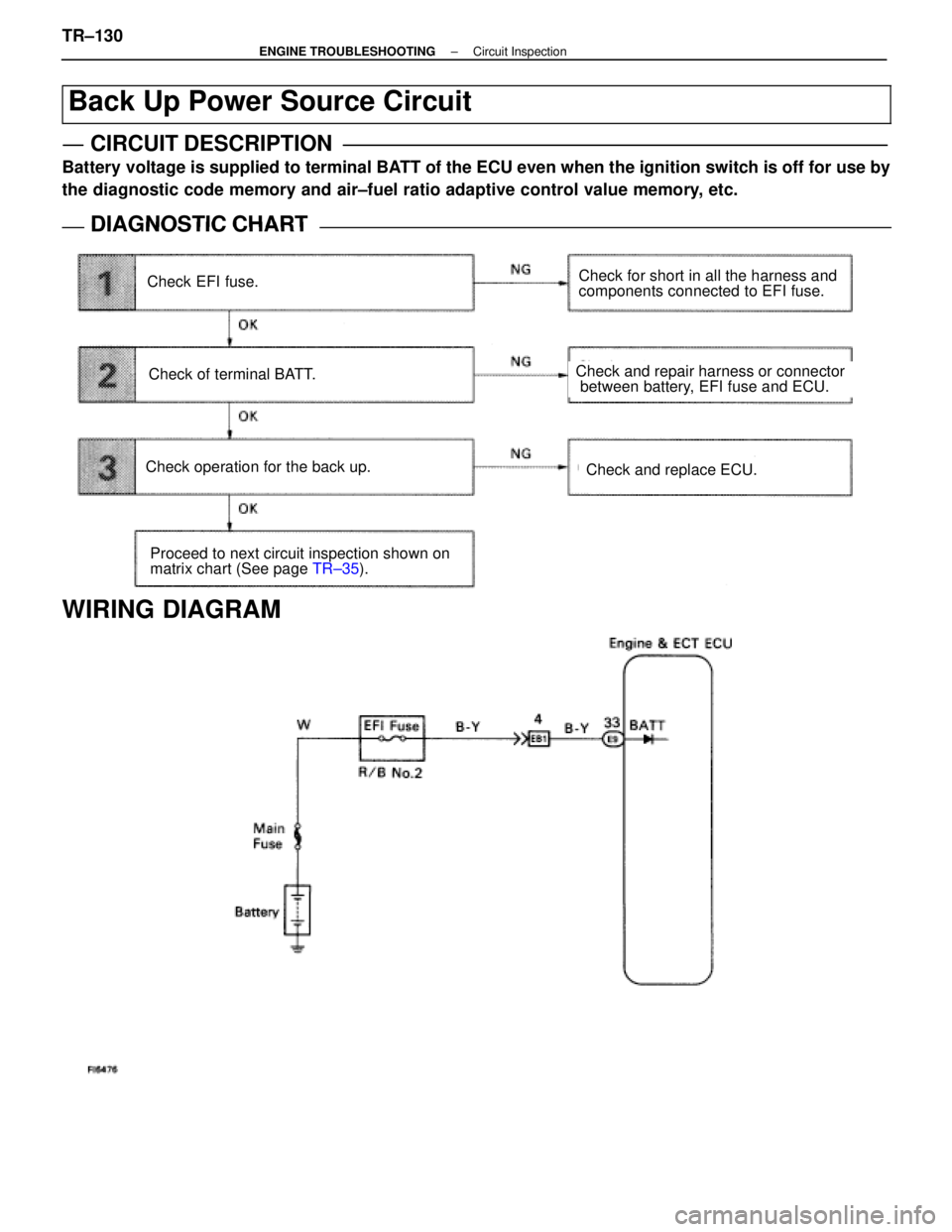

Back Up Power Source Circuit
CIRCUIT DESCRIPTION
Battery voltage is supplied to terminal BATT of the ECU even when the ignition switch is off for use by
the diagnostic code memory and air±fuel ratio adaptive control value mem\
ory, etc.
DIAGNOSTIC CHARTDIAGNOSTIC CHART
Check for short in all the harness and
components connected to EFI fuse.Check EFI fuse.
Check of terminal BATT.
Proceed to next circuit inspection shown on
matrix chart (See page TR±35).
Check operation for the back up.Check and replace ECU.
Check and repair harness or connector
between battery, EFI fuse and ECU.
WIRING DIAGRAM
TR±130±
ENGINE TROUBLESHOOTING Circuit Inspection
WhereEverybodyKnowsYourName

OKNG
OKNG
YESNO
INSPECTION PROCEDURE
1Check EFI fuse.
C
OK
PRemove EFI fuse from R/B No.2.
Check continuity of EFI fuse.
Continuity
Check for short in all the harness and components con-
nected to EFI fuse (See attached wiring diagram).
2Check voltage between terminal BATT of engine & ECT ECU connector and body ground.
C
OK
PConnect the Check Harness A.
(See page TR±30).
Measure voltage between terminal BATT of engine &
ECT ECU connector and body ground.
Voltage: 10 ± 14 V
Check and repair harness or connector between engine
& ECT ECU and EFI fuse, EFI fuse and battery.
3Are the diagnostic codes still in the memory when the ignition switch is\
turned OFF?
Check and replace engine & ECT ECU.
Proceed to next circuit inspection shown on ma-
trix chart (See page TR±35).
±
ENGINE TROUBLESHOOTING Circuit InspectionTR±131
WhereEverybodyKnowsYourName

Check voltage of ECU power source.
Check continuity between terminals E1 and
body ground.
Check voltage of terminal IGSW.
Check IGN fuse.
Check ignition switch.
Check for open in harness and connector
between battery and ECU.
Check voltage of terminal M±REL.
Check EFI fuse.
Check EFI main relay.Check for open and short in harness and
connector between terminal M±REL and
body ground.
Check and repair harness or connector
between EFI fuse and battery.
Repair or replace harness or
connector.
Replace EFI main relay.
Check for short in all the harness
and components connected to the
EFI fuse.
Check and replace ECU.
Replace ignition switch.
Check for short in all the harness and
components connected to IGN fuse.
Repair or replace harness or
connector.
Proceed to next circuit inspection
shown on matrix cart (See page
TR±39
).
DIAGNOSTIC CHART
±
ENGINE TROUBLESHOOTING Circuit InspectionTR±121
