1991 LEXUS SC400 sensor

29
Position of Parts in Instrument Panel
H 7 Hazard SW S 10 Shift Lock ECUS 11 Step Light
I 14 Ignition Key Cylinder Light S 12 Stop Light SW
I 15 Ignition SW, Unlock Warning SW and Key Inter Lock Solenoid S 22 Short Connector
I 16 Integration Relay S 23 Short Connector S 24 Seat Heater SW (for M/T)
K 3 Kick Down SW T 6 TDCL (Total Diagnostic Communication Link)
L 1 Luggage Compartment Door Open SW T 7 Telescopic Position Sensor T 8 Theft Deterrent and Door Lock Control ECU
N 4 Noise Filter (for A/C System) T 9 Theft Deterrent and Door Lock Control ECU T 10 Tilt and Power Telescopic ECU
O 5 O/D Main SW T 11 Tilt and Power Telescopic ECU T 12 Traction Cut SW and Seat Heater SW (for A/T)
P 2 PPS ECU T 13 Traction ECU (for A/T)
P 3 Parking Brake SW T 14 Traction ECU (for A/T) T 15 Trip SW and Theft Deterrent Indicator Light
R 2 Radio and Player
R 3 Radio and Player W 6 Water Temp. Sensor (for A/C System)
R 4 Radio and Player (w/ CD Player) W 7 Wireless Door Lock Main SW
R 5 Radio and Player (w/o CD Player)
R 6 Radio and Player (w/o CD Player)
R 7 Remote Control Mirror ECU
R 8 Remote Control Mirror ECU
R 9 Rheostat
WhereEverybodyKnowsYourName

30
ELECTRICAL WIRING ROUTING
Position of Parts in Body
A 30 ABS Speed Sensor Rear LH D 10 Door Lock Motor, Door Unlock Detection SW and
A 31 ABS Speed Sensor Rear RH Door Open Detection SW LH
A 32 Auto Antenna Motor and Relay D 11 Door Lock Motor, Door Unlock Detection SW andDoor Open Detection SW RH
C 20 CD Automatic Changer D 12 Driving Position Memory and Return SW
C 21 CD Automatic Changer
C 22 Choke Coil F 11 Front Door Speaker LH F 12 Front Door Speaker RH
D 4 DAY/NIGHT Shift SW F 14 Fuel Lid Opener Solenoid
D 5 Door Courtesy Light LH F 15 Fuel Pump
D 6 Door Courtesy Light RH F 16 Fuel Pump ECU
D 7 Door Key Lock and Unlock SW LH F 17 Fuel Sender
D 8 Door Key Lock and Unlock SW RH F 18 Fuel Sender
D 9 Door Lock Control SW RH H 8 High Mount Stop Light (w/o Rear Spoiler)
H 9 High Mount Stop Light (w/ Rear Spoiler)
L 2 Licence Plate Light
L 3 Light Failure Sensor
L 4 Luggage Compartment Door Opener Motor
L 5 Luggage Compartment Key Unlock SW
L 6 Luggage Compartment Light SW
L 7 Luggage Compartment Light
WhereEverybodyKnowsYourName

31
Position of Parts in Body
M 1 Mobilephone R 16 Remote Control Mirror LH
M 2 Moon Roof Control Relay R 17 Remote Control Mirror RH
M 3 Moon Roof Control SW R 18 Remote Control Mirror SW
M 4 Moon Roof Motor and Limit SWS 13 Stereo Power Amplifier
O 8 Oxygen Sensor Sub (for California) S 14 Stereo Power Amplifier
P 4 Power Window Control SW RH T 16 Telephone Transceiver and Speaker Relay
P 5 Power Window Master SW and Door Lock Control SW LH T 17 Telephone Transceiver and Speaker Relay
P 6 Power Window Motor LH T 18 Tension Reducer Solenoid LH
P 7 Power Window Motor RH T 19 Tension Reducer Solenoid RH
P 20 Personal Light V 5 Vanity Light LH
R 10 Rear Combination Light LH V 6 Vanity Light RH
R 11 Rear Combination Light RH
R 12 Rear Speaker LH W 8 Wireless Door Lock ECU
R 13 Rear Speaker RH W 9 Woofer Speaker
R 14 Rear Window Defogger (+) W 10 Woofer Speaker Amplifier
R 15 Rear Window Defogger (±)
WhereEverybodyKnowsYourName

32
ELECTRICAL WIRING ROUTING
Position of Parts in Seat
B 4 Buckle SW LH P 15 Power Seat Motor (for Driver's Seat Rear Vertical Control)
B 5 Buckle SW RH P 16 Power Seat Motor (for Driver's Seat Reclining Motor Control)P 17 Power Seat Motor (for Driver's Seat Slide Control)
F 19 Front Vertical Position Sensor P 18 Power Seat Motor (for Passenger's Seat Reclining Control) P 19 Power Seat Motor (for Passenger's Seat Slide Control)
P 8 Power Seat Control SW (for Driver's Seat)
P 9 Power Seat Control SW (for Passenger's Seat) R 19 Rear Vertical Position Sensor
P 10 Power Seat ECU (for Driver's Seat) R 20 Reclining Limit SW
P 11 Power Seat ECU (for Driver's Seat)
P 12 Power Seat ECU (for Passenger's Seat) S 15 Seat Heater (for Driver's Seat Back)
P 13 Power Seat Motor (for Driver's Seat Front Vertical Control) S 16 Seat Heater (for Driver's Seat Cushion)
P 14 Power Seat Motor (for Driver's Seat Lumbar S 17 Seat Heater (for Passenger's Seat Back) Support Control) S 18 Seat Heater (for Passenger's Seat Cushion) S 19 Slide Limit SW
S 20 Slide Position Sensor (for Driver's Seat)
S 21 Slide Position Sensor (for Passenger's Seat)
WhereEverybodyKnowsYourName

150

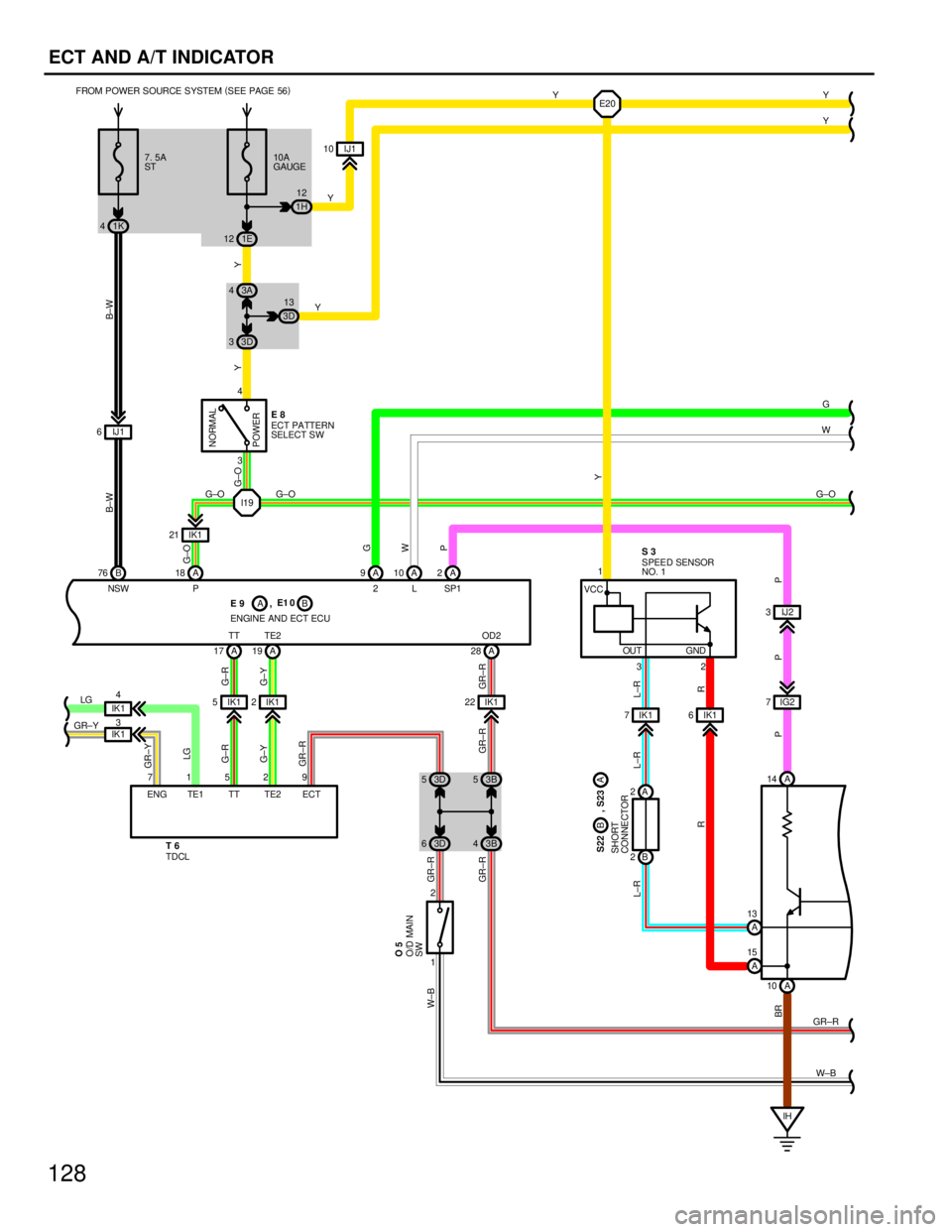

CRUISE CONTROL
CURRENT IS APPLIED AT ALL TIMES THROUGH STOP FUSE TO TERMINAL 1 OF THE CONTROL ECU TERMINAL 2 OF STOP LIGHT
SWITCH, AND ALSO THROUGH THE DOME FUSE TO TERMINAL 15 OF CRUISE CONTROL ECU.
WITH THE IGNITION SWITCH TURNED TO ON, THE CURRENT FLOWS THROUGH GAUGE FUSE TO TERMINAL (A)1 OF COMBINATION
METER AND THE CURRENT THROUGH ECU±IG FUSE FLOWS TO TERMINAL 14 OF CRUISE CONTROL ECU.
WHEN THE IGNITION SWITCH IS ON AND THE CRUISE CONTROL MAIN SWITCH IS TUR\
NED ON, A SIGNAL IS INPUT FROM TERMINAL
15 OF CRUISE CONTROL MAIN SWITCH TO TERMINAL 4 OF CRUISE CONTROL ECU. AS A RESULT, THE CRUISE CONTROL ECU
FUNCTIONS AND THE CURRENT TO TERMINAL 14 OF CRUISE CONTROL ECU TO TERMINAL 13 OF CRUISE CONTROL ECU "
GROUND, AND THE CRUISE CONTROL SYSTEM IS IN A CONDITION READY FOR OPERATION.
AT THE SAME TIME, THE CURRENT THROUGH THE GAUGE FUSE FLOWS FROM TERMINAL (A)1 OF CRUISE CONTROL INDICATOR
LIGHT " TERMINAL (B)20 "TERMINAL 5 OF CRUISE CONTROL ECU "TERMINAL 13 " TO GROUND, CAUSING THE CRUISE
CONTROL INDICATOR LIGHT TO LIGHT UP, INDICATING THAT THE CRUISE CONTROL IS READY FOR OPERATION.
1. SET OPERATION
WHEN THE CRUISE CONTROL MAIN SWITCH IS TURNED ON AND THE SET SWITCH IS PUSHE\
D WITH THE VEHICLE SPEED WITHIN
THE SET LIMIT (APPROX. 40 KM/H, 2.5 MPH TO 200 KM/H, 124 MPH), A SIGNAL IS INPUT TO TERMINAL 18 OF THE CRUISE CONTROL
ECU AND THE VEHICLE SPEED AT THE TIME THE SET SWITCH IS RELEASED IS MEMORIZED IN THE ECU AS THE SET\
SPEED.
2. SET SPEED CONTROL
DURING CRUISE CONTROL DRIVING, THE ECU COMPARES THE SET SPEED MEMORIZED IN THE ECU WITH THE ACTUAL VEHICLE
SPEED INPUT INTO TERMINAL 20 OF THE CRUISE CONTROL ECU FROM THE SPEED SENSOR, AND CONTROLS THE CRUIS\
E
CONTROL ACTUATOR TO MAINTAIN THE SET SPEED.
WHEN THE ACTUAL SPEED IS LOWER THAN THE SET SPEED, THE ECU CAUSES THE CURREN\
T TO THE CRUISE CONTROL
ACTUATOR TO FLOW FROM TERMINAL 12 " TERMINAL 6 OF CRUISE CONTROL ACTUATOR "TERMINAL 7 " TERMINAL 11 OF
CRUISE CONTROL ECU. AS A RESULT, THE MOTOR IN THE CRUISE CONTROL ACTUATOR IS ROTATED TO OPEN THE THROTTLE
VALVE AND THE THROTTLE CABLE IS PULLED TO INCREASE THE VEHICLE SPEED. WHEN THE ACTUAL DRIVING SPEED IS HIGHER
THAN THE SET SPEED, THE CURRENT TO CRUISE CONTROL ACTUATOR FLOWS FROM TERMINAL 11 OF ECU "TERMINAL 7 OF
CRUISE CONTROL ACTUATOR "TERMINAL 6 "TERMINAL 12 OF CRUISE CONTROL ECU.
THIS CAUSES THE MOTOR IN THE CRUISE CONTROL ACTUATOR TO ROTATE TO CLOSE THE THROTTLE VALVE AND RETURN THE
THROTTLE CABLE TO DECREASE THE VEHICLE SPEED.
3. COAST CONTROL
DURING THE CRUISE CONTROL DRIVING, WHILE THE COAST SWITCH IS ON, THE CRUISE CONTROL ACTUATOR RETURNS THE
THROTTLE CABLE TO CLOSE THE THROTTLE VALVE AND DECREASE THE DRIVING SPEED. THE VEHICLE SPEED WHEN THE COAST
SWITCH IS TURNED OFF IS MEMORIZED AND THE VEHICLE CONTINUES AT THE NEW SET SPEED.
4. ACCEL CONTROL
DURING CRUISE CONTROL DRIVING, WHILE THE ACCEL SWITCH IS TURNED ON, THE CRUISE\
CONTROL ACTUATOR PULLS THE
THROTTLE CABLE TO OPEN THE THROTTLE VALVE AND INCREASE THE DRIVING SPEED.
THE VEHICLE SPEED WHEN THE ACCEL SWITCH IS TURNED OFF IS MEMORIZED AND THE \
VEHICLE CONTINUES AT THE NEW SET
SPEED.
5. RESUME CONTROL
UNLESS THE VEHICLE SPEED FALLS BELOW THE MINIMUM SPEED LIMIT (APPROX. 40 KM/H, 25 MPH) AFTER CANCELING THE SET
SPEED BY THE CANCEL SWITCH, PUSHING THE RESUME SWITCH WILL CAUSE THE VEHICLE \
TO RESUME THE SPEED SET BEFORE
CANCELLATION.
6. MANUAL CANCEL MECHANISM
IF ANY OF THE FOLLOWING OPERATIONS OCCURS DURING CRUISE CONTROL OPERATION, THE SAFETY MAGNETIC CLUTCH OF
THE ACTUATOR TURNS OFF AND THE MOTOR ROTATES TO CLOSE THE THROTTLE VALVE AND THE CRUISE CONTROL IS
RELEASED.
* PLACING THE SHIFT LEVER IN ªNº RANGE (NEUTRAL START SWITCH ON)). ªSIGNAL INPUT TO TERMINAL 2 OF ECUº
* DEPRESSING THE BRAKE LEVER (STOP LIGHT SWITCH ON). ªSIGNAL INPUT TO TERMINAL 16 OF ECUº
* PULLING THE PARKING BRAKE PEDAL (PARKING BRAKE SWITCH ON). ªSIGNAL INPUT TO TERMINAL 3 OF ECUº
* PUSHING THE CANCEL SWITCH (CANCEL SWITCH ON). ªSIGNAL INPUT TO TERMINAL 18ª
SYSTEM OUTLINE
