6. Inspect Room Humidity Sensor.
Measure the humidity and output
voltage of the humidity sensor when
the sensor is installed on the vehicle
and the temperature at the humidity
sensor position (room temperature
sensor position) is 77 5F (25 5C).
If the output voltage is within the
specifications according to the graph
and table below, the sensor is normal.
HINT:
For the inspection procedure of the
room temperature sensor, refer to
ªRoom Temperature Sensor Inspection
Procedureº in this bulletin.
A. Turn the ignition switch to the
ON position.
B. Measure the voltage between terminal VO (3) and GND (2) of
the room humidity sensor.
C. Measure the humidity and voltage when the room temperature
(humidity sensor position) is 77 5F
(25 5C). According to the result,
determine whether the sensor is
normal or not.
HUMIDITY (% RH)OUTPUT VOLTAGE AT 77 5F (25 5C)
100.70 to 1.08 V
200.72 to 1.57 V
301.13 to 1.95 V
401.61 to 2.24 V
501.99 to 2.46 V
602.26 to 2.66 V
702.48 to 2.85 V
802.68 to 3.04 V
902.87 to 3.05 V
Inspection
Procedure
(Continued)
VOGND
Resistance
k W
3.50
3.00
2.50
2.00
1.50
1.00
0.50
0.00
32
(0) 68
(20) 104
(40) 140
(60)
Temperature 5F ( 5C)
Max
Min
176
(80) 212
(100)
WhereEverybodyKnowsYourName

146
ABS (ANTI±LOCK BRAKE SYSTEM)
THIS SYSTEM CONTROLS THE RESPECTIVE BRAKE FLUID PRESSURES ACTING ON THE DISC\
BRAKE CYLINDERS OF THE RIGHT
FRONT WHEEL, LEFT FRONT WHEEL AND REAR WHEELS WHEN THE BRAKES ARE APPLIED IN \
A PANIC STOP SO THAT THE
WHEELS DO NOT LOCK. THIS RESULTS IN IMPROVED DIRECTIONAL STABILITY AND STEERABILITY DURING PANIC BRAKING.
1. INPUT SIGNALS
(1) SPEED SENSOR SIGNALTHE SPEED OF THE WHEELS IS DETECTED AND INPUT TO TERMINALS FL+, FR+, RL+ AND RR+ OF THE ABS ECU.
(2) STOP LIGHT SW SIGNAL A SIGNAL IS INPUT TO TERMINAL STP OF THE ABS ECU WHEN THE BRAKE PEDAL IS OPERATED.
(3) PARKING BRAKE SW SIGNAL A SIGNAL IS INPUT TO TERMINAL PKB OF THE ABS ECU WHEN THE PARKING BRAKE IS OPERATED.
2. SYSTEM OPERATION
DURING SUDDEN BRAKING, THE ABS ECU WHICH HAS SIGNALS INPUT FROM EACH SENSOR CONTROLS THE CURRENT FLOWING
TO THE SOLENOID INSIDE THE ACTUATOR AND LETS THE HYDRAULIC PRESSURE ACTING ON EACH WHEEL CYLINDER ESCAPE \
TO
THE RESERVOIR.
THE PUMP INSIDE THE ACTUATOR IS ALSO OPERATING AT THIS TIME AND IT RETURNS THE BRAKE FLUID FROM THE RESERVOIR
TO THE MASTER CYLINDER, THUS PREVENTING LOCKING OF THE VEHICLE WHEELS.
IF THE ECU JUDGES THAT THE HYDRAULIC PRESSURE ACTING ON THE WHEEL CYLINDER IS INSUFFICIENT, THE CURRENT
ACTING ON SOLENOID IS CONTROLLED AND THE HYDRAULIC PRESSURE IS INCREASED.
HOLDING OF THE HYDRAULIC PRESSURE IS ALSO CONTROLLED BY THE COMPUTER, BY THE SAME METHOD AS ABOVE. BY
REPEATED PRESSURE REDUCTION, HOLDING AND INCREASE ARE REPEATED TO MAINTAIN VEHICLE STABILITY AND TO IMPROVE
STEERABILITY DURING SUDDEN BRAKING.
A 4(B), A 33(A) ABS ACTUATOR
(A) 3, (A) 4±GROUND : ALWAYS APPROX. 12 VOLTS
(A) 1±GROUND : ALWAYS CONTINUITY
(B) 4, (B) 5, (B) 6±GROUND : APPROX. 1.15
(IGNITION SW OFF)
(B) 2±GROUND :APPROX. 5
(IGNITION SW OFF)
A 7, A 8, A30, A31 ABS SPEED SENSOR FRONT LH, RH, REAR LH, RH
1±2 : APPROX. 1.0KW (20 °C, 68°F)
A22(A), A23(B) ABS ECU
(B) 11±GROUND : APPROX. 12 VOLTS WITH IGNITION SW ON
(B) 2, (B) 13±GROUND : ALWAYS CONTINUITY
(B) 22±GROUND : ALWAYS APPROX. 12 VOLTS
(B) 1, (A) 6, (A) 12±GROUND : APPROX. 12 VOLTS WITH IGNITION SW ON
(B) 16±GROUND : CONTINUITY WITH PARKING BRAKE LEVER PULLED UP
(B) 7±GROUND : APPROX. 12 VOLTS WITH STOP LIGHT SW ON
P 3 PARKING BRAKE SW
1±GROUND : CLOSED WITH PARKING BRAKE LEVER PULLED UP
S12 STOP LIGHT SW
1±2 : CLOSED WITH BRAKE PEDAL DEPRESSED
SYSTEM OUTLINE
SERVICE HINTS
WhereEverybodyKnowsYourName

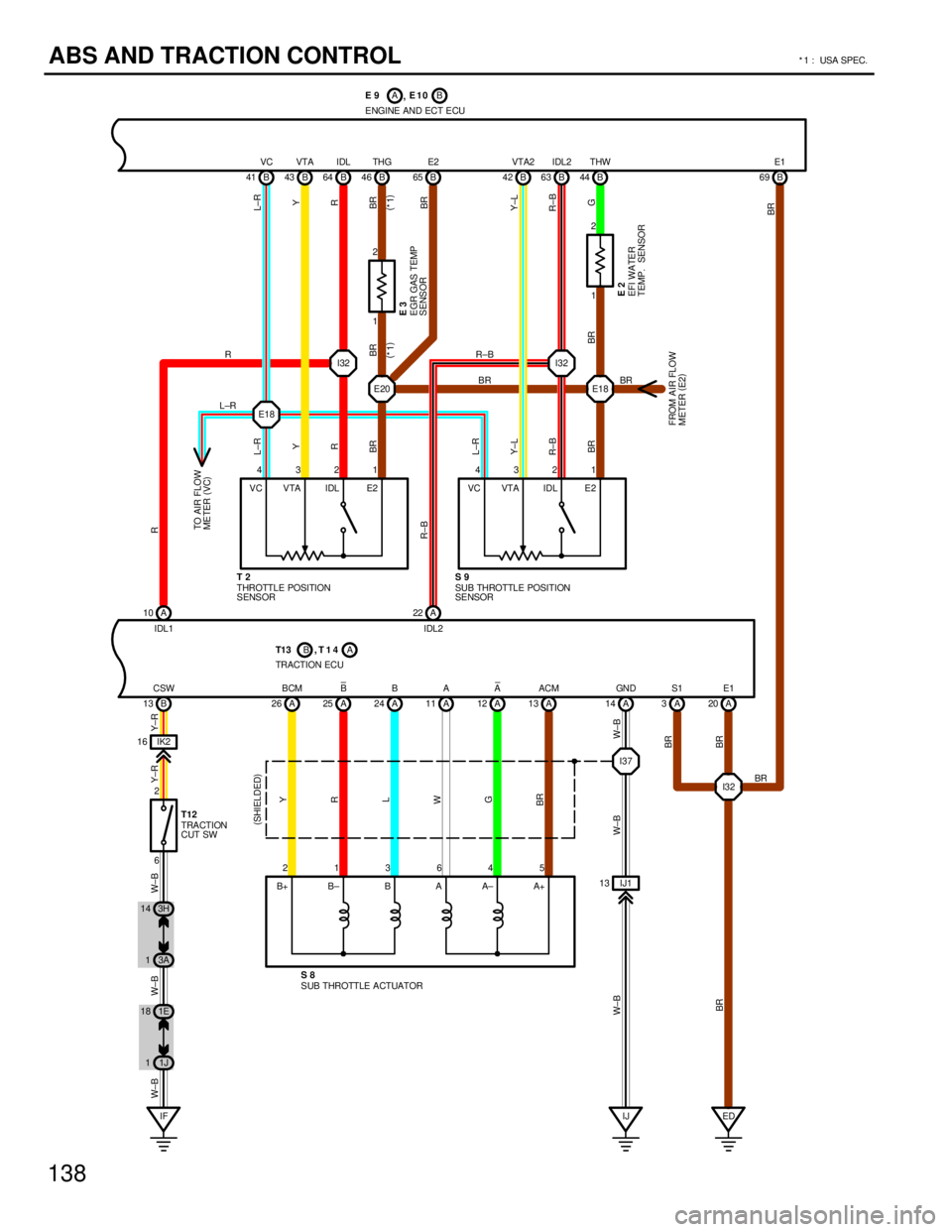

135
B
4 RL+
B
15 RL±
B
5 RSS
B
14 RR+
B
3 ALT
BW1
3BW1 8
BW1
2
BW1
5
BW1
6
Bc2
6
Bc2
2 I26
12 12
W O W±B
L±G
L±Y
W
O
L±G L±Y
W
O
L±G L±Y
(
SHIELDED ) (
SHIELDED )
(
SHIELDED )
REAR LH REAR RH A3 1
A3 0
ABS SPEED SENSOR
M
6
1
4
36
6
66
TRACTION BRAKE
MAIN RELAY
2 16 22
3
1 23 11
E7
I25 I32
I23
EB1
6
IO1
7 IK2
2
A
23
MTT A
1
TSR A
20
E2 A
19
VC A
10
PR A
15
SRC A
2
SMC A
12
SAC C
1
TS B
9
WA C
3
TC
A
1A 2A3
A
4A 5A6
B
2
B
1 B
4
L±Y
B±R
L
L
L
L VB±R
P±B
P±B B±R
R±W
R±W
R±W
W
R
B
V±Y V
V±W B±R
R
R±W
V±Y
TS WA
R
B±R
L±Y
W±B V±Y
W±B W±B P±B
L
TC
WB
T5 T3
,
T4C3
TRACTION PUMP
AND MOTOR TRACTI ON BRA KE
ACTUATOR
CHECK
CONNECTOR
BA
(
SHIELDED )
C
ABS AND TRACTION ECU A24 ,
A25 ,A26
AB P±B
P±B
ACC CUT MIC CUT
RESERVOIR
CUT
(
SHIELDED )
A
17 FR+
A
4 FR±
A
16 FS S
I26
21(
SHIELDED )
O±L
W±L W±B
W±L O±L
A8
FRONT RH B
8
IO1
10
3B
1
3B
2
IJ 1
5 IG3
1
A1 0
ALTERNATOR Y±G
Y±G
Y±G
Y±G
Y±G
RR±
I26
B17
BR
BR
I26
B34
BW1
7
Bc2
5 B17
B36
BR±B BR±B BR±B
BR±B
(
SHIELDED )
2
SHORT
PIN
WhereEverybodyKnowsYourName

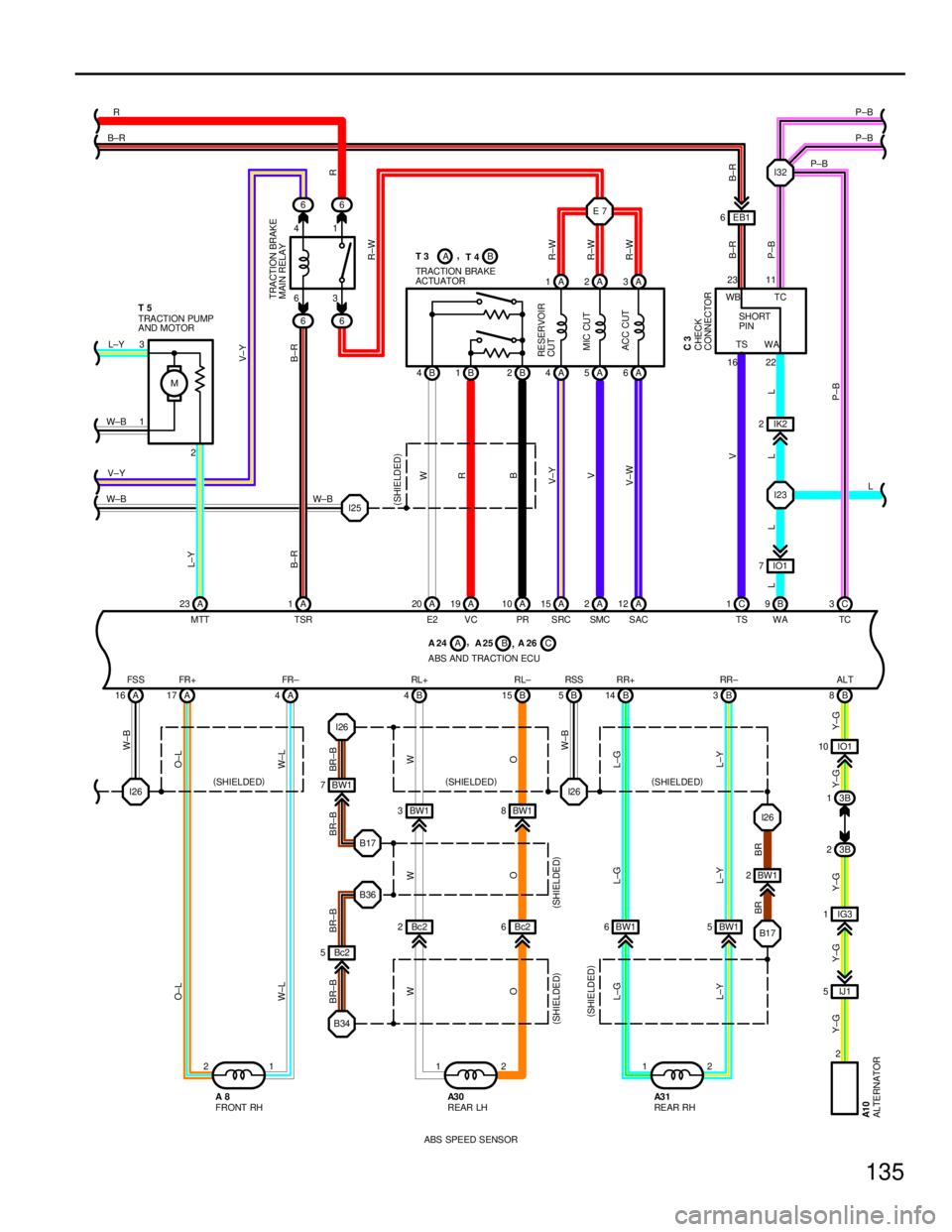

138
ABS AND TRACTION CONTROL*1 : USA SPEC.
B
41 VC
B
43 VTA
B
64 IDL
B
46 THG
B
63 IDL2
B
44 THW
B
69 E1
A
26 BCM
A
25 B
A
24 B
A
11 A
A
12 A
A
13 ACM
A
14 GN D
A
20 E1
B
13 CSWA
10
IDL1 A
22
IDL2
1
2
3
4
VC VTA IDL E2 1
2
3
4
VC VTA IDL E2
E18
I32
E18
I37 I32
6 2
IF IJ ED
3H
14
1E
18 3A
1
1J
1 213645 BR
L±R RR±B
BR
BR
BRG
R±B R
Y
L±R
R±B R
BR
BR
R±B
Y±L BR
RY
L±R
Y
R L
W G
BR
W±B
BR
W±B
BR W±B
W±B
W±B
B+ B± B A A± A+
L±R
TO AI R FL OW
METER
(
VC )
FROM AIR FLOW
METER(
E2 )
THROTTLE POSITION
SENSOR SUBTHROTTLEPOSITION
SENSOR
IK2
16
Y±R
Y±R
S UB THROTTLE A CTUATOR
TRACTION
CUT SW TRACTION ECU
T12
S8
T1 3 , T 1 4
A B S9
T2 ENGINE AND ECT ECU E9
,E10
B A
IJ1
13
W±B (
SHIELDED )
E20 B
65 E2
BR
I32
B
42 VTA2
Y±LBR
1 2
1
2
BRE3
EGR GAS TEMP
SENSOR
EFI WATER
TEMP. SENSOR
A
3 S1
BR (
*1 )
(
*1 )
E2
±±
WhereEverybodyKnowsYourName

139
(FOR ABS)
THIS SYSTEM CONTROLS THE RESPECTIVE BRAKE FLUID PRESSURES ACTING ON THE DISC\
BRAKE CYLINDERS OF THE RIGHT
FRONT WHEEL, LEFT FRONT WHEEL AND REAR WHEELS WHEN THE BRAKES ARE APPLIED IN \
A PANIC STOP SO THAT THE
WHEELS DO NOT LOCK. THIS RESULTS IN IMPROVED DIRECTIONALLY STABILITY AND STEERABILITY DURING PANIC BRAKING.
1. INPUT SIGNALS
(1) SPEED SENSOR SIGNALTHE SPEED OF THE WHEELS IS DETECTED AND INPUT TO TERMINALS FL+, FR+, RL+ AND RR+ OF THE ABS AND TRACTION
ECU.
(2) STOP LIGHT SW SIGNAL A SIGNAL IS INPUT TO TERMINAL STP OF THE ABS AND TRACTION ECU WHEN THE BRAKE PEDAL IS OPERATED.
(3) PARKING BRAKE SW SIGNAL A SIGNAL IS INPUT TO TERMINAL PKB OF THE ABS AND TRACTION ECU WHEN THE PARKING BRAKE IS OPERATED.
2. SYSTEM OPERATION
DURING SUDDEN BRAKING, THE ABS AND TRACTION ECU WHICH HAS SIGNALS INPUT FROM E\
ACH SENSOR CONTROLS THE
CURRENT FLOWING TO THE SOLENOID INSIDE THE ACTUATOR AND LETS THE HYDRAULIC PRESSURE ACTING ON EACH WHEEL
CYLINDER ESCAPE TO THE RESERVOIR. THE PUMP INSIDE THE ACTUATOR IS ALSO OPERATING AT THIS TIME AND IT RETURNS
THE BRAKE FLUID FROM THE RESERVOIR TO THE MASTER CYLINDER, THUS PREVENTING LOCKING OF THE VEHICLE WHEELS.
IF THE ECU JUDGES THAT THE HYDRAULIC PRESSURE ACTING ON THE WHEEL CYLINDER IS INSUFFICIENT, THE CURRENT
ACTING ON SOLENOID IS CONTROLLED AND THE HYDRAULIC PRESSURE IS INCREASED, HOLD\
ING OF THE HYDRAULIC
PRESSURE IS ALSO CONTROLLED BY THE COMPUTER, BY THE SAME METHOD AS ABOVE. BY REP\
EATED PRESSURE REDUCTION,
HOLDING AND INCREASE ARE REPEATED TO MAINTAIN VEHICLE STABILITY AND TO IMPROVE STEERABILITY DURING SUDDEN
BRAKING.
(FOR TRACTION CONTROL)
THE TRACTION CONTROL SYSTEM IS A SYSTEM WHEREBY THE ªABS AND TRACTION ECUº AND ªTRACTION ECUº\
CONTROLS THE
ENGINE TORQUE AND THE HYDRAULIC PRESSURE OF THE WHEEL CYLINDER OF THE DRIVING WHEELS IN ORDER TO CONTROL
SPINNING OF THE DRIVING WHEELS WHEN STARTING OFF AND ACCELERATING, AND PROVIDE THE MOST APPROPRIATE DRIVING
FORCE IN RESPONSE TO THE ROAD CONDITIONS FOR VEHICLE STABILITY.
TRACTION CONTROL OPERATION
VEHICLE SPEED SIGNALS FROM THE SPEED SENSOR INSTALLED ON EACH WHEEL ARE INPUT TO THE ABS AND TRACTION ECU.
WHEN THE ACCELERATOR PEDAL IS DEPRESSED WHILE DRIVING ON A SLIPPERY ROAD AND THE DRIVING WHEEL (REAR WHEEL)
SLIPS, IF THE ROTATION OF THE REAR WHEEL EXCEEDS THE ROTATION OF THE FRONT WHEELS FOR A SPECIFIED PERIOD, THE
ECU JUDGES THAT THE REAR WHEEL IS SLIPPING.
WHEN THIS OCCURS, CURRENT FLOWS FROM TRACTION ECU TO SUB THROTTLE ACTUATOR TO CLOSE THE SUB THROTTLE
VALVE. THE THROTTLE VALVE OPENING ANGLE SIGNAL IS OUTPUT FROM TERMINAL VTA OF SUB THROTTLE POSITION SENSOR
TO TERMINAL VTA2 OF ENGINE AND ECT ECU TO KEEP THE ENGINE RPM AT THE MOST SUITABLE LEVEL FOR THE DRIVING
CONDITIONS AND REDUCE SLIP OF THE DRIVING WHEEL. AT THE SAME TIME, OPERATION OF THE ABS AND TRACTION ECU
CAUSE THE TRACTION BRAKE ACTUATORS (ACC CUT, M/C CUT, RESERVOIR CUT SOLENOID) TO TURN ON TO SWITCH THE
HYDRAULIC CIRCUIT TO ªTRACTIONº MODE.
IN THIS CASE, SIGNALS ARE INPUT FROM TERMINAL SRR OF ABS AND TRACTION ECU TO TERMINAL (B)6 OF ABS ACTUATOR, AND
FROM TERMINAL SRL OF ABS AND TRACTION ECU TO TERMINAL (B)1 OF ABS ACTUATOR, CONTROLLING THE REAR WHEEL
SOLENOID IN THE ABS ACTUATOR AND INCREASING THE HYDRAULIC PRESSURE OF THE WHEEL CYLINDER IN ORDER \
TO
PREVENT SLIP.
TO MAINTAIN THE HYDRAULIC PRESSURE OF THE REAR WHEELS, THE REAR WHEEL SOLENOID I\
NSIDE THE ABS ACTUATOR IS
PUT IN ªHOLDº MODE AND KEEPS THE HYDRAULIC PRESSURE TO THE BRAKE CYLINDER CONSTANT.
WHEN THE BRAKE CYLINDER HYDRAULIC PRESSURE IS REDUCED, THE PRESSURE REDU\
CTION MODE REDUCES AND CONTROLS
THE HYDRAULIC PRESSURE.
SYSTEM OUTLINE
WhereEverybodyKnowsYourName

140
ABS AND TRACTION CONTROL
A24(A), A25(B), A26(C) ABS AND TRACTION ECU
(B) 21±GROUND : ALWAYS APPROX. 12 VOLTS
(B) 11±GROUND : APPROX. 12 VOLTS WITH IGNITION SW AT ON POSITION
(B) 10±GROUND : CONTINUITY WITH STOP LIGHT SW ON
(B) 2, (B) 13, (B) 22±GROUND : ALWAYS CONTINUITY
(B) 17±GROUND : CONTINUITY WITH PARKING BRAKE LEVER PULLED UP (PARKING BRAKE SW ON)
A 4(B), A 5(C), A 6(A) ABS ACTUATOR
(A) 1, (A) 2±GROUND : APPROX. APPROX. 12 VOLTS
(C) 1±GROUND : ALWAYS CONTINUITY
(B) 1, (B) 5, (B) 4, (B) 6±GROUND : APPROX. 1.15 (IGNITION SW OFF)
(B) 2±GROUND : APPROX. 5 (IGNITION SW OFF)
T3(A), T 4(B) TRACTION BRAKE ACTUATOR
(B) 2± (B) 4 : OPEN ABOVE APPROX. 134.5KG/CM2
(13189 KPA, 1910PSI)
CLOSED BELOW APPROX. 95KG/CM2 (9316 KPA, 1349PSI)
(A) 3± (A) 6 : APPROX. 2
(A) 2± (A) 5 : APPROX. 2
(A) 1± (A) 4 : APPROX. 2
S12 STOP LIGHT SW
2±1 : CLOSED WITH BRAKE PEDAL DEPRESSED
A 7, A 8, A30, A31 ABS SPEED SENSOR FRONT LH, RH, REAR LH, RH
1±2 : APPROX. 1.0(20 °C, 68°F)
T13(B), T14(A) TRACTION ECU
(A) 2±GROUND : APPROX. 12 VOLTS WITH IGNITION SW AT ON POSITION
(A) 15±GROUND : ALWAYS APPROX. 12 VOLTS
(A) 20, (A)14±GROUND : ALWAYS CONTINUITY
(A) 1±GROUND : CONTINUITY WITH PARKING BRAKE LEVER PULLED UP
(B) 2±GROUND : APPROX. 12 VOLTS WITH STOP LIGHT SW ON
(B) 13±GROUND : CONTINUITY WITH TRACTION CUT SW PUSHED ON
(B) 8±GROUND : ALWAYS APPROX. 12 VOLTS
P 3 PARKING BRAKE SW
1±GROUND : CLOSED WITH PARKING BRAKE LEVER PULLED UP
S 8 SUB THROTTLE ACTUATOR
2±1, 2±3 : APPROX. 0.9
5±4, 5±6 : APPROX. 0.9
: PARTS LOCATION
CODESEE PAGECODESEE PAGECODESEE PAGE
A 4B26C 326S 927
A 5C26C13B28S1229
A 6A26C14A28T 227
A 726D 128T 3A27
A 826D 228T 4B27
A1026E 226T 527
A24A28E 326T 629
A25B28E 9A28T1229
A26C28E10B28T13B29
A3030F 926T14A29
A3130P 329
B 126S 827
: RELAY BLOCKS
CODESEE PAGERELAY BLOCKS (RELAY BLOCK LOCATION)
219ENGINE COMPARTMENT LEFT624ENGINE COMPARTMENT LEFT
SERVICE HINTS
WhereEverybodyKnowsYourName

226
AUTOMATIC AIR CONDITIONER
1. HEATER BLOWER MOTOR OPERATION
CURRENT IS APPLIED AT ALL TIMES THROUGH HEATER FUSE (60A) TO TERMINAL 5 OF HEATER RELAY. WHEN THE IGNITION SW IS
TURNED ON, CURRENT FLOWS THROUGH HEATER FUSE (10A) TO TERMINAL 1 OF HEATER RELAY " TERMINAL 3 " TERMINAL HR
OF A/C CONTROL ASSEMBLY. AT THE SAME TIME, CURRENT ALSO FLOWS FROM HEATER FUSE (10A) TO TERMINAL IG+ OF A/C
CONTROL ASSEMBLY AND TERMINAL 2 OF WATER VALVE VSV " TERMINAL 1 " TERMINAL WV OF A/C CONTROL ASSEMBLY.
* LOW SPEED OPERATION
WHEN THE BLOWER SW (A/C CONTROL ASSEMBLY) IS PUSHED TO LOW SPEED POSITION, THE CURRENT TO TERMINAL HR OF A/C
CONTROL ASSEMBLY FLOWS TO TERMINAL E OF A/C CONTROL ASSEMBLY " GROUND AND TURNS THE HEATER RELAY. AS A
RESULT, THE CURRENT TO TERMINAL 5 OF HEATER RELAY FLOWS TO TERMINAL 4 OF RELAY " TERMINAL 2 OF BLOWER
RESISTOR " TERMINAL 1 " GROUND AND CAUSES THE BLOWER MOTOR TO ROTATE AT LOW SPEED.
* MEDIUM (M1, M2, M3) AND HIGH SPEED OPERATION
WHEN THE BLOWER SW (A/C CONTROL ASSEMBLY) IS SELECTED TO MEDIUM (M1, M2, M3) OR HIGH POSITION, THE CURRENT TO
TERMINAL HR OF A/C CONTROL ASSEMBLY FLOWS TO TERMINAL E " GROUND AND TURNS THE HEATER RELAY ON. THEN, THE
CURRENT TO TERMINAL IG+ OF A/C CONTROL ASSEMBLY FLOWS TO TERMINAL BLR " TERMINAL (B)2 OF POWER TRANSISTOR
" TERMINAL (A)1 " GROUND. AS A RESULT, THE CURRENT TO TERMINAL 5 OF HEATER RELAY FLOWS TO TERMINAL 4 "
TERMINAL 2 OF BLOWER MOTOR " TERMINAL 1 " TERMINAL (A)2 OF POWER TRANSISTOR " TERMINAL (A)1 " GROUND AND
BLOWER MOTOR IS ROTATED AT SELECTED SPEED BY THE A/C CONTROL ASSEMBLY CONTROLLING THE CURRENT FLOW FROM
TERMINAL (B)2 OF POWER TRANSISTOR TO TERMINAL (B)1.
* AUTO FUNCTION
WHEN THE AUTO SW IN HEATER CONTROL SW (A/C CONTROL ASSEMBLY) IS SELECTED, THE CURRENT FLOW IS THE SAME AS
ABOVE MENTIONS, BUT THE A/C CONTROL ASSEMBLY DECIDES THE APPROPRIATE AIR FLOW VOLUME ACCORDING TO SET
TEMPERATURE AND THE INPUT SIGNALS FROM EACH SENSOR. BY CONTROLLING THE CURRENT FLOW\
FROM TERMINAL BLR OF
THE A/C CONTROL ASSEMBLY TO TERMINAL (B)2 OF POWER TRANSISTOR " TERMINAL (A)1 " GROUND , THE A/C CONTROL
ASSEMBLY CONTROLS THE BLOWER MOTOR STEPLESSLY.
2. OPERATION OF AIR INLET CONTROL SERVO MOTOR
(SWITCHING FROM FRESH TO RECIRC)
WITH IGNITION SW TURNED ON, THE CURRENT FLOWS FROM HEATER FUSE (10A) TO TERMINAL IG+ OF A/C CONTROL ASSEMBLY
" TERMINAL MREC " TERMINAL 6 OF AIR INLET CONTROL SERVO MOTOR " TERMINAL 2 " TERMINAL MFRS OF A/C CONTROL
ASSEMBLY " TERMINAL E " GROUND , THE MOTOR ROTATES AND THE DAMPER MOVES TO THE RECIRC SIDE. WHEN THE
DAMPER OPERATES WITH THE A/C SW AT RECIRC POSITION, THE DAMPER POSITION SIGNAL IS INPUT FROM TERMINAL 5 OF THE
SERVO MOTOR TO TERMINAL TPI OF THE ECU (BUILT INTO THE A/C CONTROL ASSEMBLY). AS A RESULT, CURRENT TO THE SERVO
MOTOR CIRCUIT IS CUT OFF BY THE ECU, SO THE DAMPER STOPS AT THAT POSITION.
(SWITCHING FROM RECIRC TO FRESH)
WITH IGNITION SW TURNED ON, WHEN THE RECIRC/FRESH SW IS SWITCHED TO THE FRESH SIDE, THE CURRENT FLOWS FROM
TERMINAL IG+ OF A/C CONTROL ASSEMBLY " TERMINAL MFRS " TERMINAL 2 OF AIR INLET CONTROL SERVO MOTOR "
TERMINAL 6 " TERMINAL MREC OF A/C CONTROL ASSEMBLY " TERMINAL E " GROUND , THE MOTOR ROTATES AND THE
DAMPER STOPS AT THAT POSITION.
3. OPERATION OF AIR VENT MODE CONTROL SERVO MOTOR
WITH IGNITION SW TURNED ON, THE CURRENT FLOWS FROM HEATER FUSE (10A) TO TERMINAL IG+ OF A/C CONTROL ASSEMBLY.
(SWITCHING FROM DEF TO FACE)
THE CURRENT FLOWS FROM TERMINAL MFACE OF A/C CONTROL ASSEMBLY " TERMINAL 4 OF AIR VENT CONTROL SERVO
MOTOR " TERMINAL 5 " TERMINAL MDEF OF A/C CONTROL ASSEMBLY " TERMINAL E " GROUND . THE MOTOR ROTATES AND
THE DAMPER MOVES TO THE FACE SIDE. WHEN THE DAMPER OPERATES WITH THE A/C SW AT FACE POSITION, THE DAMPER
POSITION SIGNAL IS INPUT FROM TERMINAL 1 OF THE SERVO MOTOR TO THE TERMINAL TPM OF THE ECU (BUILT INTO THE A/C
CONTROL ASSEMBLY). AS A RESULT, CURRENT TO THE SERVO MOTOR CIRCUIT IS CUT OFF BY THE ECU, SO THE DAMPER STOPS
AT THAT POSITION.
(SWITCHING FROM FACE TO DEF)
THE CURRENT FLOWS FROM TERMINAL DEF OF A/C CONTROL ASSEMBLY " TERMINAL 5 OF AIR VENT CONTROL SERVO MOTOR
" TERMINAL 4 " TERMINAL MFACE OF A/C CONTROL ASSEMBLY " TERMINAL E " GROUND , THE MOTOR ROTATES AND THE
DAMPER STOPS AT THAT POSITION.
SYSTEM OUTLINE
WhereEverybodyKnowsYourName

227
4. OPERATION OF AIR MIX CONTROL SERVO MOTOR
WHEN THE TEMPERATURE SW IS TURNED TO THE ªCOOLº SIDE, THE CURRENT FLOWS FROM TERMINAL MC OF A/C CONTROL
ASSEMBLY " TERMINAL 4 OF AIR MIX CONTROL SERVO MOTOR " MOTOR " TERMINAL 5 " TERMINAL MH OF A/C CONTROL
ASSEMBLY " GROUND AND THE MOTOR ROTATES. THE DAMPER OPENING ANGLE AT THIS TIME IS INPUT FROM TERMINAL 1 OF
SERVO MOTOR TO TERMINAL TP OF A/C CONTROL ASSEMBLY, THIS IS USED TO DETERMINE THE DAMPER STOP POSITION AND
MAINTAIN THE SET TEMPERATURE.
WHEN THE TEMPERATURE CONTROL SW IS TURNED TO THE ªHOTº SIDE, THE CURRENT FLOWS FROM SERVO MOTOR "
TERMINAL MH OF A/C CONTROL ASSEMBLY " TERMINAL 5 OF AIR MIX CONTROL SERVO MOTOR " MOTOR " TERMINAL 1 "
TERMINAL MC OF A/C CONTROL ASSEMBLY, ROTATING THE MOTOR IN REVERSE AND SWITCHING THE DAMPER FROM ªCOOLº TO
ªHOTº SIDE.
5. AIR CONDITIONER OPERATION
THE A/C CONTROL ASSEMBLY RECEIVES VARIOUS SIGNALS, I.E., THE ENGINE RPM FROM THE IGNITER, OUTLET TEMPERATURE
SIGNAL FROM THE A/C THERMISTOR, COOLANT TEMPERATURE FROM THE WATER TEMP. SENSOR AND THE LOCK SIGNAL FROM
THE A/C COMPRESSOR, ETC.
WHEN THE ENGINE IS STARTED AND THE A/C SW (A/C CONTROL ASSEMBLY) IS ON, A SIGNAL IS INPUT TO THE ECU. (BUILT IN THE
A/C CONTROL ASSEMBLY).
AS A RESULT, THE GROUND CIRCUIT IN A/C CONTROL ASSEMBLY IS CLOSED AND CURRENT FLOWS FROM HEATER FUSE (10A) TO
TERMINAL 2 OF MAGNETIC CLUTCH RELAY " TERMINAL 3 " TERMINAL ACMG OF ENGINE AND ECT ECU " TERMINAL E OF A/C
CONTROL ASSEMBLY " GROUND , TURNING THE MAGNETIC CLUTCH RELAY ON, SO THAT THE MAGNETIC CLUTCH IS ON AND THE
A/C COMPRESSOR OPERATES.
AT THE SAME TIME, THE ENGINE AND ECT ECU DETECTS THE MAGNETIC CLUTCH IS O\
N AND THE A/C COMPRESSOR OPERATES.
OPEN DIRECTION TO AVOID LOWERING THE ENGINE RPM DURING A/C OPERATING.
WHEN ANY OF THE FOLLOWING SIGNALS ARE INPUT TO THE A/C CONTROL ASSEMBLY, THE CONTROL ASSEMBLY OPERATES TO
TURN OFF THE AIR CONDITIONING.
* ENGINE HIGH TEMP. SIGNAL IS HIGH.
* COOLANT HIGH TEMP. SIGNAL IS HIGH.
* A SIGNAL THAT THE TEMPERATURE AT THE AIR OUTLET IS LOW.
* A SIGNAL THAT THERE IS A LARGE DIFFERENCE BETWEEN ENGINE RPM AND COMPRESSOR RPM.
* A SIGNAL THAT THE REFRIGERANT PRESSURE IS ABNORMALLY HIGH OR LOW.
WhereEverybodyKnowsYourName
