INSTALLATION OF DIFFERENTIAL AND
DRIVE. PINION
1. INSTALL DRIVE PINION INTO TRANSAXLE CASE
(a) Place the bearing cage onto the drive pinion shaft.
NOTICE: Be careful not to damage the oil seals with
the pinion shaft. (A540E)
(b) Install the two new O±rings to the bearing cage.
(A540E)
(c) Coat the O±rings with ATF. (A540E)
(d) Using a hammer and brass bar, slightly tap the
bearing cage into the transaxle case until the
snap ring groove in the bore can be seen.
(e) Using SST, install snap ring into the bore.
SST 09350±32014 (09351±32050`
2. (A540E)
PLACE SENSOR ROTOR ONTO DRIVE PINION
SHAFT
± AUTOMATIC TRANSAXLEInstallation of Component Parts (A540E and A540H)AT±384

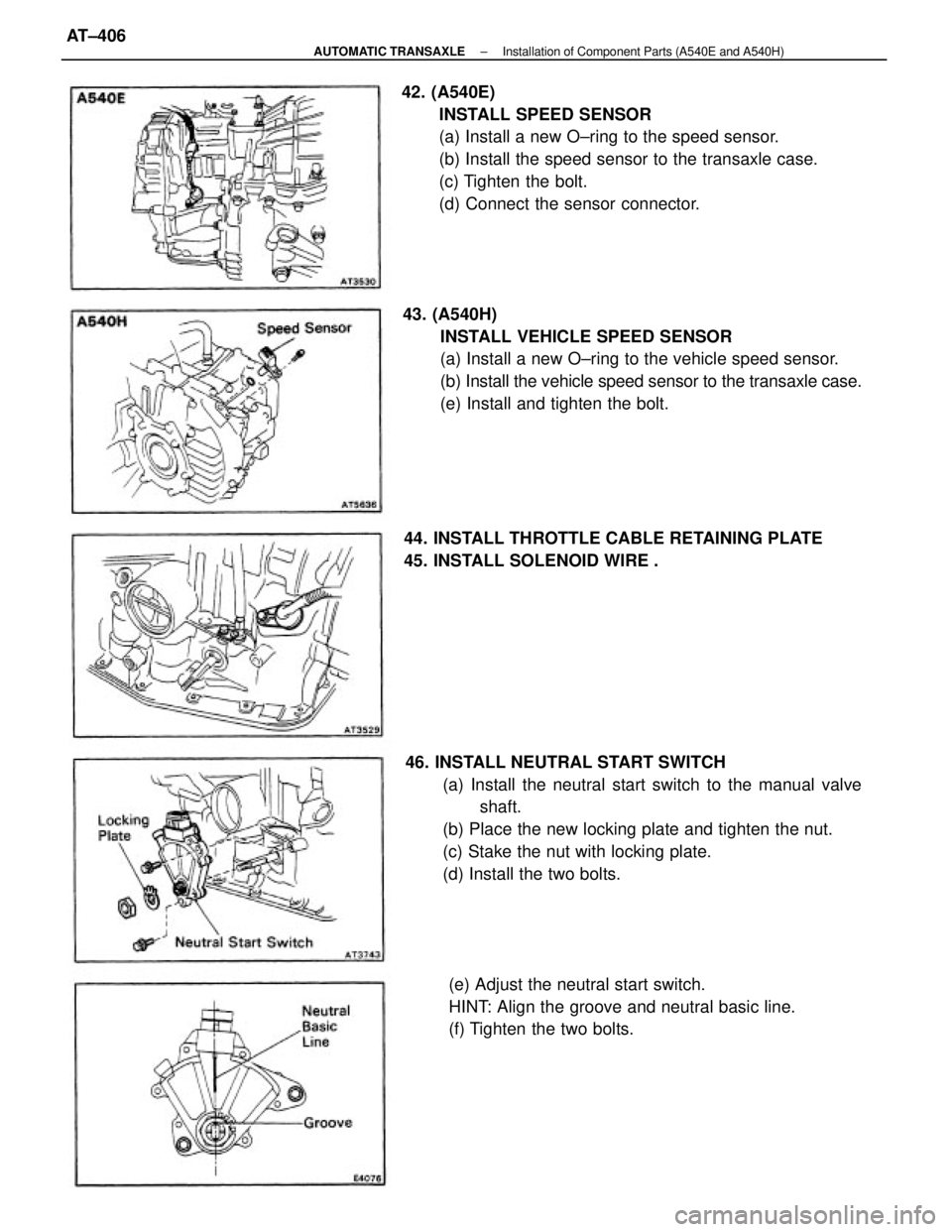

46. INSTALL NEUTRAL START SWITCH
(a) Install the neutral start switch to the manual valve
shaft.
(b) Place the new locking plate and tighten the nut.
(c) Stake the nut with locking plate.
(d) Install the two bolts. 42. (A540E)
INSTALL SPEED SENSOR
(a) Install a new O±ring to the speed sensor.
(b) Install the speed sensor to the transaxle case.
(c) Tighten the bolt.
(d) Connect the sensor connector.
43. (A540H)
INSTALL VEHICLE SPEED SENSOR
(a) Install a new O±ring to the vehicle speed sensor.
(b) Install the vehicle speed sensor to the transaxle case.
(e) Install and tighten the bolt.
(e) Adjust the neutral start switch.
HINT: Align the groove and neutral basic line.
(f) Tighten the two bolts. 44. INSTALL THROTTLE CABLE RETAINING PLATE
45. INSTALL SOLENOID WIRE .
± AUTOMATIC TRANSAXLEInstallation of Component Parts (A540E and A540H)AT±406

Taillight Failure Sensor
INSPECTION OF SENSOR
1. INSPECT WARNING LIGHT OPERATION
(a) Disconnect the connector from the failure sensor and
ground the terminal 3 on the wire harness side.
(b) Remove the CHARGE fuse and turn the ignition
switch ON, check that the bulb lights.
If bulb does not light, inspect the bulb.
2. INSPECT SENSOR CIRCUIT
Disconnect the failure sensor connector and inspect the
connector on the wire harness side as shown in the chart.
If circuit is as specified, replace the relay.
Stop light switch ON (Brake pedal depressed)Stop light switch OFF (Brake pedal released)
Turn light control switch TAIL or HEAD Turn ignition switch to OFF or ACC Turn ignition switch to OFF or ACC
Turn light control switch OFF Turn ignition switch ON
Remove CHARGE fuse
Turn ignition
switch ON
Install CHARGE fuse
Tester
connectionSpecified value
Battery voltage
Battery voltage
Battery voltageBattery voltage
No voltage Continuity
No voltageContinuityNo vottage No voltage Continuity
ContinuityNo voltage
Continuity ContinuityConditionCheck for
Voltage Voltage
VoltageAlways
AlwaysAlways
± BODY ELECTRICAL SYSTEMLightingBE±20

Light Control Rheostat
TAIL Fuse
IGN Fuse
Water Temperature Sender Gauge
Ground
Seat Beh Warning Relay
Brake Fluid Level Warning Switch and Parking
Brake Switch
CHARGE Fuse
TCCS ECU
A.B.S. ECU
Cruise Control ECU and ECT ECU
Ground
Fuel Sender Gauge Terminal 3
Fuel Sender Gauge Terminal 2
GAUGE Fuse
DOME Fuse
Door Courtesy Switch
Low Oil Pressure Switch
Light Failure Sensor
Combination Meter and Gauges
(w/o Tachometer)
Turn Signal Switch Terminal 28
Ground
Turn Signal Switch Terminal 25
Turn Signal Switch Terminal 23 (USA)
HEAD±HI (RH) Fuse (CANADA)
A/T Oil Temperature Switch
COMBINATION METER CIRCUIT
Wiring Connector Side
No.
± BODY ELECTRICAL SYSTEMCombination MeterBE±32

Light Control Rheostat
TAIL Fuse
IGN Fuse
Water Temperature Sender Gauge
Ground
Seat Belt Warning Relay
Brake Fluid Level Warning Switch and Parking
Brake Switch
CHARGE Fuse
TCCS ECU ,
A. B. S. ECU
Cruise Control ECU and ECT ECU
Ground
Fuel Sender Gauge Terminal 3
Fuel Sender Gauge Terminal 2
. GAUGE Fuse
DOME Fuse
Door Courtesy Switch
Low Oil Pressure Switch
Light Failure Sensor
Turn Signal Switch Terminal 28
Ground
Turn Signal Switch Terminal 25
Turn Signal Switch Terminal 23 (USA)
HEAD±HI (RH) Fuse (CANADA)
A/T Oil Temperature Switch
Igniter
Combination Meter and Gauges
(w/ Tachometer)
COMBINATION METER CIRCUIT
Wiring Connector Side
No.
± BODY ELECTRICAL SYSTEMCombination MeterBE±33

Speedometer
INSPECTION OF SPEEDOMETER
INSPECT SPEEDOMETER OPERATION (ON±VEHICLE)
(a) Using a speedometer tester, inspect the speedometer
for allowable indication error and check the operation
of the odometer.
HINT: Tire wear and tire over or under inflation will increase
the indication error.
Speed Sensor
INSPECTION OF SPEED SENSOR
INSPECT SPEED SENSOR
Check that there is continuity between terminals A and B
four times per each revolution of the shaft.
If operation is not as specified, replace the speedometer.If error is excessive, replace the speedometer.
(b) Check the speedometer for pointer vibration and ab-
normal noise.
HINT: Pointer vibration can be caused by a loose
speedometer cable.
Standard indication
(km/h)Standard indication
(mph)Allowable range
(mph)
Allowable range
(km/h)
± BODY ELECTRICAL SYSTEM. Combination MeterBE±35

Vacuum Switch
(w/ A.B.S.) (w/o A.B.S.)ECT Computer
Wire Harness Side
Alternator
Wire Harness SideBrake Fluid Level
Warning Switch
Connectors
Cruise Control Computer
Neutral Start SwitchStop Light Switch
Parking Brake SW
Vacuum PumpSpeed SensorControl SW
Clutch SW Main SW
Actuator
± BODY ELECTRICAL SYSTEMCruise Control SystemBE±70

Diagnosis System
OUTPUT OF DIAGNOSTIC CODES
1. READ TYPE A CODE
(a) Turn the ignition switch on.
(b) Turn the set/coast switch on, and keep it on.
(e) Push the main switch on.
(d) Turn the set/coast switch oft.
(e) Meet the conditions listed below.
(f) Read the diagnostic code on the main switch indica-
tor.
HINT:
wTo save time performing the next test, do not turn off the
ignition switch when steps (a) ± (f) are completed.
wChecking of No. 4 code is done with the vehicle jacked
up and the engine idling.
wIf there is no indication code, perform diagnosis ±and
inspection. (See page Be±74)
Each cancel switch on (Stop light switch,
Parking brake switch, Clutch switch,
Neutral start switch)Each cancel switch circuit is
normal.Set/coast switch circuit is
normal.
Vacuum switch circuit is
normal.Resume/ accel switch
circuit is normal.
Speed sensor circuit is
normal.Speed sensor circuit is
normal.
Drive 30 km/h 0 9 mph) or belowDrive 40 km/h (25 mph) or overResume/accel switch on Set/coast switch on
Vacuum switch on
Indication code ConditionsDiagnosisNo.
± BODY ELECTRICAL SYSTEMCruise Control SystemBE±71
