1986 TOYOTA CAMRY V20 ac relay

RELAYS
INSPECTION OF A/C RELAY
1. REMOVE COVER OF RELAY BOX
2. REMOVE RELAY
3. INSPECT RELAY CONTINUITY
(Magnetic Clutch Relay)
If continuity is not as specified, replace the relay.
(A/C Fan Relay No. 3)If continuity is not as specified, replace the relay.
If continuity is not as specified, replace the
relay.
Apply battery voltage to
terminal 2 (±j and 6 (+)Apply battery voltage to
terminal 1 and 3
Apply battery ±voltage to
terminal 1 and 3
(A/C Fan Relay No. 2)
Condition
ConditionCondition
Terminal
Terminal
Terminal
Constant
ConstantConstant
± AIR CONDITIONING SYSTEMRelaysAC±37

WATER TEMPERATURE SWITCH
All±Trae/4WD Model
INSPECT SWITCH CONTINUITY
Inspect the switch continuity.
If detective, replace the water temperature
switch.If continuity is not as specified, replace the
relay. All±Trac/4WD Model
(A/C Cut Relay)
Apply battery voltage to
terminal 1 and 2Terminals
Condition
Constant
± AIR CONDITIONING SYSTEMRelaysAC±38

WATER TEMPERATURE SWITCH
All±Trae/4WD Model
INSPECT SWITCH CONTINUITY
Inspect the switch continuity.
If detective, replace the water temperature
switch.If continuity is not as specified, replace the
relay. All±Trac/4WD Model
(A/C Cut Relay)
Apply battery voltage to
terminal 1 and 2Terminals
Condition
Constant
± AIR CONDITIONING SYSTEMWater Temperature SwitchAC±38

1. REMOVEL LOWER AND UPPER UNIT CASES
(a) Discoonnect connectors
(b) Remove wire harness.
(c) Remove four clips.
(d) Remove five screws.
(e) Remove condenser fan control amplifier (2vZ±FE
E/G) or A/C cut amplifier (3S±FE E/G).
(f) Remove compressor control amplifier (2VZ±FE
E/G) or
A/C cut relay (All±Trac/4WD model).
(g) Remove upper unit case.
(h) Remove thermistor with thermistor holder.
(i) Remove lower unit case.
2. REMOVE EXPANSION VALVE
(a) Disconnect the liquid tube from the inlet fitting of the
expansion valve.
(b) Remove the packing and heat sensing tube from
suction tube of evaporator.
DISASSEMBLY OF COOLING UNIT
± AIR CONDITIONING SYSTEMCooling UnitAC±40

ROAD TEST (A140E)
NOTICE: Perform the test at normal operating fluid
temperature (122 ± 176°F or 50 ± 84°C). .
1. D RANGE TEST IN NORM AND PWR PATTERN
RANGES
Shift into the D range and hold the accelerator pedal
constant at the full throttle valve opening position.
Check the following:
(a) 1±2, 2±3 and 3±O/D up±shifts should take place, and
shift points should conform to those shown in the au-
tomatic shift schedule. (See page AT±49)
Conduct a test under both Normal and Power patterns.
HINT:
There is no O/D up±shift when coolant temperature is
below 122
°F (50°C).
There is no lock±up when the vehicle speed is 10 km/h (6
mph) less than the set cruise control speed.
EVALUATION
(1) If there is no 1 ± 2 up±shift:
wNo. 2 solenoid is stuck
w1±2 shift valve is stuck
(2) If there is no 2 ± 3 up±shift:
w No. 1 solenoid is stuck
w2±3 shift valve is stuck
(3) If there is no 3 ± O/D up±shift:
w3±O/D shift valve is stuck
(4) If the shift point is defective:
wThrottle valve, 1±2 shift valve, 2±3 .shift valve, 3±
wO/D shift valve etc., are defective
(5) If the lock±up is defective:
wLock±up solenoid is stuck
wLock±up relay valve is stuck
(b) In the same manner, check the shock and slip at the 1
±2, 2 ± 3 and 3 ± O/D up±shifts.
EVALUATION
If the shock is excessive:
wLine pressure is too high
wAccumulator is defective
wCheck ball is defective
(c) Run at the D range lock±up or O/D gear and check for
abnormal noise and vibration.
HINT: The check for the cause of abnormal noise and
vibration must be make with extreme care as it could
also be due to loss of balance in the drive shaft, tire,
torque converter, etc.
± AUTOMATIC TRANSAXLETroubleshooting (Mechanical System Tests) (A140L and
A140E)AT±43

HINT: During re±assembly please refer to the spring specifications above to help discriminate be-
tween the different springs.

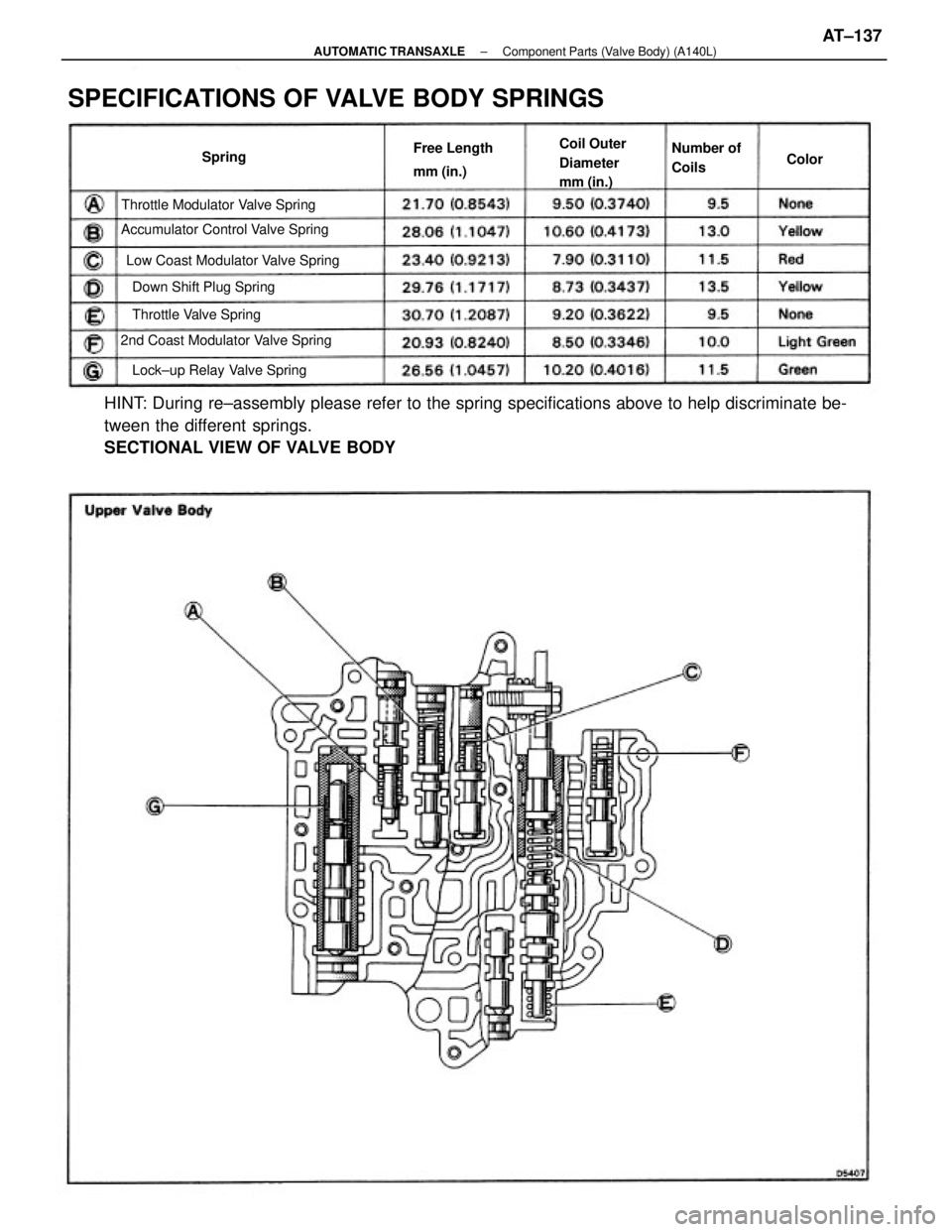

SECTIONAL VIEW OF VALVE BODY
SPECIFICATIONS OF VALVE BODY SPRINGS
Low Coast Modulator Valve Spring
2nd Coast Modulator Valve SpringAccumulator Control Valve SpringThrottle Modulator Valve Spring
Lock±up Relay Valve SpringCoil Outer
Diameter mm (in.)
Down Shift Plug Spring
Cut±back Valve Spring Throttle Valve SpringFree Length
mm (in.)Number
of Coils SpringColor
± AUTOMATIC TRANSAXLEComponent Parts (Valve Body) (A140E)AT±125

HINT: During re±assembly please refer to the spring specifications above to help discriminate be-
tween the different springs.
SECTIONAL VIEW OF VALVE BODY
SPECIFICATIONS OF VALVE BODY SPRINGS
Low Coast Modulator Valve Spring
2nd Coast Modulator Valve SpringAccumulator Control Valve SpringThrottle Modulator Valve Spring
Lock±up Relay Valve SpringCoil Outer
Diameter
mm (in.)
Down Shift Plug Spring
Throttle Valve SpringFree Length
mm (in.)Number of
Coils Spring
Color
± AUTOMATIC TRANSAXLEComponent Parts (Valve Body) (A140L)AT±137

ROAD TEST (A540E and A540H)
NOTICE: Perform the test at normal operating fluid temperature
(122 ± 176°F or 50 ± 80°C).
1. D RANGE TEST IN NORM AND PWR PATTERN
RANGES
Shift into the D range and hold the accelerator pedal
constant at the full throttle valve opening position.
Check the following:
(a) 1±2, 2±3 and 3±O/D up±shifts should take place, and shift
points should conform to those shown in the automatic
shift schedule. (See page AT±230)
Conduct a test under both Normal and Power. patterns.
HINT:
wThere is no O/D up±shift and lock±up when the coolant
temp. is below 140
°F (60°C) (A540E) or 122°I= (50°C)
(A540H).
wWhen the coolant temp. is below 140°F (600C) or
122°F (50°C) (A540H), the shift point is lower than specified in
the automatic shift schedule.
EVALUATION
(1) If there is no 1 ± 2 up±shift:
wNo. 2 solenoid is stuck
w1±2 shift valve is stuck
(2) If there is no 2 ± 3 up±shift:
wNo. 1 solenoid is stuck
w2±3 shift valve is stuck
(3) If there is no 3 ± O/D up±shift:
w3±4 shift valve is stuck
(4) If the shift point is defective:
wThrottle valve, 1±2 shift valve, 2±3 shift valve, 3±4
shift valve etc., are defective
(5) If the lock±up is defective:
wLock±up solenoid is stuck .
wLock±up relay valve is stuck
(b) In the same manner, check the shock and slip at the 1
±2, 2 ± 3 and 3 ± O/D up±shifts.
EVALUATION
If the shock is excessive:
wLine pressure is too high
wAccumulator is defective
wCheck ball is defective
(c) Run at the D range lock±up or 0/C) gear and check for abnor-
mal noise and vibration.
HINT: The check for the cause of abnormal noise and vibra-
tion must be make with extreme care as it could also be due
to loss of balance in the drive shaft, tire, torque converter,
etc.
± AUTOMATIC TRANSAXLETroubleshooting (Mechanical System Tests) (A540E and
A540H)AT±227
