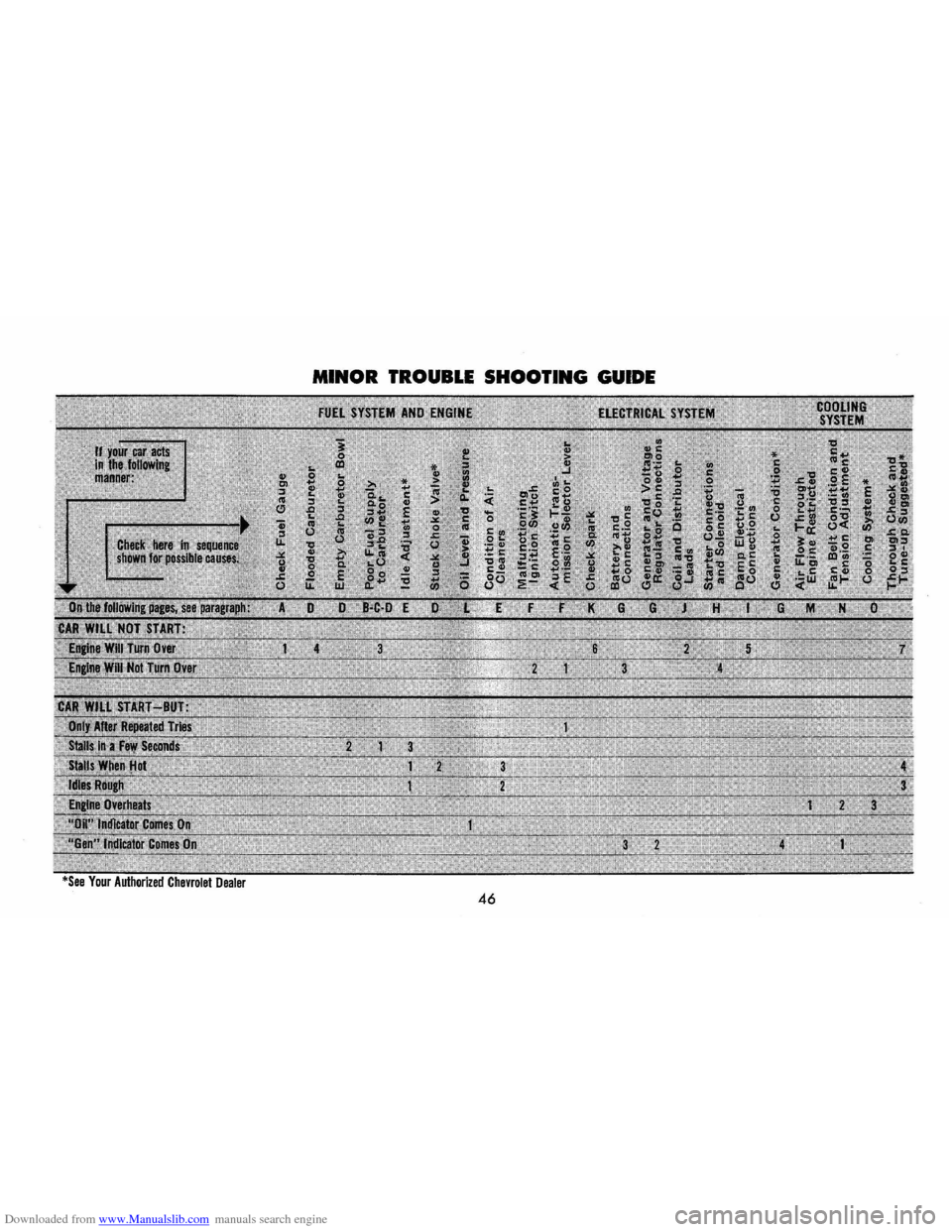

The chart on the previous page, and the information on the pages
which follow, contains information designed to aid the average
driver to discover, and possibly correct, conditions resulting in minor
mechanical
difficulties in his car. The chart, designed to point out
possible solutions to
several of the most common automotive mal
functions
and point out a logical checking sequence, will lead step
by step to the most likely causes and corrective procedures. If, after
making the checks and adjustments suggested, the source of the
trouble
has not been found and corrected, it is strongly recom
mended
that an Authorized Chevrolet Dealer inspect the vehicle and
make whatever repairs or adjustments are necessary.
FUEL SYSTEM AND ENGINE
If the ignition switch will cause the engine to "turn over" or
"crank" but the car will not start, check Steps A through D below.
NOTE:
If continual "flooding" of the carburetor is evidenced by a
carburetor wet with fuel or black exhaust smoke, perform the
operation
suggested in paragraph 0 only .
(A) The first and most obvious,
and one of the most frequently
overlooked, items to check when
you
have- difficulty in starting your
car is the amount of fuel in the
tank.
Make it a habit to check the
FUEL GAUGE regularly and most
especially
at a time when the en
gine will "turn over" but will not
start.
(8)
If the fuel tank is not empty, Checking Fuel Flow
47
you may check further to see whether the fuel is reaching the
engine. Disconnect the fuel lines
at the carburetor. Place a jar or cup
under open line and briefly "crank" the engine by means of the
starter. If fuel spurts from the line, you may assume that the FUEL
LINES are clear and the FUEL PUMP is operating properly. If no fuel
leaves the line, either the fuel lines
or fuel pump are at fault. See
your Authorized Chevrolet Dealer.
(C) Before reconnecting the fuel lines to the carburetor, remove
the
FUel FilTER from carburetor inlet and check its condition.
If it appears to be clean, replace it and reconnect the fuel lines. If
the filter appears to be plugged, clean it as well as possible by
scraping out the foreign material and cleaning in a solvent. Then
reinstall the filter
and repeat the procedure with the second carbu
retor. Replace the filters with new ones as soon as possible .
(0) If the fuel seems to be reaching the carburetors properly, the
problem may
be: an EMPTY CARBURETOR BOWL caused by a
"stuck shut" float valve or a flOODED CARBURETOR caused by a
"stuck open" condition and evidenced by gasoline flowing down
the outside
of the carburetor; or a stuck CHOKE valve. Remove the
air cleaners from the carburetors. Check that the choke valves move
freely and are not stuck. Tap the side of the carburetors sharply
several times with a light tool such as a screwdriver handle or pliers.
Replace the
air deaners and attempt to start the engine in the
normal manner.
(E) If the car will start but stalls when hot or has a rough idle,
you
can suspect a faulty IDLE ADJUSTMENT, or extremely dirty
Page 51 of 56
Downloaded from www.Manualslib.com manuals search engine and blocked AIR CLEANER ELEMENTS. Replace the air cleaner ele
ments
if necessary. Idle adjustment should be performed by your
Chevrolet Dealer.
If the above Fuel System checks and the checks suggested under
the Electrical System following do not correct the malfunction, it is
recommended that you turn to your Authorized Chevrolet Dealer
for further checks, adjustments
or repairs.
ELECTRICAL SYSTEM
If, when the ignition key is turned to START, the engine will not
turn over, you have
good reason to suspect electrical trouble.
(F) When there is no response at all to attempts to start the car,
check the obvious-your AUTOMATIC TRANSMISSION SELECTOR
LEVER must be in neutral position before the engine can be started.
Turning the IGNITION SWITCH rapidly back and forth several
times
will sometimes correct a poor internal switch contact.
(G) The BATTERY may be discharged. If so, lights will be dim and
the horn will have a poor tone if it will blow at all.
Usually
a garage recharge will be necessary to return the battery
to operotion. Occasionally, however, a long drive will recharge
the battery.
NOTE:
If the battery is determined to be dead, and for no apparent
reason, have
your Authorized Chevrolet Dealer check the
battery, the GENERATOR and the
VOLTAGE REGULATOR.
GENERATOR trouble should already have been indicated
by
the indicator on the instrument panel. Never remove generator
"BAT" lead without first disconnecting battery ground cable.
48
POOR BATTERY CONNECTIONS may be suspected if the car has operated properly a short time before and now not even the horn
will operate. Check both ends of both battery cables. If the con
nections are corroded, a car may sometimes be restored to operation by removing all cable ends, scraping all contacting surfaces
clean with a pen knife, and reassembling. If the cables are broken,
they must be replaced. The power supply should now be restored
unless the battery is dead.
(H) If, however, the lights and horn work properly but the starter will still not turn over, check the STARTER connections. A "click" from the starter solenoid indicates that the wiring to the starter is properly installed. If the wiring seems to be clean and tightly installed, the trouble is probably in the starter itself and should be referred to your Authorized Chevrolet Dealer.
When the engine will "turn over" but will not start, the following
items may be checked along with Fuel System Checks listed previously.
(I) With a clean dry cloth wipe the ceramic portions of the spark plugs dry. In particularly damp or rainy weather dampness may be the cause of not sta rting, especially when the engine is cold.
(J) Check the cables at the top of the distributor and coil as well as each spark plug cable for
tightness.
(K) If the car will still not start, check for spark at the spark plugs in the following manner:
Pull one of the spark plug
wires off its spark plug. Insert a
short piece of bare wire (such as a bobby pin) between the rubber Distributor and Coil Leads
Page 52 of 56
Downloaded from www.Manualslib.com manuals search engine cup at the end of the spark plug
wire
and the tubular metal con
nector inside of it. If the spark
plug wire is wet or oily, wipe it
dry.
Wrap a dry handkerchief or
facial tissue, folded several thick
nesss, around the wire at least
three inches back from the end
and grasp wire at this point.
Hold the
bare wire about V4 inch
from the bare tip of the spark
plug from which you removed the
wire. When the engine is "turned Checking for Spork
over" a spark should jump across the V4 inch space, indicating
ample current supply.
If no spark jumps, the difflcultyis probably
caused by a defective ignition part and should be corrected by
your Authorized
Chevrolet Dealer.
COOLING SYSTEM
When the car will run but evidences serious overheating on the
temperature
gauge in the instrument panel, there are several items
which may
be checkd.
(L) Engine overheating will occur when the OIL LEVEL falls
dangerously low.
Check the oil level as a matter of course.
CAUTION: Never drive the car when the TEMP-PRESS indicator in
the instrument panel is lighted.
49
1M) Check the air intake louvers. Clean them if they are plugged
with leaves
or other foreign material.
IN) Condition of the FAN BELT
is very important, not only for en
gine cooling but also for proper
generator operation. Check the
condition of the belt. Replace
it
if it is worn or frayed. Loosen the
idler
bracket bolts and move
the
bracket toward the engine
to remove and replace the belt.
Tighten the belt, whether new
or
old, by loosening the idler bracket
nuts, prying with a bar on the Checking Fan Be" Tension
bracket until the belt is tensioned properly, then retighten the
bracket bolts. Proper belt tension is such that, when belt is de
flected downward with moderate thumb pressure at a point midway
between the
generator and fan pulleys, the belt will deflect about
:Va" to K6". Do not overtighten the belt.
(0) Another cause of engine overheating may be an inoperative
COOLING SYSTEM THERMOSTAT. If the thermostat should fail
in the closed position, it will not permit air to circulate through the
engine.
See your Authorized Chevrolet Dealer.
Page 53 of 56
Downloaded from www.Manualslib.com manuals search engine TRAILER

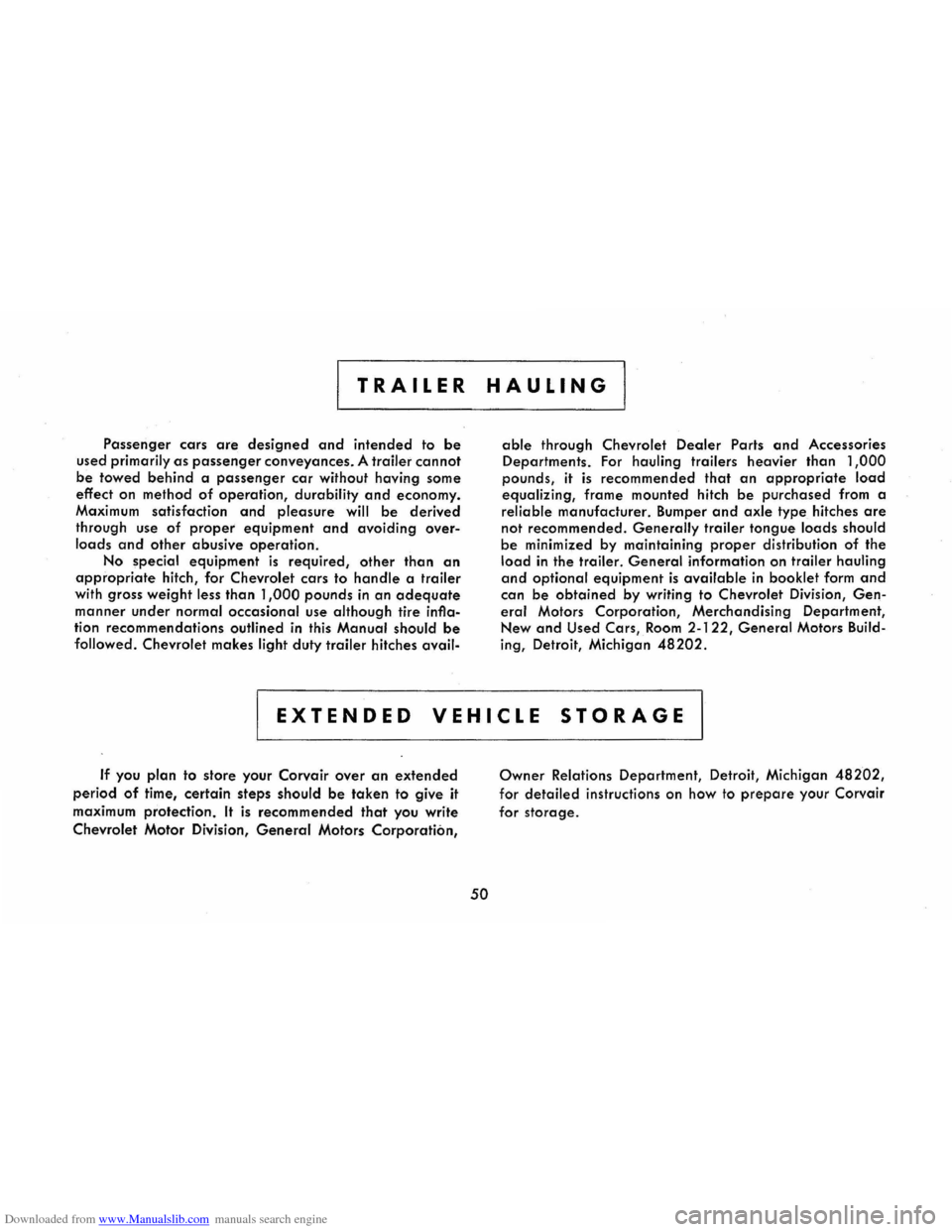

Passenger cars are designed and intended to be
used primarily as passenger conveyances. A trailer cannot
be towed behind a passenger car without having some
effect on method of ope.ration, durability and economy.
Maximum satisfaction and pleasure will be derived
through use of proper equipment and avoiding over
loads and other abusive operation.
No special equipment is required, other than an
appropriate hitch, for Chevrolet cars to handle a trailer
with gross weight less than 1,000 pounds in an adequate
manner under normal occasional use although tire inflation recommendations outlined in this Manual should be
followed. Chevrolet makes light duty trailer hitches avail-
HAULING
able through Chevrolet Dealer Parts and Accessories
Departments. For
hauling trailers heavier than 1,000
pounds, it is recommended that an appropriate load
equalizing, frame mounted hitch be purchased from a
reliable manufacturer. Bumper and axle type hitches are
not recommended. Generally trailer tongue loads should
be minimized by maintaining proper distribution of the
load in the trailer. General information on trailer hauling
and optional equipment is available in booklet form and
can be obtained by writing to Chevrolet Division, Gen
eral Motors Corporation, Merchandising Department,
New and Used Cars, Room 2-122, General Motors Build
ing, Detroit, Michigan 48202.
EXTENDED VEHICLE STORAGE
If you plan to store your Corvair over an extended
period of time, certain steps should be taken to give it
maximum protection. It is recommended that you write
Chevrolet Motor Division, General Motors Corporation,
50
Owner Relations Department, Detroit, Michigan 48202,
for detailed instructions on how to prepore your Corvair
for storoge.
Page 54 of 56
Downloaded from www.Manualslib.com manuals search engine CHEVROLET ZONE OFFICE ADDRESSES
Irondale, Ala. (Birmingham) 2300 Crestwood Blvd.
Los Angeles, California
1800 Avenue of the Stars
Oakland,
California 10910 E. 14th St.
San
Diego, California 707 Broadway
Denver, Colorado
4355 Kearney St.
Jacksonville, Florida 8206 Phillips Hwy.
Doraville, Georgia
(Atlanta) 6005 Peachtree Industrial Blvd.
Indianapolis, Indiana 2350 N. Shadeland Ave.
South Bend, Indiana 320 W. Jefferson Blvd.
Broadview,
Illinois (Chicago) 2600 S. 25th Ave.
Peoria,
Illinois 2009 N. KnOxville
Des Moines, Iowa
818 Fifth Ave.
Lenexa, Kansas (Kansas City)
8900 Marshall Dr.
Wichita, Kansas
4921 E. 21st St.
Louisville, Kentucky 4501 Indian Trail
Harahan,
La. (New Orleans)
5401 Jefferson Hwy.
Portland, Maine
150 Riverside St.
Hanover, Maryland (Baltimore) 1800 Parkway Drive
Westwood, Mass. (Boston)
505 Blue Hill Dr.
Grand Blanc, Michigan (Flint)
5198 Territorial
Southfield, Michigan (Detroit)
15565
Northland Dr.
Edina, Minn.
(Minneapolis) 7600 Metro Blvd.
Hazelwood, Missouri
(St. Louis) 5801 N. Lindbergh Blvd.
Omaha, Nebraska 11616 "I" Street
Englewood, N. J. (Newark) 385 Nordhoff Place
Bethpage, Long Island, N. Y .
175 Central Ave., South
Cheektowaga, N. Y. (Buffalo) 2615 Walden Ave.
Syracuse, N. Y . 107 Twin Oaks Dr.
White Plains, N.
Y. 10·12 Mitchell Place
51
Charlotte , N . C. 701 Interstate 85
Fargo, N. D. 701 Fourth Ave., N.
Cleveland, Ohio 12990 Snow Road (Parma)
Sharonville , Ohio (Cincinnati) 11575 Reading Rd.
Oklahoma City, Oklahoma N. E. 36th & Santa Fe Streets
Beaverton, Oregon (Portland) 2250 N. W. Tualatin Valley Hwy.
Carnegie, Penn. (Pittsburgh)
507·527 Forrest Ave.
Harrisburg, Pennsylvania
101 Radnor St.
King of Prussia, Penn. (Phila.) 935 First Avenue
Memphis, Tenn.
3495 Lamar Ave.
Dallas, Texas
8635 Stemmons Freeway
EI Paso, Texas 1633 Airway Blvd.
Houston, Texas
4807 Wake Forest st.
North Salt Lake, Utah 845 N. Overland St.
Sandston,
Va. (Richmond) 5450 Lewis Road
Charleston,
W. Virginia 1205·1211 Virginia St. , E.
Seattle, Washington 233 Sixth North
Green Bay, Wisconsin 1901 S. Webster Ave.
Milwaukee, Wisconsin
4066 N. Port Washington Ave.
CANADA
Vancouver, B. C. 900 Terminal Avenue
Calgary, Alta. 4220 Blackfoot Trail,
Box 2510
Regina , Sask. 8th Avenue and Toronto Sts. Box 2006
Winnipeg , Man.
1345 Redwood Avenue
London,
Onto Box 3412·Terminal
Ottawa, Onto
875 Belfast Road
Toronto ,
Onto 68 Richmond St., E.
Montreal, Que. 5000 Trans·Canada Highway ,
Pointe Claire, Quebec
Moncton , N .
B. 65 3 St. George St.
MEXICO
General Motors de Mexico S. A. de C. V. Av. Ejercito Nacional
No . 843 Mexico 5, D. F. Telephone 25453921
Page 55 of 56
Downloaded from www.Manualslib.com manuals search engine INDEX Page Air Cleaner. . . . . . . . . .. , .. . . . . . . .. . . . . . . . . . . .......... 42 Air Conditioning.. ............ ... .... .• . . .20,43 & 44 Air Injection Reactor......... ........... . ... ... 38 Air Recirculating Cover Plate. . . . . . . . . . . .• . . . . .. . . . .. . . 20 Air Vents. . . . . . . . . . . . . . . . . . . . . . . 22 Ash Tray. ........ .. ... 22 Battery........... ............ ....•...•................. 42 Brake Adjusters...................... .. .. ... ............. 17 Brake System Warning Light. . ................. 14 Brake Lmings. . ....... ....... ........ ............... 43 Brake Main Cylinder.. ........... . ...... 43 Brake-Parking. . ............ .......... . .. 18 & 43 Bright Metal Parts..... .. ..................... '. 30 Chassis Lubrication. . . . . . . . . . . . . . 41 Cigarette Lighter. . . .. .... ... .. . . . .. .. " 22 Circut Brea ker. . . . . . ................. .. .............. 15 & 45 Cleaning Hints Exterior Appearance........ .... .... . ............ . 30 Interior Appearance.. ............... . ............. ........ 31 Clutch Adjustment......... 17 Clutch Cross Shaft. . . .. . . . . . . . ... .. . . 41 Clutch Pedal.. .. . .. .. .. .. . . .. .. . .. .. . 17 Clutch Pulleys & Cables..................... . 43 Cooling System. . . . . . . . . . . . . . . . . . ........ ....... 34 & 43 Crankcase.ventilation (Positive). 37 Dimmer Switch... .......... ..... 16 Distributor. . . . . . . 42 Doors and Locks. .. ..... .................. .• ................. 23 Driving for Economy..... ...... ...... 7 Emergency Start. . . . . . . . . . . . . . . . . . 12 Engine Compartment.... . . . . . . . . . . . . . . . . . . . .. .. . . 28 Engine Fuel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 32 Engine Lubrication. . . . . . . . . .. . . . .• . . . . . . . • . . . . . . .33& 38 Fan Belt........ .... ..................... ..... 38 Foreign Country Operation. .................. 32 Front Suspension. . . . . . . . . . . . . . ... . . . . . . . . . . . . . . . . . . . . . 41 Front Wheel Bearings.. . ............. .......... . 43 Fuel Filter. . . . . . . . . . . . . . . •. . . . . . . . . .. . . . . 41 Fuel Guage.. ............ 13 Fuses.. .. .. ... ...................... ..... 45 ~s~p.......... ~ Gen·Fan .Indicator........ 13 Hazard Warning Flasher. . 17 Headrest...... . . ....... ... .. ........ 26 Heater............................... ..... .. .......... 19 Ignition Switch. . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . 8 Jacking the Car. . . . .. . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 36
52
Keys............... . ......... .............. . Light Control Knob ...................... . . Luggage Compartment ................... . Maintenance and Lubrication (Periodic) .. Octane Requirements. . . . . ......... . Oil Filter .... ............ . Pa rking Bra ke Operation . ..................... . Service .......... ...... . Polishing Your Corvair... . . ... . . . . . .. . .........•. .... ........ Positraction Axle. . . ... ............... .. ...... .. .. .... . Radios. . . . .... . ........... . Rear Axle.... . . ...................................... . . Rocking Car .............. . Occupant Restraint Belts .. . . Seats Front Seat Back Lock ....... .•...... Front Seat Adjustment. Rear Seat-Folding ... Service Bra kes. . . . . . . . . .. . ......................... ... . Serial and Unit Numbers .......... .. . Spare Tire..... . .• ......... .................•.•. Specifications. . . . ................... ... .. .• ........ Speedometer ... .. ............... . Starting the Engine .... . Steering Lin kage ...... . Steering Gear ............... . Telescoping Steering Column. Temp·Press Indicator. Tires. Towing ..... Trailer Hauling. Transmission Manual Operation. ................ . ....... .. .... . Service ................... .. .. ...... .. . Powerglide Operation. Service ...... . Operating Tips ....... . Trouble Shooting Guide.......... . .............. ... . Directional and Lane Change Signal. . ....• ...•.... Warm·up... ............ . ....... .. ........... ... . Washing Your Corvair. . . ........ . White Sidewall Tires.. . . . . . . . . . . . . . . ......... .. . Windshield Wipers and Washers. . . .. .. .. .. .
Page 22 16 29 38 32 39
18 43 30 12 21 41 12 24
23 24 27 17 44 36 44 13 8 41 38 22 13 34 12 50
9 39
10 40 11 46 16 9 30 31 18
Page 56 of 56

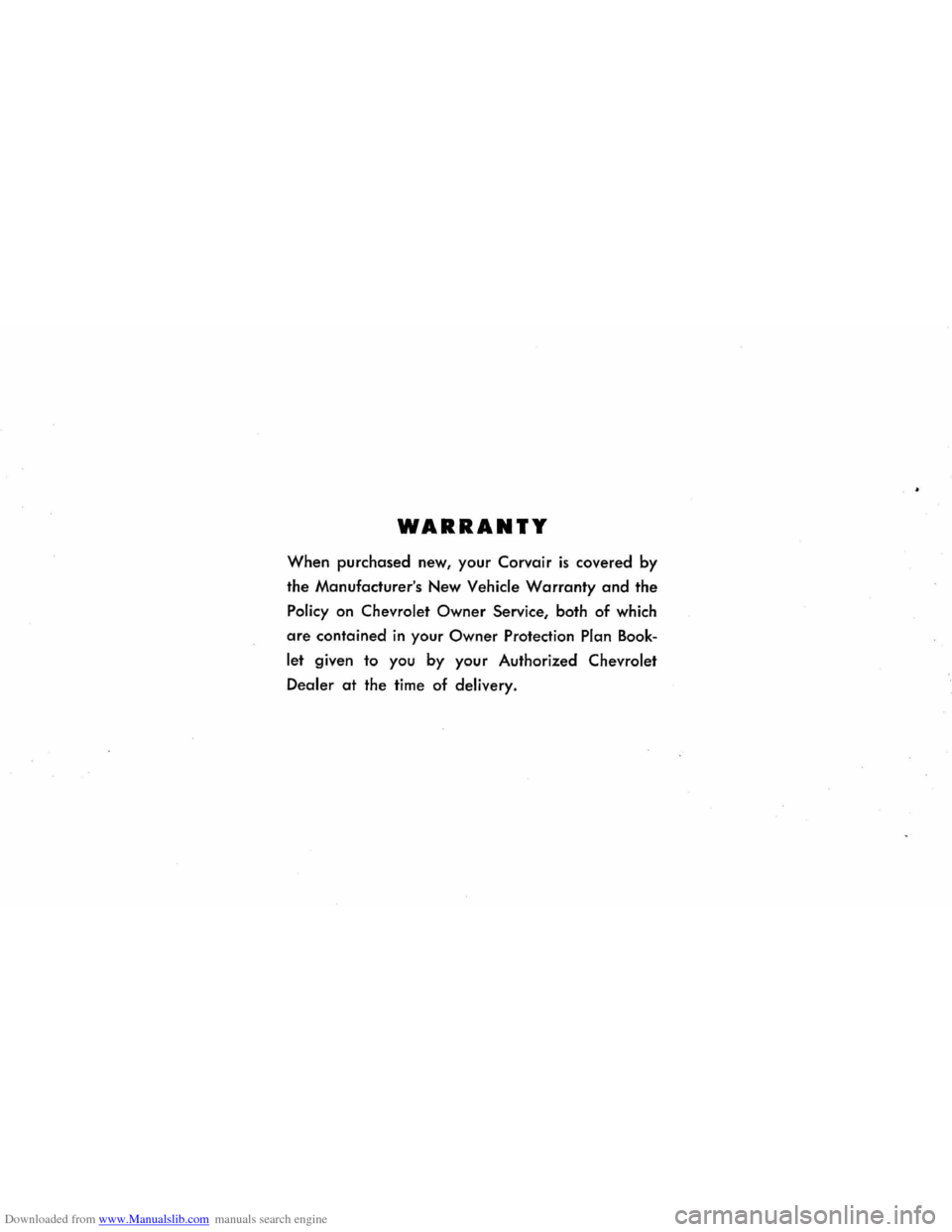

Downloaded from www.Manualslib.com manuals search engine WARRANTY
When purchased new, your Corvair is covered by
the Manufacturer's New
Vehicle Warranty and the
Policy on Chevrolet Owner Service, both of which
are contained in your Owner Protection Plan Book
let given to you by your Authorized Chevrolet
Dealer
at the time of delivery.
