HEATER AND AIR CONDITIONING 1A-19

Transducer

The transducer will produce a vacuum output that is

completely adjustable by varying the input voltage which

is provided by the amplifier. An increase in the applied

voltage results in a reduced vacuum output.

Power Servo

The power servo receives a vacuum signal from the

transducer, and it is capable of assuming any position

that is called for by the sensors, amplifier, and trans-

ducer. The power servo performs the following functions:

1.
Positions the temperature mix door via the tern-

perature door link. The position of this door~"de-

termihes the portions of hot and cold air being

blended and discharged into the car.

2.
Operates the power servo vacuum valve which de-

termines the air flow paths for heating and air

conditioning.

3.
Contains a printed circuit board which controls the

blower speed. The power servo position determines

the blower speed, but the control lever switch can

override the blower program depending upon the

customer's preference.

4.
Contains the "Hi" blower delay thermistor and the

"master delay thermistor".

Outside Air Diaphragm

When there is no vacuum applied to the hose, the out-

side air door is closed under spring tension. With the

door closed, air is taken from the inside of the auto-

mobile and re-circulated. Applying vacuum to the dia-

phragm opens the door for outside air.

Mode Door Diaphragm

Located behind the duct work, the mode door diaphragm

directs the air flow out either the air conditioning outlets,

the heater floor outlet, or both the heater and air con-

ditioning outlets. This is a push-pull type diaphragm

actuated by vacuum through two hoses and controlled by

the power servo vacuum switch.

Defroster Door

The defroster door is in the defog position until vacuum

is applied to the actuator to obtain either full heat or full

de-ice position.

High Blower Delay Thermistor

The high blower delay thermistor is located on the

power servo housing under the power servo vacuum valve

and printed circuit board assemblies. The function of the

thermistor is to operate the blower at a reduced speed

when the control is in the HI FRONT position until the

residual cold air is discharged from the duct work. This

function occurs when the blower first comes "on" in cold

weather.

Vacuum Tank

During heavy acceleration, the vacuum supply from
the carburetor drops. The vacuum tank, using a^ check

valve, stores vacuum so that under these conditions

vacuum will be available for the Comfortron.

Thermal Vacuum Valve (Hot Water Vacuum Switch)

When engine coolant temperature reaches 75°F, the

valve opens and supplies vacuum to the outside air door

if the system is calling for outside air.

Master Delay Thermister

This thermistor delays the initial operation of the

blower when the system is in the heat mode. In cold

weather this allows outside ram air to flow through the

system thereby purging the cold air in the ducts gradually

until the coolant reaches about 105°F. Then, the termis-

tor passes enough current to energize the master delay

relay which powers the blower at about nine volts.

Vacuum Relay Valve

This relay valve will shut off transducer vacuum to the

power servo whenever the vacuum from the engine intake

manifold falls below the vacuum in the power servo

supply line (engine stopped or operating at low manifold

vacuum). This causes the power servo to be held in

position when the vacuum supply falls too low to maintain

servo control.

Vacuum Bleeder

A vacuum bleeder insures that the outside air door will

close (diaphragm will bleed down) after the system has

been shut down. This prevents outside air from entering

when starting the system on a cold day before the engine

coolant temperature reaches 75°F.

Sun—Ambient Sensor

The sun-ambient sensor measures the temperature of

the air entering the air intake grille in front of the wind-

shield. The sensor is exposed to sun light so that it can

lower the in-car temperature slightly when the sun

is shining.

Ambient Switch

The ambient switch operates the air conditioning com-

pressor clutch. When the outside temperature is above

40° F. the switch will be closed and the compressor will

be running. This switch is included as| part of the sun-

ambient sensor assembly, but operates independently.

Resistor Assembly

The blower resistors are located in the evaporator

housing. The printed circuit board switch in the power

servo determines which of the resistors is being used,

and as in conventional systems, the resistors control the

blower speed.

System Operation

When starting the Comfortron System in cold weather,

the following sequence of events occurs:

1.
Initially the system is inoperative. In LO FRONT

position the master delay thermistor is warming

(self-heating because current is flowing through it)

CHEVROLET CHASSIS SERVICE MANUAL

HEATER AND AIR CONDITIONING 1A-64

Fig.
90—Evaporator Wiring (Corvette)

AIR INLET VALVE

Four-Season System

Chevrolet

Figure 88 illustrates the vacuum valve which controls

the air inlet operation of the Four-Season System.

A vacuum tank and check valve is used to assure that

the air door will not change its position due to variations

in engine vacuum.

Camqro

Figure 89 illustrates the outside air inlet door assem-

bly, and the door in the kick pad which admits reeir-

culated air to the system.
BLOWER AND EVAPORATOR ASSEMBLY

(Corvette)

Replacement

1.
Remove the evaporator core as outlined under

"Evaporator Core Replacement".

2.
Remove the blower motor as outlined under "Blower

Motor Replacement".

3.
Remove the heater and air conditioning distributor

as outlined under "Air Distributor Duct Removal".

4.
Remove the remaining nuts attaching the blower

and evaporator assembly and the cover assembly

to the studs on the -firewall.

5. Replace the components removed by reversing the

removal, procedure.

AIR DISTRIBUTOR ASSEMBLY

AND OUTLET DUCTS

Four Season System

Chevrolet and Chevelle

Figures 92 through .95 illustrate the air distributor and

outlet ducts as used in the Chevrolet, Chevelle, Camaro,

and Corvette.

Corvette

Right Outlet Duct

Removal

1.
Remove the clamp screw at the inner end of the

outlet duct and loosen the clamp.

2.
Remove the screw and lock washer attaching the

duct outer mounting tab to the body hinge pillar

brace.

3.
Pull the duct and clamp down and away from the

distributor assembly. Disconnect the courtesy light.

4.
The duct extension assembly may now be removed

if desired as well as the deflector assembly. See

Figure 95.

AIR COND.

PULL
AIR PULL- DEFROSTER

FAN PULL HOT PULL

Fig.
91—Corvette Four-Season Controls

CHEVROLET CHASSIS SERVICE MANUAL

CORVETTE BODY 1B-29

CUSHION

CUSHION ASNi.^ty** ACCESS

#2 BODY BRACKET

( 67 ONLY)
SHIM

( 37 POSITION).

CUSHION ASM.

( 37)

SHIM

( 67 POSITION)

CUSHION

( 37 ONLY)

#1 BODY BRACKET

Fig.
65—Body Mounts

PRECAUTIONS

Creams are available to protect the skin from a con-

dition known as occupational, or contact dermatitis. This

common type of dermatitis is not contagious. Improved

resin formulas in the approved kits have almost elimi-

nated skin irritation. Cream is supplied with the kit for

men who may have a tendency toward skin irritation

from the resins or dust.

The application of these creams is recommended

whenever the Resin Kit materials are used. Generally,

the cream is not required when the plastic solder kit is

being used. Directions for using the cream is as follows:

a. Wash hands clean. Dry thoroughly.

b.
Squeeze about 1/2 inch (or 1/2 teaspoonful) of

#71 cream into palm of hand.

c. Spread evenly and lightly until cream disappears.

Work cream into cuticle, between fingers and

around wrists.

d. Apply second coat, repeating Steps b and c.

e. Hold hands briefly under cold running water to

set cream.

2.
Remove resin mixture from hands as soon as possi-

ble and imperatively before mixture starts to gel.

This can be observed by the action of the material

being used. Resin may be removed with lacquer

thinner by washing in soap and water.

3.
Respirators are recommended when grinding. Also

some minor skin irritation from glass and powdered

cured resin may be evident. Washing in cold water

will help to minimize.

4.
Use a belt sander with a vacuum attachment for dust

control if possible.
5. Resin mixtures may produce toxic fumes and should

be used in well ventilated areas.

6. Be careful not to get any resin material on clothing.

7. Use the right materials for the job. It is important

to use the approved kits because Chevrolet's rigid

quality standards assure you the right material to

do the job. Other materials available may not meet

the required engineering and safety standards.

8. Keep the materials, utensils and work area clean

and dry. These repairs involve chemical reactions,

and dirt or moisture may upset the chemical bal-

ances and produce unsatisfactory results.

9. Before starting repair operations, look for hidden

damage by applying pressure around the damaged

area, looking for hairline cracks and other breakage.

Check for minor damage at other points in the vehi-

cle such as around exhaust pipes, grille, headlamps

and points of wear or rub. Early repair of this

minor damage may prevent major repair later.

PLASTIC SOLDER
KIT

The Plastic Solder Repair Kit is used for minor re-

pairs on the Corvette body. These materials will produce

an easy, quick and lasting repair in the case of small

cracks, surface imperfections and small holes.

1.
Use paint remover or power sander, and remove

finish from damaged area. Carefully inspect for

other areas requiring repair.

2.
Mix the materials (fig. 72).

3.
Apply the material, using a putty knife or rubber

squeegee, Figure 73. Work the material into the

repair and build the material up to the desired

CHEVROLET CHASSIS SERVICE

BRAKES 5-9

COMPONENT REPLACEMENT AND REPAIRS

PARKING BRAKE-CHEVROLET, CHEVELLE AND

CAMARO (Figs. 19 and 20)

Pedal Assembly

Removal

NOTE:
Remove positive cable from battery to

eliminate the possibility of creating short cir-

cuits under dash.

1.
Place parking brake pedal in released position.

2.
Remove equalizer check nut, and separate cable

stud from equalizer.

3.
Remove two attaching nuts from mounting studs

located in engine compartment.

4.
Remove front cable .ball end from pedal assembly

swivel.

5. Remove pedal assembly to dash brace attaching

screw.

6. Remove pedal assembly by lowering rear slightly

to avoid scratching dash, and pulling, it out of the

firewall.

Installation

1.
Place pedal assembly in position with the two mount-

ing studs protruding through the holes provided in

the firewall.

2.
Install and tighten pedal assembly to dash brace

attaching screw.

3.
Position front cable ball end into pedal assembly

swivel.

4.
Install and tighten two attaching nuts on mounting

studs located in engine compartment.

5. Place
,
equalizer in position on center cable and

insert front cable stud through equalizer and secure

with check nut.

6. Adjust parking brake as outlined under Maintenance

and Adjustments in this section.

7. Connect positive battery cable.

Front Cable

Removal

NOTE:
Remove positive cable from battery to

eliminate the possibility of creating short cir-

cuits under dash.

1.
Place parking brake pedal in released position.

2.
Remove equalizer check nut, and separate cable

, stud from equalizer.

3.
Remove retainer from cable assembly at inner side

of frame rail.

4.
Remove ball end of cable from pedal assembly

swivel.

5. Compress expanded conduit locking fingers at toe

pan arid withdraw cable from car.

6. On Chevelle, if necessary, remove rubber tube

from front cable.

Installation

1.
On Chevelle, if necessary, replace rubber tube

over front cable.

2.
Position cable ball and conduit tip through cutout

in firewall. Make sure conduit locking fingers are

fully expanded and secured in cutout, then position

cable ball into pedal assembly swivel.
3.
Feed stud end of cable through frame rail and se-

cure with retainer on inner side of frame.

4.
Place one check nut on cable stud and insert stud

through equalizer, (make sure center cable is in

position), then place second check nut on stud.

5. Adjust parking brake as outlined in this section.

6. Connect positive battery cable.

Center Cable

Removal

1.
Place parking brake pedal in released position.

2.
Remove equalizer check nut and remove equalizer

from cable.

3.
Remove cable from cable guides.

4.
Disconnect center cable from rear cables at

connectors.

Installation

1.
Install cable ends into rear cable connectors.

2.
Place cable through equalizer and install equalizer

on to front cable stud, secure with check nut. (Do

not tighten.)

3.
Install cable in cable guides (figs. 19 and 20),

4.
Adjust parking brake as outlined in this section.

Rear Cables

Removal

1.
Place parking brake pedal in released position.

2.
Remove equalizer check nut and remove equalizer

from cable.

3.
Remove rear cable from connector.

4.
Remove retainer from rear cable at frame bracket.

Pull cable out of bracket.

5. Remove rear brake drum as outlined in this section.

6. Remove rear brake shoes as outlined in this section.

7. Remove cable end from parking brake actuating

lever.

8. Compress expanded conduit locking fingers at flange

plate entry hole and withdraw cable.

Installation

1.
Pass end of cable and conduit tip through flange

plate entry hole, making sure that conduit locking

fingers all expand fully.

2.
Connect cable end to actuating lever.

3.
Install rear brake shoes, drum and wheel as out-

lined in this section.

4.
Pass cable through frame bracket and install

retainer.

5. Install cable end into cable connector.

6. Position equalizer on center cable and place on

front cable stud, secure with check nut.

7. Make sure all center cable guides are in place

and adjust parking brake as outlined in this section.

PARKING BRAKE-CHEVY II (Fig. 21)

Lever Assembly

Removal

NOTE:
Remove positive cable from battery

to eliminate possibility of creating short cir-

cuits under dash.

CHEVROLET CHASSIS SERVICE MANUAL

BRAKES
5-31

POWER BRAKES

INDEX

General Description 5-31

Maintenance
and"
Adjustments 5-31

Inspection . ... 5_31

Lubrication 5-31

Bleeding Instructions . . . 5.31

Air Cleaner Service . . . , 5.31
Page

Component Replacement 5-31

Power Brake Cylinder ......* 5-31

Removal . . 5-31

Disassembly and Assembly See Overhaul Manual

Installation . . . . 5-31

GENERAL DESCRIPTION

The Power Brake Unit is a self-contained hydraulic

and vacuum unit, utilizing manifold vacuum and atmos-

phere pressure for its power.

This unit permits the use of a low brake pedal as well

as less pedal effort than is required with the conventional

(nonpower) hydraulic brake system. Only two external
line connections are necessary -
one
a vacuum connection

from manifold to check valve located on front shell; the

other, a hydraulic connection from the main cylinder

outlet directly into the hydraulic system. The unit is

mounted on the engine side of the fire wall and directly

connected to the brake pedal.

MAINTENANCE AND ADJUSTMENTS

INSPECTIONS

1.
Check vacuum line and vacuum line connections as

well as vacuum check valve in front shell of power

unit for possible vacuum loss.

2.
Inspect all hydraulic lines and connections at the

wheel cylinders and main cylinder for possible

hydraulic leaks.

3.
Check brake assemblies for scored drums, grease

or brake fluid on linings, worn or glazed linings,

and make necessary adjustments.

4.
Check brake fluid level in the hydraulic reser-

voirs.
The reservoirs should be filled to the levels

shown in Figure 8.

5. Check for loose mounting bolts at main cylinder and

at power section.

6. Check air cleaner filter in power piston extension

and replace filter if necessary.

7. Check brake pedal for binding and misalignment

between pedal
-and
push rod.

LUBRICATION

The power brake unit is lubricated at assembly and
needs no further lubrication other than maintaining

normal reservoir fluid level. The reservoir should be

filled as described in this section.

BLEEDING INSTRUCTIONS

The power system may be bled manually or with a

pressure bleeder as outlined in this section. Use only

GM
Supreme 11 Brake Fluid or equivalent. Do not use the

power assist while bleeding. The engine should not be

running and the vacuum reserve should be reduced to

zero by applying the brake several times before starting

the bleeding procedure.

AIR CLEANER SERVICE

Servicing of the air cleaner is recommended and the

element replaced when restriction becomes severe

enough to affect power brake response. At any other

time, if cleaning of the filter is felt necessary, it should

be shaken free of dirt or washed in soap and water and

thoroughly dried.

COMPONENT REPLACEMENT

POWER BRAKE CYLINDER

Removal

1.
Remove vacuum hose from vacuum check valve.

2.
Disconnect hydraulic lines at main cylinder.

Disconnect push rod at brake pedal assembly.

Remove nuts and lock washers securing power unit

to fire wall, and remove power unit from engine

compartment.
3.

4.

NOTE:
Chevy

to fire wall.
has a three stud attachment

Repair procedures for the power cylinder are outlined

in the Brake Section of the Overhaul Manual-for service
of the main cylinder refer to applicable portion of

"Standard Brakes" in this manual.

Installation

1.
Mount the power brake assembly in place and install

the attaching nuts and lock washers.

2.
Attach vacuum line to check valve.

3.
Secure hydraulic lines to main cylinder.

4.
Attach push rod to brake pedal assembly, and check

operation of stop light.

5. Bleed brakes as outlined in this section.

CAUTION: After replacing the unit on the vehi-

cle,
start the engine and allow vacuum to build

up before applying the brake.

CHEVROLET CHASSIS SERVICE

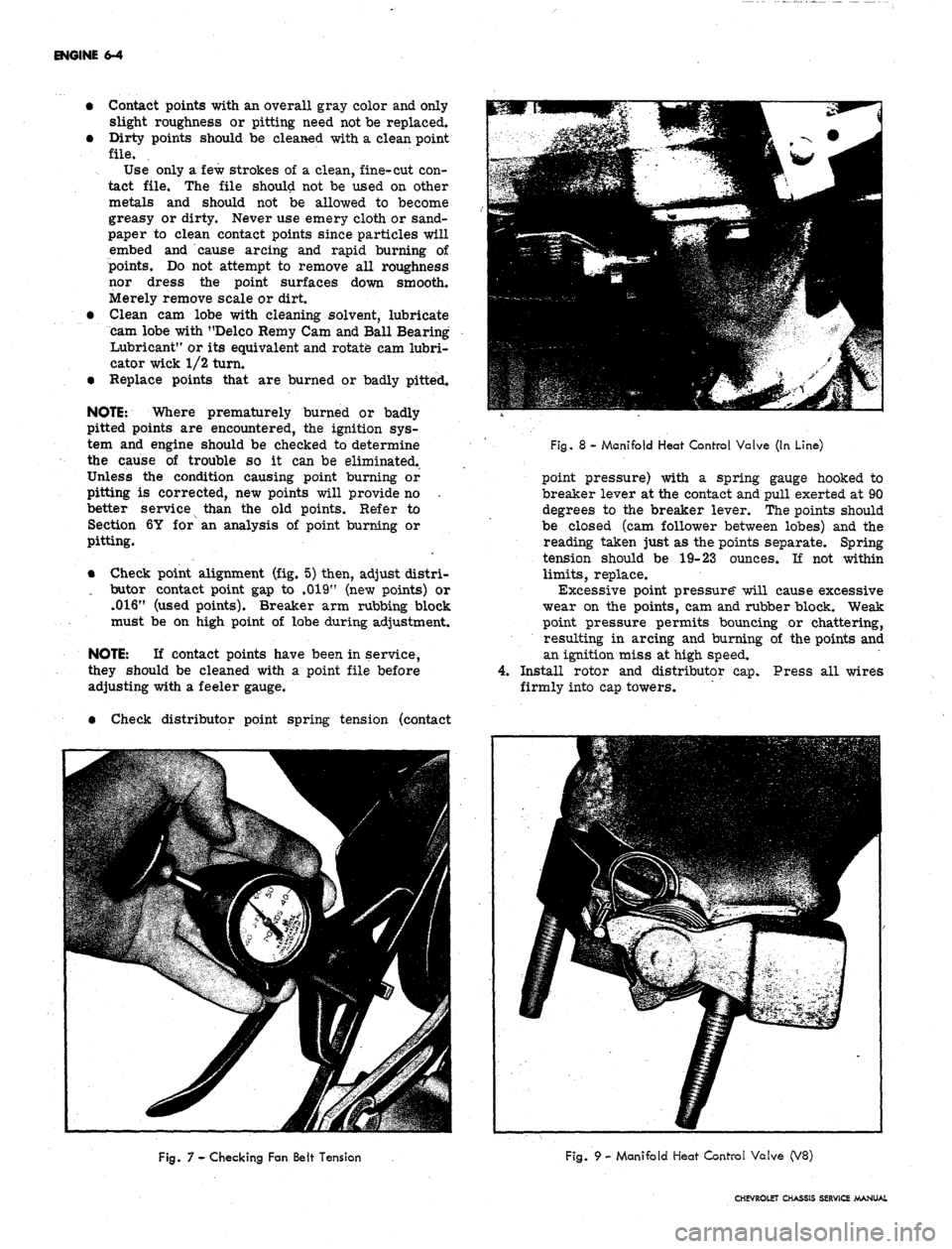

ENGINE 6-4

• Contact points with an overall gray color and only

slight roughness or pitting need not be replaced.

• Dirty points should be cleaned with a clean point

file.

Use only a few strokes of a clean, fine-cut con-

tact file. The file should not be used on other

metals and should not be allowed to become

greasy or dirty. Never use emery cloth or sand-

paper to clean contact points since particles will

embed and cause arcing and rapid burning of

points. Do not attempt to remove all roughness

nor dress the point surfaces down smooth.

Merely remove scale or dirt.

• Clean cam lobe with cleaning solvent, lubricate

cam lobe with "Delco Remy Cam and Ball Bearing

Lubricant" or its equivalent and rotate cam lubri-

cator wick 1/2 turn.

• Replace points that are burned or badly pitted.

NOTE: Where prematurely burned or badly

pitted points are encountered, the ignition sys-

tem and engine should be checked to determine

the cause of trouble so it can be eliminated.

Unless the condition causing point burning or

pitting is corrected, new points will provide no .

better service than the old points. Refer to

Section 6Y for an analysis of point burning or

pitting.

• Check point alignment (fig. 5) then, adjust distri-

. butor contact point gap to .019" (new points) or

.016"
(used points). Breaker arm rubbing block

must be on high point of lobe during adjustment.

NOTE: If contact points have been in service,

they should be cleaned with a point file before

adjusting with a feeler gauge.

• Check distributor point spring tension (contact
Fig. 8 - Manifold Heat Control Valve (In Line)

point pressure) with a spring gauge hooked to

breaker lever at the contact and pull exerted at 90

degrees to the breaker lever. The points should

be closed (cam follower between lobes) and the

reading taken just as the points separate. Spring

tension should be 19-23 ounces. If not within

limits,
replace.

Excessive point pressure" will cause excessive

wear on the points, cam and rubber block. Weak

point pressure permits bouncing or chattering,

resulting in arcing and burning of the points and

an ignition miss at high speed.

4.
Install rotor and distributor cap. Press all wires

firmly into cap towers.

Fig. 7 - Checking Fan Belt Tension
Fig. 9 - Manifold Heat Control Valve (V8)

CHEVROLET CHASSIS SERVICE MANUAL

ENGINE 6-6

CHOKE VALVE

COMPLETELY

CLOSED

PULL UPWARD ON

ROD TO END OF

TRAVEL

BEND ROD

TO ADJUST
ROD IN BOTTOM

OF SLOT

BOTTOM OF

ROD SHOULD

EVENWITH

TOP OF

HOLE
CHOKE VALVE

CLOSED

BOTTOM OF

ROD SHOULD

BE EVEN WITH

TOP OF HOLE

TOP OF ROD

SHOULD BE EVEN

WITH BOTTOM

OF HOLE (CHOKE

CLOSED)

^..BEND ROD TO

ADJUST

_PULL DOWNWARD

ON ROD TO CON-

TACT STOP

L6 (TYPICAL)

V8 327-275 HP

V8 350-295 HP
BEND ROI

TO ADJUST

PULL UPWARD ON

ROD TO CONTACT

STOP ON BRACKET

ALL V8 (EXCEPT 327-275 HP

AND 350-295 HP)

Fig.
11 - Remote Choke Adjustment

sequence outlined on Torque Sequence Chart. A slight

leak at the intake manifold destroys engine performance

and economy.

Service Fuel Lines and Fuel Filter

1.
Inspect fuel lines for kinks, bends or leaks and cor-

rect any defects found, • • •

2.
Inspect filter and replace if plugged.

NOTE:
If a complaint of poor high speed per-

formance exists on the vehicle, fuel pump tests

described in Section 6M should be performed.

Service Cooling System

1.
Inspect cooling system for leaks, weak hoses, loose

hose clamps and correct coolant level, and service

as required.

NOTE:
A cooling system pressure test, as de-

scribed in "Additional Checks and Adjustments"

in this section, may be performed to detect

internal or external leaks within the cooling

system.

Check and Adjust Accelerator Linkage

1.
Disconnect accelerator rod at carburetor throttle

lever.

2.
Hold carburetor throttle lever in wide position.

3.
Pull accelerator rod to wide open position. (On ve-

hicles equipped with automatic transmission, pull

through detent).

4.
Adjust accelerator rod to freely enter hole in carbu-

retor throttle lever.'

NOTE:
Accelerator linkage is outlined in de-

tail in Section 6M.
5. Connect accelerator rod at throttle lever.

Service Crankcase Ventilation (Fig. 10}

All engines have either "Positive" or "Closed Positive"

ventilation systems utilizing manifold vacuum to draw

fumes and contaminating vapors into the combustion

chamber where they are burned. Since it affects every

part of the engine, crankcase ventilation is an important

function and should be understood and serviced properly.

In both "Positive" and "Closed Positive" ventilation,

air is drawn through the engine, (through a regulating

valve) into the manifold, drawing' crankcase vapors and

fumes with it to be burned. "Positive" ventilation uses a

vented-meshed cap for clean air intake to the engine,

while . "Closed Positive" ventilation system draws the

clean air from the carburetor air cleaner and has a

nonvented oil filler cap.

1.
Ventilation valve may be checked as outlined under

"Additional Checks and Adjustments".

2.
Inspect for deteriorated or plugged hoses.

3.
Inspect all hose connections.

4.
On closed positive ventilation systems, remove flame

arrestor and wash in solvent then dry with com-

pressed air.

Service Air Injection Reactor System

Inspect air injection reactor system for evidence of

leaks,
deteriorated hoses, cracked air manifolds or tubes

and loose hose clamps. Inspect air injection pump belt

condition and tension. Make all necessary repairs as

outlined in "Section 6T".

Because of the relationship between "Engine Tune Up"

and "Unburned Exhaust Gases", the condition of Engine

CHEVROLET CHASSIS SERVICE MANUAL

ENGINE 6-7

Tune Up should be checked whenever the Air Injection

Reactor System seems to be malfunctioning. Particular

care should be taken in checking items that affect fuel-air

ratio such as the crankcase ventilation system, the car-

buretor and the carburetor air cleaner. Carburetors and

distributors for engines with the Air Injection Reactor

System are designed, particularly, for these engines;

therefore, they must not be interchanged with or replaced

by a carburetor or distributor designed for an engine

without the Air Injection Reactor System.

Choke Adjustment (Fig. 11)

With Remote Choke

1.
Remove air cleaner and check to see that choke

valve and rod move freely.

2.
Disconnect choke r*od at choke lever.

Check choke adjustment as follows:

On all except 275 hp 327 cu. in. engines, hold

choke valve closed and pull rod up against stop. The

top of choke rod end should be 1/2 - 1 rod diameter
4.

5.
above top of hole in choke valve lever.

On 275 hp 327 cu. in. engines, hold choke valve

closed and push rod down against stop on thermostat

bracket. The top of the choke rod should be 1/2 - 1

rod diameter below the top of the hole in the choke

lever.

If necessary, adjust rod length by bending rod at off-

set. (Bend must be such that rod enters choke lever

hole freely and squarely.)

Connect rod at choke lever and install air cleaner.

3.
With Manual
Choke

1.
Remove air cleaner.

2.
Push hand choke knob in to within 1/8" of instrument

panel.

3.
Loosen choke cable at carburetor bracket and adjust

cable through the clip until the choke valve is wide

open.

4.
Tighten cable clamp at carburetor bracket and check

operation of choke valve to ensure full closed and

wide open positions.

INSTRUMENT CHECK-OUT

Instrument Hook Up

Connect vacuum gauge, dwell meter, tachometer and

timing light as recommended by the manufacturer of the

equipment being used.

Check and Adjust Dwell

1.
Start engine then ch^ck ignition dwell.

.2.
If dwell is not within specifications, adjust dwell as

follows:

V8 ENGINES

• With engine running at idle, raise the adjustment

screw window-and insert an Allen wrench in the

socket of the adjusting screw (fig. 12).

• Turn the adjusting screw as required until a dwell

reading of 30° is obtained. A 2° variation is al-

lowable for wear.

• Close access cover fully to prevent the entry of

dirt into the distributor.

NOTE: If a dwell meter is not available, turn
adjusting screw clockwise until engine starts to

misfire, then turn screw one-half turn in the op-

posite direction to complete adjustment.

IN LINE ENGINES

• Remove distributor cap and recheck point setting.

If dwell is still not within specifications check the

distributor as outlined in Section 6Y.

Check Dwell Variation

Slowly accelerate engine to 1500 rpm and note dwell

reading. Return engine to idle and note dwell reading. If

dwell variation exceeds specifications, check for worn

distributor shaft, worn distributor shaft bushing or loose

breaker plate.

WINDOW

"HEX" TYPE

WRENCH

Fig.
12 - Setting Point Dwell (V8)
Fig.
13 - Ignition Timing Marks

CHEVROLET CHASSIS SERVICE MANUAL
