Trip 1 or 2
Displays the following of an individualjourney.
•Digital speed.
•Distance.
•Time.
•Distance to empty.
•Average fuel economy.
Note:Hold OK to reset fuel history andaverage fuel economy.
Fuel Economy
Displays the following:
•Instant fuel economy.
•Average fuel economy.
•Average speed.
•Distance to empty.
Note:Hold OK to reset fuel history andaverage fuel economy.
Driver Assist
Displays the following:
•Progressive range select.
•Engine hours.
•Voltmeter.
•Maintenance monitor.
•Oil Temp.
Settings
Settings
Select Your SettingAuto RegenVehicle
Lighting
Locks
FordPass
Windows
Wiper Controls
Select Your SettingUnitsDispl. Settings
Temperature
Language
8 Inch Display Menu
Note:Some options could appear slightlydifferent or not at all if the items areoptional.
72
2024 F-650/750 (TBC) , enUSA, Edition date: 202210, First-PrintingInformation Displays

Truck Info
Truck Info
Gauge View
Digital Speedometer
Engine Information
Maintenance Monitor
Transmission Temperature
•Engine information shows engine hours, engine idle hours and engine oil temp and oillife.
Settings
Settings
Turn On or OffDriver Alert
Select Your SettingPre-Collision
Select Your SettingCruiseControl
Select Your SettingGauge Selec-tion
Select Your SettingLightingVehicleAdvancedSettingsLocks
FordPass
Windows
Wiper Controls
Select Your SettingMeasurementUnitsDispl.Settings
TemperatureUnits
Tire Pressure
Language
74
2024 F-650/750 (TBC) , enUSA, Edition date: 202210, First-PrintingInformation Displays

INFORMATION MESSAGES
Note: Not all messages will display or beavailable depending on your vehicle optionsand instrument cluster type. Theinformation display may abbreviate orshorten certain messages.
Press the OK button to acknowledge andremove some messages from theinformation display. The informationdisplay will automatically remove othermessages after a short period of time.
You need to confirm certain messagesbefore you can access the menus.
Adaptive Cruise Control
ActionMessage
The radar requires service and is preventingthe adaptive cruise control from engaging.Adaptive Cruise Malfunction
A condition exists such that the adaptivecruise cannot function properly.Adaptive Cruise Not Available
You have a blocked sensor due toinclement weather, ice, mud or water infront of the radar sensor. You can typicallyclean the sensor to resolve.
Adaptive Cruise Not Available SensorBlocked See Manual
The system has disabled the automaticbraking. Verify the system is on, if themessage continues to display have thesystem checked as soon as possible.
Normal Cruise Active Adaptive Braking Off
The radar requires service and is preventingthe adaptive cruise control from engaging.Front Sensor Not Aligned
75
2024 F-650/750 (TBC) , enUSA, Edition date: 202210, First-PrintingInformation DisplaysE184451

ActionMessage
Your vehicle has entered the cleaningmode. Various engine actions raises theexhaust temperature in the diesel particu-late filter system to burn off the particles,exhaust soot. After the vehicle burns theparticles off, the exhaust temperaturereturns to normal levels.
Exhaust Filter Cleaning
The diesel particulate filter is full ofparticles, exhaust soot, and you are notoperating the vehicle in a manner thatallows normal cleaning. Drive the vehicleabove 30 mph (48 km/h) until the messageclears.
Exhaust Filter Overloaded Drive to Clean
Exhaust Filter Overloaded Clean Now
Exhaust Filter at Limit Clean Now
Exhaust Filter at Limit Drive to Clean Now
The exhaust system temperature exceededthe intended operating range. If this warningoccurs, a tone sounds, followed by reducedengine power. The engine shuts down whenyour vehicle speed is below 3 mph(5 km/h). Stop the vehicle as soon as safelypossible. Have the system checked as soonas possible.
Exhaust System Overheated Stop SafelyNOW
In extremely cold weather, typically below-15°F (-26°C) and if the engine block heateris not utilized, your engine will not respondto accelerator pedal movement for a shortperiod of time. This restriction allows yourengine to properly circulate the oil to avoidengine damage.
Engine Warming Please Wait {seconds:00}sec
The diesel particulate filter is clean.Exhaust Filter Drive Complete
The diesel filter is clean, operatorcommanded regeneration only.Exhaust Filter Cleaned
The manual regeneration process hasstopped, operator commanded regenera-tion only.
Exhaust Filter Cleaning Stopped
The distance you can travel beforedepleting the remaining diesel exhaust fluid.DEF Level Low Range: distanceimperial:###0 mi Refill Now
DEF Level Low Range: distancemetric:###0 km Refill Now
78
2024 F-650/750 (TBC) , enUSA, Edition date: 202210, First-PrintingInformation Displays

ActionMessage
The selective catalytic reduction systemrequires service. Upon restart, your vehiclespeed is now limited. Have the systemchecked as soon as possible.
DEF Fault Speed Limited to avg speedimperial:#0 MPH Upon Restart
DEF Fault Speed Limited to avg speedmetric:#0 km/h Upon Restart
The selective catalytic reduction systemrequires service. The system displays yourvehicle's top speed limit. Have the systemchecked as soon as possible.
DEF Fault Speed Limited to avg speedimperial:#0 MPH
DEF Fault Speed Limited to avg speedmetric:#0 km/h
Have your vehicle checked as soon aspossible. Ignoring this warning messagecould lead to reduced drivability andcustomer expense, including damage tothe diesel particulate filter. Your newvehicle warranty may not cover thisdamage.
Exhaust Filter Over Limit Service Now
The water separator has reached a prede-termined capacity and needs draining. SeeDraining the Fuel Filter Water Trap(page 234).
Water in Fuel Drain Filter
A low fuel pressure condition has occurreddue to cold, low fuel level or fuel filters needto be changed. See Fuel Quality (page108).
Fuel Pressure Low
Doors and Locks
ActionMessage
The driver door is not completely closed.Close the driver door. If the messagecontinues to display, have the systemchecked as soon as possible.
Driver Door Ajar
The passenger door is not completelyclosed. Close the passenger door. If themessage continues to display, have thesystem checked as soon as possible.
Passenger Door Ajar
80
2024 F-650/750 (TBC) , enUSA, Edition date: 202210, First-PrintingInformation Displays

Driver Alert
ActionMessage
Stop and rest as soon as it is safe to do so.Driver Alert Warning Rest Now
Take a rest soon.Driver Alert Warning Rest Suggested
Drivetrain
ActionMessage
The electronic locking differential requiresservice. Have the system checked as soonas possible.
Check Locking Differential
Engine
ActionMessage
The engine has reduced power to helpreduce high engine temperature. Have thesystem checked as soon as possible.
Power Reduced to Lower Engine Temp
Fuel
ActionMessage
An early reminder of a low fuel condition.Refuel your vehicle.Fuel Level Low
A fuel fill inlet may not be properly closed.Check Fuel Fill Inlet
81
2024 F-650/750 (TBC) , enUSA, Edition date: 202210, First-PrintingInformation Displays

Power Steering
ActionMessage
The power steering system requires service.Have the system checked as soon aspossible.
Steering Fault Service Now
The power steering system is not working.Stop your vehicle in a safe place. Have thesystem checked as soon as possible.
Steering Loss Stop Safely
The power steering system, passive entryor passive entry start system requiresservice. Have the system checked as soonas possible.
Steering Assist Fault Service Required
The steering lock system requires service.Have the system checked as soon aspossible.
Steering Lock Malfunction Service Now
Pre-Collision Assist
ActionMessage
The system requires service. Have thesystem checked as soon as possible.Pre-Collision Assist Not Available
You have a blocked sensor due toinclement weather, ice, mud or water infront of the radar sensor. You can typicallyclean the sensor to resolve. If the messagecontinues to appear, have the systemchecked as soon as possible.
Pre-Collision Assist Not Available SensorBlocked
Traction Control
ActionMessage
The status of the traction control systemafter you switched it on. See Using Trac-tion Control (page 151).
Traction Control On
The status of the traction control systemafter you switched it off. See Using Trac-tion Control (page 151).
Traction Control Off
83
2024 F-650/750 (TBC) , enUSA, Edition date: 202210, First-PrintingInformation Displays

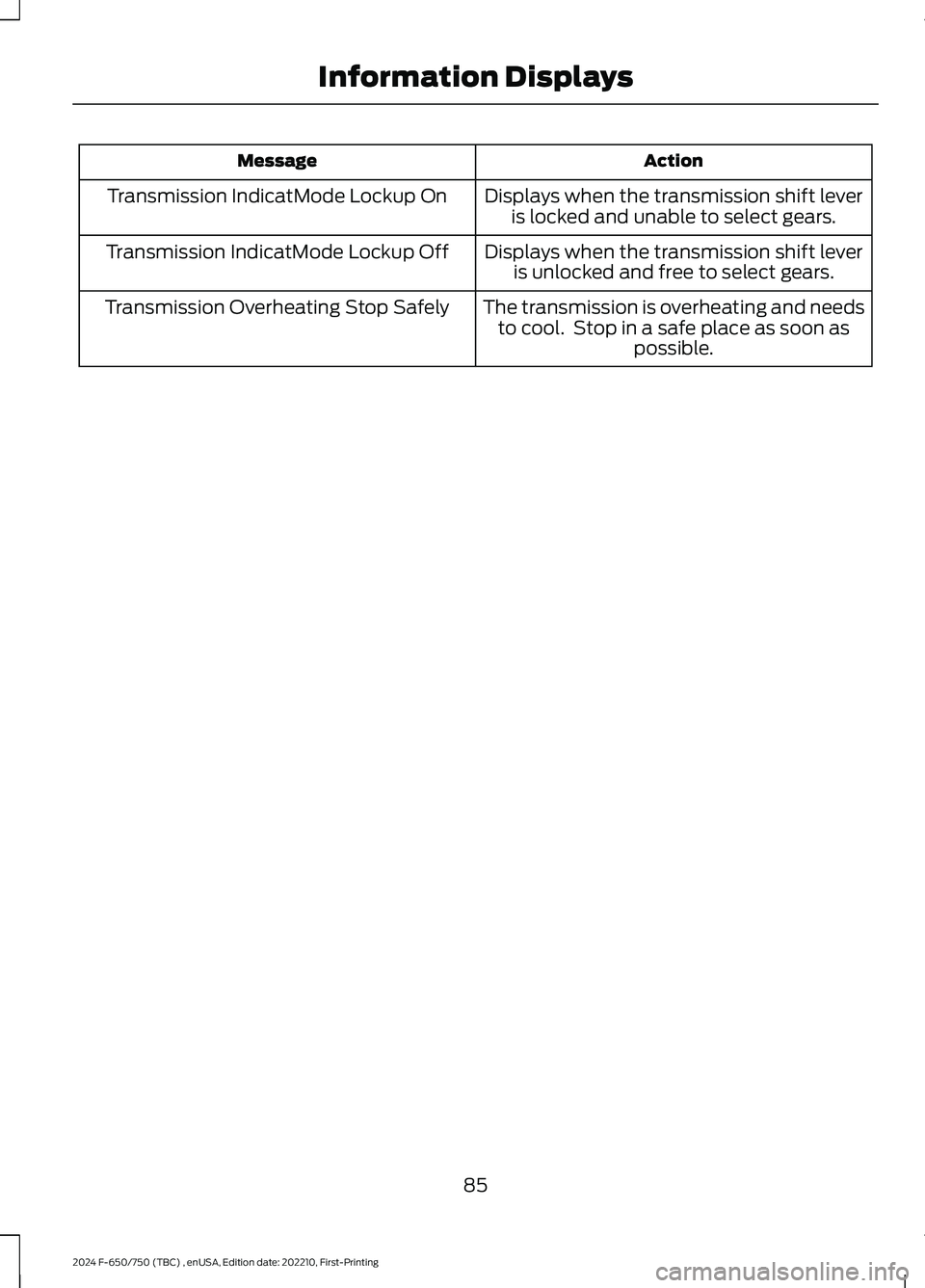

ActionMessage
Displays when the transmission shift leveris locked and unable to select gears.Transmission IndicatMode Lockup On
Displays when the transmission shift leveris unlocked and free to select gears.Transmission IndicatMode Lockup Off
The transmission is overheating and needsto cool. Stop in a safe place as soon aspossible.
Transmission Overheating Stop Safely
85
2024 F-650/750 (TBC) , enUSA, Edition date: 202210, First-PrintingInformation Displays
