2024 CHEVROLET CORVETTE Owners Manual

Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
17272984) - 2024 - CRC - 2/20/23
320 Service and Maintenance

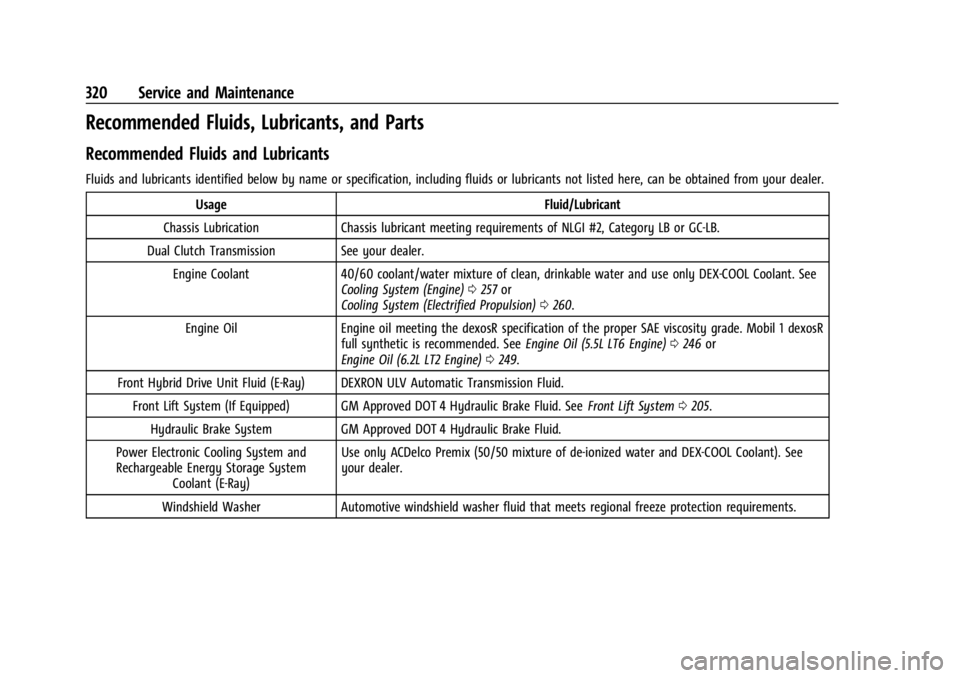

Recommended Fluids, Lubricants, and Parts
Recommended Fluids and Lubricants
Fluids and lubricants identified below by name or specification, including fluids or lubricants not listed here, can be obtained from your dealer.Usage Fluid/Lubricant
Chassis Lubrication Chassis lubricant meeting requirements of NLGI #2, Category LB or GC-LB.
Dual Clutch Transmission See your dealer. Engine Coolant 40/60 coolant/water mixture of clean, drinkable water and use only DEX-COOL Coolant. See Cooling System (Engine)0257 or
Cooling System (Electrified Propulsion) 0260.
Engine Oil Engine oil meeting the dexosR specification of the proper SAE viscosity grade. Mobil 1 dexosR full synthetic is recommended. See Engine Oil (5.5L LT6 Engine)0246 or
Engine Oil (6.2L LT2 Engine) 0249.
Front Hybrid Drive Unit Fluid (E-Ray) DEXRON ULV Automatic Transmission Fluid. Front Lift System (If Equipped) GM Approved DOT 4 Hydraulic Brake Fluid. See Front Lift System0205.
Hydraulic Brake System GM Approved DOT 4 Hydraulic Brake Fluid.
Power Electronic Cooling System and
Rechargeable Energy Storage System Coolant (E-Ray) Use only ACDelco Premix (50/50 mixture of de-ionized water and DEX-COOL Coolant). See
your dealer.
Windshield Washer Automotive windshield washer fluid that meets regional freeze protection requirements.

Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
17272984) - 2024 - CRC - 2/20/23
Service and Maintenance 321

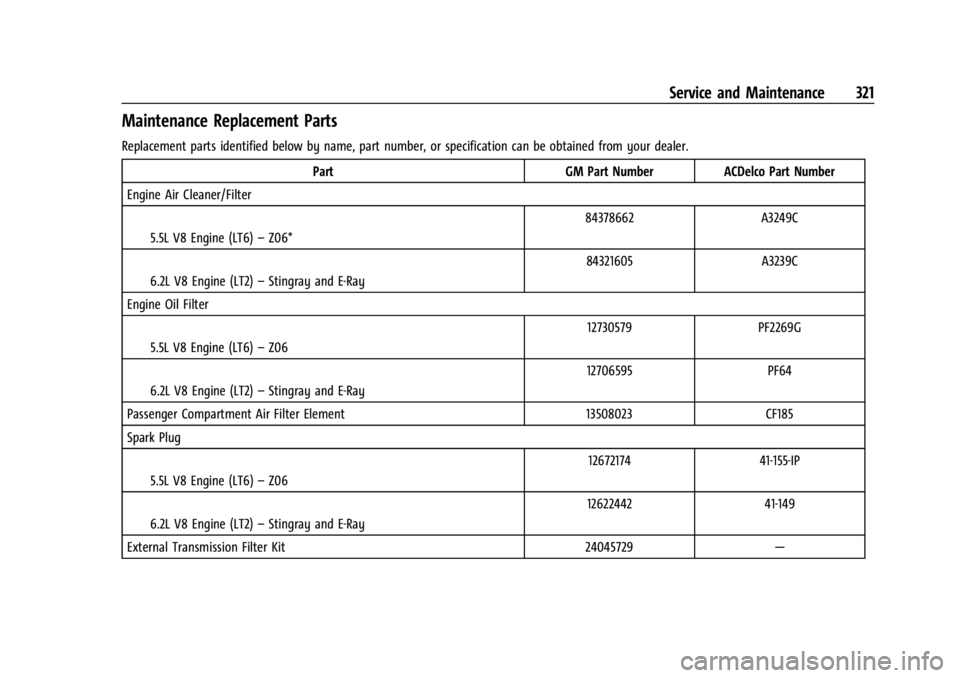

Maintenance Replacement Parts
Replacement parts identified below by name, part number, or specification can be obtained from your dealer.Part GM Part NumberACDelco Part Number
Engine Air Cleaner/Filter
I5.5L V8 Engine (LT6) –Z06* 84378662
A3249C
I6.2L V8 Engine (LT2) –Stingray and E-Ray 84321605
A3239C
Engine Oil Filter I5.5L V8 Engine (LT6) –Z06 12730579
PF2269G
I6.2L V8 Engine (LT2) –Stingray and E-Ray 12706595
PF64
Passenger Compartment Air Filter Element 13508023CF185
Spark Plug
I5.5L V8 Engine (LT6) –Z06 12672174
41-155-IP
I6.2L V8 Engine (LT2) –Stingray and E-Ray 12622442
41-149
External Transmission Filter Kit 24045729—

Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
17272984) - 2024 - CRC - 2/20/23
322 Service and Maintenance

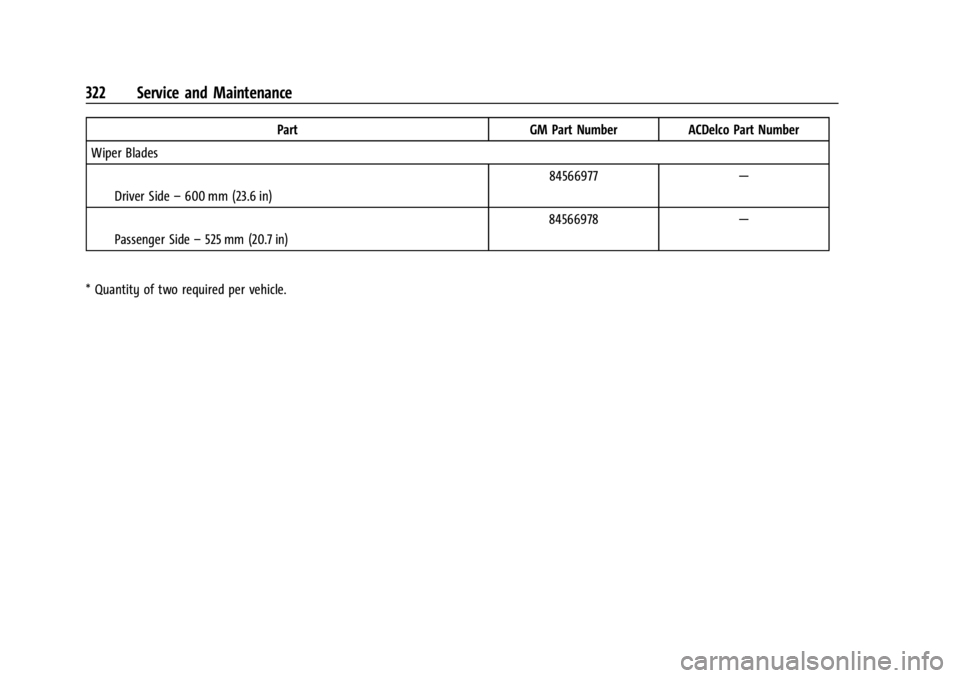

PartGM Part NumberACDelco Part Number
Wiper Blades
IDriver Side –600 mm (23.6 in) 84566977
—
IPassenger Side –525 mm (20.7 in) 84566978
—
* Quantity of two required per vehicle.

Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
17272984) - 2024 - CRC - 2/20/23
Service and Maintenance 323

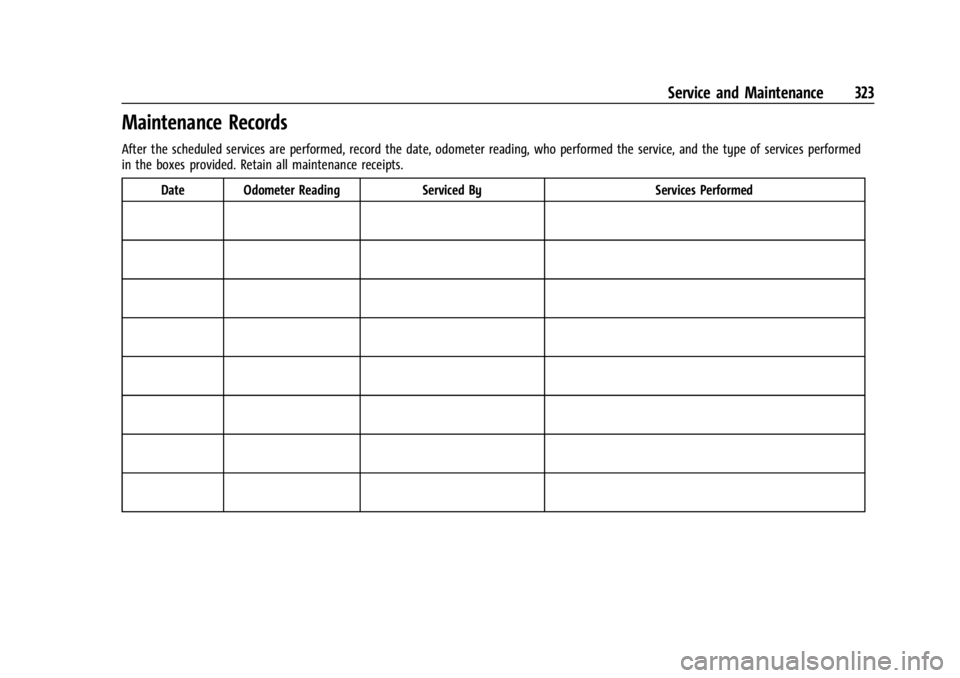

Maintenance Records
After the scheduled services are performed, record the date, odometer reading, who performed the service, and the type of services performed
in the boxes provided. Retain all maintenance receipts.Date Odometer Reading Serviced By Services Performed

Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
17272984) - 2024 - CRC - 2/20/23
324 Technical Data
Technical Data
Vehicle Identification
Vehicle Identification Number (VIN) . . . 324
Service Parts Identification . . . . . . . . . . . . 324
Vehicle Data
Capacities and Specifications . . . . . . . . . . . 325
Engine Drive Belt Routing . . . . . . . . . . . . . 328
Vehicle Identification
Vehicle Identification
Number (VIN)
This legal identifier is in the front corner of
the instrument panel, on the driver side of
the vehicle. It can be seen through the
windshield from outside. The Vehicle
Identification Number (VIN) also appears on
the Vehicle Certification label and certificates
of title and registration.
Engine Identification
The eighth character in the VIN is the
engine code. This code identifies the
vehicle's engine, specifications, and
replacement parts. See“Engine
Specifications” underCapacities and
Specifications 0325 for the vehicle's
engine code.
Service Parts Identification
There will be a large barcode on the
certification label located on the driver
door or door frame that you can scan for
the following information:
.Vehicle Identification Number (VIN)
.Model designation
.Paint information
.Production options

Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
17272984) - 2024 - CRC - 2/20/23
Technical Data 325
Vehicle Data
Capacities and Specifications
The following approximate capacities are given in metric and English conversions.
SeeRecommended Fluids and Lubricants 0320.
Application Capacities
Metric English
Air Conditioning Refrigerant For the air conditioning system refrigerant charge type and
amount, see the refrigerant label under the hood. See your dealer for more information.
5.5L V8 Engine (LT6) Engine Cooling System* –Z06 23.5 L24.8 qt
6.2L V8 Engine (LT2) Engine Cooling System with Performance Package* –
Stingray and E-Ray 21.5 L
22.7 qt
6.2L V8 Engine (LT2) Engine Cooling System without Performance Package*
– Stingray 20.5 L
21.7 qt
Power Electronic Cooling System (E-Ray) 1.4 L1.5 qt
Rechargeable Energy Storage System (E-Ray) 2.0 L2.1 qt

Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
17272984) - 2024 - CRC - 2/20/23
326 Technical Data
ApplicationCapacities
Metric English
Engine Oil with Filter
I5.5L V8 Engine (LT6) –Z06 7.6 L
8.0 qt
I6.2L V8 Engine (LT2) –Stingray and E-Ray 7.1 L
7.5 qt
Front Hybrid Drive Unit (E-Ray)** 3.0 L3.2 qt
Fuel Tank 70.0 L18.5 gal
Wheel Nut Torque 190Y 140 lb ft
All capacities are approximate. When adding, be sure to fill to the approximate level, as recommended in this manual. Recheck fluid level
after filling
*Engine cooling system capacity values are based on the entire cooling system and its components.
** After draining.

Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
17272984) - 2024 - CRC - 2/20/23
Technical Data 327
Engine Specifications
EngineVIN Code Transmission Spark Plug GapFiring Order
5.5L V8 Engine (LT6) –Z06 3 Dual Clutch Transmission 0.65-0.75 mm (0.026-
0.030 in)1-4-3-8-7-6-5-2
6.2L V8 Engine (LT2) –Stingray
and E-Ray 4 Dual Clutch Transmission 0.95-1.10 mm
(0.037-0.043 in)1-8-7-2-6-5-4-3
Spark plug gaps are preset by the manufacturer. Re-gapping the spark plug is not recommended and can damage the spark plug.
Engine Data
Engine Horsepower TorqueDisplacement Compression Ratio
5.5L V8 Engine (LT6)
– Z06 670
460 lb ft 5.5 L12.5:1
6.2L V8 Engine (LT2) with
Performance Exhaust –
Stingray and E-Ray 495
470 lb ft 6.2 L 11.5:1
6.2L V8 Engine (LT2) with
Standard Exhaust –
Stingray 490
465 lb ft 6.2 L 11.5:1
