1724-1. Driving the vehicle
RAIZE_OM_General_BZ358E
WARNING
⚫On vehicles with continuously variable transmission, do not shift the shift
lever to P while the vehicle is moving.
Doing so can damage the transmission and may result in a loss of vehicle
control.
⚫Do not shift the shift lever to R wh ile the vehicle is moving forward.
Doing so can damage the transmission and may result in a loss of vehicle
control.
⚫Do not shift the shift lever to a driv ing position while the vehicle is moving
backward.
Doing so can damage the transmission and may result in a loss of vehicle
control.
⚫Moving the shift lever to N while the vehicle is moving will disengage the
engine from the transmission. Engine braking is not available when N is
selected.
⚫Be careful not to set the shift lever with the accelerator pedal depressed.
Setting the shift lever to a gear othe r than P (continuously variable transmis-
sion vehicles) or N is dangerous, as it could lead to unexpected rapid acceler-
ation of the vehicle that may cause an unforeseen accident.
⬛If you hear a continuous squealing noise from around the brakes
Have the brake pads checked and replaced by your Toyota dealer as soon as
possible.
Damage to the disc rotor may result if the pads are not replaced when needed.
Parts such as pads and rotors wear out as they are used. Riding beyond the
limits of wear will not only cause malfunctions, but may also lead to an acci-
dent.
⬛When stopping the vehicle
⚫Do not depress the accelerator pedal unnecessarily.
Setting the shift lever to a gear othe r than P (continuously variable transmis-
sion vehicles) or N is dangerous, as it could lead to unexpected rapid acceler-
ation of the vehicle that may cause an unforeseen accident.
⚫In order to prevent accidents due to the vehicle rolling away, always keep
depressing the brake pedal while the en gine is running, and apply the park-
ing brake as necessary.
⚫If the vehicle is stopped on an incline, in order to prevent accidents caused
by the vehicle rolling forward or back ward, always depress the brake pedal
and securely apply the parking brake as needed.
RAIZE_OM_General_BZ358E.book 172 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1734-1. Driving the vehicle
RAIZE_OM_General_BZ358E
WARNING
Driving
4
⚫Avoid revving or racing the engine.
Running the engine at high speed while the vehicle is stopped may cause
the exhaust system to overheat, which could result in a fire if combustible
material is nearby.
⬛When parking the vehicle
⚫Do not leave glasses, cigarette lighters, aerosol cans, or carbonated bever-
age cans in the vehicle under the scorching sun.
Doing so may result in the following:
⦁ Gas may leak from a cigarette lighter or aerosol can, and may lead to a fire
⦁ The glasses with plastic lenses and plastic material may deform or crack
⦁ Carbonated beverage cans may fracture, causing the contents to spill over
the interior of the vehicle, and may al so cause a short circuit in the vehi-
cle’s electrical components
⚫Do not leave cigarette lighters in the vehi cle. If a cigarette lighter is in a stor-
age compartment or on the floor, it ma y be lit accidentally when luggage is
loaded or the seat is adjusted, causing a fire.
⚫Do not attach adhesive discs to the windshield or windows. Do not place
containers such as fragrance on the instrument panel or dashboard.
Adhesive discs or containers may act as lenses, causing a fire in the vehicle.
⚫Do not leave a door or window open if the curved glass is coated with a
metallized film such as a silver-colored one.
Reflected sunlight may cause the glass to act as a lens, causing a fire.
⚫For continuously variable transmission vehicles, always apply the parking
brake, set the shift lever to P, stop the engine, and lock the vehicle when
leaving the vehicle unattended.
Do not leave the vehicle unattende d while the engine is running.
If the vehicle is parked wi th the shift lever in P but the parking brake is not
set, the vehicle may start to move, possibly leading to an accident.
⚫Do not touch the exhaust pipes while th e engine is running or immediately
after turning the engine off.
Doing so may cause burns.
⬛When taking a nap in the vehicle
Always turn the engine off.
Otherwise, if you accidentally move the shift lever or depress the accelerator
pedal, this could cause an accident or fire due to engine overheating. Addition-
ally, if the vehicle is parked in a poorly ventilated area, exhaust gases may enter
the vehicle, leading to death or a serious health hazard.
RAIZE_OM_General_BZ358E.book 173 ページ ２０２２年５月１７日　火曜日　午後１時５９分

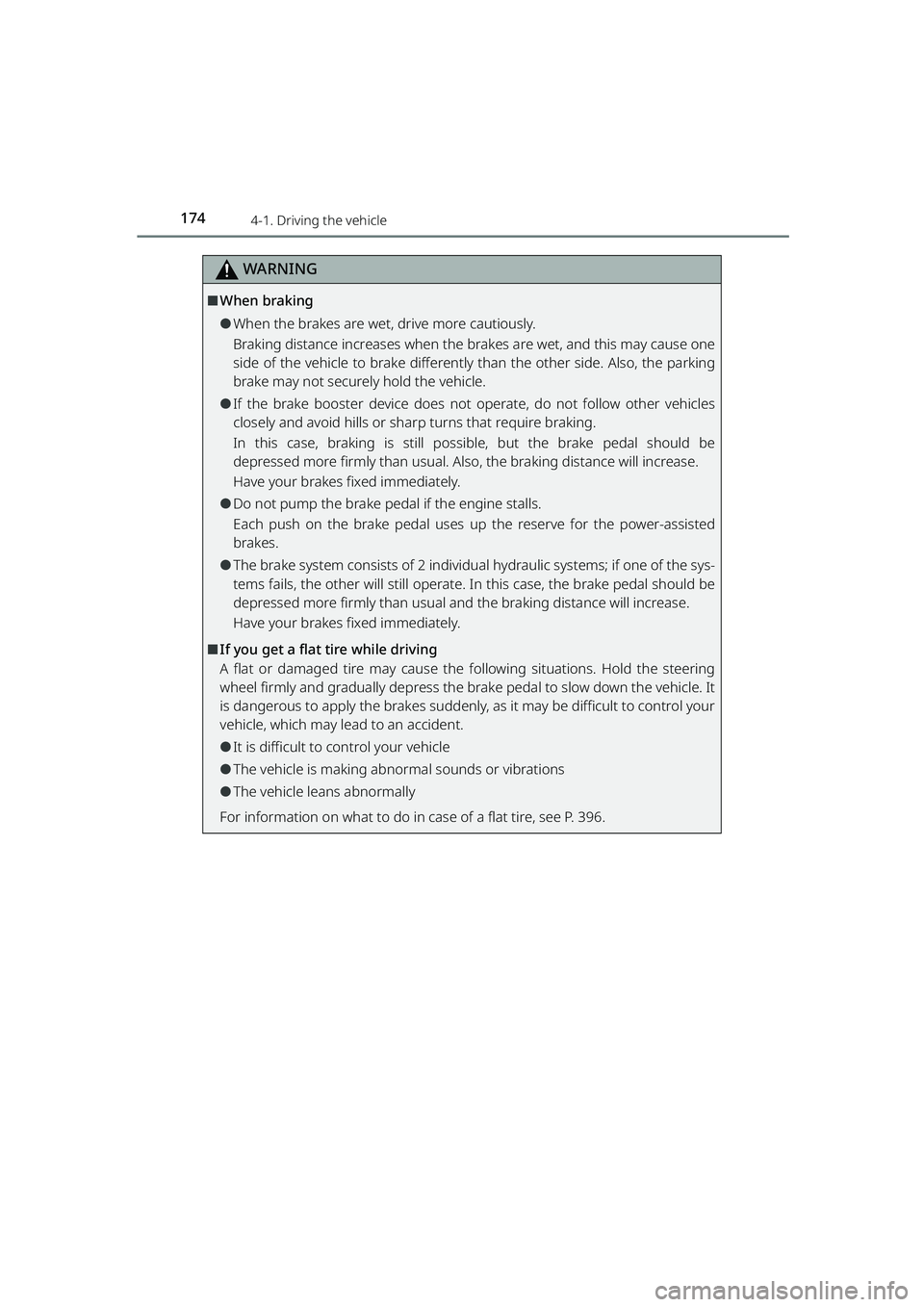

1744-1. Driving the vehicle
RAIZE_OM_General_BZ358E
WARNING
⬛When braking
⚫When the brakes are wet, drive more cautiously.
Braking distance increases when the brakes are wet, and this may cause one
side of the vehicle to brake different ly than the other side. Also, the parking
brake may not securely hold the vehicle.
⚫If the brake booster device does not operate, do not follow other vehicles
closely and avoid hills or sharp turns that require braking.
In this case, braking is still possible, but the brake pedal should be
depressed more firmly than usual. Also, the braking distance will increase.
Have your brakes fixed immediately.
⚫Do not pump the brake pedal if the engine stalls.
Each push on the brake pedal uses up the reserve for the power-assisted
brakes.
⚫The brake system consists of 2 individual hydraulic systems; if one of the sys-
tems fails, the other will still operate. In this case, the brake pedal should be
depressed more firmly than usual and the braking distance will increase.
Have your brakes fixed immediately.
⬛If you get a flat tire while driving
A flat or damaged tire may cause the following situations. Hold the steering
wheel firmly and gradually depress the brake pedal to slow down the vehicle. It
is dangerous to apply the brakes suddenly, as it may be difficult to control your
vehicle, which may lead to an accident.
⚫It is difficult to control your vehicle
⚫The vehicle is making abnormal sounds or vibrations
⚫The vehicle leans abnormally
For information on what to do in case of a flat tire, see P. 396.
RAIZE_OM_General_BZ358E.book 174 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1754-1. Driving the vehicle
RAIZE_OM_General_BZ358E
Driving
4
NOTICE
⬛Driving (continuously variable transmission vehicles)
⚫Do not depress the accelerator and brake pedals at the same time during
driving.
Depressing the accelerator and brake pedals at the same time may restrain
the engine output.
⚫Do not use the accelerator pedal or depress the accelerator and brake ped-
als at the same time to hold the vehicle on a hill.
⬛Driving (Manual transmission vehicles)
⚫Do not depress the accelerator and brake pedals at the same time during
driving. Depressing the accelerator and brake pedals at the same time may
restrain the engine output.
⚫Do not move the shift lever without st epping on the clutch pedal all the way.
Doing so could damage the clutch or transmission.
⚫To prevent the clutch from being da maged, observe the following precau-
tions.
⦁ Do not drive with your foot placed on the clutch pedal
⦁ Avoid starting to move the vehicle when the shift lever is set to other than
the gear 1
⦁ Do not ride the clutch more than ne cessary especially when starting to
move the vehicle on a hill
⚫Do not set the shift lever to R while the vehicle is still moving. Doing so could
damage the clutch, transmission, or the gear.
⬛Parking (continuously variable transmission vehicles)
Always apply the parking brake, and set th e shift lever to P. If the parking brake
is not applied and the shift lever is no t set to P, it may cause the vehicle to
move or the vehicle may accelerate sudd enly if the accelerator pedal is acci-
dentally depressed.
⬛Avoiding damage to vehicle parts
⚫Do not turn the steering wheel fully in either direction and hold it there for
an extended period of ti me. Doing so may damage the electric power steer-
ing motor.
⚫When driving over bumps in the road, drive as slowly as possible to avoid
damaging the disc wheels, etc.
RAIZE_OM_General_BZ358E.book 175 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1764-1. Driving the vehicle
RAIZE_OM_General_BZ358E
NOTICE
⬛If you feel the clutch is slipping (Manual transmission vehicles)
Have the vehicle inspected at your Toyota dealer as soon as possible. If your
vehicle does not accelerate by stepping on the accelerator pedal even when
the clutch is engaged, the clutch ma y be slipping and the vehicle may no
longer be able to run.
⬛To prevent damage to the tu rbo system (Turbo vehicles)
⚫Immediately after driving at high speed or climbing on a hill, do not stop the
engine. Make sure to idle the engine for approx. 1 minute to cool down the
turbo system, and then stop the engine.
⚫Do not use any parts other than those specified for the exhaust pipes.
⚫Never alter the exhaust pipes.
⚫Never race or accelerate suddenly when the engine is cold.
⚫Make sure to change the oil periodically. ( ➞P. 418)
⬛When encountering flooded roads
Do not drive on a road that has flooded after heavy rain, etc. Doing so may
cause the following serious damage to the vehicle:
⚫Engine stalling
⚫Short in electrical components
⚫Engine damage caused by water immersion
In the event that you drive on a flooded road and the vehicle is flooded, be
sure to have your Toyota dealer check the following:
⚫Brake function
⚫Changes in quantity and quality of oi ls and fluids such as engine oil,
transaxle oil, and differential oil
⚫Poor lubrication of the bearings and joints, etc.
RAIZE_OM_General_BZ358E.book 176 ページ ２０２２年５月１７日　火曜日　午後１時５９分

180
RAIZE_OM_General_BZ358E
4-2. Driving procedures
Engine (ignition) switch
(vehicles without key-free system)
Procedure to start the engine
▶Continuously variable transmission vehicles
a Adjust the position of the seat to give the correct driving posture
(➞ P. 30), and check the position of each pedal
b Check that the parking brake is applied
c Check that the shift lever is set in P
d Firmly depress the brake pedal
e Turn the engine switch to “START”
The starter rotates for up to 30 seconds until the engine starts.
▶Manual transmission vehicles
a Adjust the position of the seat to give the correct driving posture
(➞ P. 30), and check the position of each pedal
b Check that the parking brake is applied
c Check that the shift lever is set in N
d Firmly depress the clutch pedal and the brake pedal
e Turn the engine switch to “START”
The starter rotates for up to 30 seconds until the engine starts.
RAIZE_OM_General_BZ358E.book 180 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1814-2. Driving procedures
RAIZE_OM_General_BZ358E
Driving
4
Changing the engine switch position
a“OFF” (“LOCK” position)
The key can be removed and inserted.
(For continuously variable transmission
vehicles, the key can be inserted and
removed when the shift lever is set in
P)
The steering wheel will be locked.
The emergency flashers can be used.
b“ACC” (“ACC” position)
You can use electrical components,
such as a power outlet.
c“ON” (“ON” position)
All electrical components can be used.
d“START” (“START” position)
The engine can be started.
⬛Turning the key from “ACC” to “OFF” (“LOCK”)
a Verify that the shift lever is set to P (continuously variable transmission
vehicles) or N (manual transmission vehicles)
b Push in the key and turn it to “OFF”
(“LOCK”)
⬛When the engine will not start
The engine immobilizer system may not have been deactivated. ( ➞P. 7 2 )
Contact your Toyota dealer.
1
23
4
KBRO420101E
KBRO420102E
RAIZE_OM_General_BZ358E.book 181 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1824-2. Driving procedures
RAIZE_OM_General_BZ358E
⬛Steering wheel lock
⚫If you remove the key from the engine switch and move the steering wheel
to the left or right, the steering wheel lock function will lock the steering
wheel.
⚫To unlock the steering wheel, turn
the engine switch while moving the
steering wheel left and right.
⬛Clutch start system (Manual transmission vehicles)
For your safety, the engine will not start unless you step on the clutch pedal all
the way even when the engine switch is turned to “START”.
⬛Key removal reminder warning buzzer
When the key is inserted and the engine switch is turned to “ACC” or “OFF”,
opening the driver’s door will cause the warning buzzer to sound.
WARNING
⬛When starting the engine
Always start the engine while sitting in the driver’s seat. Do not depress the
accelerator pedal while starting th e engine under any circumstances.
Doing so may cause an unforeseen accident resulting in death or serious
injury.
⬛Caution while driving
⚫Do not turn the engine swit ch to “OFF” while driving.
Turning off the engine while driving ma y lead to an unforeseen accident,
resulting in serious injury or death in the worst case.
⚫For manual transmission vehicles, the key may fall out if the key is turned to
“OFF”. If the key is removed, the steering wheel will be locked and cannot be
operated, which may lead to an unforeseen accident.
KBRO420103E
RAIZE_OM_General_BZ358E.book 182 ページ ２０２２年５月１７日　火曜日　午後１時５９分
