Page 236 of 516
2344-5. Using the driving support systems
RAIZE_OM_General_BZ358E
⬛Activation of ABS/VSC
ABS/VSC does not work at low speeds. The operation is the same as the nor-
mal brake.
⬛Activation sound and vibration of the ABS, brake assist, VSC, TRC, and hill-
start assist control
⚫A sound may be heard from the engine compartment when the brake pedal
is depressed repeatedly, when the engine is started or just after the vehicle
begins to move. This sound does not indicate that a malfunction has
occurred in any of these systems.
⚫Any of the following conditions may occur when the above systems are oper-
ating. None of them indicates that a malfunction has occurred.
⦁ Vibrations may be felt through th e vehicle body and steering wheel
⦁ A motor sound may be heard even after the vehicle has come to a stop
⦁ The brake pedal may pulsate slightly after the ABS is activated
⦁ The brake pedal may move down slightly after the ABS is activated
⬛EPS motor operation sound
When the steering wheel is operated, a motor sound (whirring sound) may be
heard, but this does not indicate a malfunction.
⬛Automatic reactivation of VSC and TRC
After turning the TRC and VSC systems off, the systems will return to the ready
state in the following situations:
⚫When the engine switch is turned to “OFF”
⚫If only the TRC system is turned off, when vehicle speed increases
If both the TRC and VSC systems are tu rned off, automatic reactivation will
not occur when vehicle speed increases.
⬛Reduced effectiveness of the EPS system
The effectiveness of the EPS system is reduced to prevent the system from
overheating when there is frequent steering input over an extended period of
time. The steering wheel ma y feel heavy as a result.
Should this occur, refrain from excessive steering input or stop the vehicle and
turn the engine off. It should re turn to normal within 10 minutes.
RAIZE_OM_General_BZ358E.book 234 ページ ２０２２年５月１７日 火曜日 午後１時５９分
Page 240 of 516
238
RAIZE_OM_General_BZ358E
4-6. Driving tips
Winter driving tips
Carry out the necessary preparations and inspections before driving
the vehicle in winter. Always drive the vehicle in a manner appropri-
ate to the prevailing weather conditions.Preparation for winter
⚫Use fluids that are appropriate to the prevailing outside temperatures.
⦁ Engine oil
⦁ Coolant
⦁ Washer fluid
⚫Have a service technician inspec t the condition of the battery.
Before driving
Perform the following according to the driving conditions:
⚫Do not try to forcibly open a window or move a windshield wiper that is
frozen. Pour warm water over the frozen area to melt the ice. Wipe away
the water immediately to prevent it from freezing.
⚫To ensure proper operation of the air conditioning system fan, remove
any snow that has accumulated on the air inlet vents in front of the
windshield.
⚫Check for and remove any excess ice or snow that may have accumu-
lated on the exterior lights, vehicle’s roof, around the tires or on the
brakes.
⚫Look under the vehicle and check that there are no ice blocks around
the ground. Remove any attached ice blocks with great care to avoid
damaging vehicle components. Also check that the pedals and steering
wheel move smoothly.
⚫Remove any snow or mud from the bottom of your shoes before getting
in the vehicle.
RAIZE_OM_General_BZ358E.book 238 ページ ２０２２年５月１７日 火曜日 午後１時５９分
Page 244 of 516
2424-6. Driving tips
RAIZE_OM_General_BZ358E
◆Performing idling stops
⚫Avoid unnecessary idling. Stop the engine when parking the vehicle to
reduce excessive fuel consumption, even it is only for a short period of
time.
⚫Except in severe environment, such as when the outside temperature is
extremely low, warming up the engine before driving is unnecessary.
Rather than idling, it is more efficient to drive the vehicle gently to warm
up each part while avoiding increasing the engine revolutions unneces-
sarily and accelerating or decelerating suddenly.
◆Luggage
Carrying heavy luggage will lead to poor fuel economy. Avoid carrying
unnecessary luggage. Installing a large roof rack will also cause poor fuel
economy.
◆Regular maintenance
⚫Make sure to check the tire inflation pressure frequently. Improper tire
inflation pressure can cause poor fu el economy. Also, as snow tires can
cause large amounts of friction, thei r use on dry roads can lead to poor
fuel economy. Use tires that are appropriate for the season and road
conditions.
⚫Use oil and fluid of the recommended quality, which affect fuel con-
sumption and the life of the vehicle. Also, check oil and fluid periodically.
( ➞ P. 2 9 4 )
RAIZE_OM_General_BZ358E.book 242 ページ ２０２２年５月１７日 火曜日 午後１時５９分
Page 249 of 516
2475-1. Using the air conditioning system and defogger
RAIZE_OM_General_BZ358E
Interior features
5
⬛When the outside air temperature drops to around 0°C (32℉)
Even if you press , the air conditioning system may not work.
⬛When driving on dusty roads
Close all windows. If dust thrown up by the vehicle is still drawn into the vehicle
after closing the windows, it is recomme nded that the air intake mode be set
to outside air mode and the fan speed to any setting except off.
⬛Outside/recirculated air mode
Setting to the recirculated air mode temporarily is recommended in prevent-
ing dirty air from entering the vehicle interior and helping to cool the vehicle
when the outside air temperature is high.
⬛Ventilation and air conditioning odors
⚫To let fresh air in, set the air conditio ning system to the outside air introduc-
tion mode.
⚫During use, various odors from inside and outside the vehicle may enter into
and accumulate in the air conditioning system. This may then cause odors to
be emitted from the vents.
⚫To reduce potential odors from occurri ng, it is recommended that the air
conditioning system be set to outside air introduction mode prior to turning
the vehicle off.
⬛Air conditioning filter
➞ P. 3 3 8
NOTICE
⬛To prevent battery discharge
Do not leave the air conditioning system on longer than necessary when the
engine is stopped.
RAIZE_OM_General_BZ358E.book 247 ページ ２０２２年５月１７日 火曜日 午後１時５９分
Page 255 of 516
2535-1. Using the air conditioning system and defogger
RAIZE_OM_General_BZ358E
Interior features
5
NOTICE
⬛To prevent battery discharge
Do not leave the air conditioning system on longer than necessary when the
engine is stopped.
⬛Air outlets
Be careful when adjusting the air outlets while using the air conditioning sys-
tem for heating, for the outlets will become hot.
⬛Recirculated air
Do not set the inside/outside air switching lever to the position when the
air outlet switching dial is at , , or . The windshield and windows may
become fogged.
RAIZE_OM_General_BZ358E.book 253 ページ ２０２２年５月１７日 火曜日 午後１時５９分
Page 263 of 516
2615-1. Using the air conditioning system and defogger
RAIZE_OM_General_BZ358E
Interior features
5
WARNING
⬛To prevent the windshield from fogging up (vehicles with heaters)
⚫Do not press when setting the temperature of the air condition-
ing system low in extremely humid weather. Also, do not switch the air out-
lets to . The difference between the temperature of the outside air and
that of the windshield can cause the outer surface of the windshield to fog
up, blocking your vision.
⚫Do not place anything on the
instrument panel which may cover
the air outlets. Otherwise, air flow
may be obstructed, preventing the
windshield defoggers from defog-
ging.
NOTICE
⬛To prevent battery discharge
Do not leave the air conditioning system on longer than necessary when the
engine is stopped.
⬛Air outlets (vehicles with heaters)
Be careful when adjusting the air outlets while using the air conditioning sys-
tem for heating, for the outlets will become hot.
KBRO510307E
RAIZE_OM_General_BZ358E.book 261 ページ ２０２２年５月１７日 火曜日 午後１時５９分
Page 266 of 516
2645-3. Using the interior light
RAIZE_OM_General_BZ358E✽
: If equipped
⬛Operation with separate switches
Turns the light on or off
When the door link switch is in the door
position with the door open, the light will
not turn off even if the lens is pressed.
Interior light
a Turns the light on
b Turns the light off
c Door position (Door linked)
The light turns on or off when a door is
opened or closed.
⬛Illuminated entry system
When the switch of the light is in the door position, the lights automatically
turn on or off in the following conditions.
⚫When approaching the vehicle with the electronic key after locking the
doors
✽
⚫When unlocking or locking the doors
⚫When opening or closing the doors
⚫When operating the engine switch
⬛To prevent battery discharge
⚫When the switch of the light is in the door position with the door not fully
closed, the light automatically tu rns off after about 10 minutes.
⚫When the lights are left on, they automat ically turn off after about 12 min-
utes.
⬛Customizations
You can change the settings such as a peri od of time until the illuminated entry
system turns off. (List of customizable features: ➞P. 430)
KBRO530103E
23
1
KBRO530104N
RAIZE_OM_General_BZ358E.book 264 ページ ２０２２年５月１７日 火曜日 午後１時５９分

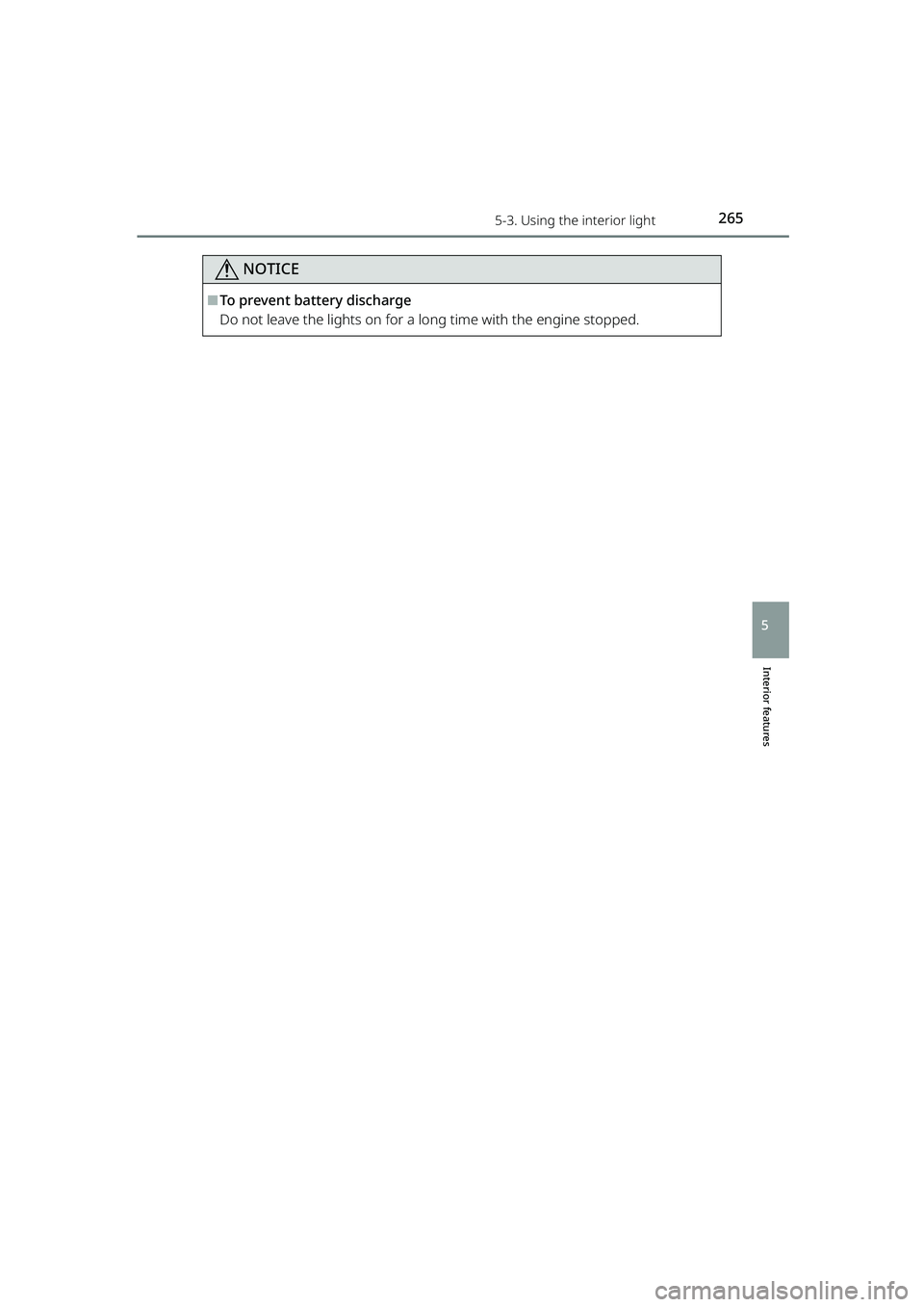

Page 267 of 516
2655-3. Using the interior light
RAIZE_OM_General_BZ358E
Interior features
5
NOTICE
⬛To prevent battery discharge
Do not leave the lights on for a long time with the engine stopped.
RAIZE_OM_General_BZ358E.book 265 ページ ２０２２年５月１７日 火曜日 午後１時５９分
