2023 TOYOTA RAIZE display

1684-1. Driving the vehicle
RAIZE_OM_General_BZ358E
⬛Starting off on an uphill
The hill-start assist control will be activated. (➞P. 232)
⬛Driving in the rain
⚫Drive carefully when it is raining, bec ause visibility will be reduced, the win-
dows may become fogged-up, and the road will be slippery.
⚫Drive carefully when it starts to rain, because the road surface will be espe-
cially slippery.
⚫Refrain from driving at high speeds on an expressway in the rain, because
there may be a layer of water between the tires an d the road surface, pre-
venting the steering and brakes from operating properly.
⬛Engine speed while driving (continuous ly variable transmission vehicles)
In the following conditions, the engine speed may become high while driving.
This is due to automatic up-shifting re striction or down-shifting implementa-
tion to meet driving conditions. It do es not indicate sudden acceleration.
⚫The vehicle is judged to be driving uphill or downhill
⚫When the accelerator pedal is released
⬛Engine power suppression control (Brake Override System)
When the accelerator pedal and the brake pedal are depressed simultane-
ously, the engine output may be suppressed.
▶Vehicles without TFT color multi-information display
⚫When the Brake Override System is op erating, the warning light turns on.
( ➞ P. 381)
▶Vehicles with TFT color multi-information display
⚫When the Brake Override System is op erating, the warning message is dis-
played. ( ➞P. 390)
⬛Idling before stopping the engine (turbo vehicles)
Immediately after driving at high-speed or climbing on a hill, idle the engine
for approx. 1 minute and then stop the engine in order to prevent the turbo
system from being damaged.
⬛Overheating
The following severe driving situations can cause overheating.
⚫Driving up a long uphill on a hot day
⚫Sudden deceleration or stop imme diately after high-speed driving
RAIZE_OM_General_BZ358E.book 168 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1694-1. Driving the vehicle
RAIZE_OM_General_BZ358E
✽: If equipped
Driving
4
⬛Breaking in your new Toyota
To extend the life of the vehicle, obse rving the following precautions is recom-
mended:
⚫For the first 300 km (186 miles):
Avoid sudden stops.
⚫For the first 1000 km (621 miles):
⦁ Do not drive at extremely high speeds.
⦁ Avoid sudden acceleration.
⦁ Do not drive continuously in low gears.
⦁ Do not drive at a constant speed for extended periods.
⬛Eco-friendly driving
▶Vehicles without TFT color multi-information display
During eco-friendly driving, Eco Driv-
ing Indicator Light turns on.
When the accelerator pedal is
stepped on stronger than necessary
or when the vehicle is stopped, the
light turns off.
In the following cases, Eco Driving
Indicator Light will not be activated.
⚫When the shift lever is set in other
than D (continuousl y variable trans-
mission vehicles)
⚫When the shift lever is set to the 1st
gear, N or R (manual transmission
vehicles)
⚫When the vehicle speed is approx.
110 km/h (68 mph) or greater
⚫When the driving mode is set to
Power mode
✽ ( ➞ P. 190)
On/Off of Eco Driving Indicator Light can be set. ( ➞P. 9 2 )
▶Vehicles with TFT color multi-information display
➞ P. 9 8
⬛Operating your vehicle in a foreign country
Comply with the relevant vehicle regist ration laws and confirm the availability
of the correct fuel. (➞ P. 429)
KBRO410101
KBRO410102E
RAIZE_OM_General_BZ358E.book 169 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1904-2. Driving procedures
RAIZE_OM_General_BZ358E✽
: If equipped

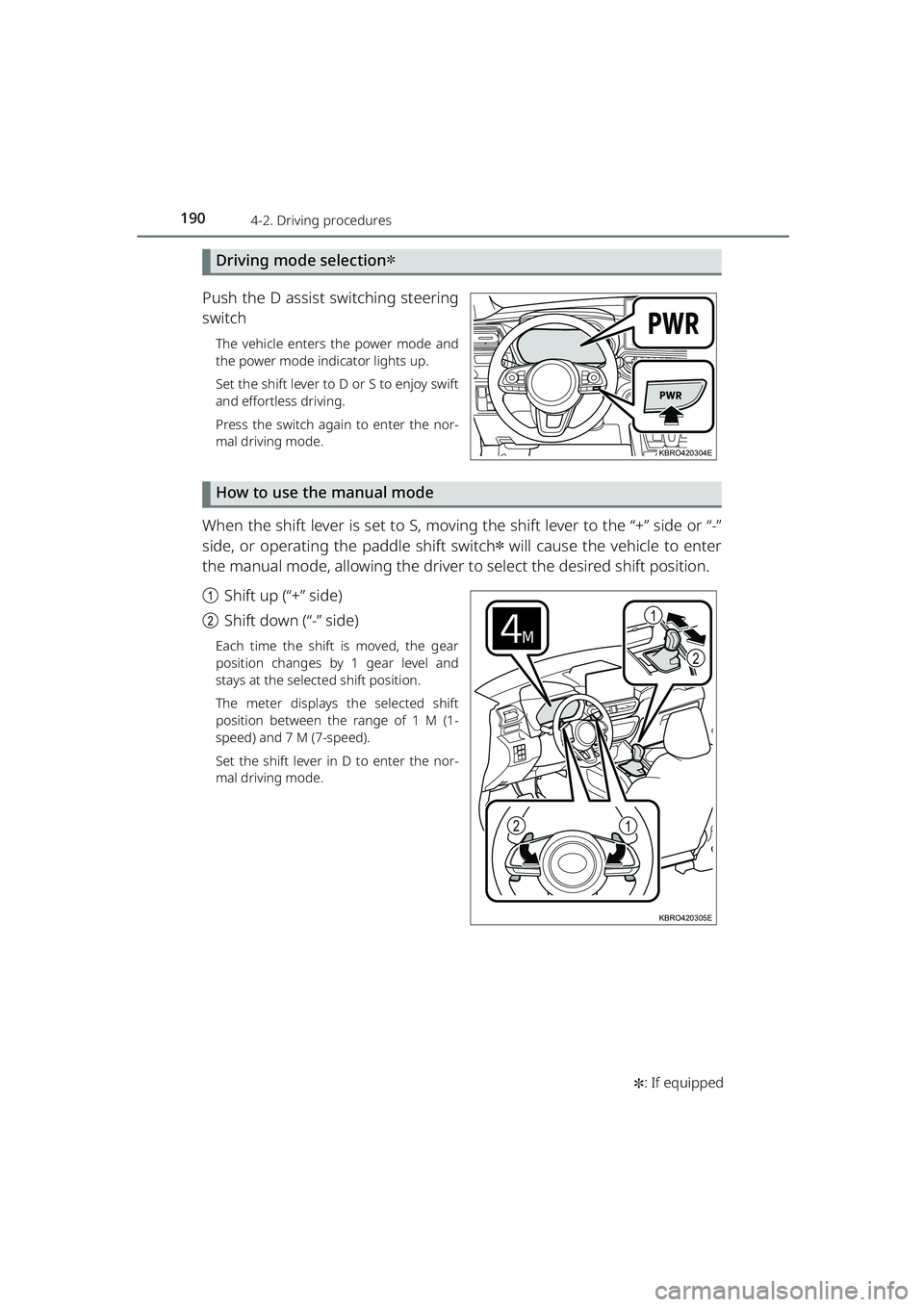

Driving mode selection✽
Push the D assist switching steering
switch
The vehicle enters the power mode and
the power mode indicator lights up.
Set the shift lever to D or S to enjoy swift
and effortless driving.
Press the switch again to enter the nor-
mal driving mode.
How to use the manual mode
When the shift lever is set to S, moving the shift lever to the “+” side or “-”
side, or operating the paddle shift switch
✽ will cause the vehicle to enter
the manual mode, allowing the driver to select the desired shift position.
a Shift up (“+” side)
b Shift down (“-” side)
Each time the shift is moved, the gear
position changes by 1 gear level and
stays at the selected shift position.
The meter displays the selected shift
position between the range of 1 M (1-
speed) and 7 M (7-speed).
Set the shift lever in D to enter the nor-
mal driving mode.
KBRO420304E
1
2
12
KBRO420305E
RAIZE_OM_General_BZ358E.book 190 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1914-2. Driving procedures
RAIZE_OM_General_BZ358E✽
: If equipped
Driving
4
⬛Temporary manual mode✽
When the shift lever is set to D, moving the paddle shift switch to the “+”
side or “-” side will cause the vehicle to enter the manual mode temporar-
ily, allowing the driver to select the desired shift position.
a Upshift
b Downshift
The meter displays the selected shift
position between D1 and D7.
To restore the normal driving mode,
keep holding the “+” side of the paddle
shift switch for a certain period.
⬛Shift lock system
The shift lock system is a system to pr event accidental operation of the shift
lever in starting. The shift lever will not move from P unless the brake pedal is
stepped on while the engine switch is “ON”.
⬛If the shift lever cannot be shifted from P
Check whether the brake pedal is being depressed.
If the shift lever cannot be shifted whil e depressing the brake pedal, there may
be a problem with the shift lock syst em. Have the vehicle inspected at your
Toyota dealer immediately. The following steps may be used as an emergency
measure to ensure that the shift lever can be shifted.
Releasing the shift lock:
a Apply the parking brake
b Turn the engine switch to “OFF”
c Depress the brake pedal
12
KBRO420306E
RAIZE_OM_General_BZ358E.book 191 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1934-2. Driving procedures
RAIZE_OM_General_BZ358E
✽: If equipped
Driving
4
⬛Power mode✽
⚫The power mode control will not be acti vated in any of the following situa-
tions:
⦁ When the shift lever is set to R
⚫Even when you have set the D assist switching steering switch to “ON”, turn-
ing the engine switch “OFF ” and turning it “ON” will automatically restore the
D assist switching steering switch to “OFF”.
⚫When the malfunction indicator lamp or the continuously variable transmis-
sion warning light
✽ is lit or flashing, or when the TFT color multi-information
display
✽ shows “Transmission System Malfun ction”, the vehicle will not enter
the power mode.
⬛Reverse warning buzzer
When shifting into R, a buzzer will so und to inform the driver that the shift
lever is in R.
WARNING
⬛When driving on slippery road surfaces
Do not accelerate or shift gears sudde nly. Sudden changes in engine braking
may cause the vehicle to spin or skid.
⬛To prevent an accident when releasing the shift lock
Before pressing the shift lock override button, make sure to set the parking
brake and depress the brake pedal.
If the accelerator pedal is accidentally depressed instead of the brake pedal
when the shift lock override button is pr essed and the shift lever is shifted out
of P, the vehicle may suddenly start, po ssibly leading to an accident resulting in
death or serious injury.
RAIZE_OM_General_BZ358E.book 193 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1964-2. Driving procedures
RAIZE_OM_General_BZ358E✽
: If equipped
Turn signal lever
Operation instructions
a Right turn
b Right turn signal will flash contin-
uously while the lever is kept b
position.
Right turn signal will blink three times,
when the lever is pushed to b position
and released immediately.
c Left turn signal will flash continu-
ously while the lever is kept c
position.
Left turn signal will blink three times,
when the lever is pushed to c position
and released immediately.
d Left turn
⬛Operating conditions
When the engine switch is “ON”
⬛If the indicator flashe s faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned
out.
⬛Customizations
The turn signal light settings can be changed.
(List of customizable features: ➞P. 430)
(For some of the features, the settings can be changed from the setup screen
of the multi-info rmation display
✽: ➞ P. 9 1 )
(The settings can be changed from the setup screen of the TFT color multi-
information display: ➞ P. 104)
1
2
3
4
KBRO420501E
RAIZE_OM_General_BZ358E.book 196 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2004-3. Operating the lights and windshield wipers
RAIZE_OM_General_BZ358E
✽: If equipped
⬛Automatic light off system
⚫While the lights are turned on, changi ng the engine switch from “ON” to
“ACC” or “OFF” will automatically turn off the lit lights.
⚫To turn the lights on again, turn “ON” the engine switch or move the head-
light switch to the position, and then move it to the or
position.
⬛Automatic light-off warning buzzer
When the headlights and tail lights are tu rned on with the engine switch set to
“ACC” or “OFF”, opening the driver’s door will cause the warning buzzer to
sound, letting the driver know that the lights have not been turned off.
⚫When the buzzer sounds , the warning message also appears for vehicles
with TFT color multi-information display. ( ➞P. 391)
⬛Power saving function
To prevent the battery from discharging, when the engine switch is set in “ACC”
or “OFF” and the headlights or tail lig hts are on, the power saving function is
activated and all lights are automatically turned off after about 10 minutes.
After light has been automatically turn ed off, perform any of the following
operations to cancel the power saving state and turn the lights back on.
⚫
When the engine switch is set to “ON”
⚫When the headlight switch is operated (However, the lights will turn off again
automatically after about 10 minutes)
⚫When one of the doors is opened or cl osed (However, the lights will automati-
cally turn off again after about 10 minutes)
⬛Customizations✽
You can change the timing of the headlight switch turning on and off automat-
ically at the position, etc.
(List of customizable features: ➞ P. 430)
NOTICE
⬛To prevent battery discharge
Do not leave the lights on for a long ti me with the engine stopped. Also, be
sure to turn off the lights when you leave the vehicle.
RAIZE_OM_General_BZ358E.book 200 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2044-3. Operating the lights and windshield wipers
RAIZE_OM_General_BZ358E✽
: If equipped
⬛Operating conditions
When the engine switch is “ON”
⬛When the washer flui d does not come out
If the washer fluid does not come out even though the washer fluid tank level
is not low, check the nozzles for clogging.
⬛Customizations
The setting of sensitivity to vehicle speed can be changed.
(List of customizable features: ➞ P. 430)
(For some of the features, the settings can be changed from the setup screen
of the multi-info rmation display
✽: ➞ P. 9 1 )
(The settings can be changed from the setup screen of the TFT color multi-
information display
✽: ➞ P. 104)
WARNING
⬛Caution regarding the use of washer fluid
When it is cold, do not use the wash er fluid until the windshield becomes
warm. The fluid may fr eeze on the windshield and cause low visibility. This may
lead to an accident, resulting in death or serious injury.
NOTICE
⬛When the windshield is dry
Do not use the windshield wipers,
as they may damage the windshield.
⬛When the washer fluid does not come out
Do not operate the switch continually
as you may damage th e washer fluid pump.
⬛When a nozzle becomes clogged
When a nozzle becomes clogged, contact your Toyota dealer.
Do not try to clear it with a pin or other object.
The nozzle will be damaged.
⬛To prevent battery discharge
Do not leave the windshield wipers on longer than necessary when the engine
is not running.
RAIZE_OM_General_BZ358E.book 204 ページ ２０２２年５月１７日　火曜日　午後１時５９分
