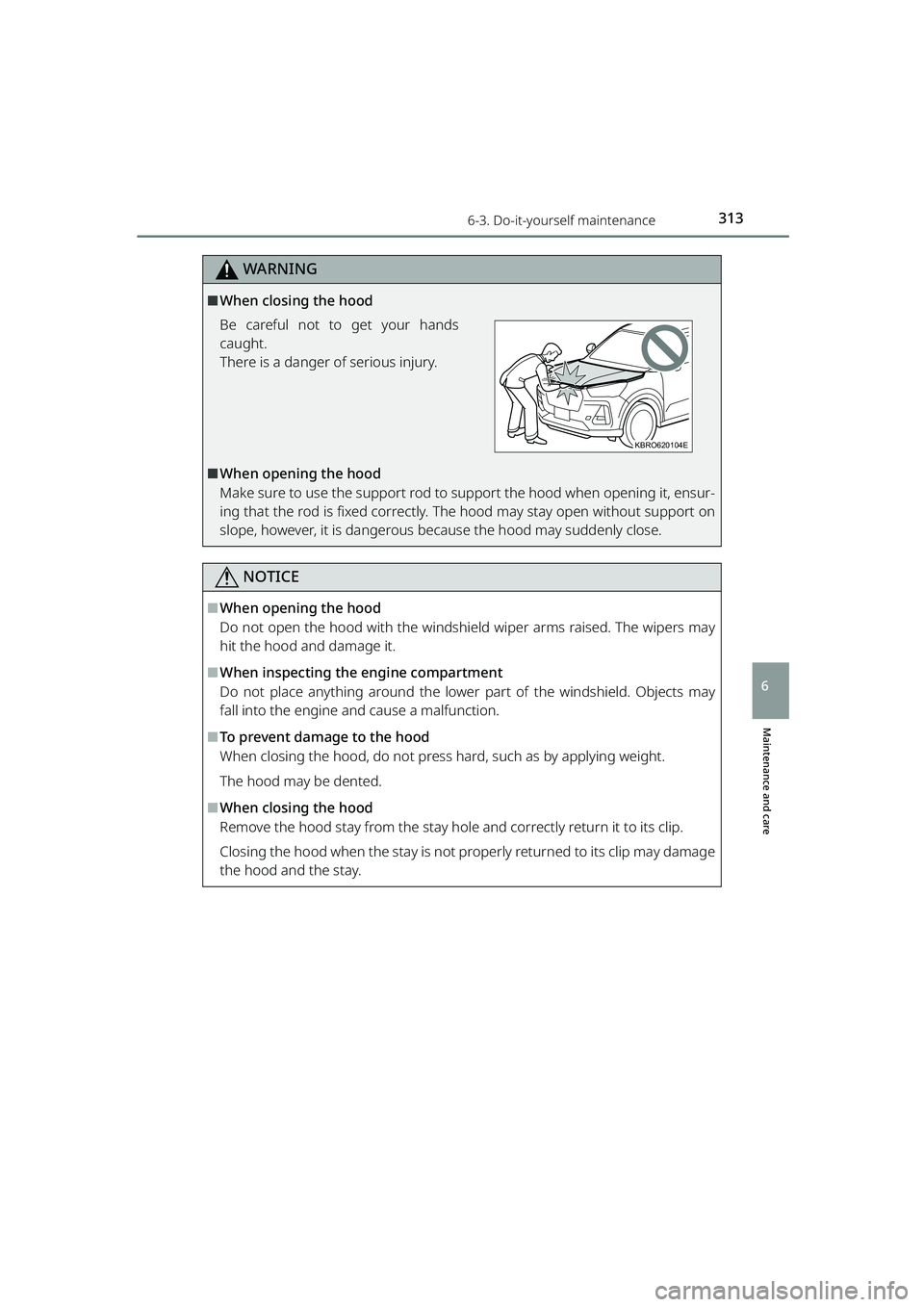

3136-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E
WARNING
Maintenance and care
6
⬛When closing the hood
Be careful not to get your hands
caught.
There is a danger of serious injury.
⬛When opening the hood
Make sure to use the support rod to support the hood when opening it, ensur-
ing that the rod is fixed correctly. Th e hood may stay open without support on
slope, however, it is dangerous because the hood may suddenly close.
NOTICE
⬛When opening the hood
Do not open the hood with the windshield wiper arms raised. The wipers may
hit the hood and damage it.
⬛When inspecting the engine compartment
Do not place anything around the lowe r part of the windshield. Objects may
fall into the engine and cause a malfunction.
⬛To prevent damage to the hood
When closing the hood, do not press hard, such as by applying weight.
The hood may be dented.
⬛When closing the hood
Remove the hood stay from the stay hole and correctly return it to its clip.
Closing the hood when the stay is not pr operly returned to its clip may damage
the hood and the stay.
KBRO620104E
RAIZE_OM_General_BZ358E.book 313 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3406-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E
Replacing the wiper rubbers
When replacing the wiper rubbers, handle each part of the wipers as
follows.
Windshield wipers
⬛Removing and attaching the windshield wiper blades
a Raise the wiper arm. Insert a flat-
head screwdriver to lift the cover
To prevent damage, wrap a cloth
around the tip of the flathead screw-
driver or the like to protect it.
bSlide the windshield wiper blade
and remove it from the wiper
arm
c To attach the wiper blade, reverse the removal procedure
KBTC621001
KBTC621002
RAIZE_OM_General_BZ358E.book 340 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3416-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E
Maintenance and care
6
⬛Replacing the windshield wiper rubbers
a Pull the wiper rubber, remove
the stopper by pressing the claw
of the wiper blade, and pull out
the wiper rubber
b Remove the 2 metal plates from
the old wiper rubber and attach
them to the new wiper rubber
Pay attention to the orientation of the
notch and upward curve of the metal
plate.
cIn attachment, insert it into the
wiper blade from the side with-
out the wiper rubber stopper
Insert the wiper rubber to the blade in
the arrow direction.
dCarefully secure the wiper rubber stopper with the claw of the wiper
blade
KBTC621003
Claw
KBTC621004
KBTC621010
RAIZE_OM_General_BZ358E.book 341 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3426-3. Do-it-yourself maintenance
RAIZE_OM_General_BZ358E
Rear wiper
⬛Removing and attaching the rear wiper blades
a Raise the wiper arm and remove
the wiper blade
aRotate the wiper blade until
the claw fitting comes off
b Remove the wiper blade from
the wiper arm
b To attach the windshield wiper blade, do it in the reverse steps of the
procedure a
When returning the raised wiper arm, return it slowly while holding it with hands.
After attaching the wiper blade, make sure that the joint is securely locked.
⬛Replacing the rear wiper rubbers
a Pull out the wiper rubber from
the wiper blade’s stopper and
remove it all the way
b Remove the 2 metal plates from
the old wiper rubber and attach
them to the new wiper rubber
Pay attention to the orientation of the
upward curve of the metal plate.
2
1
KBRO621005
KBRO621006
KBRO621007
RAIZE_OM_General_BZ358E.book 342 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3717-1. Essential information
RAIZE_OM_General_BZ358E
When trouble arises
7
If the vehicle is submerged or water on the
road is rising
This vehicle is not designed to be able to drive on roads that are
deeply flooded with water. Do not drive on roads where the roads
may be submerged or the water may be rising. It is dangerous to
remain in the vehicle, if it anticipated that the vehicle will be flooded
or set a drift. Remain calm and follow the following.
⚫If the door can be opened, open the door and exit the vehicle.
⚫If the door can not be opened, open the window using the power win-
dow switch and ensure an escape route.
⚫If the window can be opened, exit the vehicle through the window.
⚫If the door and window cannot be opened due to the rising water,
remain calm, wait until the water level inside the vehicle rises to the
point that the water pressure inside of the vehicle equals the water pres-
sure outside of the vehicle and then open the door after waiting for the
rising water to enter the vehicle, and exit the vehicle. When the outside
water level exceeds half the height of the door, the door cannot be
opened from the inside due to water pressure.
⬛Water level exceeds the floor
When the water level exceeds the floo r and time has passed, the electrical
equipment will get damaged, the power windows will not operate, the engine
stop, and the vehicle may not be able to get moving.
⬛Using an emergency escape hammer*
Laminated glass is used in th e windshield on this vehicle.
Laminated glass cannot be shattered with an emergency hammer*.
Tempered glass is used in the windows on this vehicle.
*Contact your Toyota dealer or aftermarket accessory manufacturer for further infor-
mation about an emergency hammer.
WARNING
⬛Caution while driving
Do not drive on roads where the road s may be submerged or the water may
be rising. Otherwise the vehicle may be damaged and cannot move, as well as
become flooded and set a drif t, which may lead to death.
RAIZE_OM_General_BZ358E.book 371 ページ ２０２２年５月１７日　火曜日　午後１時５９分

4338-2. Customizations
RAIZE_OM_General_BZ358E
Vehicle information
8
⬛Windshield wiper (➞P. 203)
⬛Rear wipers and washer ( ➞P. 205)
⬛Turn signal lever (➞ P. 196)
FeatureInitial settingCustomized setting
Vehicle speed sensitive intermittent
operation functionONOFF
FeatureInitial settingCustomized setting
Reverse wiper functionONOFF
Adjusting intermittent operation
timeNormalFast
Slow
4-second low speed operation when
starting intermittent operationONOFF
Rear washer link functionOFFON
FeatureInitial settingCustomized setting
Operation buzzerONOFF
Function to make the light flash 3
times when the lever is moved half
way
ONOFF
Time to hold the lever until the
opposite side’s light starts flashing 3
times after moving the lever to the
opposite side to stop the flashing
Level 2Level 1 to 4
RAIZE_OM_General_BZ358E.book 433 ページ ２０２２年５月１７日　火曜日　午後１時５９分

441Alphabetical index
RAIZE_OM_General_BZ358E
C
Carpet.................................................. 290
Cleaning......................................... 290
How to install floor mats.............. 28
Change lever (shift lever) Continuously variable
transmission .............................. 189
Manual transmission .................. 194
Reverse warning buzzer ............ 193
Shift lever cannot be shifted ..... 191
Child restraint system ....................... 49
How to install.................................. 60
How to select .................................. 49
Installing using ISOFIX attachment points ...................... 63
Securing it with a seat belt .......... 61
Child-protector lock ......................... 135
Clean air filter .................................... 338
Cleaning Seat belts....................................... 290
Vehicle exterior ............................ 284
Vehicle interior ............................. 289
Cleaning and protecting Seat belts....................................... 290
Vehicle exterior ............................ 284
Vehicle interior ............................. 289
Clips
Floor mats ....................................... 28
Clock ............................................... 86, 98
Clock adjustment ...................... 88, 105
Condenser .......................................... 320
Continuously variable transmission Shift lever cannot be shifted ..... 191
Coolant
Checking ........................................ 319
Maintenance data ....................... 425
Preparation and inspection before winter ............................. 238
Cruising distance ................................ 90
Cup holder ......................................... 268
Curtain shield airbag ......................... 37
Customizations ................................. 430
D
D assist switching steering
switch ................................................ 190
Daytime running lights ................... 198
Deck board ......................................... 271
Deck board under tray ................... 272
Defogger
Rear window defogger ......249, 256
Windshield .... .......................249, 256
Dimensions ........................................ 418
Do-it-yourself service precautions ..................................... 309
Door handle (outer handle) .......... 133
Door linked (Illuminated entry system) ......... 264
Door pocket ....................................... 270
Door windows ................................... 160
Doors ................................................... 133
Auto lock and unlock
function....................................... 136
Child-protector lock .................... 135
Door pockets ................................ 270
Door windows .............................. 160
Inside lock button (power door lock)...................... 134
Key-free system ........................... 121
Open door warning light ........... 381
Wireless remote control ............ 131
RAIZE_OM_General_BZ358E.book 441 ページ ２０２２年５月１７日　火曜日　午後１時５９分

448Alphabetical index
RAIZE_OM_General_BZ358E
Side turn signal lights..................... 196
Replacing light bulbs .................. 352
Turn signal lever .......................... 196
Watts .............................................. 428
Small container ................................. 270
Sonar ................................................... 221
Spare tire Inflation pressure ........................ 428
Spark plug .......................................... 425
Specifications .................................... 418
Speedometer ................................ 84, 85
Starter Starting the engine ............ 180, 184
The starter does not operate ... 405
Steering switches ............................. 262
Audio control ................................ 262
D assist switching ........................ 190
Steering wheel .................................. 154
Electric power steering system warning light.............................. 380
Position adjustment .................... 154
Steering wheel lock ................ 182, 187
Steering wheel position
monitor ............................................ 102
Steps to take in an emergency Electronic key does not work
properly ...................................... 406
Emergency flashers .................... 366
Event Data Recorder (EDR).............7
If the vehicle battery is discharged ................................. 408
If the vehicle has become stuck ............................ 415
If the vehicle is submerged in water ....................................... 371
If you have lost your
keys ........ .................. ........... 119, 120 If your vehicle has to be stopped in
an emergency ........................... 367
Overheated ................................... 412
Running out of the key battery ...... ..........................344, 406
The engine does not start ......... 405
Warning messages are displayed .................................... 387
When a warning light comes on .................................... 379
Stop lights
Replacing light bulbs .................. 352
Watts .............................................. 428
Storage features ............................... 266
Stuck .................................................... 415
Sun visors ........................................... 276
Switches
“SOS” button ................................... 68
Audio control switches ............... 262
D assist switching ........................190
Emergency flashers .................... 366
Engine switch ....... ...............180, 184
Fog lights ....................................... 201
Front corner sensors/
Reverse sensors ........................221
Front personal lights .................. 263
Headlight switch .......................... 198
Ignition.... ........................ ......180, 184
Meter control switch .............. 87, 99
Outside rear view mirrors.......... 157
Power windows ............................ 160
Rear window defogger ......249, 256
Tire pressure warning system ......................................... 329
VSC/TRC OFF ................................. 233
Washer .......... ........................203, 205
Window locks................................ 160
Windshield wipers .. ............203, 205
RAIZE_OM_General_BZ358E.book 448 ページ ２０２２年５月１７日　火曜日　午後１時５９分
