2525-1. Using the air conditioning system and defogger
RAIZE_OM_General_BZ358E
⬛Ventilation and air conditioning odors
⚫To let fresh air in, set the air conditioning system to the outside air introduc-
tion mode.
⚫During use, various odors from inside and outside the vehicle may enter into
and accumulate in the air conditioning system. This may then cause odors to
be emitted from the vents.
⚫To reduce potential odors from occurri ng, it is recommended that the air
conditioning system be set to outside air introduction mode prior to turning
the vehicle off.
⬛Air conditioning filter
➞ P. 3 3 8
WARNING
⬛To prevent the windshield from fogging up
⚫Do not set the air outlet switching dial to the or position when set-
ting the temperature of the air conditioning system low in extremely humid
weather. The difference between the te mperature of the outside air and that
of the windshield can cause the outer surface of the windshield to fog up,
blocking your vision.
⚫Do not place anything on the
instrument panel which may cover
the air outlets. Otherwise, air flow
may be obstructed, preventing the
windshield defoggers from defog-
ging.
KBRO510307E
RAIZE_OM_General_BZ358E.book 252 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2535-1. Using the air conditioning system and defogger
RAIZE_OM_General_BZ358E
Interior features
5
NOTICE
⬛To prevent battery discharge
Do not leave the air conditioning system on longer than necessary when the
engine is stopped.
⬛Air outlets
Be careful when adjusting the air outlets while using the air conditioning sys-
tem for heating, for the outlets will become hot.
⬛Recirculated air
Do not set the inside/outside air switching lever to the position when the
air outlet switching dial is at , , or . The windshield and windows may
become fogged.
RAIZE_OM_General_BZ358E.book 253 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2565-1. Using the air conditioning system and defogger
RAIZE_OM_General_BZ358E✽
: If equipped
⬛Indicator of the automatic mode
When you adjust the fan speed or the air outlets*, the AUTO indicator
turns off, but the automatic mode settings other than those you just
adjusted continue to work.
*Vehicles with heaters
Other features
⬛Switching between outside air intr oduction mode and recirculated
air mode
Press
Each time the button is pres sed, the mode is switched between outside air introduc-
tion and recirculated air. When the recirc ulated air mode is selected, the indicator
comes on.
⬛Defogging the windshield (vehicles with heaters)
Press
The air conditioning system is started and is automatically set to outside air introduc-
tion mode.
Press after defogging is complete to switch back to the previous mode.
⬛Rear window defogger✽
Use this switch to defog the rear window.
Press
The rear window defogger will automatically turn OFF after a while.
RAIZE_OM_General_BZ358E.book 256 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2595-1. Using the air conditioning system and defogger
RAIZE_OM_General_BZ358E
Interior features
5
⬛Operation of the automatic mode
The fan speed is adjusted automatically in accordance with the temperature
setting and ambient conditions. Th erefore, immediately after is
pressed, the fan may stop for a while until warm or cool air is ready to flow.
⬛Temperature control sensors
The automatic air conditioning system has sensors so that it can control tem-
perature automatically.
a Solar radiation sensor
Detects the amount of solar radia-
tion.
b Inside air temperature sensor
Detects the temperature of inside
air.
If an object is placed on the solar radiation sensor, or the inside air tempera-
ture sensor is covered up with stickers or the like, these sensors may not work
properly.
⬛Using the air conditioni ng system for cooling
In rare cases, it may appear that fog is blowing out of the air outlet, but this is
normal when moist air is suddenly cooled.
⬛Fogging up of the windows
⚫The windows will easily fog up when th e humidity in the vehicle is high.
Turning on will flow the dehumi dified air from the outlets and
defog the windshield effectively.
⚫If you turn off, the windows may fog up more easily.
⚫The windows may fog up if the re circulated air mode is used.
1
2
KBRO510221E
RAIZE_OM_General_BZ358E.book 259 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2615-1. Using the air conditioning system and defogger
RAIZE_OM_General_BZ358E
Interior features
5
WARNING
⬛To prevent the windshield from fogging up (vehicles with heaters)
⚫Do not press when setting the temperature of the air condition-
ing system low in extremely humid weather. Also, do not switch the air out-
lets to . The difference between the temperature of the outside air and
that of the windshield can cause the outer surface of the windshield to fog
up, blocking your vision.
⚫Do not place anything on the
instrument panel which may cover
the air outlets. Otherwise, air flow
may be obstructed, preventing the
windshield defoggers from defog-
ging.
NOTICE
⬛To prevent battery discharge
Do not leave the air conditioning system on longer than necessary when the
engine is stopped.
⬛Air outlets (vehicles with heaters)
Be careful when adjusting the air outlets while using the air conditioning sys-
tem for heating, for the outlets will become hot.
KBRO510307E
RAIZE_OM_General_BZ358E.book 261 ページ ２０２２年５月１７日　火曜日　午後１時５９分

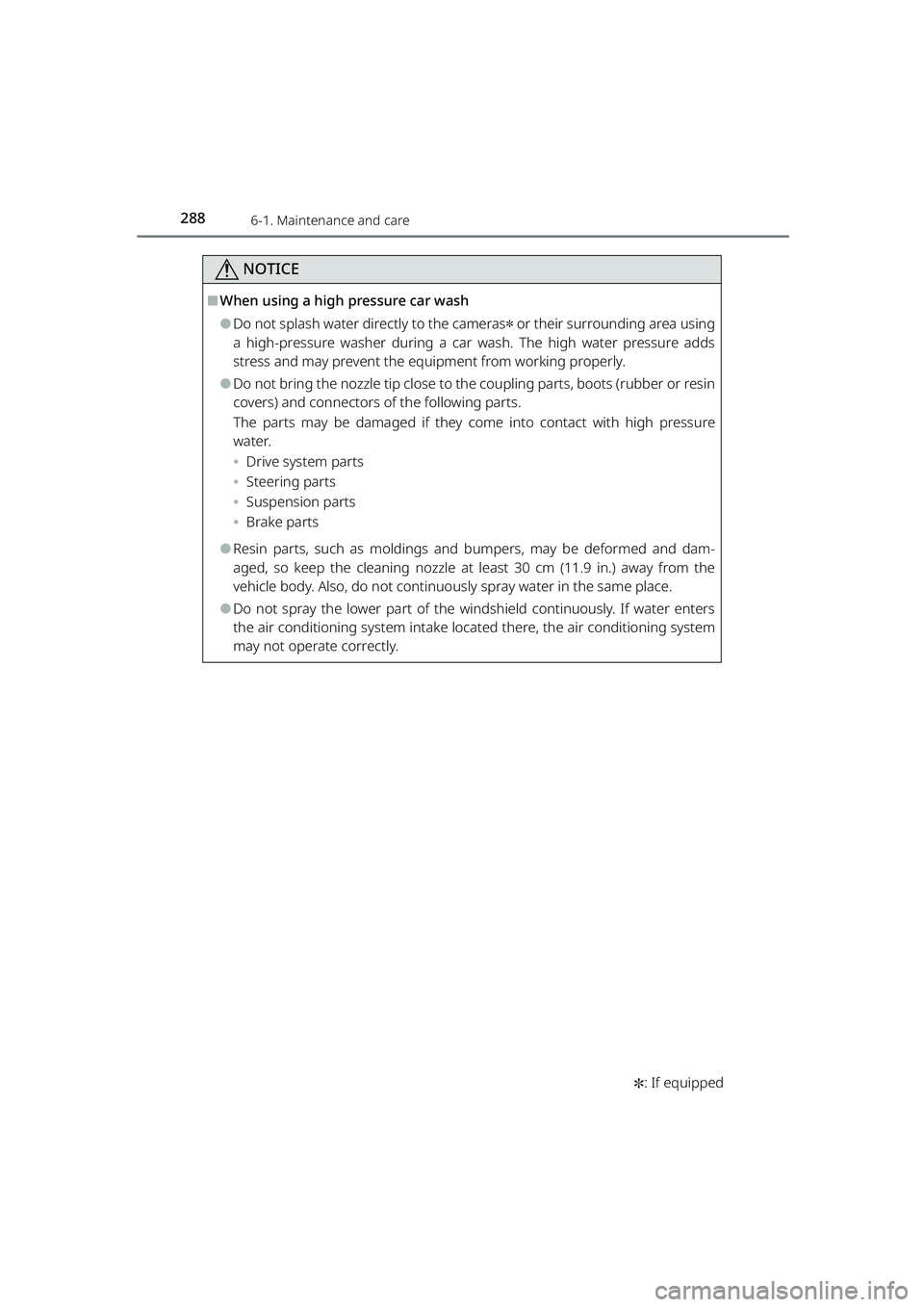

2886-1. Maintenance and care
RAIZE_OM_General_BZ358E
NOTICE
✽: If equipped
⬛When using a high pressure car wash
⚫Do not splash water directly to the cameras✽ or their surrounding area using
a high-pressure washer during a car wash. The high water pressure adds
stress and may prevent the equipment from working properly.
⚫Do not bring the nozzle tip close to the coupling parts, boots (rubber or resin
covers) and connectors of the following parts.
The parts may be damaged if they come into contact with high pressure
water.
⦁ Drive system parts
⦁ Steering parts
⦁ Suspension parts
⦁ Brake parts
⚫Resin parts, such as moldings and bumpers, may be deformed and dam-
aged, so keep the cleaning nozzle at le ast 30 cm (11.9 in.) away from the
vehicle body. Also, do not continuous ly spray water in the same place.
⚫Do not spray the lower part of the windshield continuously. If water enters
the air conditioning system intake loca ted there, the air conditioning system
may not operate correctly.
RAIZE_OM_General_BZ358E.book 288 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2906-1. Maintenance and care
RAIZE_OM_General_BZ358E
Cleaning the synthetic leather areas
⚫Remove dust using a vacuum cleaner
⚫Wipe it off with a soft cloth dampened with neutral detergent diluted to
approximately 1%
⚫Wring out any excess water from the cloth and thoroughly wipe off
remaining traces of detergent and water
⬛Caring for leather areas
Toyota recommends cleaning the interior of the vehicle at least twice a year to
maintain the quality of the vehicle’s interior.
⬛Carpet cleaning
Toyota recommends that you keep the carpet dry at all times. To clean the car-
pet, a commercially available fo am-type cleaner can be used.
Use a sponge or brush to spread the foam over the carpet and work it in a cir-
cular motion. Do not apply water directly. Wipe off and dry.
⬛Seat belts
Clean with mild soap and lukewarm water using a cloth or sponge.
Also check the seat belts periodically for excessive wear, fraying or cuts.
WARNING
⬛Water in the vehicle
⚫Do not splash or spill liquid in the vehicle.
Doing so may cause electrical components, etc., to malfunction or catch fire.
⚫Do not get any of the SRS airbag compon ents or wiring in the vehicle interior
wet. ( ➞P. 3 7 )
An electrical malfunction may cause the SRS airbags to deploy or not func-
tion properly, resulting in death or serious injury.
⬛Cleaning the interior (especially instrument panel)
Do not use a polish wax or polish cleaner. The instrument panel may reflect off
the windshield, obstructing the driver’s view and leading to an accident, result-
ing in death or serious injury.
⬛Caution: Area around the seats
Be very careful when putting your hand under a seat, such as when cleaning
the interior of the vehicle or picking up anything that has fallen under the seat.
Your hand may strike the seat rail or the base of the seat and be injured.
RAIZE_OM_General_BZ358E.book 290 ページ ２０２２年５月１７日　火曜日　午後１時５９分

3086-2. Maintenance
RAIZE_OM_General_BZ358E
Vehicle exterior
WARNING
⬛If the engine is running
Turn the engine off and ensure that there is adequate ventilation before per-
forming maintenance checks.
ItemsCheck points
Doors⚫Do the doors operate smoothly?
Engine hood⚫Does the engine hood lock system work properly?
Fluid leaks⚫There should not be any signs of fluid leakage after the
vehicle has been parked.
Tire
⚫Is the tire inflation pressure correct?
⚫The tires should not be da maged or excessively worn.
⚫Have the tires been rotated according to the mainte-
nance schedule?
⚫The wheel nuts should not be loose.
Windshield wipers
⚫The wiper blades should not show any signs of crack-
ing, splitting, wear, contamination or deformation.
⚫The wiper blades should clear the Windshield without
streaking or skipping.
