2023 TOYOTA RAIZE windshield

165
4
RAIZE_OM_General_BZ358E
Driving
4-1. Driving the vehicle
Driving the vehicle .....................166
Precautions when loading luggage .....................................177
Trailer towing ..............................179
4-2. Driving procedures
Engine (ignition) switch (vehicles without key-free
system) ......................................180
Engine (ignition) switch (vehicles with key-free
system) ......................................184
Continuously variable transmission .............................189
Driving the manual transmission vehicle ........................................194
Turn signal lever.........................196
Parking brake..............................197
4-3. Operating the lights and windshield wipers
Headlight switch ........................ 198
Fog light switch .......................... 201
Windshield wipers and washer
(front)......................................... 203
Windshield wipers and washer (rear) .......................................... 205
4-4. Refueling
Opening the fuel tank cap....... 207
4-5. Using the driving support systems
BSM (Blind Spot Monitor) ........ 211
Front corner sensors/
Reverse sensors ...................... 221
Rear-view camera ...................... 228
Driving assist systems .............. 232
4-6. Driving tips
Winter driving tips ..................... 238
Eco-friendly driving tips ........... 241
RAIZE_OM_General_BZ358E.book 165 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1734-1. Driving the vehicle
RAIZE_OM_General_BZ358E
WARNING
Driving
4
⚫Avoid revving or racing the engine.
Running the engine at high speed while the vehicle is stopped may cause
the exhaust system to overheat, which could result in a fire if combustible
material is nearby.
⬛When parking the vehicle
⚫Do not leave glasses, cigarette lighters, aerosol cans, or carbonated bever-
age cans in the vehicle under the scorching sun.
Doing so may result in the following:
⦁ Gas may leak from a cigarette lighter or aerosol can, and may lead to a fire
⦁ The glasses with plastic lenses and plastic material may deform or crack
⦁ Carbonated beverage cans may fracture, causing the contents to spill over
the interior of the vehicle, and may al so cause a short circuit in the vehi-
cle’s electrical components
⚫Do not leave cigarette lighters in the vehi cle. If a cigarette lighter is in a stor-
age compartment or on the floor, it ma y be lit accidentally when luggage is
loaded or the seat is adjusted, causing a fire.
⚫Do not attach adhesive discs to the windshield or windows. Do not place
containers such as fragrance on the instrument panel or dashboard.
Adhesive discs or containers may act as lenses, causing a fire in the vehicle.
⚫Do not leave a door or window open if the curved glass is coated with a
metallized film such as a silver-colored one.
Reflected sunlight may cause the glass to act as a lens, causing a fire.
⚫For continuously variable transmission vehicles, always apply the parking
brake, set the shift lever to P, stop the engine, and lock the vehicle when
leaving the vehicle unattended.
Do not leave the vehicle unattende d while the engine is running.
If the vehicle is parked wi th the shift lever in P but the parking brake is not
set, the vehicle may start to move, possibly leading to an accident.
⚫Do not touch the exhaust pipes while th e engine is running or immediately
after turning the engine off.
Doing so may cause burns.
⬛When taking a nap in the vehicle
Always turn the engine off.
Otherwise, if you accidentally move the shift lever or depress the accelerator
pedal, this could cause an accident or fire due to engine overheating. Addition-
ally, if the vehicle is parked in a poorly ventilated area, exhaust gases may enter
the vehicle, leading to death or a serious health hazard.
RAIZE_OM_General_BZ358E.book 173 ページ ２０２２年５月１７日　火曜日　午後１時５９分

198
RAIZE_OM_General_BZ358E✽
: If equipped
4-3. Operating the lights and windshield wipers
Headlight switch
The headlights can be turned on automatically or manually.
Operation instructions
Moving the switch will turn the lights on and off, as specified below.
a : Turns off*
b
✽: Automatically turns on/
off the headlights, front position
lights, daytime running lights
✽( ➞ P. 199) and so on (when the
engine switch is “ON”)
c : Turns on the front posi-
tion lights, tail lights, license plate
lights, and instrument panel
lights
d : Turns on the lights speci-
fied above and the headlights
*Vehicles with daytime running light
system: the daytime running lights
turn on ( ➞P. 199)
Turn on high beam
a Switch to high beam when the
headlights are on
Return the lever to its original position
to return to low beam.
bHigh beam is turned on while you
pull the lever
Even if the headlights are off, the high
beam will turn on. Release the lever to
return to low beam or turn off high
beam.
1
2
4
3
KBRO430101E
1
2
KBRO430102E
RAIZE_OM_General_BZ358E.book 198 ページ ２０２２年５月１７日　火曜日　午後１時５９分

1994-3. Operating the lights and windshield wipers
RAIZE_OM_General_BZ358E✽
: If equipped
Driving
4
Follow me home system✽
This system allows the headlights to be turned on for 30 seconds when
the engine switch is turned off.
Pull the lever toward you and
release it with the light switch
in after turning the engine switch
off.
The lights are turned off in the following
situations.
⦁ The engine switch is turned to “ON”.
⦁ The light switch is turned on.
⦁ The light switch is pulled toward you
and then released.
⬛Daytime running light system✽
To make your vehicle more visible to ot her drivers during daytime driving, the
daytime running lights turn on automatically whenever the engine is started
and the parking brake is released wi th the headlight switch in the or
* position. (Illuminate brighter than the front position lights.) Daytime
running lights are not designed for use at night.
*When the front position lights are not turned on
⬛Light sensor✽
⚫Observe the following precautions.
Failure to do so may prevent the
automatic light on/off function from
working normally.
⦁ Avoid placing any item on the
sensor or pasting items that
would block the sensor on the
windshield
⦁ Do not spray liquid including
glass cleaner
KBRO430103E
KBRO430104E
Light sensor
(with solar radiation sensor)
RAIZE_OM_General_BZ358E.book 199 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2004-3. Operating the lights and windshield wipers
RAIZE_OM_General_BZ358E
✽: If equipped
⬛Automatic light off system
⚫While the lights are turned on, changi ng the engine switch from “ON” to
“ACC” or “OFF” will automatically turn off the lit lights.
⚫To turn the lights on again, turn “ON” the engine switch or move the head-
light switch to the position, and then move it to the or
position.
⬛Automatic light-off warning buzzer
When the headlights and tail lights are tu rned on with the engine switch set to
“ACC” or “OFF”, opening the driver’s door will cause the warning buzzer to
sound, letting the driver know that the lights have not been turned off.
⚫When the buzzer sounds , the warning message also appears for vehicles
with TFT color multi-information display. ( ➞P. 391)
⬛Power saving function
To prevent the battery from discharging, when the engine switch is set in “ACC”
or “OFF” and the headlights or tail lig hts are on, the power saving function is
activated and all lights are automatically turned off after about 10 minutes.
After light has been automatically turn ed off, perform any of the following
operations to cancel the power saving state and turn the lights back on.
⚫
When the engine switch is set to “ON”
⚫When the headlight switch is operated (However, the lights will turn off again
automatically after about 10 minutes)
⚫When one of the doors is opened or cl osed (However, the lights will automati-
cally turn off again after about 10 minutes)
⬛Customizations✽
You can change the timing of the headlight switch turning on and off automat-
ically at the position, etc.
(List of customizable features: ➞ P. 430)
NOTICE
⬛To prevent battery discharge
Do not leave the lights on for a long ti me with the engine stopped. Also, be
sure to turn off the lights when you leave the vehicle.
RAIZE_OM_General_BZ358E.book 200 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2014-3. Operating the lights and windshield wipers
RAIZE_OM_General_BZ358E✽
: If equipped
Driving
4

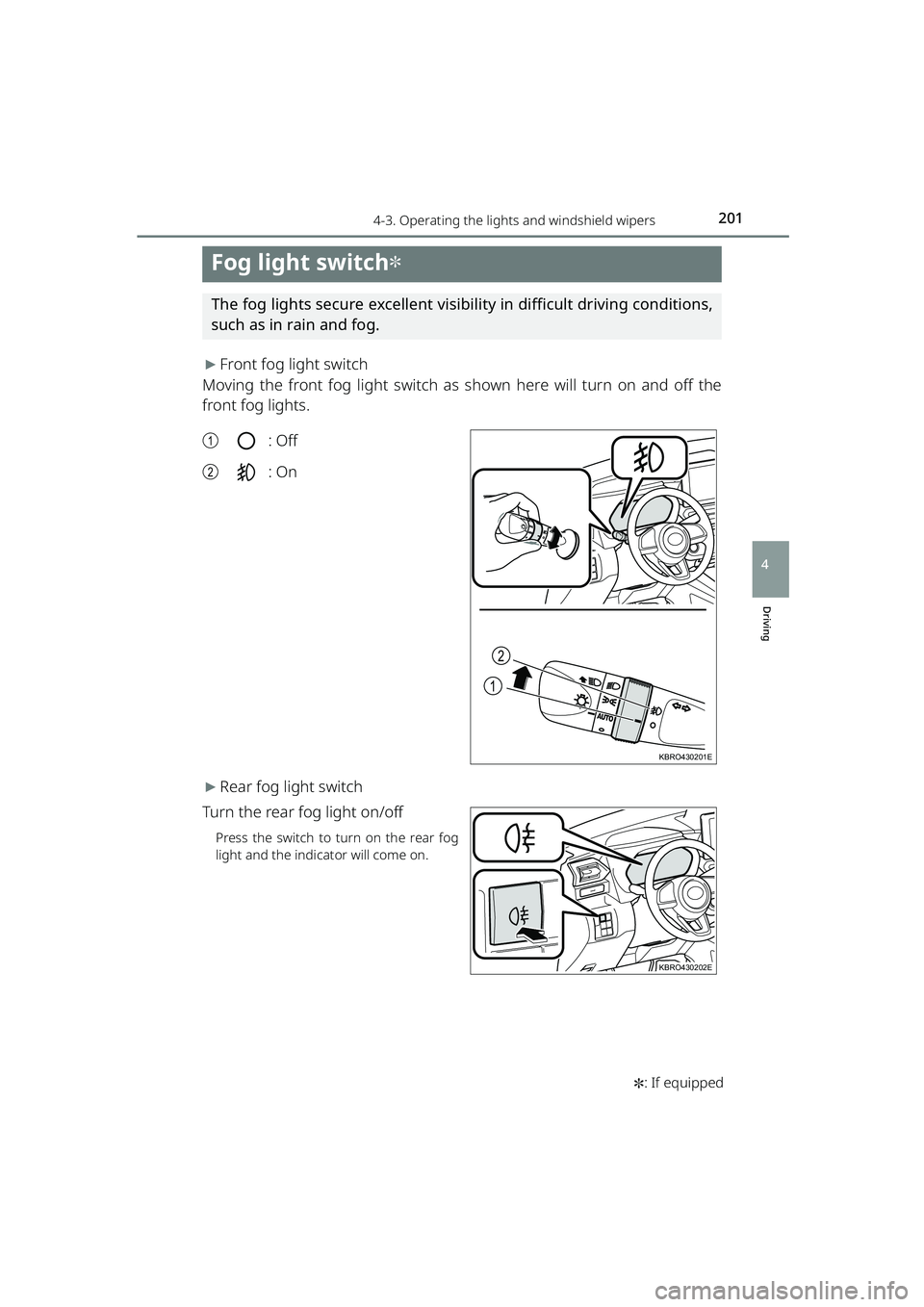

Fog light switch✽
The fog lights secure excellent visib ility in difficult driving conditions,
such as in rain and fog.
▶Front fog light switch
Moving the front fog light switch as shown here will turn on and off the
front fog lights.
a : Off
b : On
▶Rear fog light switch
Turn the rear fog light on/off
Press the switch to turn on the rear fog
light and the indicator will come on.
1
2
KBRO430201E
KBRO430202E
RAIZE_OM_General_BZ358E.book 201 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2024-3. Operating the lights and windshield wipers
RAIZE_OM_General_BZ358E

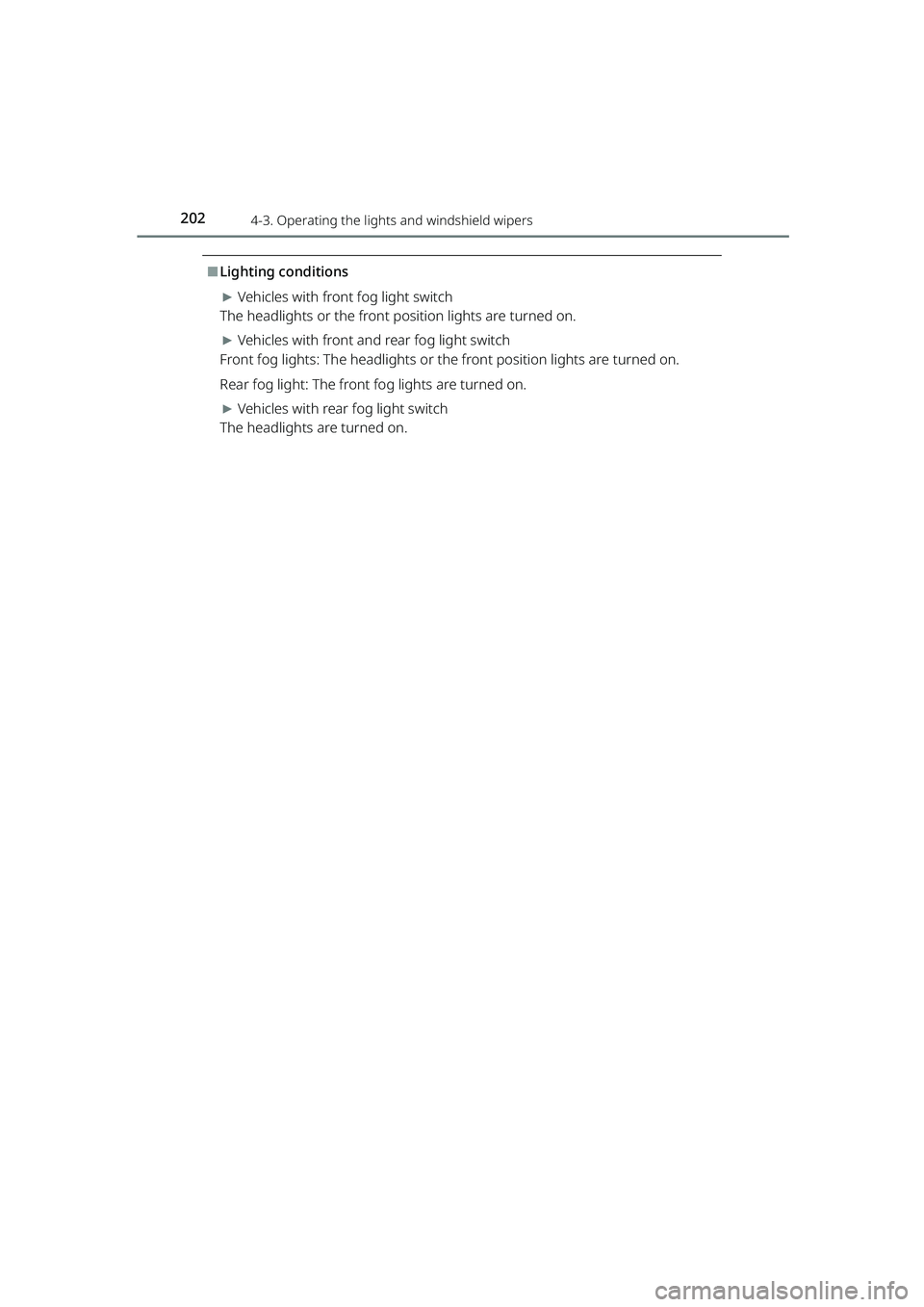

⬛Lighting conditions
▶Vehicles with front fog light switch
The headlights or the front po sition lights are turned on.
▶Vehicles with front and rear fog light switch
Front fog lights: The headlights or the front position lights are turned on.
Rear fog light: The front fog lights are turned on.
▶Vehicles with rear fog light switch
The headlights are turned on.
RAIZE_OM_General_BZ358E.book 202 ページ ２０２２年５月１７日　火曜日　午後１時５９分

2034-3. Operating the lights and windshield wipers
RAIZE_OM_General_BZ358E
Driving
4
Windshield wipers and washer (front)
Operation instructions
Operate the lever as follows to operate the windshield wipers or
washer.
When is selected, the intermittent operation time changes according to the
vehicle speed.
a: Stopped
b : Intermittent windshield
wiper operation
The intermittent windshield wiper
operates more frequently as vehicle
speed becomes higher.
c : Low speed windshield
wiper operation
d : High speed windshield
wiper operation
e : Temporary operation
f : Dispense washer fluid
Pulling the lever operates the wind-
shield wipers and washer.
2
1
3
4
5
KBRO430301E
6
KBRO430302E
RAIZE_OM_General_BZ358E.book 203 ページ ２０２２年５月１７日　火曜日　午後１時５９分
