2023 TOYOTA GR YARIS Owners Manual

23
Owner's Manual_Europe_M52P63_en
Pictorial index
*: If equipped
Meter control switches ......................................... ...........................P.85
Phone switch*1
Vehicle-to-vehicle distance switch*2............................................P.184
LTA (Lane Tracing Assist) switch*2...............................................P.170
Cruise control switches*2
Dynamic radar cruise control*2.........................................................P.179
Audio remote control switches*1
Talk switch*1
*1: Refer to “Navigation and multimedia system Owner’s manual”.
*2: If equipped

24
Owner's Manual_Europe_M52P63_en
Pictorial index

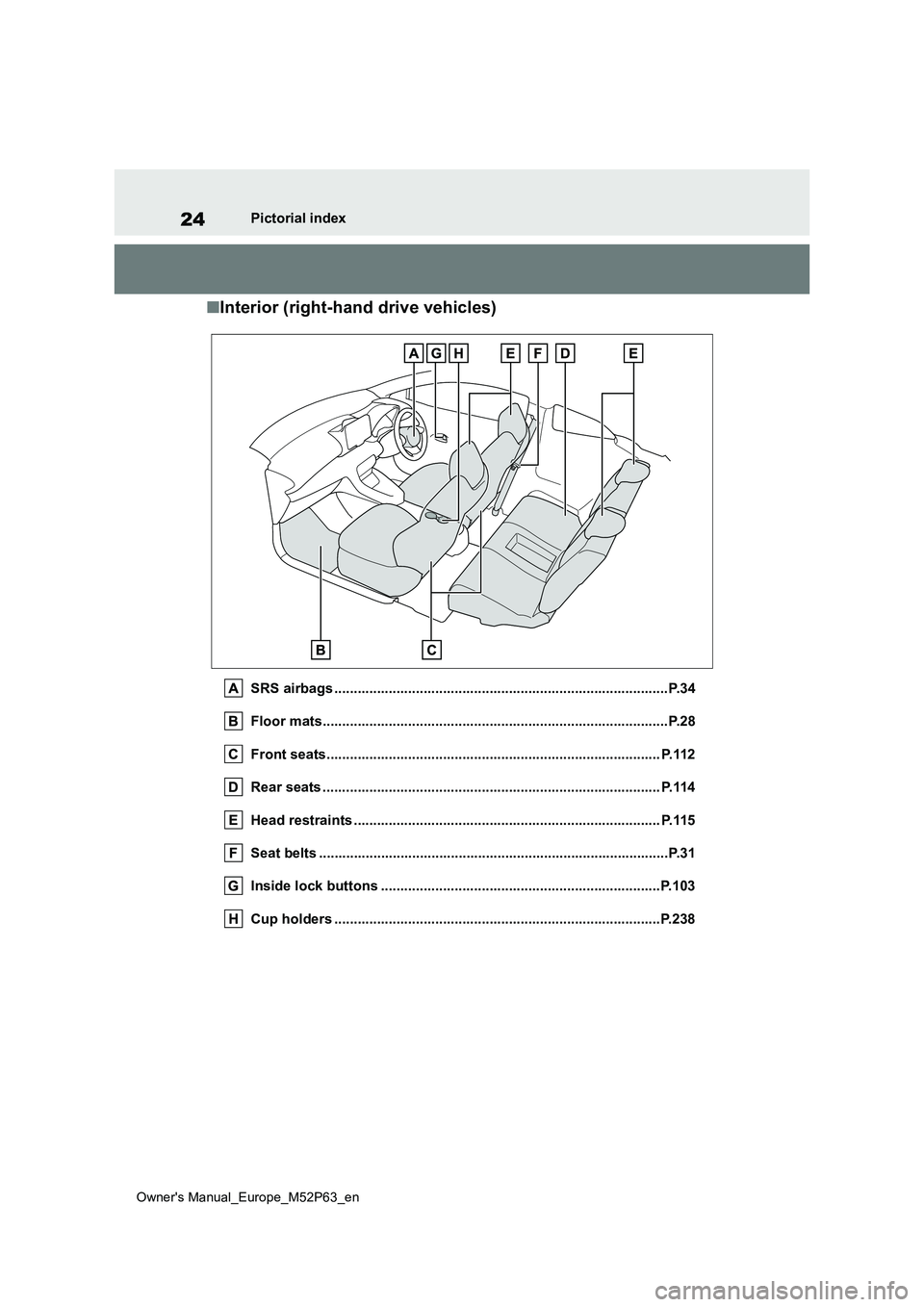

■Interior (right-hand drive vehicles)
SRS airbags ......................................................................................P.34
Floor mats..................................................... ....................................P.28
Front seats.................................................... .................................. P.112
Rear seats ..................................................... .................................. P.114
Head restraints ................................................ ............................... P.115
Seat belts ..................................................... .....................................P.31
Inside lock buttons ............................................ ............................P.103
Cup holders .................................................... ................................P.238

25
Owner's Manual_Europe_M52P63_en
Pictorial index

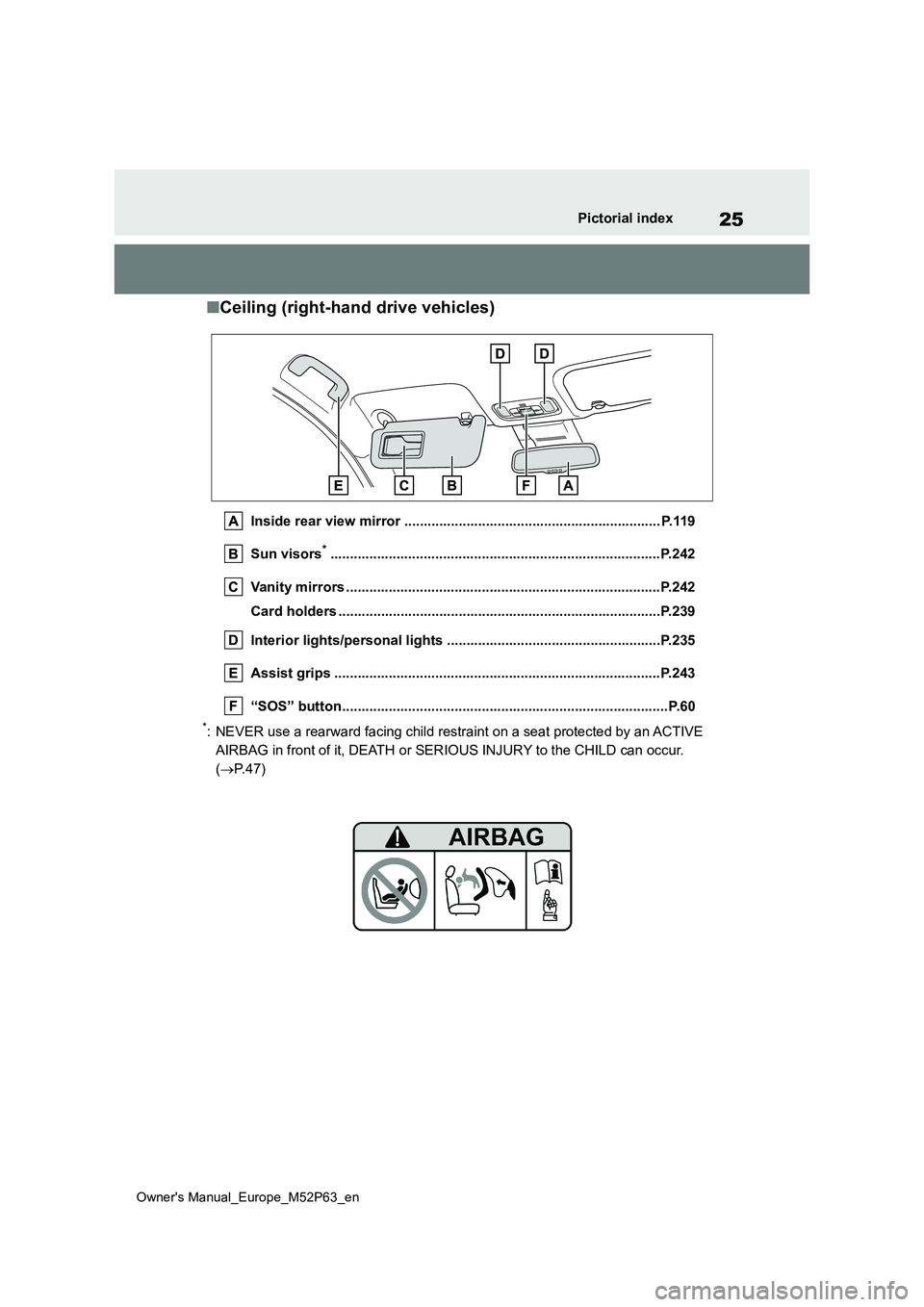

■Ceiling (right-hand drive vehicles)
Inside rear view mirror .................................................................. P.119
Sun visors*............................................................... ......................P.242
Vanity mirrors ................................................. ................................P.242
Card holders ................................................... ................................P.239
Interior lights/personal lights ................................ .......................P.235
Assist grips ................................................... .................................P.243
“SOS” button................................................... .................................P.60
*: NEVER use a rearward facing child restraint on a seat protected by an ACTIVE
AIRBAG in front of it, DEATH or SERIOUS INJURY to the CHILD can occur.
( P. 4 7 )

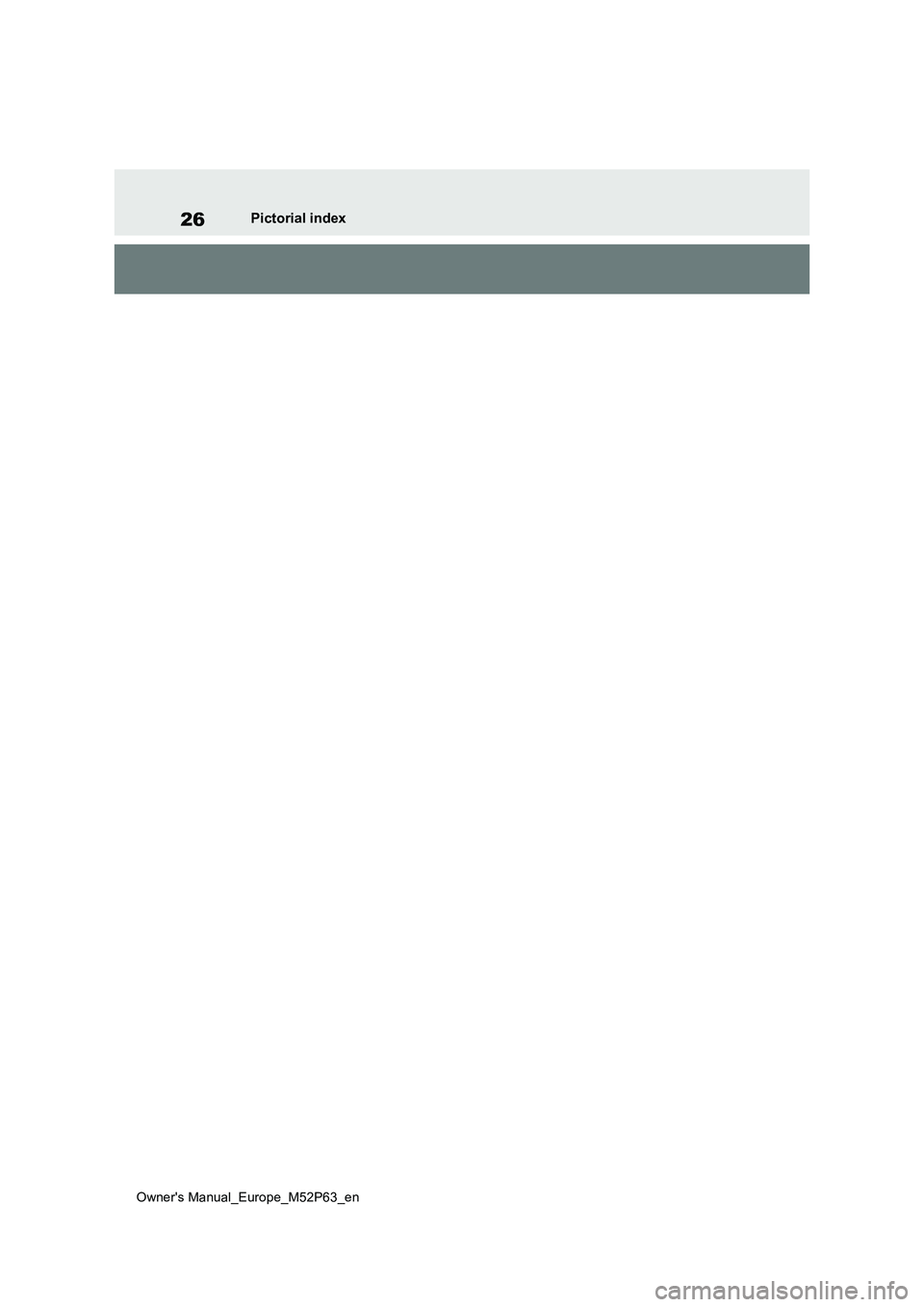

26
Owner's Manual_Europe_M52P63_en
Pictorial index

1
27
Owner's Manual_Europe_M52P63_en
1

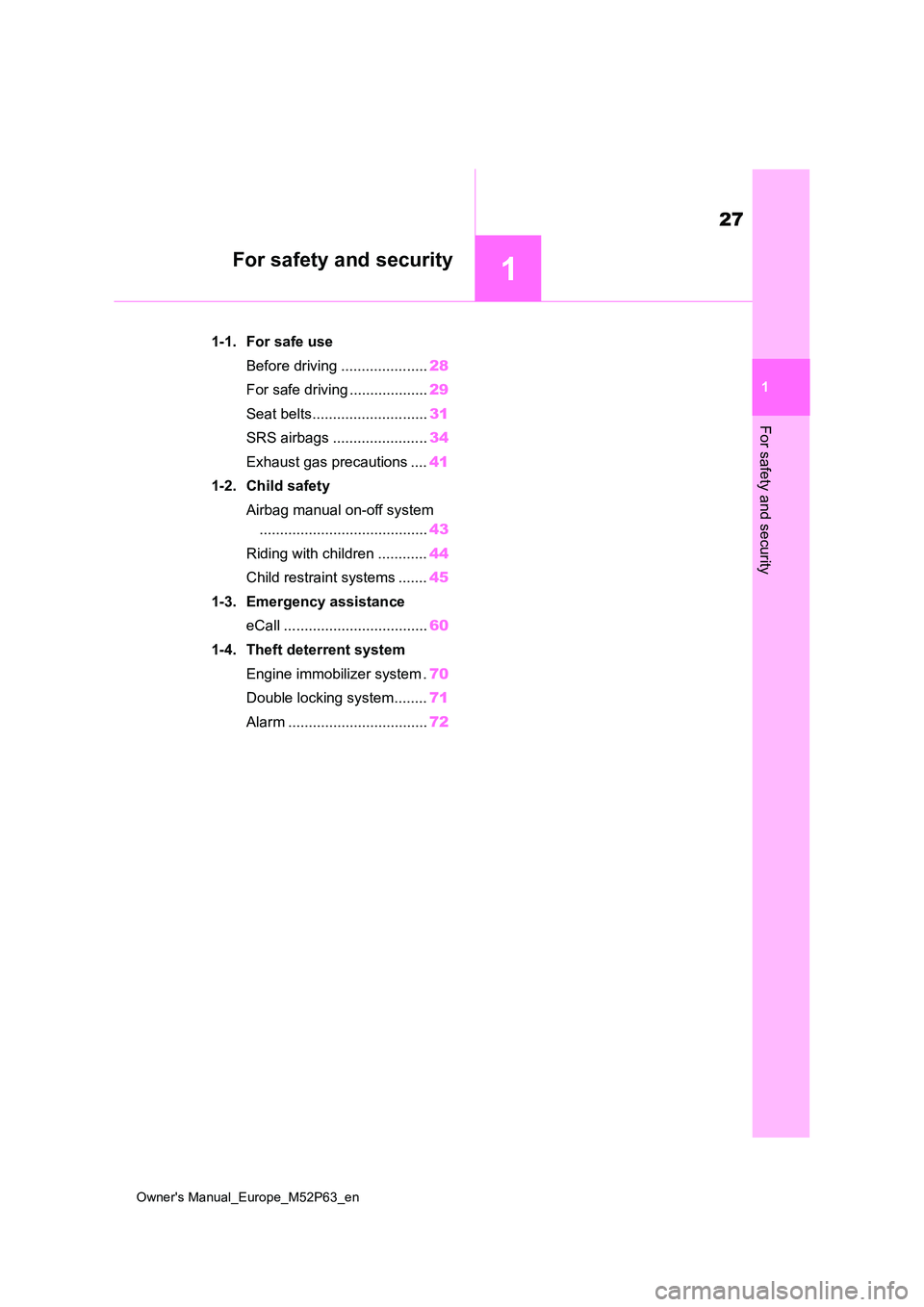

For safety and security
For safety and security
1-1. For safe use
Before driving ..................... 28
For safe driving ................... 29
Seat belts............................ 31
SRS airbags ....................... 34
Exhaust gas precautions .... 41
1-2. Child safety
Airbag manual on-off system
......................................... 43
Riding with children ............ 44
Child restraint systems ....... 45
1-3. Emergency assistance
eCall ................................... 60
1-4. Theft deterrent system
Engine immobilizer system . 70
Double locking system........ 71
Alarm .................................. 72

28
Owner's Manual_Europe_M52P63_en

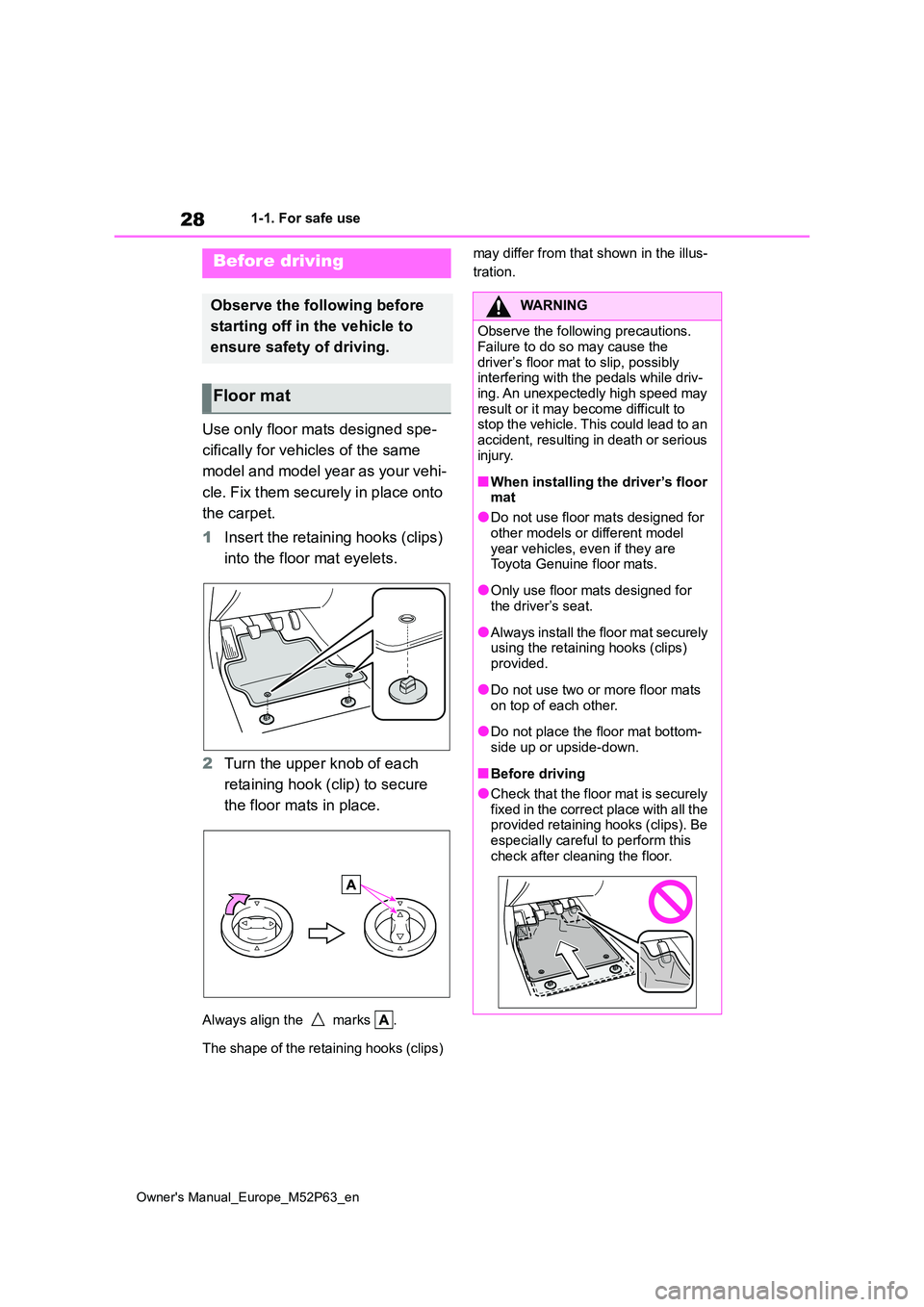

1-1. For safe use
1-1.For s afe us e
Use only floor mats designed spe-
cifically for vehicles of the same
model and model year as your vehi-
cle. Fix them securely in place onto
the carpet.
1 Insert the retaining hooks (clips)
into the floor mat eyelets.
2 Turn the upper knob of each
retaining hook (clip) to secure
the floor mats in place.
Always align the marks .
The shape of the retaining hooks (clips)
may differ from that shown in the illus-
tration.Before driving
Observe the following before
starting off in t he vehicle to
ensure safety of driving.
Floor mat
WARNING
Observe the following precautions.
Failure to do so may cause the driver’s floor mat to slip, possibly interfering with the pedals while driv-
ing. An unexpectedly high speed may result or it may become difficult to stop the vehicle. This could lead to an
accident, resulting in death or serious injury.
■When installing the driver’s floor mat
●Do not use floor mats designed for
other models or different model year vehicles, even if they are Toyota Genuine floor mats.
●Only use floor mats designed for the driver’s seat.
●Always install the floor mat securely using the retaining hooks (clips)
provided.
●Do not use two or more floor mats
on top of each other.
●Do not place the floor mat bottom-
side up or upside-down.
■Before driving
●Check that the floor mat is securely fixed in the correct place with all the provided retaining hooks (clips). Be
especially careful to perform this check after cleaning the floor.

29
1
Owner's Manual_Europe_M52P63_en

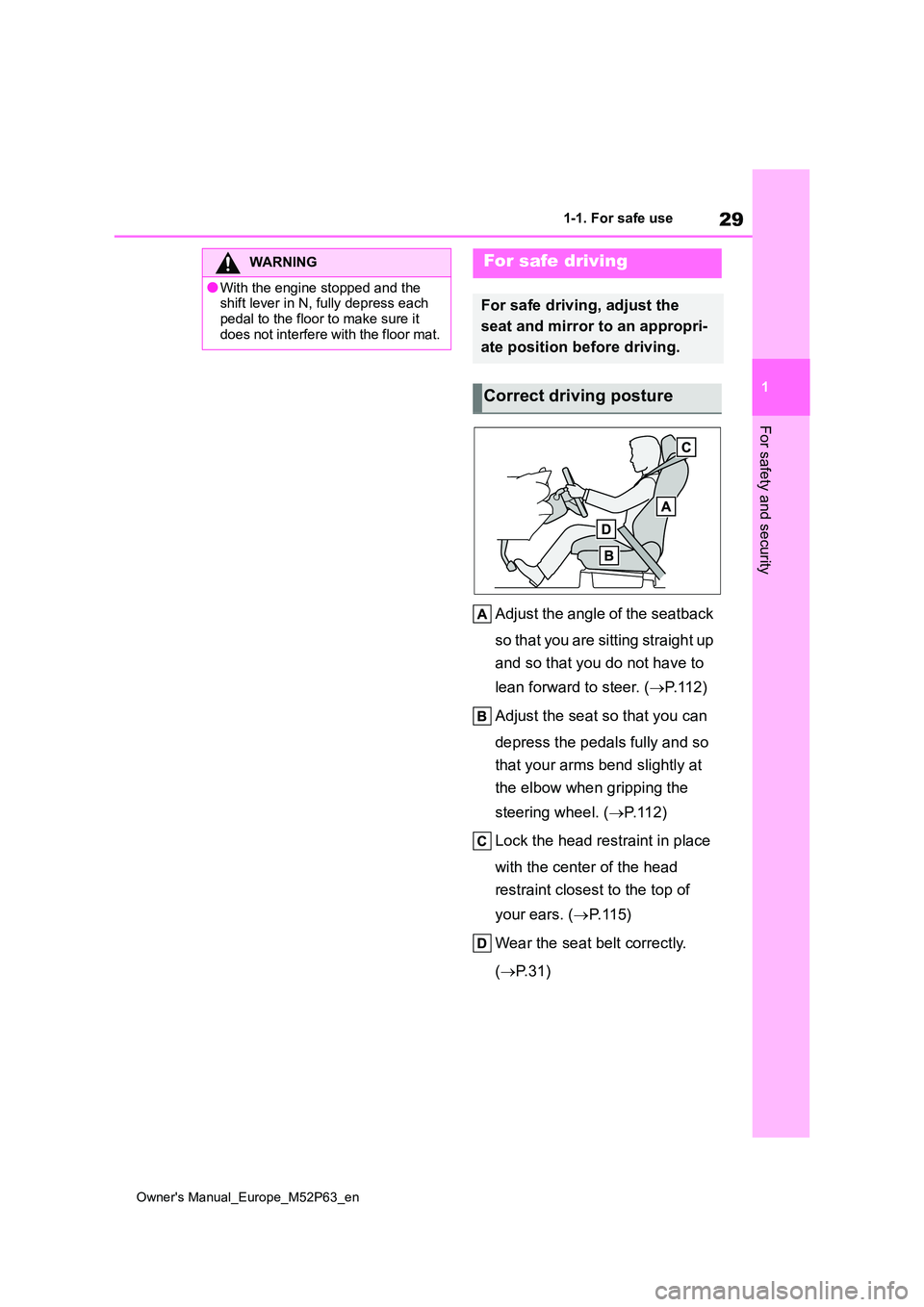

1-1. For safe use
For safety and security
Adjust the angle of the seatback
so that you are sitting straight up
and so that you do not have to
lean forward to steer. ( P. 1 1 2 )
Adjust the seat so that you can
depress the pedals fully and so
that your arms bend slightly at
the elbow when gripping the
steering wheel. ( P. 1 1 2 )
Lock the head restraint in place
with the center of the head
restraint closest to the top of
your ears. ( P. 1 1 5 )
Wear the seat belt correctly.
( P. 3 1 )
WARNING
●With the engine stopped and the shift lever in N, fully depress each
pedal to the floor to make sure it does not interfere with the floor mat.
For safe driving
For safe driving, adjust the
seat and mirror to an appropri-
ate position before driving.
Correct driving posture

30
Owner's Manual_Europe_M52P63_en

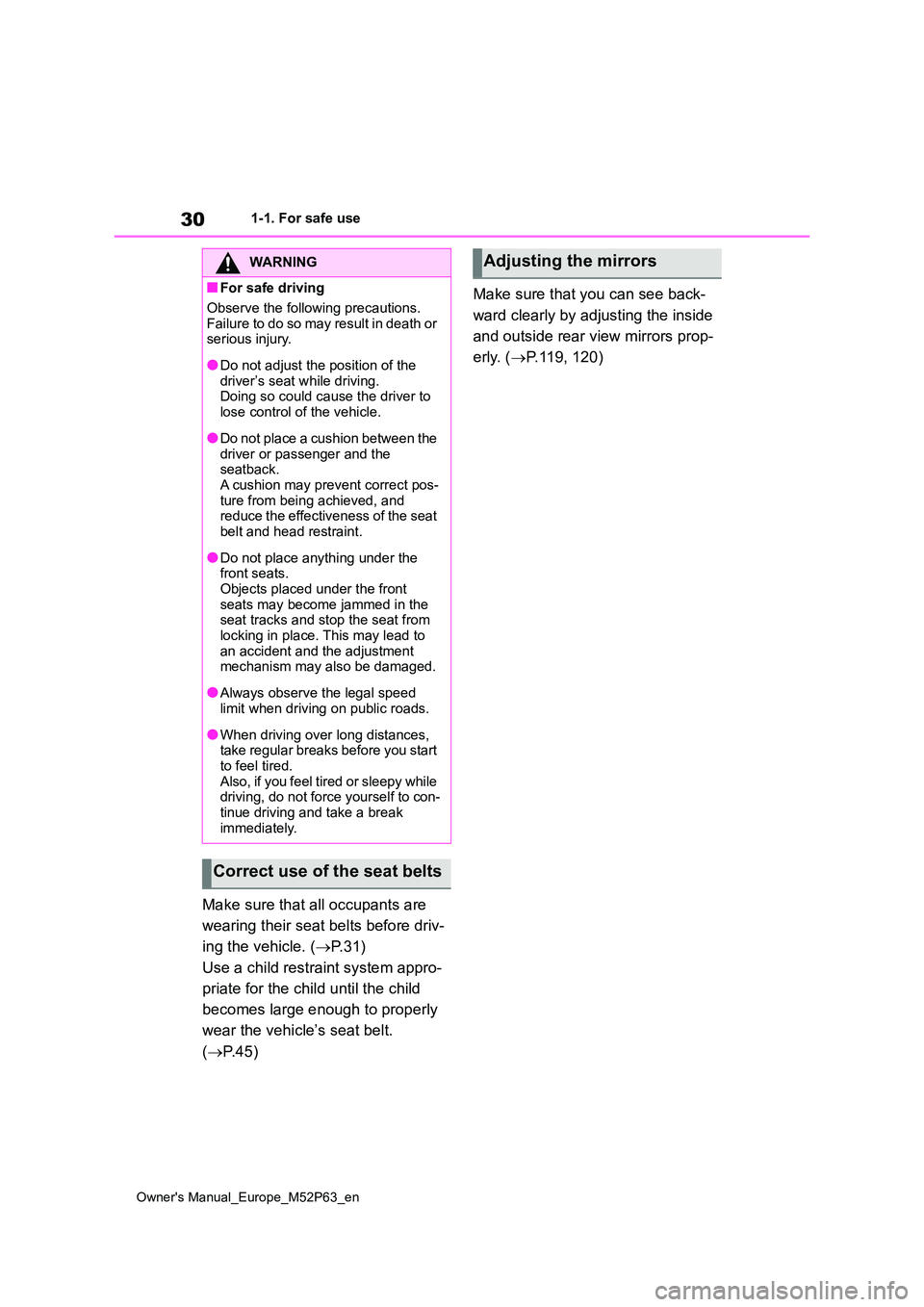

1-1. For safe use
Make sure that all occupants are
wearing their seat belts before driv-
ing the vehicle. ( P.31)
Use a child restraint system appro-
priate for the child until the child
becomes large enough to properly
wear the vehicle’s seat belt.
( P. 4 5 )
Make sure that you can see back-
ward clearly by adjusting the inside
and outside rear view mirrors prop-
erly. ( P.119, 120)
WARNING
■For safe driving
Observe the following precautions.
Failure to do so may result in death or serious injury.
●Do not adjust the position of the driver’s seat while driving.Doing so could cause the driver to
lose control of the vehicle.
●Do n ot p la ce a cu s hi on b et we en t he
driver or passenger and the seatback.A cushion may prevent correct pos-
ture from being achieved, and reduce the effectiveness of the seat belt and head restraint.
●Do not place anything under the front seats.
Objects placed under the front seats may become jammed in the seat tracks and stop the seat from
locking in place. This may lead to an accident and the adjustment mechanism may also be damaged.
●Always observe the legal speed limit when driving on public roads.
●When driving over long distances, take regular breaks before you start
to feel tired. Also, if you feel tired or sleepy while driving, do not force yourself to con-
tinue driving and take a break immediately.
Correct use of the seat belts
Adjusting the mirrors
