2023 TOYOTA GR YARIS Owners Manual

95
2
Owner's Manual_Europe_M52P63_en
2-1. Instrument cluster
Vehicle status information and indicators
The image is an example only, and may
vary slightly from actual conditions.
■Updating the history data
Update the latest fuel consumption by selecting “Clip” to measure the current
fuel consumption again.
■Resetting the data
The fuel consumption data can be deleted by selecting “Clear”.
■Cruising range
Displays the estimated maximum dis- tance that can be driven with the quan-tity of fuel remaining.
This distance is computed based on your average fuel consumption.As a result, the actual distance that can
be driven may differ from that displayed.

96
Owner's Manual_Europe_M52P63_en
2-1. Instrument cluster

3

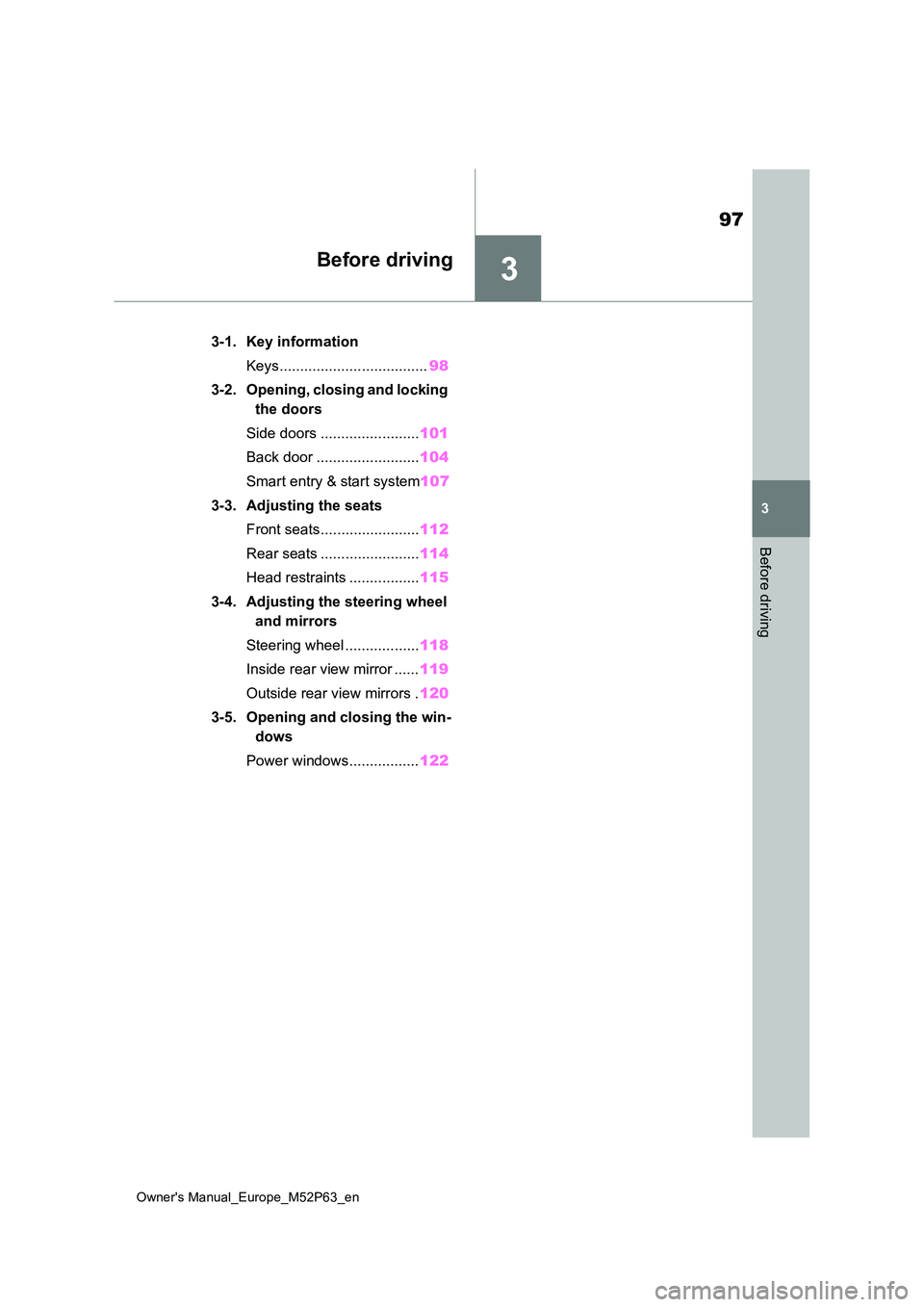

97
Owner's Manual_Europe_M52P63_en
3
Before driving
Before driving
3-1. Key information
Keys.................................... 98
3-2. Opening, closing and locking
the doors
Side doors ........................ 101
Back door ......................... 104
Smart entry & start system 107
3-3. Adjusting the seats
Front seats........................ 112
Rear seats ........................ 114
Head restraints ................. 115
3-4. Adjusting the steering wheel
and mirrors
Steering wheel .................. 118
Inside rear view mirror ...... 119
Outside rear view mirrors . 120
3-5. Opening and closing the win-
dows
Power windows................. 122

98
Owner's Manual_Europe_M52P63_en
3-1. Key information
3-1.Key info rmation
The following keys are provided
with the vehicle.
Electronic keys
• Operating the smart entry & start sys-
tem ( P.107)
• Operating the wireless remote control
function ( P. 9 9 )
Mechanical keys
Key number plate
■When riding in an aircraft
When bringing a key with wireless
remote control function onto an aircraft, make sure you do not press any buttons on the key while inside the aircraft cabin.
If you are carrying the key in your bag, etc., ensure that the buttons are not likely to be pressed accidentally. Press-
ing a button may cause the key to emit radio waves that could interfere with the operation of the aircraft.
■Electronic key battery depletion
●The standard battery life is 1 to 2 years.
●If the battery becomes low, an alarm will sound in the cabin and a message
will be shown on the multi-information display when the engine is stopped.
●To reduce key battery depletion when
the electronic key is to not be used for long periods of time, set the electronic key to the battery-saving mode.
( P.108)
●As the electronic key always receives
radio waves, the battery will become depleted even if the electronic key is not used. The following symptoms
indicate that the electronic key battery may be depleted. Replace the battery when necessary. ( P.293)
• The smart entry & start system or the wireless remote control does not oper-ate.
• The detection area becomes smaller. • The LED indicator on the key surface does not turn on.
●To avoid serious deterioration, do not leave the electronic key within 1 m (3
ft.) of the following electrical appli- ances that produce a magnetic field:•TVs
• Personal computers • Cellular phones, cordless phones and battery chargers
• Recharging cellular phones or cord- less phones• Table lamps
• Induction cookers
●If the electronic key is near the vehicle
for longer than necessary, even if the smart entry & start system is not oper-ated, the key battery may become
depleted faster than normal.
■Replacing the battery
 P. 2 9 3
■If “A New Key has been Registered Contact Your Dealer for Details” is
shown on the multi-information display
This message will be displayed each
time the driver’s door is opened when the doors are unlocked from the outside for approximately 10 days after a new
electronic key has been registered. If this message is displayed but you have not had a new electronic key regis-
tered, ask any authorized Toyota retailer or Toyota authorized repairer, or any reli-
Keys
The keys

99
3
Owner's Manual_Europe_M52P63_en
3-1. Key information
Before driving

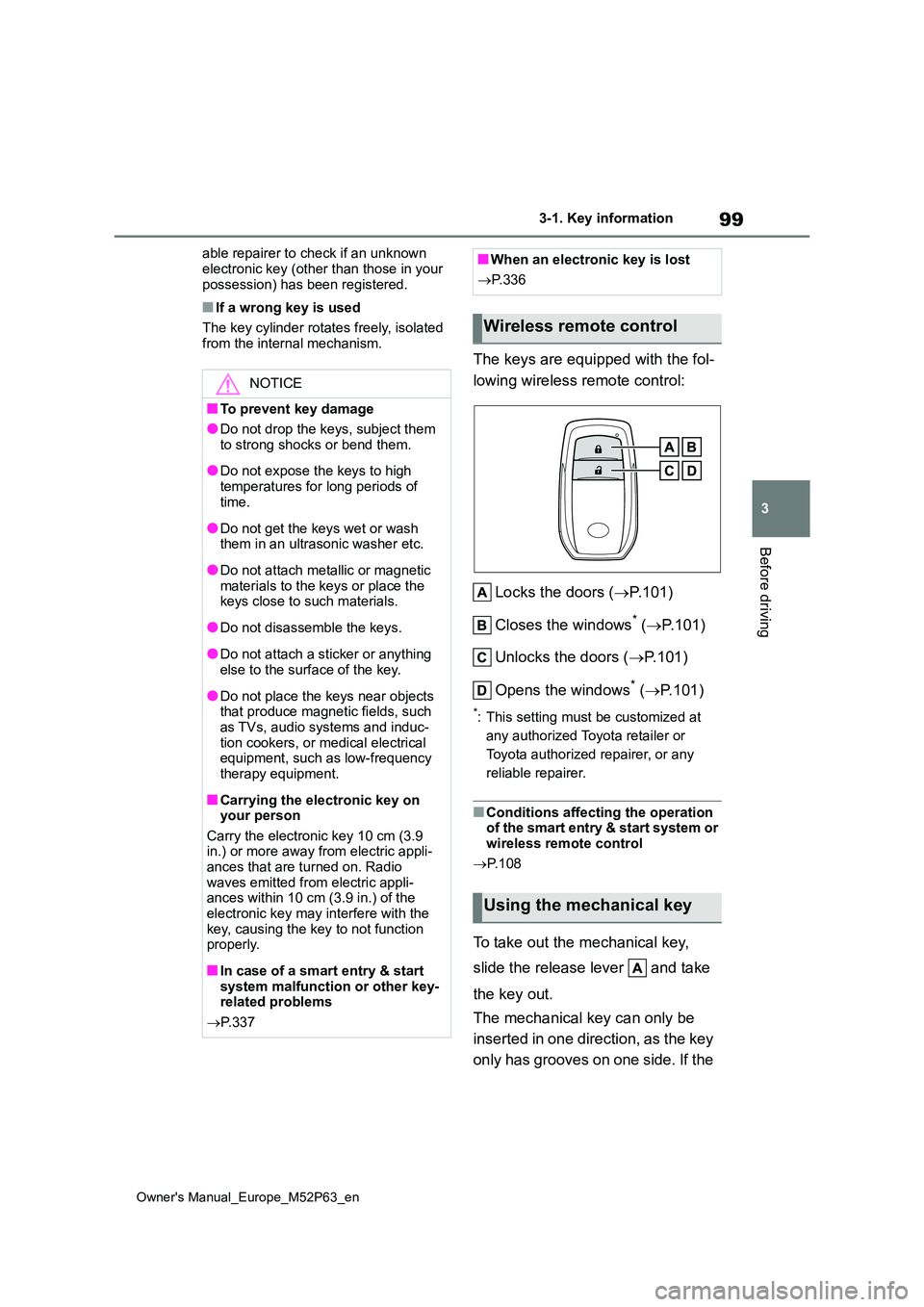

able repairer to check if an unknown
electronic key (other than those in your possession) has been registered.
■If a wrong key is used
The key cylinder rotates freely, isolated
from the internal mechanism.
The keys are equipped with the fol-
lowing wireless remote control:
Locks the doors ( P.101)
Closes the windows* ( P.101)
Unlocks the doors ( P.101)
Opens the windows* ( P.101)
*: This setting must be customized at
any authorized Toyota retailer or
Toyota authorized repairer, or any
reliable repairer.
■Conditions affecting the operation of the smart entry & start system or
wireless remote control
 P. 1 0 8
To take out the mechanical key,
slide the release lever and take
the key out.
The mechanical key can only be
inserted in one direction, as the key
only has grooves on one side. If the
NOTICE
■To prevent key damage
●Do not drop the keys, subject them
to strong shocks or bend them.
●Do not expose the keys to high
temperatures for long periods of time.
●Do not get the keys wet or wash them in an ultrasonic washer etc.
●Do not attach metallic or magnetic materials to the keys or place the keys close to such materials.
●Do not disassemble the keys.
●Do not attach a sticker or anything else to the surface of the key.
●Do not place the keys near objects that produce magnetic fields, such as TVs, audio systems and induc-
tion cookers, or medical electrical equipment, such as low-frequency therapy equipment.
■Carrying the electronic key on your person
Carry the electronic key 10 cm (3.9 in.) or more away from electric appli-ances that are turned on. Radio
waves emitted from electric appli- ances within 10 cm (3.9 in.) of the electronic key may interfere with the
key, causing the key to not function properly.
■In case of a smart entry & start system malfunction or other key-related problems
 P. 3 3 7
■When an electronic key is lost
 P. 3 3 6
Wireless remote control
Using the mechanical key

100
Owner's Manual_Europe_M52P63_en
3-1. Key information

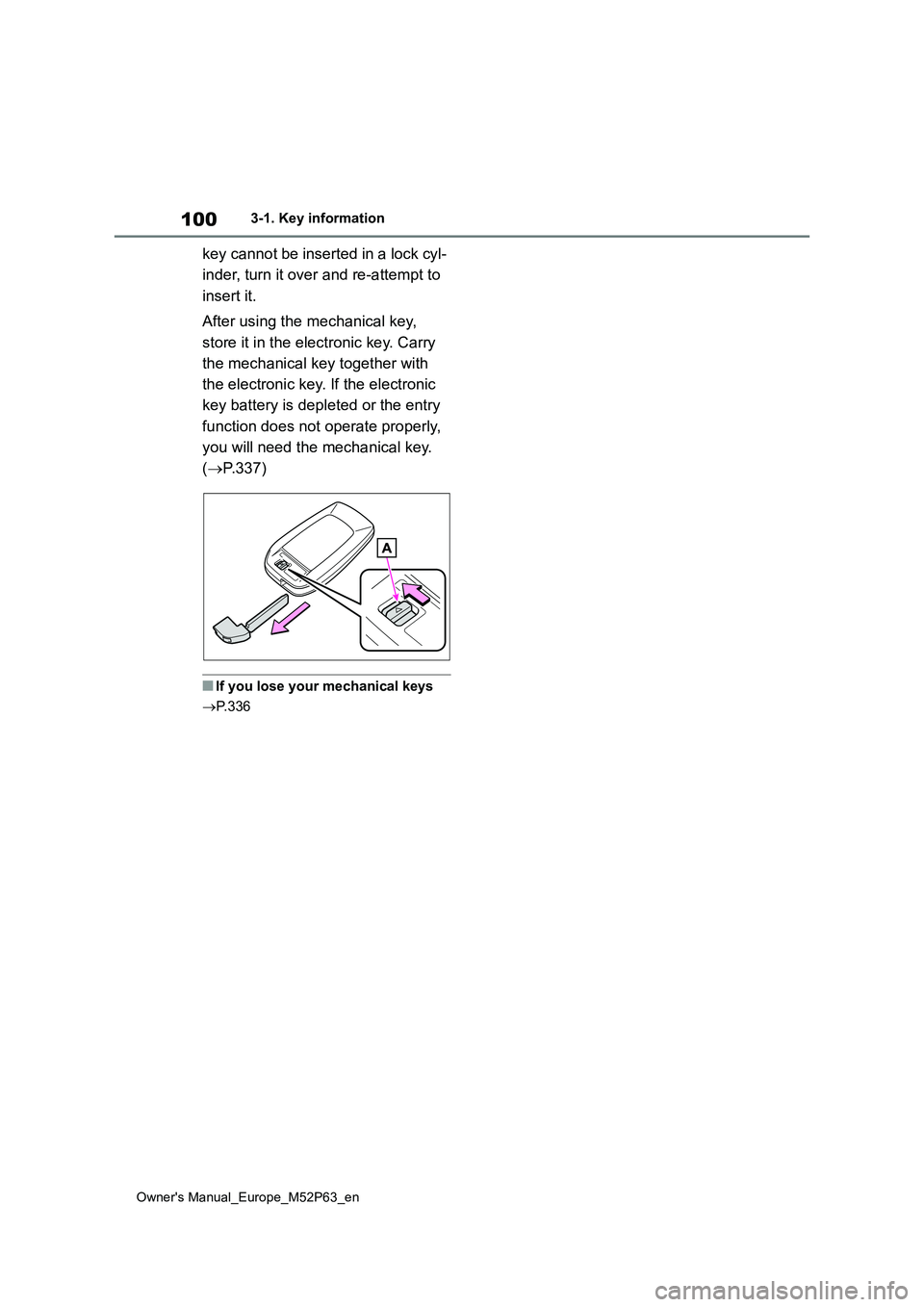

key cannot be inserted in a lock cyl-
inder, turn it over and re-attempt to
insert it.
After using the mechanical key,
store it in the electronic key. Carry
the mechanical key together with
the electronic key. If the electronic
key battery is depleted or the entry
function does not operate properly,
you will need the mechanical key.
( P.337)
■If you lose your mechanical keys
 P. 3 3 6

101
3
Owner's Manual_Europe_M52P63_en
3-2. Opening, closing and locking the doors
Before driving
3-2.Opening, closing and lo cking th e d oors
■Using the entry function
Carry the electronic key to enable
this function.
1 Grip the door handle to unlock
all the doors.
Make sure to touch the sensor on the
back of the handle.
The doors cannot be unlocked for 3
seconds after the doors are locked.
2 Touch the lock sensor (the
indentation on the side of the
door handle) to lock all the
doors.
Check that the door is securely locked.
■Wireless remote control
1 Locks all the doors
Check that the door is securely locked.
Press and hold to close the windows.*
2 Unlocks all the doors
Press and hold to open the windows.*
*: This setting must be customized at
any authorized Toyota retailer or
Toyota authorized repairer, or any
reliable repairer.
■Key
The doors can be locked and
unlocked with the mechanical key.
( P.337)
■Side window open/close function linked to door operation
When a door is opened, its window
opens slightly. When a door is closed, its window closes completely.
■Operation signals
The emergency flashers flash to indicate
that the doors have been locked/unlocked using the entry function or wireless remote control. (Locked:
Once; Unlocked: Twice)
A buzzer sounds to indicate that the win- dows are operating.
■Security feature
If a door is not opened within approxi- mately 30 seconds after the vehicle is unlocked using the entry function or
wireless remote control, the security fea- ture automatically locks the vehicle again.
■When the door cannot be locked by
the lock sensor on the surface of the door handle
If the doors cannot be locked by touch-
ing the lock sensor with a finger, touch the lock sensor with the palm of your hand.
If you are wearing gloves, remove them.
Side doors
Unlocking and locking the
doors from the outside

102
Owner's Manual_Europe_M52P63_en
3-2. Opening, closing and locking the doors

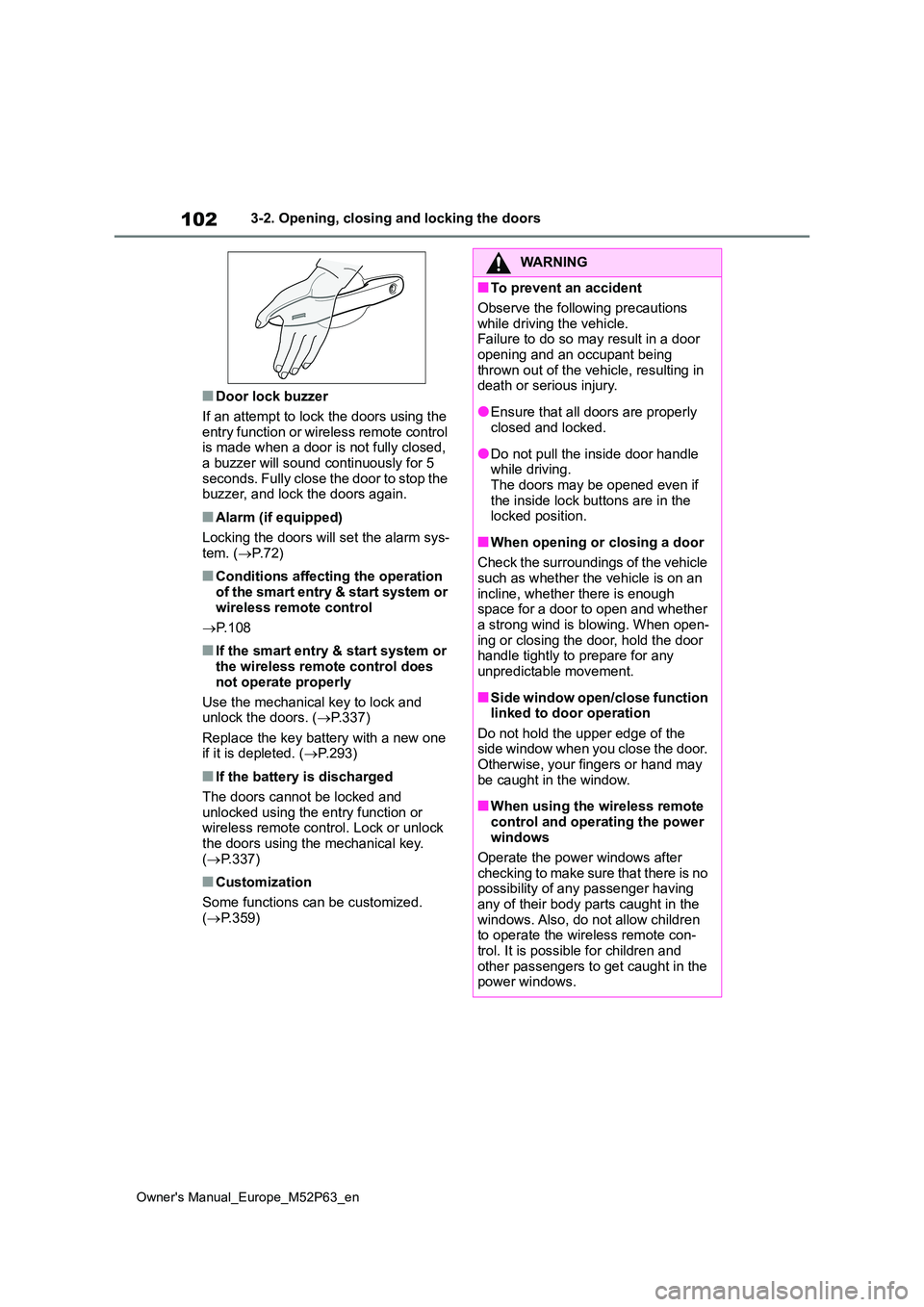

■Door lock buzzer
If an attempt to lock the doors using the entry function or wireless remote control is made when a door is not fully closed,
a buzzer will sound continuously for 5 seconds. Fully close the door to stop the buzzer, and lock the doors again.
■Alarm (if equipped)
Locking the doors will set the alarm sys- tem. ( P.72)
■Conditions affecting the operation of the smart entry & start system or
wireless remote control
 P. 1 0 8
■If the smart entry & start system or the wireless remote control does
not operate properly
Use the mechanical key to lock and unlock the doors. ( P.337)
Replace the key battery with a new one if it is depleted. ( P.293)
■If the battery is discharged
The doors cannot be locked and
unlocked using the entry function or wireless remote control. Lock or unlock the doors using the mechanical key.
( P.337)
■Customization
Some functions can be customized. ( P.359)
WARNING
■To prevent an accident
Observe the following precautions
while driving the vehicle. Failure to do so may result in a door opening and an occupant being
thrown out of the vehicle, resulting in death or serious injury.
●Ensure that all doors are properly closed and locked.
●Do not pull the inside door handle while driving.The doors may be opened even if
the inside lock buttons are in the locked position.
■When opening or closing a door
Check the surroundings of the vehicle such as whether the vehicle is on an
incline, whether there is enough space for a door to open and whether a strong wind is blowing. When open-
ing or closing the door, hold the door handle tightly to prepare for any unpredictable movement.
■Side window open/close function linked to door operation
Do not hold the upper edge of the side window when you close the door. Otherwise, your fingers or hand may
be caught in the window.
■When using the wireless remote
control and operating the power windows
Operate the power windows after
checking to make sure that there is no possibility of any passenger having any of their body parts caught in the
windows. Also, do not allow children to operate the wireless remote con-trol. It is possible for children and
other passengers to get caught in the power windows.
