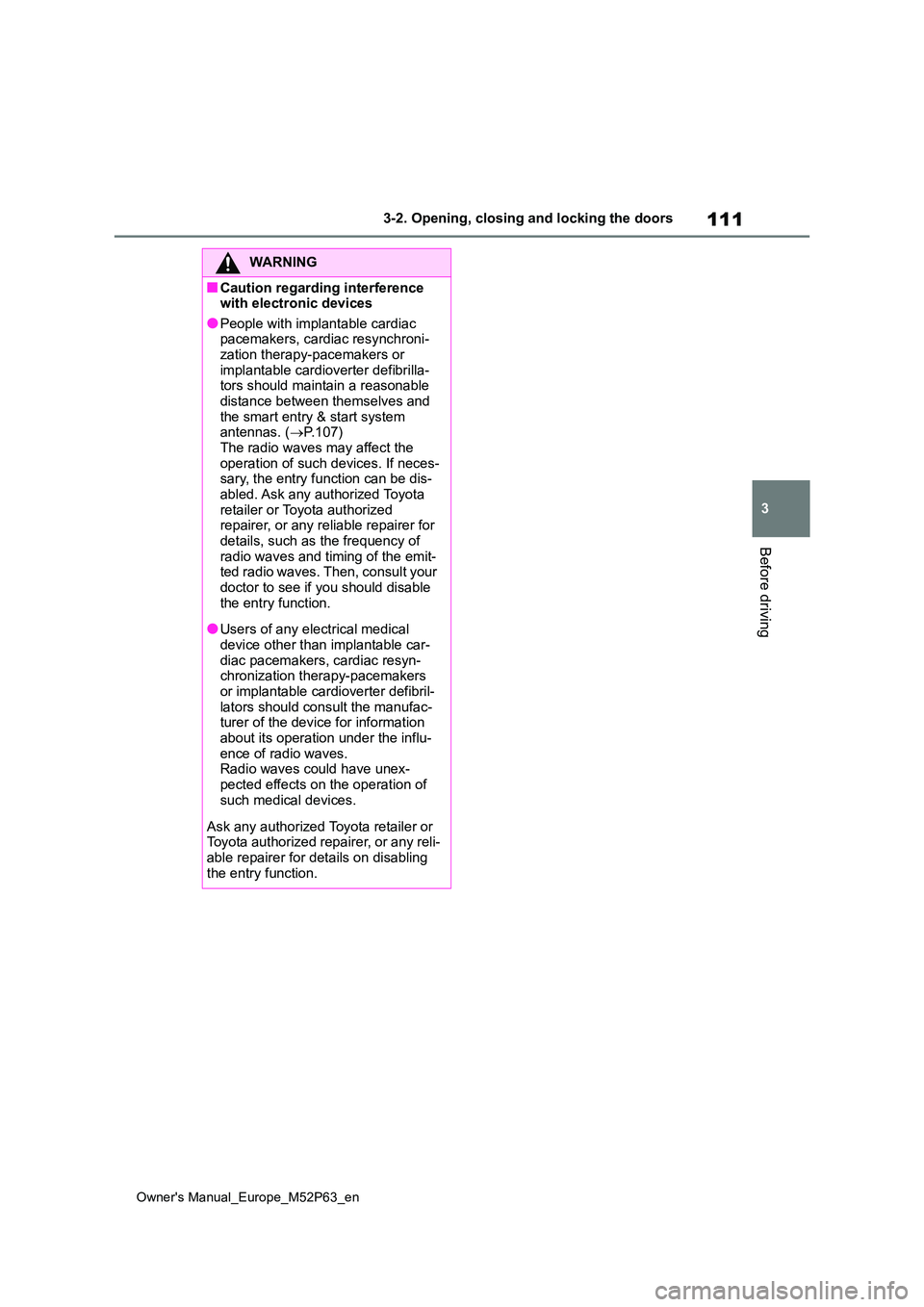

2023 TOYOTA GR YARIS Owners Manual

111
3
Owner's Manual_Europe_M52P63_en
3-2. Opening, closing and locking the doors
Before driving
WARNING
■Caution regarding interference with electronic devices
●People with implantable cardiac pacemakers, cardiac resynchroni-zation therapy-pacemakers or
implantable cardioverter defibrilla- tors should maintain a reasonable distance between themselves and
the smart entry & start system antennas. ( P.107) The radio waves may affect the
operation of such devices. If neces- sary, the entry function can be dis-abled. Ask any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer for details, such as the frequency of
radio waves and timing of the emit- ted radio waves. Then, consult your doctor to see if you should disable
the entry function.
●Users of any electrical medical
device other than implantable car- diac pacemakers, cardiac resyn-chronization therapy-pacemakers
or implantable cardioverter defibril- lators should consult the manufac-turer of the device for information
about its operation under the influ- ence of radio waves.Radio waves could have unex-
pected effects on the operation of such medical devices.
Ask any authorized Toyota retailer or Toyota authorized repairer, or any reli-able repairer for details on disabling
the entry function.

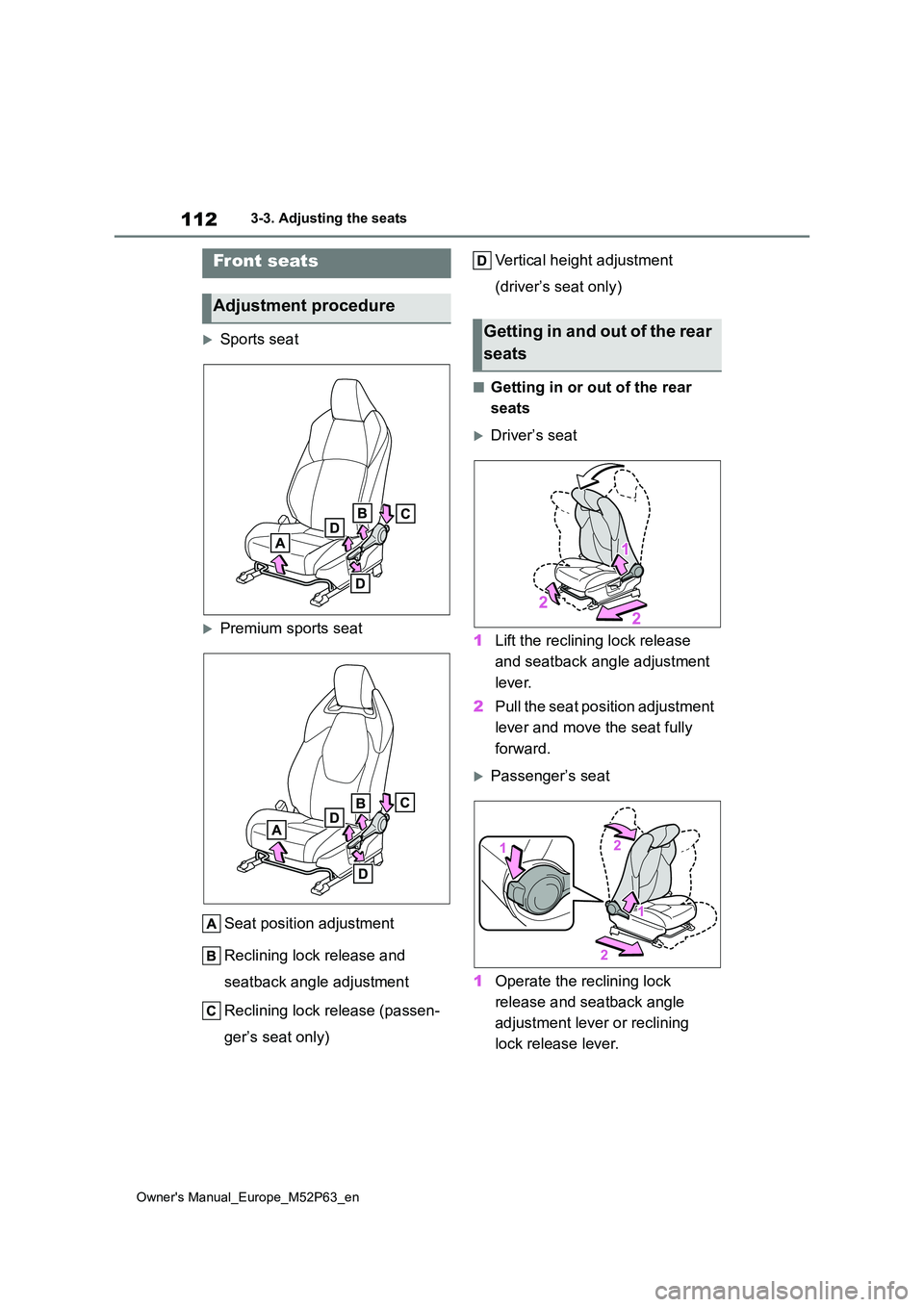

112
Owner's Manual_Europe_M52P63_en
3-3. Adjusting the seats
3-3.Adjusting the sea ts
Sports seat
Premium sports seat
Seat position adjustment
Reclining lock release and
seatback angle adjustment
Reclining lock release (passen-
ger’s seat only)
Vertical height adjustment
(driver’s seat only)
■Getting in or out of the rear
seats
Driver’s seat
1 Lift the reclining lock release
and seatback angle adjustment
lever.
2 Pull the seat position adjustment
lever and move the seat fully
forward.
Passenger’s seat
1 Operate the reclining lock
release and seatback angle
adjustment lever or reclining
lock release lever.
Front seats
Adjustment procedure
Getting in and out of the rear
seats

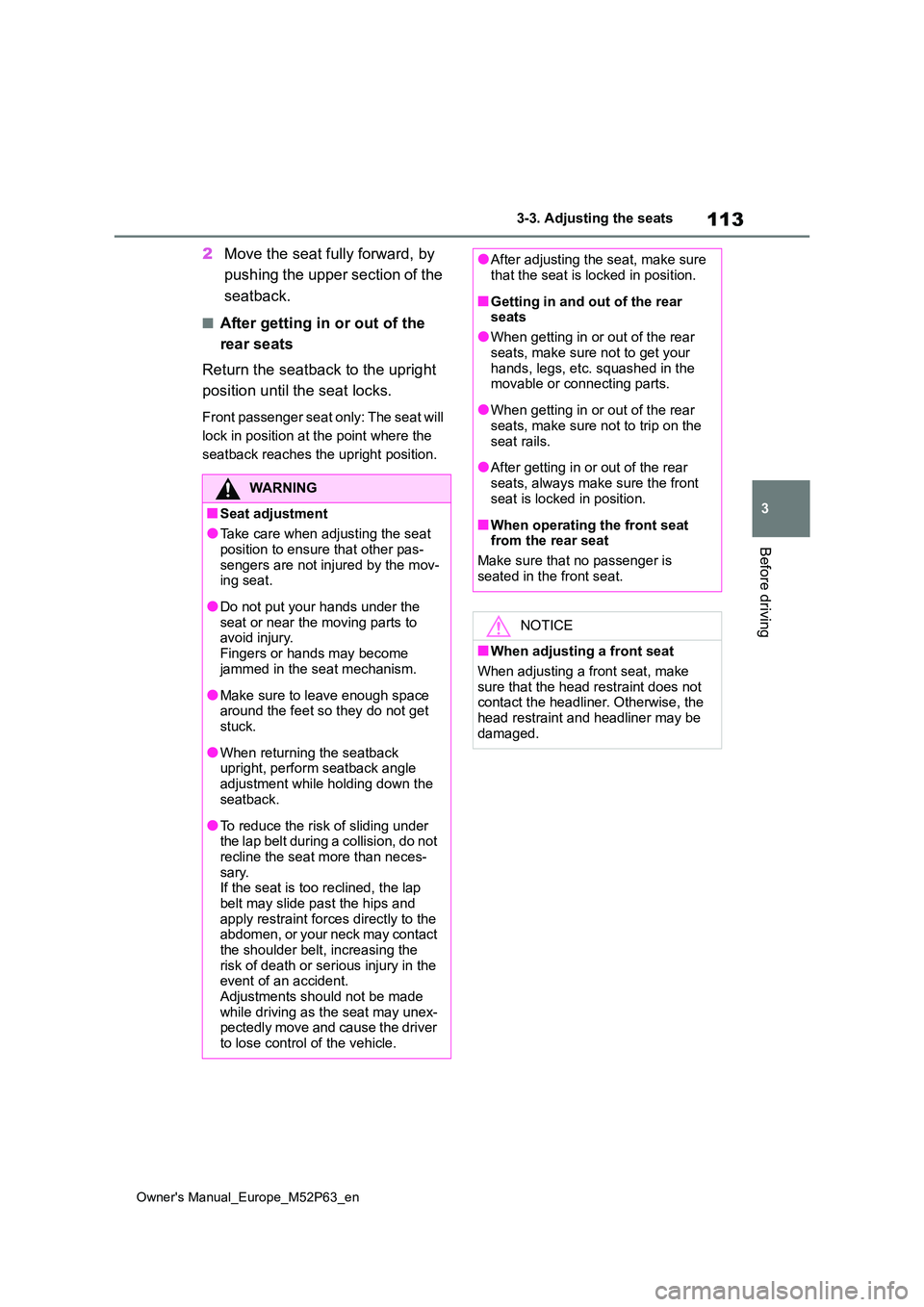

113
3
Owner's Manual_Europe_M52P63_en
3-3. Adjusting the seats
Before driving
2Move the seat fully forward, by
pushing the upper section of the
seatback.
■After getting in or out of the
rear seats
Return the seatback to the upright
position until the seat locks.
Front passenger seat only: The seat will
lock in position at the point where the
seatback reaches the upright position.
WARNING
■Seat adjustment
●Take care when adjusting the seat position to ensure that other pas-
sengers are not injured by the mov- ing seat.
●Do not put your hands under the seat or near the moving parts to avoid injury.
Fingers or hands may become jammed in the seat mechanism.
●Make sure to leave enough space around the feet so they do not get stuck.
●When returning the seatback upright, perform seatback angle
adjustment while holding down the seatback.
●To reduce the risk of sliding under the lap belt during a collision, do not recline the seat more than neces-
sary. If the seat is too reclined, the lap belt may slide past the hips and
apply restraint forces directly to the abdomen, or your neck may contact the shoulder belt, increasing the
risk of death or serious injury in the event of an accident.Adjustments should not be made
while driving as the seat may unex- pectedly move and cause the driver to lose control of the vehicle.
●After adjusting the seat, make sure that the seat is locked in position.
■Getting in and out of the rear seats
●When getting in or out of the rear
seats, make sure not to get your hands, legs, etc. squashed in the movable or connecting parts.
●When getting in or out of the rear seats, make sure not to trip on the
seat rails.
●After getting in or out of the rear
seats, always make sure the front seat is locked in position.
■When operating the front seat from the rear seat
Make sure that no passenger is
seated in the front seat.
NOTICE
■When adjusting a front seat
When adjusting a front seat, make
sure that the head restraint does not contact the headliner. Otherwise, the head restraint and headliner may be
damaged.

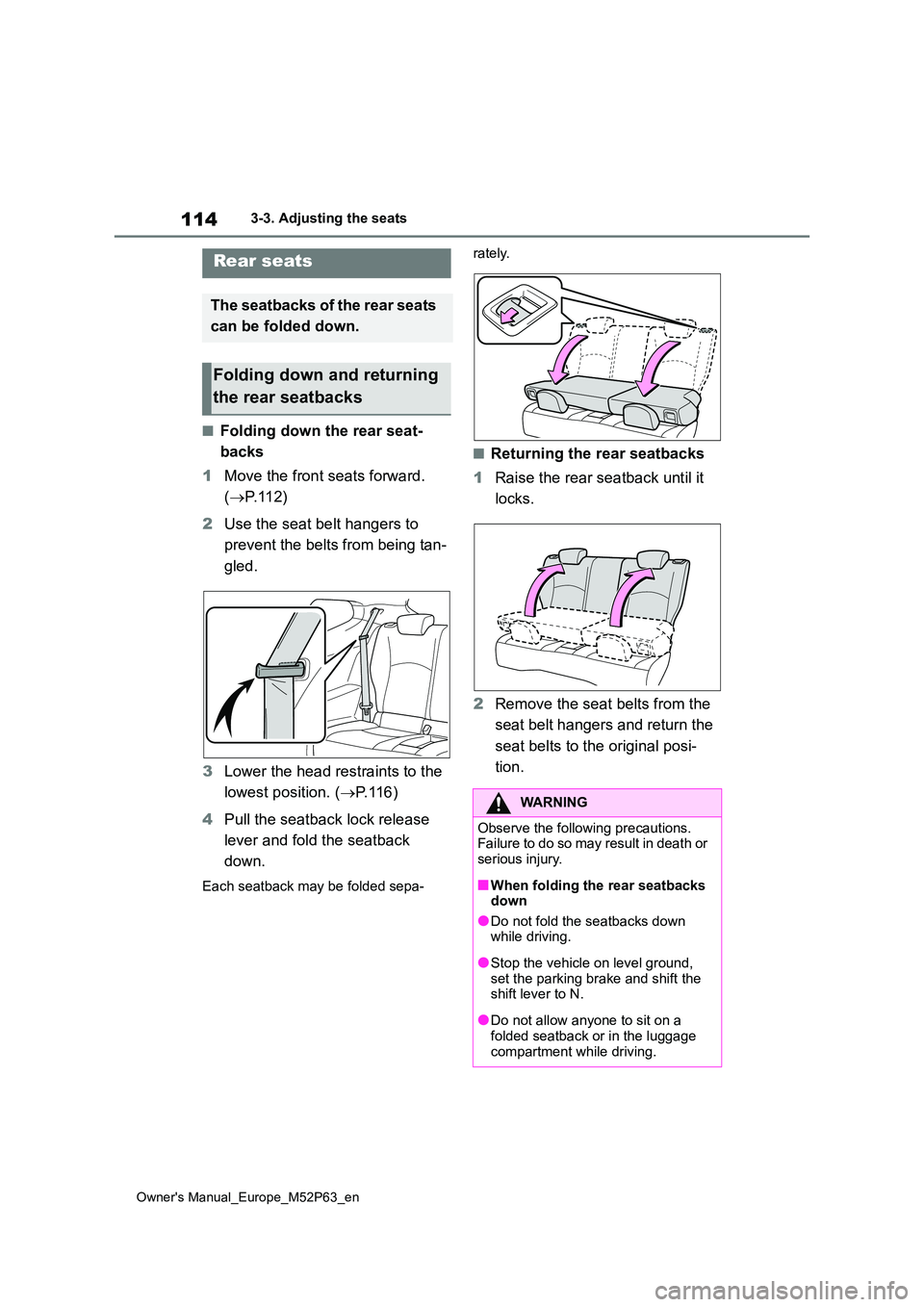

114
Owner's Manual_Europe_M52P63_en
3-3. Adjusting the seats
■Folding down the rear seat-
backs
1 Move the front seats forward.
( P. 1 1 2 )
2 Use the seat belt hangers to
prevent the belts from being tan-
gled.
3 Lower the head restraints to the
lowest position. ( P. 1 1 6 )
4 Pull the seatback lock release
lever and fold the seatback
down.
Each seatback may be folded sepa-
rately.
■Returning the rear seatbacks
1 Raise the rear seatback until it
locks.
2 Remove the seat belts from the
seat belt hangers and return the
seat belts to the original posi-
tion.
Rear seats
The seatbacks of the rear seats
can be folded down.
Folding down and returning
the rear seatbacks
WARNING
Observe the following precautions. Failure to do so may result in death or serious injury.
■When folding the rear seatbacks down
●Do not fold the seatbacks down while driving.
●Stop the vehicle on level ground, set the parking brake and shift the shift lever to N.
●Do not allow anyone to sit on a folded seatback or in the luggage
compartment while driving.

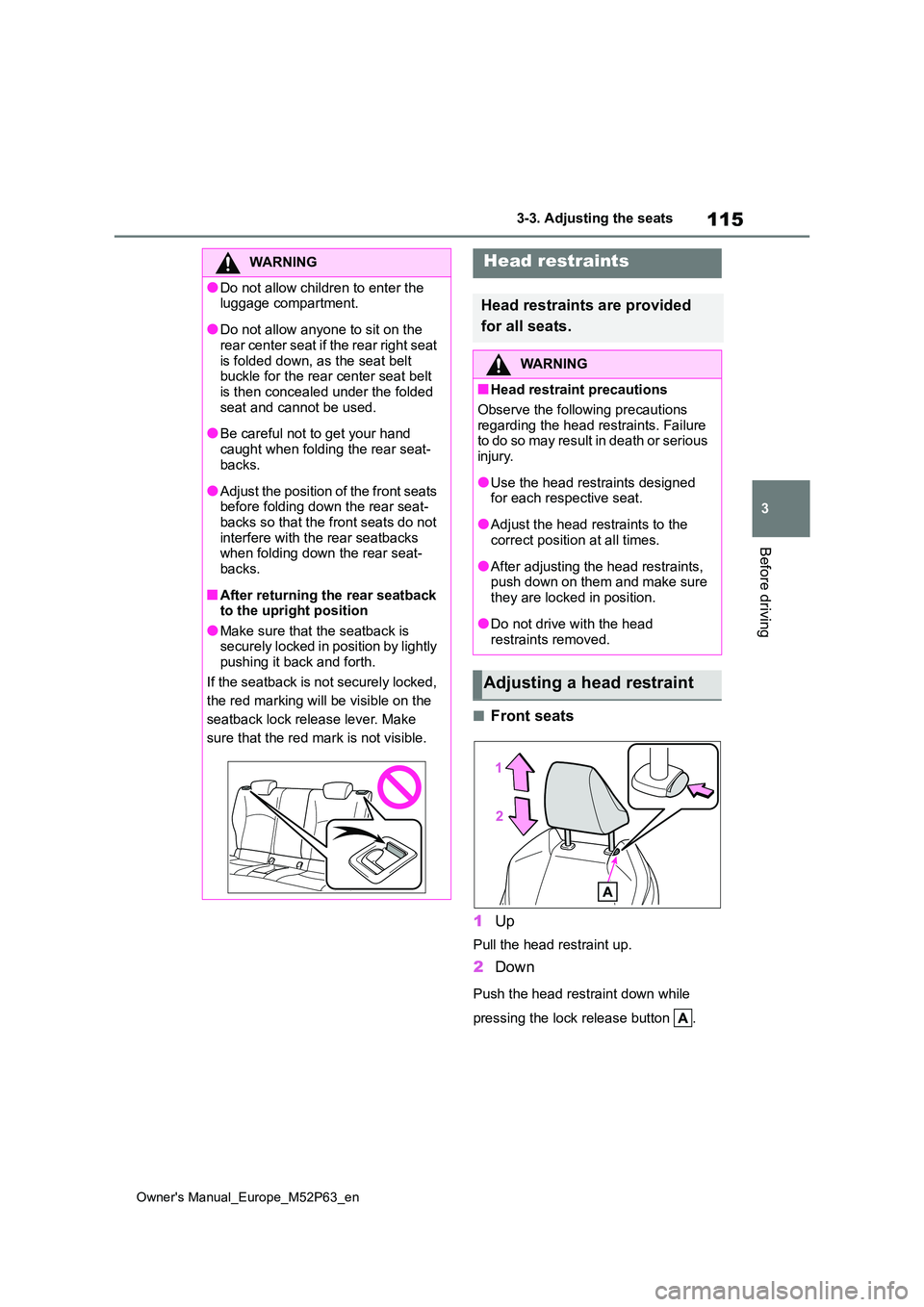

115
3
Owner's Manual_Europe_M52P63_en
3-3. Adjusting the seats
Before driving
■Front seats
1 Up
Pull the head restraint up.
2Down
Push the head restraint down while
pressing the lock release button .
WARNING
●Do not allow children to enter the luggage compartment.
●Do not allow anyone to sit on the rear center seat if the rear right seat
is folded down, as the seat belt buckle for the rear center seat belt is then concealed under the folded
seat and cannot be used.
●Be careful not to get your hand
caught when folding the rear seat- backs.
●Adjust the position of the front seats before folding down the rear seat-backs so that the front seats do not
interfere with the rear seatbacks when folding down the rear seat-backs.
■After returning the rear seatback to the upright position
●Make sure that the seatback is securely locked in position by lightly pushing it back and forth.
If the seatback is not securely locked,
the red marking will be visible on the
seatback lock release lever. Make
sure that the red mark is not visible.
Head restraints
Head restraints are provided
for all seats.
WARNING
■Head restraint precautions
Observe the following precautions
regarding the head restraints. Failure to do so may result in death or serious injury.
●Use the head restraints designed for each respective seat.
●Adjust the head restraints to the correct position at all times.
●After adjusting the head restraints, push down on them and make sure
they are locked in position.
●Do not drive with the head
restraints removed.
Adjusting a head restraint

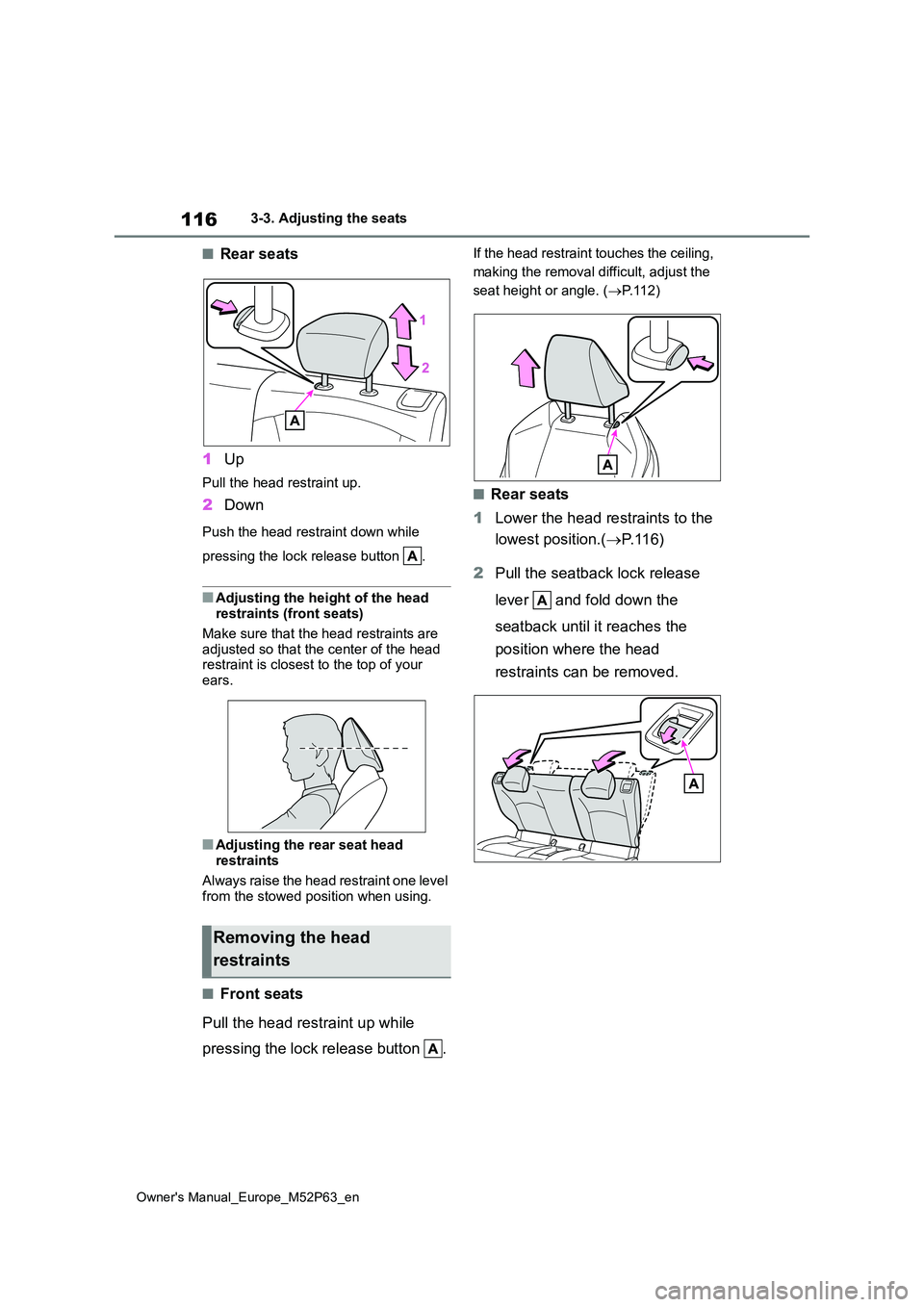

116
Owner's Manual_Europe_M52P63_en
3-3. Adjusting the seats
■Rear seats
1 Up
Pull the head restraint up.
2Down
Push the head restraint down while
pressing the lock release button .
■Adjusting the height of the head restraints (front seats)
Make sure that the head restraints are adjusted so that the center of the head restraint is closest to the top of your
ears.
■Adjusting the rear seat head
restraints
Always raise the head restraint one level
from the stowed position when using.
■Front seats
Pull the head restraint up while
pressing the lock release button .
If the head restraint touches the ceiling,
making the removal difficult, adjust the
seat height or angle. ( P.112)
■Rear seats
1 Lower the head restraints to the
lowest position.( P. 1 1 6 )
2 Pull the seatback lock release
lever and fold down the
seatback until it reaches the
position where the head
restraints can be removed.
Removing the head
restraints

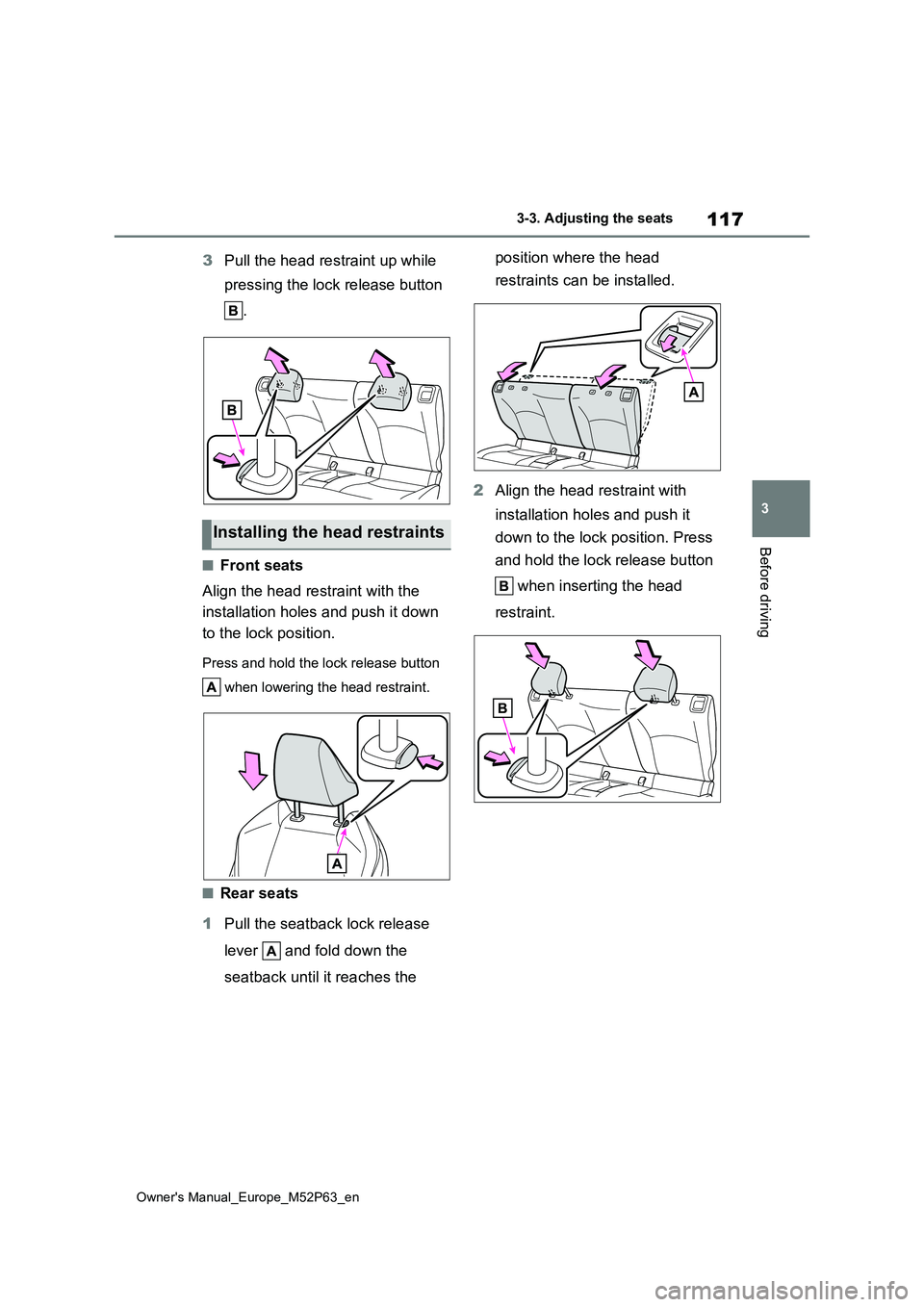

117
3
Owner's Manual_Europe_M52P63_en
3-3. Adjusting the seats
Before driving
3Pull the head restraint up while
pressing the lock release button
.
■Front seats
Align the head restraint with the
installation holes and push it down
to the lock position.
Press and hold the lock release button
when lowering the head restraint.
■Rear seats
1 Pull the seatback lock release
lever and fold down the
seatback until it reaches the
position where the head
restraints can be installed.
2 Align the head restraint with
installation holes and push it
down to the lock position. Press
and hold the lock release button
when inserting the head
restraint.
Installing the head restraints

118
Owner's Manual_Europe_M52P63_en
3-4. Adjusting the steering wheel and mirrors
3-4.Adjusting the steering whe el an d mirrors
1Hold the steering wheel and
push the lever down.
2 Adjust to the ideal position by
moving the steering wheel hori-
zontally and vertically.
After adjustment, pull the lever up to
secure the steering wheel.
To sound the horn, press on or
close to the mark.
Steering wheel
Adjustment procedure
WARNING
■Caution while driving
Do not adjust the steering wheel while driving.Doing so may cause the driver to mis-
handle the vehicle and cause an acci- dent, resulting in death or serious injury.
■After adjusting the steering wheel
Make sure that the steering wheel is
securely locked. Otherwise, the steering wheel may move suddenly, possibly causing an
accident, and resulting in death or serious injury. Also, the horn may not sound if the steering wheel is not
securely locked.
Horn
