2023 TOYOTA COROLLA CROSS maintenance

4057-2. Steps to take in an emergency
7
When trouble arises
necessary maintenance. Please
reset the message after the mainte-
nance is performed. ( P.428)
*: Refer to the separate “Scheduled
Maintenance” or “Owner’s Man-
ual Supplement” for the mainte-
nance interval applicable to your
vehicle.
■If a message that indicates the
need for referring to Owner’s
Manual is displayed
●If “Engine Coolant Temp High” is
displayed, follow the instructions
accordingly. ( P.423)
●If the following m essage is dis-
played on the multi-information
display, it may indicate a malfunc-
tion. Have the vehicle inspected
by your Toyota dealer immedi-
ately.
• “Smart Key System malfunction”
●If any of the following messages
are displayed on the multi-infor-
mation display, it may indicate a
malfunction. Immediately stop the
vehicle and contact your Toyota
dealer.
• “Braking Power Low”
• “Oil Pressure Low”
 Stop the vehicle in a safe
place on a hard, flat surface.
 Set the parking brake.
 Shift the shift lever to P.
 Stop the engine.
 Turn on the emergency flash-
ers.
If you have a flat tire
Your vehicle is equipped
with a spare tire. The flat tire
can be replaced with the
spare tire.
For details about tires:
P.351
WARNING
■If you have a flat tire
Do not continue driving with a flat
tire. Driving even a short distance
with a flat tire can damage the tire
and the wheel beyond repair,
which could resul t in an accident.
Before jacking up the
vehicle

427
8
8
Vehicle specifications
Vehicle specifications
.8-1. SpecificationsMaintenance data (fuel, oil level, etc.) .................. 428
Fuel information .......... 436
Tire information ........... 438
8-2. Customization Customizable features.................................. 449
8-3. Initialization Items to initialize ......... 459

4288-1. Specifications
8-1.Specifications
*1: Unladen vehicles
*2: Vehicles with 215/65R17 tires
*3: Vehicles with 225/55R18 tires
Maintenance data (fuel, oil level, etc.)
Dimensions and weight
Overall length175.6 in. (4460 mm)
Overall width71.9 in. (1825 mm)
Overall height*164.8 in. (1645 mm)
Wheelbase103.9 in. (2640 mm)
Tread*1
Front
2WD models
61.6 in. (1565 mm)
*2
61.2 in. (1555 mm)*3

AWD models
61.7 in. (1566 mm)
*2
61.3 in. (1556 mm)*3
Rear
2WD models
62.2 in. (1580 mm)
*2
61.8 in. (1569 mm)*3

AWD models
61.6 in. (1564 mm)
*2
61.2 in. (1554 mm)*3
Vehicle capacity weight
(Occupants + luggage)940 lb. (425 kg)
Trailer Weight Rating
(Trailer weight + cargo weight)1500 lb. (680 kg)
Seating capacity
Seating capacity5 (Front 2, Rear 3)

4598-3. Initialization
8
Vehicle specifications
8-3.Initialization
*: If equipped

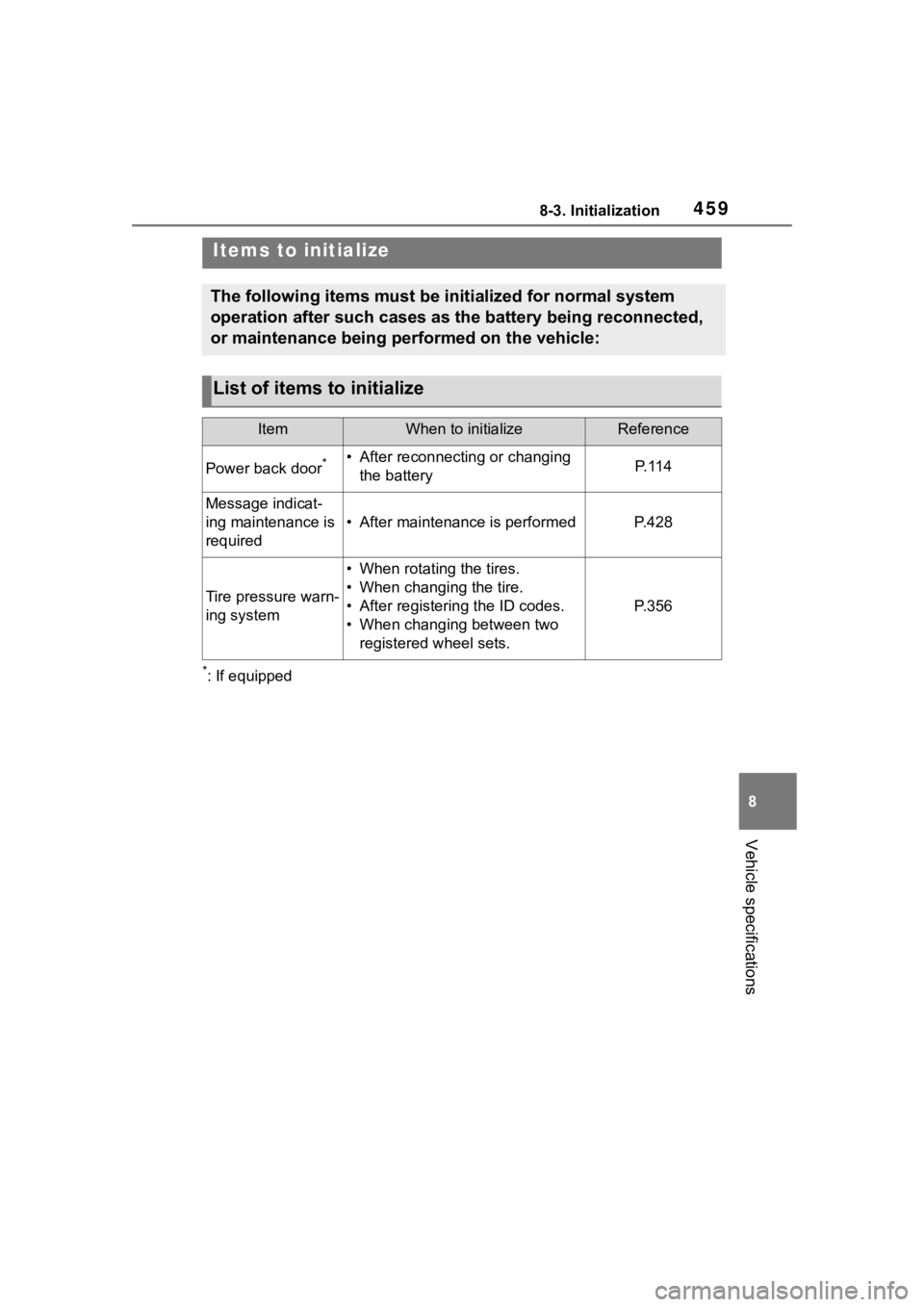

Items to initialize
The following items must be initialized for normal system
operation after such cases as the battery being reconnected,
or maintenance being performed on the vehicle:
List of items to initialize
ItemWhen to initializeReference
Power back door*• After reconnecting or changing the batteryP. 1 1 4
Message indicat-
ing maintenance is
required
• After maintenance is performedP. 4 2 8
Tire pressure warn-
ing system
• When rotating the tires.
• When changing the tire.
• After registering the ID codes.
• When changing between two registered wheel sets.
P. 3 5 6

477Alphabetical Index
Daytime running lights/parking lightsReplacing light bulbs ............ 375
Defogger Outside rear view mirrors ... 288, 295
Rear window ................ 288, 295
Windshield.................... 287, 294
Differential Rear differential oil ............... 433
Dimensions ............................. 428
Dinghy towing ........................ 161
Display Cruise control ....................... 231
Dynamic radar cruise control 223
Intuitive parking assist .......... 259
Multi-information display .. 82, 89
RCTA .................................... 249
Warning message ................ 401
Display change button ....... 77, 80
Do-it-yourself maintenance ... 335
Door lock Back door ............................. 108
Key ....................................... 104
Side doors ............................ 103
Smart key system................. 118
Wireless remote control ....... 100
Doors Automatic door locking and unlocking system................ 107
Back door ............................. 108
Door glasses ........................ 132
Door lock .............................. 108
Open door warning buzzer . 105, 107
Outside rear view mirrors ..... 130
Rear door child-protectors.... 107
Drive distance ..................... 85, 92
Drive information ............... 85, 92
Drive-Start Control (DSC) Sudden start restraint control147 Driving
Break-in tips .........................142
Correct driving posture ...........23
Procedures ...........................141
Winter drive tips....................279
Driving information display83, 90
Driving range ................83, 84, 90
Driving support system informa- tion display........................85, 91
DSC (Drive-Start Control) Sudden start restraint control147
Dynamic radar cruise control 220
Dynamic Torque Control AWD system ...................................274
E
Eco Driving Indicator .........84, 90
Eco Driving Indicator Light84, 90
EDR (Event data recorder) .........8
Elapsed time .......................85, 92
Electric Power Steering (EPS) ...............................................274Warning light.........................393
Electronic key ...........................98 Battery-saving function ......... 119
If the electronic key does not operate properly .................417
Replacing the battery ...........368
Emergency Driving Stop System ...............................................235
Emergency flashers ...............382
Emergency, in case of If a warning buzzer sounds ..391
If a warning light turns on .....391
If a warning message is dis-played .................................401
If the battery is d ischarged ...419
If the electronic key does not operate properly .................417
If the engine will not start......415
If the vehicle is submerged or water on the road is rising ..384

479Alphabetical Index
Fuel gauge ....................... 76, 79
Fuel pump shut off system ... 390
Information ........................... 436
Refueling .............................. 188
Type ..................................... 430
Warning light ........................ 394
Fuel consumption Average fuel economy ..... 83, 90
Current fuel consumption . 83, 90
Fuel economy ......... ............ 83, 90
Fuel filler door Refueling .............................. 188
Fuel gauge .......................... 76, 79
Fuel pump shut off system.... 390
Fuses ....................................... 371
G
Garage door opener ............... 320
Gauges ................................ 76, 79
Glove box ................................ 305
Glove box light ....................... 305
H
Head restraints ....................... 126
Headlight aim .......................... 373
Headlights Adaptive Front-lighting System (AFS) .................................. 180
Automatic High Beam system ........................................... 181
Light switch .......................... 178
Replacing light bulbs ............ 375
Headlights/daytime running lightsReplacing light bulbs ............ 375
Heated steering wheel ........... 300
Heaters Automatic air conditioning sys-tem ..................................... 292
Heated steering wheel ......... 300 Manual air conditioning system
...........................................286
Outside rear view mirrors ...288, 295
Seat heaters ....... ..................300
High mounted stoplight Replacing light bulbs ............375
Hill-start assist control...........274
Hood Open.....................................342
Hooks Coat hooks ...........................319
Retaining hooks (floor mat) ....22
Horn .........................................128
I
I/M test .....................................338
Identification Engine ..................................429
Vehicle ..................................429
Ignition switch (engine switch) .......................................162, 163Auto power off fun ction .........167
Changing the engine switch modes.................................166
If your vehicle has to be stopped in an emergency .................382
Illuminated entry system .......303
Indicators ..................................74
Initialization Items to initialize ...................459
Maintenance .........................335
Power windows ....................132
Tire pressure w arning system
...........................................356
Inside rear view m irror ...........129
Instrument panel light control78, 81
Interior lights...........................302 Front interior light .................302
Rear interior light ..................302
Wattage ................................435

481Alphabetical Index
M
MaintenanceDo-it-yourself maintenance .. 340
General maintenance ........... 336
Maintenance data................. 428
Maintenance requirements... 334
Malfunction indicator lamp.... 392
Manual air conditioning system ............................................... 286
Menu icons ......................... 82, 89
Meter Clock ................................ 76, 79
Indicators................................ 74
Instrument panel light control78, 81
Meter control switches ..... 82, 89
Meters .............................. 76, 79
Multi-information display .. 82, 89
Settings ............................ 86, 93
Warning lights....................... 391
Warning message ................ 401
Mirrors Inside rear view mirror.......... 129
Outside rear view mirror defog-gers ............................ 288, 295
Outside rear view mirrors ..... 130
Vanity mirrors ....................... 318
Moon roof Door lock linked moon roof oper-ation ................................... 135
Jam protection function ........ 135
Operation ............................. 135
Multi-information display Audio system-linked display . 85, 92
AWD Control .......................... 86
Clock ................................ 78, 81
Cruise control ....................... 231
Driving information display83, 90
Driving support system informa- tion display ..................... 85, 91 Dynamic radar cruise control 223
Eco Driving Indicator ........84, 90
Fuel economy ...................83, 90
Menu icons .......................82, 89
Meter control switches......82, 89
Navigation system-linked display
.......................................85, 91
Settings ............................86, 93
Stop & Start system information .............................................87
Suggestion function ..........87, 94
Tire pressure ...... ............86, 353
Vehicle information display85, 92
Warning message.................401
N
Navigation system-linked display ...........................................85, 91
Noise from under ve hicle...........5
O
Odometer.............................77, 80
Odometer and trip meter display
Display change button ......77, 80
Display items ....................77, 81
Oil Engine oil..............................430
Rear differential oil................433
Open tray .................................306
Opener Back door ..................... 111, 112
Fuel filler door.......................188
Hood .....................................342
Outside rear view mirrors Adjustment ...........................131
BSM (Blind Spot M onitor) .....243
Folding..................................131
Outside rear view mirror defog- gers ............................288, 295
RCTA function.......................248
Safe Exit Assist.....................254

482Alphabetical Index
Outside temperature .......... 76, 79
Overheating ............................ 423
P
Panic mode ............................. 100
Parking assist sensors (intuitive parking assist) ...................... 259
Parking brake Operation ............................. 172
Parking brake engaged warning buzzer ................................ 174
Warning light ........................ 398
Warning message ................ 174
Parking lights Light switch .......................... 178
Replacing light bulbs ............ 374
Wattage ................................ 435
Parking Support Brake function (for rear-crossing vehicles) . 272Function ............................... 272
Parking Support Brake function (static objects) ...................... 270Function ............................... 270
PCS (Pre-Collision System) Function ............................... 198
Warning light ........................ 396
Personal lights ....................... 302
PKSB (Parking Support Brake) ............................................... 265
Power outlet ............................ 310
Power steering (Electric power steering system)................... 274Warning light ........................ 393
Power windows Door lock linked window opera-tion ..................................... 133
Jam protection function ........ 132
Operation ............................. 132
Window lock switch .............. 134
Pre-Collision System (PCS) Function ............................... 198
Warning light ........................ 396
R
Radiator ...................................347
RCTAFunction................................248
RCTA function .........................249
Rear Cross Traffic Alert (RCTA) ...............................................248
Rear seats ...............................124 Head restraints .....................126
Rear side marker lights Light switch...........................178
Replacing light bulbs ............374
Wattage ................................435
Rear turn signal lights Replacing light bulbs ............375
Turn signal lever ...................171
Rear view mirror Inside rear view mirror ..........129
Outside rear view mirrors .....130
Rear window defogger ...288, 295
Rear window wiper .................186
Refueling Capacity ...............................430
Fuel types .............................430
Opening the fuel tank cap ....188
Replacing Electronic key battery ...........368
Fuses....................................371
Light bulbs ............................374
Tires......................................405
Wireless remote control battery...........................................368
Reporting safety defects for Canadian owners ..................462
Reporting safety defects for U.S. owners ...................................462
Resetting the message indicat- ing maintenance is required 335
Road Sign Assist (RSA) .........218
RSA (Road Sign Assist) .........218
