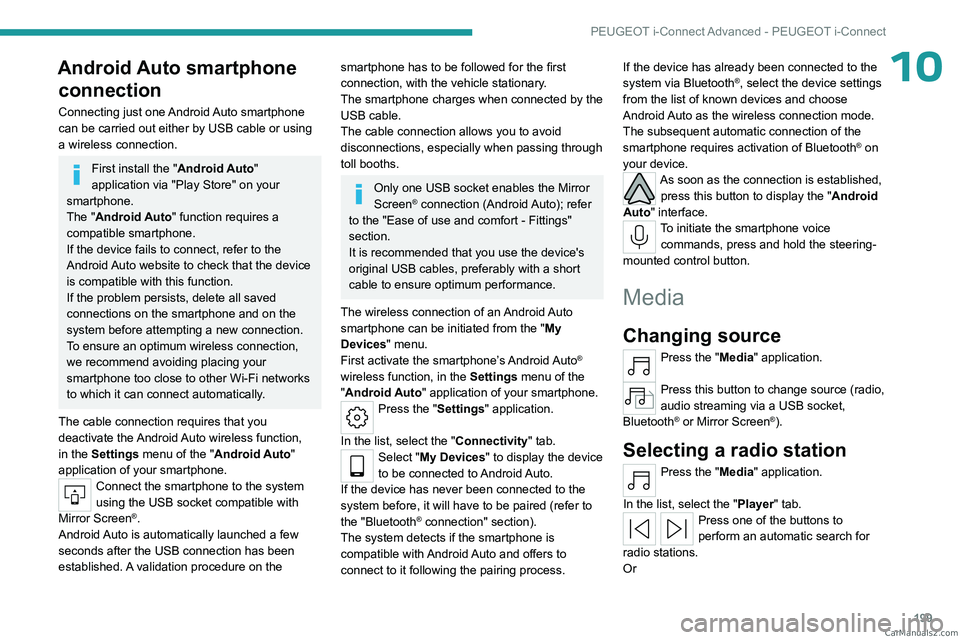

PEUGEOT i-Connect Advanced - PEUGEOT i-Connect
10Android Auto smartphone connection
Connecting just one Android Auto smartphone
can be carried out either by USB cable or using
a wireless connection.
First install the "Android Auto"
application via "Play Store" on your
smartphone.
The "Android Auto" function requires a
compatible smartphone.
If the device fails to connect, refer to the
Android Auto website to check that the device
is compatible with this function.
If the problem persists, delete all saved
connections on the smartphone and on the
system before attempting a new connection.
To ensure an optimum wireless connection,
we recommend avoiding placing your
smartphone too close to other Wi-Fi networks
to which it can connect automatically.
The cable connection requires that you
deactivate the Android Auto wireless function,
in the Settings menu of the "Android Auto"
application of your smartphone.
Connect the smartphone to the system
using the USB socket compatible with
Mirror Screen
®.
Android Auto is automatically launched a few
seconds after the USB connection has been
established. A validation procedure on the
smartphone has to be followed for the first
connection, with the vehicle stationary.
The smartphone charges when connected by the
USB cable.
The cable connection allows you to avoid
disconnections, especially when passing through
toll booths.
Only one USB socket enables the Mirror
Screen® connection (Android Auto); refer
to the "Ease of use and comfort - Fittings"
section.
It is recommended that you use the device's
original USB cables, preferably with a short
cable to ensure optimum performance.
The wireless connection of an Android Auto
smartphone can be initiated from the " My
Devices " menu.
First activate the smartphone’s Android Auto
®
wireless function, in the Settings menu of the
"Android Auto" application of your smartphone.
Press the "Settings" application.
In the list, select the "Connectivity" tab.
Select "My Devices " to display the device
to be connected to Android Auto.
If the device has never been connected to the
system before, it will have to be paired (refer to
the "Bluetooth
® connection" section).
The system detects if the smartphone is
compatible with Android Auto and offers to
connect to it following the pairing process. If the device has already been connected to the
system via Bluetooth
®, select the device settings
from the list of known devices and choose
Android Auto as the wireless connection mode.
The subsequent automatic connection of the
smartphone requires activation of Bluetooth
® on
your device.
As soon as the connection is established, press this button to display the " Android
Auto" interface.
To initiate the smartphone voice commands, press and hold the steering-
mounted control button.
Media
Changing source
Press the "Media" application.
Press this button to change source (radio,
audio streaming via a USB socket,
Bluetooth
® or Mirror Screen®).
Selecting a radio station
Press the "Media" application.
In the list, select the "Player" tab.
Press one of the buttons to
perform an automatic search for
radio stations.
Or CarM an uals 2 .c o m

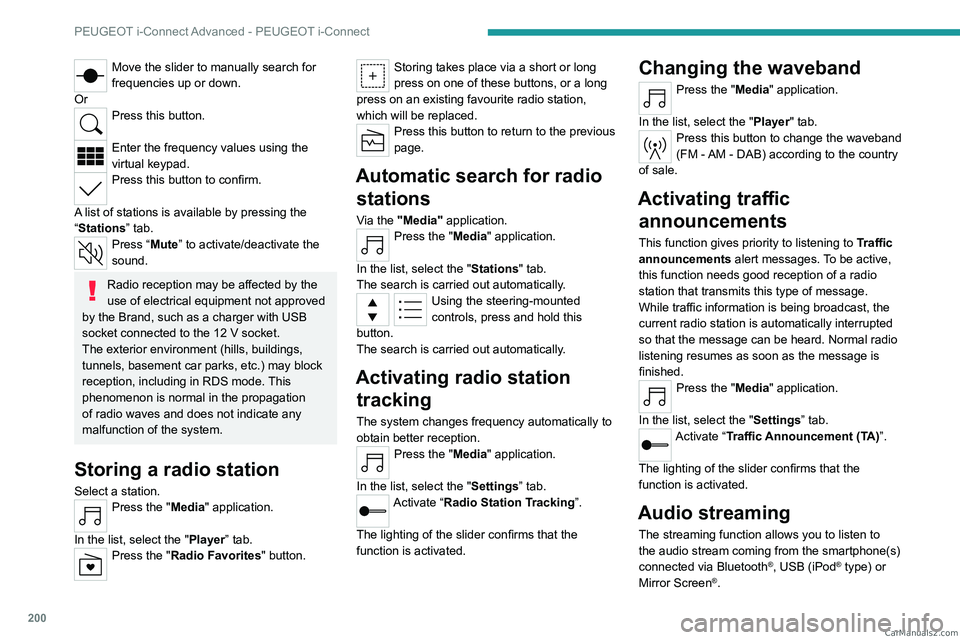

200
PEUGEOT i-Connect Advanced - PEUGEOT i-Connect
Move the slider to manually search for
frequencies up or down.
Or
Press this button.
Enter the frequency values using the
virtual keypad.
Press this button to confirm.
A list of stations is available by pressing the
“Stations” tab.
Press “Mute” to activate/deactivate the
sound.
Radio reception may be affected by the
use of electrical equipment not approved
by the Brand, such as a charger with USB
socket connected to the 12
V socket.
The exterior environment (hills, buildings,
tunnels, basement car parks, etc.) may block
reception, including in RDS mode. This
phenomenon is normal in the propagation
of radio waves and does not indicate any
malfunction of the system.
Storing a radio station
Select a station.Press the "Media" application.
In the list, select the "Player” tab.
Press the "Radio Favorites" button.
Storing takes place via a short or long
press on one of these buttons, or a long
press on an existing favourite radio station,
which will be replaced.
Press this button to return to the previous
page.
Automatic search for radio stations
Via the "Media" application.Press the "Media" application.
In the list, select the "Stations" tab.
The search is carried out automatically.
Using the steering-mounted
controls, press and hold this
button.
The search is carried out automatically.
Activating radio station tracking
The system changes frequency automatically to
obtain better reception.
Press the "Media" application.
In the list, select the "Settings” tab.
Activate “Radio Station Tracking”.
The lighting of the slider confirms that the
function is activated.
Changing the waveband
Press the "Media" application.
In the list, select the "Player" tab.
Press this button to change the waveband
(FM - AM - DAB) according to the country
of sale.
Activating traffic announcements
This function gives priority to listening to Traffic
announcements alert messages. To be active,
this function needs good reception of a radio
station that transmits this type of message.
While traffic information is being broadcast, the
current radio station is automatically interrupted
so that the message can be heard. Normal radio
listening resumes as soon as the message is
finished.
Press the "Media" application.
In the list, select the "Settings” tab.
Activate “Traffic Announcement (TA)”.
The lighting of the slider confirms that the
function is activated.
Audio streaming
The streaming function allows you to listen to
the audio stream coming from the smartphone(s)
connected via Bluetooth
®, USB (iPod® type) or
Mirror Screen®. CarM an uals 2 .c o m

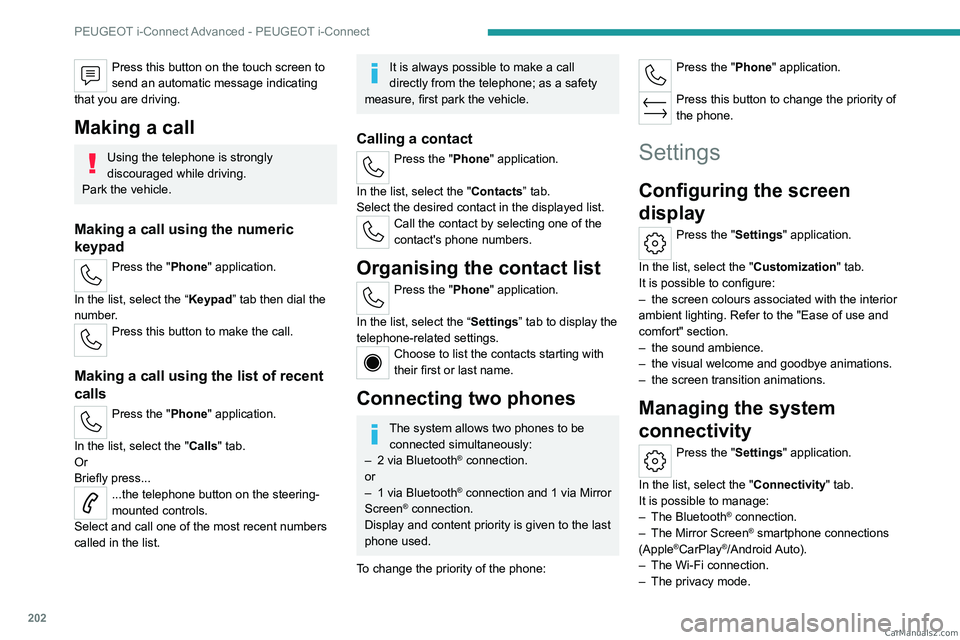

202
PEUGEOT i-Connect Advanced - PEUGEOT i-Connect
Press this button on the touch screen to
send an automatic message indicating
that you are driving.
Making a call
Using the telephone is strongly
discouraged while driving.
Park the vehicle.
Making a call using the numeric
keypad
Press the "Phone" application.
In the list, select the “Keypad” tab then dial the
number.
Press this button to make the call.
Making a call using the list of recent
calls
Press the "Phone" application.
In the list, select the "Calls" tab.
Or
Briefly press...
...the telephone button on the steering-
mounted controls.
Select and call one of the most recent numbers
called in the list.
It is always possible to make a call
directly from the telephone; as a safety
measure, first park the vehicle.
Calling a contact
Press the "Phone" application.
In the list, select the "Contacts” tab.
Select the desired contact in the displayed list.
Call the contact by selecting one of the
contact's phone numbers.
Organising the contact list
Press the "Phone" application.
In the list, select the “Settings” tab to display the
telephone-related settings.
Choose to list the contacts starting with
their first or last name.
Connecting two phones
The system allows two phones to be connected simultaneously:
–

2 via
Bluetooth
® connection.
or
–

1 via


Bluetooth
® connection and 1 via Mirror
Screen® connection.
Display and content priority is given to the last
phone used.
To change the priority of the phone:
Press the "Phone" application.
Press this button to change the priority of
the phone.
Settings
Configuring the screen
display
Press the "Settings" application.
In the list, select the "Customization" tab.
It is possible to configure:
–

the screen colours associated with the interior
ambient lighting. Refer to the "Ease of use and
comfort" section.
–


the sound ambience.
–


the visual welcome and goodbye animations.
–


the screen transition animations.
Managing the system
connectivity
Press the "Settings" application.
In the list, select the "Connectivity" tab.
It is possible to manage:
–

The Bluetooth® connection.
–
The Mirror Screen® smartphone connections
(Apple®CarPlay®/Android Auto).
–
The Wi-Fi connection.
–

The privacy mode. CarM an uals 2 .c o m

208
Alphabetical index
A
ABS 75
Accelerated charging unit (Wallbox)
146–147
Accessories

72
Active LED Vision

63, 65
Active Safety Brake

126–127, 129
Adjusting headlamps

62
Adjusting head restraints

41
Adjusting seat

41–42
Adjusting the air distribution

49, 51
Adjusting the air flow

49, 51
Adjusting the headlamp beam height

62
Adjusting the height and reach of
the steering wheel

45
Adjusting the lumbar support

42
Adjusting the seat angle

42
Adjusting the temperature

50
Adjusting the time

203
Advice on care and maintenance

145, 165
Advice on driving

8, 91–92
Airbags

80–82, 84
Airbags, curtain

81–82
Airbags, front

80–81, 85
Airbags, lateral

81–82
Air conditioning

49, 52
Air conditioning, automatic

52
Air conditioning, dual-zone automatic

49
Air intake

51–52
Air vents

48
Alarm

35–36
Amplifier, audio

57
Anti-lock braking system (ABS)

75
Antitheft / Immobiliser 25
Applications
21–22
Armrest, front

56
Armrest, rear

58
Assistance call

73–74
Assistance, emergency braking

76, 128
Audio streaming (Bluetooth)

200
B
Battery, 12 V 159, 163, 177–181
Battery, ancillaries
177
Battery, charging

177–178, 181
Battery, remote control

29–30
Blanking screen (snow shield)

158
Blind

38
Bluetooth (hands-free)

197
Bluetooth (telephone)

197–198
Bodywork

165
Bonnet

160
Bonnet, active

82
Boot

31, 34, 60
Brake discs

163–164
Brake lamps

176
Brakes

163–164
Braking

98
Braking assistance system

75–76
Braking, automatic emergency

126–127, 129
Braking, dynamic emergency

95–96
Bulbs (changing)

175–176
C
Capacity, fuel tank 143
Care of the bodywork
165
Central locking

27–28
Changing a bulb

175–176
Changing a fuse

177
Changing a wheel

168, 172
Changing a wiper blade

71
Changing the remote control battery

29
Changing to free-wheeling

164
Charge level indicator (Rechargeable
hybrid)

19
Charger, induction

55
Charger, wireless

55
Charging cable

148
Charging cable (Rechargeable
hybrid)

146–147, 152
Charging connector (Rechargeable
hybrid)

146, 151–153
Charging flap (Rechargeable
hybrid)

146, 151–153
Charging the traction battery
(Rechargeable hybrid)

18, 144, 151–153
CHECK

19
Checking the engine oil level

17
Checking the levels

161–162
Checking tyre pressures
(using the kit)

169, 171
Checks

161, 163–164
Checks, routine

163–164
Child lock

90
Children

79, 85–87 CarM an uals 2 .c o m

209
Alphabetical index
Children (safety) 90
Child seats
79, 83–85
Child seats, conventional

85, 88–89
Child seats, i-Size

87–89
Child seats, ISOFIX

85–86, 88–89
Cleaning (advice)

145, 165–167
Closing the boot

27, 31
Closing the doors

27, 31
Collision Risk Alert

126–128
Configuration, vehicle

10, 21
Connection, Bluetooth

197–198
Connectivity

202
Consumptions

22
Control, emergency boot release

31
Control, emergency door

29
Control, heated seats

43–44
Controls, steering mounted

97–98
Control stalk, lighting

61–62
Control stalk, wipers

68, 70
Control unit

146–148, 152
Courtesy lamp, front

58
Courtesy lamps

57–58
Cruise control

109–110, 112–114
Cruise control, adaptive

109–110, 114–115
Cruise control by speed limit
recognition

109–110
D
Date (setting) 203
Daytime running lamps
62
Deactivating the passenger airbag

80, 84–85
Deadlocking 25, 27
Deferred charging
22, 153
Deferred charging (Rechargeable
hybrid)

21–22, 146, 151
Defrosting

45, 52
Defrosting, front

52
Defrosting, rear screen

52
Demisting

45, 52
Demisting, front

52
Demisting, rear

52
Diagnosis, vehicle

19
Dials and gauges

10
Digital instrument panel

10
Dimensions

188
Dipstick

17, 161
Direction indicators (turn signals)

62, 176
Display, head-up

67
Display screen, instrument panel

10
Domestic charging

148
Domestic charging (Rechargeable
hybrid)

152–153
Doors

31
Drive Assist Plus

114–115
Driver’s attention warning

130–131
Driving

40–41, 91–92, 106
Driving abroad

66
Driving aids camera (warnings)

105
Driving aid shortcuts

106
Driving aids (recommendations)

104
Driving economically

8
Driving modes

99
Driving positions (storing)

43
Dynamic stability control (DSC)

76E
EBFD 75
Eco-driving (advice)
8
ECO mode

99
Electric automatic gearbox (Rechargeable
hybrid)

96
Electronic brake force distribution (EBFD)

75
Emergency braking assistance (EBA)

76
Emergency call

73–74
Emergency switching off

94
Emergency warning lamps

72, 168
Energy economy (mode)

159
Energy economy mode

159
Energy flows

21
Energy recovery

18, 98
Engine

164
Engine compartment

160–161
Engine, petrol

100, 161, 186
Engines

185–186
Environment

8, 30
e-Save function (energy reserve)

22
ESC (electronic stability control)

75
Expanded traffic sign recognition

11 0
Exterior lighting

64
F
Fatigue detection 130–131
Favourite driving functions
106
Filling the fuel tank

143
Filter, air

163 CarM an uals 2 .c o m
