2023 PEUGEOT 408 brake pads

91
Driving

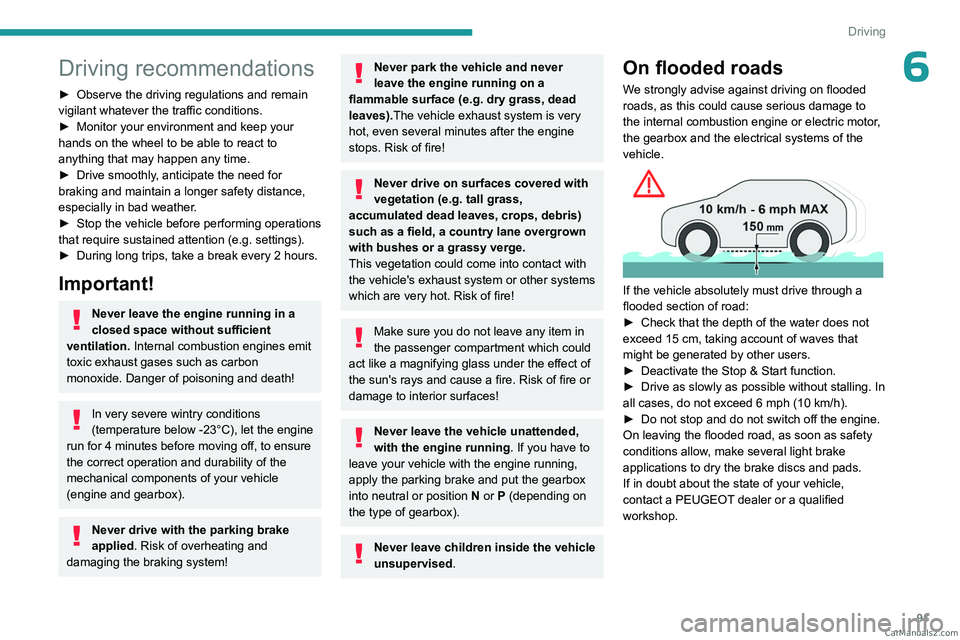

6Driving recommendations
► Observe the driving regulations and remain
vigilant whatever the traffic conditions.
►

Monitor your environment and keep your
hands on the wheel to be able to react to
anything that may happen any time.
►


Drive smoothly
, anticipate the need for
braking and maintain a longer safety distance,
especially in bad weather.
►

Stop the vehicle before performing operations
that require sustained attention (e.g.

settings).
►

During long trips, take a break every 2 hours.
Important!
Never leave the engine running in a
closed space without sufficient
ventilation. Internal combustion engines emit
toxic exhaust gases such as carbon
monoxide. Danger of poisoning and death!
In very severe wintry conditions
(temperature below -23°C), let the engine
run for 4 minutes before moving off, to ensure
the correct operation and durability of the
mechanical components of your vehicle
(engine and gearbox).
Never drive with the parking brake
applied . Risk of overheating and
damaging the braking system!
Never park the vehicle and never
leave the engine running on a
flammable surface (e.g.
dry grass, dead
leaves).The vehicle exhaust system is very
hot, even several minutes after the engine
stops. Risk of fire!
Never drive on surfaces covered with
vegetation (e.g. tall grass,
accumulated dead leaves, crops, debris)
such as a field, a country lane overgrown
with bushes or a grassy verge.
This vegetation could come into contact with
the vehicle's exhaust system
or other systems
which are very hot. Risk of fire!
Make sure you do not leave any item in
the passenger compartment which could
act like a magnifying glass under the effect of
the sun's rays and cause a fire. Risk of fire or
damage to interior surfaces!
Never leave the vehicle unattended,
with the engine running . If you have to
leave your vehicle with the engine running,
apply the parking brake and put the gearbox
into neutral or position N or P (depending on
the type of gearbox).
Never leave children inside the vehicle
unsupervised.
On flooded roads
We strongly advise against driving on flooded
roads, as this could cause serious damage to
the internal combustion engine or electric motor,
the gearbox and the electrical systems of the
vehicle.


If the vehicle absolutely must drive through a
flooded section of road:
►

Check that the depth of the water does not
exceed 15

cm, taking account of waves that
might be generated by other users.
►

Deactivate the Stop & Start function.
►


Drive as slowly as possible without stalling. In
all cases, do not exceed 6 mph (10

km/h).
►

Do not stop and do not switch off the engine.
On leaving the flooded road, as soon as safety
conditions allow

, make several light brake
applications to dry the brake discs and pads.
If in doubt about the state of your vehicle,
contact a PEUGEOT dealer or a qualified
workshop. CarM an uals 2 .c o m

162
Practical information
In order to maintain the reliability of the
engine and emissions control system,
never use additives in the engine oil.
Checking using the dipstick
For the location of the dipstick, please refer
to the illustration of the corresponding engine
compartment.
►

Grasp the dipstick by its coloured grip and
pull it out completely

.
►

Wipe the end of the dipstick using a clean,
lint-free cloth.


► Reinsert the dipstick and push fully down,
then pull it out again to visually check the oil
level: the correct level is between marks A
(max)
and B (min).
Do not start the engine if the level is:
–

above mark
A: contact a PEUGEOT dealer or
a qualified workshop.
–

below mark B

: top up the engine oil
immediately.
Oil grade
Before topping up or changing the
engine oil, check that the oil is suitable
for your engine and complies with the
recommendations in the service schedule
supplied with the vehicle (or available
from your PEUGEOT dealer or qualified
workshop).
Use of non-recommended oil may invalidate
your warranty in the event of engine failure.
Topping up the engine oil level
For the location of the engine oil filler cap, please
refer to the corresponding engine compartment
illustration.
►

Add oil in small quantities, avoiding any spills
on engine components (risk of fire).
►


W
ait a few minutes before checking the level
again using the dipstick.
►

T
op up the level if necessary.
►

After checking the level, carefully screw the
oil filler cap back on

and replace the dipstick in
its tube.
The oil level indication displayed on the instrument panel when the ignition is
switched on is not valid for 30 minutes
following an addition of oil.
Brake fluid
The level of this fluid should be close to
the "MAX" mark. If not, check the brake
pads for wear.
To know how often the brake fluid should be
replaced, refer to the manufacturer's servicing
schedule.
Clean the cap before removing it to refill.
Use only DOT4 brake fluid from a sealed
container.
Engine coolant
It is normal to top up this fluid between
two services.
The check and top-up must only be done with
the engine cold.
A level of coolant that is too low risks causing
major damage to the engine; the coolant level
must be close to the "MAX" mark without ever
going above it.
If the level is close to or below the " MIN" mark, it
is essential to top it up.
When the engine is hot, the temperature of the
coolant is regulated by the fan.
As the cooling system is pressurised, wait at
least one hour after switching off the engine
before carrying out any work.
In order to avoid the risk of scalding if you need
to top up in an emergency, wrap a cloth around
the cap and unscrew the cap by two turns to
allow the pressure to drop.
Once the pressure has dropped, remove the cap
and top up to the required level.
Screenwash fluid
Top up to the required level when necessary. CarM an uals 2 .c o m

163
Practical information

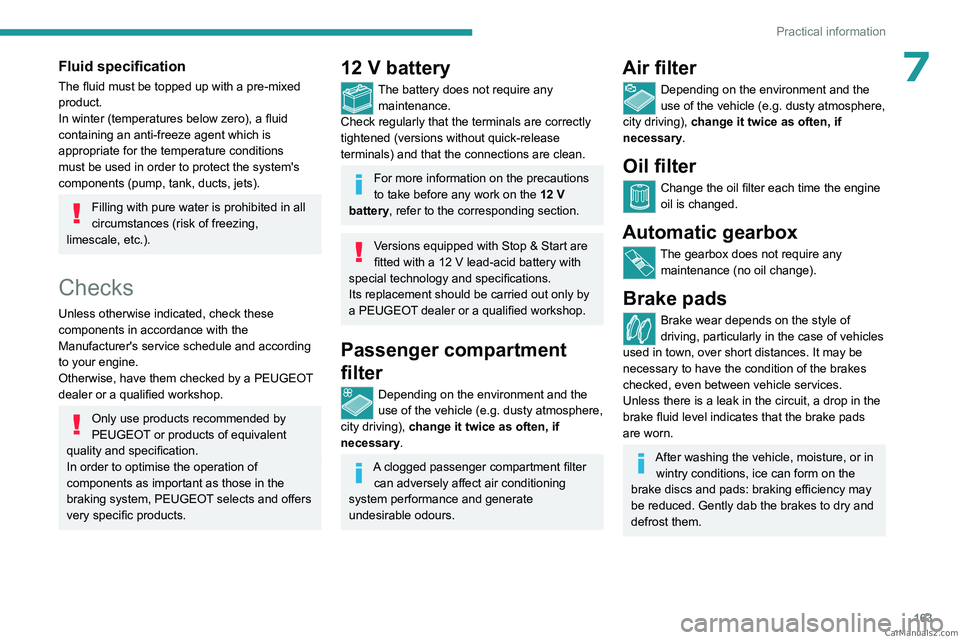

7Fluid specification
The fluid must be topped up with a pre-mixed
product.
In winter (temperatures below zero), a fluid
containing an anti-freeze agent which is
appropriate for the temperature conditions
must be used in order to protect the system's
components (pump, tank, ducts, jets).
Filling with pure water is prohibited in all
circumstances (risk of freezing,
limescale, etc.).
Checks
Unless otherwise indicated, check these
components in accordance with the
Manufacturer's service schedule and according
to your engine.
Otherwise, have them checked by a PEUGEOT
dealer or a qualified workshop.
Only use products recommended by
PEUGEOT or products of equivalent
quality and specification.
In order to optimise the operation of
components as important as those in the
braking system, PEUGEOT selects and offers
very specific products.
12 V battery
The battery does not require any maintenance.
Check regularly that the terminals are correctly
tightened (versions without quick-release
terminals) and that the connections are clean.
For more information on the precautions
to take before any work on the 12 V
battery, refer to the corresponding section.
Versions equipped with Stop & Start are
fitted with a 12 V lead-acid battery with
special technology and specifications.
Its replacement should be carried out only by
a PEUGEOT dealer or a qualified workshop.
Passenger compartment
filter
Depending on the environment and the
use of the vehicle (e.g. dusty atmosphere,
city driving), change it twice as often, if
necessary .
A clogged passenger compartment filter
can adversely affect air conditioning
system performance and generate
undesirable odours.
Air filter
Depending on the environment and the
use of the vehicle (e.g. dusty atmosphere,
city driving), change it twice as often, if
necessary .
Oil filter
Change the oil filter each time the engine
oil is changed.
Automatic gearbox
The gearbox does not require any
maintenance (no oil change).
Brake pads
Brake wear depends on the style of
driving, particularly in the case of vehicles
used in town, over short distances. It may be
necessary to have the condition of the brakes
checked, even between vehicle services.
Unless there is a leak in the circuit, a drop in the
brake fluid level indicates that the brake pads
are worn.
After washing the vehicle, moisture, or in wintry conditions, ice can form on the
brake discs and pads: braking efficiency may
be reduced. Gently dab the brakes to dry and
defrost them. CarM an uals 2 .c o m

2 11
Alphabetical index
Lamps with Full LED technology 63, 65
Lane assist
114–115, 119–121
Lane keeping assist

131
Leather (care)

167
LEDs - Light-emitting diodes

62, 176
Level, brake fluid

162
Level, engine coolant

18, 162
Level, engine oil

17, 161
Levels and checks

161–162
Level, screenwash fluid

69, 162
Light-emitting diodes - LEDs

62, 176
Lighting, boot

60
Lighting dimmer

19
Lighting, exterior

61, 64
Lighting, guide-me home

63
Lighting, interior

57–58
Lighting, mood

58
Lighting, welcome

63–64
Loading

157–158
Load reduction mode

160
Load space cover

59
Locating your vehicle

25
Locking

25, 27
Locking from the inside

28
Locking the doors

28
Log, alerts

19
Long-distance blind spot monitoring

134
Long objects, transporting

59
Lumbar

42M
Mains socket (domestic network) 146–147
Maintenance (advice)
145, 165
Maintenance, routine

105, 163–164
Manoeuvring aids (recommendations)

104
Map reading lamps

57
Markings, identification

188
Massage function

44
Massage, multi-point

44
Mat

57, 106
Menu, shortcuts

21
Mirror, rear view

46
Mirrors, door

45–46, 52, 134
Mirror, vanity

54
Mobile application

22, 53, 151, 153
Motor, electric

100, 144, 187
Motorised tailgate

31–32, 34
Mountings, ISOFIX

85, 88–89
N
Net, luggage retaining 59
Night vision
67
Night Vision

67
O
Obstacle detection 135
Oil change
161
Oil consumption

161
Oil, engine 161
On-board tools
60, 168–169
Opening the bonnet

160
Opening the boot

26, 31
Opening the doors

26, 31
P
Pads, brake 163
Paint
165, 188
Paint colour code

188
Parcel shelf, rear

59
Parking brake, electric

94–96, 164
Parking (sensors)

135
Parking sensors, audible and visual

135
Parking sensors, front

136
Parking sensors, rear

135
Passenger compartment temperature pre-
conditioning (Rechargeable hybrid)

22, 53
Pedestrian horn (Rechargeable hybrid)

73
Personalisation

10, 22
Plates, identification

188
Port, USB

55, 58
Post Collision Safety Brake

76
Power

18
Power indicator (Rechargeable hybrid)

9, 18
Pressures, tyres

164, 170, 188
Pre-tensioning (seat belts)

79
Profiles

190
Protecting children

80, 83–87
Proximity Keyless Entry and Start

26
Puncture

169–170, 172 CarM an uals 2 .c o m
