2023 PEUGEOT 408 Owners Manual

HANDBOOK
408 CarM an uals 2 .c o m

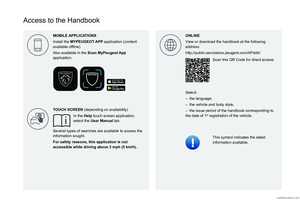

Access to the Handbook
ONLINE
View or download the handbook at the following
address:
http://public.servicebox.peugeot.com/APddb/Scan this QR Code for direct access.
This symbol indicates the latest
information available.
Select:
–
the language,
–


the vehicle and body style,
–


the issue period of the handbook corresponding to
the date of 1st registration of the vehicle.
MOBILE
Install the MYPEUGEOT application (content
004400590044004C004F00440045004F0048000300521089004C00510048000C0011
Also available in the
Scan
application.
T0003000B004700480053004800510047004C0051004A0003005200510003004400590044004C004F00440045004C004F004C0057005C000C
In the Help touch screen application,
select the User Manual tab.
Several types of searches are available to access the
information sought.
For safety reasons, this application is not
accessible while driving above 3 mph \(5 km/h\). CarM an uals 2 .c o m

Welcome
Thank you for choosing a Peugeot 408.
This document contains the key information and recommendations you
will need to be able to explore your vehicle in complete safety. We strongly
recommend familiarising yourself with it, as well as the Maintenance and
Warranty Guide.
003C
00470052004600580050004800510057
country in which it was sold.
The descriptions and illustrations are for guidance only.
0024005800570052005000520045004C004F004800560003
004800540058004C00530050004800510057
If ownership of your vehicle is transferred, please ensure this Han is
passed on to the new owner.
Key
Safety warning
Additional information
Environmental protection feature
Left-hand drive vehicle
Right-hand drive vehicle002F0052004600440057004C005200510003005200490003004800540058004C0053005000480051005700120045005800570057005200510003004C00510047004C00460044005700480047000300580056004C0051004A000300440003
black area
For any work on your vehicle, contact a member of the Manufacturer

2

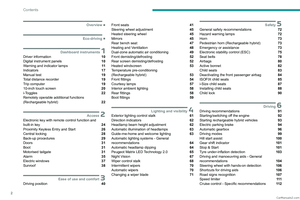

Contents
 ■
Overview
 ■
Eco-driving

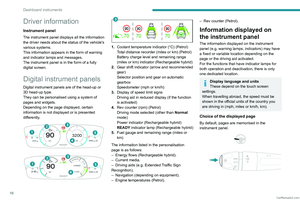

 1Dashboard instrumentsDriver information 10
Digital instrument panels 10

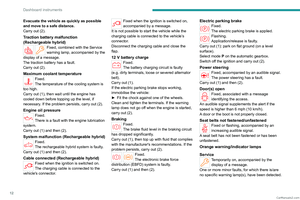

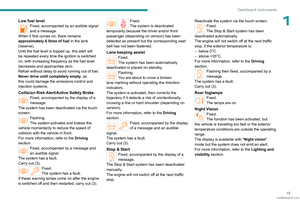

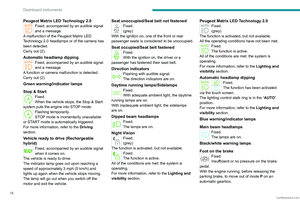

Warning and indicator lamps 11
Indicators 17
Manual test 19

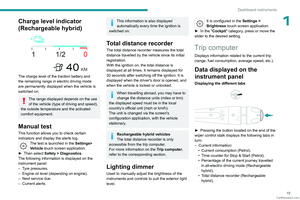

Total distance recorder 19
Trip computer 19

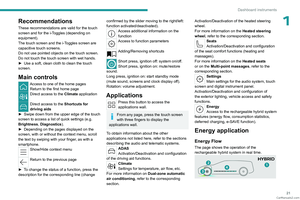

10-inch touch screen 20

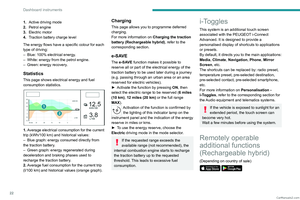

i-Toggles 22
Remotely operable additional functions
(Rechargeable hybrid)
22
 2AccessElectronic key with remote control function and
built-in key 24
Proximity Keyless Entry and Start 26

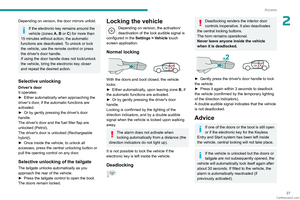

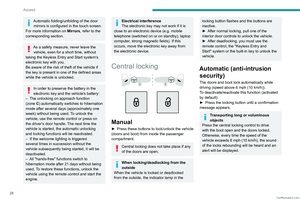

Central locking 28

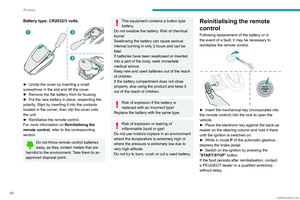

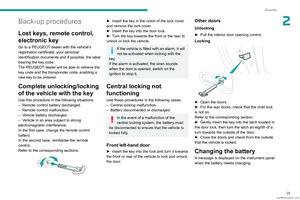

Back-up procedures 29
Doors 31
Boot 31

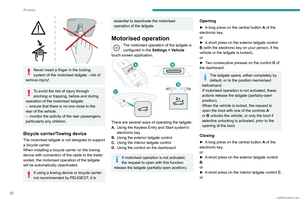

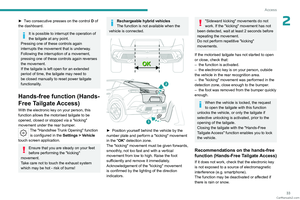

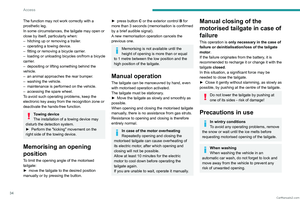

Motorised tailgate 31

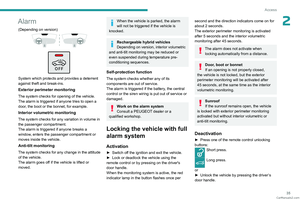

Alarm 35

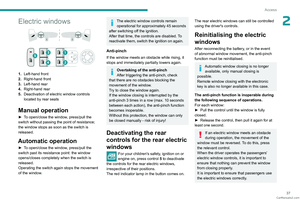

Electric windows 37

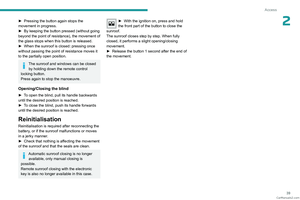

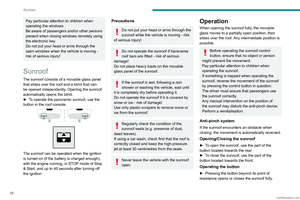

Sunroof 38

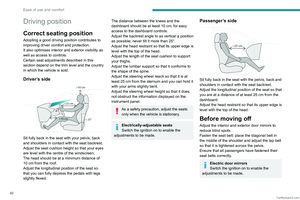

 3Ease of use and comfortDriving position 40

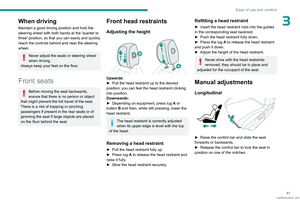

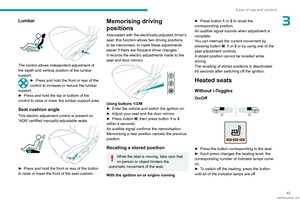

Front seats 41
Steering wheel adjustment 45

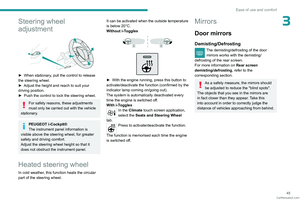

Heated steering wheel 45
Mirrors 45
Rear bench seat 47
Heating and Ventilation 48

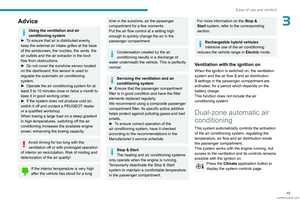

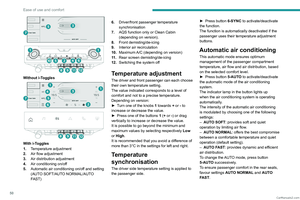

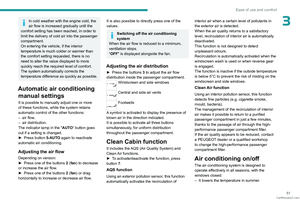

Dual-zone automatic air conditioning 49
Front demisting/defrosting 52
Rear screen demisting/defrosting 52
Heated windscreen 53
Temperature pre-conditioning
(Rechargeable hybrid)
53
Front fittings 54

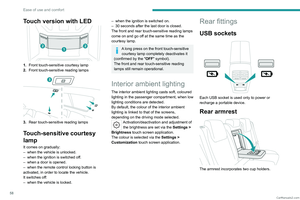

Courtesy lamps 57
Interior ambient lighting 58
Rear fittings 58

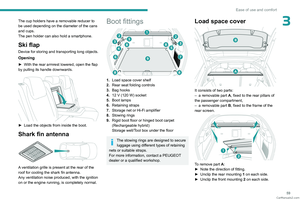

Boot fittings 59
 4Lighting and visibilityExterior lighting control stalk 61

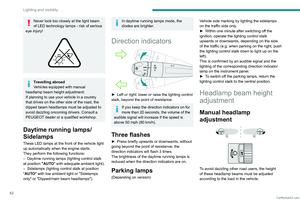

Direction indicators 62
Headlamp beam height adjustment 62
Automatic illumination of headlamps 63

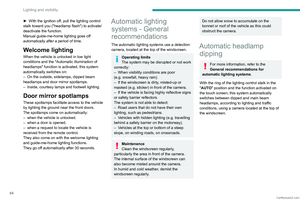

Guide-me-home and welcome lighting 63
Automatic lighting systems - General
recommendations
64
Automatic headlamp dipping 64

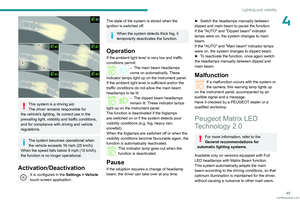

Peugeot Matrix LED Technology 2.0 65
Night Vision 67

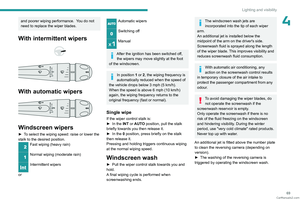

Wiper control stalk 68
Intermittent wipers 70
Automatic wipers 70

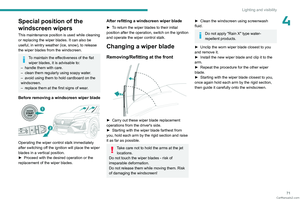

Changing a wiper blade 71

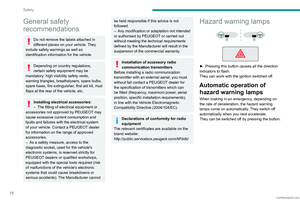

 5SafetyGeneral safety recommendations 72
Hazard warning lamps 72

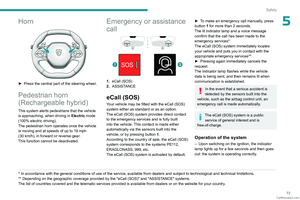

Horn 73
Pedestrian horn (Rechargeable hybrid) 73

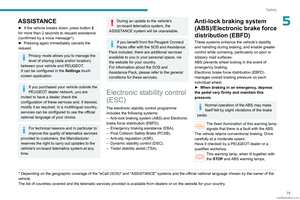

Emergency or assistance 73

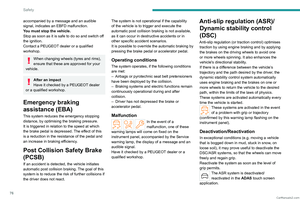

Electronic stability control (ESC) 75

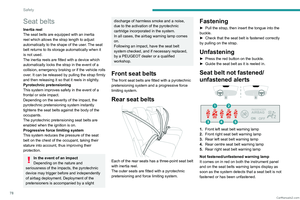

Seat belts 78

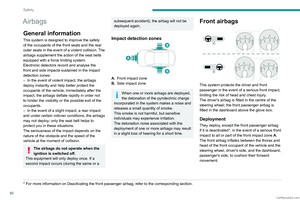

Airbags 80

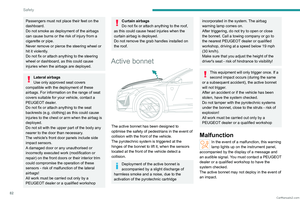

Active bonnet 82
Child seats 83
Deactivating the front passenger airbag 84

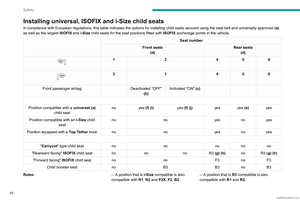

ISOFIX child seats 85

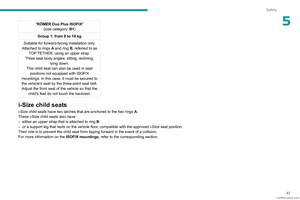

i-Size child seats 87
Installing child seats 88

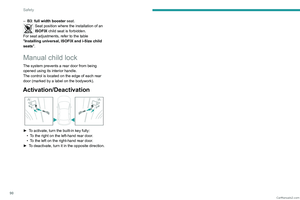

Child lock 90
 6DrivingDriving recommendations 91
Starting/switching off the engine 92

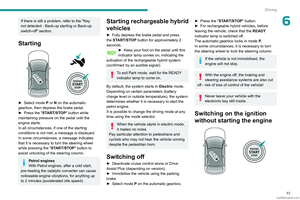

Starting rechargeable hybrid vehicles 93
Electric parking brake 94

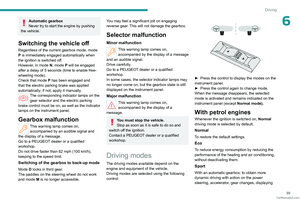

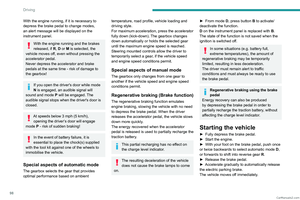

Automatic gearbox 96
Driving modes 99
Hill start assist 100
Gear shift indicator 101
Stop & Start 101

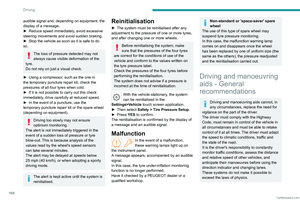

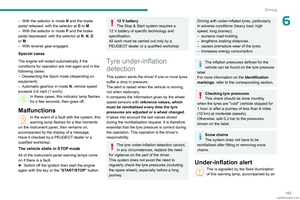

Tyre under-inflation detection 103

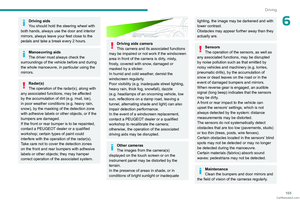

Driving and manoeuvring aids - General
recommendations
104

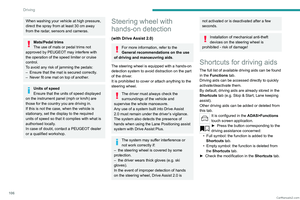

Steering wheel with hands-on detection 106
Shortcuts for driving aids 106

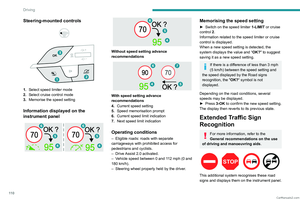

Road signs recognition 107

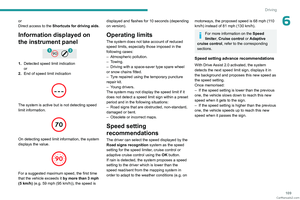

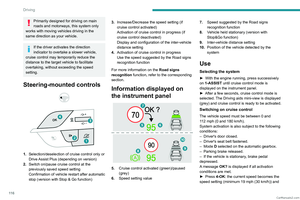

Speed limiter 111
Cruise control - Specific recommendations 11 2 CarM an uals 2 .c o m

3

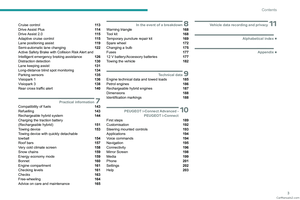

Contents

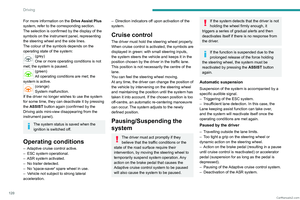

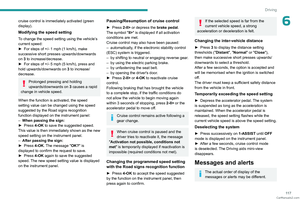

Cruise control 11 3

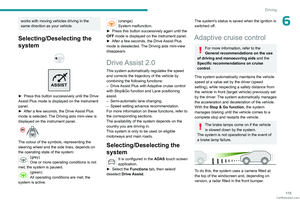

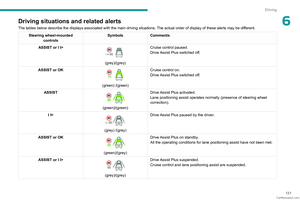

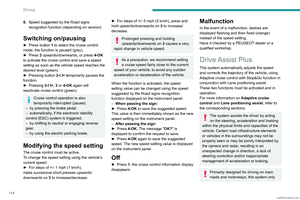

Drive Assist Plus 11 4
Drive Assist 2.0 11 5
Adaptive cruise control 11 5

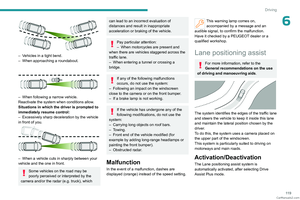

Lane positioning assist 11 9

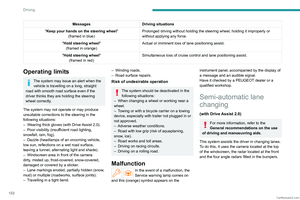

Semi-automatic lane changing 122

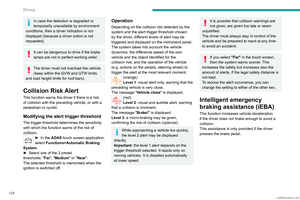

Active Safety Brake with Collision Risk Alert and
Intelligent emergency braking assistance
126
Distraction detection 130

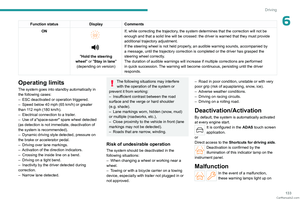

Lane keeping assist 131
Long-distance blind spot monitoring 134
Parking sensors 135

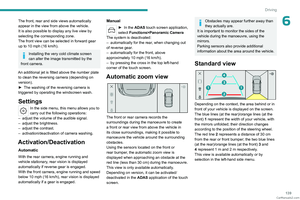

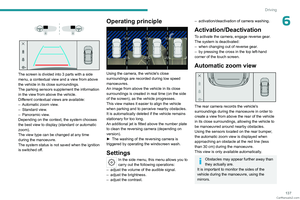

Visiopark 1 136
Visiopark 3 138

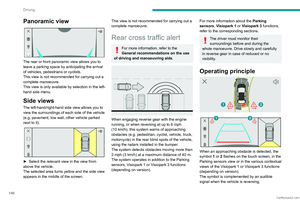

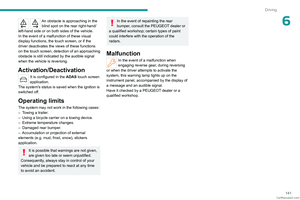

Rear cross traffic alert 140
 7Practical informationCompatibility of fuels 143
Refuelling 143

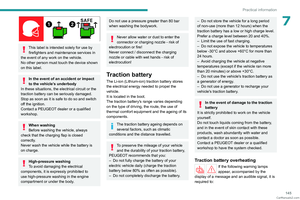

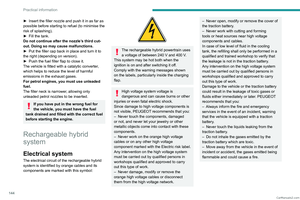

Rechargeable hybrid system 144

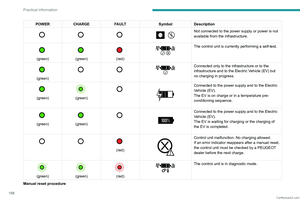

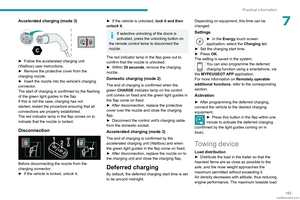

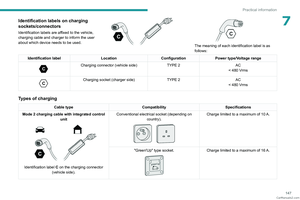

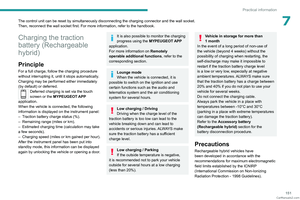

Charging the traction battery
(Rechargeable hybrid)
151
Towing device 153

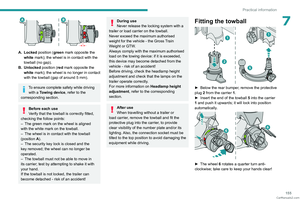

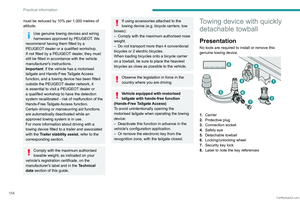

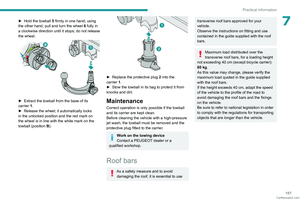

Towing device with quickly detachable
towball
154

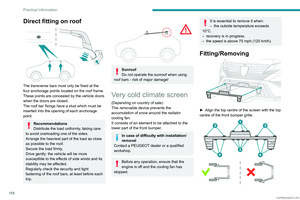

Roof bars 157
Very cold climate screen 158

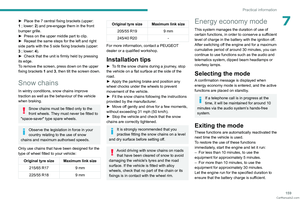

Snow chains 159
Energy economy mode 159
Bonnet 160
Engine compartment 161
Checking levels 161
Checks 163
Free-wheeling 164

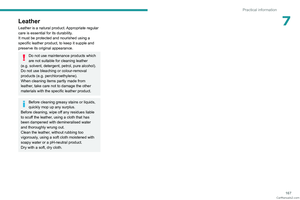

Advice on care and maintenance 165

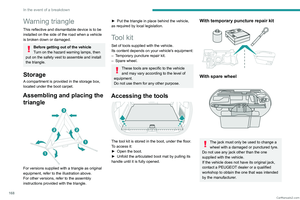

 8In the event of a breakdownWarning triangle 168
Tool kit 168

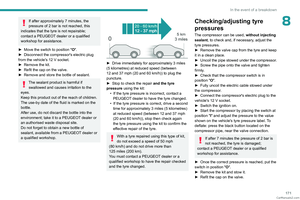

Temporary puncture repair kit 169
Spare wheel 172

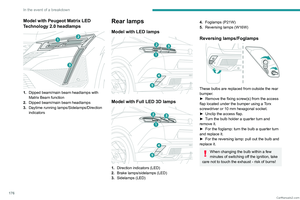

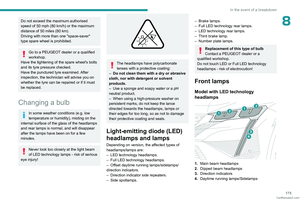

Changing a bulb 175

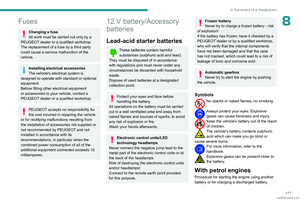

Fuses 177
12

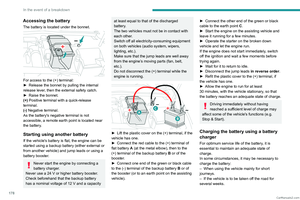

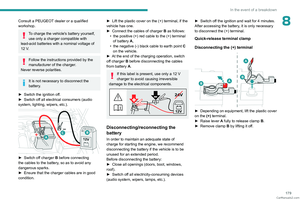

V battery/Accessory batteries 177

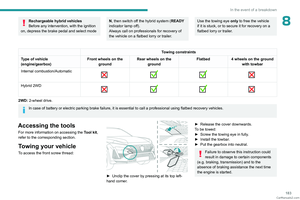

Towing the vehicle 182

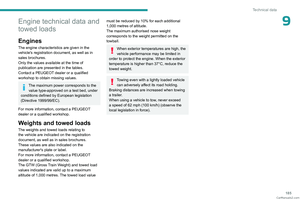

 9Technical dataEngine technical data and towed loads 185
Petrol engines 186
Rechargeable hybrid engines 187

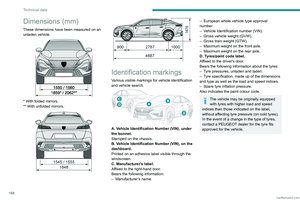

Dimensions 188
Identification markings 188

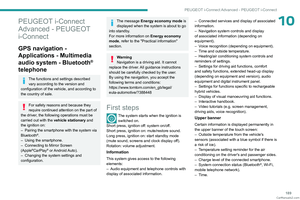

 10 PEUGEOT i-Connect Advanced -PEUGEOT i-Connect
First steps 189

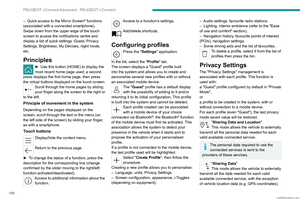

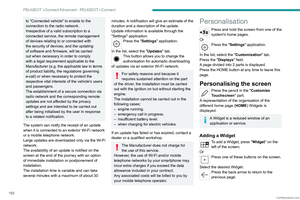

Customisation 192

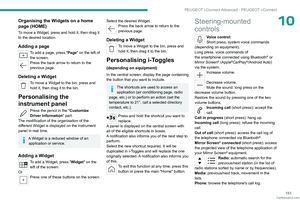

Steering mounted controls 193

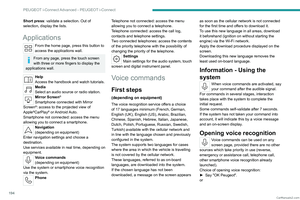

Applications 194
Voice commands 194

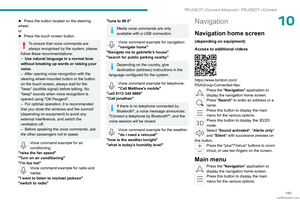

Navigation 195

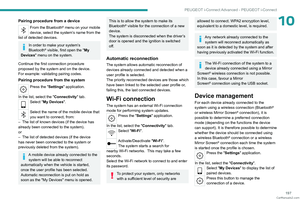

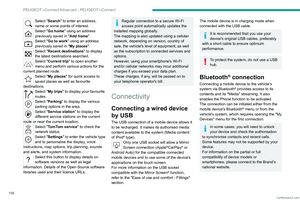

Connectivity 196

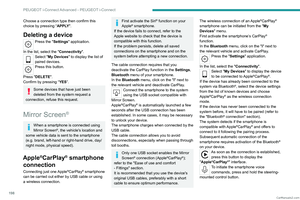

Mirror Screen 198
Media 199
Phone 201
Settings 202
Help 203
  11Vehicle data recording and privacy
 ■

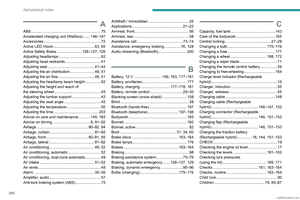

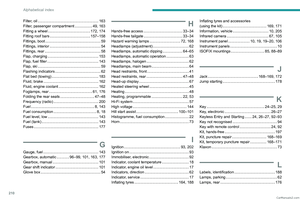

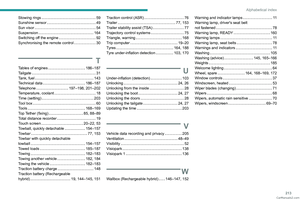

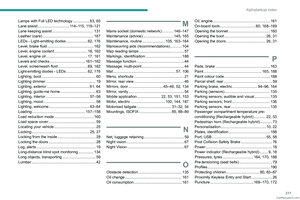

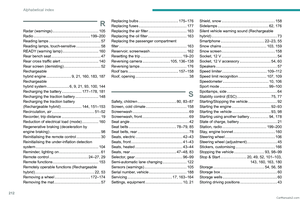

Alphabetical index
 ■
Appendix CarM an uals 2 .c o m

4
Overview
Presentation
These illustrations and descriptions are provided
for information. The presence and location of
some elements vary depending on the version
or trim level.
Instruments and controls



1. Emergency call/Assistance call
Sunroof
Alarm
Courtesy lamp/Front reading lamps
2. Warning lamp display for seat belts and front
passenger airbag
Interior mirror
3. Instrument panel
4. Side control bar/Coin holder
5. Fusebox
6. Bonnet release
7. Door mirrors
Electric windows
Central locking
8. Front armrest
USB sockets
9. Front passenger airbag
10. Glove box
Centre console

1.10-inch touch screen
2. Centre control bars
3. Storage compartment or Wireless
smartphone charger
4. Starting/Switching off the engine with START/
STOP
5. Storage
USB socket
12
V socket
Cup holder
6. Gearbox
7. Driving mode selector
8. Electric parking brake
9. Storage compartment/Smartphone storage
Steering-mounted controls
CarM an uals 2 .c o m

5
Overview
1.Exterior lighting controls/Direction indicators/
Instrument panel display page/Service
indicator
2. Wiper controls/Screenwash/Trip computer
3. Automatic gearbox control paddles
4. Speed limiter/Cruise control/Adaptive cruise
control/Drive Assist Plus or Drive Assist 2.0
controls
A. Increase/Decrease the speed setting
Display and adjustment of the distance
setting to the vehicle in front (Adaptive cruise
control)
B. Select/Deselect the Cruise control
Select/Deselect the Adaptive cruise control/
Drive Assist Plus
C. Start/Pause the Speed limiter or Cruise
control with the speed setting saved
Confirmation of vehicle restart after automatic
stop (Adaptive cruise control with Stop&Go
function)
D. Select/Deselect the Speed limiter
E. Activation of the Speed limiter or Cruise
control with the speed setting saved
Use the speed suggested by the Road signs
recognition function
5. Horn/Driver front airbag
6. Audio system setting controls
F. Press: Display favourite radio stations/media
Up/Down: previous/next radio/media/
smartphone selection
Press: validation of a selection
G. Increase/Decrease the volume H.
Pick up/Hang up
Access to the Phone application's call log
I. Short press: system voice commands
Long press: smartphone voice commands
Side control bar



1. LED technology headlamps beam height
adjustment
2. Motorised tailgate
3. Heated windscreen
4. Heated steering wheel
5. Opening the fuel filler flap
6. Temperature pre-conditioning operation
indicator lamp
Centre control bars



1. Automatic air conditioning system controls/
HOME button
or
i-Toggles/HOME button
2. Audio system controls
3. Shortcuts for driving aids
4. Access to the Climate application
5. Windscreen and front windows demisting
6. Recirculation of interior air
7. Rear screen de-icing
8. Switching automatic air conditioning off
9. Hazard warning lamps CarM an uals 2 .c o m

6
Overview

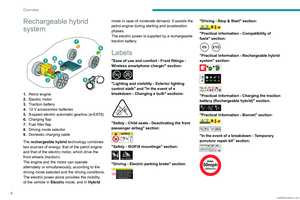

Rechargeable hybrid
system


1.Petrol engine
2. Electric motor
3. Traction battery
4. 12 V accessories batteries
5. 8-speed electric automatic gearbox (e-EAT8)
6. Charging flap
7. Fuel filler flap
8. Driving mode selector
9. Domestic charging cable
The rechargeable hybrid technology combines
two sources of energy: that of the petrol engine
and that of the electric motor, which drive the
front wheels (traction).
The engine and the motor can operate
alternately or simultaneously, according to the
driving mode selected and the driving conditions.
The electric power alone provides the mobility
of the vehicle in Electric mode, and in Hybrid mode in case of moderate demand. It assists the
petrol engine during starting and acceleration
phases.
The electric power is supplied by a rechargeable
traction battery.

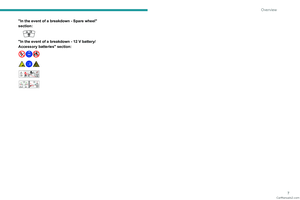

Labels
"Ease of use and comfort - Front fittings -
Wireless smartphone charger" section:


"Lighting and visibility - Exterior lighting
control stalk" and "In the event of a
breakdown - Changing a bulb" sections:

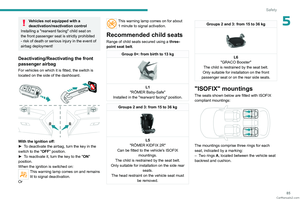

"Safety - Child seats - Deactivating the front
passenger airbag" section:


"Safety - ISOFIX mountings" section:
i-SizeTOP TETHER
"Driving - Electric parking brake" section:

"Driving - Stop & Start" section:
"Practical information - Compatibility of
fuels" section:


"Practical information - Rechargeable hybrid
system" section:






"Practical information - Charging the traction
battery (Rechargeable hybrid)" section:


"Practical information - Bonnet" section:


"In the event of a breakdown - Temporary
puncture repair kit" section:
