2023 NISSAN TITAN Owners Manual

ENGINE
Model5.6L 8 cylinder (VK56VD engine model)
Type Gasoline, 4-cycle, DOHC
Cylinder arrangement 8-cylinder, V-block, Slanted at 90°
Bore x Stroke Metric measure98 mm x 92 mm
US measure 3.858 in x 3.622 in
Displacement Metric measure5,552 cm
3
US measure338.78 cu in
Firing order 1–8–7–3–6–5–4–2
Idle speed
No adjustment is necessary.
A/T (in “N” position)
Ignition timing (degree B.T.D.C. at idle speed)
CO%atidle
Spark plug
DILKAR7B11
Spark plug gap (Nominal) Metric measure
1.1 mm
US measure 0.043 in
Camshaf t operation Timing chain
SPECIFICATIONS
Technical and consumer information10-9

WHEELS AND TIRES
Wheel typeOffset
Metric
MeasureOffset
US
Measure
Size
Steel 44 mm 1.73 in 17 x 7.5 J 25mm 0.98in 18x8.0J
Alloy 25mm 0.98in 18x8.0J 23mm 0.91in 18x8.0J
41.5 mm 1.63 in 18 x 7.5 J
23mm 0.91in 20x8.0J
41.5 mm 1.63 in 20 x 7.5 J
Tire type Performance type Size
Passenger All season 265/70R18
Passenger All season P265/70R18
Passenger All season P275/60R20
Passenger All terrain P275/70R18
Light truck All season LT245/75R17
Light truck All terrain LT275/65R18
Light truck All season LT265/60R20
Spare wheel
type Size
Full size
(Matching)
Steel LT245/75R17
Full size (Non
Matching) Steel 265/70R18
P265/70R18
P275/70R18
P275/60R20
Full size (Non
Matching) Alloy LT265/60R20
Full size
(Matching) Alloy LT265/60R20
LT275/65R18
10-10Technical and consumer information

DIMENSIONS AND WEIGHTS
Non-XD crew cab models
ModelsMetric Measure US Measure
Overall Length: Without front license plate
bracket: S/SV
5791.5 mm 228.0 in
Pro-4X/Platinum 5792.0 mm 228.0 in
With license plate bracket: S/SV,5795.1 mm 228.2 in
Pro-4X/Platinum 5795.0 mm 228.2 in
Overall width: Tow mirrors non-extended: 2,494 mm98.2 in
Tow mirrors extended: 2,640 mm103.9 in
Without overfenders: 2WD: S/SV2,018.5 mm79.5 in
4WD: S/SV 2,018.5 mm79.5 in
With overfenders: Pro-4X and Platinum 2,049.6 mm 80.7 in
Overall height: 2WD: S/SV1,915.1 mm75.4 in
4WD: S/SV 1,930 mm76.0 in
2WD: Platinum 1,920.4 mm75.6 in
4WD: Pro-4X/Platinum 1,961 mm77.2 in
Technical and consumer information10-11

ModelsMetric Measure US Measure
Front Track: S/SV1,725 mm 67.9 in
Pro-4X/Platinum 1,729 mm 68.1 in
Rear Track: S/SV1,725 mm 67.9 in
Pro-4X/Platinum 1,729 mm 68.1 in
Wheelbase: 3,550 mm139.8 in
Gross vehicle weight rating: Refer to the “F.M.V.S.S. certifi-
cation label” on the center
pillar between the driver's
side front and rear doors.
Gross axle weight rating:
Front:Rear:
XD crew cab models
Models Metric MeasureUS Measure
Overall Length: Without front license plate
bracket:
S, SV, Platinum6,175 mm243.1 in
Pro-4X 6,200 mm244.1 in
With front license plate
bracket:
S/SV6,181.8 mm243.4 in
Pro-4X/Platinum 6,208.5 mm244.4 in
10-12Technical and consumer information

ModelsMetric MeasureUS Measure
Overall width: Tow mirrors non-extended: 2,494 mm98.2 in
Tow mirrors extended: 2,640 mm103.9 in
Without overfenders: S/SV2,018.5 mm79.5 in
With overfenders: Pro-4X/Platinum2,049.6 mm80.7 in
Overall height: S1981.6 mm78.0 in
SV 1982.4 mm78.0 in
Pro-4X 1,992.3 mm78.4 in
Platinum 2,002.8 mm78.9 in
Front Track: S/SV1,738 mm68.4 in
Pro-4X/Platinum 1,743 mm68.6 in
Rear Track: S/SV1,737 mm68.4 in
Pro-4X/Platinum 1,742 mm68.6 in
Wheelbase: 3,850 mm151.6 in
Gross vehicle weight rating: Refer to the “F.M.V.S.S. certifi-
cation label” on the center
pillar between the driver's
side front and rear doors.
Gross axle weight rating:
Front:Rear:
Technical and consumer information10-13

Non-XD King Cab® models
ModelsMetric Measure US Measure
Overall Length: Without front license plate
bracket:
S/SV5,791.5 mm 228.0 in
With front license plate
bracket:
S/SV5,795.1 mm 228.2 in
Overall width: Without overfenders: S/SV2,018.5 mm 79.5 in
Overall height: 2WD: S1,908 mm75.1 in
4WD: S 1,923 mm75.7 in
2WD: SV 1,908 mm75.1 in
4WD: SV 1,923 mm75.7 in
Front and Rear Track: 1,725 mm67.9 in
Wheelbase: 3,550 mm139.8 in
Gross vehicle weight rating: Refer to the “F.M.V.S.S. certifi-
cation label” on the center
pillar between the driver's
side front and rear doors.
Gross axle weight rating:
Front:Rear:
10-14Technical and consumer information

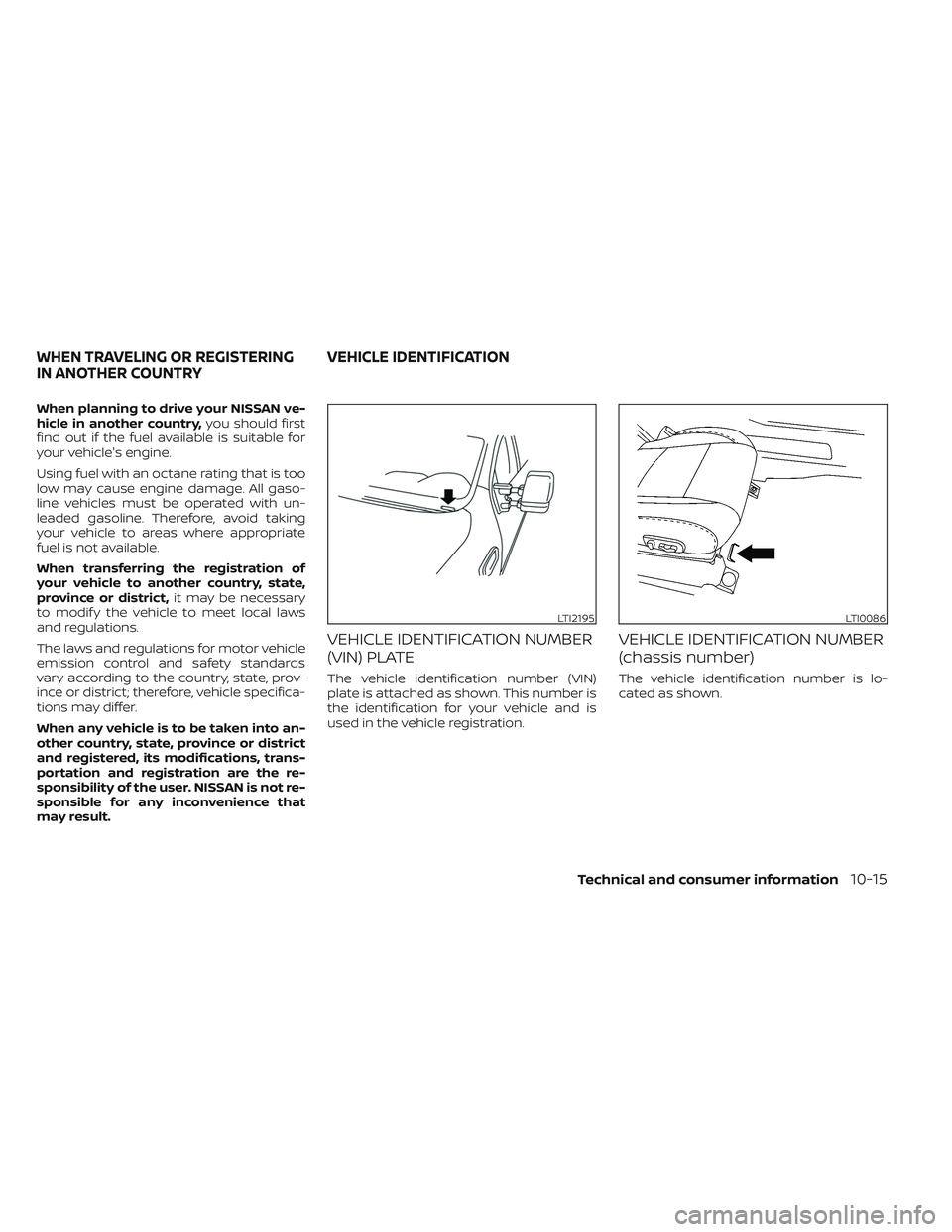

When planning to drive your NISSAN ve-
hicle in another country,you should first
find out if the fuel available is suitable for
your vehicle's engine.
Using fuel with an octane rating that is too
low may cause engine damage. All gaso-
line vehicles must be operated with un-
leaded gasoline. Therefore, avoid taking
your vehicle to areas where appropriate
fuel is not available.
When transferring the registration of
your vehicle to another country, state,
province or district, it may be necessary
to modif y the vehicle to meet local laws
and regulations.
The laws and regulations for motor vehicle
emission control and safety standards
vary according to the country, state, prov-
ince or district; therefore, vehicle specifica-
tions may differ.
When any vehicle is to be taken into an-
other country, state, province or district
and registered, its modifications, trans-
portation and registration are the re-
sponsibility of the user. NISSAN is not re-
sponsible for any inconvenience that
may result.
VEHICLE IDENTIFICATION NUMBER
(VIN) PLATE
The vehicle identification number (VIN)
plate is attached as shown. This number is
the identification for your vehicle and is
used in the vehicle registration.
VEHICLE IDENTIFICATION NUMBER
(chassis number)
The vehicle identification number is lo-
cated as shown.
LTI2195LTI0086
WHEN TRAVELING OR REGISTERING
IN ANOTHER COUNTRY VEHICLE IDENTIFICATION
Technical and consumer information10-15

ENGINE SERIAL NUMBER
The engine serial number is stamped on
the engine as shown.
F.M.V.S.S. CERTIFICATION LABELThe Federal/Canadian Motor Vehicle
Safety Standard (F.M.V.S.S.) certification la-
bel is affixed as shown. This label contains
valuable vehicle information, such as:
(GVWR), (GAWR), month and year of manu-
facture, (VIN), etc. Review it carefully.
WTI0095
5.6L 8 cylinder (VK56VD engine model)
LTI0135
Type A (if so equipped)
WTI0099
Type B (if so equipped)
10-16Technical and consumer information
