2023 NISSAN TITAN Owners Manual

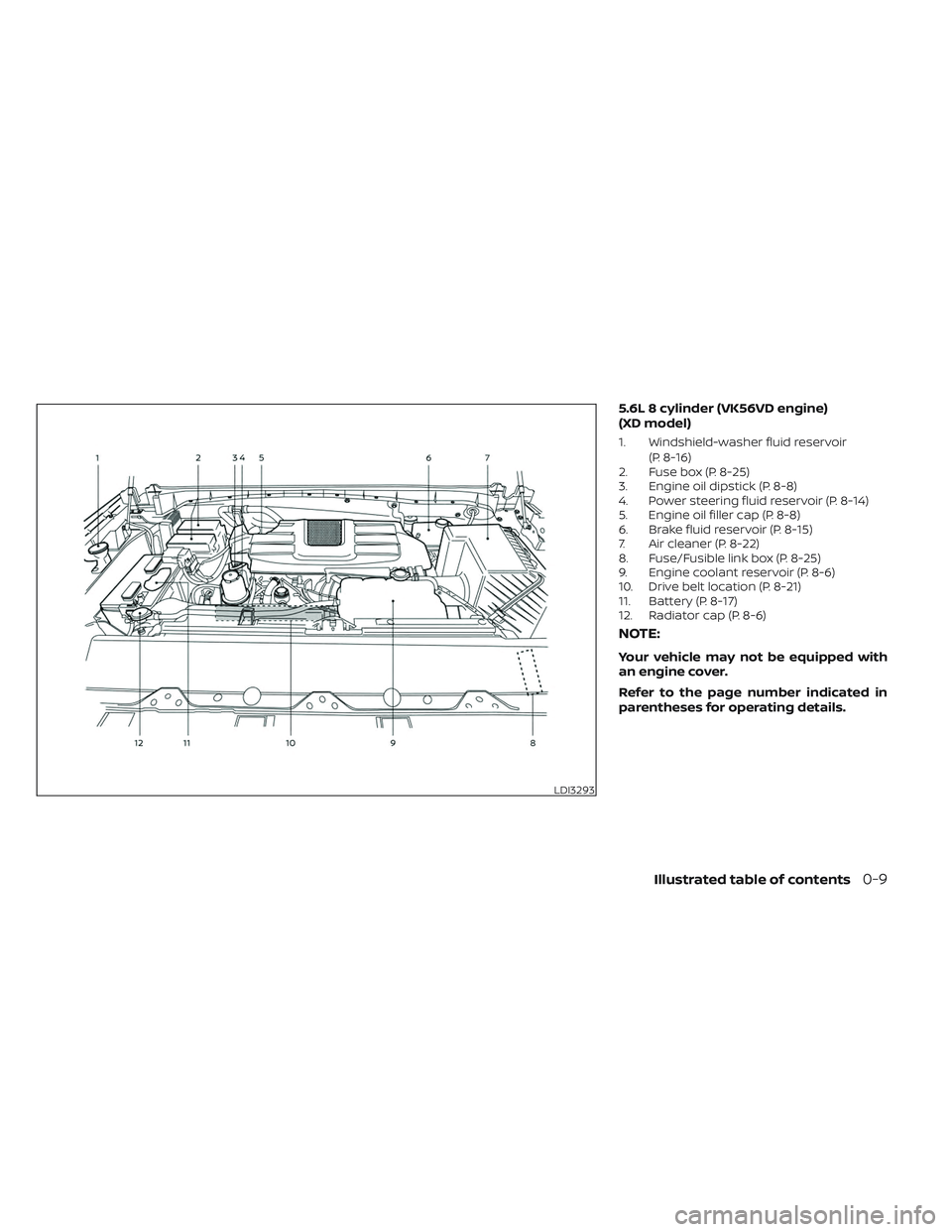

5.6L 8 cylinder (VK56VD engine)
(XD model)
1. Windshield-washer fluid reservoir(P. 8-16)
2. Fuse box (P. 8-25)
3. Engine oil dipstick (P. 8-8)
4. Power steering fluid reservoir (P. 8-14)
5. Engine oil filler cap (P. 8-8)
6. Brake fluid reservoir (P. 8-15)
7. Air cleaner (P. 8-22)
8. Fuse/Fusible link box (P. 8-25)
9. Engine coolant reservoir (P. 8-6)
10. Drive belt location (P. 8-21)
11. Battery (P. 8-17)
12. Radiator cap (P. 8-6)
NOTE:
Your vehicle may not be equipped with
an engine cover.
Refer to the page number indicated in
parentheses for operating details.
LDI3293
Illustrated table of contents0-9

Warning/Indicator
light (red) Name Page
Automatic Trans-
mission Park
warning light
(
model)2-15
Brake warning
light
2-15
Charge warning
light2-16
Electric shif t con-
trol system
warning light2-16
Engine oil pres-
sure warning light
2-17
Malfunction Indi-
cator Light (MIL)2-17
Warning/
Indicator
light (red) Name Page
Master warning
light
2-17
Seat belt warning
light and chime2-18
Security indicator
light2-18
Supplemental air
bag warning light2-18
Warning/
Indicator light
(yellow) Name Page
Anti-lock Braking
System (ABS)
warning light
2-19
Warning/
Indicator light
(yellow) Name Page
Automatic Emer-
gency Braking
(AEB) with Pedes-
trian Detection
system warning
light 2-19
Automatic Trans-
mission check
warning light
2-19
Electronic locking
rear differential
(E-Lock) system
ON indicator light
(if so equipped)2-19
Front passenger
air bag status
light (if so
equipped)
2-19
WARNING AND INDICATOR LIGHTS
0-10Illustrated table of contents

Warning/Indicator light
(yellow) Name Page
Hill descent con-
trol system ON
indicator light (if
so equipped) 2-20
Low tire pressure
warning light
2-20
Malfunction Indi-
cator Light (MIL) 2-22
Master warning
light2-22
Rear Automatic
Braking (RAB) sys-
tem warning light2-22
Warning/
Indicator light
(yellow) Name Page
Slip indicator light 2-23
Vehicle Dynamic
Control (VDC) OFF
indicator light
2-23
Warning/
Indicator light
(other) Name Page
Front fog light in-
dicator light (if so
equipped) (green)
2-23
High Beam Assist
indicator light
(green)2-23
Warning/
Indicator light
(other) Name Page
High beam indi-
cator light (blue)
2-23
Side light and
headlight indica-
tor light (green)2-23
TOW mode ON
indicator light
(green)2-24
Turn signal/
hazard indicator
lights (green)2-24
Illustrated table of contents0-11

1 Safety-Seats, seat belts and
supplemental restraint system
Seats............................................ 1-2Front manual bench seat adjustment
(if so equipped) ................................1-3
Front manual captain’s chair seat
adjustment (if so equipped for
passenger seat) .............................. 1-4
Front power captain’s chair seat
adjustment (if so equipped) .................. 1-5
Armrests (if so equipped) ......................1-7
Flexible seating ................................1-7
Head restraints/Headrests ......................1-10
Adjustable head restraint/headrest
components ................................. 1-11
Non-adjustable head restraint/
headrest components .......................1-12
Remove...................................... 1-12
Install ........................................ 1-13
Adjust ........................................ 1-13
Seatbelts ....................................... 1-15
Precautions on seat belt usage ...............1-15
Seat belt warning light and chime ............1-18
Pregnant women ............................ 1-18
Injured persons .............................. 1-18
Three-point type seat belt with
retractor ..................................... 1-19
Seat belt extenders ......................... 1-22
Seat belt maintenance ......................1-23Child safety
.................................... 1-23
Infants ...................................... 1-24
Small children ............................... 1-24
Larger children .............................. 1-24
Child restraints ................................. 1-26
Precautions on child restraints ..............1-26
LATCH (Lower Anchors and Tethers for
CHildren) system ............................ 1-28
Top tether anchor point locations ...........1-30
Rear-facing child restraint installation
using LATCH ................................. 1-31
Rear-facing child restraint installation
using the seat belts ......................... 1-33
Forward-facing child restraint
installation using LATCH .....................1-35
Forward-facing child restraint
installation using the seat belts — rear
bench seat .................................. 1-39
Forward-facing child restraint
installation using the seat belts — front
passenger seat and front center seat
(if so equipped) .............................. 1-43
Booster seats ............................... 1-48
Supplemental Restraint System (SRS) ..........1-52
Precautions on SRS (with NISSAN
Advanced Air Bag System)
(if so equipped) .............................. 1-52

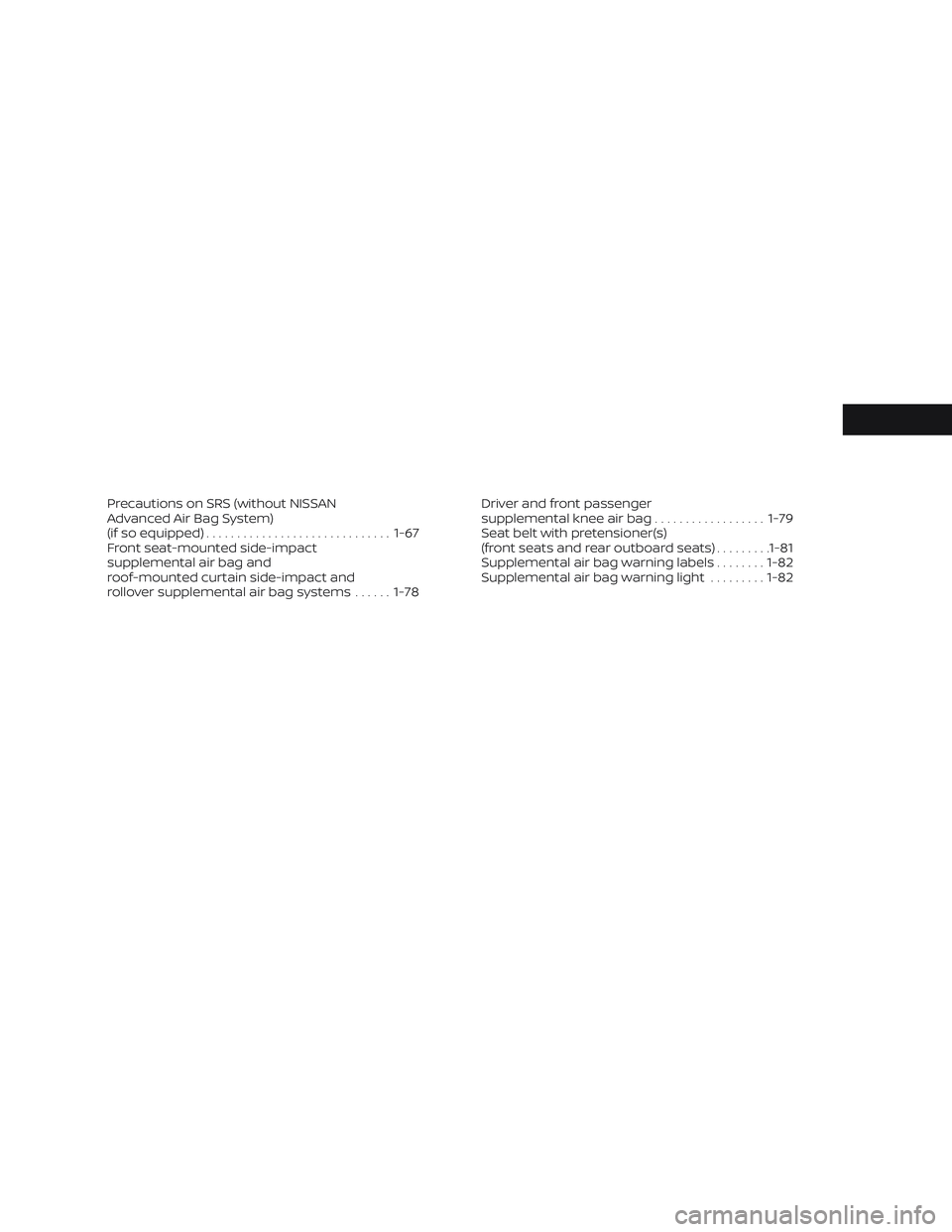

Precautions on SRS (without NISSAN
Advanced Air Bag System)
(if so equipped).............................. 1-67
Front seat-mounted side-impact
supplemental air bag and
roof-mounted curtain side-impact and
rollover supplemental air bag systems ......1-78 Driver and front passenger
supplemental knee air bag
..................1-79
Seat belt with pretensioner(s)
(front seats and rear outboard seats) .........1-81
Supplemental air bag warning labels ........1-82
Supplemental air bag warning light .........1-82

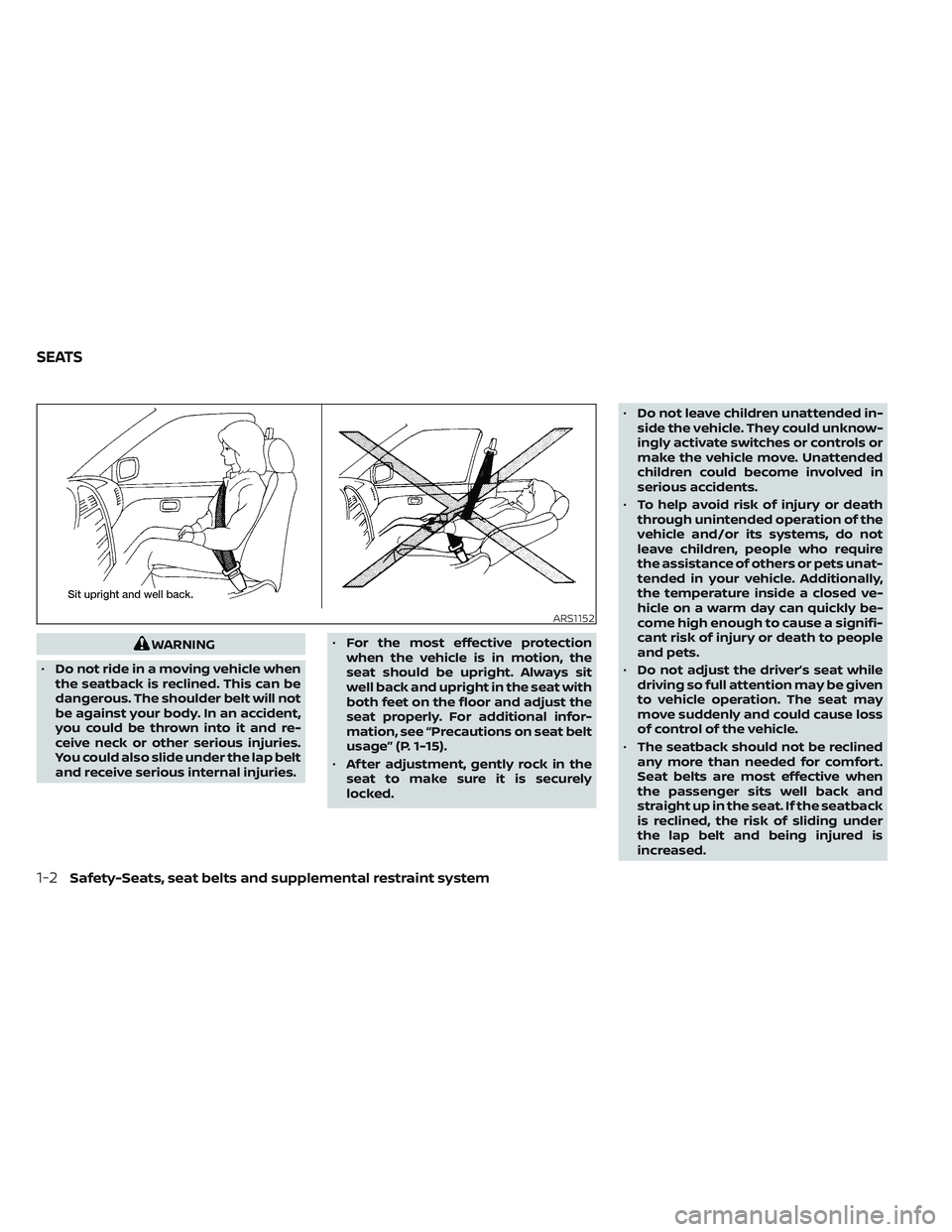

WARNING
• Do not ride in a moving vehicle when
the seatback is reclined. This can be
dangerous. The shoulder belt will not
be against your body. In an accident,
you could be thrown into it and re-
ceive neck or other serious injuries.
You could also slide under the lap belt
and receive serious internal injuries. •
For the most effective protection
when the vehicle is in motion, the
seat should be upright. Always sit
well back and upright in the seat with
both feet on the floor and adjust the
seat properly. For additional infor-
mation, see “Precautions on seat belt
usage” (P. 1-15).
• Af ter adjustment, gently rock in the
seat to make sure it is securely
locked. •
Do not leave children unattended in-
side the vehicle. They could unknow-
ingly activate switches or controls or
make the vehicle move. Unattended
children could become involved in
serious accidents.
• To help avoid risk of injury or death
through unintended operation of the
vehicle and/or its systems, do not
leave children, people who require
the assistance of others or pets unat-
tended in your vehicle. Additionally,
the temperature inside a closed ve-
hicle on a warm day can quickly be-
come high enough to cause a signifi-
cant risk of injury or death to people
and pets.
• Do not adjust the driver’s seat while
driving so full attention may be given
to vehicle operation. The seat may
move suddenly and could cause loss
of control of the vehicle.
• The seatback should not be reclined
any more than needed for comfort.
Seat belts are most effective when
the passenger sits well back and
straight up in the seat. If the seatback
is reclined, the risk of sliding under
the lap belt and being injured is
increased.
ARS1152
SEATS
1-2Safety-Seats, seat belts and supplemental restraint system

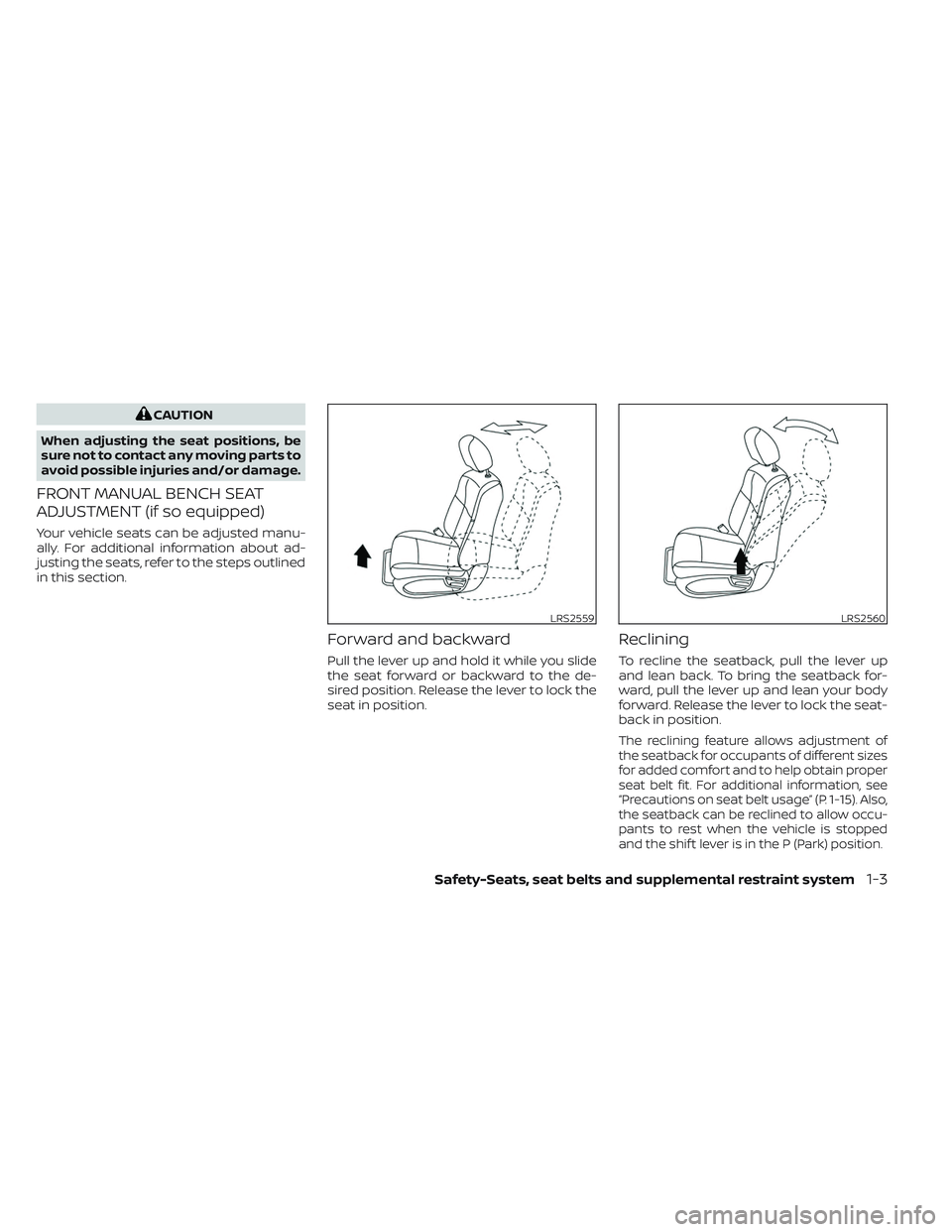

CAUTION
When adjusting the seat positions, be
sure not to contact any moving parts to
avoid possible injuries and/or damage.
FRONT MANUAL BENCH SEAT
ADJUSTMENT (if so equipped)
Your vehicle seats can be adjusted manu-
ally. For additional information about ad-
justing the seats, refer to the steps outlined
in this section.
Forward and backward
Pull the lever up and hold it while you slide
the seat forward or backward to the de-
sired position. Release the lever to lock the
seat in position.
Reclining
To recline the seatback, pull the lever up
and lean back. To bring the seatback for-
ward, pull the lever up and lean your body
forward. Release the lever to lock the seat-
back in position.
The reclining feature allows adjustment of
the seatback for occupants of different sizes
for added comfort and to help obtain proper
seat belt fit. For additional information, see
“Precautions on seat belt usage” (P. 1-15). Also,
the seatback can be reclined to allow occu-
pants to rest when the vehicle is stopped
and the shif t lever is in the P (Park) position.
LRS2559LRS2560
Safety-Seats, seat belts and supplemental restraint system1-3

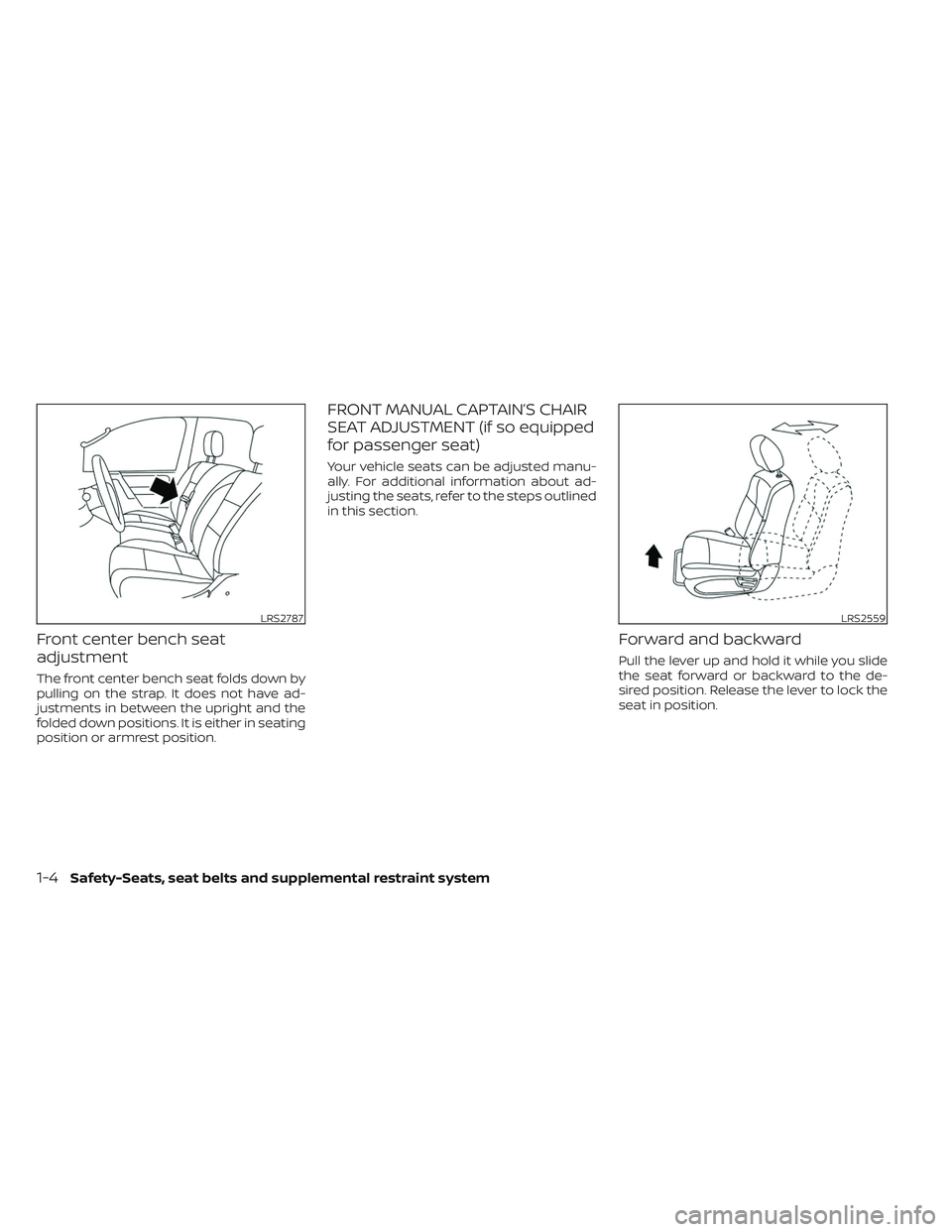

Front center bench seat
adjustment
The front center bench seat folds down by
pulling on the strap. It does not have ad-
justments in between the upright and the
folded down positions. It is either in seating
position or armrest position.
FRONT MANUAL CAPTAIN’S CHAIR
SEAT ADJUSTMENT (if so equipped
for passenger seat)
Your vehicle seats can be adjusted manu-
ally. For additional information about ad-
justing the seats, refer to the steps outlined
in this section.
Forward and backward
Pull the lever up and hold it while you slide
the seat forward or backward to the de-
sired position. Release the lever to lock the
seat in position.
LRS2787LRS2559
1-4Safety-Seats, seat belts and supplemental restraint system
