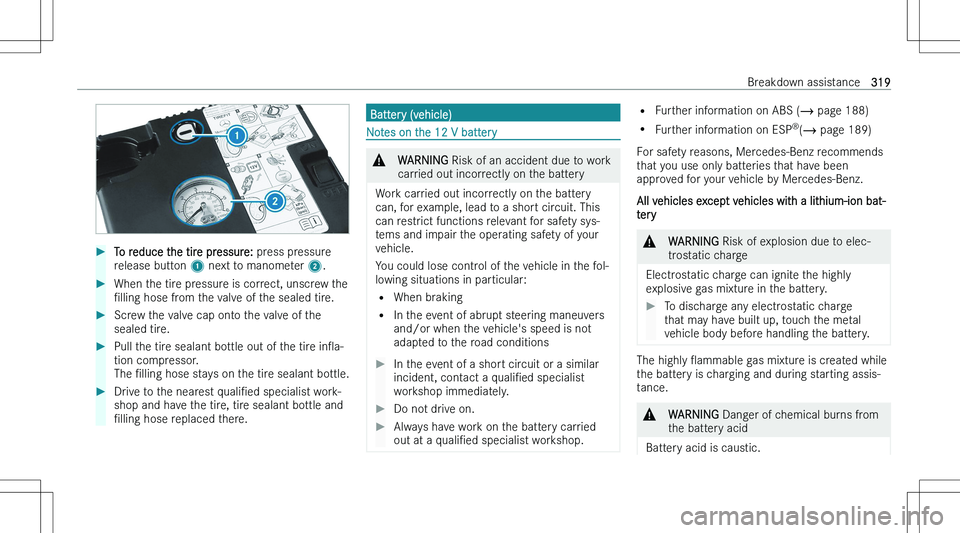

To reduce the tire pressure: press pressure
release button 1 next to manometer 2.When the tire pressure is correct, unscrew the
Nlling hose from the valve of the sealed tire.Screw the valve cap onto the valve of the
sealed tire.Pull the tire sealant bottle out of the tire inOa-
tion compressor.
The Nlling hose stays on the tire sealant bottle.Drive to the nearest qualiNed specialist work-
shop and have the tire, tire sealant bottle and
Nlling hose replaced there.Battery (vehicle)
Notes on the 12 V battery
&WARNING Risk of an accident due to work
carried out incorrectly on the battery
Work carried out incorrectly on the battery
can, for example, lead to a short circuit. This can restrict functions relevant for safety sys-
tems and impair the operating safety of your
vehicle.
You could lose control of the vehicle in the fol-
lowing situations in particular:
= When braking
= In the event of abrupt steering maneuvers
and/or when the vehicle\bs speed is not
adapted to the road conditions
In the event of a short circuit or a similar incident, contact a qualiNed specialist
workshop immediately.Do not drive on.Always have work on the battery carried
out at a qualiNed specialist workshop.=
Further information on ABS (  page 188)
= Further information on ESP n
( page 189)
For safety reasons, Mercedes-Benz recommends that you use only batteries that have been
approved for your vehicle by Mercedes-Benz.
All vehicles except vehicles with a lithium-ion bat- tery&WARNING Risk of explosion due to elec-
trostatic charge
Electrostatic charge can ignite the highly
explosive gas mixture in the battery.
To discharge any electrostatic charge
that may have built up, touch the metal
vehicle body before handling the battery.
The highly Oammable gas mixture is created while
the battery is charging and during starting assis-
tance.
&WARNING Danger of chemical burns from
the battery acid
Battery acid is caustic.
Breakdown assistance319

Avoid contact with the skin, eyes or
clothing.Do not lean over the battery.Do not inhale battery gases.Keep children away from the battery.Immediately rinse battery acid oM thor-
oughly with plenty of clean water and
seek medical attention immediately.
All vehicles
+ENVIRONMENTAL NOTE Environmental
damage due to improper disposal of bat- teries
Batteries contain pollutants. It is
illegal to dispose of them with the household rubbish.

Dispose of batteries in an
environmentally responsible manner.
Take discharged batteries to a qualiNed
specialist workshop or to a collection
point for used batteries.
If you have to disconnect the 12 V battery, con- tact a qualiNed specialist workshop.
Comply with safety notes and take protective
measures when handling batteries.
Risk of explosion if the 12 V battery is
used improperly.Fire, naked Oames and smoking are pro-
hibited when you are handling the battery. Avoid creating sparks.Electrolyte or battery acid is corrosive.
Avoid contact with the skin, eyes or cloth-
ing. Wear suitable protective clothing, in
particular gloves, an apron and a face
mask. Immediately rinse electrolyte oracid splashes oM with clean water. Consult
a doctor immediately.Do not place heavy objects on the surface of the battery or use the battery to sup-port a person in any way.Wear safety glasses.Keep children away.Observe this Operator\bs Manual.
Observe the following if you do not intend to use
the vehicle over an extended period of time:
= Non-plug-in hybrid: switch to standby mode
(  page 185, 186).
= Alternatively: connect the battery to a battery
charger approved by Mercedes-Benz or con-
sult a qualiNed specialist workshop to discon-
nect the battery.
320Breakdown assistance

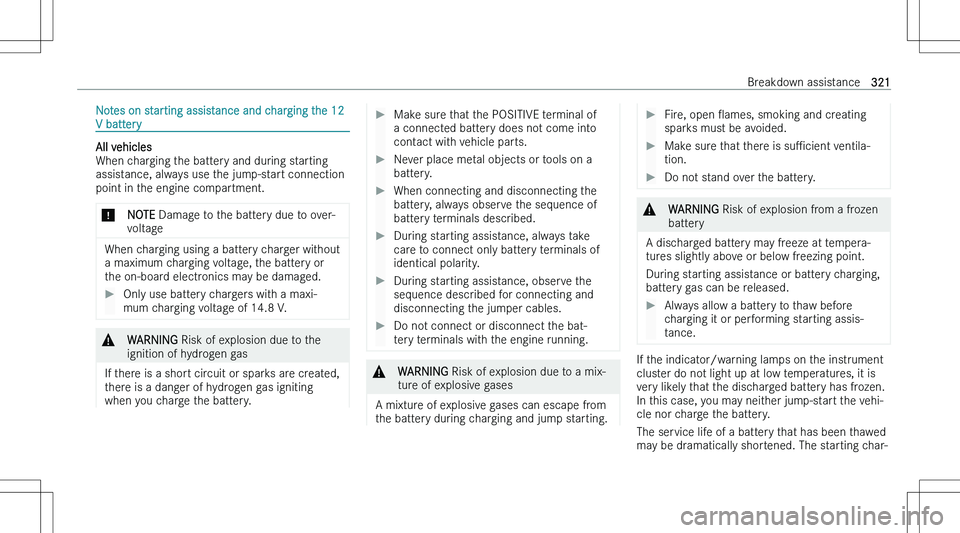

Notes on starting assistance and charging the 12
V battery
All vehicles
When charging the battery and during starting
assistance, always use the jump-start connection
point in the engine compartment.
*NOTE Damage to the battery due to over-
voltage
When charging using a battery charger without
a maximum charging voltage, the battery or the on-board electronics may be damaged.
Only use battery chargers with a maxi-
mum charging voltage of 14.8 V.&WARNING Risk of explosion due to the
ignition of hydrogen gas
If there is a short circuit or sparks are created,
there is a danger of hydrogen gas igniting
when you charge the battery.
Make sure that the POSITIVE terminal of
a connected battery does not come into
contact with vehicle parts.Never place metal objects or tools on a
battery.When connecting and disconnecting the battery, always observe the sequence of
battery terminals described.During starting assistance, always take
care to connect only battery terminals of
identical polarity.During starting assistance, observe the sequence described for connecting and
disconnecting the jumper cables.Do not connect or disconnect the bat-
tery terminals with the engine running.&WARNING Risk of explosion due to a mix-
ture of explosive gases
A mixture of explosive gases can escape from
the battery during charging and jump starting.
Fire, open Oames, smoking and creating
sparks must be avoided.Make sure that there is suPcient ventila-
tion.Do not stand over the battery.&WARNING Risk of explosion from a frozen
battery
A discharged battery may freeze at tempera-
tures slightly above or below freezing point.
During starting assistance or battery charging,
battery gas can be released.
Always allow a battery to thaw before
charging it or performing starting assis-
tance.
If the indicator/warning lamps on the instrument cluster do not light up at low temperatures, it is
very likely that the discharged battery has frozen.
In this case, you may neither jump-start the vehi-
cle nor charge the battery.
The service life of a battery that has been thawedmay be dramatically shortened. The starting char-
Breakdown assistance321

acteristics may be impaired, especially at low
temperatures.
It is recommended that you have a thawed battery checked at a qualiNed specialist workshop.
All vehicles*NOTE Damage caused by numerous or
extended attempts to start the engine
Numerous or extended attempts to start the
engine may damage the catalytic converter
due to non-combusted fuel.
Avoid numerous and extended attempts
to start the engine.
Observe the following points during starting assis-
tance and when charging the battery:
= Use only undamaged jumper cables/charging
cables with a suPcient cross-section and
insulated terminal clamps.
= Non-insulated parts of the terminal clamps
must not come into contact with other metal
parts while the jumper cable/charging cable
is connected to the battery/jump-start con-
nection point.
= The jumper cable/charging cable must not
come into contact with any parts that may move when the engine is running.
= Always make sure that neither you nor the bat-
tery is electrostatically charged.
= Keep away from Nre and naked Oames.
= Do not lean over the battery.
Observe the additional following points when
charging the battery:
= Use only battery chargers tested and
approved for Mercedes-Benz.
= Read the battery charger\bs operating instruc-
tions before charging the battery.
Observe the additional following points during
starting assistance:
= Starting assistance may be provided only
using vehicles, batteries or other jump start
devices with a nominal voltage of 12 V.
= The vehicles must not touch.= Vehicles with gasoline engines: jump-start the
vehicle only when the engine and exhaust sys- tem are cold.
Starting assistance and charging the 12 V battery
Requirements: = The vehicle is secured with the electric park-
ing brake.
= Vehicles with automatic transmission: the
transmission is in position ].
= The vehicle and all electrical consumers are
switched oM.
= The hood is open.
322Breakdown assistance

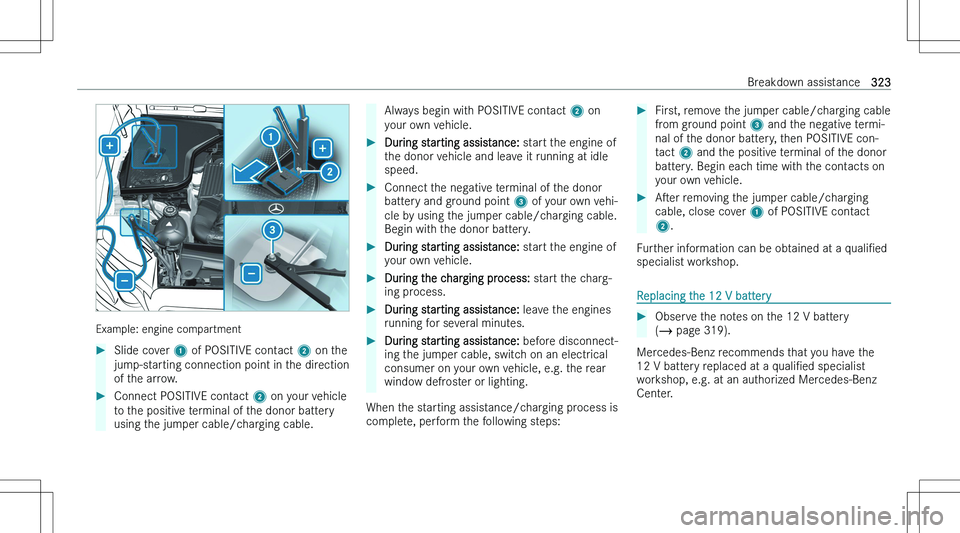

Example: engine compartment
Slide cover 1 of POSITIVE contact 2 on the
jump-starting connection point in the direction
of the arrow.Connect POSITIVE contact 2 on your vehicle
to the positive terminal of the donor battery using the jumper cable/charging cable.Always begin with POSITIVE contact 2 on
your own vehicle.During starting assistance: start the engine of
the donor vehicle and leave it running at idle
speed.Connect the negative terminal of the donor
battery and ground point 3 of your own vehi-
cle by using the jumper cable/charging cable.
Begin with the donor battery.During starting assistance: start the engine of
your own vehicle.During the charging process: start the charg-
ing process.During starting assistance: leave the engines
running for several minutes.During starting assistance: before disconnect-
ing the jumper cable, switch on an electrical consumer on your own vehicle, e.g. the rear
window defroster or lighting.
When the starting assistance/charging process is
complete, perform the following steps:
First, remove the jumper cable/charging cable
from ground point 3 and the negative termi-
nal of the donor battery, then POSITIVE con-
tact 2 and the positive terminal of the donor
battery. Begin each time with the contacts on
your own vehicle.Aser removing the jumper cable/charging
cable, close cover 1 of POSITIVE contact
2 .
Further information can be obtained at a qualiNed
specialist workshop.
Replacing the 12 V battery
Observe the notes on the 12 V battery (  page 319).
Mercedes-Benz recommends that you have the
12 V battery replaced at a qualiNed specialist
workshop, e.g. at an authorized Mercedes-Benz Center.
Breakdown assistance323

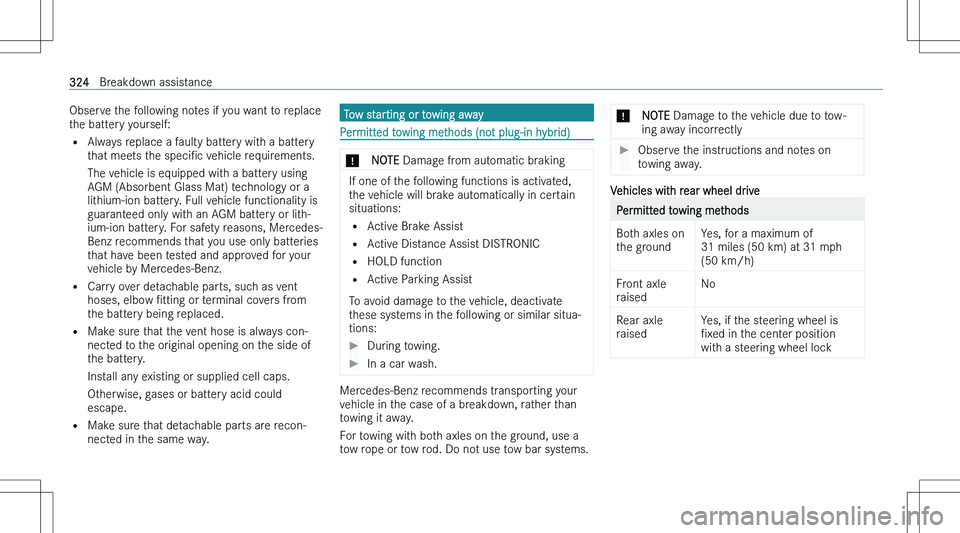

Observe the following notes if you want to replacethe battery yourself:
= Always replace a faulty battery with a battery
that meets the speciNc vehicle requirements.
The vehicle is equipped with a battery using AGM (Absorbent Glass Mat) technology or alithium-ion battery. Full vehicle functionality is
guaranteed only with an AGM battery or lith- ium-ion battery. For safety reasons, Mercedes-Benz recommends that you use only batteries
that have been tested and approved for your vehicle by Mercedes-Benz.
= Carry over detachable parts, such as vent
hoses, elbow Ntting or terminal covers from
the battery being replaced.
= Make sure that the vent hose is always con-
nected to the original opening on the side of
the battery.
Install any existing or supplied cell caps.
Otherwise, gases or battery acid could
escape.
= Make sure that detachable parts are recon-
nected in the same way.Tow starting or towing away
Permitted towing methods (not plug-in hybrid)
*NOTE Damage from automatic braking
If one of the following functions is activated,
the vehicle will brake automatically in certain
situations:
= Active Brake Assist
= Active Distance Assist DISTRONIC
= HOLD function
= Active Parking Assist
To avoid damage to the vehicle, deactivate
these systems in the following or similar situa-
tions:
During towing.In a car wash.
Mercedes-Benz recommends transporting your vehicle in the case of a breakdown, rather than towing it away.
For towing with both axles on the ground, use a tow rope or tow rod. Do not use tow bar systems.
*NOTE Damage to the vehicle due to tow-
ing away incorrectlyObserve the instructions and notes on
towing away.
Vehicles with rear wheel drive
Permitted towing methodsBoth axles on
the groundYes, for a maximum of
31 miles (50 km) at 31 mph
(50 km/h)Front axle
raisedNoRear axle
raisedYes, if the steering wheel is
Nxed in the center position
with a steering wheel lock324Breakdown assistance

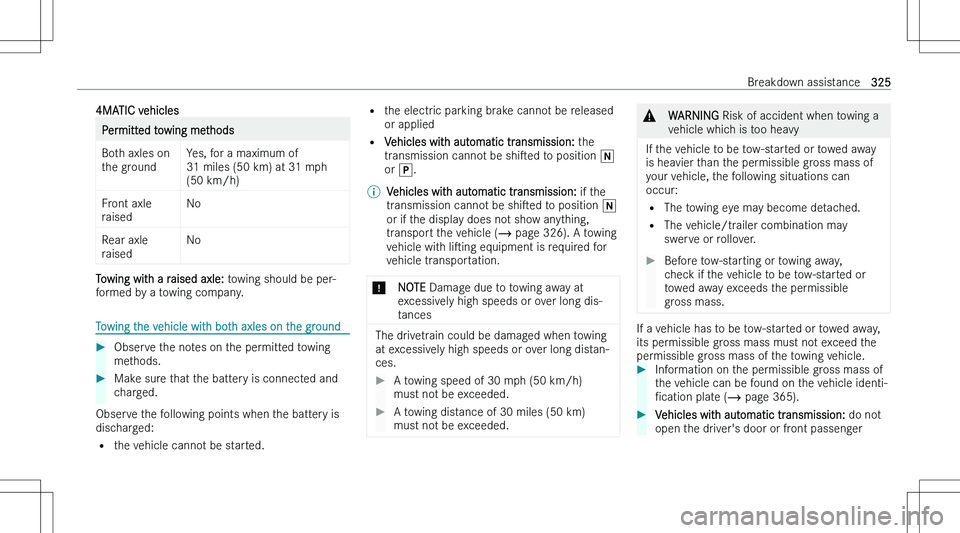

4MATIC vehiclesPermitted towing methodsBoth axles on
the groundYes, for a maximum of
31 miles (50 km) at 31 mph
(50 km/h)Front axle
raisedNoRear axle
raisedNo
Towing with a raised axle: towing should be per-
formed by a towing company.
Towing the vehicle with both axles on the ground
Observe the notes on the permitted towing
methods.Make sure that the battery is connected and
charged.
Observe the following points when the battery is
discharged:
= the vehicle cannot be started.
=the electric parking brake cannot be released
or applied
= Vehicles with automatic transmission: the
transmission cannot be shised to position \\
or ] .\bVehicles with automatic transmission: if the
transmission cannot be shised to position \\
or if the display does not show anything,
transport the vehicle (  page 326). A towing
vehicle with lising equipment is required for
vehicle transportation.*NOTE Damage due to towing away at
excessively high speeds or over long dis-
tances
The drivetrain could be damaged when towing
at excessively high speeds or over long distan-
ces.
A towing speed of 30 mph (50 km/h)
must not be exceeded.A towing distance of 30 miles (50 km)
must not be exceeded.&WARNING Risk of accident when towing a
vehicle which is too heavy
If the vehicle to be tow-started or towed away
is heavier than the permissible gross mass of
your vehicle, the following situations can
occur:
= The towing eye may become detached.
= The vehicle/trailer combination may
swerve or rollover.
Before tow-starting or towing away,
check if the vehicle to be tow-started or
towed away exceeds the permissible
gross mass.If a vehicle has to be tow-started or towed away, its permissible gross mass must not exceed thepermissible gross mass of the towing vehicle.Information on the permissible gross mass of
the vehicle can be found on the vehicle identi-
Ncation plate ( page 365).Vehicles with automatic transmission: do not
open the driver\bs door or front passengerBreakdown assistance325

door; the transmission otherwise automati-
cally shiss to position ].Install the towing eye (  page 328).Fasten the towing device.*NOTE Damage due to incorrect connec-
tion of the tow barOnly connect the tow rope or tow bar to
the towing eyes.Deactivate the automatic locking mechanism .Do not activate the HOLD function.Deactivate tow-away alarm (  page 90).Deactivate Active Brake Assist (  page 214).Vehicles with automatic transmission: shis to
position \\.Release the electric parking brake.&WARNING Risk of accident due to limited
safety-related functions during the towing
process
Safety-related functions are limited or no lon-
ger available in the following situations:
= The vehicle is switched oM.
= The brake system or power steering sys-
tem is malfunctioning.
= The energy supply or the on-board electri-
cal system is malfunctioning.
When your vehicle is towed away, signiNcantly
more eMort may be required to steer and
brake than is normally required.
Use a tow bar.Make sure that the steering wheel can
move freely before towing the vehicle
away.*NOTE Damage due to excessive tractive
power
If you pull away sharply, the tractive power
may be too high and the vehicles could be
damaged.
Pull away slowly and smoothly.
Loading the vehicle for transport
Observe the notes on towing away (  page 325).Connect the towing device to the towing eye
in order to load the vehicle.Vehicles with automatic transmission: shis the
automatic transmission to position \\.\bVehicles with automatic transmission: the
automatic transmission may be locked in posi- tion ] in the event of damage to the electri-
cal system. To shis to \\, provide the on-
board electrical system with power
(  page 322).Load the vehicle onto the transporter.326Breakdown assistance
