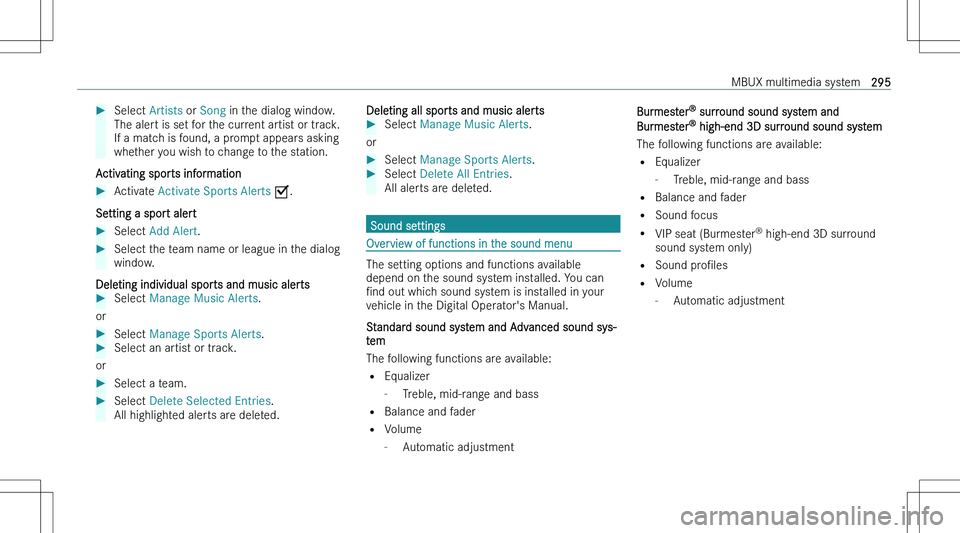

Select Artists or Song in the dialog window.
The alert is set for the current artist or track.
If a match is found, a prompt appears asking
whether you wish to change to the station.
Activating sports information
Activate Activate Sports Alerts s .
Setting a sport alert
Select Add Alert .Select the team name or league in the dialog
window.
Deleting individual sports and music alerts
Select Manage Music Alerts .
or
Select Manage Sports Alerts .Select an artist or track.
or
Select a team.Select Delete Selected Entries .
All highlighted alerts are deleted.Deleting all sports and music alertsSelect Manage Music Alerts .
or
Select Manage Sports Alerts .Select Delete All Entries .
All alerts are deleted.
Sound settings
Overview of functions in the sound menu
The setting options and functions available
depend on the sound system installed. You can
Nnd out which sound system is installed in your
vehicle in the Digital Operator\bs Manual.
Standard sound system and Advanced sound sys- tem
The following functions are available:
= Equalizer
- Treble, mid-range and bass
= Balance and fader
= Volume
- Automatic adjustment
Burmester n
surround sound system and
Burmester n
high-end 3D surround sound system
The following functions are available: = Equalizer
- Treble, mid-range and bass
= Balance and fader
= Sound focus
= VIP seat (Burmester n
high-end 3D surround
sound system only)
= Sound proNles
= Volume
- Automatic adjustmentMBUX multimedia system295

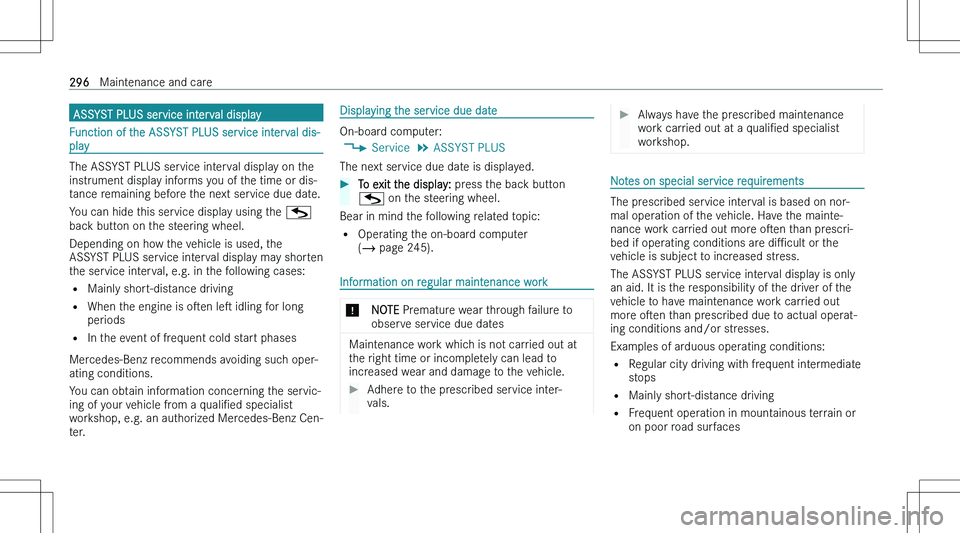

ASSYST PLUS service interval display
Function of the ASSYST PLUS service interval dis-
play
The ASSYST PLUS service interval display on the instrument display informs you of the time or dis-tance remaining before the next service due date.
You can hide this service display using the G
back button on the steering wheel.
Depending on how the vehicle is used, the
ASSYST PLUS service interval display may shorten the service interval, e.g. in the following cases:
= Mainly short-distance driving
= When the engine is osen les idling for long
periods
= In the event of frequent cold start phases
Mercedes-Benz recommends avoiding such oper-
ating conditions.
You can obtain information concerning the servic- ing of your vehicle from a qualiNed specialist
workshop, e.g. an authorized Mercedes-Benz Cen-
ter.
Displaying the service due date
On-board computer:
4 Service 5
ASSYST PLUS
The next service due date is displayed.
To exit the display: press the back button
G on the steering wheel.
Bear in mind the following related topic:
= Operating the on-board computer
(  page 245).
Information on regular maintenance work
*NOTE Premature wear through failure to
observe service due dates
Maintenance work which is not carried out at
the right time or incompletely can lead to
increased wear and damage to the vehicle.
Adhere to the prescribed service inter- vals.Always have the prescribed maintenance
work carried out at a qualiNed specialist
workshop.
Notes on special service requirements
The prescribed service interval is based on nor-
mal operation of the vehicle. Have the mainte-
nance work carried out more osen than prescri-
bed if operating conditions are diPcult or the
vehicle is subject to increased stress.
The ASSYST PLUS service interval display is only an aid. It is the responsibility of the driver of the vehicle to have maintenance work carried out
more osen than prescribed due to actual operat-
ing conditions and/or stresses.
Examples of arduous operating conditions:
= Regular city driving with frequent intermediate
stops
= Mainly short-distance driving
= Frequent operation in mountainous terrain or
on poor road surfaces
296Maintenance and care

=When the engine is osen les idling for long
periods
= Operation in particularly dusty conditions
and/or if air-recirculation mode is frequently
used
In these or similar operating conditions, have the
interior air Nlter, air Nlter, engine oil and oil Nlter,
for example, changed more frequently. If subject
to increased stress, check the tires more. Further
information can be obtained at a qualiNed special-
ist workshop.
Battery disconnection periods
The ASSYST PLUS service interval display can cal-
culate the service due date only when the battery is connected.
Display and note down the service due date
on the instrument display before disconnect-
ing the battery (  page 296).Maintenance Management
Notes about Maintenance Management
If the Maintenance Management service is activa-
ted, relevant data is automatically transferred to
the Mercedes-Benz customer center.
The customer center transmits the data to the
service partner that you have entered on the Mercedes me website at: http://
www.mercedes.me. You will then receive individ-
ual recommendations regarding the maintenance of your vehicle.
\bThe calculation of the optimal transmission
time of the maintenance request to the service partner is subject to technical limita-
tions that may cause the maintenance recom-
mendation to be perceived as too early or too
late or not to be made at all. In this case, you
can conveniently arrange a maintenance
appointment with the customer center via the
maintenance reminder in the multimedia sys-
tem.\bMaintenance Management and the mainte-
nance reminder in the multimedia system are not available in every country. Contact anauthorized Mercedes-Benz Center to Nnd out
whether this function is available in your coun-
try.
Data transferred when using Maintenance Man-
agement
When the service is activated, relevant data is
automatically transferred to determine the
required scope of maintenance as well as mal-
function detection and malfunction rectiNcation.
Details on data transfer can be found in the data protection information for the Mercedes me con-
nect services. These can be found at: https://
www.mercedes.me under "My Mercedes me
account", "Terms of use".
\bMaintenance Management and the mainte-
nance reminder in the multimedia system are not available in every country.
Telediagnosis
Notes about Telediagnosis

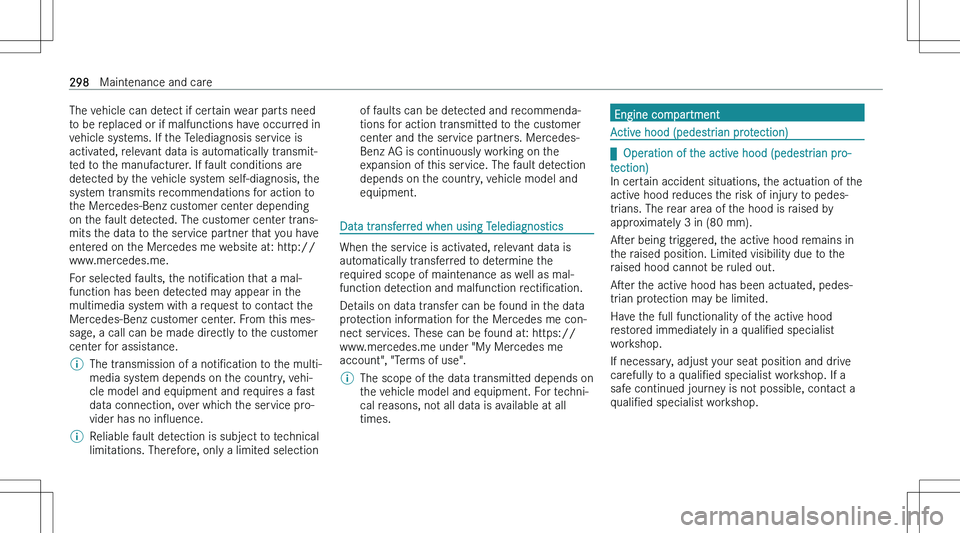

\bThis service is not available in all countries.Maintenance and care297

The vehicle can detect if certain wear parts need
to be replaced or if malfunctions have occurred in
vehicle systems. If the Telediagnosis service is activated, relevant data is automatically transmit-
ted to the manufacturer. If fault conditions are
detected by the vehicle system self-diagnosis, the system transmits recommendations for action to
the Mercedes-Benz customer center depending on the fault detected. The customer center trans-
mits the data to the service partner that you have entered on the Mercedes me website at: http://
www.mercedes.me.
For selected faults, the notiNcation that a mal-
function has been detected may appear in the multimedia system with a request to contact the
Mercedes-Benz customer center. From this mes- sage, a call can be made directly to the customercenter for assistance.\bThe transmission of a notiNcation to the multi-
media system depends on the country, vehi- cle model and equipment and requires a fast
data connection, over which the service pro-
vider has no inOuence.\bReliable fault detection is subject to technical
limitations. Therefore, only a limited selectionof faults can be detected and recommenda-tions for action transmitted to the customer
center and the service partners. Mercedes- Benz AG is continuously working on theexpansion of this service. The fault detection
depends on the country, vehicle model and equipment.
Data transferred when using Telediagnostics
When the service is activated, relevant data is
automatically transferred to determine the
required scope of maintenance as well as mal-
function detection and malfunction rectiNcation.
Details on data transfer can be found in the data protection information for the Mercedes me con-
nect services. These can be found at: https://
www.mercedes.me under "My Mercedes me
account", "Terms of use".
\bThe scope of the data transmitted depends on
the vehicle model and equipment. For techni-
cal reasons, not all data is available at all
times.Engine compartment
Active hood (pedestrian protection)

q Operation of the active hood (pedestrian pro-
tection)
In certain accident situations, the actuation of the active hood reduces the risk of injury to pedes-
trians. The rear area of the hood is raised by approximately 3 in (80 mm).
Aser being triggered, the active hood remains in
the raised position. Limited visibility due to the raised hood cannot be ruled out.
Aser the active hood has been actuated, pedes-
trian protection may be limited.
Have the full functionality of the active hood restored immediately in a qualiNed specialist
workshop.
If necessary, adjust your seat position and drive carefully to a qualiNed specialist workshop. If a
safe continued journey is not possible, contact a
qualiNed specialist workshop.
298Maintenance and care

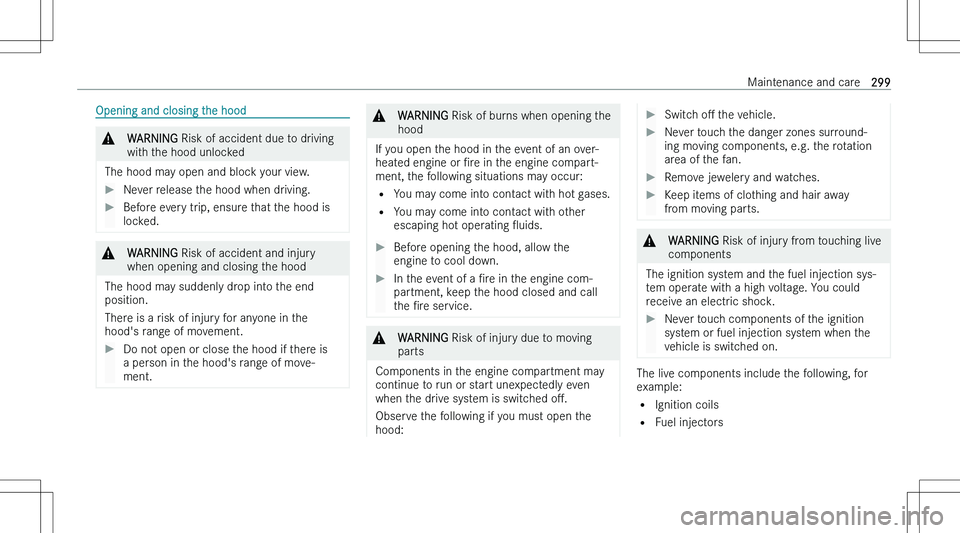

Opening and closing the hood&WARNING Risk of accident due to driving
with the hood unlocked
The hood may open and block your view.
Never release the hood when driving.Before every trip, ensure that the hood is
locked.&WARNING Risk of accident and injury
when opening and closing the hood
The hood may suddenly drop into the end position.
There is a risk of injury for anyone in the
hood\bs range of movement.
Do not open or close the hood if there is a person in the hood\bs range of move-
ment.&WARNING Risk of burns when opening the
hood
If you open the hood in the event of an over- heated engine or Nre in the engine compart-
ment, the following situations may occur:
= You may come into contact with hot gases.
= You may come into contact with other
escaping hot operating Ouids.
Before opening the hood, allow the
engine to cool down.In the event of a Nre in the engine com-
partment, keep the hood closed and call
the Nre service.&WARNING Risk of injury due to moving
parts
Components in the engine compartment may continue to run or start unexpectedly even
when the drive system is switched oM.
Observe the following if you must open the
hood:
Switch oM the vehicle.Never touch the danger zones surround-
ing moving components, e.g. the rotation
area of the fan.Remove jewelery and watches.Keep items of clothing and hair away from moving parts.&WARNING Risk of injury from touching live
components
The ignition system and the fuel injection sys- tem operate with a high voltage. You could
receive an electric shock.
Never touch components of the ignition
system or fuel injection system when the vehicle is switched on.The live components include the following, for
example:
= Ignition coils
= Fuel injectorsMaintenance and care299

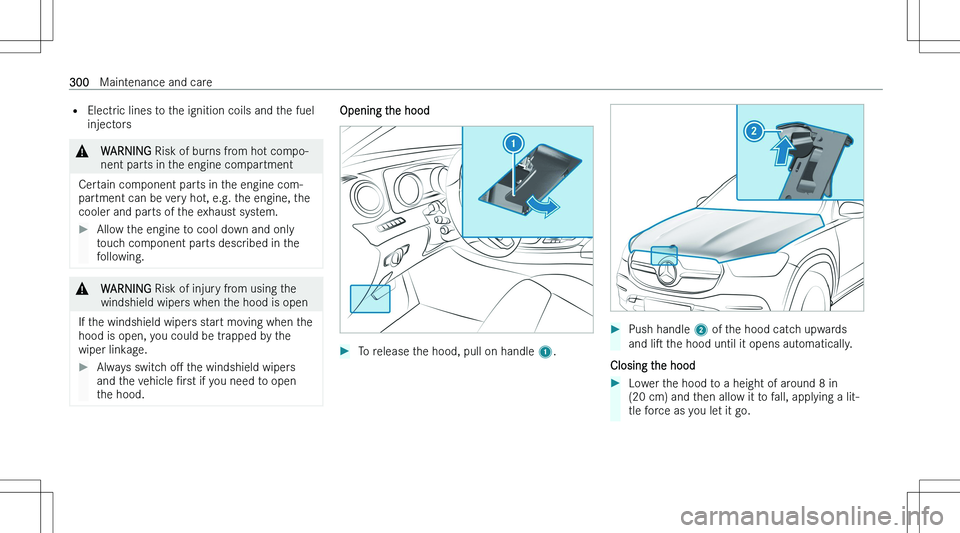

=Electric lines to the ignition coils and the fuel
injectors&WARNING Risk of burns from hot compo-
nent parts in the engine compartment
Certain component parts in the engine com-
partment can be very hot, e.g. the engine, the
cooler and parts of the exhaust system.
Allow the engine to cool down and only
touch component parts described in the
following.&WARNING Risk of injury from using the
windshield wipers when the hood is open
If the windshield wipers start moving when the
hood is open, you could be trapped by the wiper linkage.
Always switch oM the windshield wipers
and the vehicle Nrst if you need to open
the hood.Opening the hoodTo release the hood, pull on handle 1.Push handle 2 of the hood catch upwards
and lis the hood until it opens automatically.
Closing the hood
Lower the hood to a height of around 8 in
(20 cm) and then allow it to fall, applying a lit-
tle force as you let it go.300Maintenance and care

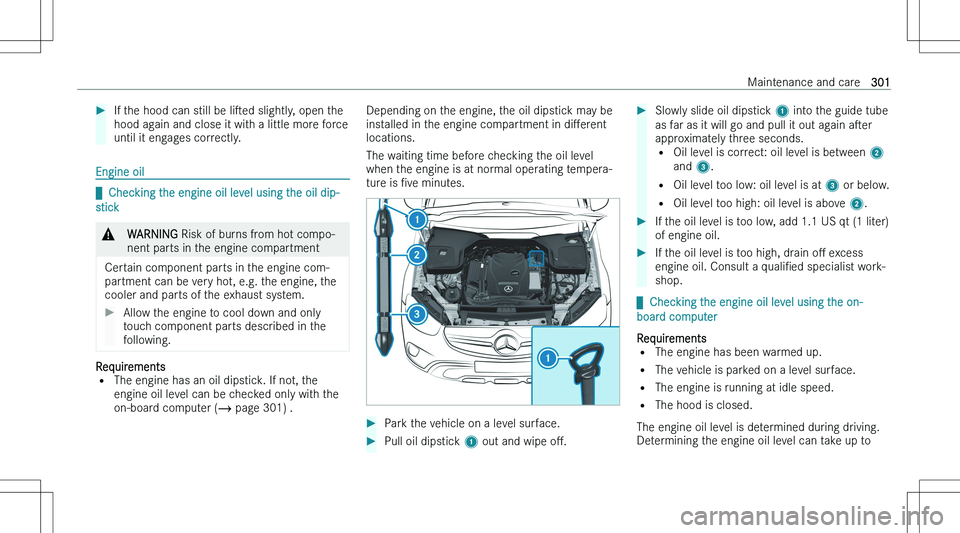

If the hood can still be lised slightly, open the
hood again and close it with a little more force
until it engages correctly.
Engine oil

q Checking the engine oil level using the oil dip-
stick
&WARNING Risk of burns from hot compo-
nent parts in the engine compartment
Certain component parts in the engine com-
partment can be very hot, e.g. the engine, the
cooler and parts of the exhaust system.
Allow the engine to cool down and only
touch component parts described in the
following.
Requirements
= The engine has an oil dipstick. If not, the
engine oil level can be checked only with the on-board computer (  page 301) .
Depending on the engine, the oil dipstick may be
installed in the engine compartment in diMerent
locations.
The waiting time before checking the oil level when the engine is at normal operating tempera-
ture is Nve minutes.Park the vehicle on a level surface.Pull oil dipstick 1 out and wipe oM.Slowly slide oil dipstick 1 into the guide tube
as far as it will go and pull it out again aser
approximately three seconds. = Oil level is correct: oil level is between 2
and 3.
= Oil level too low: oil level is at 3 or below.
= Oil level too high: oil level is above 2.If the oil level is too low, add 1.1 US qt (1 liter)
of engine oil.If the oil level is too high, drain oM excess
engine oil. Consult a qualiNed specialist work-
shop.

q Checking the engine oil level using the on-
board computer
Requirements
= The engine has been warmed up.
= The vehicle is parked on a level surface.
= The engine is running at idle speed.
= The hood is closed.
The engine oil level is determined during driving.
Determining the engine oil level can take up to
Maintenance and care301

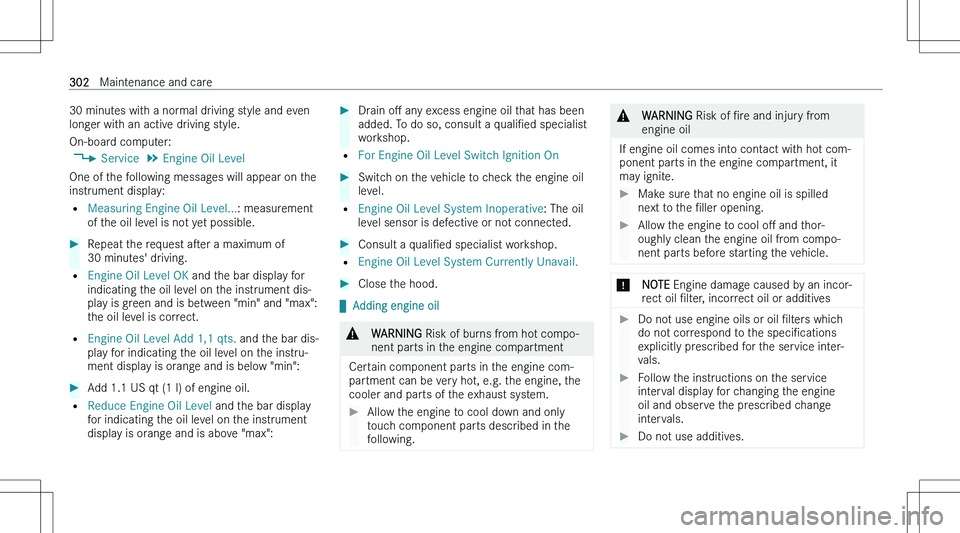

30 minutes with a normal driving style and evenlonger with an active driving style.
On-board computer: 4 Service 5
Engine Oil Level
One of the following messages will appear on the instrument display:
= Measuring Engine Oil Level... : measurement
of the oil level is not yet possible.Repeat the request aser a maximum of
30 minutes\b driving.
= Engine Oil Level OK and the bar display for
indicating the oil level on the instrument dis-
play is green and is between "min" and "max": the oil level is correct.
= Engine Oil Level Add 1,1 qts. and the bar dis-
play for indicating the oil level on the instru- ment display is orange and is below "min":
Add 1.1 US qt (1 l) of engine oil.
= Reduce Engine Oil Level and the bar display
for indicating the oil level on the instrument display is orange and is above "max":
Drain oM any excess engine oil that has been
added. To do so, consult a qualiNed specialist
workshop.
= For Engine Oil Level Switch Ignition On
Switch on the vehicle to check the engine oil
level.
= Engine Oil Level System Inoperative : The oil
level sensor is defective or not connected.
Consult a qualiNed specialist workshop.
=
Engine Oil Level System Currently Unavail.
Close the hood.

qAdding engine oil
&WARNING Risk of burns from hot compo-
nent parts in the engine compartment
Certain component parts in the engine com-
partment can be very hot, e.g. the engine, the
cooler and parts of the exhaust system.
Allow the engine to cool down and only
touch component parts described in the
following.&WARNING Risk of Nre and injury from
engine oil
If engine oil comes into contact with hot com- ponent parts in the engine compartment, it
may ignite.
Make sure that no engine oil is spilled next to the Nller opening.Allow the engine to cool oM and thor-
oughly clean the engine oil from compo-
nent parts before starting the vehicle.*NOTE Engine damage caused by an incor-
rect oil Nlter, incorrect oil or additivesDo not use engine oils or oil Nlters which
do not correspond to the speciNcations
explicitly prescribed for the service inter- vals.Follow the instructions on the service
interval display for changing the engine
oil and observe the prescribed change
intervals.Do not use additives.302Maintenance and care
