or covered in snow and an obstacle is detec-
ted in your lane, no lane-correcting brake
application takes place.

q Activating/deactivating Active Lane Keeping
Assist
Multimedia system:
4 © 5
Settings 5
Quick Access
5 Active Lane Keeping AssistActivate or deactivate the function.

qSetting Active Lane Keeping Assist
Multimedia system: 4 © 5
Settings 5
Assistance
5 Active Lane Keeping Assist
Activating or deactivating the haptic warning
Select Warning .

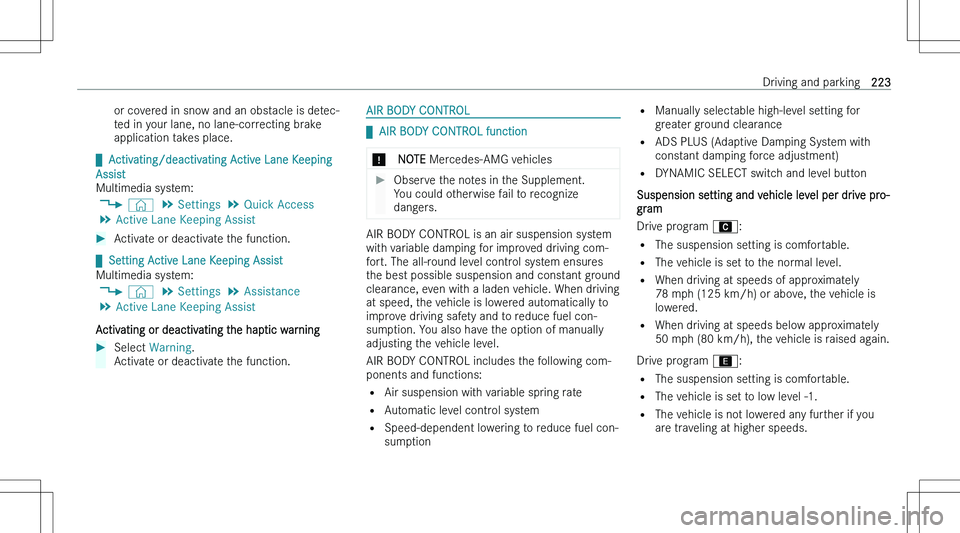

Activate or deactivate the function.AIR BODY CONTROL

q AIR BODY CONTROL function
*NOTE Mercedes-AMG vehiclesObserve the notes in the Supplement.
You could otherwise fail to recognize
dangers.
AIR BODY CONTROL is an air suspension system with variable damping for improved driving com-
fort. The all-round level control system ensures
the best possible suspension and constant ground
clearance, even with a laden vehicle. When driving
at speed, the vehicle is lowered automatically to
improve driving safety and to reduce fuel con-
sumption. You also have the option of manually
adjusting the vehicle level.
AIR BODY CONTROL includes the following com- ponents and functions:
= Air suspension with variable spring rate
= Automatic level control system
= Speed-dependent lowering to reduce fuel con-
sumption
= Manually selectable high-level setting for
greater ground clearance
= ADS PLUS (Adaptive Damping System with
constant damping force adjustment)
= DYNAMIC SELECT switch and level button
Suspension setting and vehicle level per drive pro-
gram
Drive program A:
= The suspension setting is comfortable.
= The vehicle is set to the normal level.
= When driving at speeds of approximately
78 mph (125 km/h) or above, the vehicle is lowered.
= When driving at speeds below approximately
50 mph (80 km/h), the vehicle is raised again.
Drive program :
= The suspension setting is comfortable.
= The vehicle is set to low level -1.
= The vehicle is not lowered any further if you
are traveling at higher speeds.Driving and parking223

Drive program C:
= The suspension setting is Nrmer.
= The vehicle is set to low level -1.
= The vehicle is not lowered any further if you
are traveling at higher speeds.

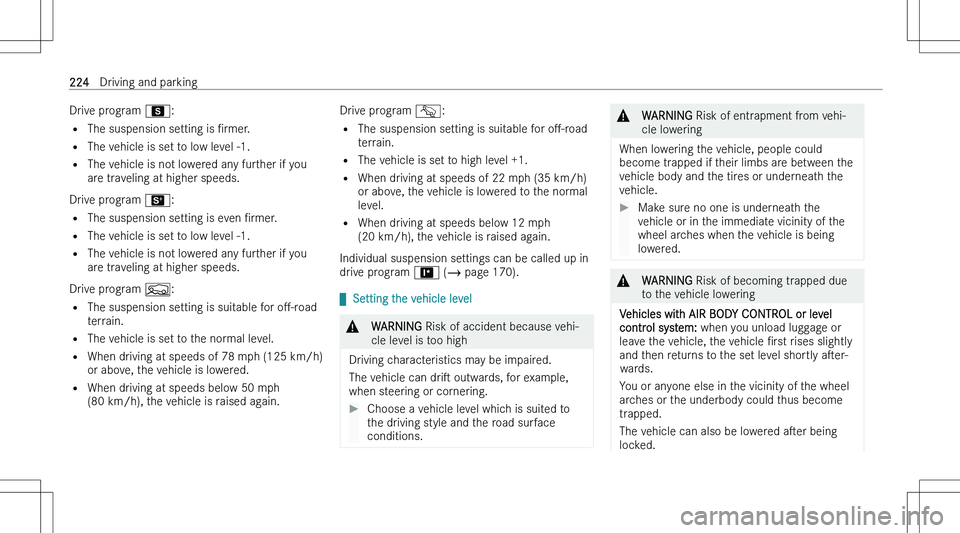

Drive program B:
= The suspension setting is even Nrmer.
= The vehicle is set to low level -1.
= The vehicle is not lowered any further if you
are traveling at higher speeds.
Drive program F:
= The suspension setting is suitable for oM-road
terrain.
= The vehicle is set to the normal level.
= When driving at speeds of 78 mph (125 km/h)
or above, the vehicle is lowered.
= When driving at speeds below 50 mph
(80 km/h), the vehicle is raised again.Drive program G:
= The suspension setting is suitable for oM-road
terrain.
= The vehicle is set to high level \f1.
= When driving at speeds of 22 mph (35 km/h)
or above, the vehicle is lowered to the normal level.
= When driving at speeds below 12 mph
(20 km/h), the vehicle is raised again.
Individual suspension settings can be called up in
drive program ( page 170).

q Setting the vehicle level&WARNING Risk of accident because vehi-
cle level is too high
Driving characteristics may be impaired.
The vehicle can dris outwards, for example,
when steering or cornering.
Choose a vehicle level which is suited to
the driving style and the road surface
conditions.&WARNING Risk of entrapment from vehi-
cle lowering
When lowering the vehicle, people could become trapped if their limbs are between the
vehicle body and the tires or underneath the vehicle.
Make sure no one is underneath the
vehicle or in the immediate vicinity of the wheel arches when the vehicle is being
lowered.&WARNING Risk of becoming trapped due
to the vehicle lowering
Vehicles with AIR BODY CONTROL or level
control system: when you unload luggage or
leave the vehicle, the vehicle Nrst rises slightly
and then returns to the set level shortly aser-
wards.
You or anyone else in the vicinity of the wheel arches or the underbody could thus becometrapped.
The vehicle can also be lowered aser being
locked.
224Driving and parking

When leaving the vehicle, make sure thatnobody is in the vicinity of the wheelarches or the underbody.*NOTE Damage due to vehicle lowering
Parts of the body could be damaged when the
vehicle is lowered.
Make sure that there are no obstacles such as curbs underneath or in the
immediate vicinity of the body when the
vehicle is being lowered.*NOTE Mercedes-AMG vehiclesObserve the notes in the Supplement.
You could otherwise fail to recognize
dangers.

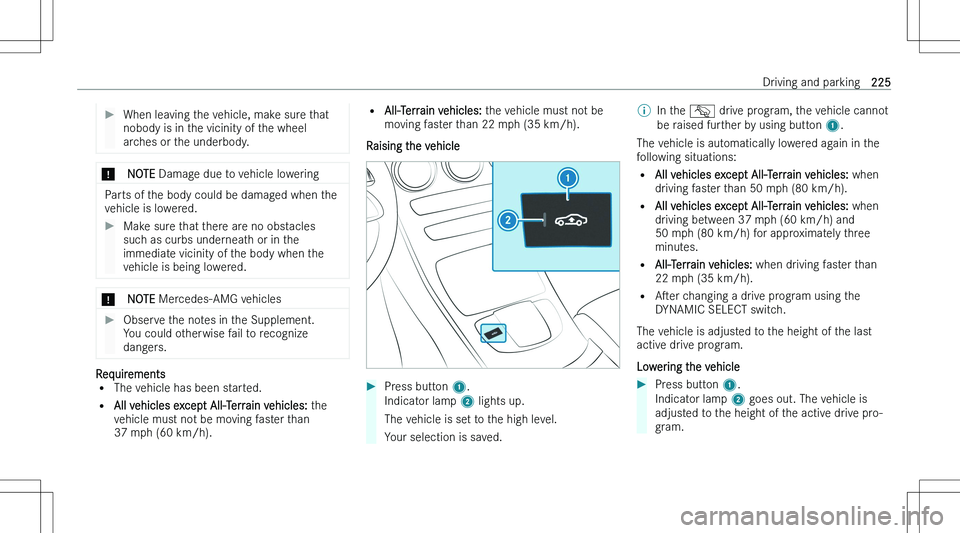

Requirements
= The vehicle has been started.
= All vehicles except All-Terrain vehicles: the
vehicle must not be moving faster than 37 mph (60 km/h).
= All-Terrain vehicles: the vehicle must not be
moving faster than 22 mph (35 km/h).
Raising the vehiclePress button 1.
Indicator lamp 2 lights up.
The vehicle is set to the high level.
Your selection is saved.\bIn the G drive program, the vehicle cannot
be raised further by using button 1.
The vehicle is automatically lowered again in the
following situations:
= All vehicles except All-Terrain vehicles: when
driving faster than 50 mph (80 km/h).
= All vehicles except All-Terrain vehicles: when
driving between 37 mph (60 km/h) and 50 mph (80 km/h) for approximately three
minutes.
= All-Terrain vehicles: when driving faster than
22 mph (35 km/h).
= Aser changing a drive program using the
DYNAMIC SELECT switch.
The vehicle is adjusted to the height of the last active drive program.
Lowering the vehicle
Press button 1.
Indicator lamp 2 goes out. The vehicle is
adjusted to the height of the active drive pro- gram.Driving and parking225

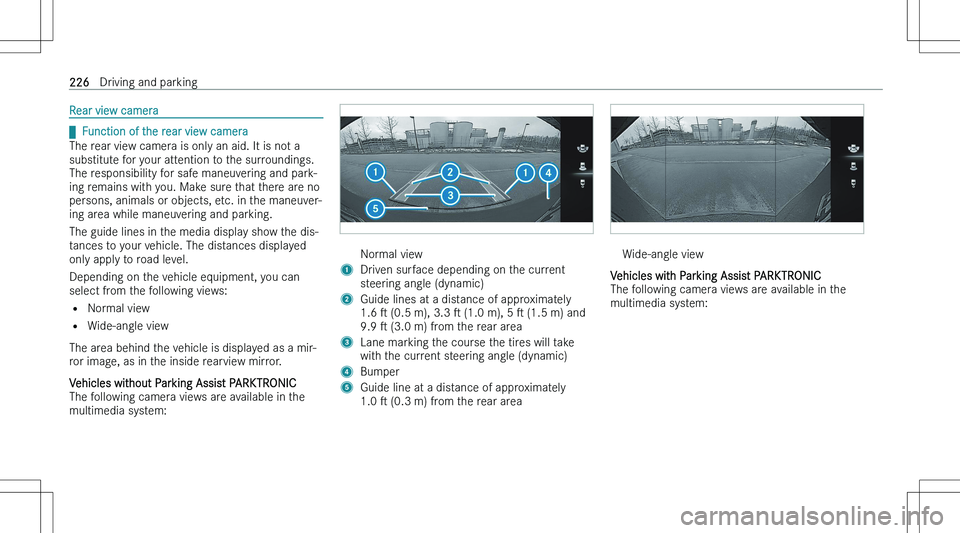

Rear view camera

qFunction of the rear view camera
The rear view camera is only an aid. It is not a
substitute for your attention to the surroundings. The responsibility for safe maneuvering and park-
ing remains with you. Make sure that there are no persons, animals or objects, etc. in the maneuver-ing area while maneuvering and parking.
The guide lines in the media display show the dis-
tances to your vehicle. The distances displayed
only apply to road level.
Depending on the vehicle equipment, you can
select from the following views:
= Normal view
= Wide-angle view
The area behind the vehicle is displayed as a mir- ror image, as in the inside rearview mirror.
Vehicles without Parking Assist PARKTRONICThe following camera views are available in the
multimedia system:
Normal view1Driven surface depending on the current
steering angle (dynamic)2Guide lines at a distance of approximately 1.6 s (0.5 m), 3.3 s (1.0 m), 5 s (1.5 m) and
9.9 s (3.0 m) from the rear area3Lane marking the course the tires will take
with the current steering angle (dynamic)4Bumper5Guide line at a distance of approximately
1.0 s (0.3 m) from the rear areaWide-angle view
Vehicles with Parking Assist PARKTRONIC
The following camera views are available in the
multimedia system:
226Driving and parking

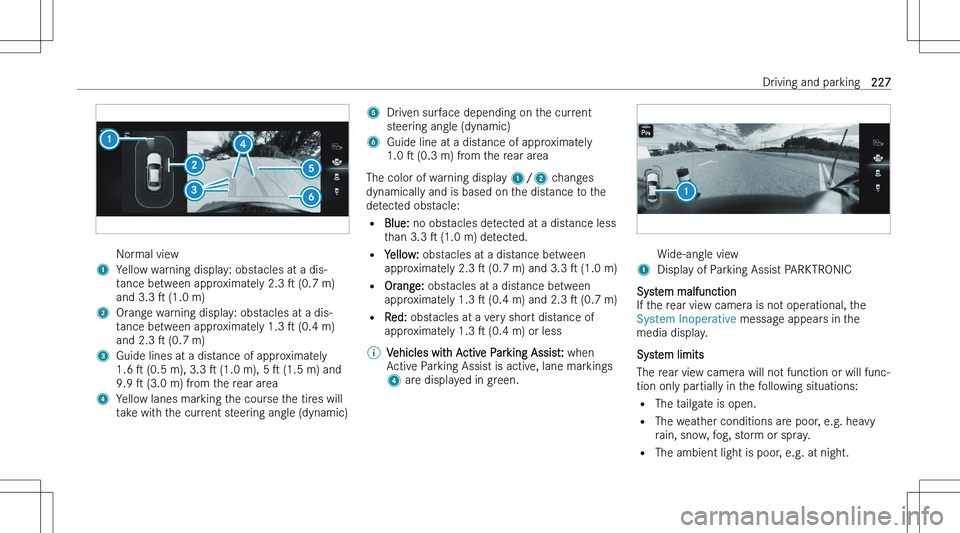

Normal view1Yellow warning display: obstacles at a dis-
tance between approximately 2.3 s (0.7 m)
and 3.3 s (1.0 m)2Orange warning display: obstacles at a dis-
tance between approximately 1.3 s (0.4 m)
and 2.3 s (0.7 m)3Guide lines at a distance of approximately
1.6 s (0.5 m), 3.3 s (1.0 m), 5 s (1.5 m) and
9.9 s (3.0 m) from the rear area4Yellow lanes marking the course the tires will
take with the current steering angle (dynamic)5Driven surface depending on the current
steering angle (dynamic)6Guide line at a distance of approximately
1.0 s (0.3 m) from the rear area
The color of warning display 1/2 changes
dynamically and is based on the distance to the detected obstacle:
= Blue: no obstacles detected at a distance less
than 3.3 s (1.0 m) detected.
= Yellow: obstacles at a distance between
approximately 2.3 s (0.7 m) and 3.3 s (1.0 m)
= Orange: obstacles at a distance between
approximately 1.3 s (0.4 m) and 2.3 s (0.7 m)
= Red: obstacles at a very short distance of
approximately 1.3 s (0.4 m) or less
\bVehicles with Active Parking Assist: when
Active Parking Assist is active, lane markings
4 are displayed in green.Wide-angle view1Display of Parking Assist PARKTRONIC
System malfunction
If the rear view camera is not operational, the
System Inoperative message appears in the
media display.
System limits
The rear view camera will not function or will func-
tion only partially in the following situations:
= The tailgate is open.
= The weather conditions are poor, e.g. heavy
rain, snow, fog, storm or spray.
= The ambient light is poor, e.g. at night.
Driving and parking227

=Cameras, or vehicle components in which the
cameras are installed, are damaged, dirty or
covered. Observe the information on vehicle
sensors and cameras (  page 186).\bDo not use the rear view camera in these
types of situations. You could otherwise injure
others or collide with objects when parking
the vehicle.\bThe contrast of the display may be impaired
by direct sunlight or by other light sources, e.g. when driving out of a garage. In this case,
pay particular attention.\bHave the display repaired or replaced if, forexample, pixel errors considerably restrict
its use.

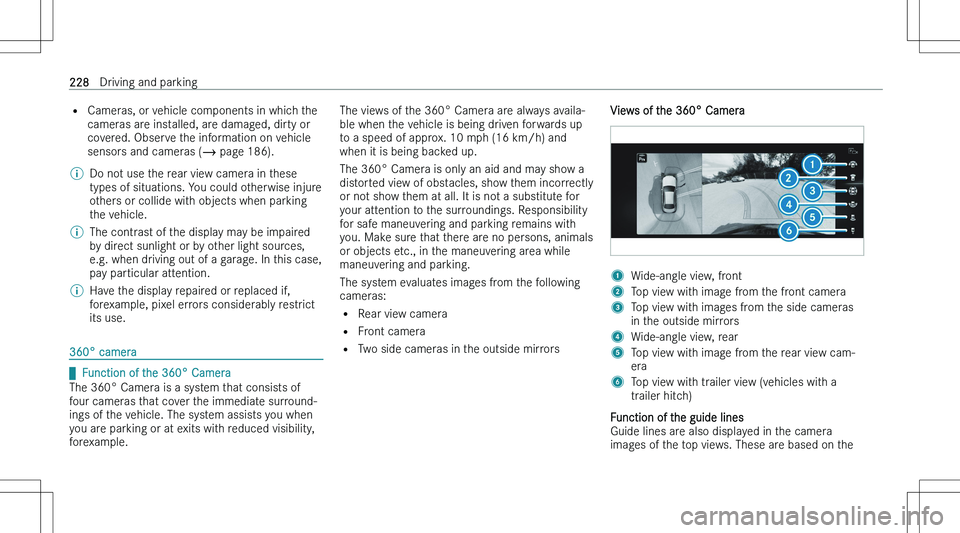

360° camera

q Function of the 360° Camera
The 360° Camera is a system that consists of
four cameras that cover the immediate surround- ings of the vehicle. The system assists you whenyou are parking or at exits with reduced visibility,forexample.
The views of the 360° Camera are always availa-ble when the vehicle is being driven forwards up
to a speed of approx. 10 mph (16 km/h) and when it is being backed up.
The 360° Camera is only an aid and may show a
distorted view of obstacles, show them incorrectly
or not show them at all. It is not a substitute for
your attention to the surroundings. Responsibility
for safe maneuvering and parking remains with you. Make sure that there are no persons, animals
or objects etc., in the maneuvering area while
maneuvering and parking.
The system evaluates images from the following
cameras:
= Rear view camera
= Front camera
= Two side cameras in the outside mirrorsViews of the 360° Camera1Wide-angle view, front2Top view with image from the front camera3Top view with images from the side cameras
in the outside mirrors4Wide-angle view, rear5Top view with image from the rear view cam- era6Top view with trailer view (vehicles with a
trailer hitch)

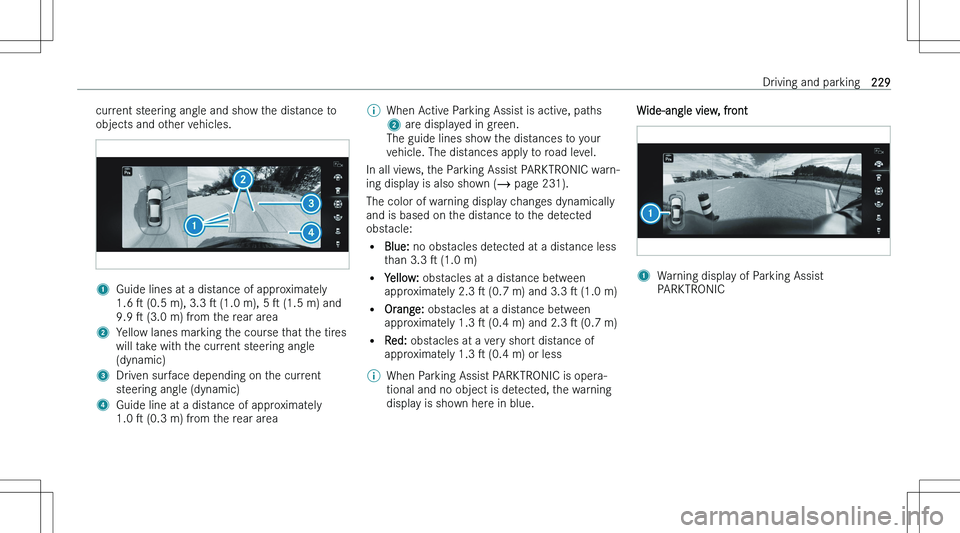

Function of the guide lines
Guide lines are also displayed in the camera
images of the top views. These are based on the
228Driving and parking

current steering angle and show the distance to
objects and other vehicles.1Guide lines at a distance of approximately 1.6 s (0.5 m), 3.3 s (1.0 m), 5 s (1.5 m) and
9.9 s (3.0 m) from the rear area2Yellow lanes marking the course that the tires
will take with the current steering angle
(dynamic)3Driven surface depending on the current
steering angle (dynamic)4Guide line at a distance of approximately
1.0 s (0.3 m) from the rear area\bWhen Active Parking Assist is active, paths
2 are displayed in green.
The guide lines show the distances to your
vehicle. The distances apply to road level.
In all views, the Parking Assist PARKTRONIC warn-
ing display is also shown (  page 231).
The color of warning display changes dynamically and is based on the distance to the detected
obstacle:
= Blue: no obstacles detected at a distance less
than 3.3 s (1.0 m)
= Yellow: obstacles at a distance between
approximately 2.3 s (0.7 m) and 3.3 s (1.0 m)
= Orange: obstacles at a distance between
approximately 1.3 s (0.4 m) and 2.3 s (0.7 m)
= Red: obstacles at a very short distance of
approximately 1.3 s (0.4 m) or less
\bWhen Parking Assist PARKTRONIC is opera-
tional and no object is detected, the warning display is shown here in blue.Wide-angle view, front1Warning display of Parking Assist
PARKTRONICDriving and parking229

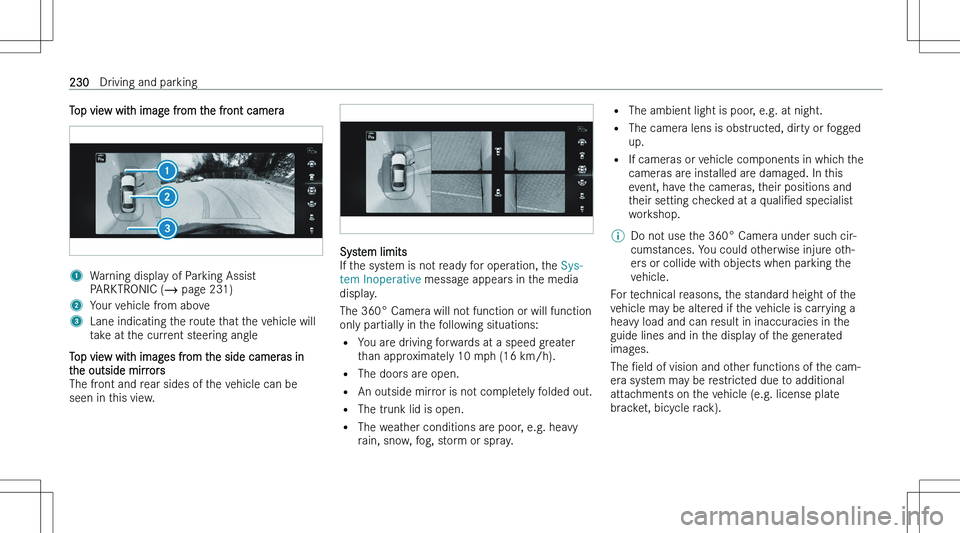

Top view with image from the front camera1Warning display of Parking Assist
PARKTRONIC (  page 231)2Your vehicle from above3Lane indicating the route that the vehicle will
take at the current steering angle
Top view with images from the side cameras in
the outside mirrors
The front and rear sides of the vehicle can be
seen in this view.
System limits
If the system is not ready for operation, the Sys-
tem Inoperative message appears in the media
display.
The 360° Camera will not function or will function
only partially in the following situations:
= You are driving forwards at a speed greater
than approximately 10 mph (16 km/h).
= The doors are open.
= An outside mirror is not completely folded out.
= The trunk lid is open.
= The weather conditions are poor, e.g. heavy
rain, snow, fog, storm or spray.
= The ambient light is poor, e.g. at night.
= The camera lens is obstructed, dirty or fogged
up.
= If cameras or vehicle components in which the
cameras are installed are damaged. In this event, have the cameras, their positions andtheir setting checked at a qualiNed specialist
workshop.\bDo not use the 360° Camera under such cir-
cumstances. You could otherwise injure oth-
ers or collide with objects when parking the vehicle.
For technical reasons, the standard height of thevehicle may be altered if the vehicle is carrying a
heavy load and can result in inaccuracies in the
guide lines and in the display of the generated
images.
The Neld of vision and other functions of the cam-
era system may be restricted due to additional attachments on the vehicle (e.g. license plate
bracket, bicycle rack).
230Driving and parking
