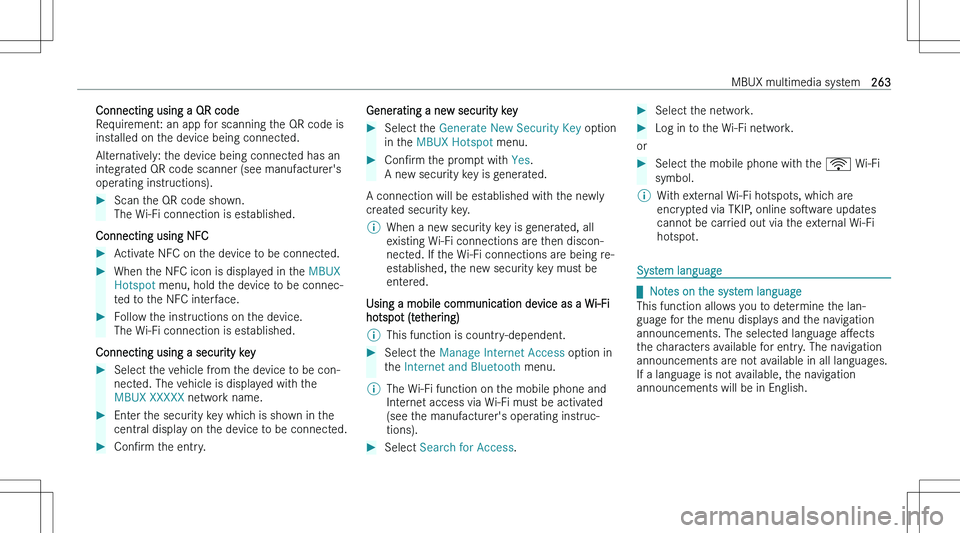

Connecting using a QR code
Requirement: an app for scanning the QR code is
installed on the device being connected.
Alternatively: the device being connected has an
integrated QR code scanner (see manufacturer\bs
operating instructions).Scan the QR code shown.
The Wi-Fi connection is established.
Connecting using NFC
Activate NFC on the device to be connected.When the NFC icon is displayed in the MBUX
Hotspot menu, hold the device to be connec-
ted to the NFC interface.Follow the instructions on the device.
The Wi-Fi connection is established.
Connecting using a security key
Select the vehicle from the device to be con- nected. The vehicle is displayed with the
MBUX XXXXX network name.Enter the security key which is shown in the
central display on the device to be connected.ConNrm the entry.Generating a new security keySelect the Generate New Security Key option
in the MBUX Hotspot menu.ConNrm the prompt with Yes.
A new security key is generated.
A connection will be established with the newly created security key.
\bWhen a new security key is generated, all
existing Wi-Fi connections are then discon-
nected. If the Wi-Fi connections are being re-
established, the new security key must be
entered.
Using a mobile communication device as a Wi-Fi hotspot (tethering)
\bThis function is country-dependent.Select the Manage Internet Access option in
the Internet and Bluetooth menu.\bThe Wi-Fi function on the mobile phone and
Internet access via Wi-Fi must be activated
(see the manufacturer\bs operating instruc-
tions).Select Search for Access .Select the network.Log in to the Wi-Fi network.
or
Select the mobile phone with the

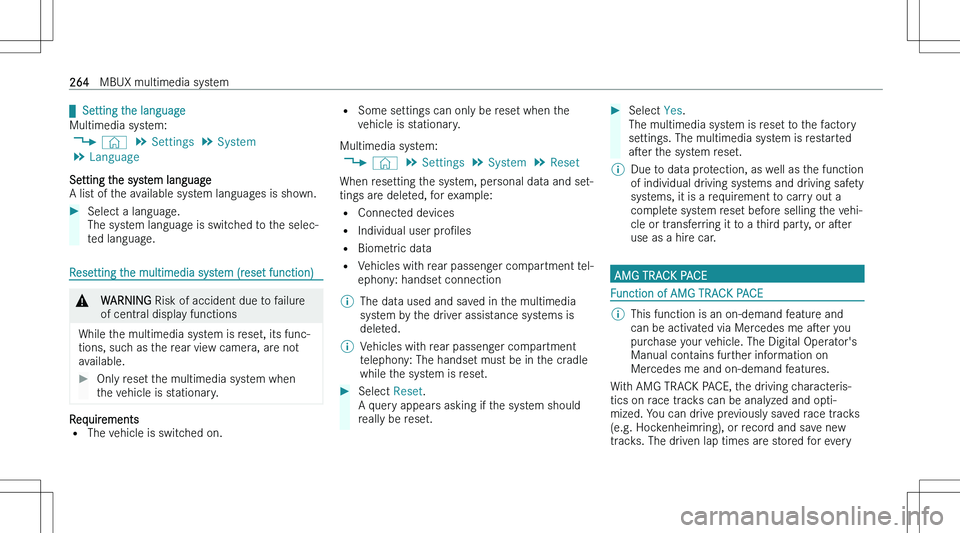

qSetting the language
Multimedia system: 4 © 5
Settings 5
System
5 Language
Setting the system language
A list of the available system languages is shown.Select a language.
The system language is switched to the selec-
ted language.
Resetting the multimedia system (reset function)
&WARNING Risk of accident due to failure
of central display functions
While the multimedia system is reset, its func-
tions, such as the rear view camera, are not
available.
Only reset the multimedia system when
the vehicle is stationary.
Requirements
= The vehicle is switched on.
=Some settings can only be reset when the
vehicle is stationary.
Multimedia system: 4 © 5
Settings 5
System 5
Reset
When resetting the system, personal data and set-
tings are deleted, for example:
= Connected devices
= Individual user proNles
= Biometric data
= Vehicles with rear passenger compartment tel-
ephony: handset connection\bThe data used and saved in the multimedia
system by the driver assistance systems is
deleted.\bVehicles with rear passenger compartment
telephony: The handset must be in the cradle
while the system is reset.Select Reset.
A query appears asking if the system should
really be reset.Select Yes.
The multimedia system is reset to the factory settings. The multimedia system is restarted
aser the system reset.\bDue to data protection, as well as the function
of individual driving systems and driving safety
systems, it is a requirement to carry out a
complete system reset before selling the vehi-
cle or transferring it to a third party, or aser
use as a hire car.
AMG TRACK PACE
Function of AMG TRACK PACE
\bThis function is an on-demand feature and
can be activated via Mercedes me aser you
purchase your vehicle. The Digital Operator\bs
Manual contains further information on
Mercedes me and on-demand features.

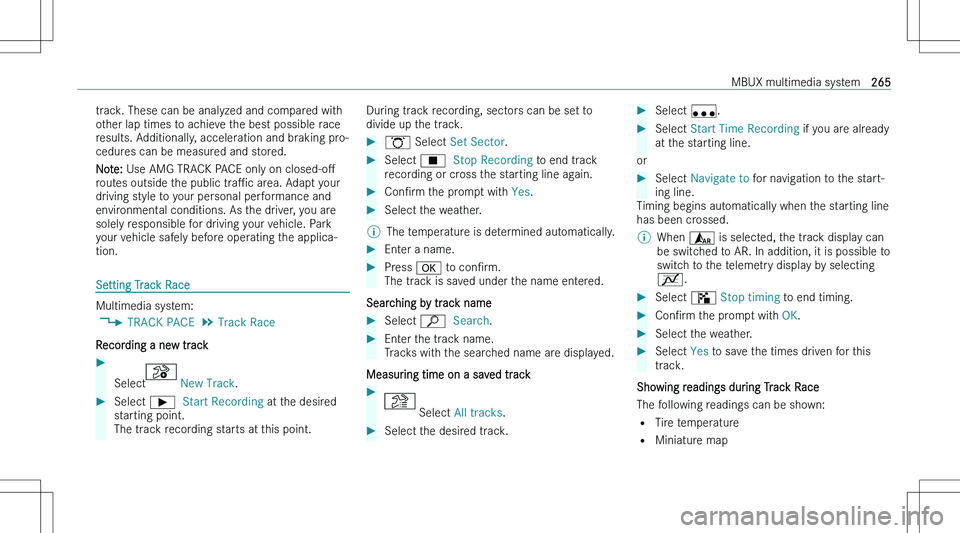

With AMG TRACK PACE, the driving characteris-
tics on race tracks can be analyzed and opti- mized. You can drive previously saved race tracks
(e.g. Hockenheimring), or record and save new tracks. The driven lap times are stored for every
264MBUX multimedia system

track. These can be analyzed and compared with
other lap times to achieve the best possible race
results. Additionally, acceleration and braking pro-
cedures can be measured and stored.
Note: Use AMG TRACK PACE only on closed-oM
routes outside the public traPc area. Adapt your
driving style to your personal performance and
environmental conditions. As the driver, you are
solely responsible for driving your vehicle. Park your vehicle safely before operating the applica-
tion.
Setting Track Race
Multimedia system:
4 TRACK PACE 5
Track Race
Recording a new track

Select New Track .
Select

=Sector overview
= Engine data
= G-force display
= Lap overviewSelect ï Start Time Recording .
Select .
Drag the desired display from the grid on the
les or right edge of the central display.
The readings are shown during the Track
Race.
By selecting

=Longitudinal/lateral acceleration
= Steering angle
= Engine speed
= Engine oil/tire temperature
Based on the analysis, you can check and opti-
mize the driving behavior for any position on the
track.
Exporting tracks (USB)
Select õ Tracks .
An overview of all stored tracks appears.Select the desired track.Select options W for the desired track.Select Export Track to

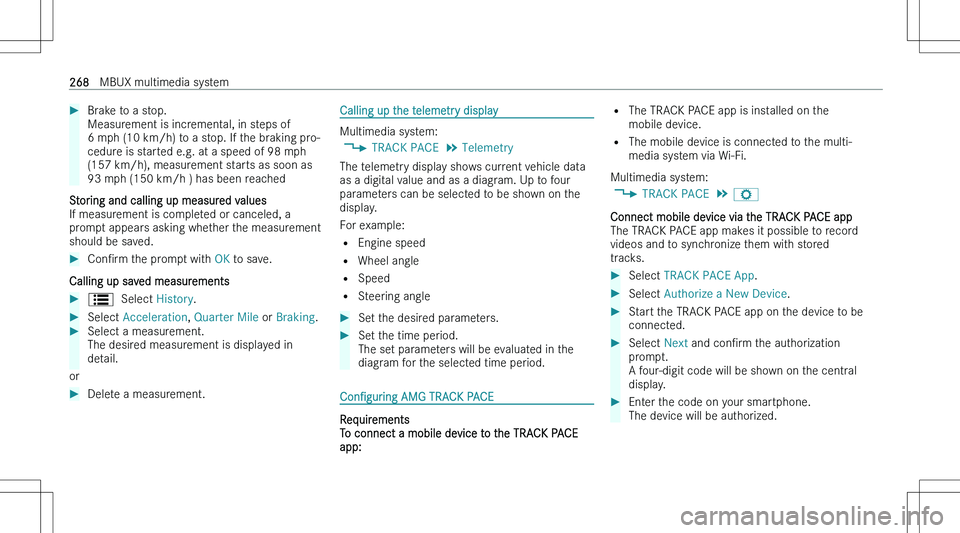

Brake to a stop.
Measurement is incremental, in steps of
6 mph (10 km/h) to a stop. If the braking pro-
cedure is started e.g. at a speed of 98 mph
(157 km/h), measurement starts as soon as 93 mph (150 km/h ) has been reached
Storing and calling up measured values
If measurement is completed or canceled, a
prompt appears asking whether the measurement
should be saved.
ConNrm the prompt with OK to save.
Calling up saved measurements

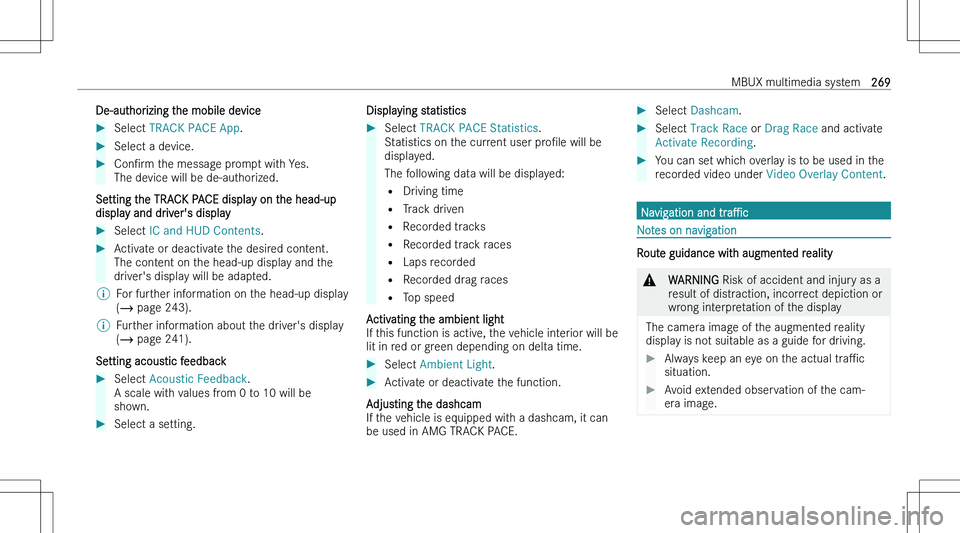

De-authorizing the mobile deviceSelect TRACK PACE App .Select a device.ConNrm the message prompt with Yes.
The device will be de-authorized.
Setting the TRACK PACE display on the head-up
display and driver\bs display
Select IC and HUD Contents .Activate or deactivate the desired content.
The content on the head-up display and the
driver\bs display will be adapted.\bFor further information on the head-up display (  page 243).\bFurther information about the driver\bs display
(  page 241).
Setting acoustic feedback
Select Acoustic Feedback .
A scale with values from 0 to 10 will be
shown.Select a setting.Displaying statisticsSelect TRACK PACE Statistics .
Statistics on the current user proNle will be
displayed.
The following data will be displayed:
= Driving time
= Track driven
= Recorded tracks
= Recorded track races
= Laps recorded
= Recorded drag races
= Top speed
Activating the ambient light
If this function is active, the vehicle interior will be
lit in red or green depending on delta time.
Select Ambient Light .Activate or deactivate the function.
Adjusting the dashcam
If the vehicle is equipped with a dashcam, it can be used in AMG TRACK PACE.
Select Dashcam .Select Track Race or Drag Race and activate
Activate Recording .You can set which overlay is to be used in the
recorded video under Video Overlay Content .
Navigation and traPc
Notes on navigation
Route guidance with augmented reality
&WARNING Risk of accident and injury as a
result of distraction, incorrect depiction or
wrong interpretation of the display
The camera image of the augmented reality
display is not suitable as a guide for driving.
Always keep an eye on the actual traPc
situation.Avoid extended observation of the cam-
era image.MBUX multimedia system269

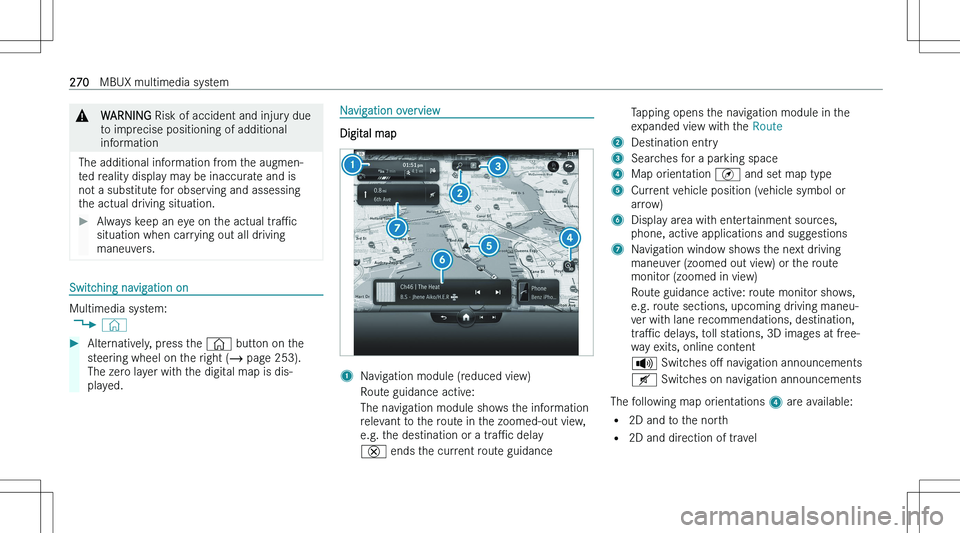

&WARNING Risk of accident and injury due
to imprecise positioning of additional
information
The additional information from the augmen-
ted reality display may be inaccurate and is not a substitute for observing and assessing
the actual driving situation.
Always keep an eye on the actual traPc
situation when carrying out all driving
maneuvers.
Switching navigation on
Multimedia system:
4 ©
Alternatively, press the © button on the
steering wheel on the right (  page 253).
The zero layer with the digital map is dis-
played.Navigation overview
Digital map
1Navigation module (reduced view)Route guidance active:The navigation module shows the information
relevant to the route in the zoomed-out view, e.g. the destination or a traPc delay{ ends the current route guidanceTapping opens the navigation module in the
expanded view with the Route2Destination entry3Searches for a parking space4Map orientation
